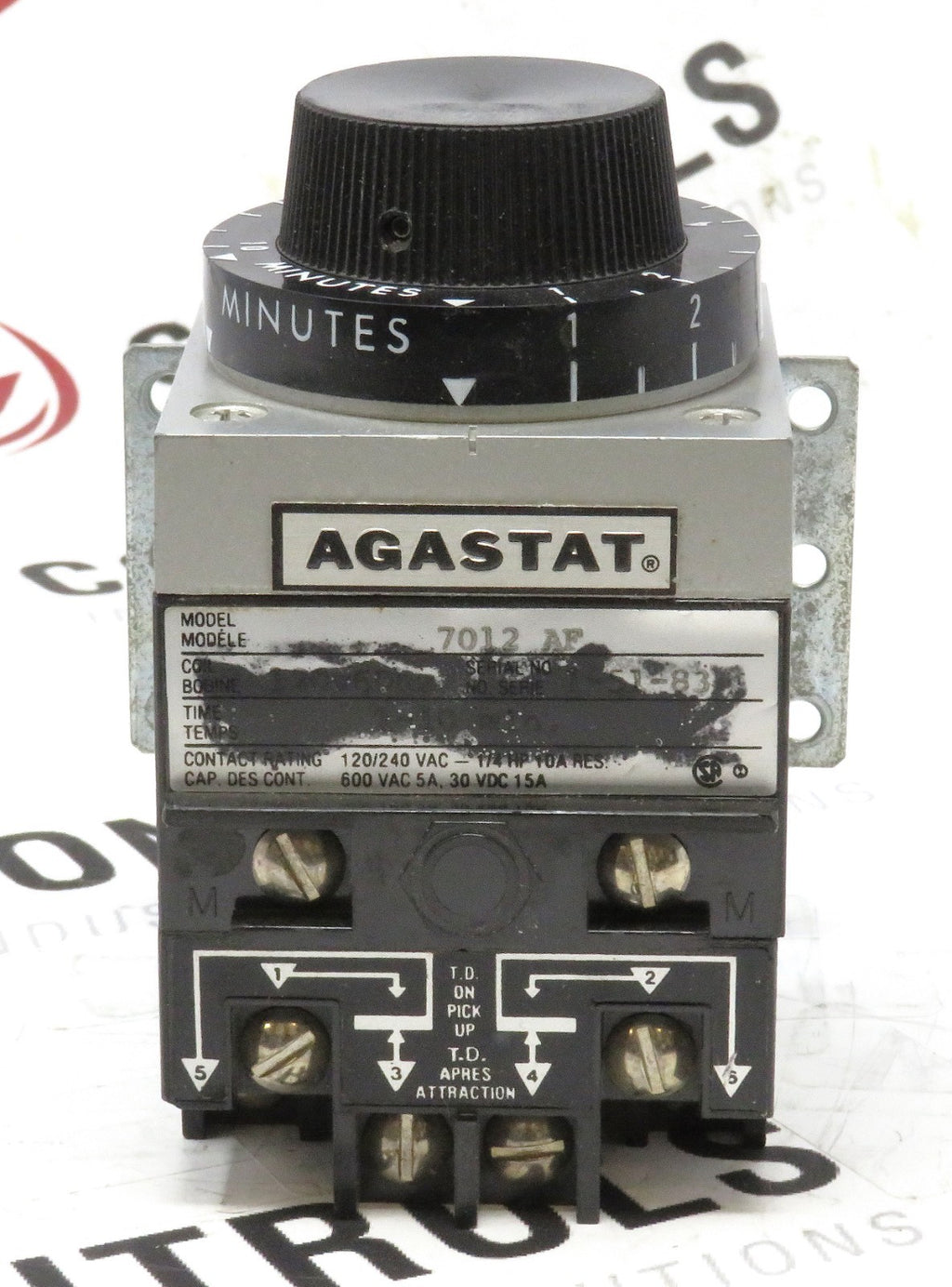

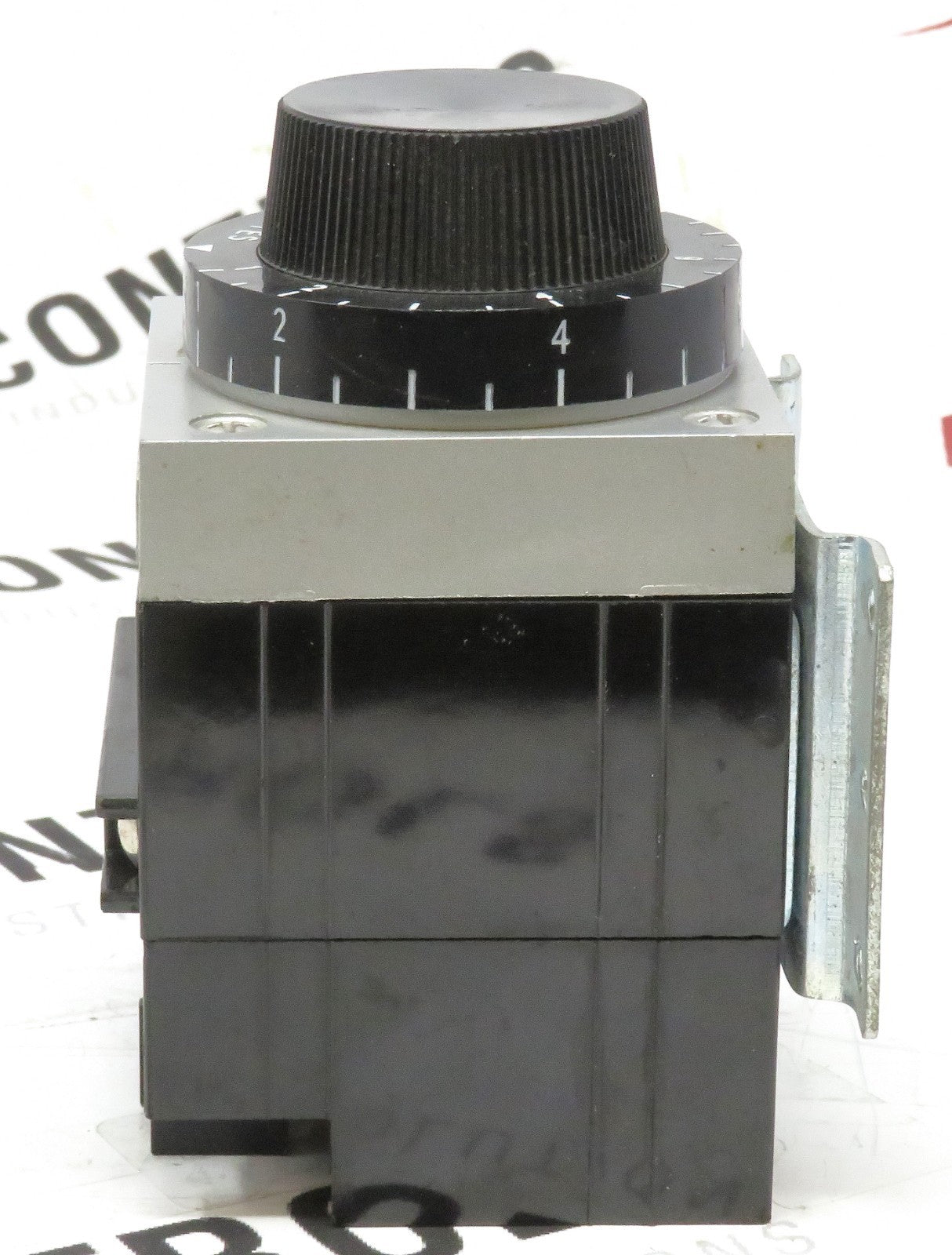

Agastat Time Delay Relay
Product Basic Information:
- Manufacturer/Parent Corporation: Agastat (a brand of TE Connectivity)
- Part Number(s): 7012AF / 7012-AF
- Product Family/Series: 7000 Series
Technical Specifications:
- Function Type: On-Delay, Electropneumatic Time Delay Relay
- Contacts: 2PDT (Double Pole Double Throw)
- Coil Voltage: 110/120 VAC
- Frequency: 50/60 Hz
- Time Delay Range: Adjustable, 1–10 minutes
- Contact Ratings:
- 120/240 VAC: 1/4 HP, 10A resistive load
- 600 VAC: 5A
- 30 VDC: 15A

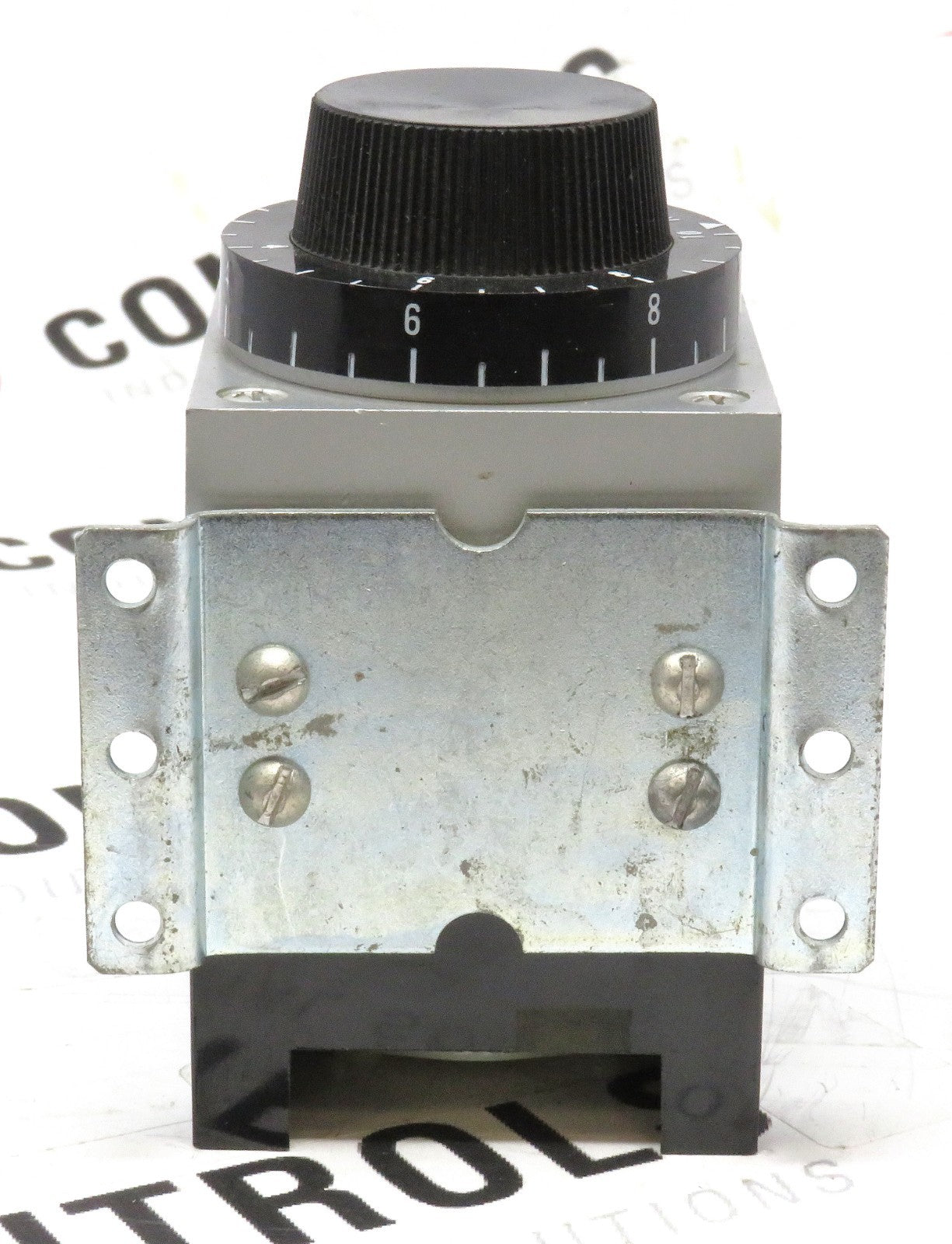

- Mounting: Panel/DIN mount with front bracket
- Mechanical Life: High reliability, electropneumatic mechanism

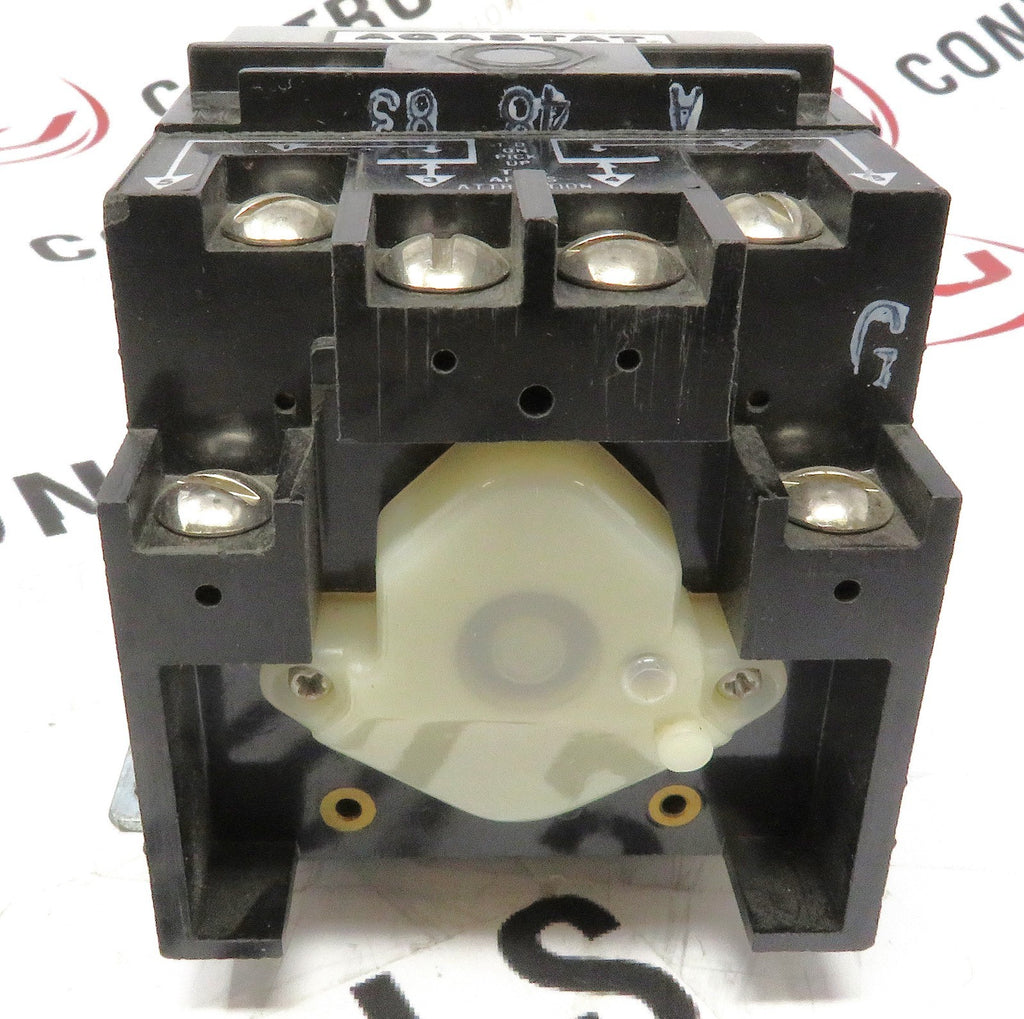

- Terminal Type: Screw clamp terminals
Product Features:
- Electropneumatic time delay with adjustable front dial (knob range 1–10 minutes).
- High accuracy repeatability due to pneumatic damping.
- Compact industrial design for control panels.
- Simple front-panel knob for quick time range adjustment.
- Rugged construction, suited for harsh industrial environments.
Product Designed Use:
- Used in industrial automation and process control systems.
- Provides on-delay timing in circuits for motors, relays, and automation equipment.
- Common in motor control centers (MCCs), conveyors, and sequential machine operations.
- Applications include delay start sequences, overload protection coordination, and process interlocks.
