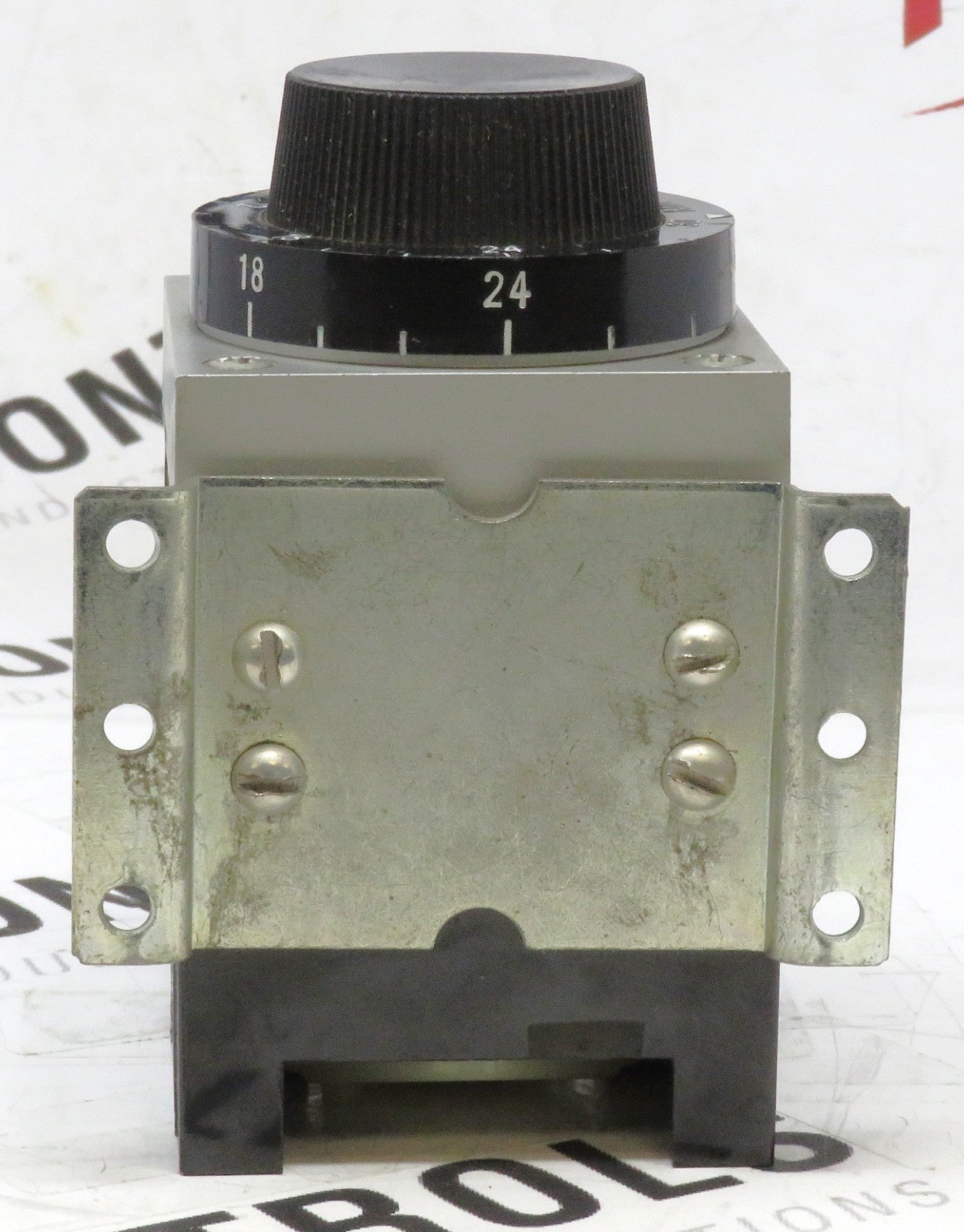

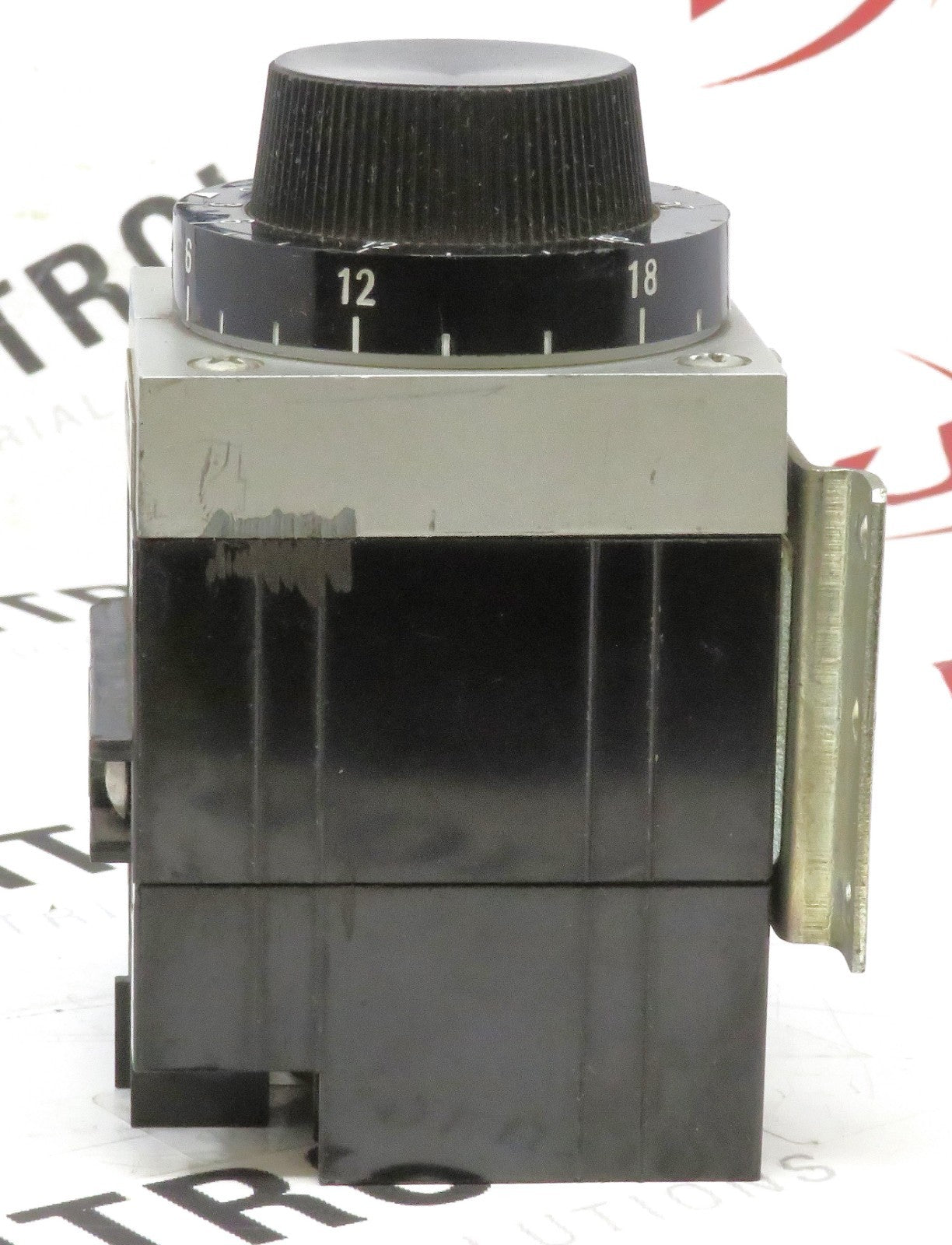

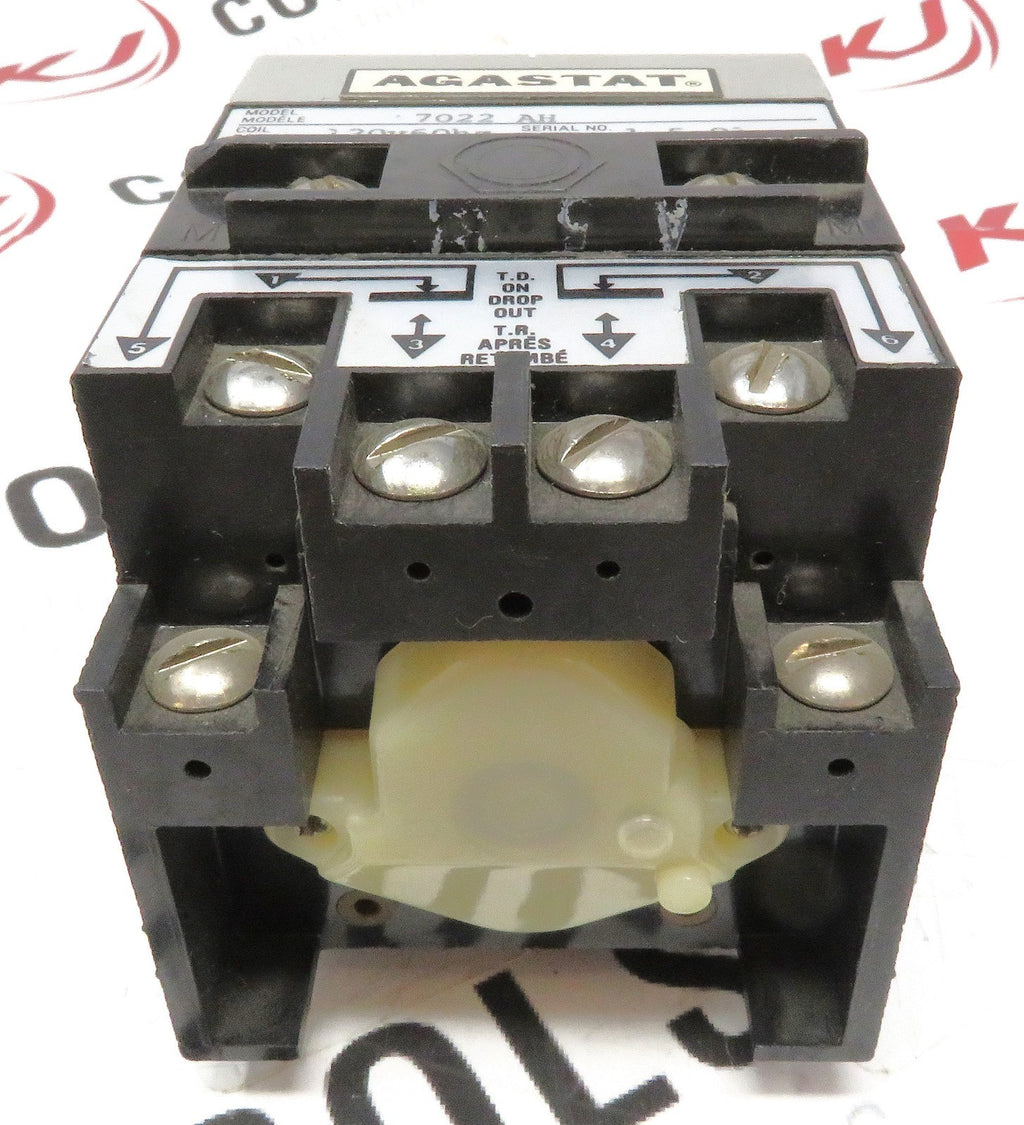

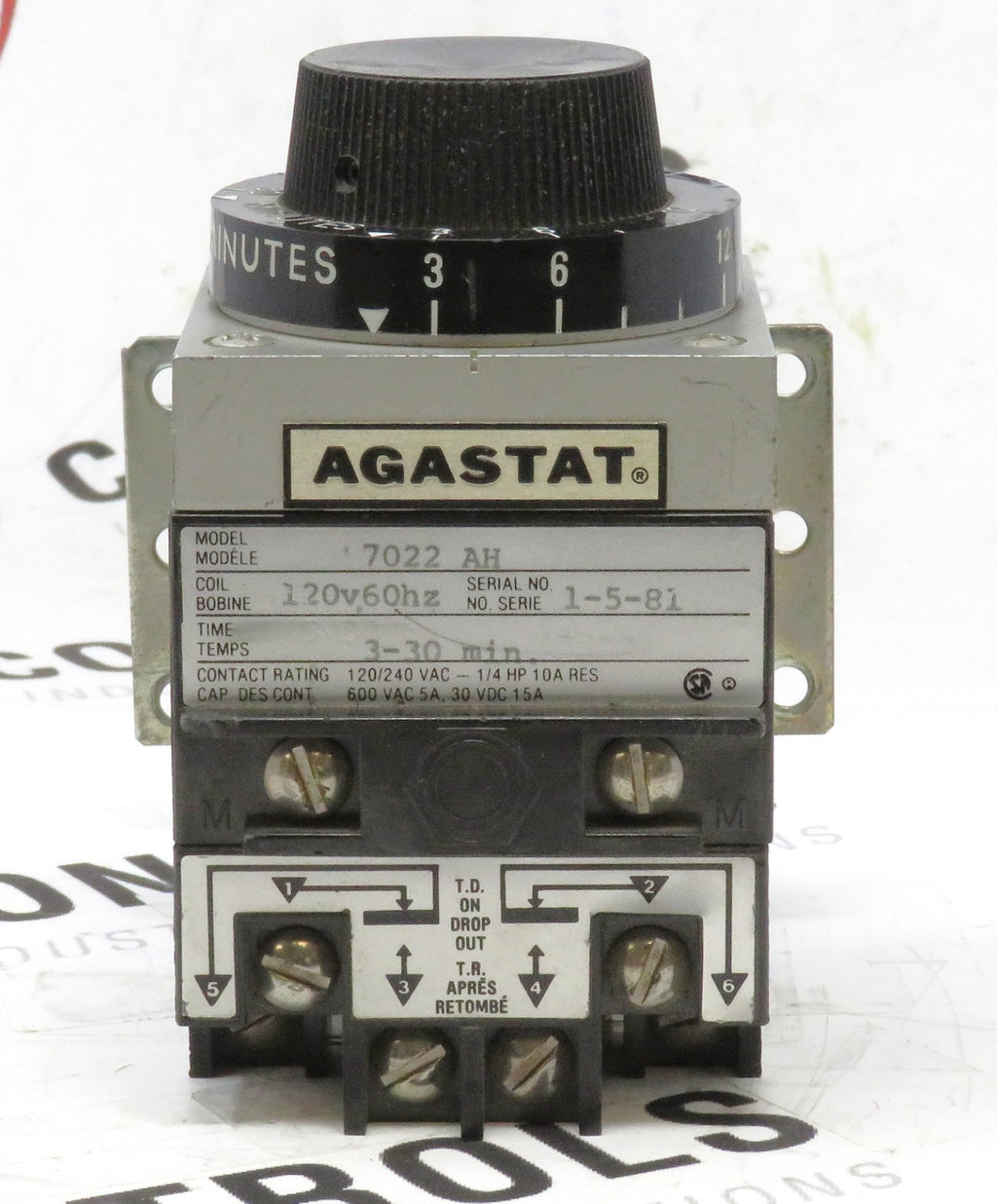

Agastat Time Delay Relay
Product Basic Information:
- Manufacturer / Parent Corporation: Agastat (a division of TE Connectivity / formerly part of Amphenol)
- Part Number(s): 7022AH / 7022-AH
- Product Family / Series: Agastat 7000 Series Industrial Electropneumatic Timers
Technical Specifications:
- Type: Electropneumatic Time Delay Relay
- Operation Mode: Off-Delay (time delay on drop-out)
- Contacts: 2PDT (Double-Pole Double-Throw)
- Time Range: Adjustable 3–30 minutes
- Coil Voltage: 120 VAC, 60 Hz (also supports 110 VAC, 50/60 Hz)
- Contact Rating:
- 120/240 VAC: 1/4 HP, 10A resistive
- 600 VAC: 5A
- 30 VDC: 15A
- Mounting Style: Panel or surface mount with screw terminals
- Adjustment: Large front dial calibrated in minutes
- Dimensions (approx): 3.5" x 2.5" x 3.5"
Product Features:
- Wide adjustable timing range (3–30 minutes)
- Rugged electropneumatic design for industrial reliability
- High-accuracy timing, independent of voltage or temperature fluctuations
- Manual time setting via dial for easy adjustment
- Long mechanical and electrical life
- Plug-in terminal connections for easy wiring
Product Designed Use:
- Industrial automation systems requiring delayed-off control
- Motor control circuits
- Process control and sequencing applications
- Safety and interlocking functions
- Used in manufacturing, utilities, and heavy equipment
