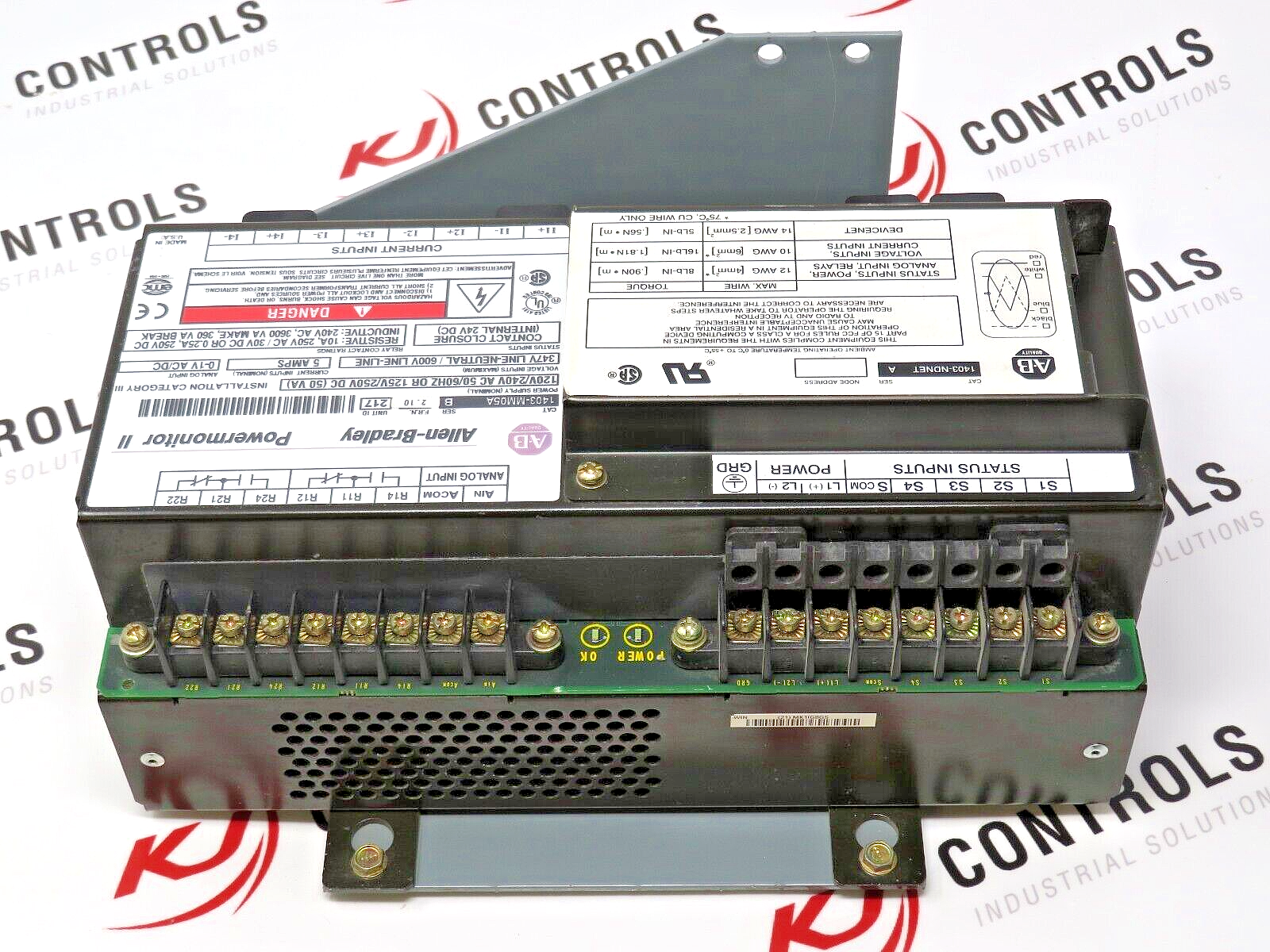

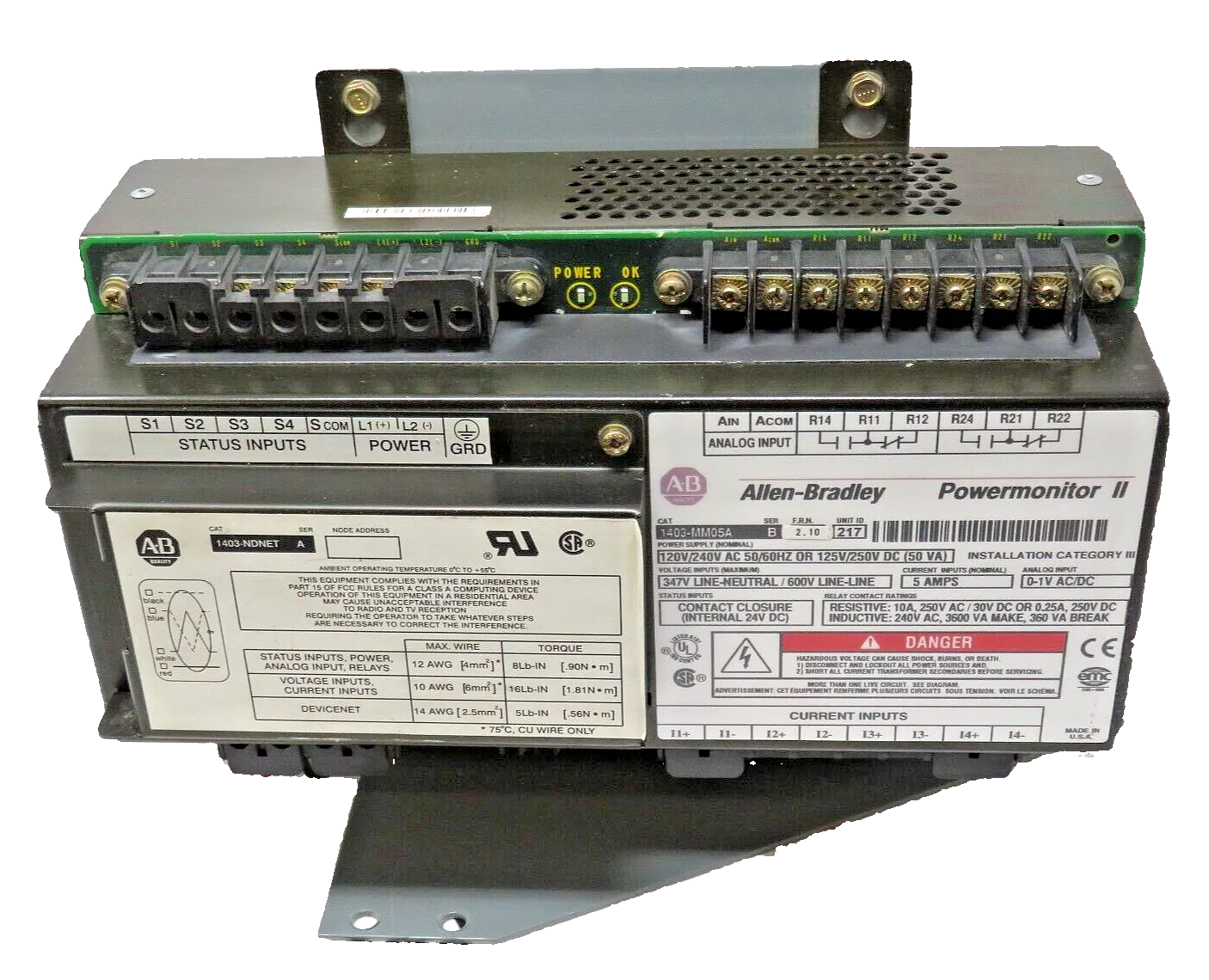

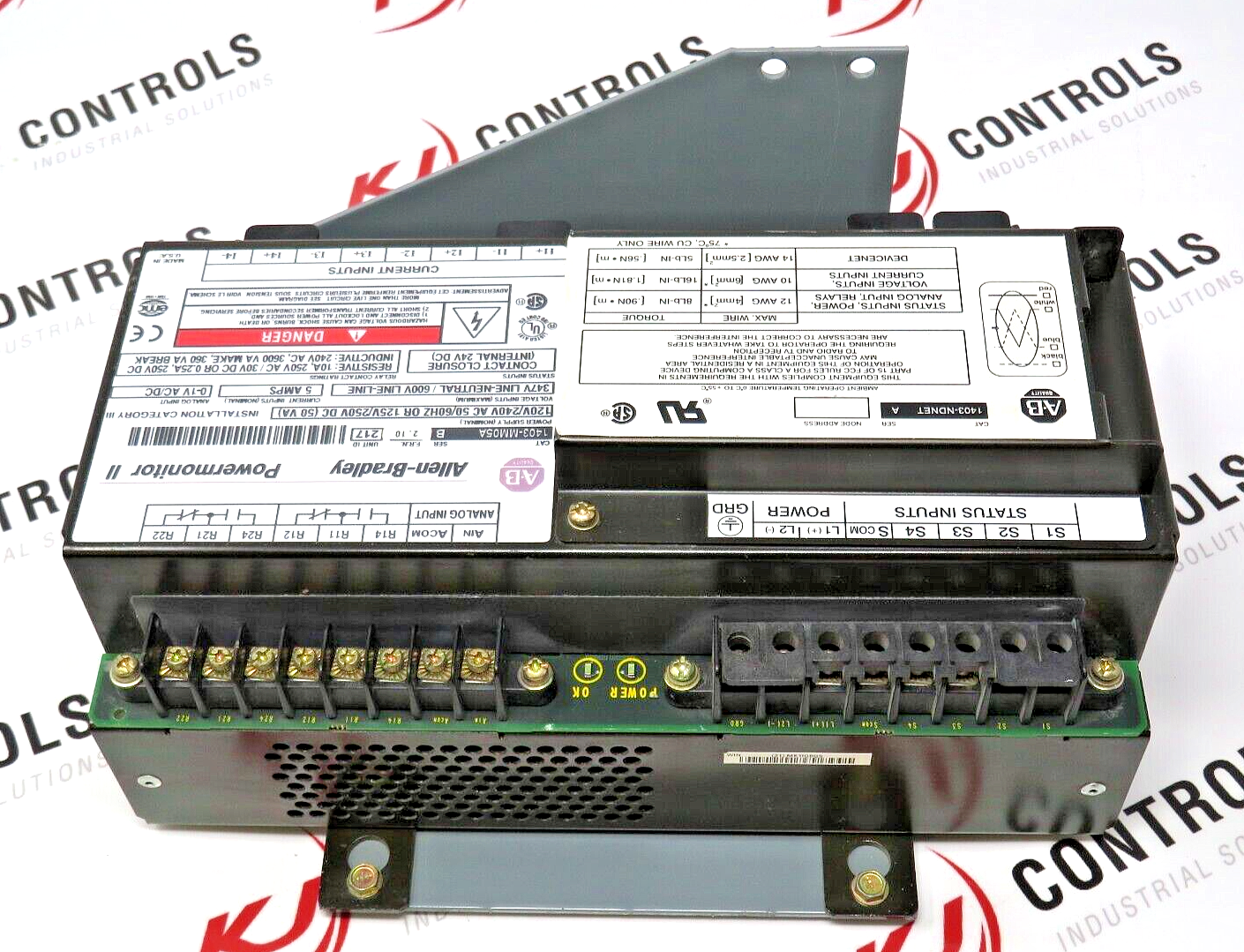

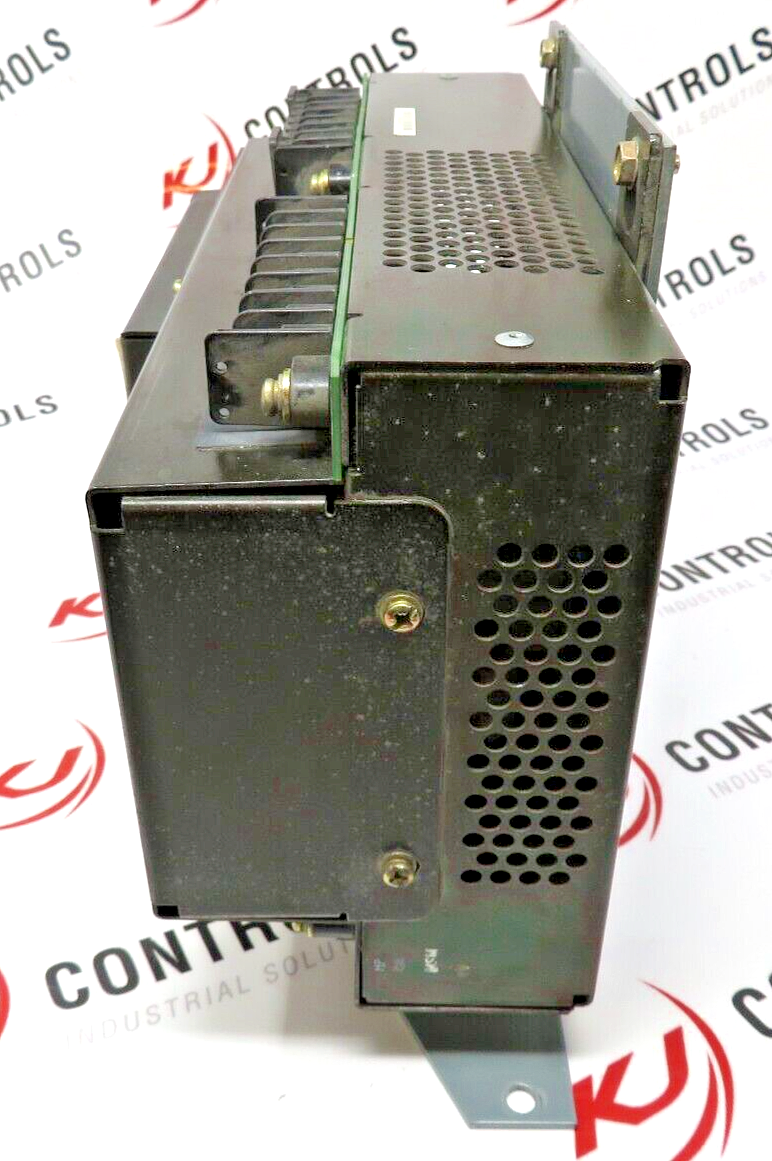

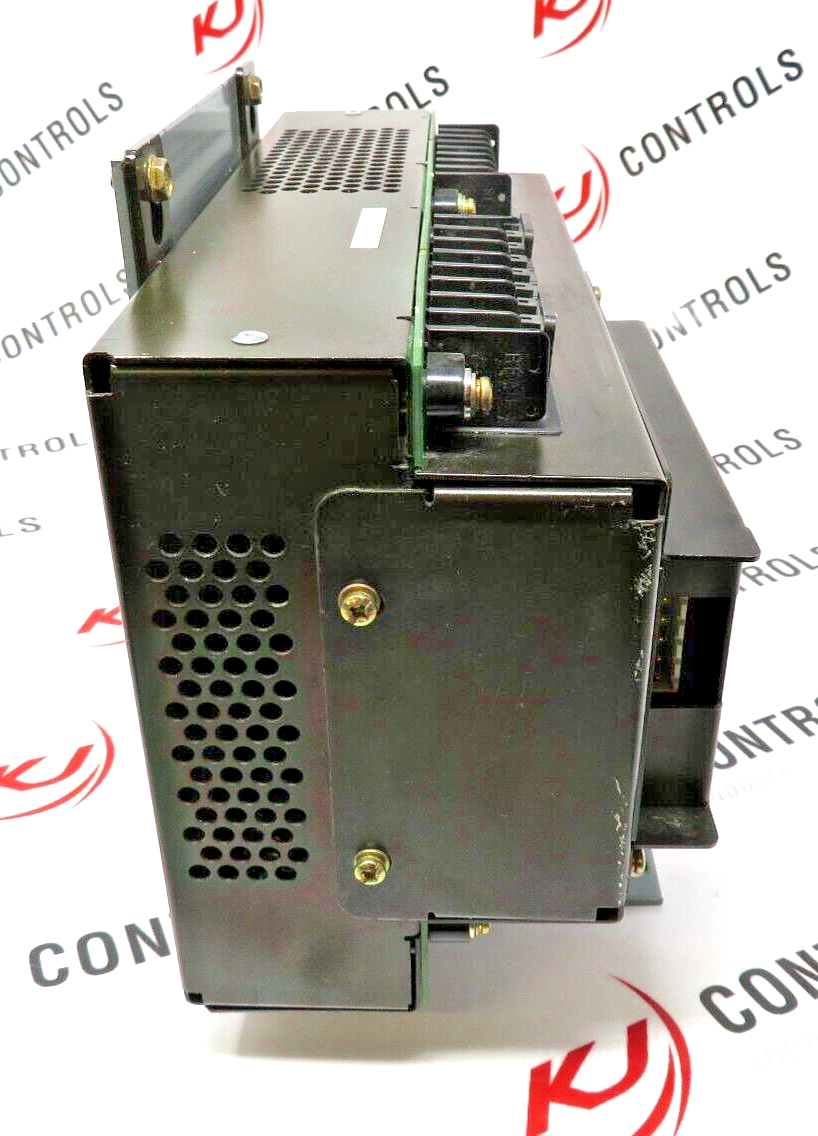

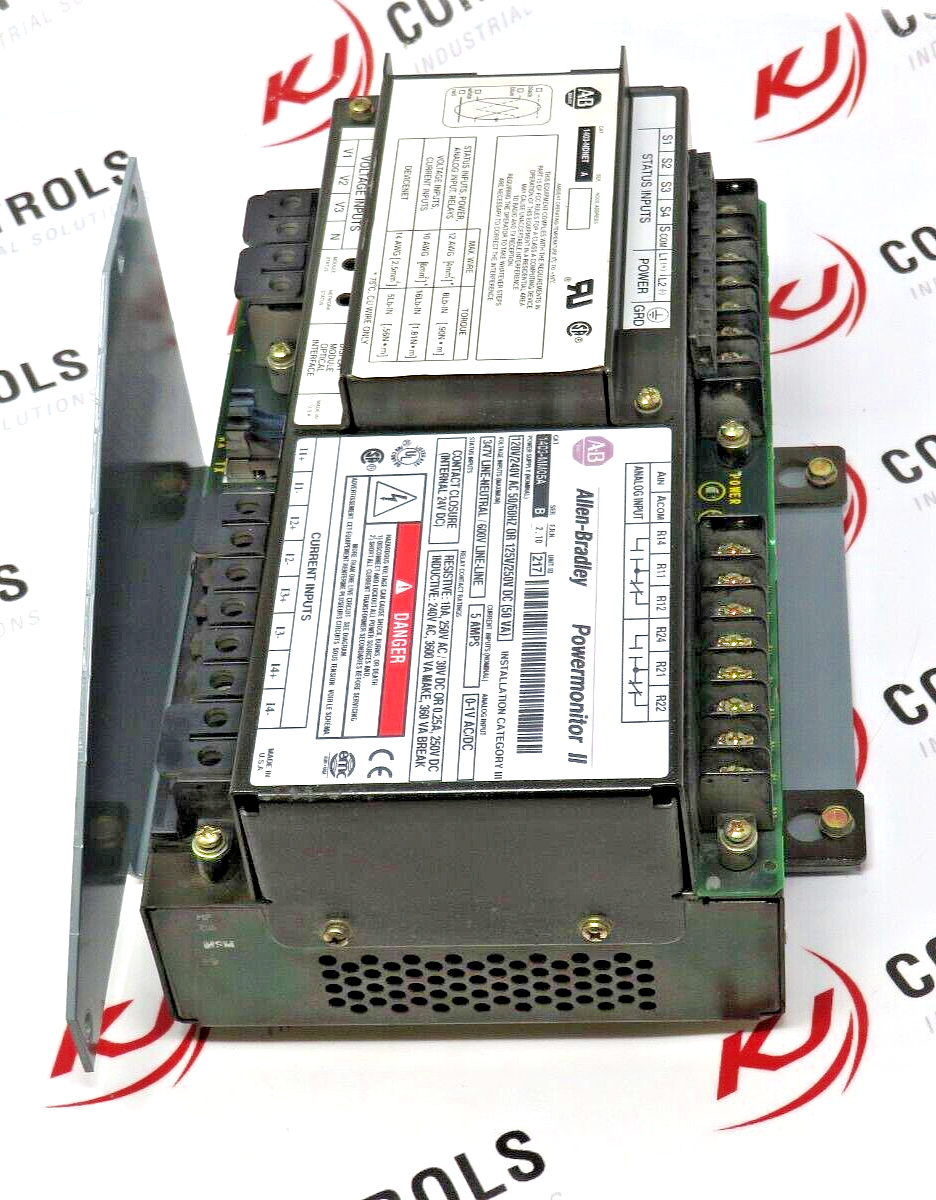

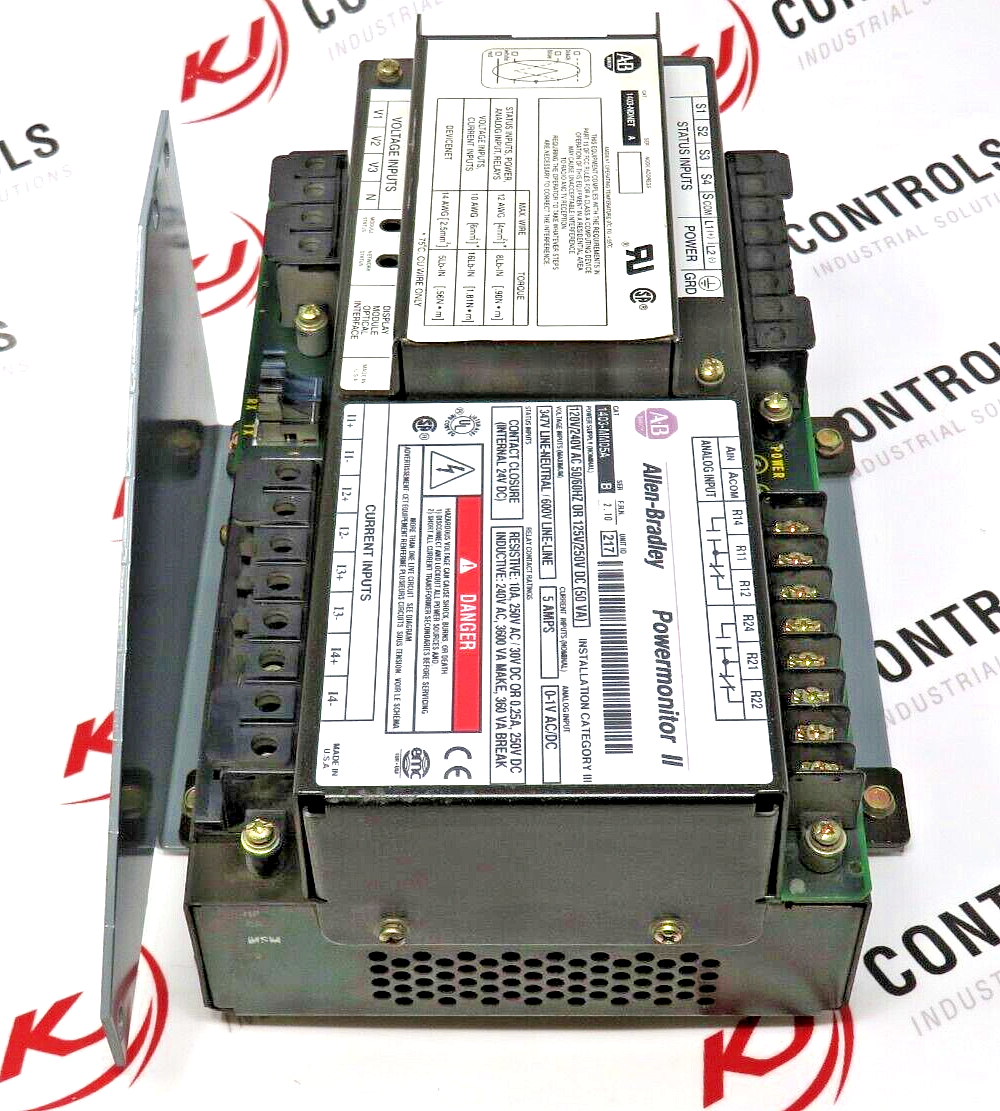

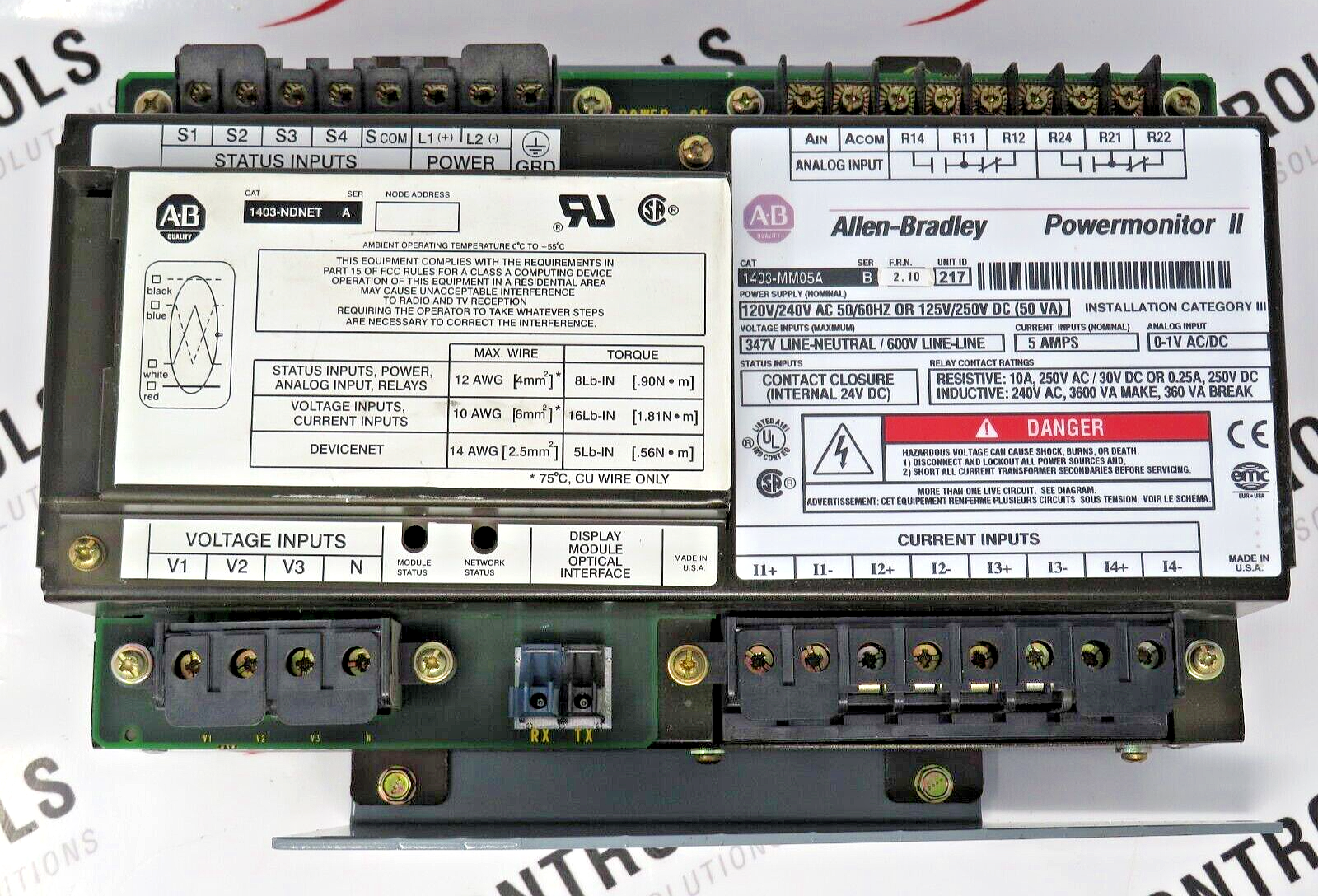

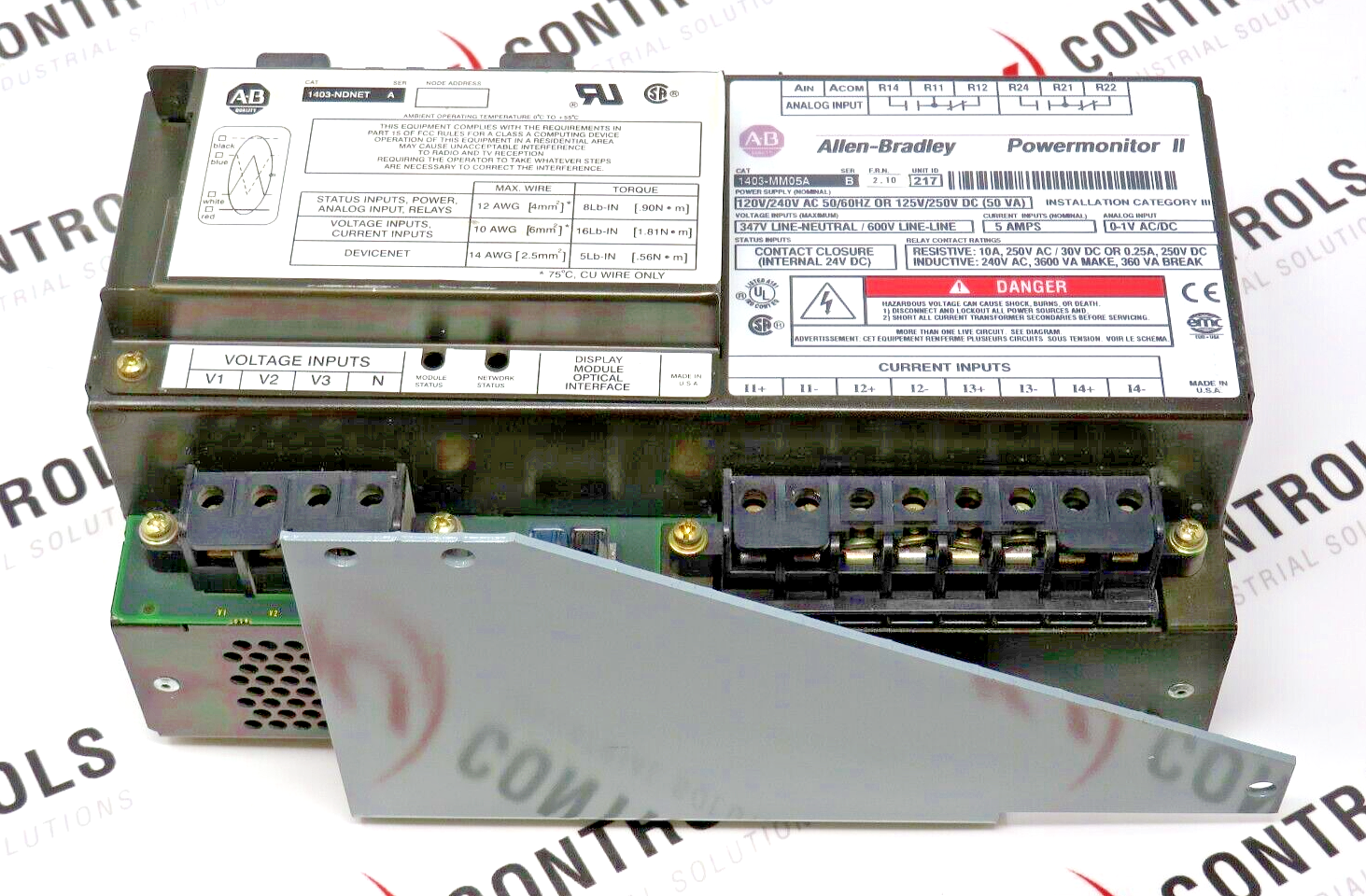

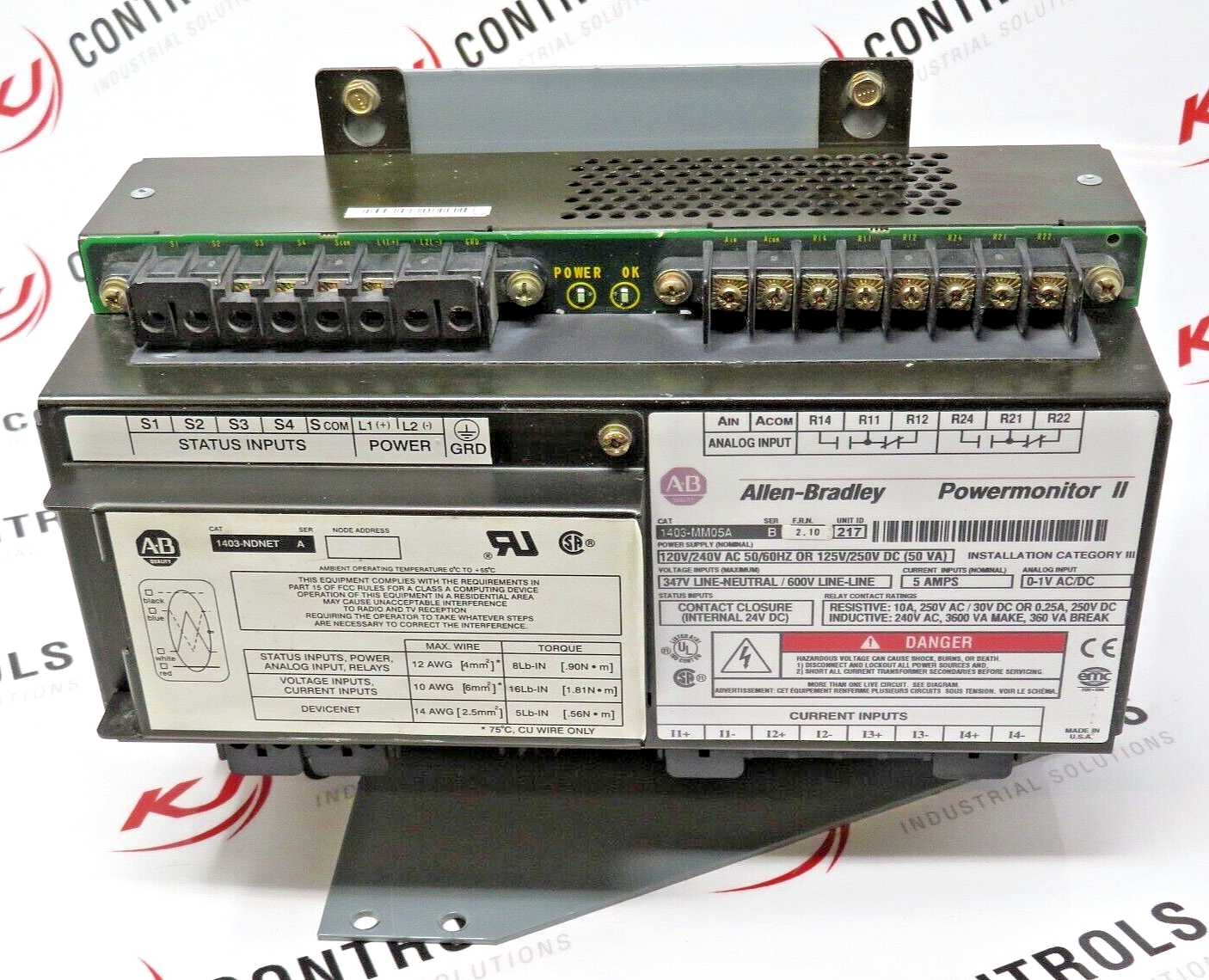

Allen-Bradley 1403-MM05A Powermonitor II w/ 1403-NDNET DeviceNet Card
Product Basic Information:
- Manufacturer: Allen-Bradley
- Parent corporation: Rockwell Automation, Inc.
- Catalog number: 1403-MM05A
- Non-hyphenated part number: 1403MM05A
- Included hyphenated communication card part number: 1403-NDNET
- Included non-hyphenated communication card part number: 1403NDNET
- Product family/series: Powermonitor II
- Product type: Power monitor master module with DeviceNet communication card
- Country of origin: U.S.A.

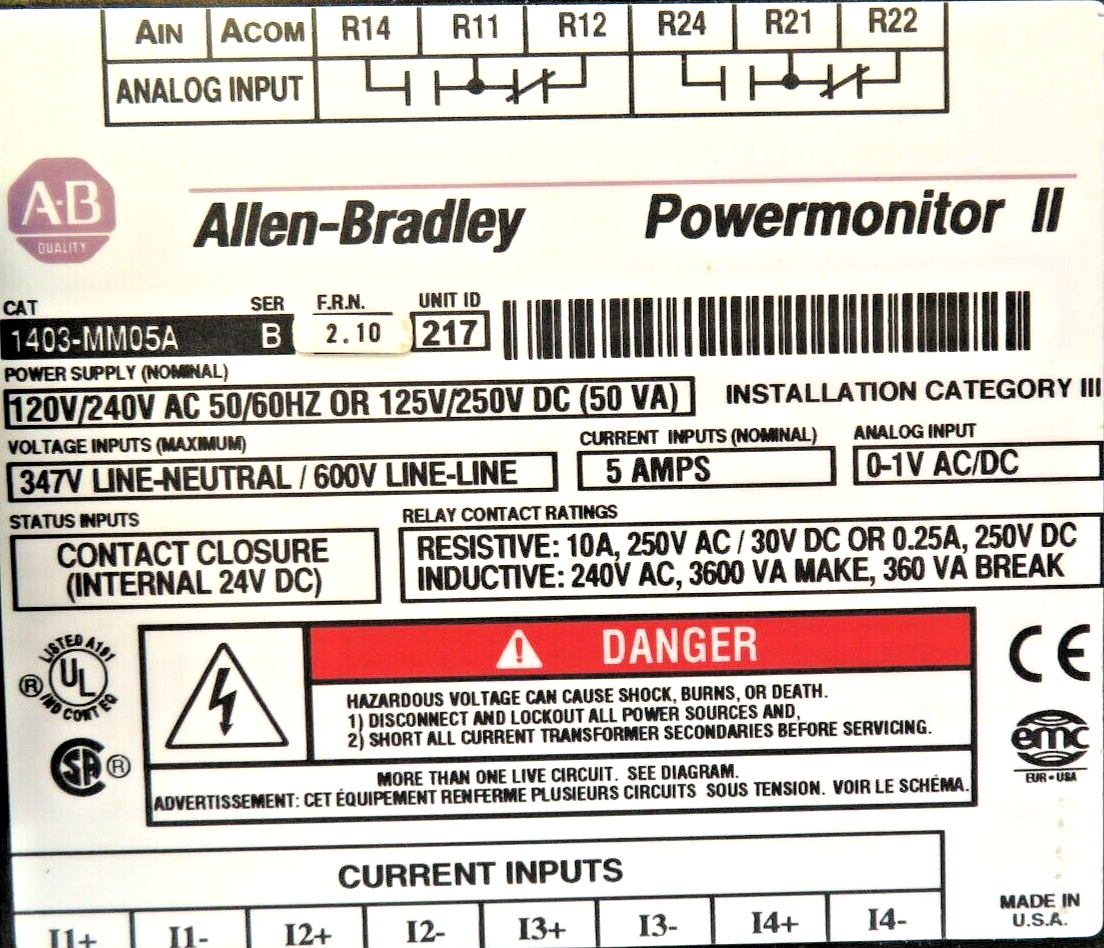

Technical Specifications:
- Current input model: 5 A
- Control power: 120/240 VAC 50/60 Hz or 125/250 VDC
- Maximum control power loading: 0.2 A

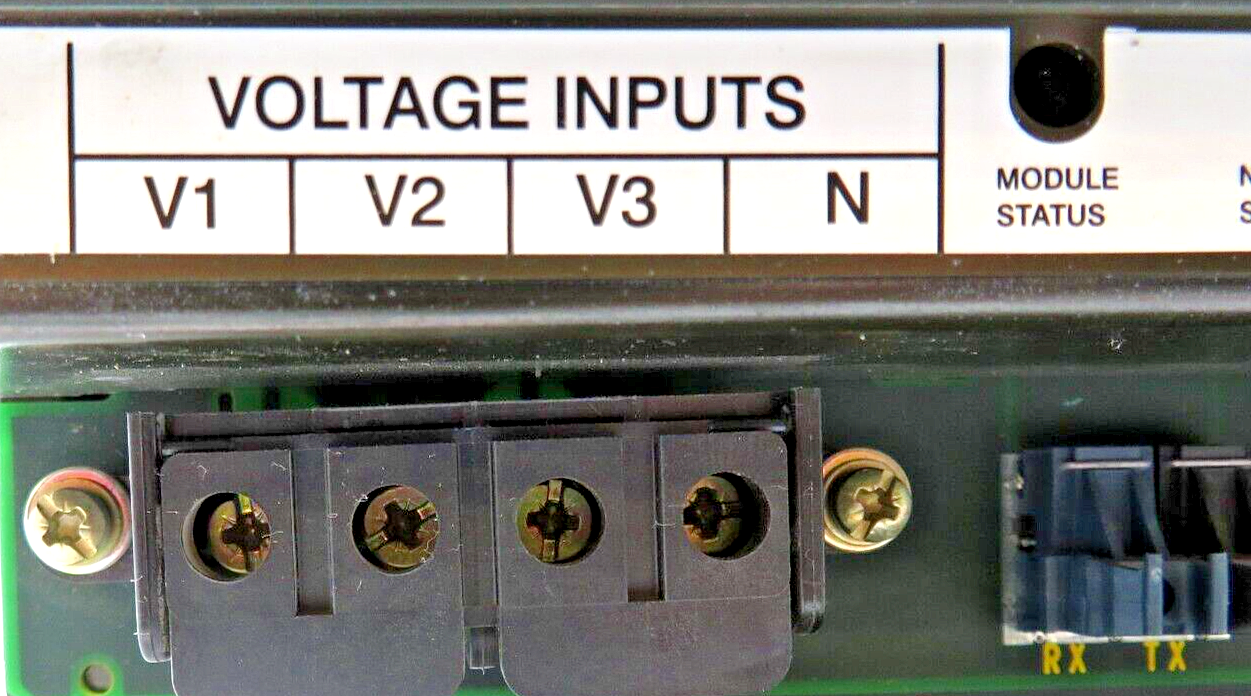

- Voltage input rating: 120 to 347 V line-to-neutral
- Voltage input rating: 208 to 600 V line-to-line

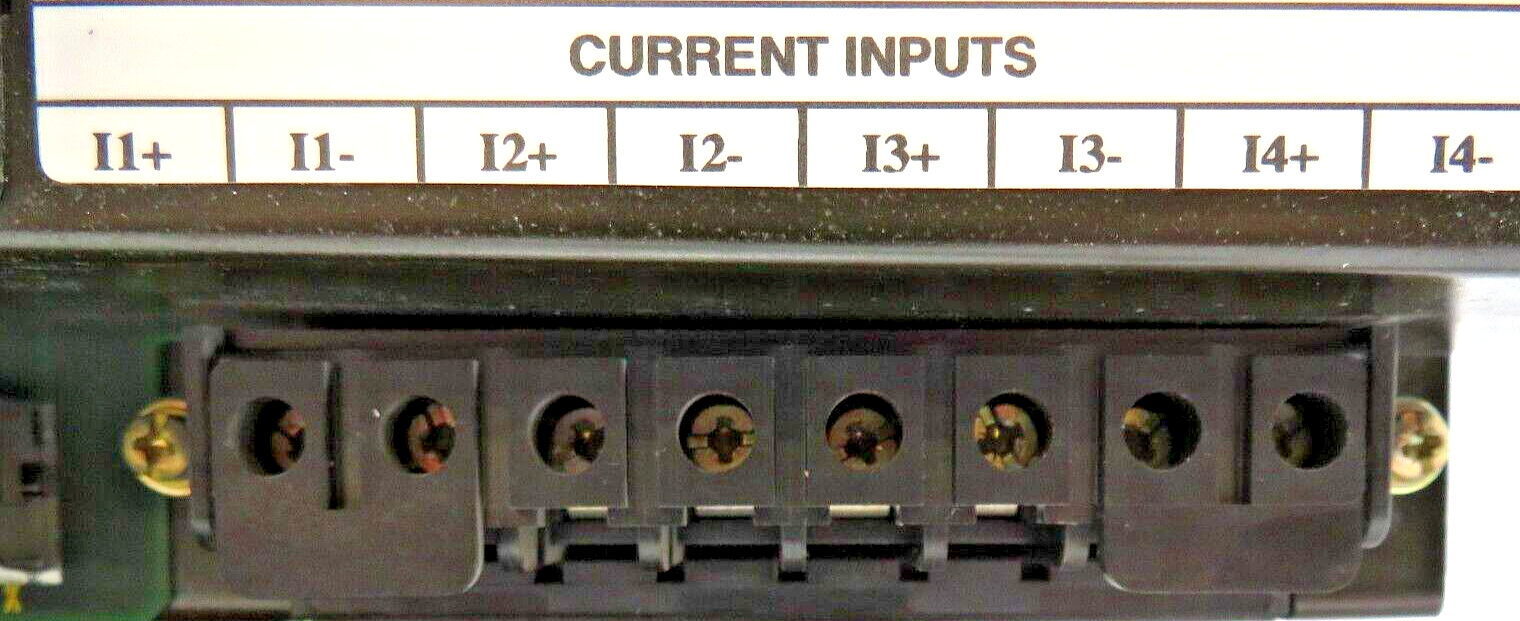

- Current input rating: 0 to 5 A

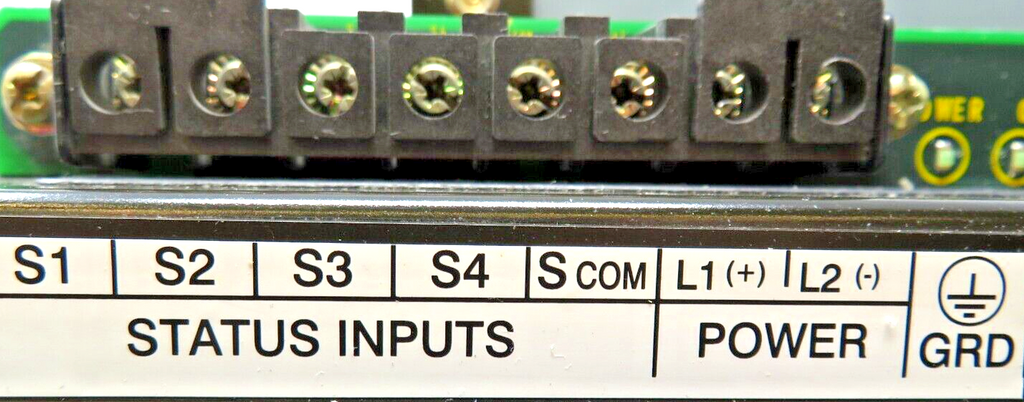

- Status inputs: Contact closure, internal 24 VDC

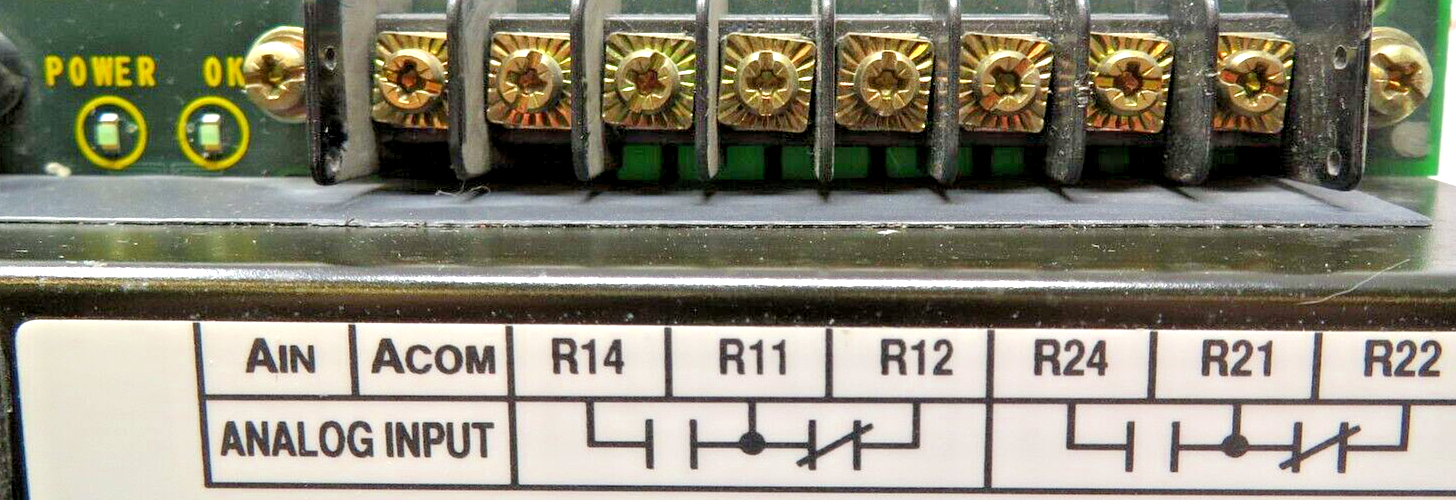

- Analog input nominal: 1.0 VAC or plus or minus 1.4 VDC
- Analog input overload withstand: 120 V for 1 minute

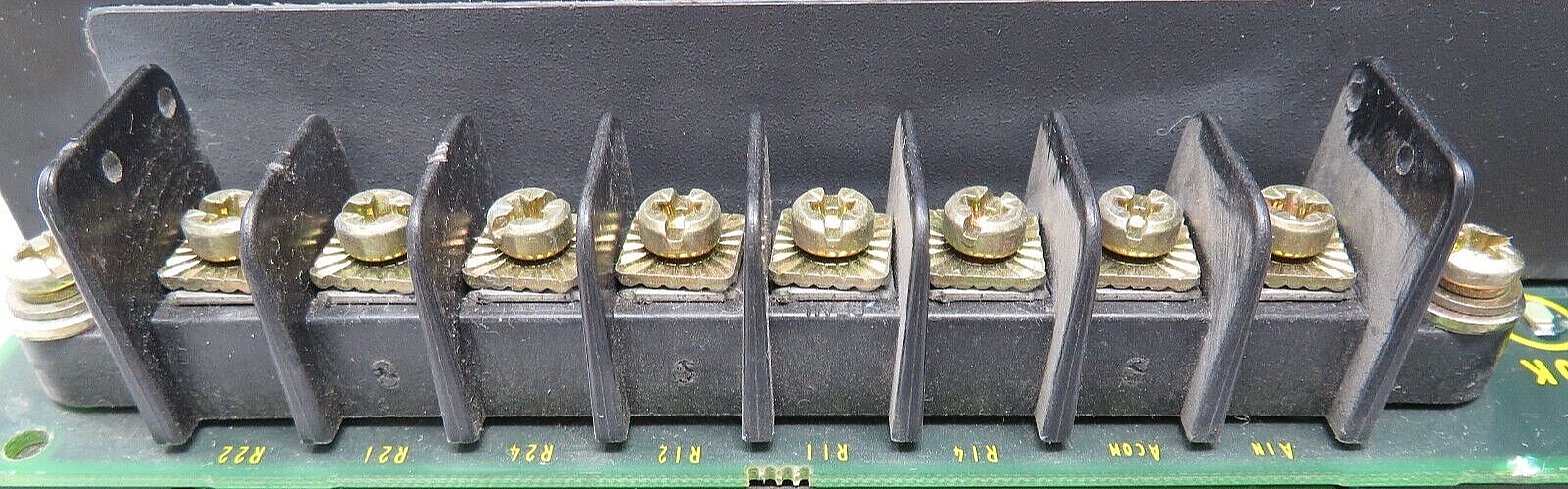

- Control relay maximum resistive load switching: 10 A at 250 VAC
- Control relay maximum resistive load switching: 10 A at 30 VDC and 0.25 A at 250 VDC
- Control relay minimum load switching: 10 mA at 24 V
- Maximum motor load switching: 1/3 HP at 125 V
- Maximum motor load switching: 1/2 HP at 250 V

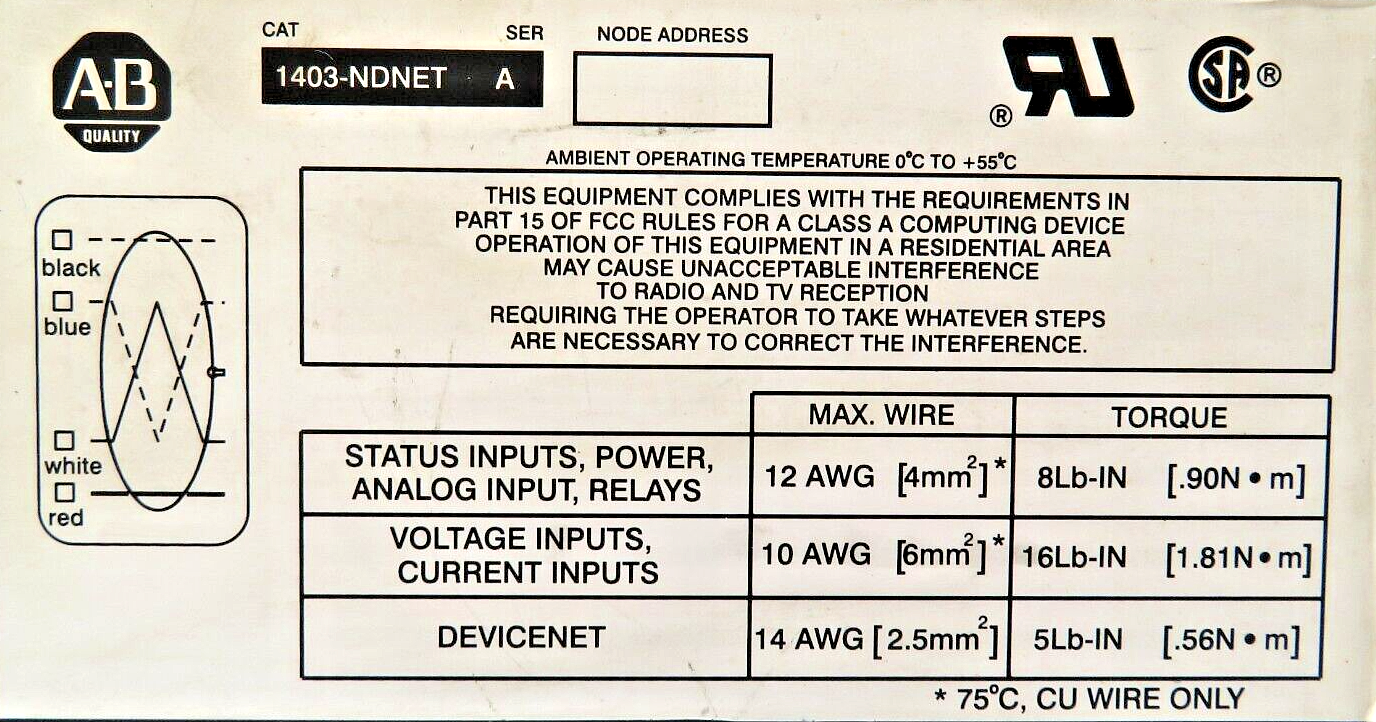

- DeviceNet baud rates: 125K, 250K, 500K
- DeviceNet communication port isolation: 500 V
- DeviceNet power supply load: 100 mA maximum
- Operating temperature: minus 40 C to plus 60 C
Product Features:
- Powermonitor II microprocessor-based digital power monitoring system
- Replaces many individual transducers and meters within a single package
- Measures voltage, current, power, frequency, power factor, energy, and demand values
- Supports time-stamped data logging of system measurements and events
- Includes harmonic analysis and simultaneous multi-channel oscillograph recording capability
- Supports output control through onboard control relays or PLC integration
- Provides input monitoring through status inputs
- Supports communication and software integration for automation systems
- Supports PLC-5 and SLC 500 connectivity through the installed 1403-NDNET DeviceNet card
- DeviceNet card is fully software configurable with no hardware jumpers required
- Supports open DeviceNet producer-consumer communication architecture
- Supports up to three optional display modules over a fiber optic serial link
Product Designed Use:
- Designed for industrial and commercial power monitoring applications
- Used to monitor three-phase electrical systems in switchgear, distribution centers, motor control centers, and industrial control panels
- Used to collect metering, demand, energy, and power quality information from electrical systems
- Intended for integration into Allen-Bradley automation systems using DeviceNet communications
- Suitable for applications requiring centralized monitoring and control of electrical power parameters
