Allen-Bradley 1403-MM05A and Allen-Bradley 1403-NENET

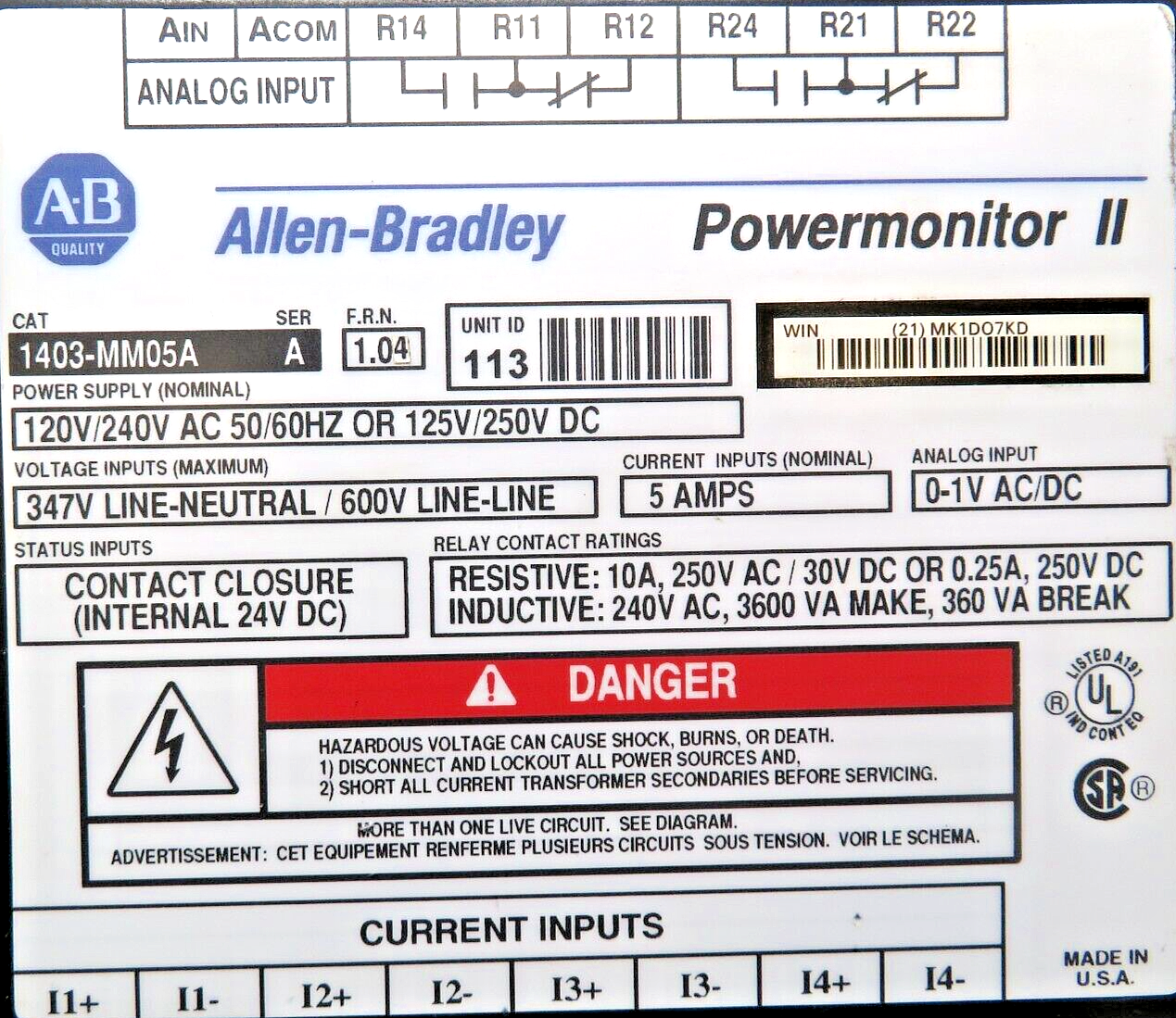

- Allen-Bradley Powermonitor II Display Module
- Part number: 1403-MM05A (1403MM05A)
- Product family: Powermonitor II
- UPC: Unavailable
- Lifecycle status: END OF LIFE - Discontinued
Technical Specifications:
- Nominal measured current: 5 Amps
- Measured voltage: 120 Volts to 347 Volts L-N (208 Volts to 600 Volts L-L)
- Power supply rating: 120 to 240 Volts AC at 50 to 60 Hertz or 125 to 250 Volts DC
- Nominal Full Scale Voltage Input: 120 to 347 Volts
- Input Impedance: 1 Meg-Ohm per minute
- Nominal Full-Scale Current Input: 0 to 5 Amps
Product Features:
- Onboard microprocessors with advanced field configuration communication interfaces
- Can act as either a standalone monitoring device or a control device
- Can be used in any large energy monitoring network
- Data Logging, Event Log, Min/Max Log, Snapshot Log
- Oscillography (1403-MM only)
Allen-Bradley Communications Module

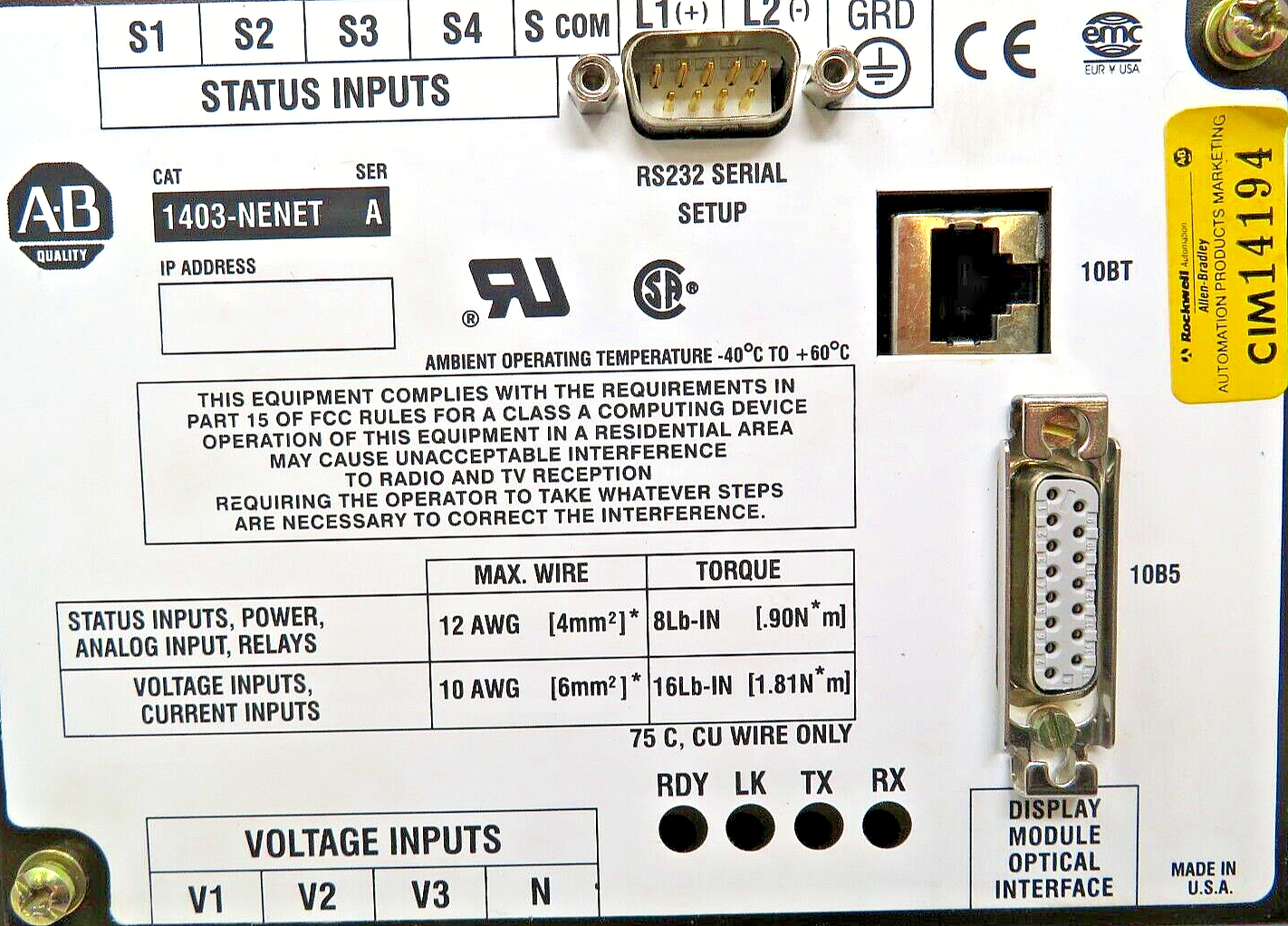

- Part number: 1403-NENET (1403NENET)
- Product family: Powermonitor II
- UPC: 662072809821
- Lifecycle status: END OF LIFE - Discontinued
Technical Specifications:
- Power source: 120 to 240 Volts AC at 50 to 60 Hertz or 125 to 250 Volts DC
- Maximum voltage inputs: 347 Volts for line-neutral and 600 Volts for line-line
Product Features:
- Microprocessor-controlled, dual-port communication plug-in accessory to the Powermonitor II Master Module
- Provides the Powermonitor II with three communication ports: two 10BaseT and 10Base5 Ethernet ports, and an RS-232 local configuration port
- Built-in internet web page support
- Compatible with RSEnergy™, RSView32™ and RSPower32™ software
- Connect to Allen-Bradley PLC-5® Ethernet processors and Allen-Bradley SLC 5/05™ Ethernet processor

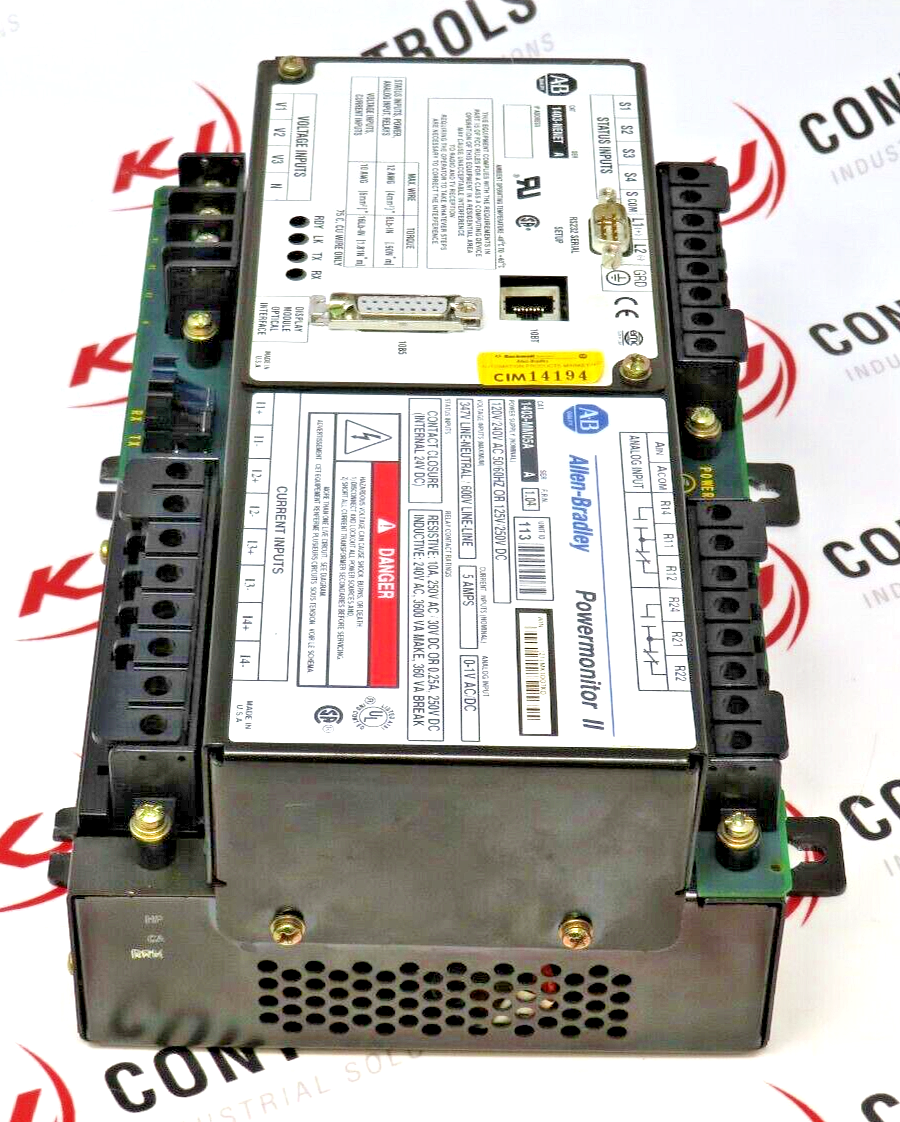

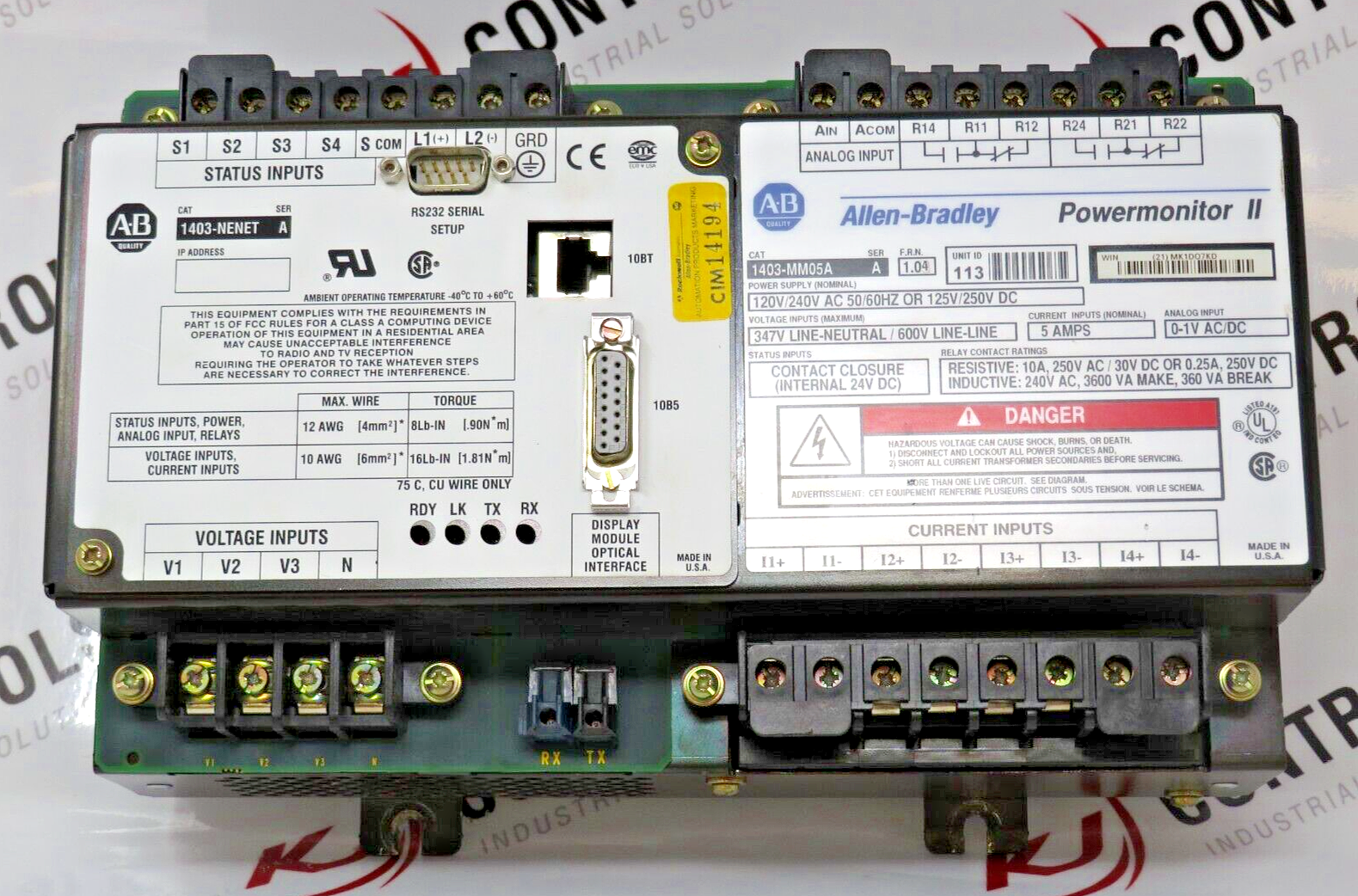

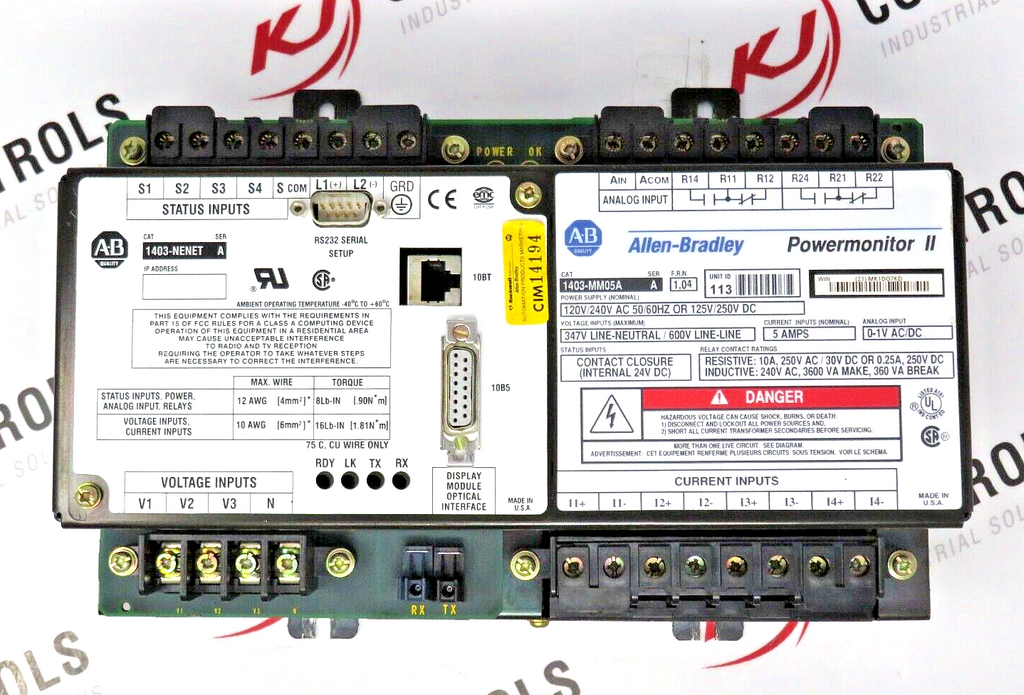

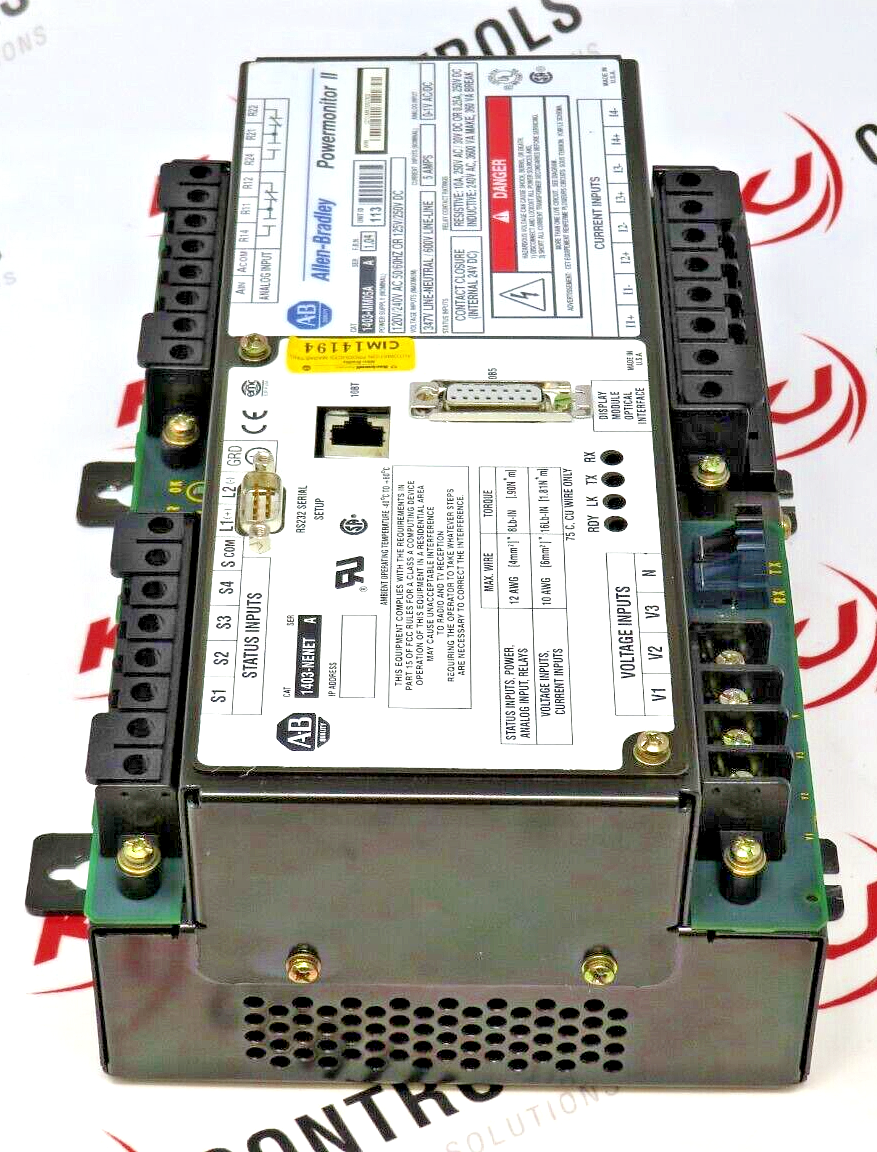

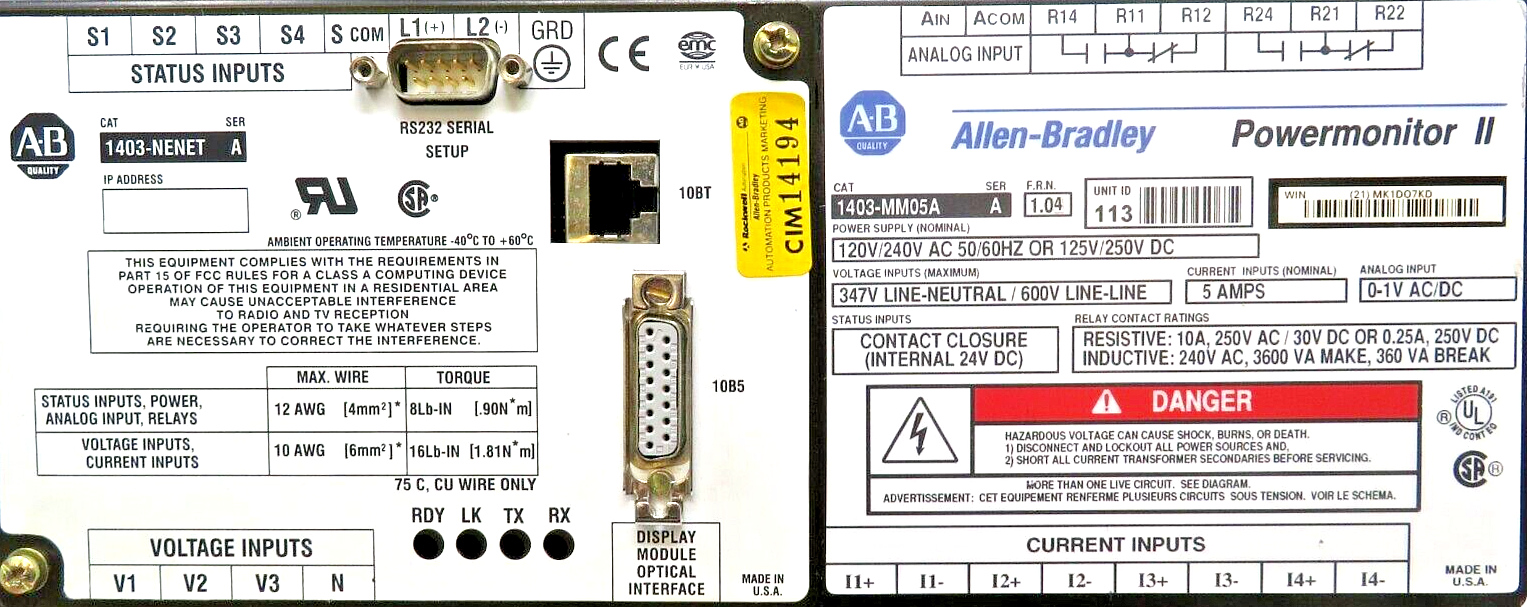

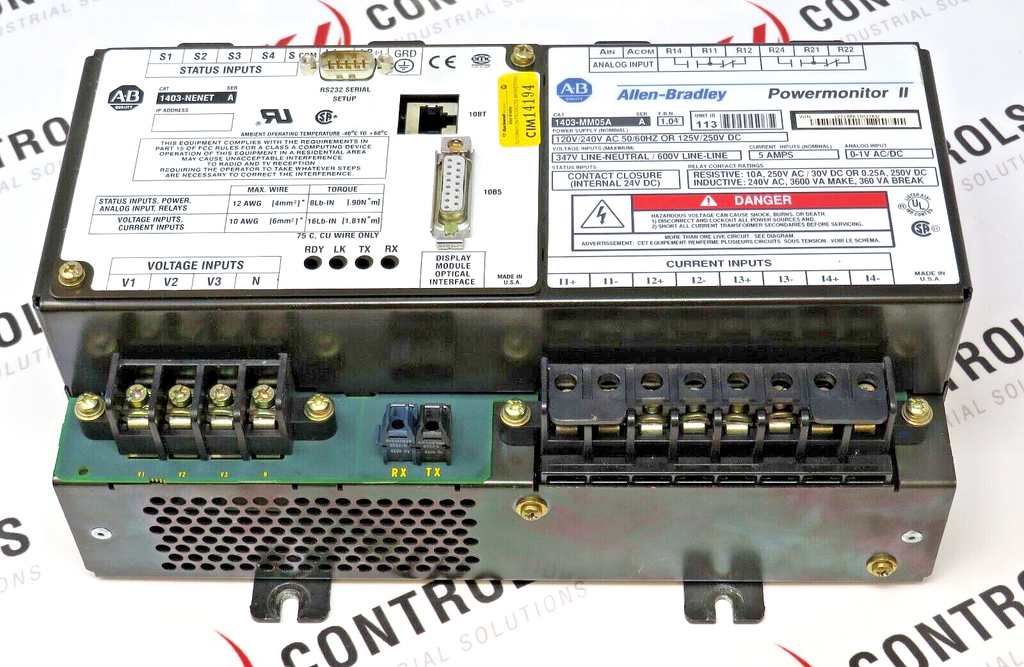

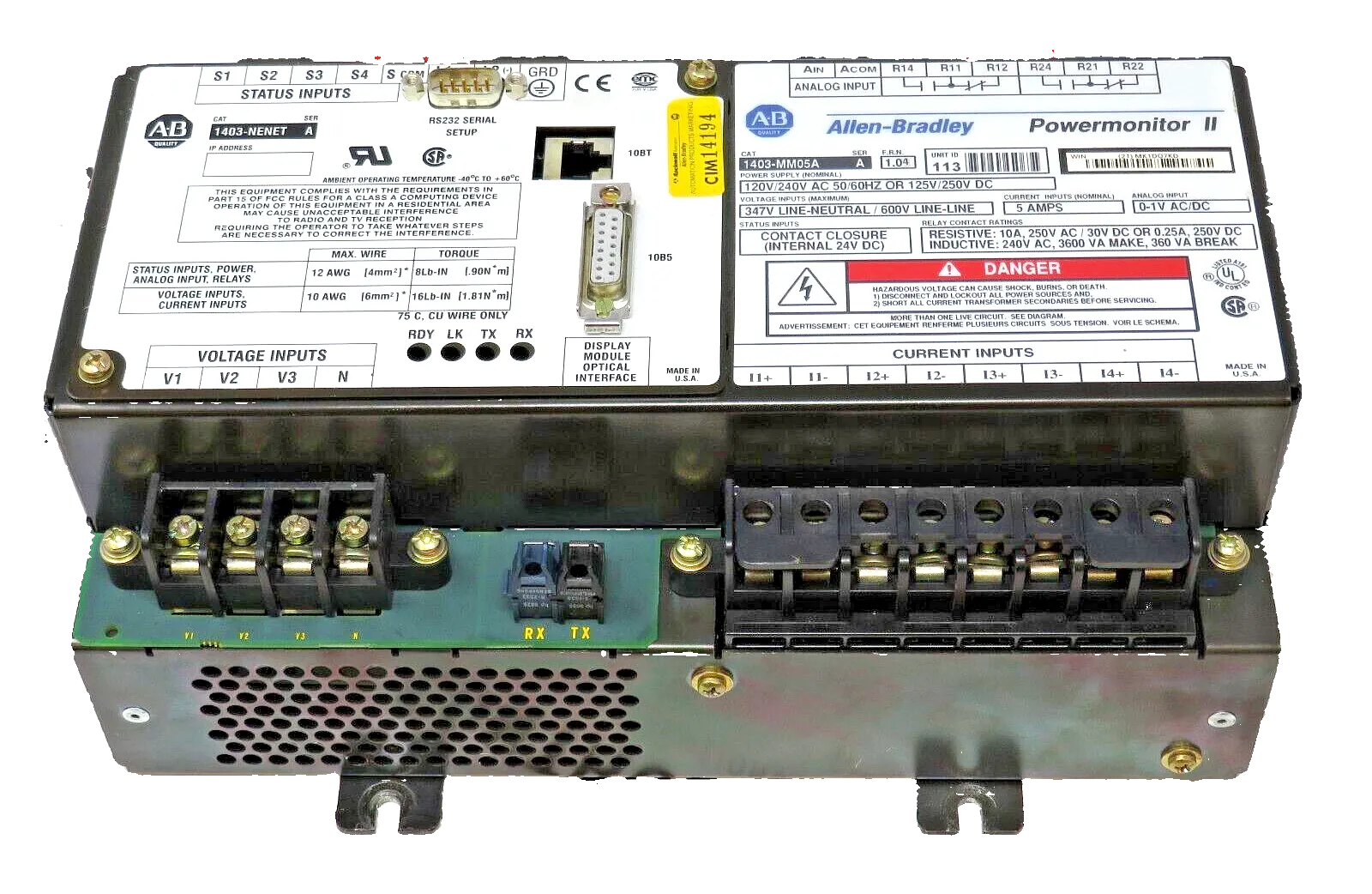

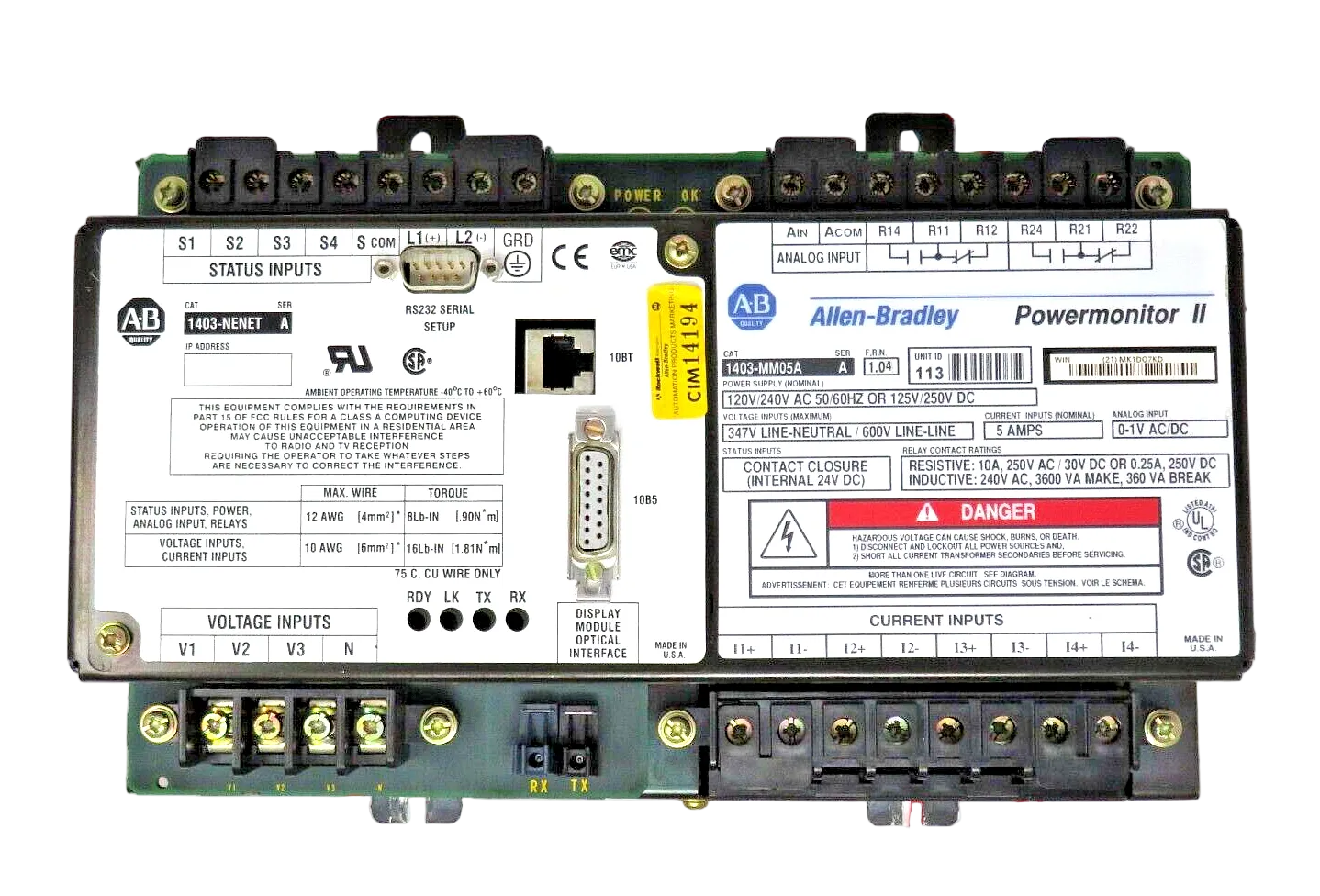

* Please note that the 1403-NENET is installed beside the 1403-MM05A. This setup allows for efficient communication and data transfer between the two devices.*
** Buyer is responsible for all customs, brokerage fees, local levies and taxes.**
KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR ALLEN-BRADLEY
