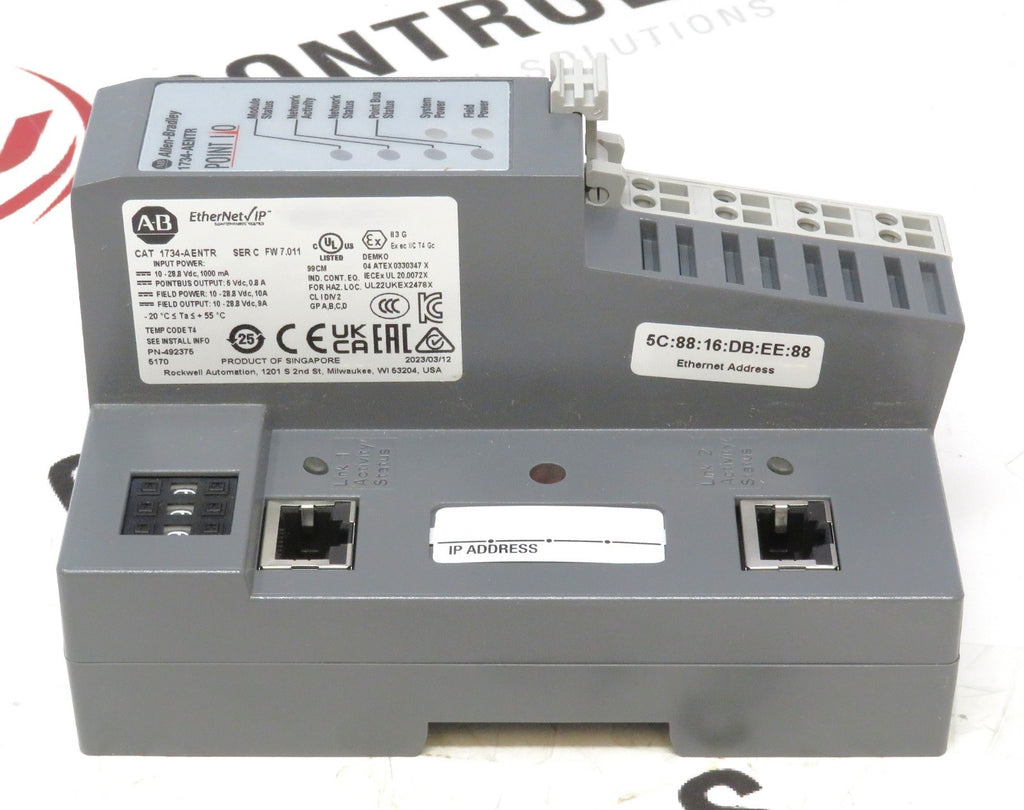

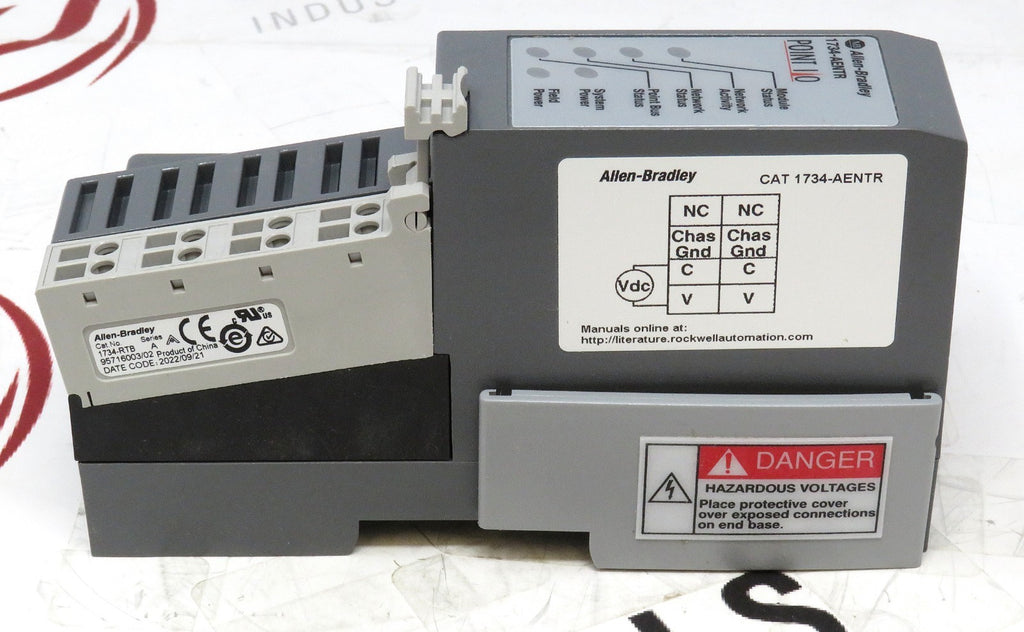

Allen-Bradley Network Adapter
Product Basic Information:
- Manufacturer / Parent Corporation: Rockwell Automation (Allen-Bradley brand)
- Part Number: 1734-AENTR (1734AENTR)
- Product Family / Series: POINT I/O
- UPC: 10612598350145 (also found as 612598350145)
- Firmware Version (Observed): FW 7.011
- Series: C
- Country of Manufacture: Singapore

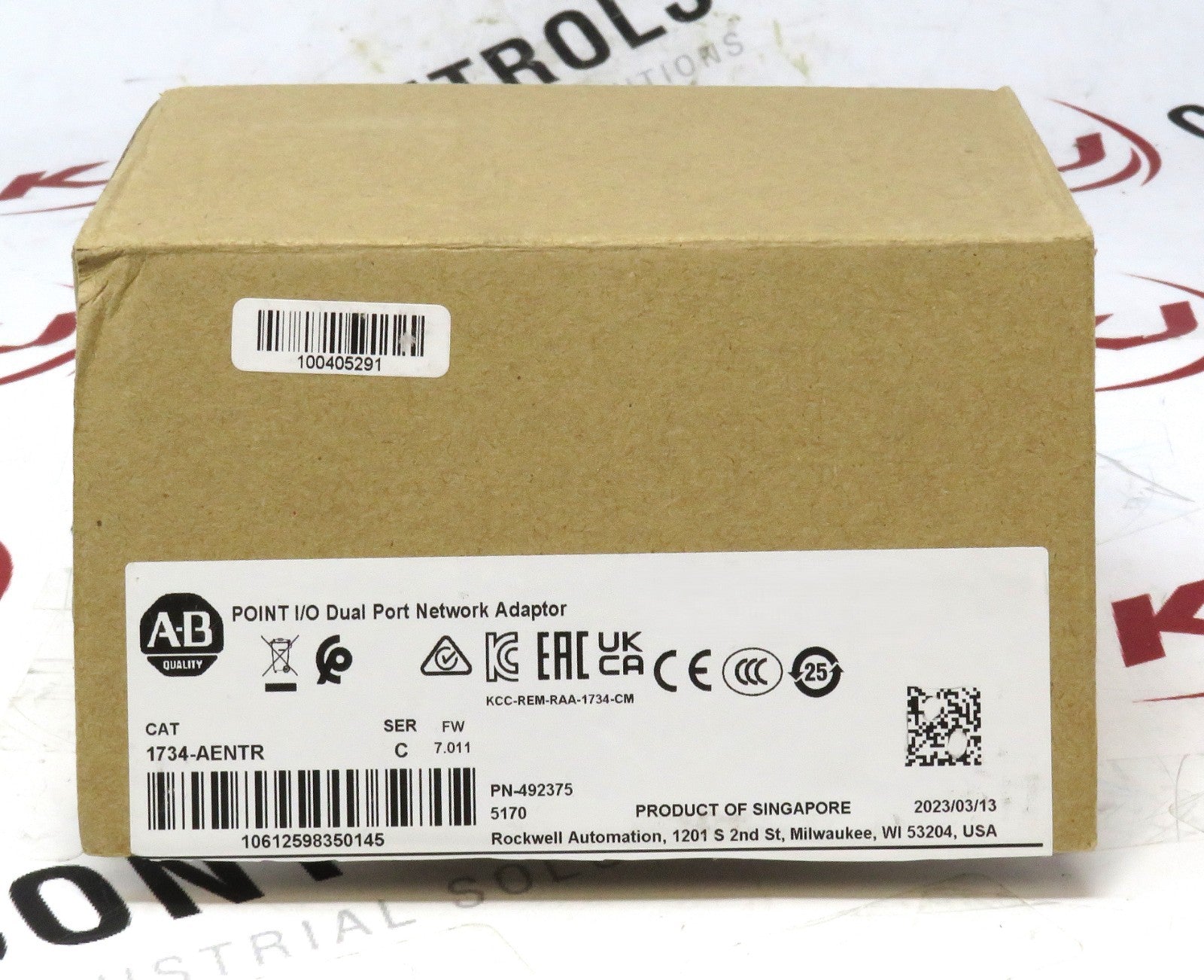

- Item Condition: Unused Surplus
Technical Specifications:
- Power Supply (Input): 10–28.8 VDC, 1000 mA
- PointBus Output: 5 VDC, 0.8 A
- Field Power Input: 10–28.8 VDC, 10 A
- Field Power Output: 10–28.8 VDC, 9 A
- Operating Temperature: -20 °C to +55 °C
- Temperature Code: T4
- Mounting: DIN Rail
- Network Type: EtherNet/IP
- IP Configuration: DIP switch or BOOTP/DHCP
- Ethernet Ports: 2 x RJ45 (for Device Level Ring, Linear, Star, Tree topology)
- Max POINT I/O Modules Supported: Up to 63
- Certifications: c-UL-us, CE, ATEX (DEMKO 04 ATEX 0330347 X), IECEx UL 20.0072X, UL22UKEX2478X, EAC, UKCA, CCC, KC
Product Features:
- Dual Ethernet Ports for DLR (Device Level Ring) or linear/star topology
- Integrated web server for diagnostics and configuration

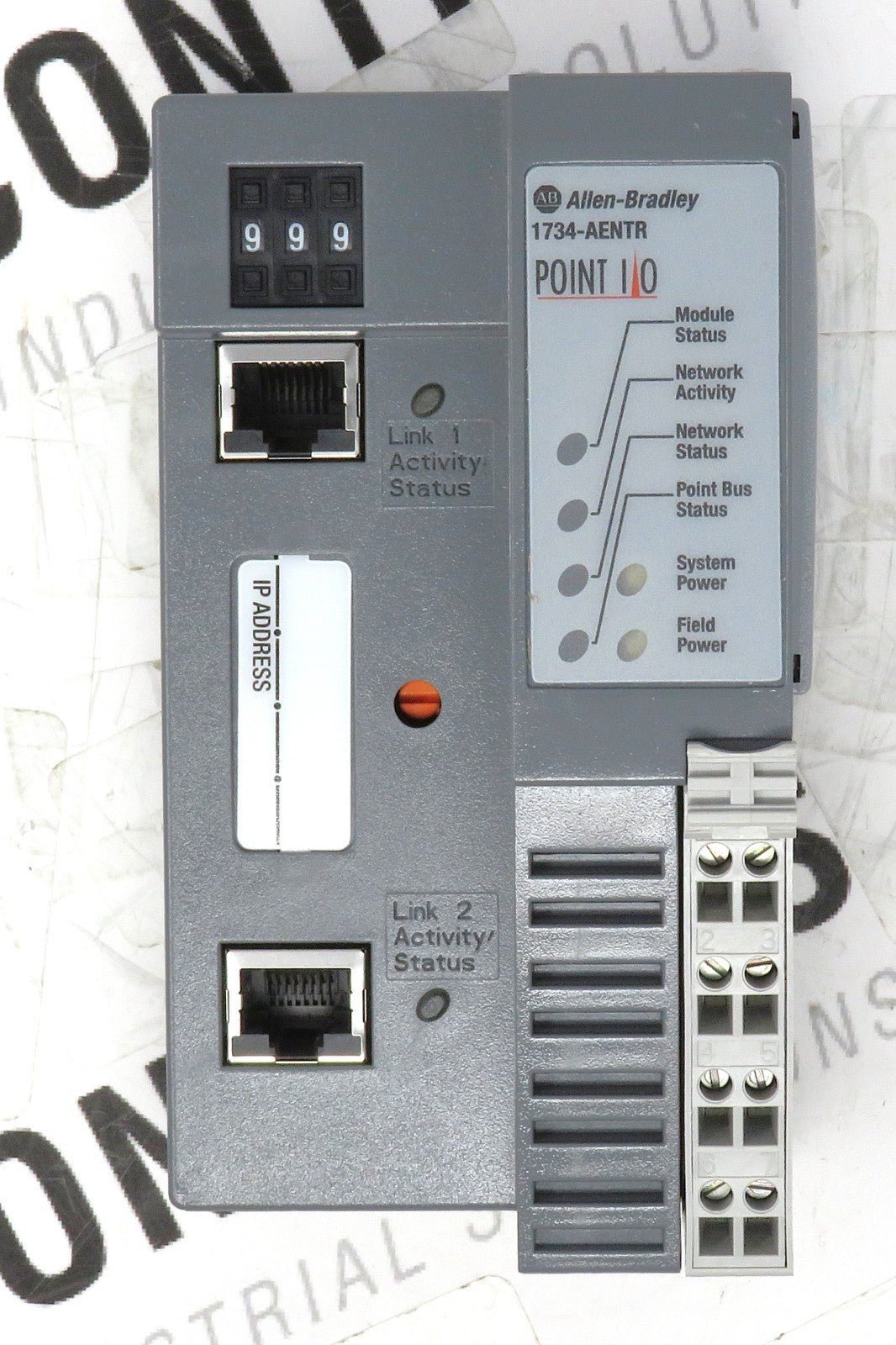

- LED indicators for:
- Module status
- Network activity
- Network status
- PointBus status
- System power
- Field power
- Supports redundancy and ring topology via Device Level Ring (DLR)
- Designed for distributed I/O systems where flexibility and space are key
- Hot-swappable design allows for minimal downtime during replacement
- Enhanced firmware capabilities in Series C
- Configurable via RSLogix 5000 / Studio 5000
Product Designed Use:
- Intended Application: Industrial automation and control systems requiring distributed I/O over Ethernet/IP networks
- Typical Use Cases:
- OEM machinery
- Process control systems
- Factory automation
- Packaging and material handling systems
- System Integration: Connects POINT I/O modules to EtherNet/IP networks using dual Ethernet ports for ring/redundant topologies
* Buyer is responsible for all customs duties, tariffs, brokerage fees, local levies, taxes, and VAT (if applicable).*
KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR ALLEN-BRADLEY
The Original Manufacturer's Warranty Does Not Apply
(4B4 - Upstairs Warehouse)
