Allen-Bradley 1734-FPD Point I/O Field Power Distributor Module 10A (Open Box)
Product Basic Information:
- Manufacturer / Parent Corporation: Rockwell Automation (Allen-Bradley)
- Part Number: 1734-FPD and 1734FPD
- Product Family / Series: POINT I/O
- UPC: 10612598206886
- Series: B
- Manufactured In: Singapore
- Item Condition: Unused Surplus
Technical Specifications:

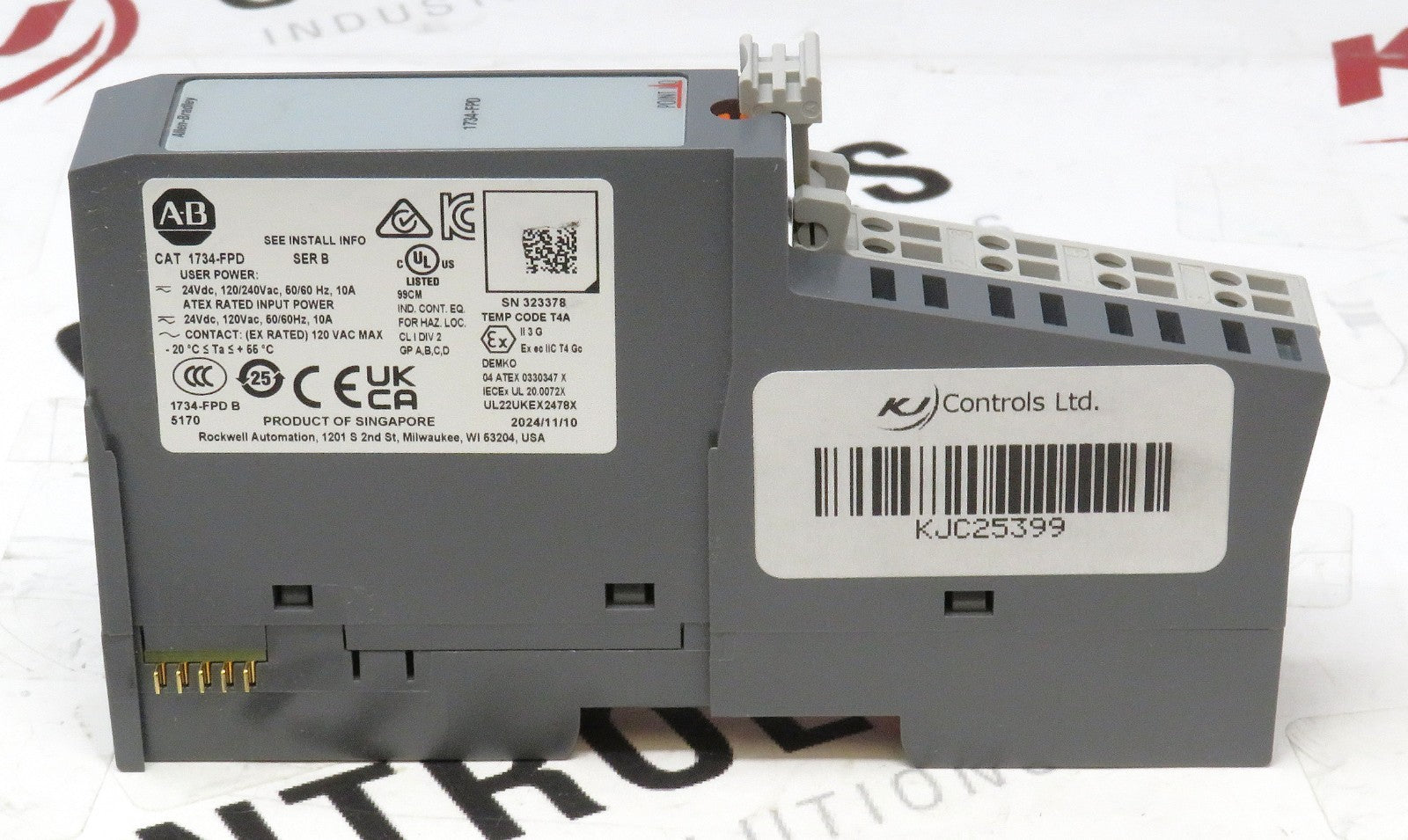

- Input Voltage Range (User Power): 24 VDC, 120/240 VAC (50/60 Hz)
- ATEX Rated Input Power: 24 VDC, 120 VAC (50/60 Hz)
- Current Rating: 10 A max
- Power Supply Type: External field power distribution
- Mounting Type: DIN Rail
- Operating Temperature: -20°C to +55°C (standard), Marked up to +66°C on some modules
- Certifications:
- UL Listed
- CE, UKCA
- ATEX: II 3 G Ex ec IIC T4 Gc
- IECEx UL 20.0072X
- Protection Type: For use in hazardous locations (Class I, Div 2, Groups A, B, C, D)
- Wire Termination: Screw terminal block (8-point)
- RTB (Removable Terminal Block) Used: 1734-RTB (or similar)
Product Features:
- Segments field power from I/O modules to allow separate field power groups
- Supports both AC and DC power supplies for flexibility
- Hot-swappable within POINT I/O system
- Diagnostic LED indicators
- Simplifies wiring and power management within distributed I/O setups
- Compatible with POINT I/O family for modular I/O configurations
Product Designed Use:
- Used in industrial automation to isolate and distribute field power within distributed I/O architectures
- Ideal for systems requiring separation of I/O module power groups
- Supports both AC and DC field devices
- Suitable for hazardous environments, especially oil & gas, manufacturing, food & beverage, and utilities
