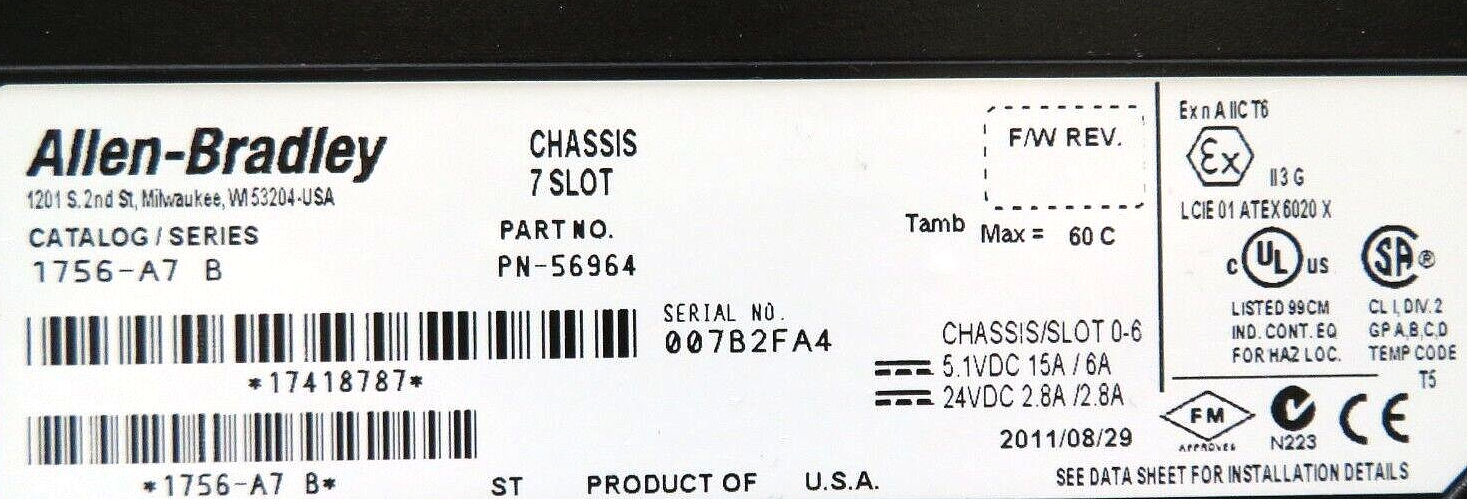

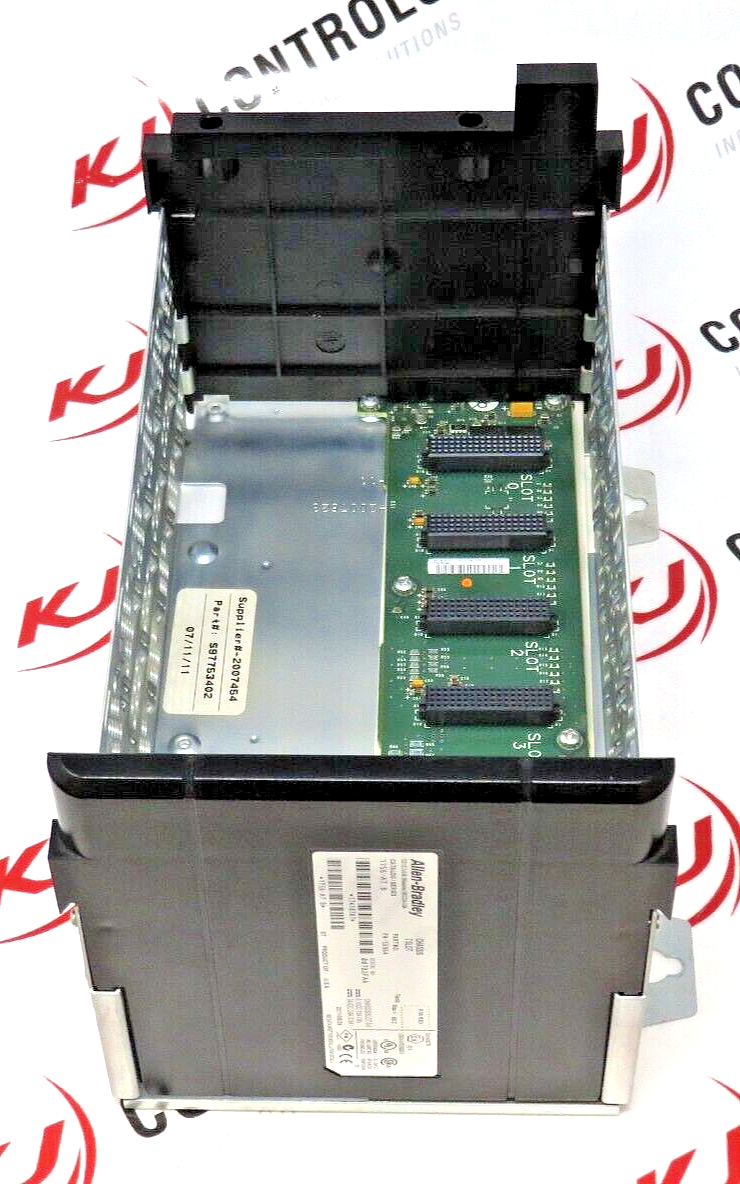

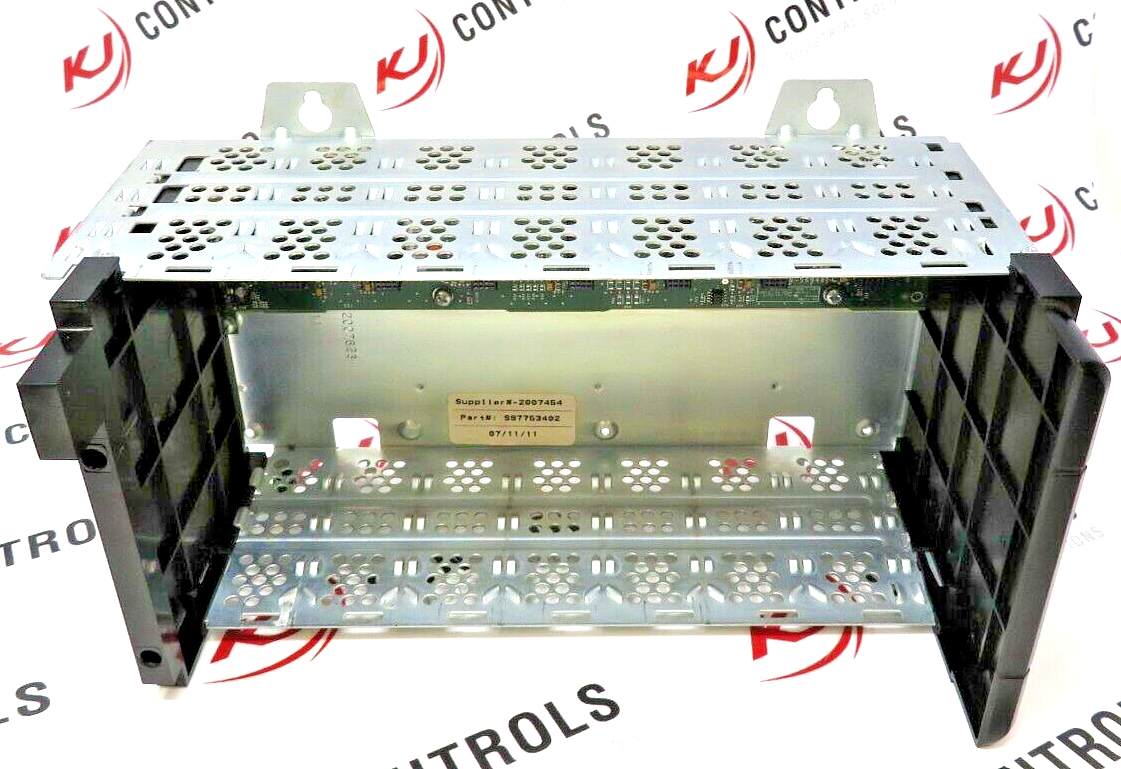

Allen-Bradley Chassis
- Part Number: 1756-A7 (1756A7)
- Product family: ControlLogix
- Life Cycle status: Active
Technical Specifications:
- Chassis Type: ControlLogix
- Module Slots: 7 slots
-
Backplane Current: 5V: 2 A 24V: 1.5 A
- Power Dissipation: 3.75 W
- Backplane Speed: 5 Mbps for data communication
- Dimensions: 10.5 x 14.4 x 5.7 inches (266 x 365 x 145 mm)
- Weight: 2.5 kg (5.5 lbs)
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Storage Temperature: -40 to 85 °C (-40 to 185 °F)
- Relative Humidity: 5 to 95% non-condensing
- Shock Rating: 30 g operational 50 g non-operational
- Vibration: 2 g at 10-500 Hz
Features:
- Installation: Horizontal or vertical mounting
- Chassis Material: Anodized aluminum
- Certifications: UL, CSA, CE, ATEX, C-Tick
- Compliance: Meets UL, CSA, CE standards
*Please note that this information is accurate as of the last update and may vary slightly based on the source. For the most accurate and up-to-date information, it’s always a good idea to check directly with the manufacturer or authorized distributor.*
