Allen-Bradley 1756-OA16I ControlLogix 16-Point Isolated Output Module 120/240VAC

Allen-BradleySKU: 1756-OA16I

Condition:
New - Open box
Price:
Sale price$950.00 CAD
Stock:
Only 3 units left
 More payment options
Request a Quote

Description

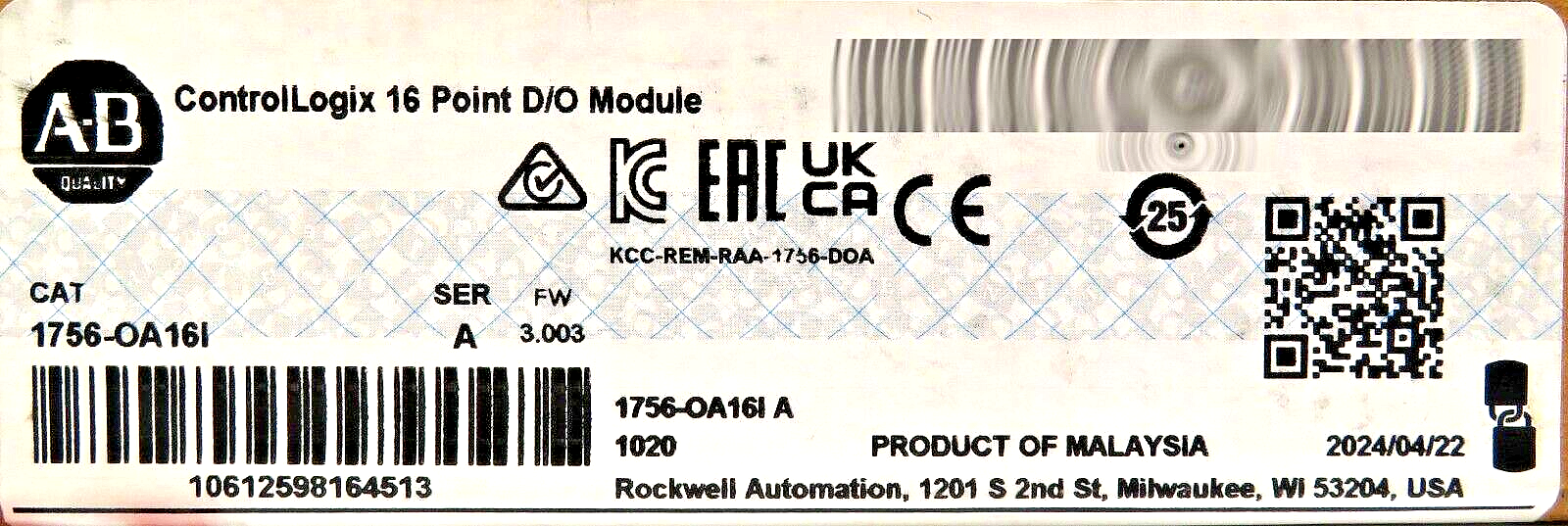

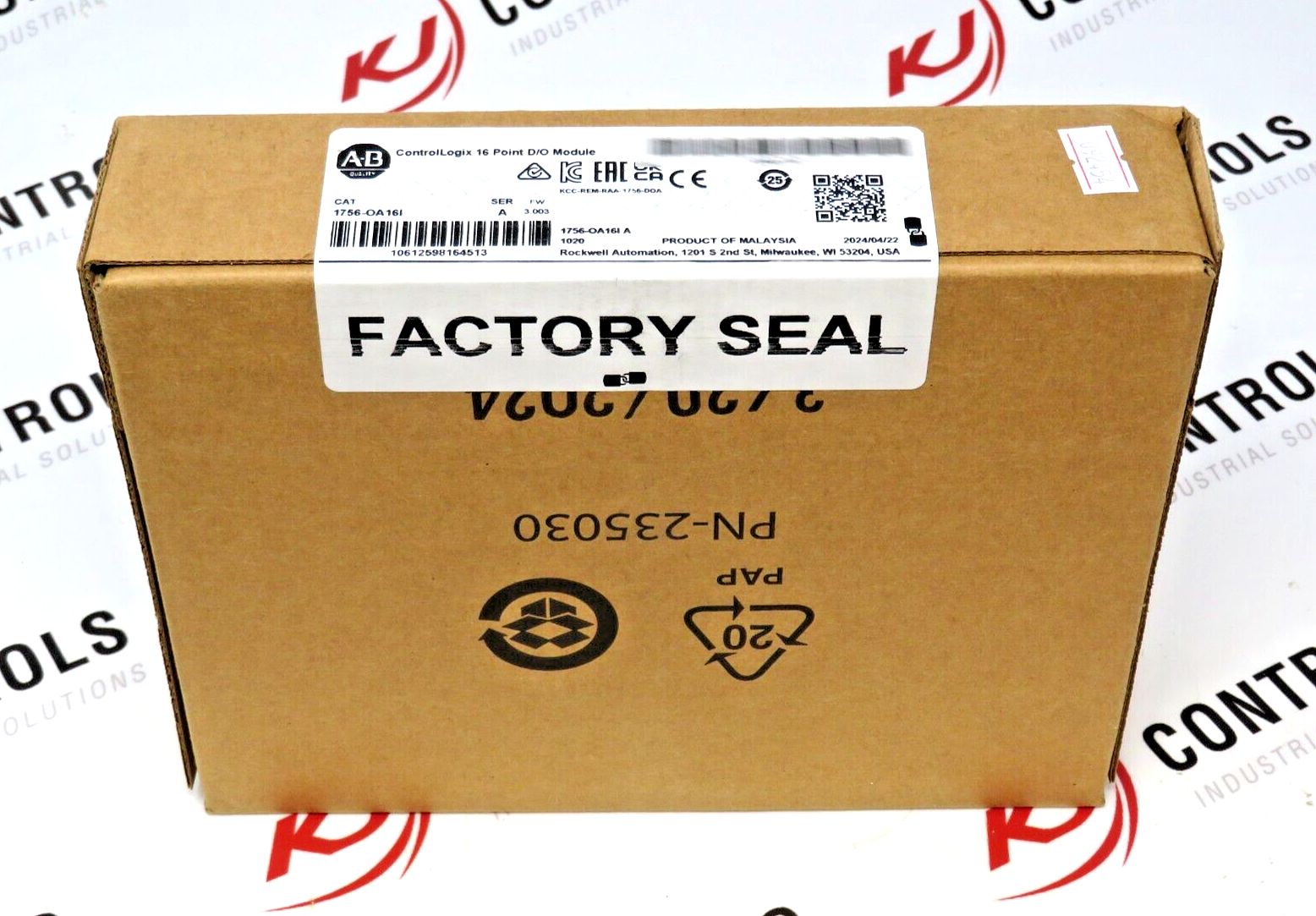

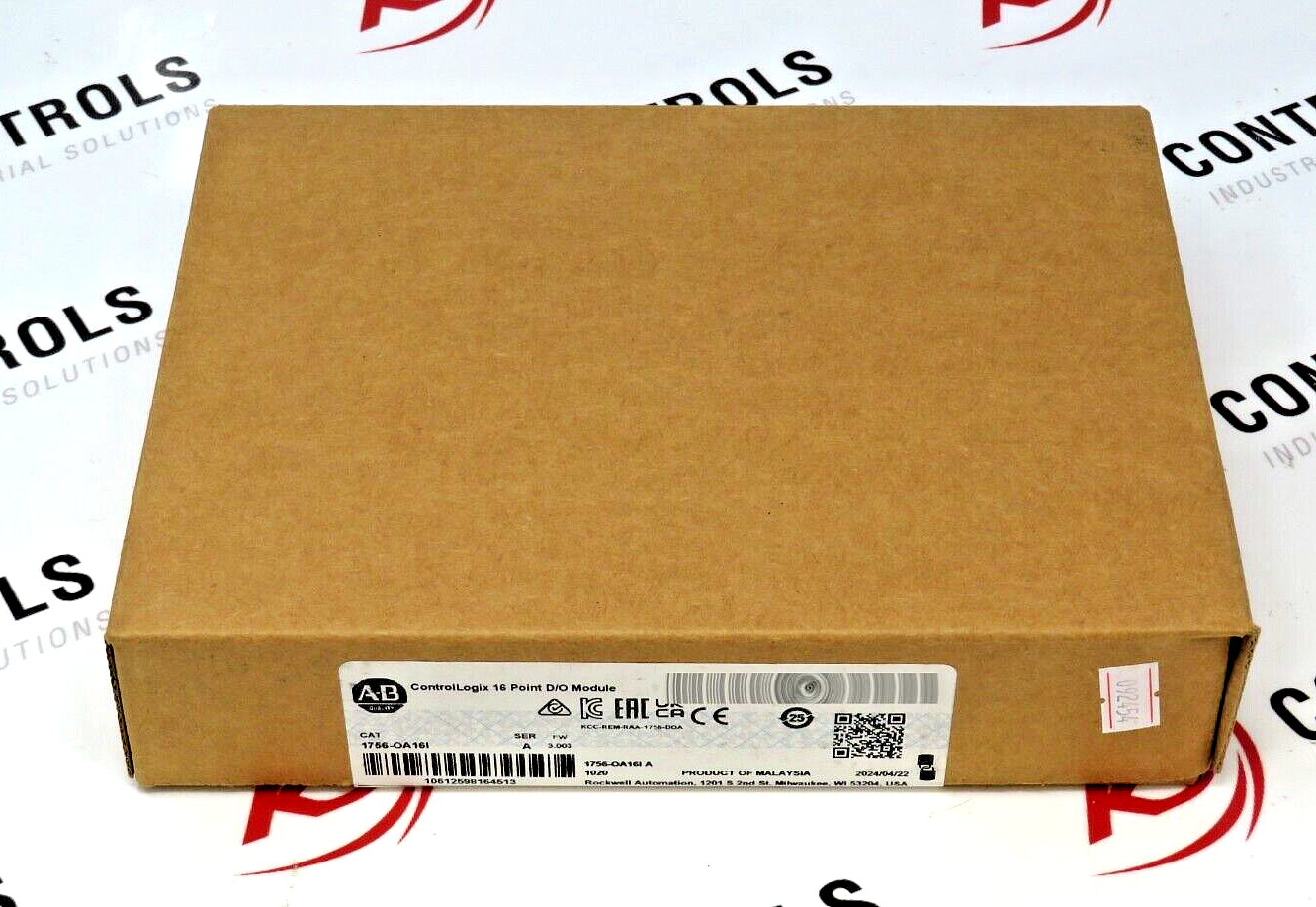

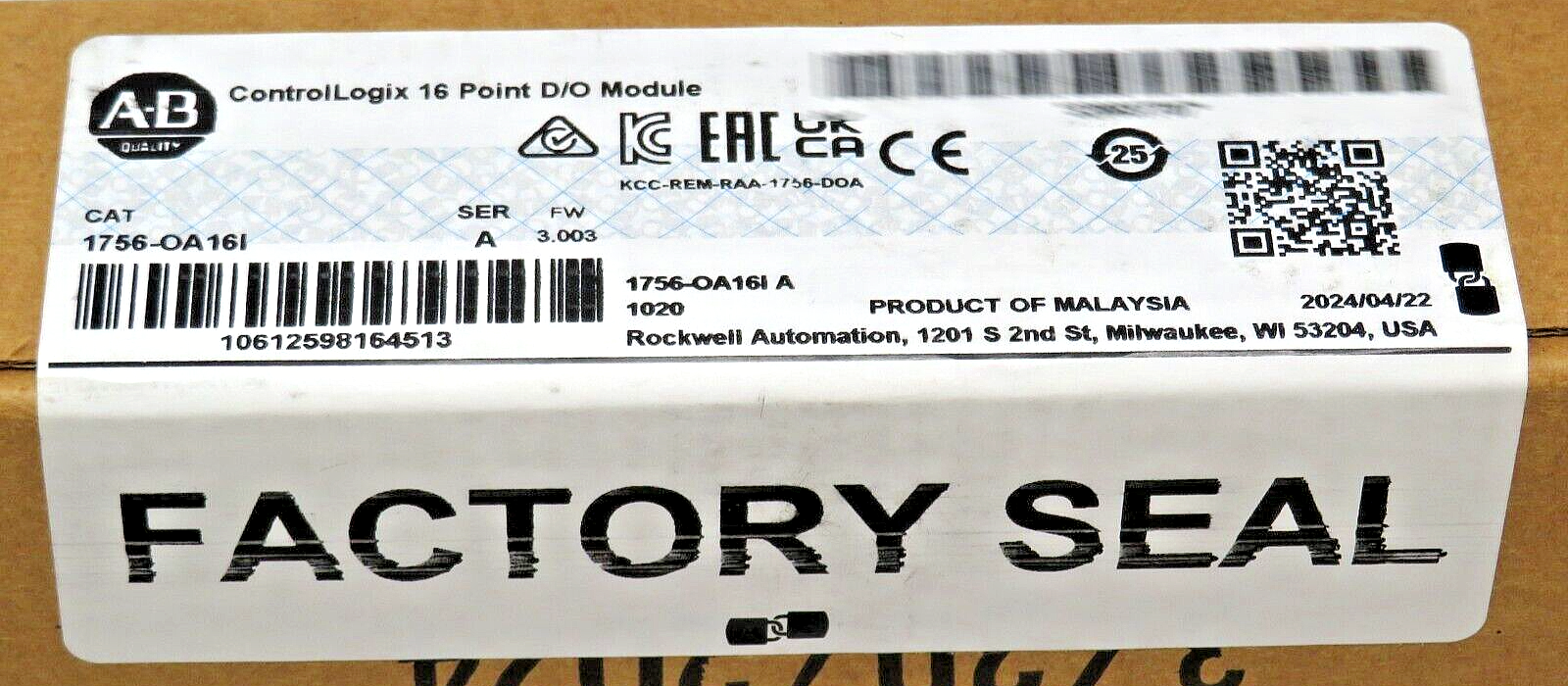

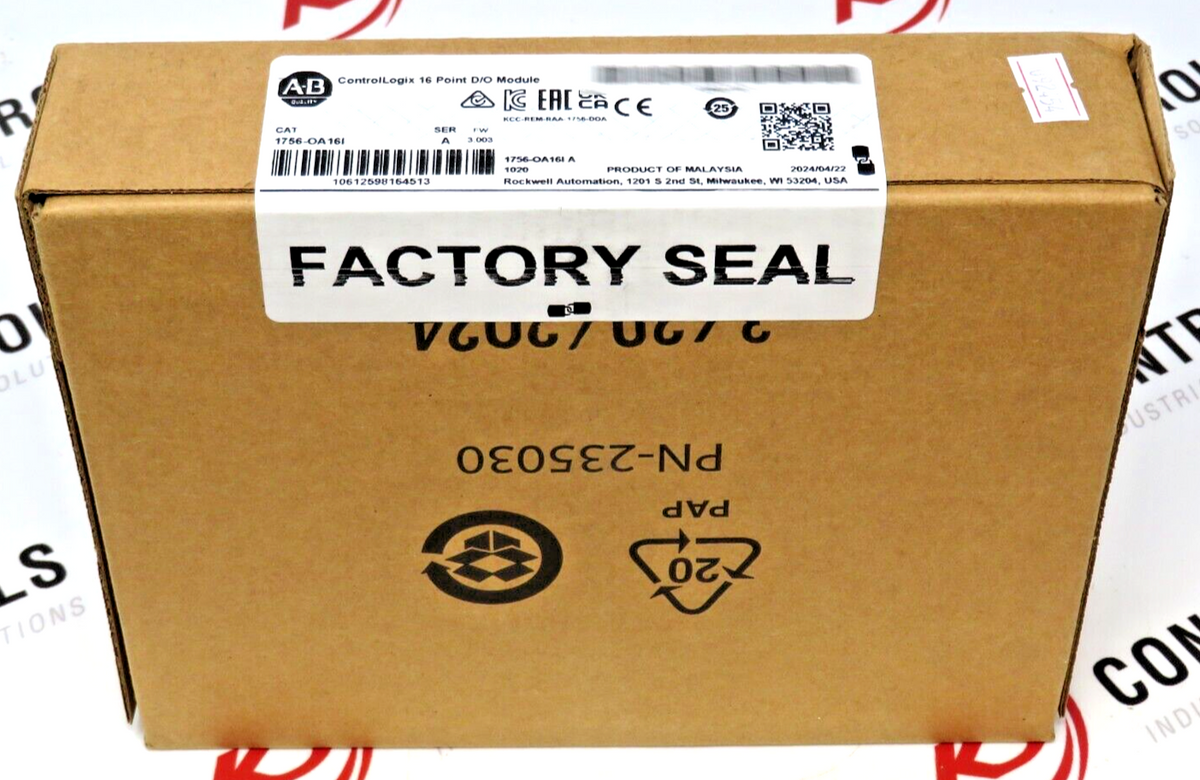

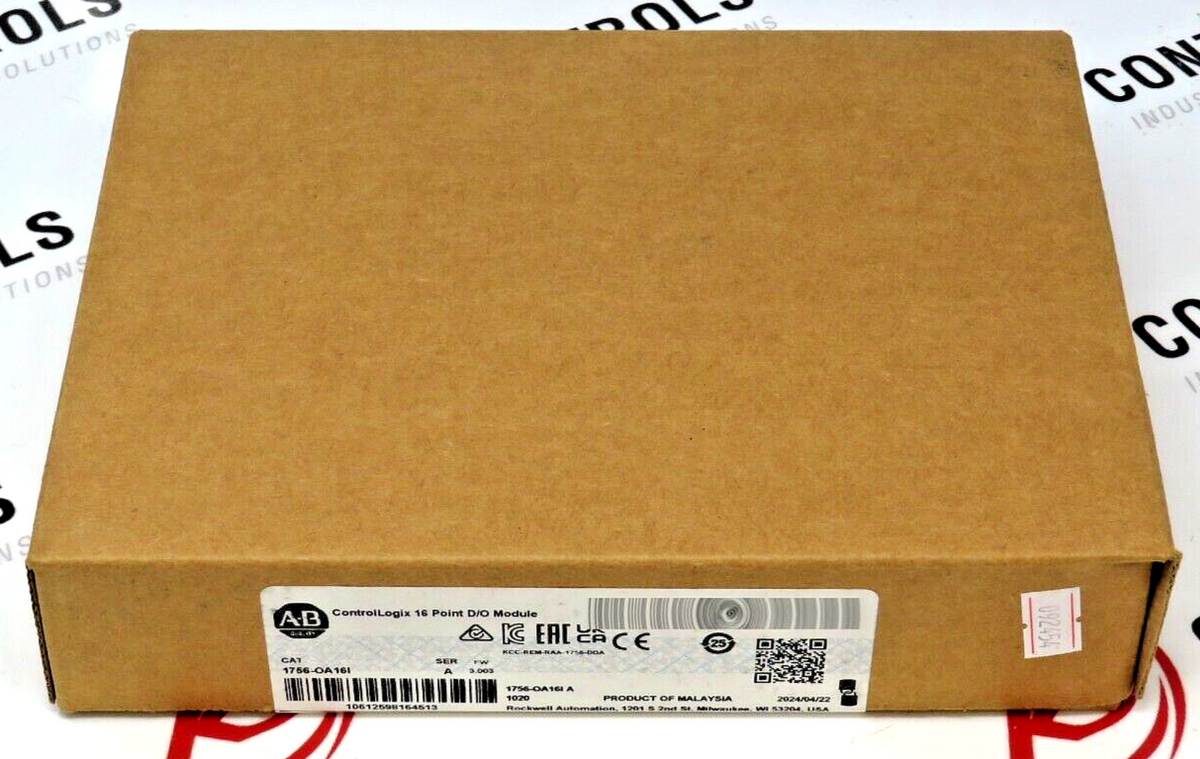

Allen-Bradley 16-Point Isolated AC Output Module (Factory Sealed Box)

Product Basic Information:
  • Manufacturer: Allen-Bradley (Rockwell Automation)
  • Part Numbers: 1756-OA16I / 1756OA16I
  • Product Family: ControlLogix
  • UPC: 10612598164513
  • Lifecycle Status: Current, active product
Technical Specifications:
  • Output Channels: 16 individually isolated outputs
  • Voltage Range: 74–265V AC
  • Current per Point: 1.0A max per output
  • Power Dissipation: 5.5W at 60°C
  • Surge Current per Point: 20A for 43ms, repeatable every 2 seconds
  • Off-State Leakage Current: Max 3mA per point
  • Mounting: Chassis-based (ControlLogix chassis)
  • Frequency: 47–63 Hz
  • Minimum Load Current: 10mA per point
Product Features:
  • Individually isolated outputs, ideal for systems requiring high isolation between channels
  • Suitable for use in applications where reliable, high-voltage AC outputs are needed
  • No internal fusing for each point, allowing flexibility in external circuit design
  • Designed for use in demanding industrial environments with a broad operating voltage range (74–265V AC)
  • Easy integration with ControlLogix systems, supporting various voltage types and configurations
Designed Use:
  • This module is primarily used in industrial automation systems that require high-voltage digital AC outputs. Its isolated outputs make it ideal for controlling AC actuators, indicators, and motors in processes that demand electrical isolation between control points to prevent cross-channel interference.
* Buyer is responsible for all customs, brokerage fees, local levies and taxes.*

KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR ALLEN BRADLEY
The Original Manufacturer's Warranty Does Not Apply.

(4C1 - Upstairs)
