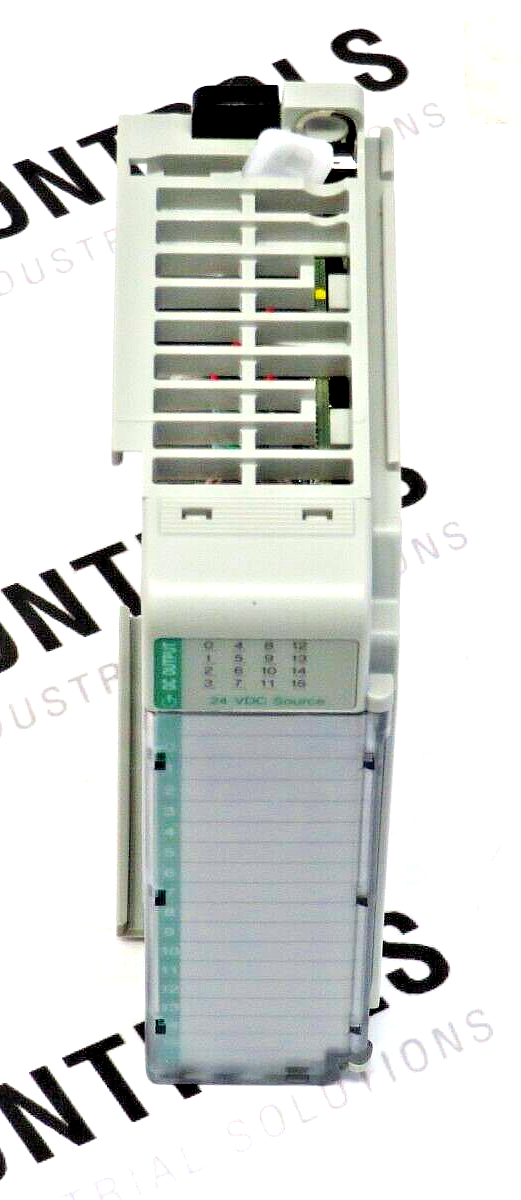

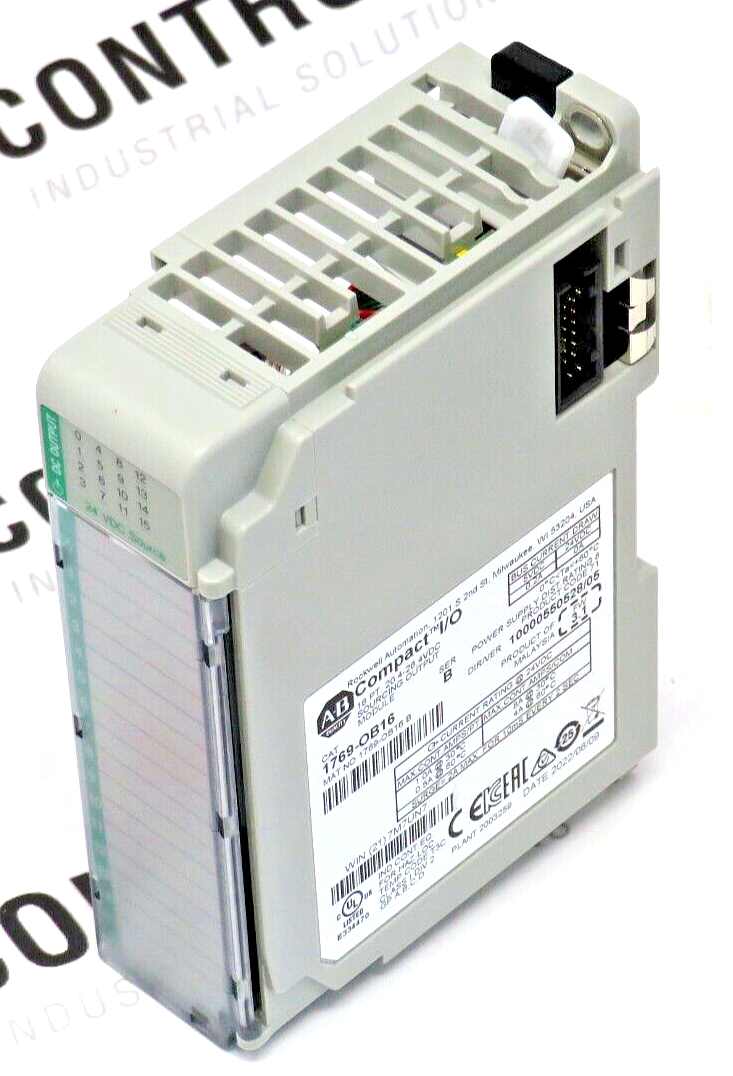

Allen-Bradley CompactLogix 16-PT. 24VDC Digital Output Module
- Part number: 1769-OB16 (1769OB16)
- Life Cycle Status: ACTIVE.
Technical Specifications:
- Functioning voltage range: 20.4 to 26.4 volts DC.
- Delay output voltage: 0.1ms and an off-mode delay output of 1.0ms.
- Draw current: 200mA at 5.1V.
- Heat dissipation: 2.11Watt.
Product Features:
- Can be used with a 1769 CompactLogix controller, for expansion I/O in a MicroLogix 1500 controller assembly, in an assembly with a 1769-ADN DeviceNet adapter, or in an assembly with a 1769-AENTR Ethernet adapter.
- Each I/O module includes a built-in removable terminal block with finger safe cover for connections to I/O sensors and actuators.
- The modules mechanically lock together with a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a movable bus connector.
- Isolation: 1200V AC for 1 s or 1697V DC for 1 s, output point to bus. 75V DC working voltage (IEC Class 2 reinforced insulation).
