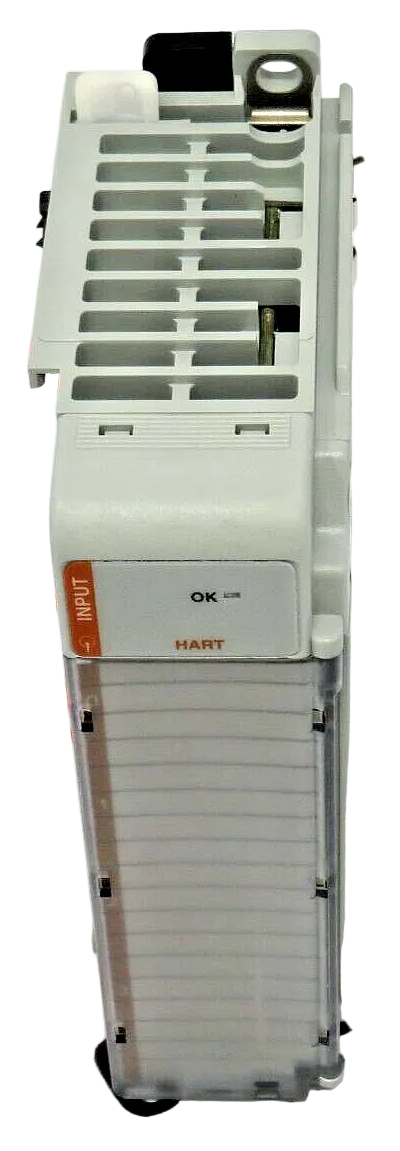

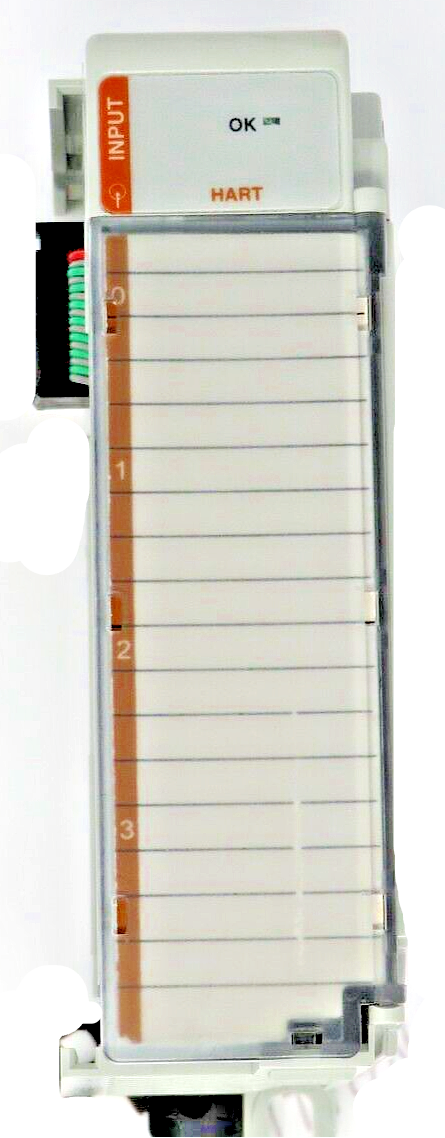

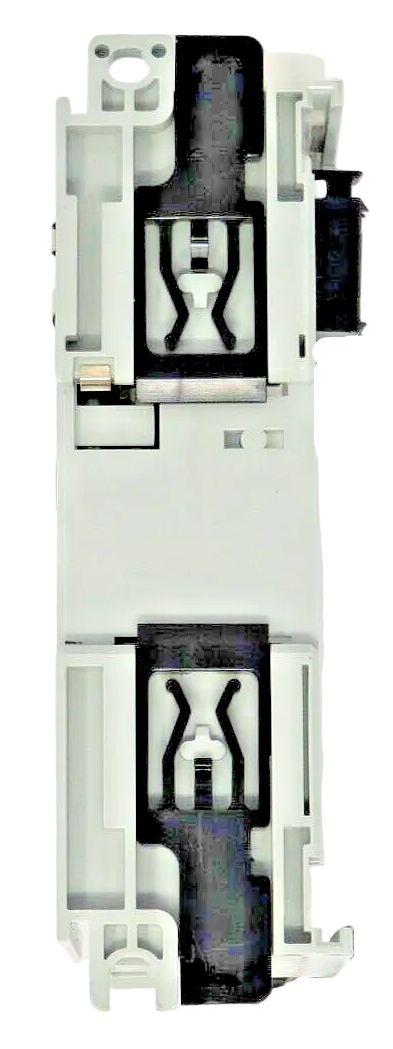

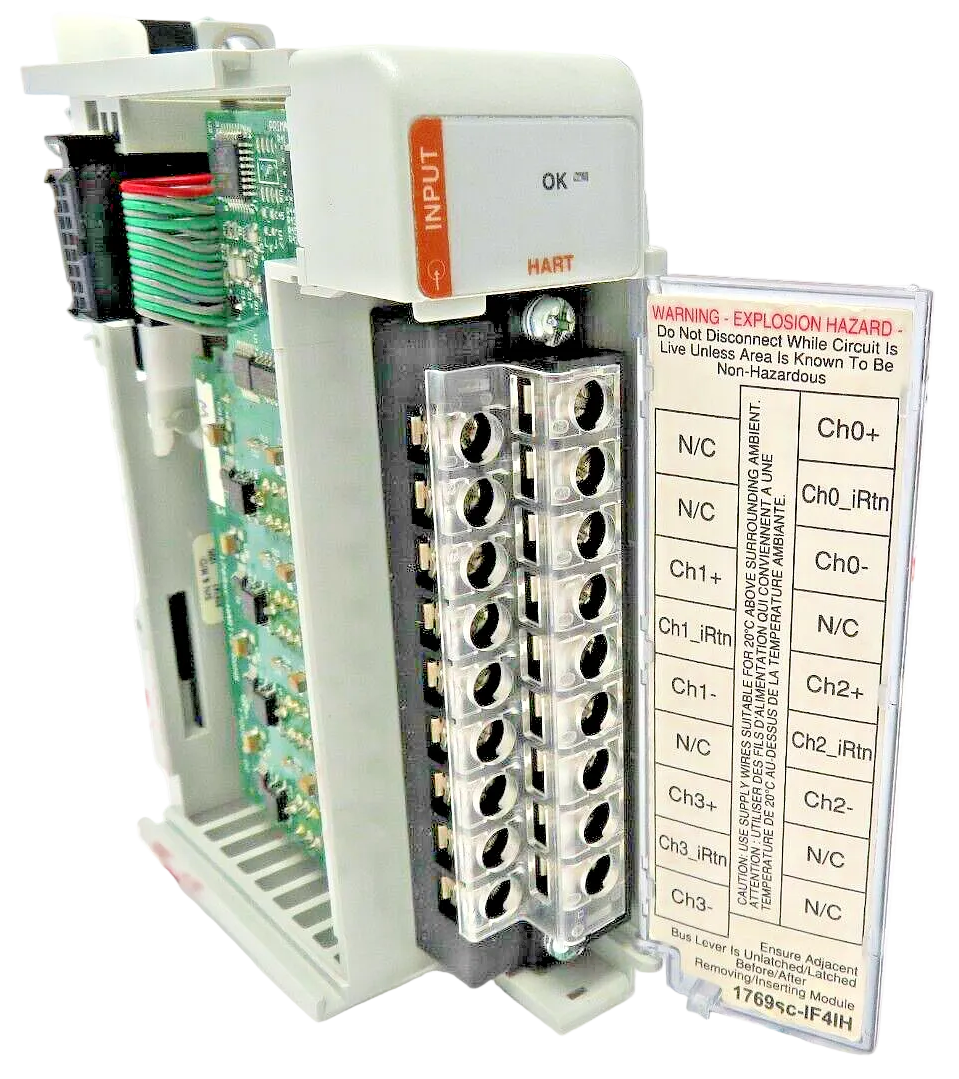

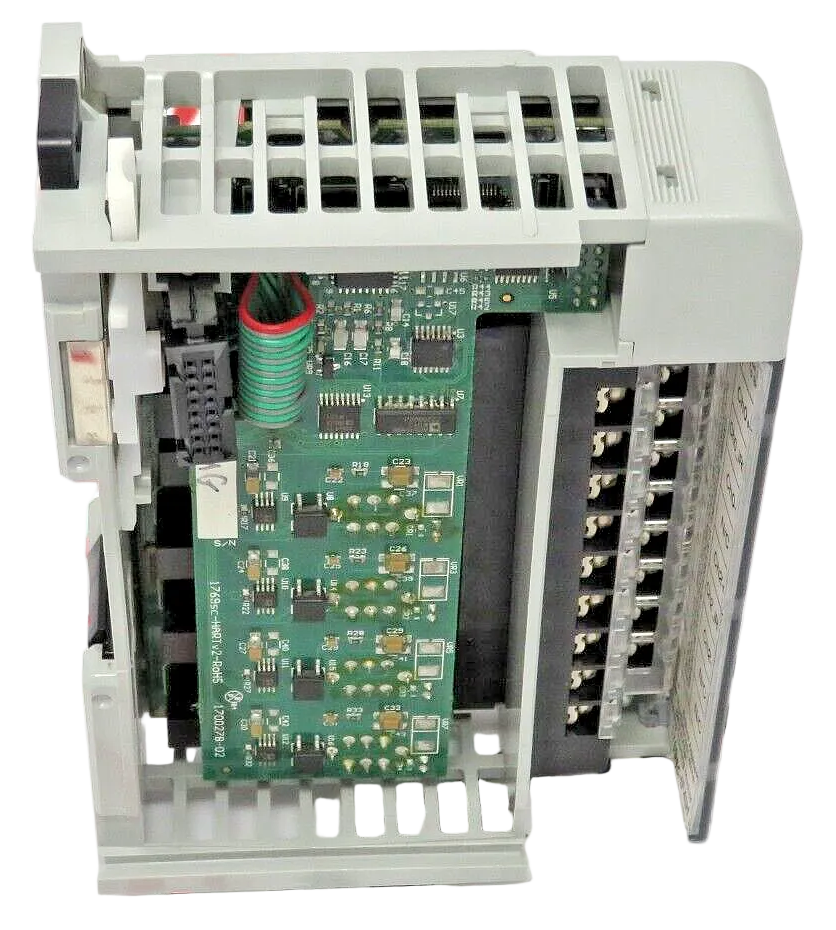

Spectrum Controls 1769SC-IF4IH Compact I/O 4 Channel Analog HART Input Module
Product Basic Information:
- Manufacturer: Spectrum Controls
- Catalog number: 1769SC-IF4IH
- Alternate part number: 1769SCIF4IH
- Product family/series: 1769 Compact I/O
- Product type: Analog + HART input module
- Channels per module: 4 (current/voltage inputs plus HART)
- Resolution: 16-bit
Technical Specifications:
- Input ranges (current): 0 to 20 mA, 4 to 20 mA plus HART
- Input ranges (voltage): 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V
- HART dynamic variables: PV, SV, TV, FV
- Filtering: 5 filter frequencies (individually selectable by channel)
- Input protection (voltage terminal): ±24 VDC continuous
- Input protection (current terminal): ±28 mA continuous, ±7 VDC
- Update times: 10 to 108 ms for all channels; 6 seconds for HART
- Data format: Integer
- Backplane current required: 75 mA at 24 VDC max; 175 mA at 5 VDC max
Product Features:
- Four isolated analog input channels plus HART
- Acts as a HART master for communication with HART field devices
- Full read/write HART capability
- Passthrough messaging capability
- Selectable input type per channel (current or voltage)
- HART PV, SV, TV, FV available along with analog data
Product Designed Use:
- Designed to bring 4 to 20 mA and voltage analog signals into Compact I/O systems
- Used with HART-enabled instruments to access both analog and HART device data
- Commonly applied in process control and industrial automation for monitoring transmitters and field devices
