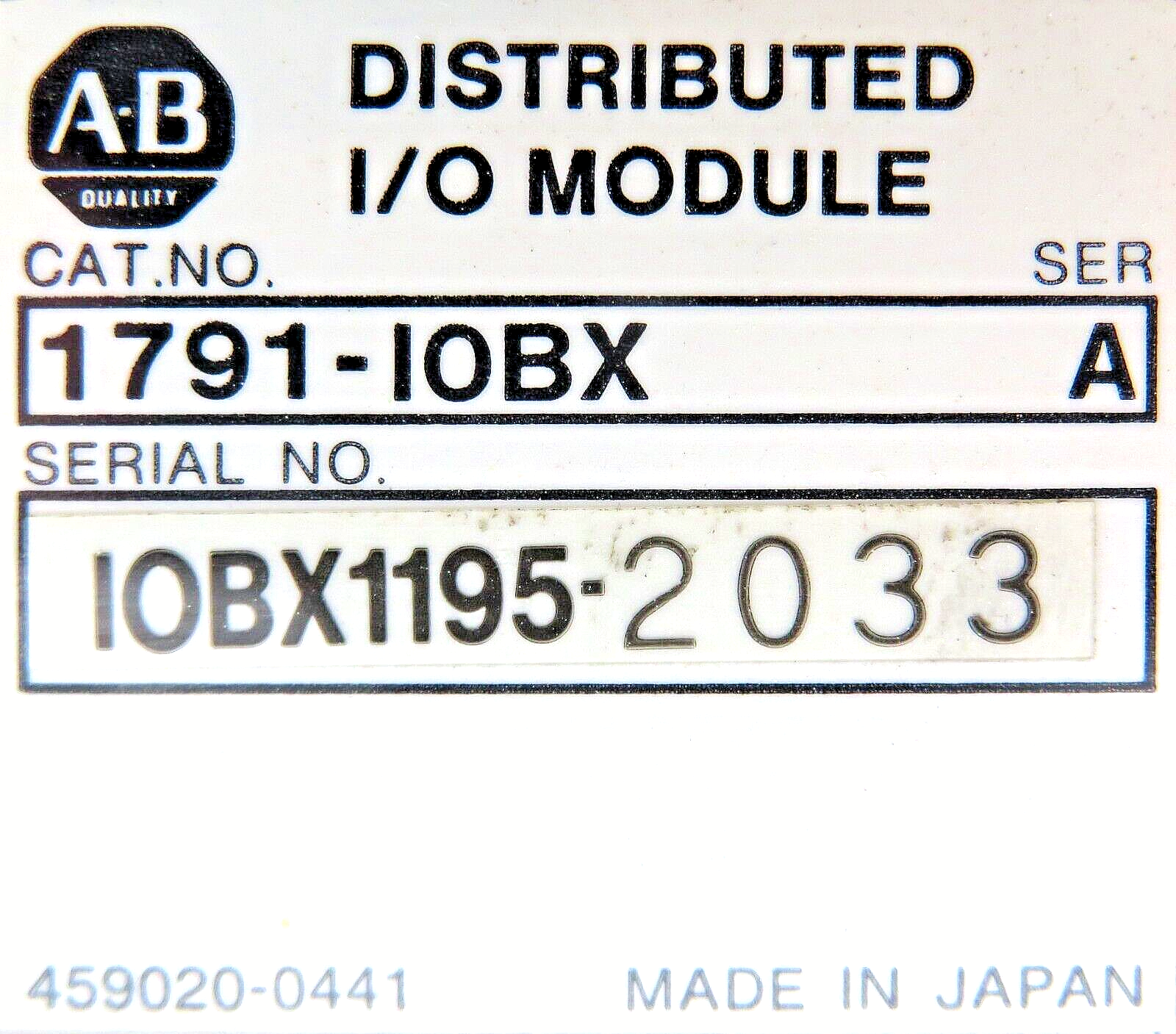

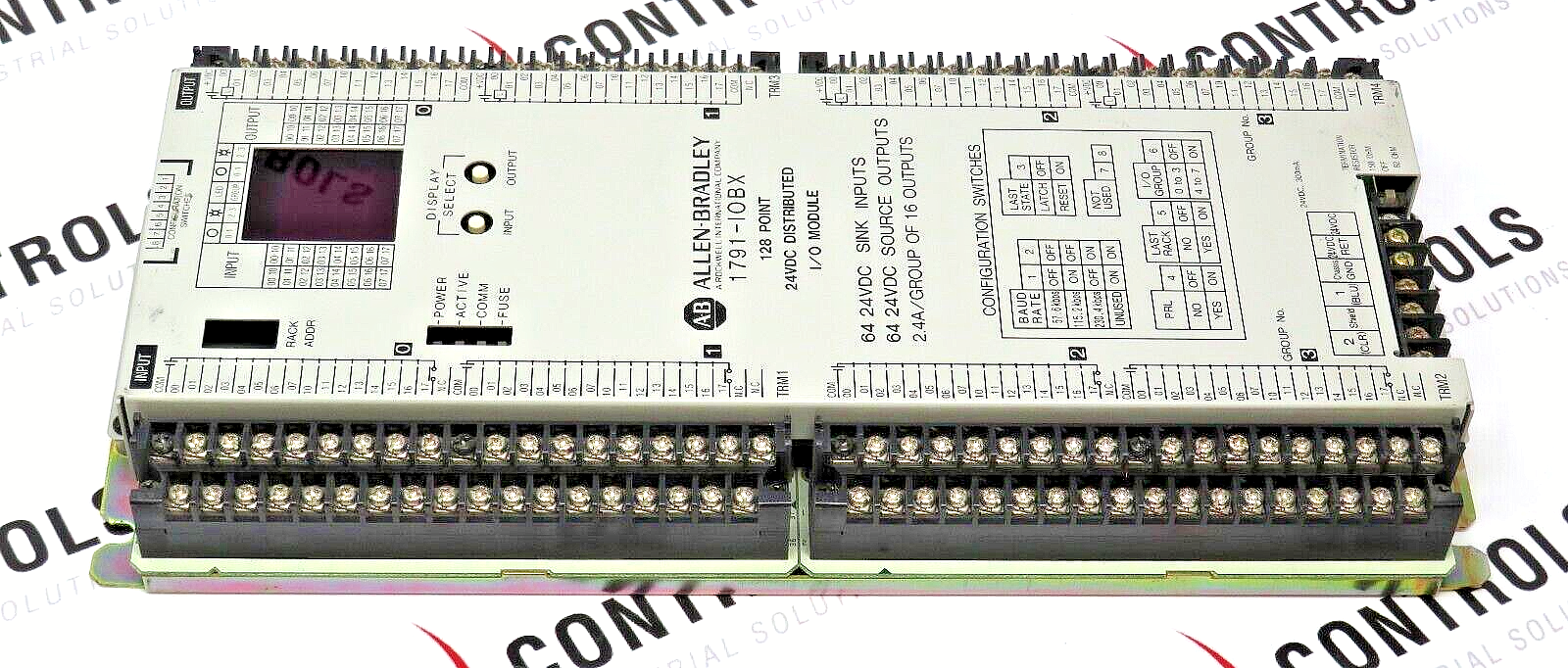

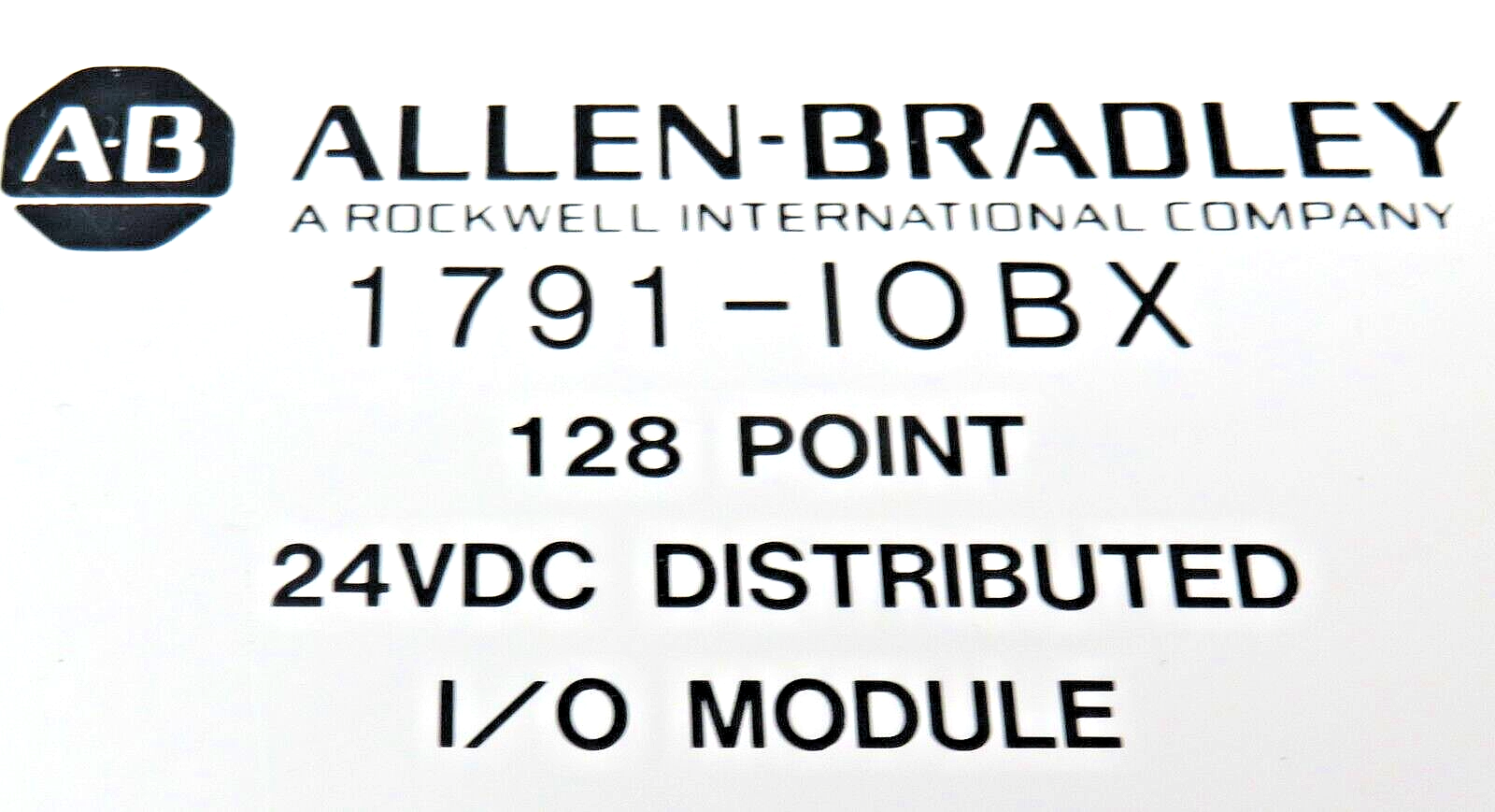

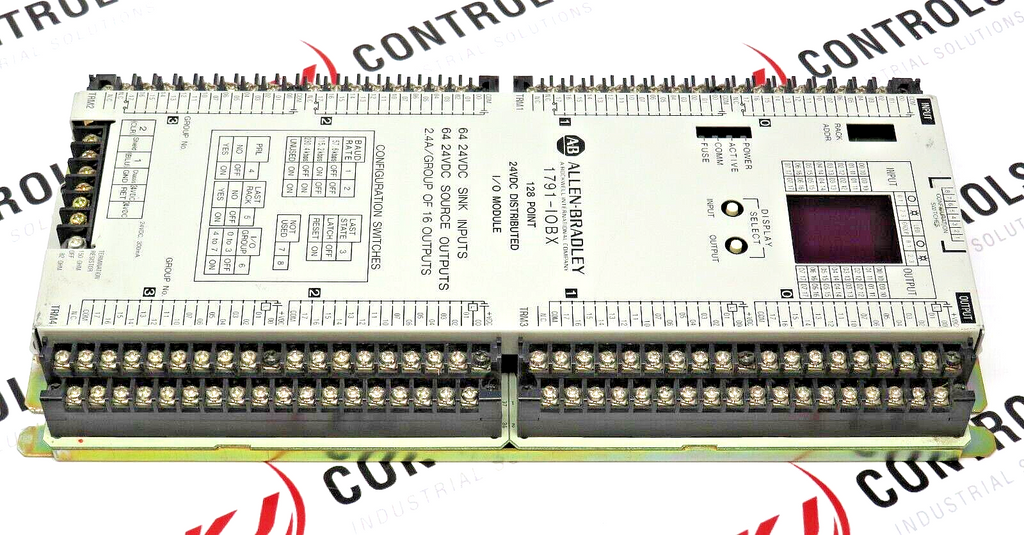

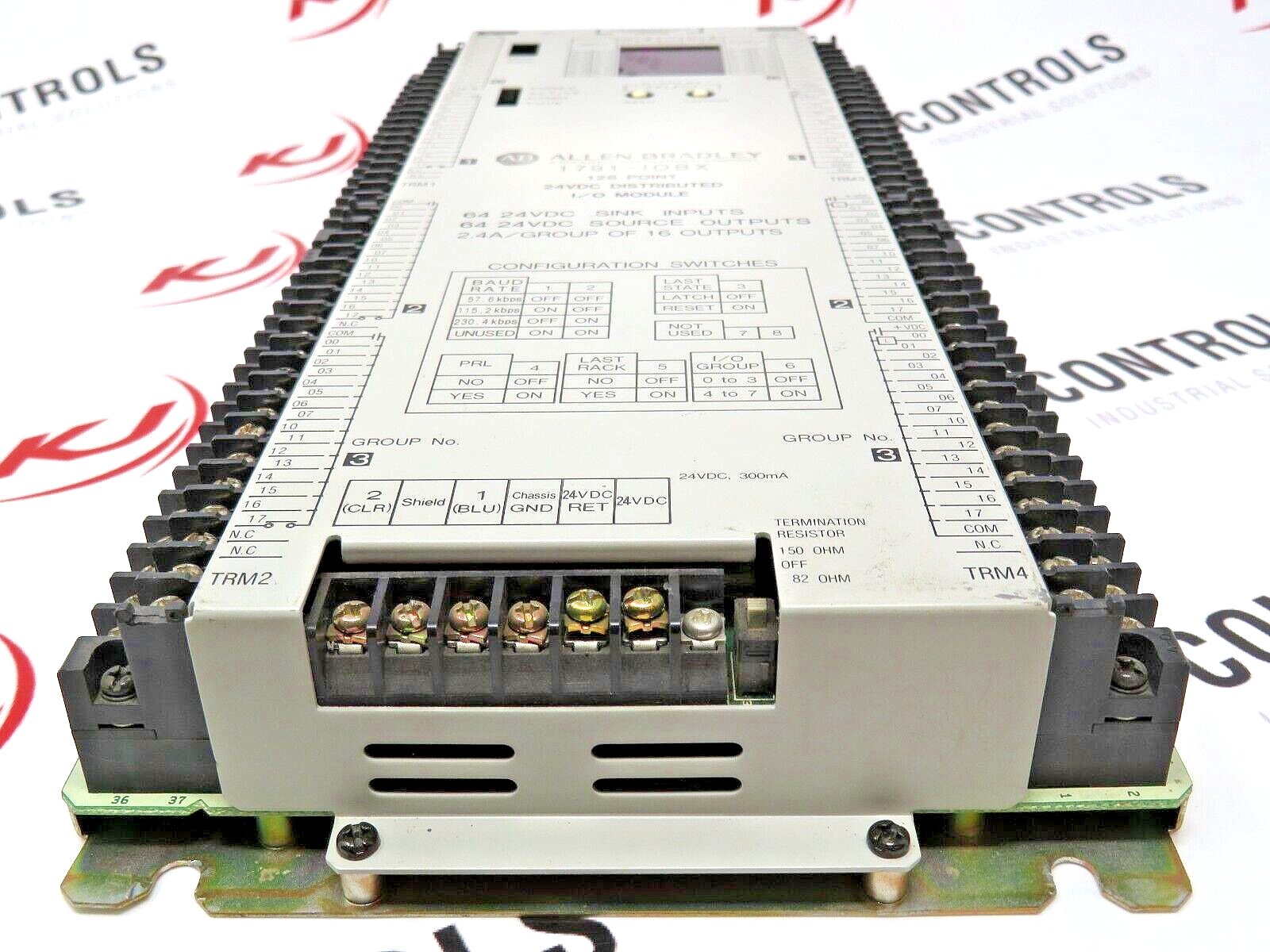

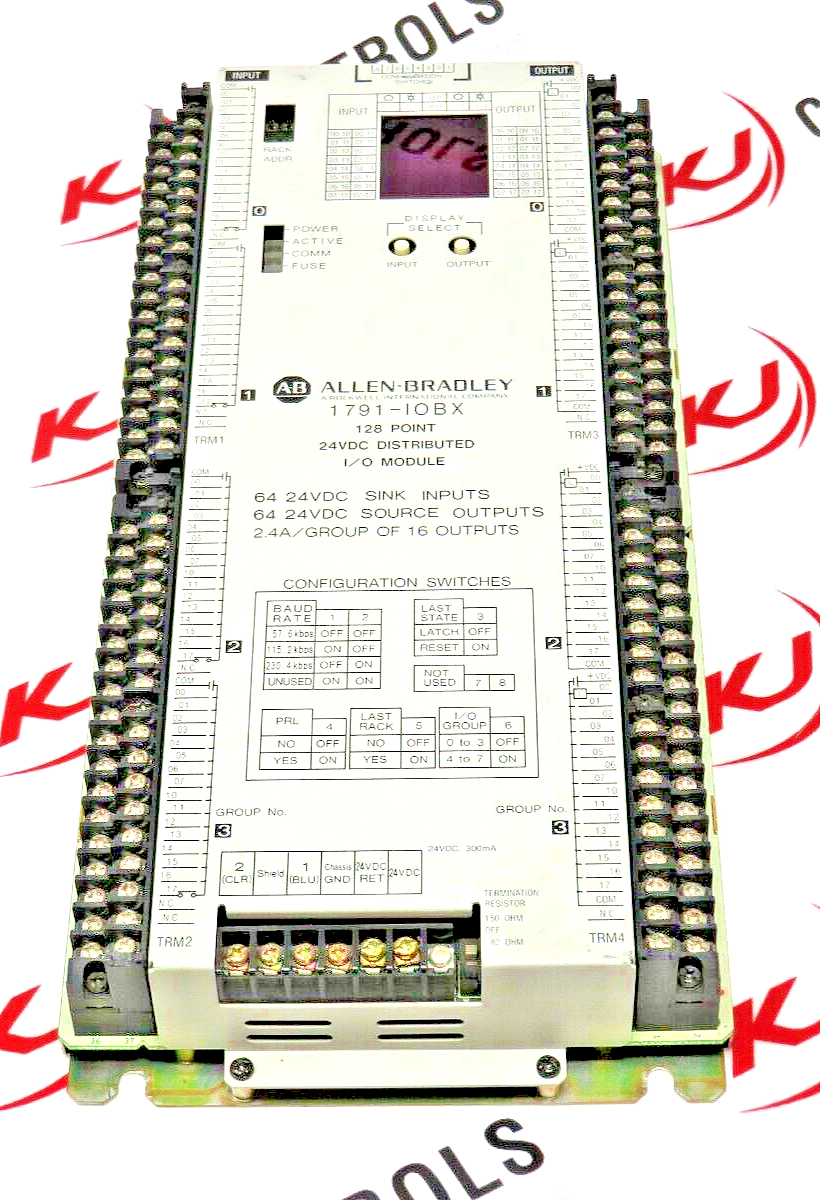

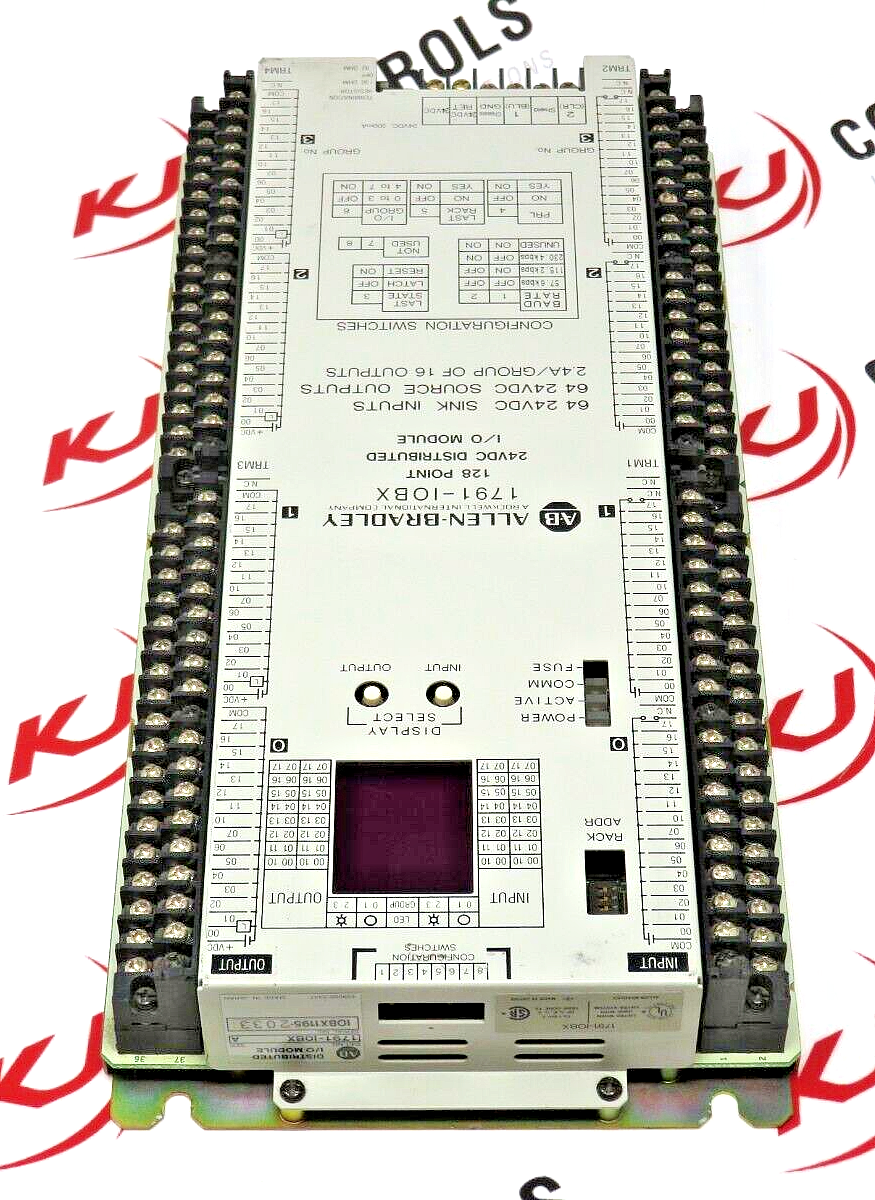

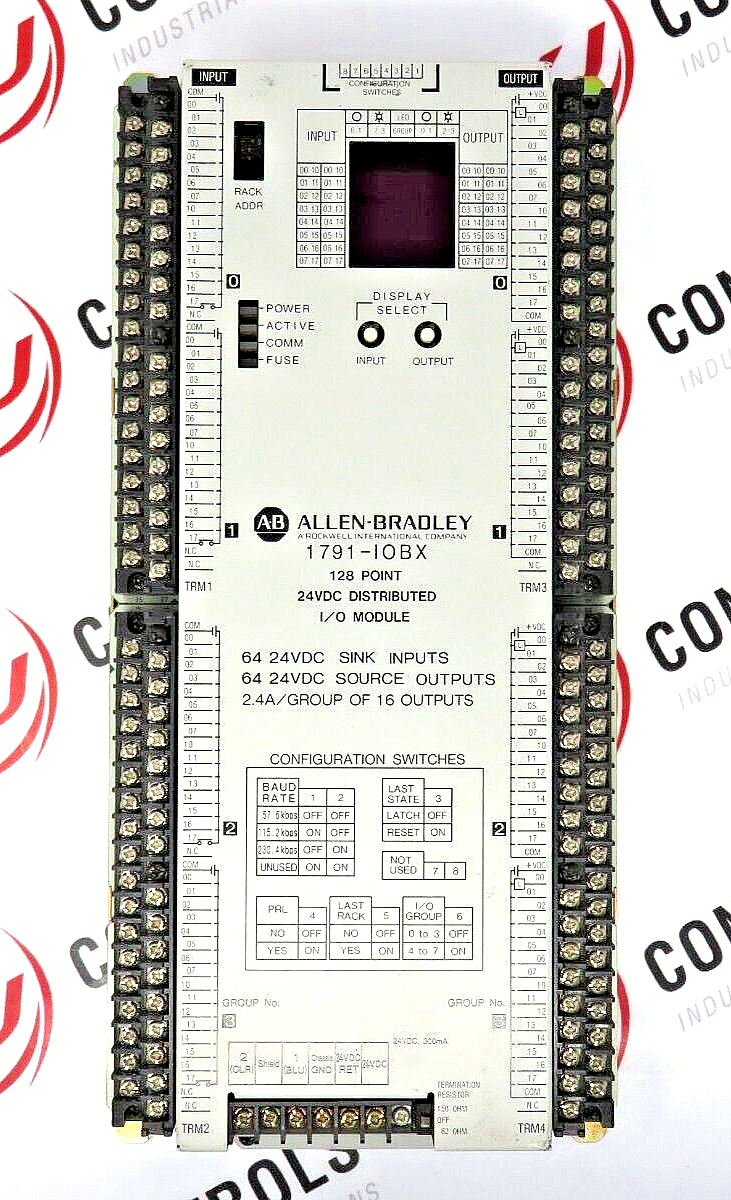

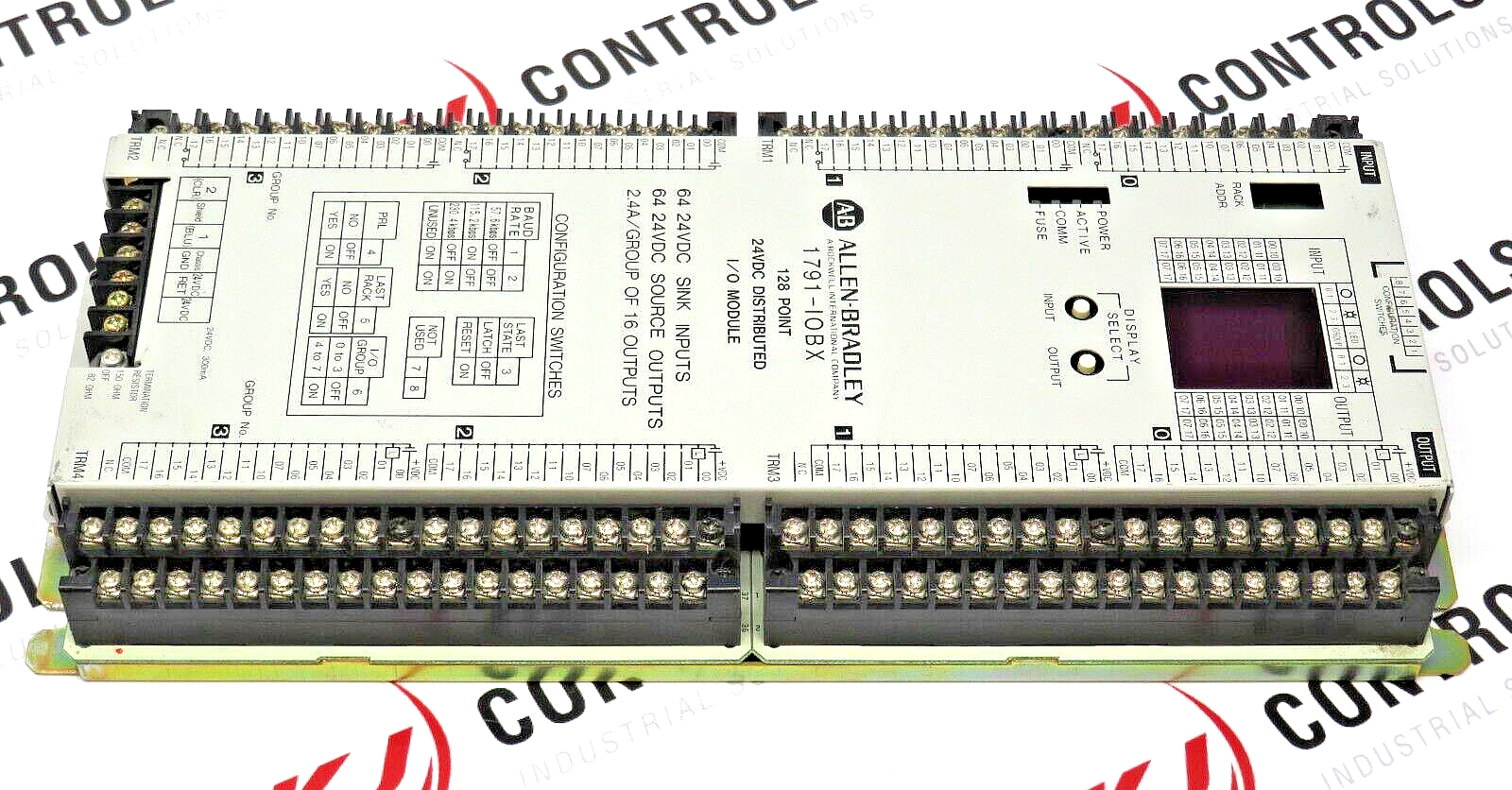

Allen-Bradley Block I/O Module
- 1791-IOBX
- 1791IOBX
- Series A
- Made in Japan
Technical Specifications:
- Voltage: 24V DC
- Inputs per Block: 64 Sinking
- Input On-state Voltage Range: 12-26.4V DC
- Input On-state Current: 1.56mA min.
- Input Off-state Voltage: 7V DC max.
- Input Off-state Current: 1mA DC max.
- Outputs per Block: 64 Sourcing
- Output Voltage Range: 18-26.4V DC at 300mA resistive max.
- External Power: 18-26.4V DC
- Dimensions: 6.15 x 13.0 x 1.72 in.
- Points: 128 with 64 non-isolated sinking inputs and 64 non-isolated sourcing outputs.
Features:
- The 1791-IOBX is a single device that includes the functions of an I/O module, an I/O rack, an adapter, and a power supply.
- It consists of many self-contained, small I/O devices with supplied power, various signal conditioning circuitry, input/output connections, and an interface for programmable control.
- It can communicate with the Allen-Bradley PLC-5, PLC-3, PLC-2, and SLC-500 controllers via the block and discrete transfer modes by using the Remote I/O network.
- It has a maximum heat dissipation rate of 86.2 BTU/hr and the maximum power dissipation rate is 25.2 watts.
- The legend plate terminal covers and some terminal screws are absent.
* Please note that Allen-Bradley PLC products typically come with firmware pre-installed, KJ Controls Ltd. does not guarantee that a PLC product will have firmware. Furthermore, if firmware is present, KJ Controls Ltd. does not assure that it will be the version required for your specific application.*
** Buyer is responsible for all customs, brokerage fees, local levies and taxes.**
KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR ALLEN-BRADLEY
(5A3)
