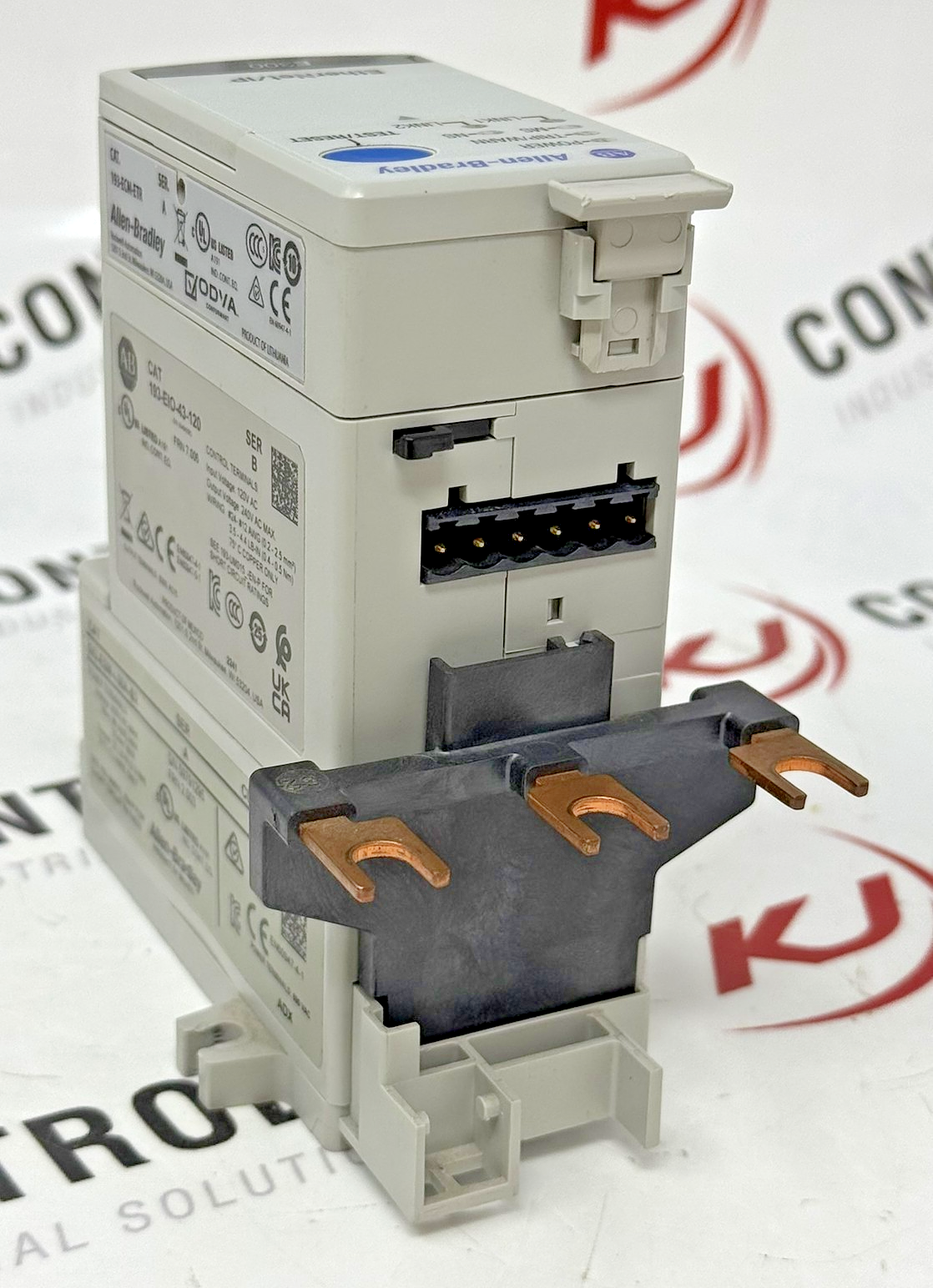

Allen-Bradley 193-ECM-ETR/193-EIO-43-120/592-ESM-I-30A-S2 Relay Assembly
Product Basic Information:
- Manufacturer: Allen-Bradley
- Parent corporation: Rockwell Automation, Inc.

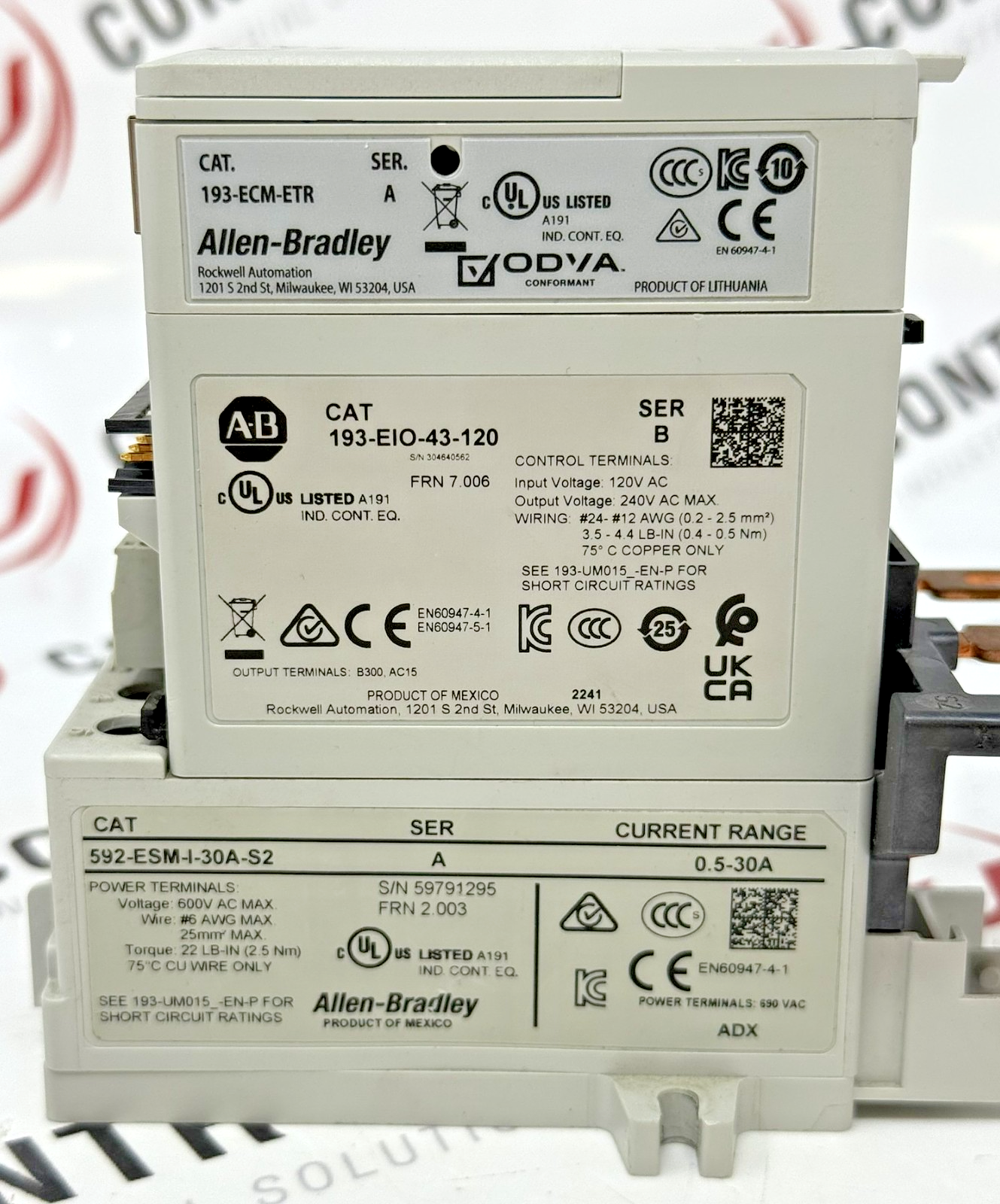

- Catalog numbers: 193-ECM-ETR / 193-EIO-43-120 / 592-ESM-I-30A-S2
- Non-hyphenated part numbers: 193ECMETR / 193EIO43120 / 592ESMI30AS2
- Product family/series: Bulletin 193/592 E300
- Product type: Electronic overload relay assembly
- Included modules: EtherNet/IP communication module, 120V AC control module, 0.5-30 A current sensing module
- Country of origin: Lithuania and Mexico
Technical Specifications:
- Relay platform: E300 modular electronic overload relay

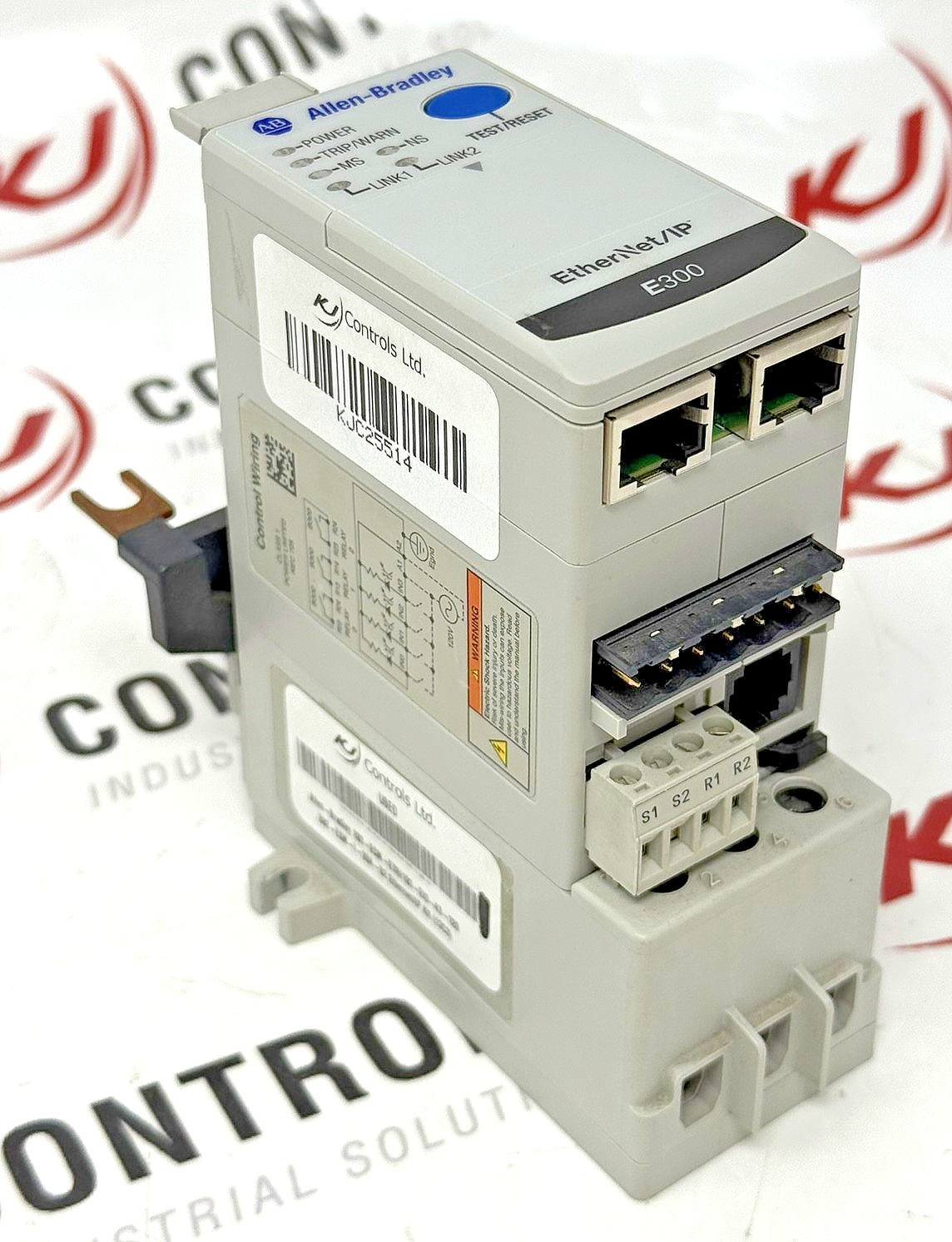

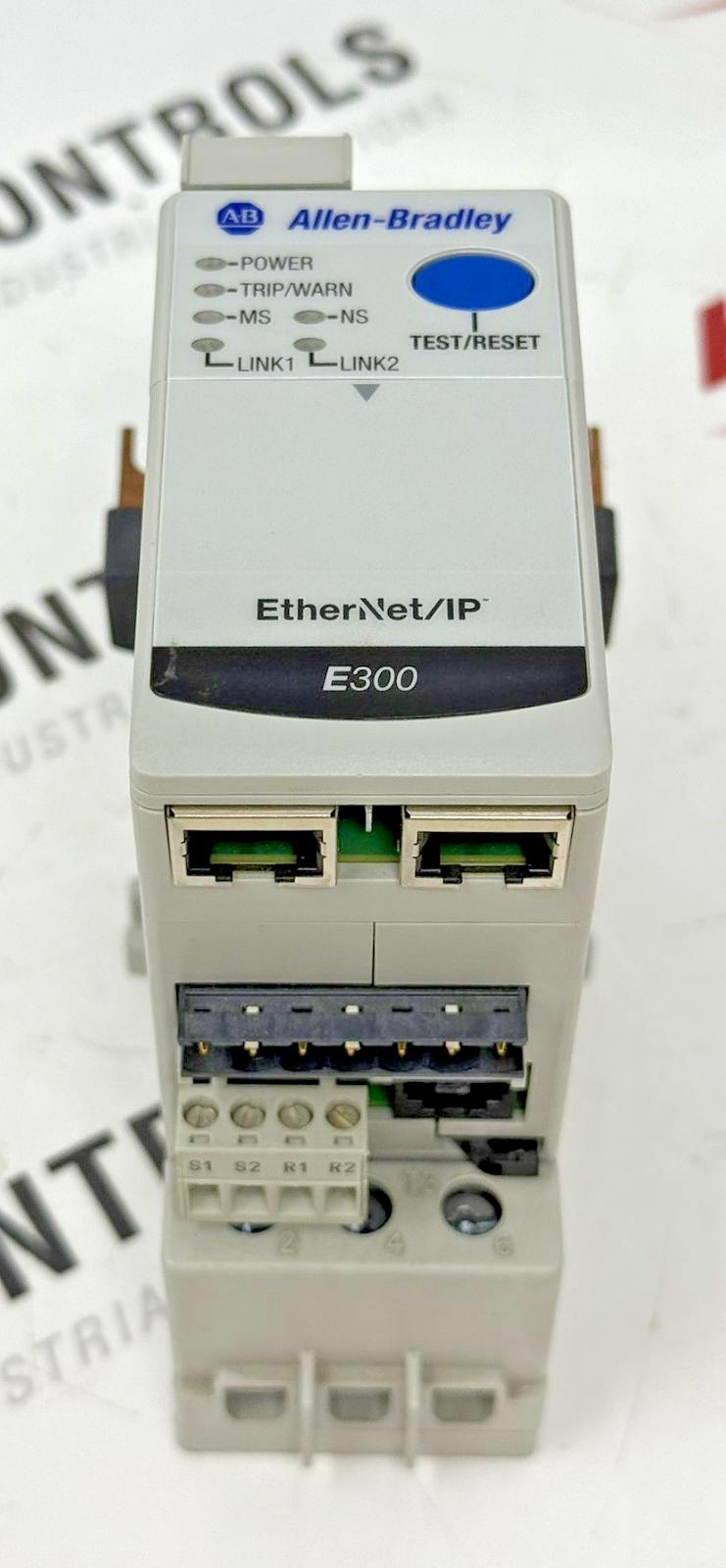

- Communication module: 193-ECM-ETR EtherNet/IP
- Network ports: 2 RJ45 Ethernet ports
- Supported topologies: Star, linear, and ring
- Network capability: 2 concurrent Class 1 connections and 6 simultaneous Class 3 connections
- Integrated network functions: Embedded web server, SMTP server, embedded EDS file, Studio 5000 Add-on Profile
- Control module: 193-EIO-43-120
- Control voltage: 110-120 V AC, 50/60 Hz

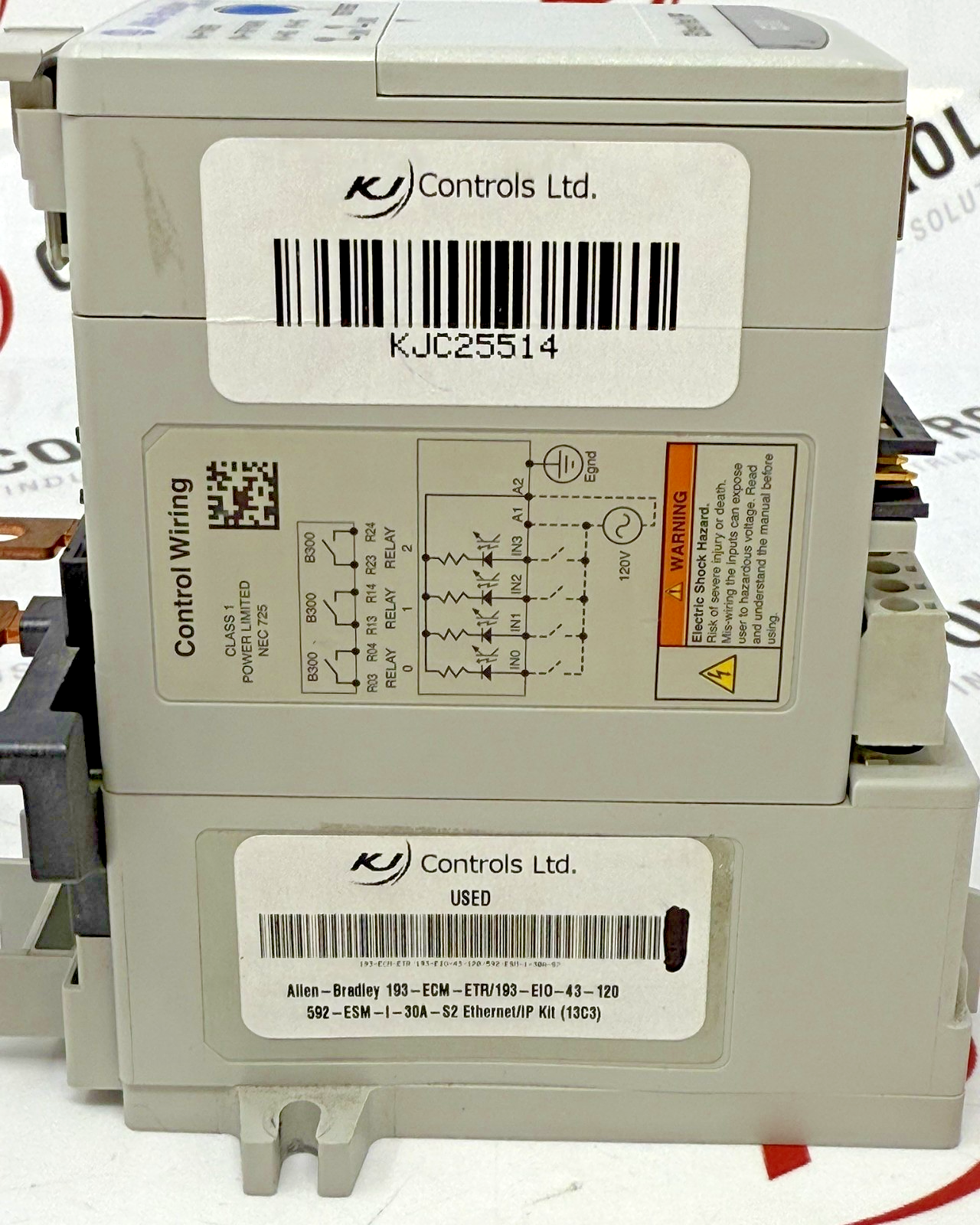

- Integrated I O: 4 inputs and 3 relay outputs
- Sensing module: 592-ESM-I-30A-S2
- Current sensing range: 0.5-30 A
- Mounting compatibility: Bulletin 500 NEMA Size 0-2 contactor
- Measurement method: True RMS current sensing, 50/60 Hz
- Adjustable trip class: 5-30
- Trip rating: 120 percent FLA
- Reset mode: Automatic or manual
- Protection type: Solid-state, ambient compensated, time-delay, phase-loss sensitive
Product Features:
- Modular E300 assembly combining communication, control, and sensing functions
- Dual-port EtherNet/IP communication for networked motor protection applications
- Integrated digital inputs and relay outputs for control and status functions
- Current sensing module designed for 0.5-30 A applications
- Supports advanced diagnostics and simplified integration into Logix-based systems
- Embedded web server and email or text event notification capability
- Programmable trip and warning settings for tailored motor protection
- Scalable design for industrial motor starter and protection systems
Product Designed Use:
- Designed to provide electronic motor overload protection and monitoring in industrial control systems
- Used with Bulletin 500 NEMA motor starters and contactors in motor control applications
- Suitable for networked automation systems requiring EtherNet/IP communication and onboard I O
- Commonly used in conveyors, pumps, fans, compressors, and general industrial machinery
