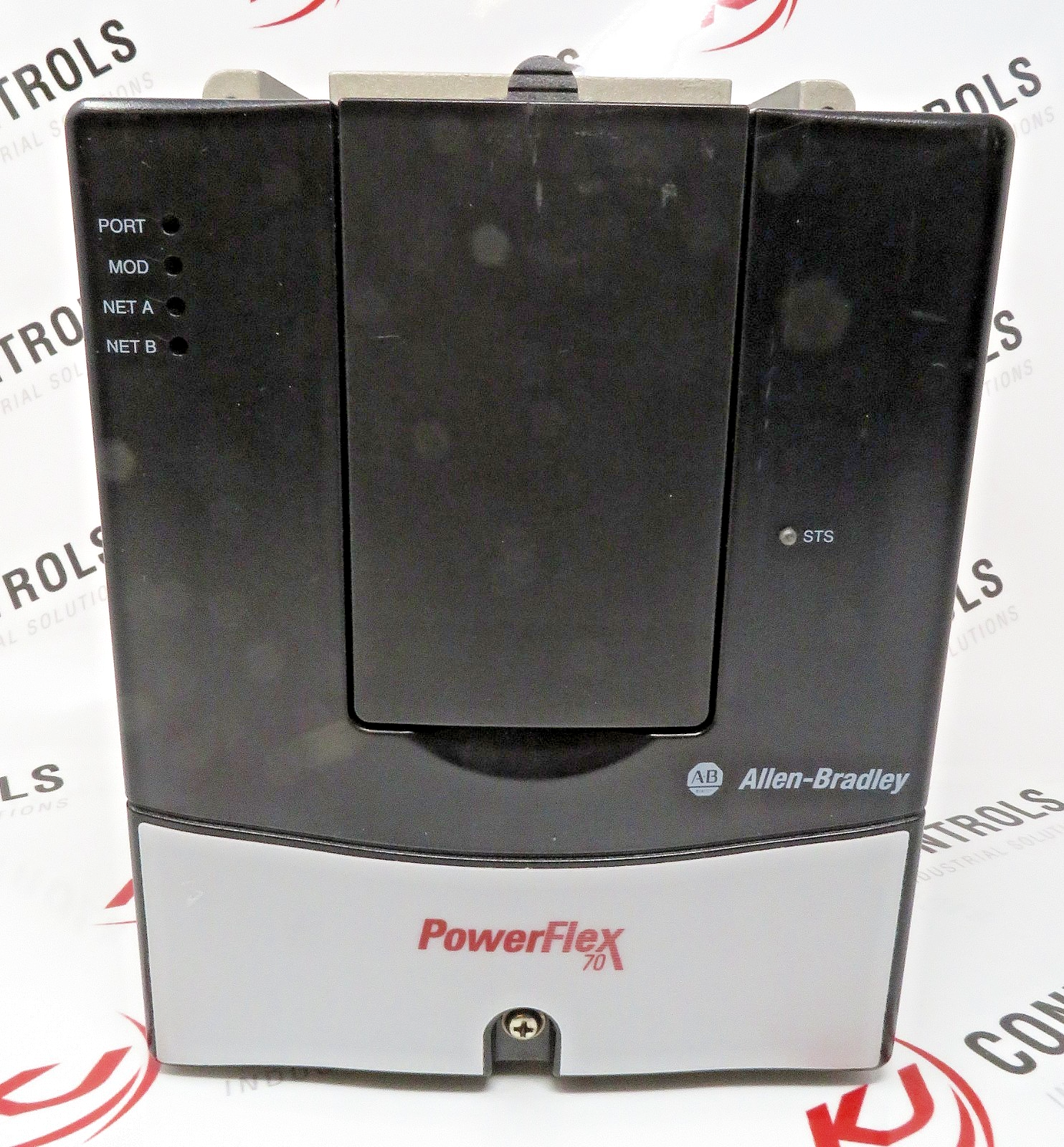

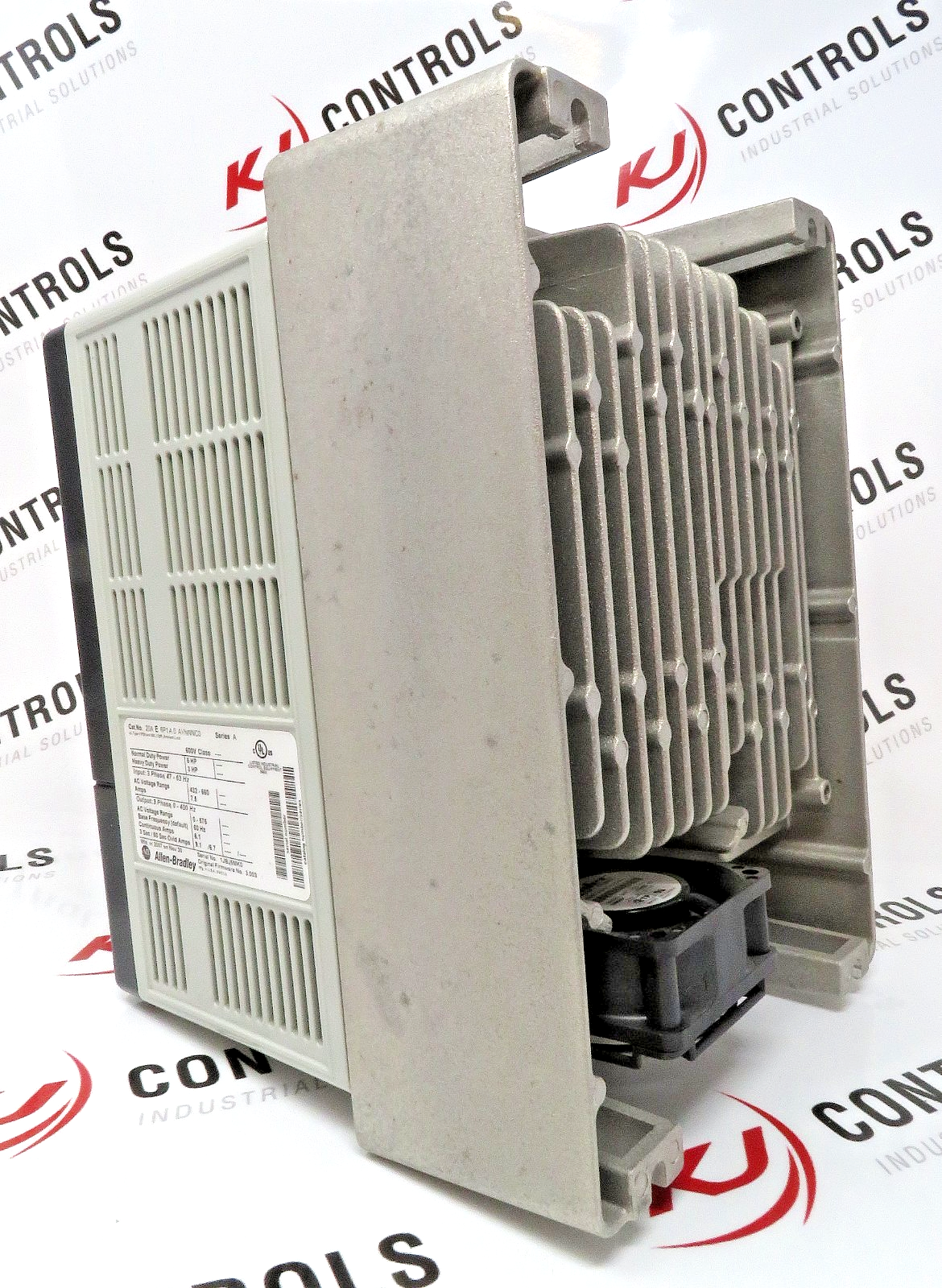

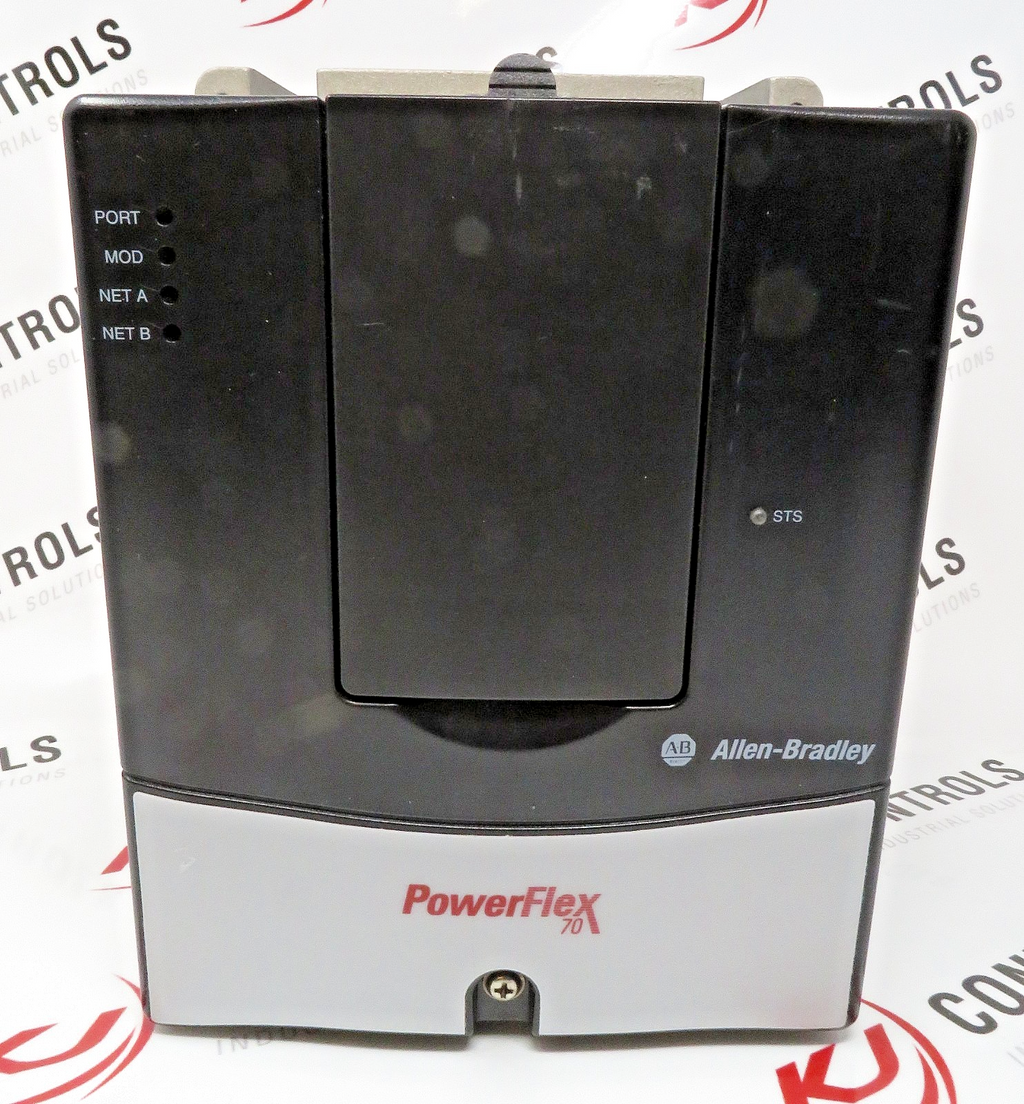

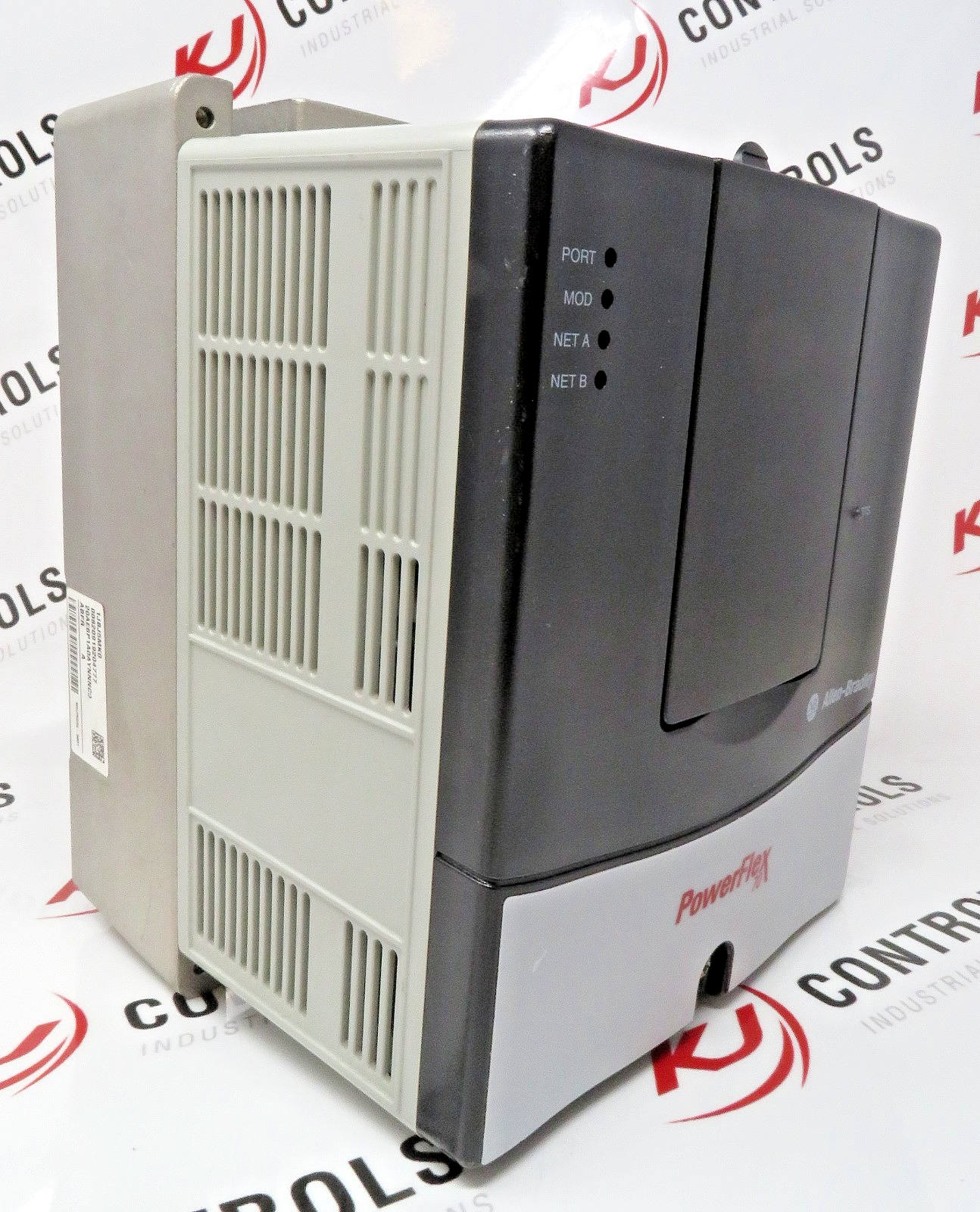

Allen Bradley 20AE6P1A0AYNNNC0 PowerFlex 70 600V 5HP AC Drive
Product Basic Information:
- Manufacturer: Allen-Bradley
- Parent corporation: Rockwell Automation
- Part number: 20AE6P1A0AYNNNC0
- Product family/series: PowerFlex 70
- Product type: AC drive / variable frequency drive
- Series: A
- Frame size: Frame B
- Country of origin: U.S.A.
Technical Specifications:
- Drive series: PowerFlex 70
- Input voltage: 600 VAC
- Input phase: 3 phase
- Output current: 6.1 A continuous
- Output current overload rating: 6.7 A for 1 minute
- Output current overload rating: 9.2 A for 3 seconds
- Normal duty horsepower rating: 5 HP
- Normal duty power rating: 4 kW
- Heavy duty horsepower rating: 3 HP
- Enclosure type: Panel mount IP20 / NEMA Type 1
- Conformal coating: Yes
- Human interface module: No HIM / blank cover
- Brake IGBT: Installed
- Control type: Enhanced control
- Feedback: No feedback
- Mounting style: Panel mount
Product Features:
- Allen-Bradley PowerFlex 70 variable frequency drive for industrial AC motor control
- 600 VAC three-phase input rating
- 6.1 A continuous output current rating
- 5 HP normal duty motor rating
- 3 HP heavy duty motor rating
- Enhanced control configuration
- Panel mount IP20 / NEMA Type 1 enclosure design
- Conformal coated version for additional environmental protection inside suitable enclosures
- Brake IGBT installed for compatible dynamic braking applications
Product Designed Use:
- Designed for speed control of compatible three-phase AC motors
- Used in industrial automation systems, machinery controls, conveyors, fans, pumps, and motor control panels
- Suitable for applications requiring a 600 VAC Allen-Bradley PowerFlex 70 AC drive
- Used where enhanced control and dynamic braking capability are required
