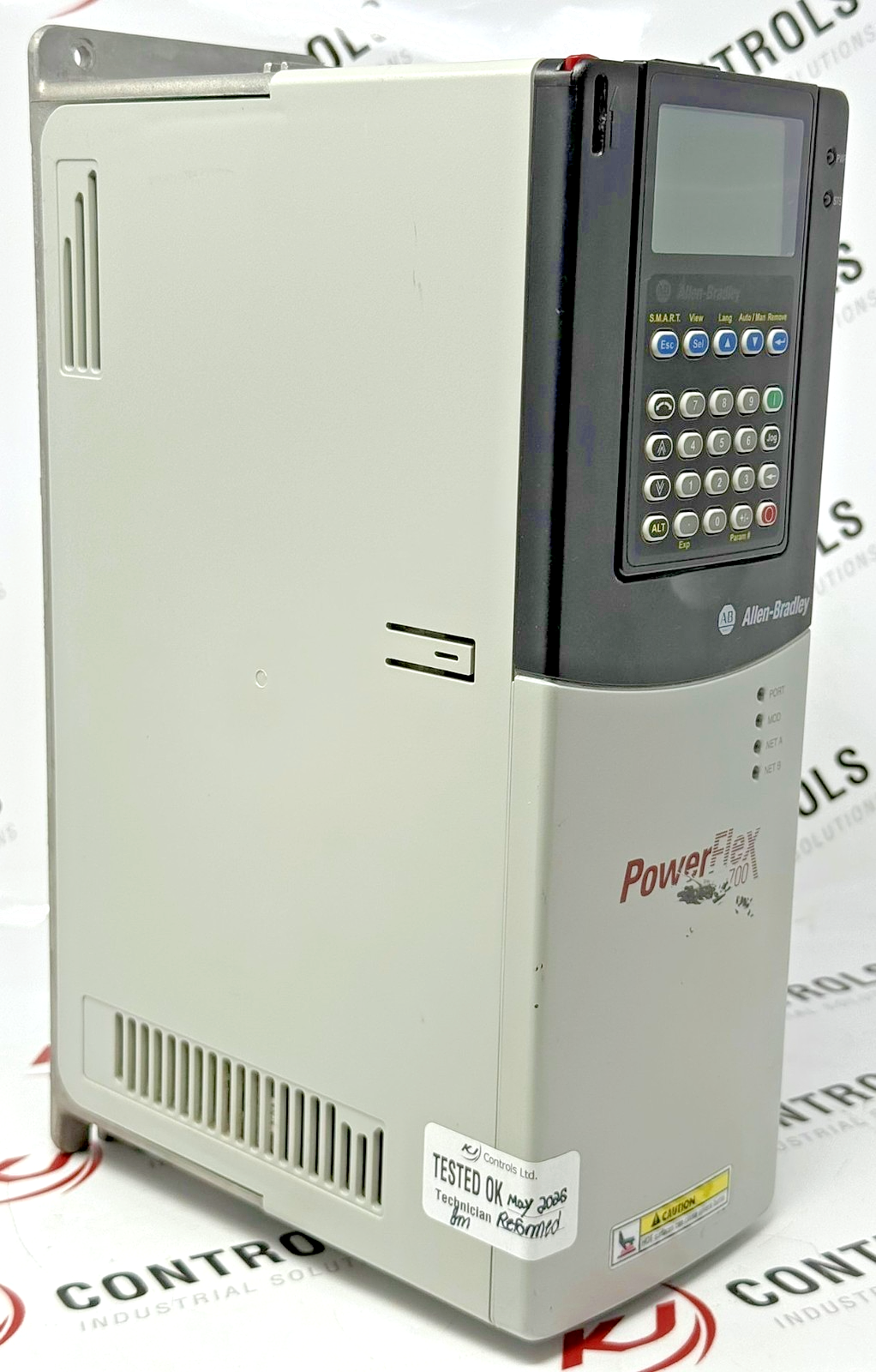

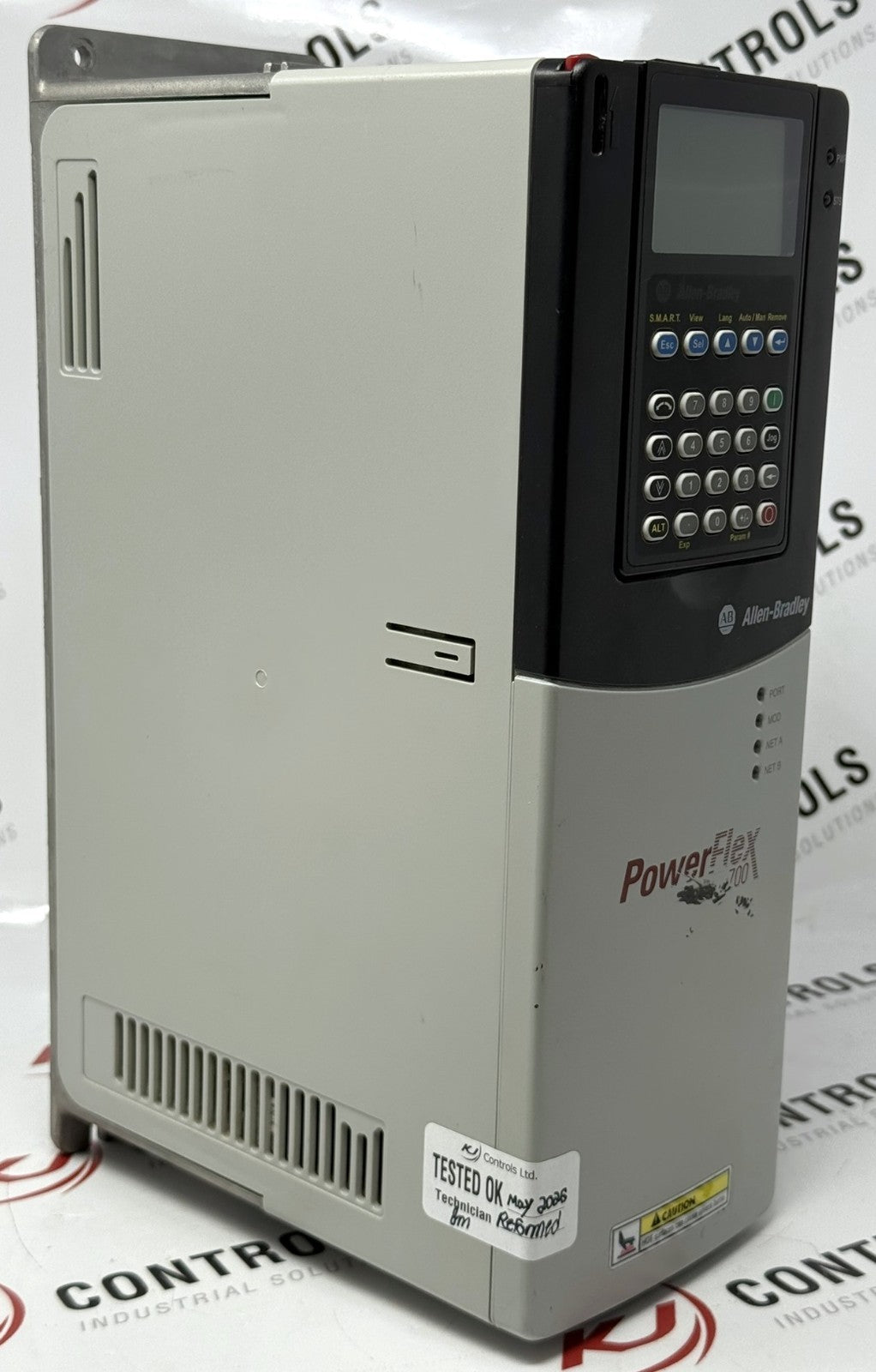

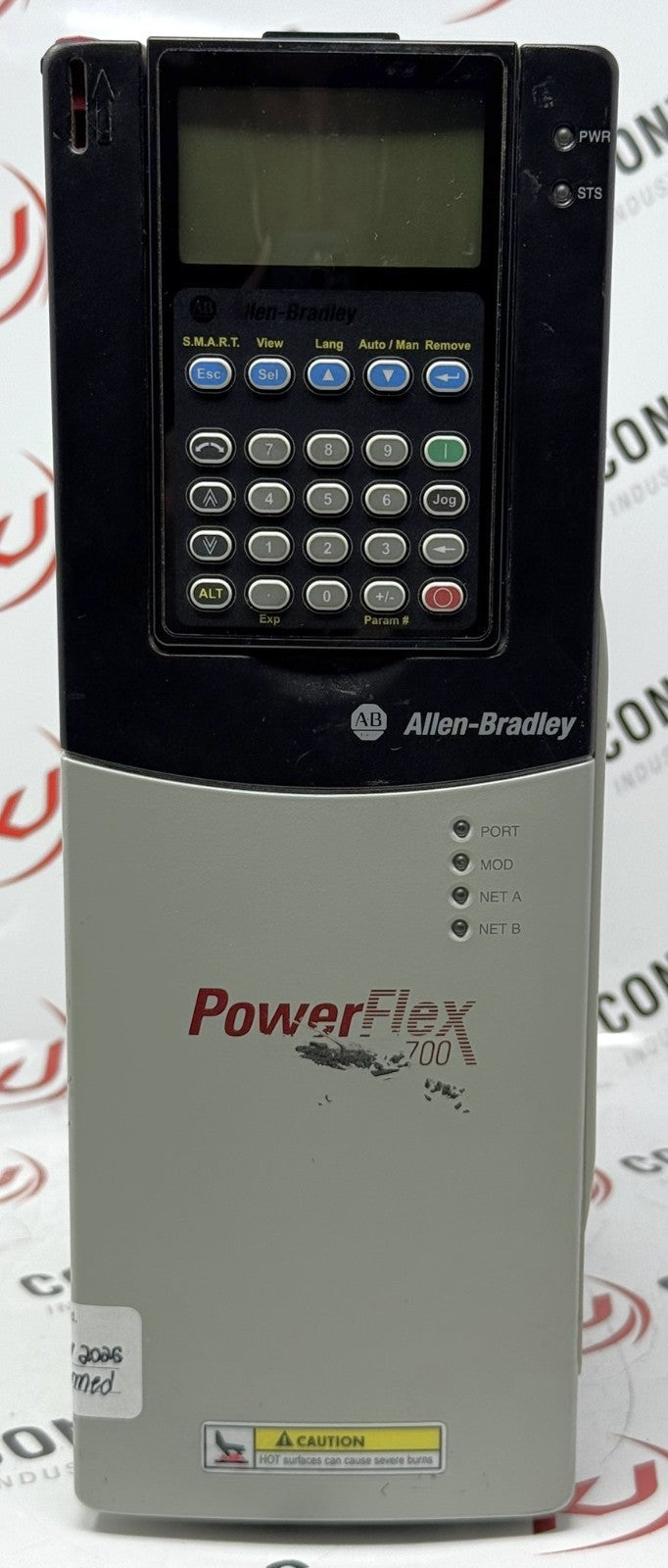

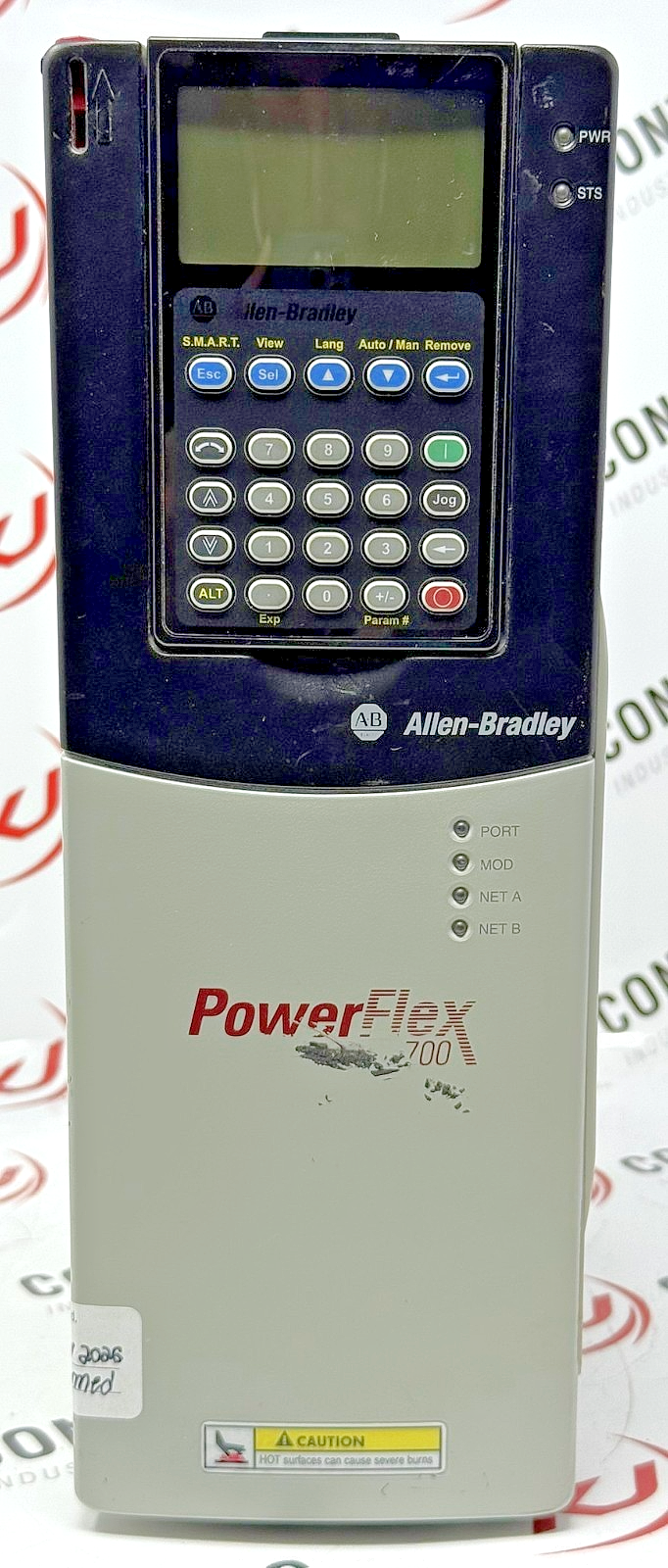

Allen-Bradley 20BD8P0A0AYNAND0 PowerFlex 700 480V 5HP AC Drive
Product Basic Information:
- Manufacturer: Allen-Bradley
- Parent corporation: Rockwell Automation
- Catalog number: 20BD8P0A0AYNAND0
- Product family/series: PowerFlex 700
- Drive series: Series B
- Product type: AC drive / variable frequency drive
- Country of origin: U.S.A.

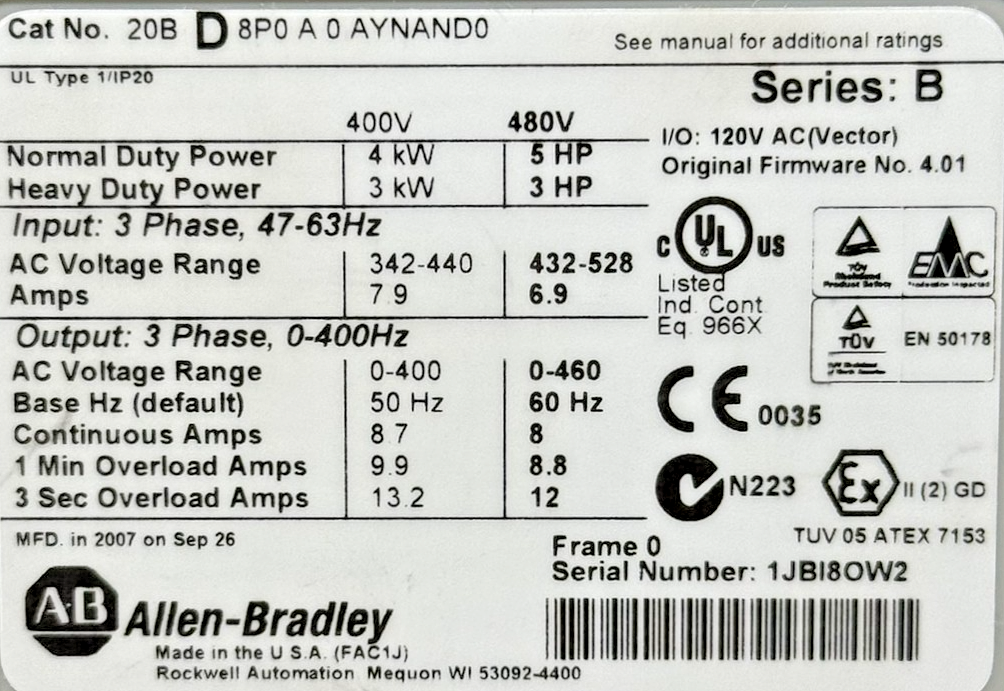

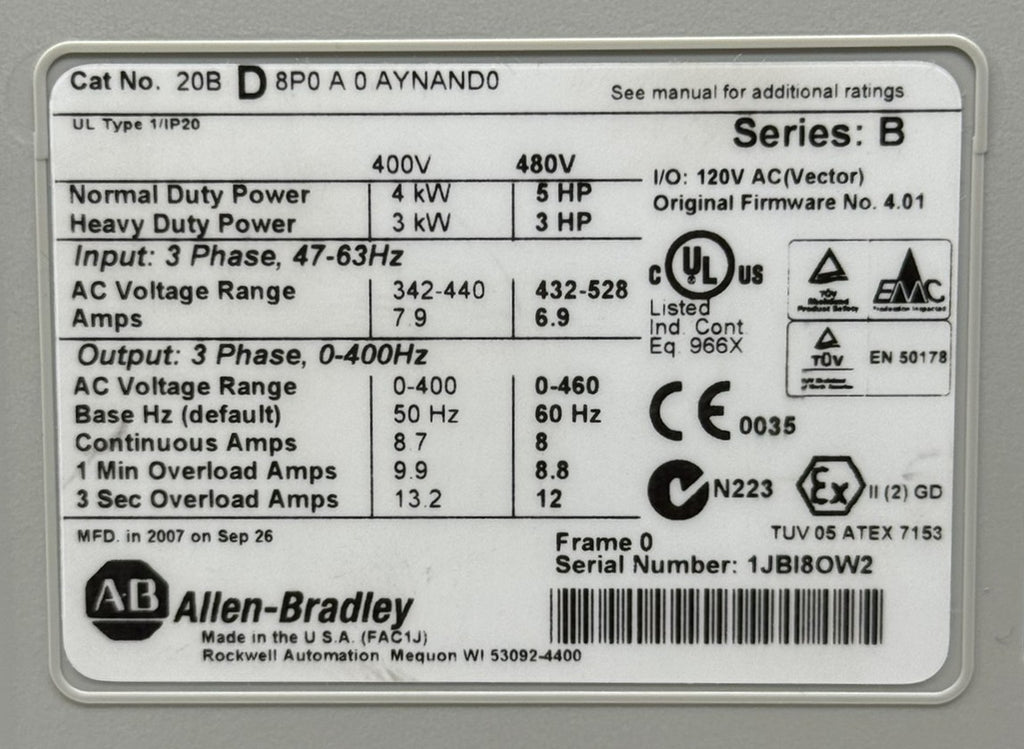

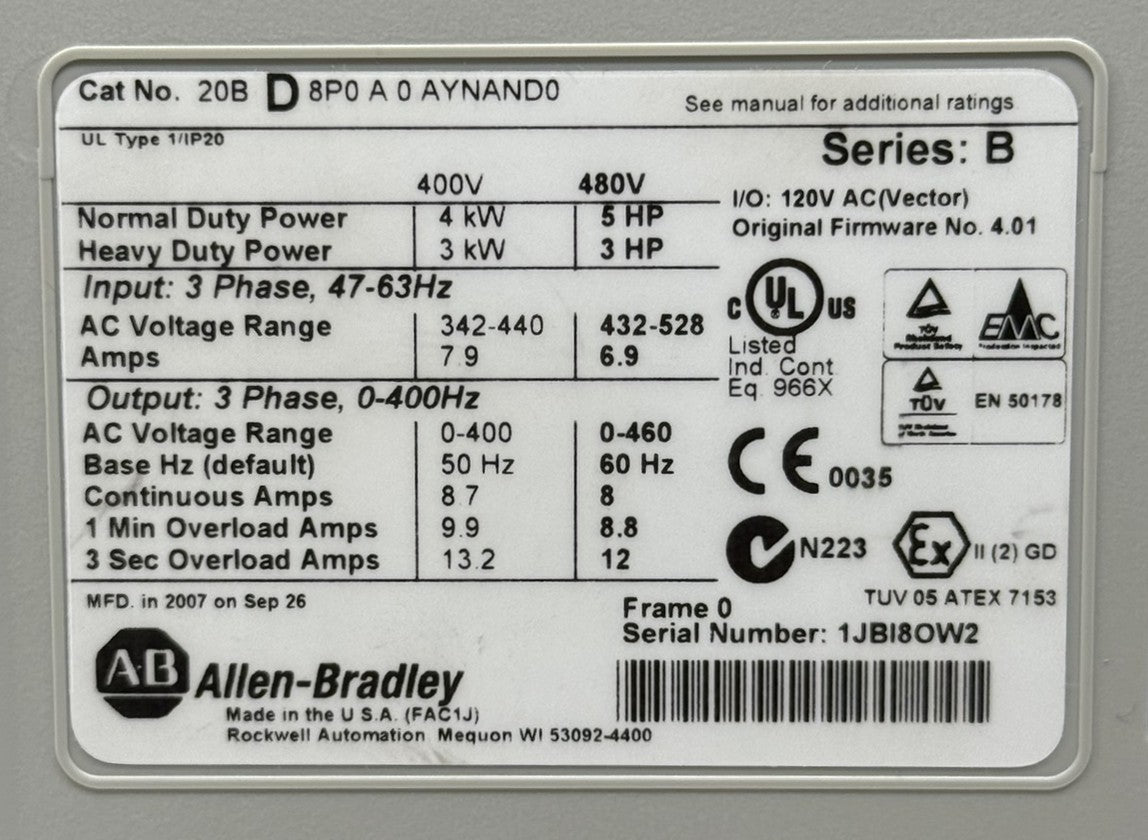

Technical Specifications:
- Input voltage: 480 VAC
- Input phase: 3 phase
- Input frequency: 60 Hz
- Output current rating: 8 A continuous
- Output current rating: 8.8 A for 1 minute
- Output current rating: 12 A for 3 seconds
- Normal duty horsepower rating: 5 HP
- Normal duty power rating: 3.7 kW
- Heavy duty horsepower rating: 3 HP
- Heavy duty power rating: 2.2 kW
- Frame size: Frame 0
- Enclosure type: IP20 / UL Type 1 / NEMA Type 1
- Control type: Vector control with 115/120 VAC I/O
- Feedback: No feedback
- Human interface module: No HIM / blank cover
- Communication module: No communication module
- /120 VAC I/O
- Drive-mounted brake resistor: Not included
- EMC / emissions option: Second environment CE filter / common mode choke
- Conformal coating: Yes
- Bypass: No bypass
Product Features:
- Allen-Bradley PowerFlex 700 variable frequency drive for industrial AC motor control
- Series B model for buyer compatibility matching
- Rated for 480 VAC three-phase motor applications
- 8 A output current rating
- 5 HP normal duty motor rating
- 3 HP heavy duty motor rating
- Frame 0 IP20 / Type 1 design for control panel installation
- Vector control with 115/120 VAC I/O
- Brake IGBT installed for compatible dynamic braking applications
- No HIM included; blank cover configuration
- No feedback option included
- No communication module included
- Second environment CE filter / common mode choke configuration
- Conformal coated version for additional environmental protection inside suitable enclosures
Product Designed Use:
- Designed for speed and torque control of compatible three-phase AC induction motors
- Used in industrial automation systems, machinery controls, conveyors, pumps, fans, process equipment, and motor control panels
- Suitable for applications requiring a 480 VAC Allen-Bradley PowerFlex 700 AC drive
- Used where vector control, dynamic braking capability, and 115/120 VAC I/O control are required
