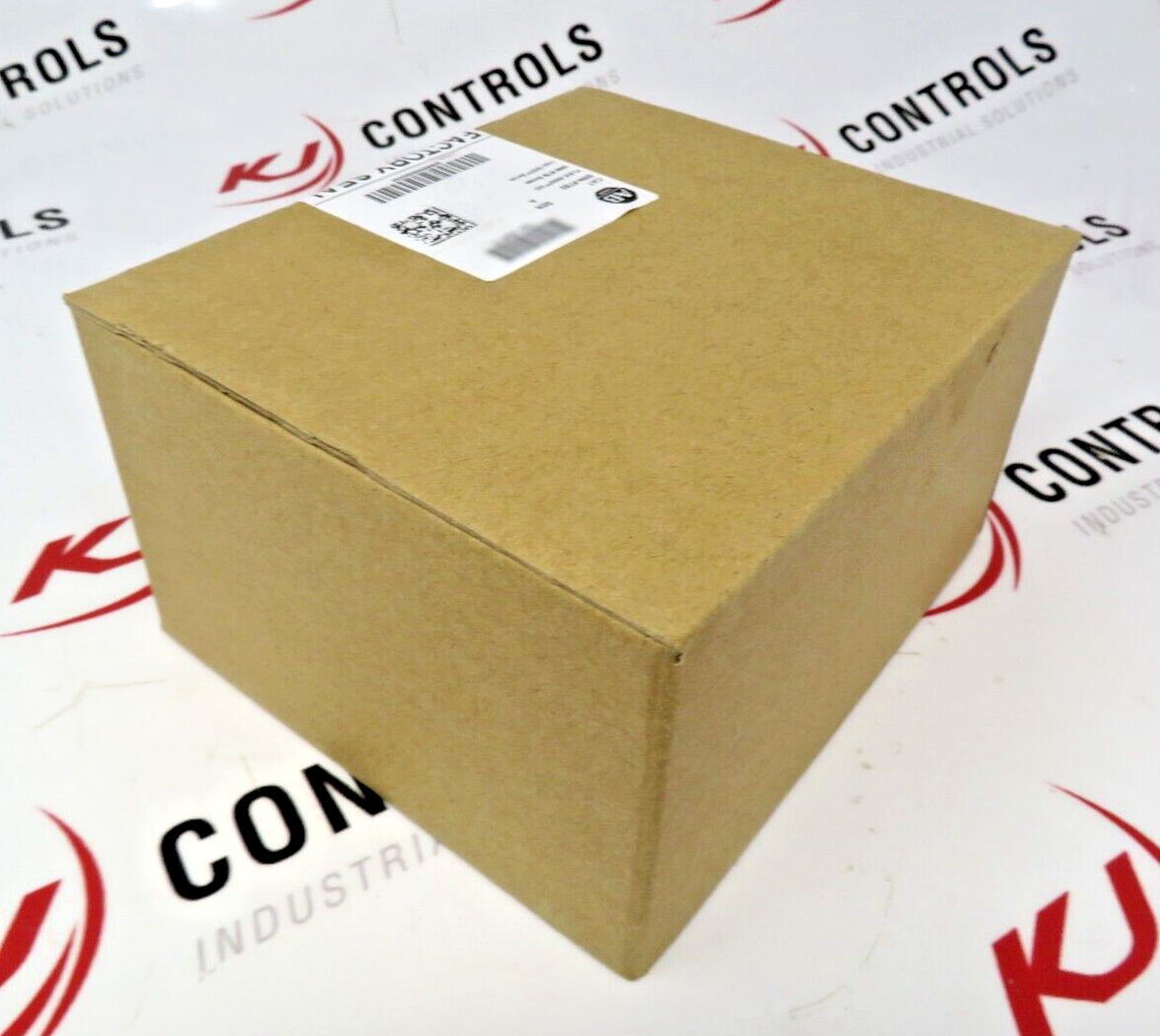

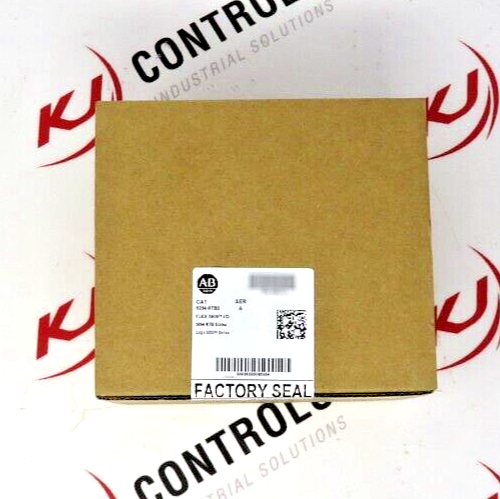

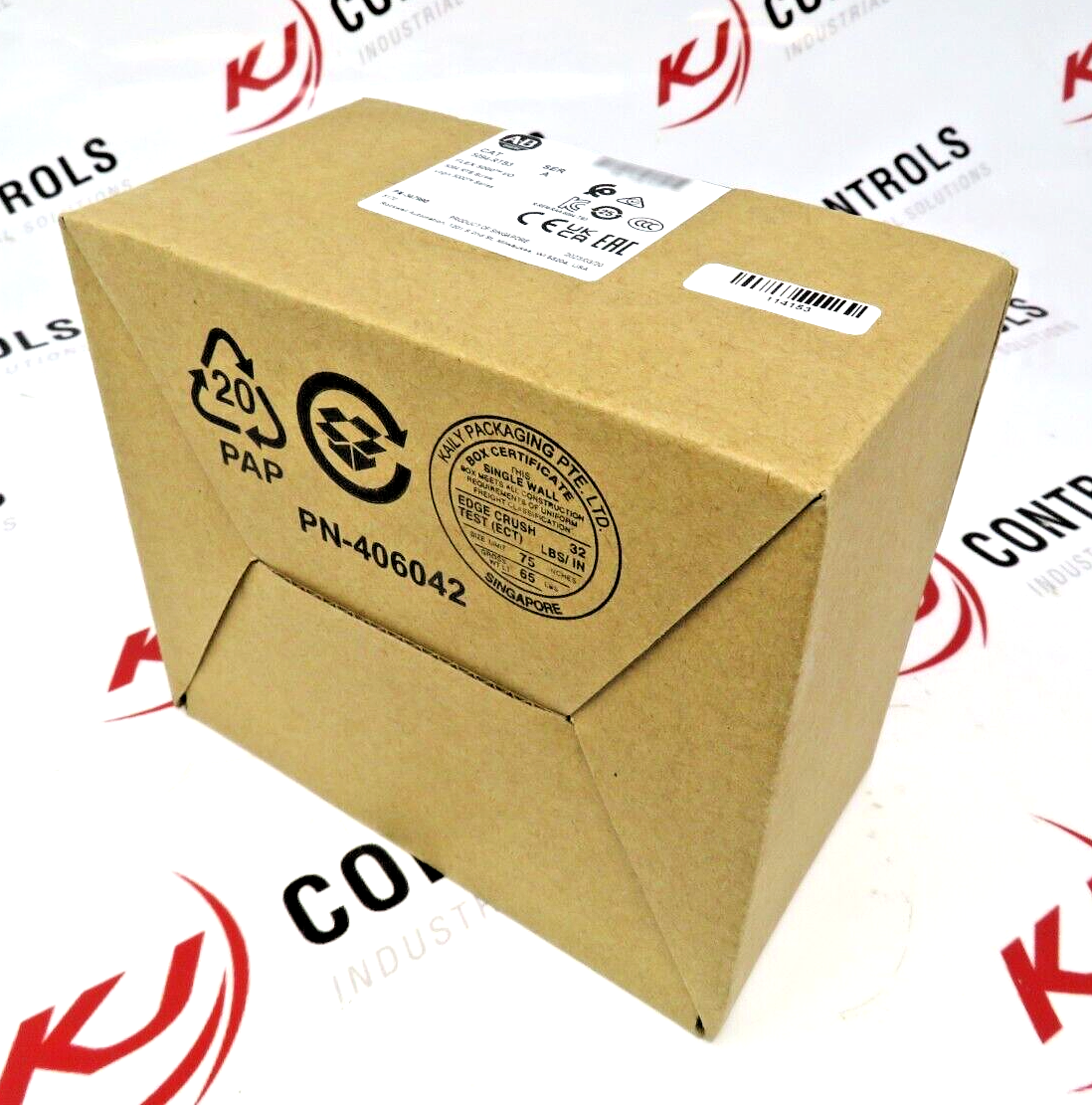

Allen-Bradley 5094-RTB3 FLEX 5000 Screw-Type Removable Terminal Block (Boxed)
Product Basic Information:
- Manufacturer: Allen-Bradley
- Parent corporation: Rockwell Automation

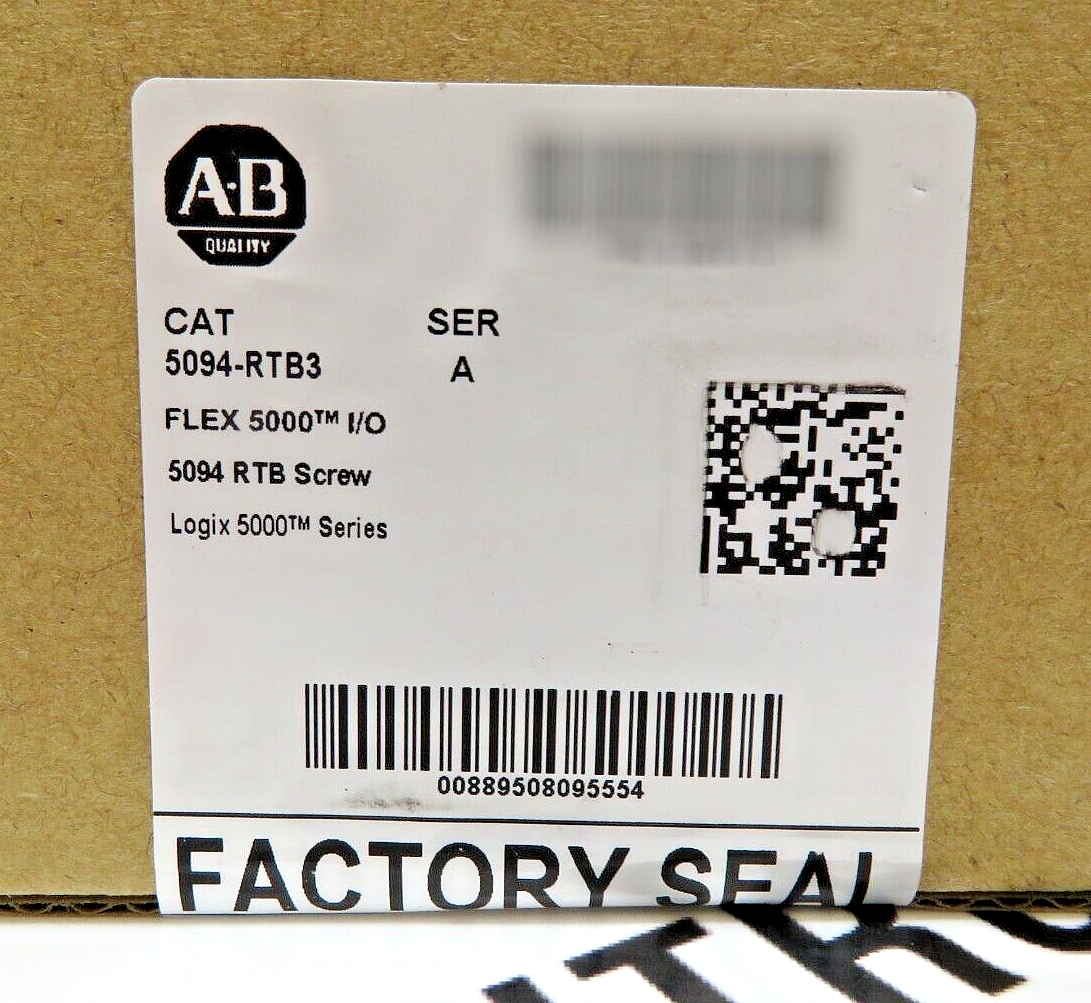

- Catalog number: 5094-RTB3
- Non-hyphenated part number: 5094RTB3
- Product family/series: Bulletin 5094 FLEX 5000
- Product type: Removable terminal block
- Country of origin: Singapore
Technical Specifications:
- Terminal style: Screw-type removable terminal block
- Compatible system: FLEX 5000 I/O
- Input/output ratings IN/OUT max: 2 A at 32 VDC
- Sensor actuator power SA max: 10 A at 18 to 32 VDC
- Isolation voltage: 250V continuous basic insulation type channels to chassis
- Isolation voltage: 250V continuous basic insulation type SA to chassis
- Wire type: Copper
- Wire size: 0.34 to 2.5 mm2 22 to 14 AWG solid or stranded copper wire rated 105 degrees C or greater
Product Features:
- FLEX 5000 removable screw terminal block for compatible I/O modules
- Designed for use as part of a terminal base assembly with a compatible mounting base
- Screw terminal connections for field-side I/O wiring
- Supports input and output wiring, commons, power connections, and customer power supplies
- Built-in keyswitches set the required position for the installed module
- Captive mounting screw helps secure the removable terminal block to the base
- Shield bar accessory is recommended for analog and high-speed counter applications
- Compact open-style design for industrial control panel use
Product Designed Use:
- Designed as a removable field wiring terminal block for Bulletin 5094 FLEX 5000 systems
- Used with compatible FLEX 5000 I/O modules that require RTB3 style terminal blocks
- Used to terminate field wiring, commons, and sensor actuator power connections
- Suitable for industrial control panels and distributed I/O automation applications
COUNTRY OF ORIGIN INFORMATION IS INCLUDED WHERE AVAILABLE.
