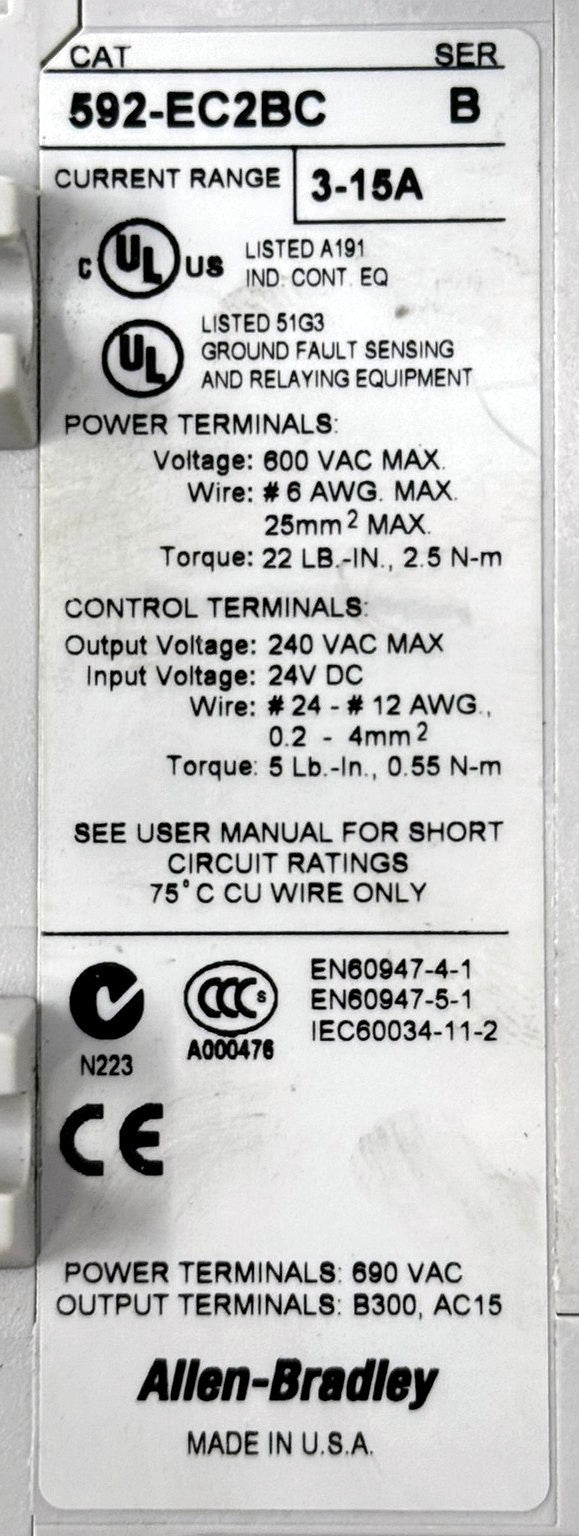

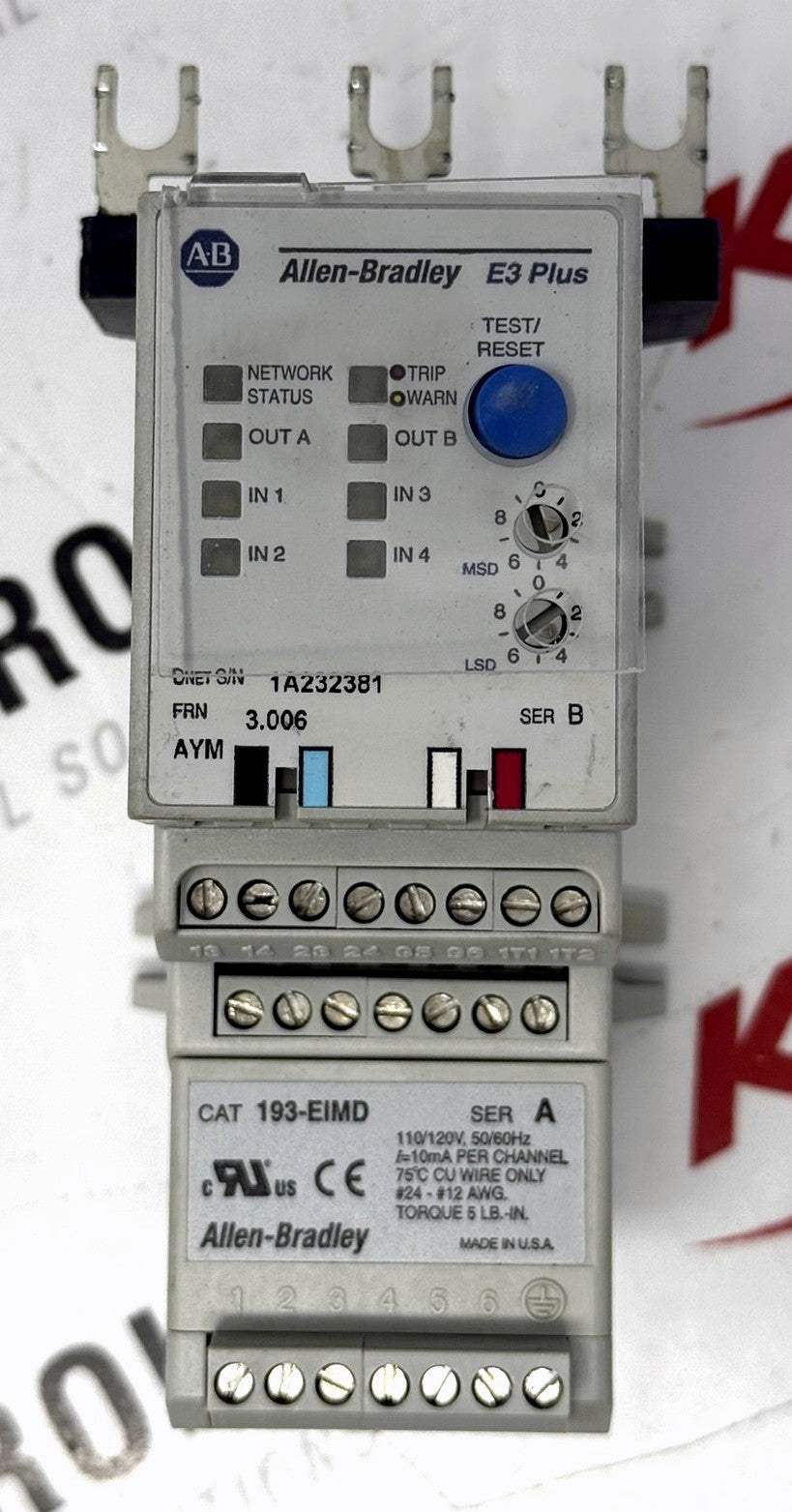

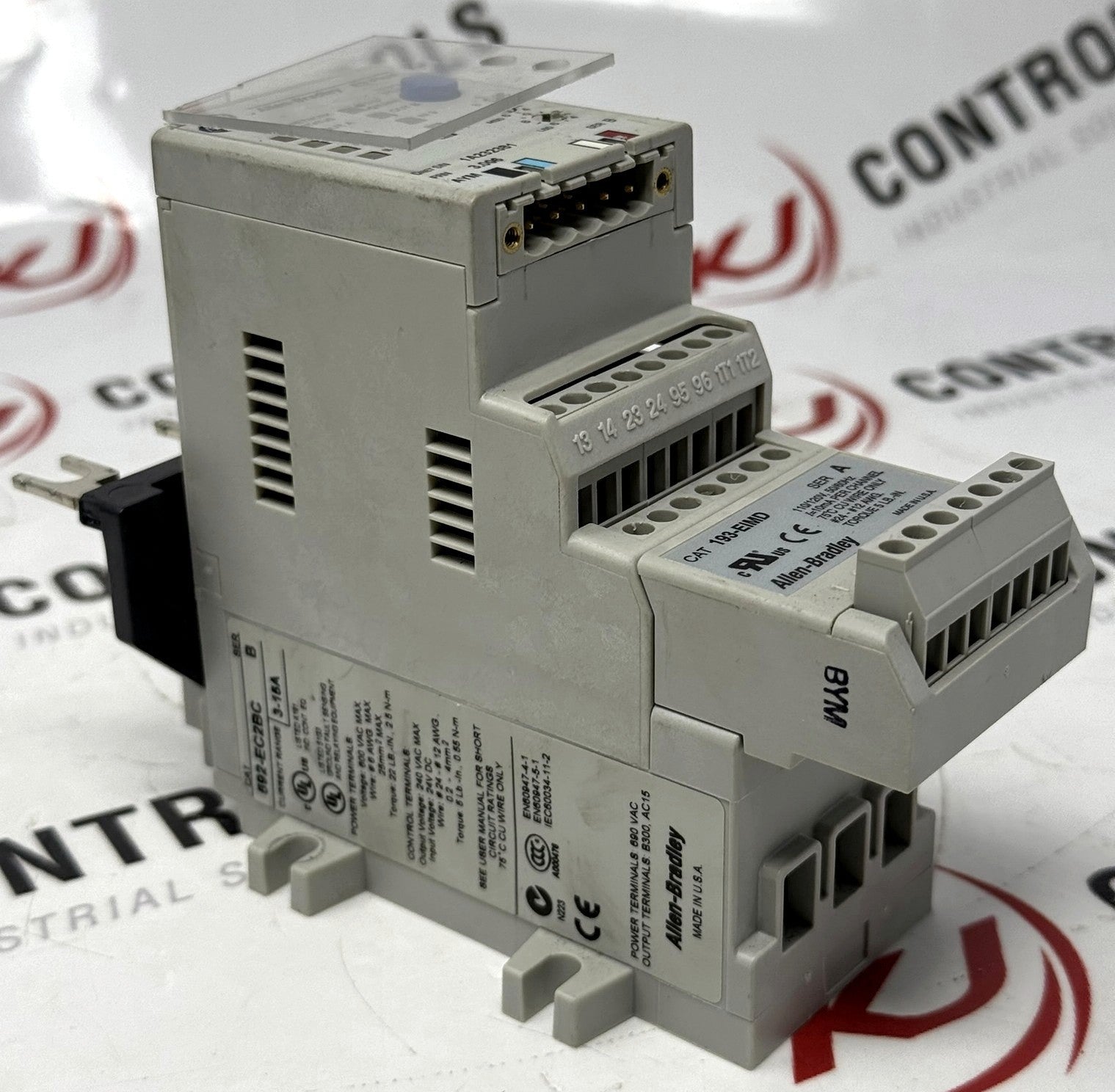

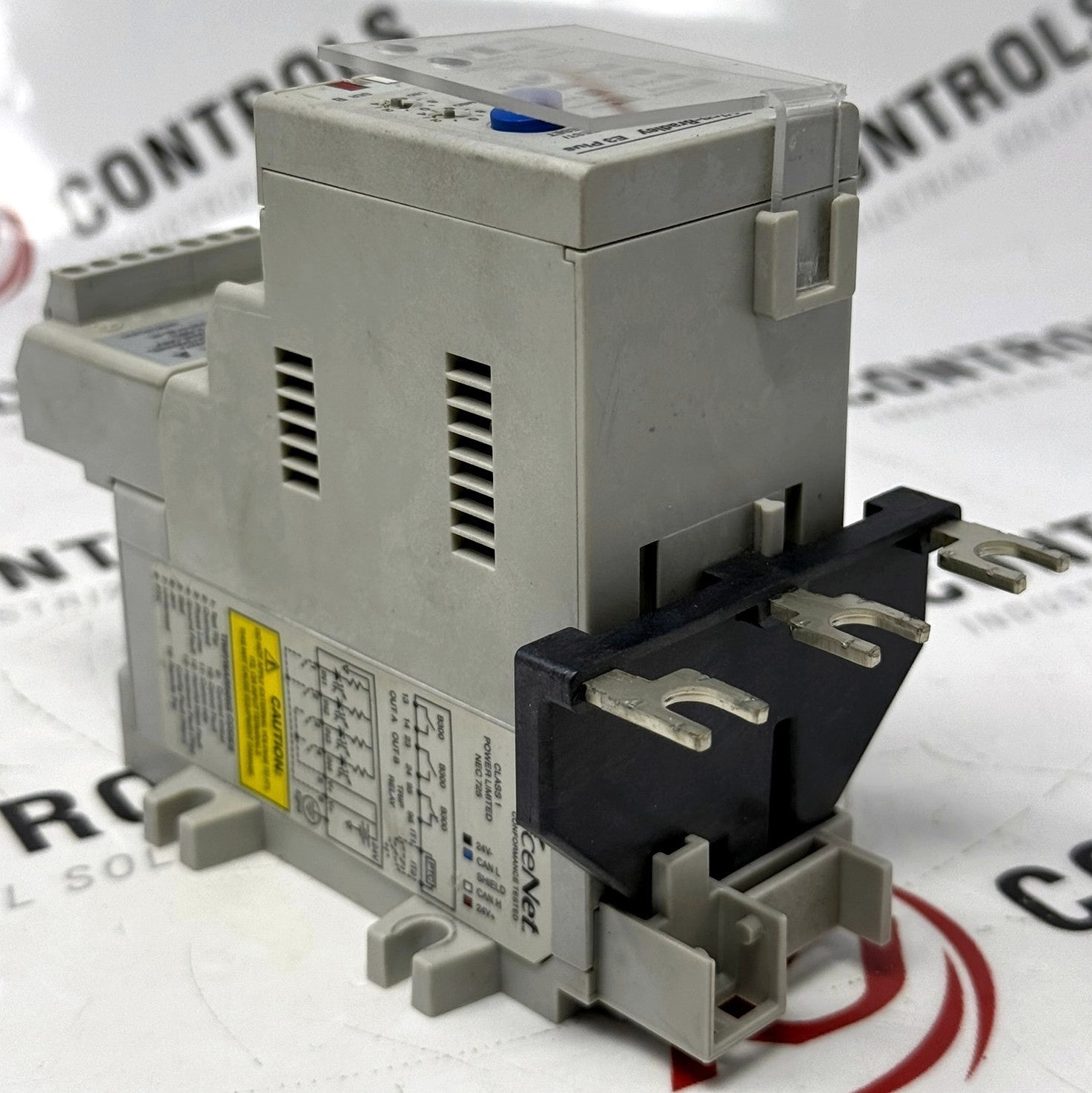

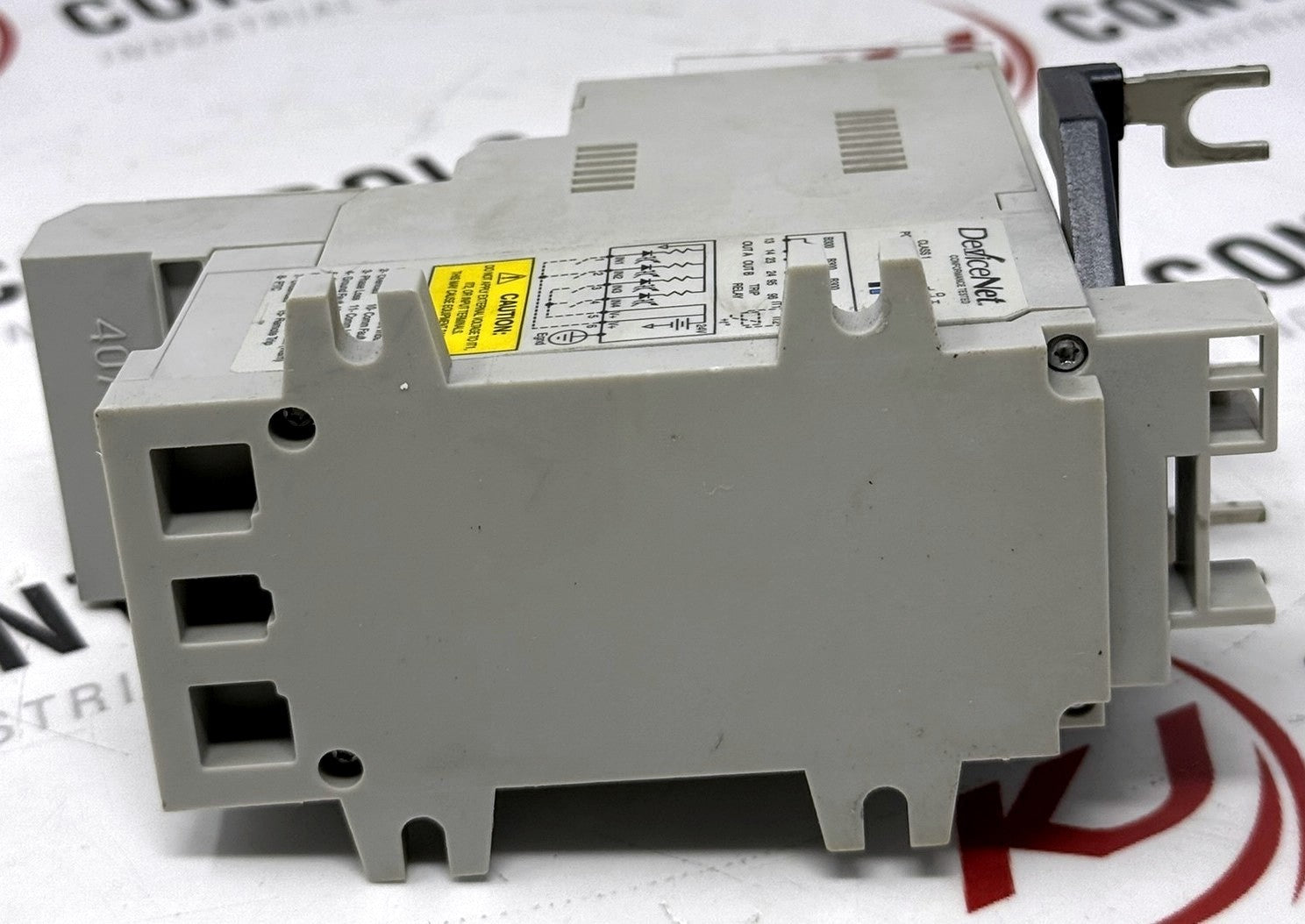

Allen-Bradley 592-EC2BC E3 Plus Overload Relay 3-15A
Product Basic Information:
- Manufacturer: Allen-Bradley
- Parent corporation: Rockwell Automation
- Catalog number: 592-EC2BC
- Non-hyphenated part number: 592EC2BC
- Product family/series: Bulletin 592 / E3 Plus
- Product type: Solid state overload relay
- Device type: Electronic motor protection relay
- Country of origin: U.S.A.
Technical Specifications:
- Communication protocol: DeviceNet
- Current adjustment range: 3 to 15 A
- Integrated I/O: 4 inputs / 2 outputs
- Ground fault sensing: Internal ground fault sensing
- PTC thermistor input: Supported
- Compatible starter size: NEMA Size 0 to Size 2
- Trip class: Adjustable Class 5 to 30
- Network addressing: Rotary MSD / LSD address switches
- Input voltage: 24 VDC
- Output voltage: 240 VAC max.
- Power terminal voltage rating: 600 VAC max.
- IEC power terminal voltage rating: 690 VAC
- Rated frequency: 20 to 250 Hz
- Number of poles: 3
- Motor compatibility: Single-phase and three-phase squirrel cage induction motors
- Output terminal rating: B300, AC-15
- Control terminals: 13, 14, 23, 24, 95, 96, 1T1, 1T2
- Input terminals: 1, 2, 3, 4, 5, 6
- Power terminals: T1, T2, T3
- Current sensing type: True RMS current sensing
- Protection functions: Overload, phase loss, ground fault, stall, jam, underload, current imbalance, PTC thermistor, communication fault, and communication idle protection
- Status indicators: Network Status, Trip, Warn, OUT A, OUT B, IN 1, IN 2, IN 3, IN 4
- Reset function: Test / reset pushbutton
- Mounting style: Direct starter mount
Product Designed Use:
- Designed for electronic overload protection of compatible industrial electric motors
- Used in motor starters, MCC buckets, pump panels, fan systems, conveyors, machinery controls, and industrial automation equipment
- Suitable for applications requiring DeviceNet motor protection and status monitoring
- Used where overload, phase loss, ground fault, stall, jam, underload, current imbalance, PTC thermistor, and communication protection functions are required
- Suitable for compatible Allen-Bradley NEMA Size 0 to Size 2 starter assemblies
COUNTRY OF ORIGIN INFORMATION IS INCLUDED WHERE AVAILABLE.
