Allen-Bradley DeviceNet Interface Control Board
Product Basic Information:
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Part Numbers: 77139-003-51, 7713900351
- Product Family/Series: DeviceNet Communication Interface / Control Board Series
- Firmware/ROM Chip ID (from board): 77139-900-01-0110
Technical Specifications:
- Board Type: Communication interface control board
- Interface Protocol: DeviceNet
- Board Style: Open style
- Mounting Type: Mountable on compatible equipment/enclosure

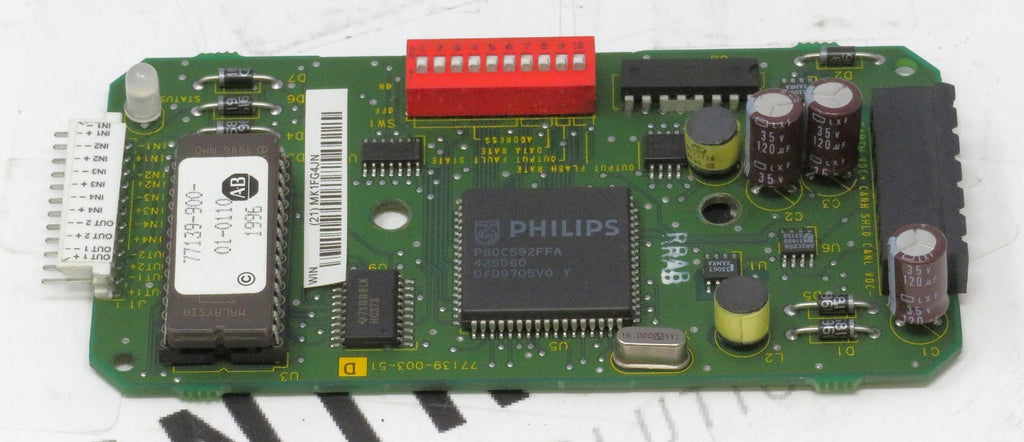

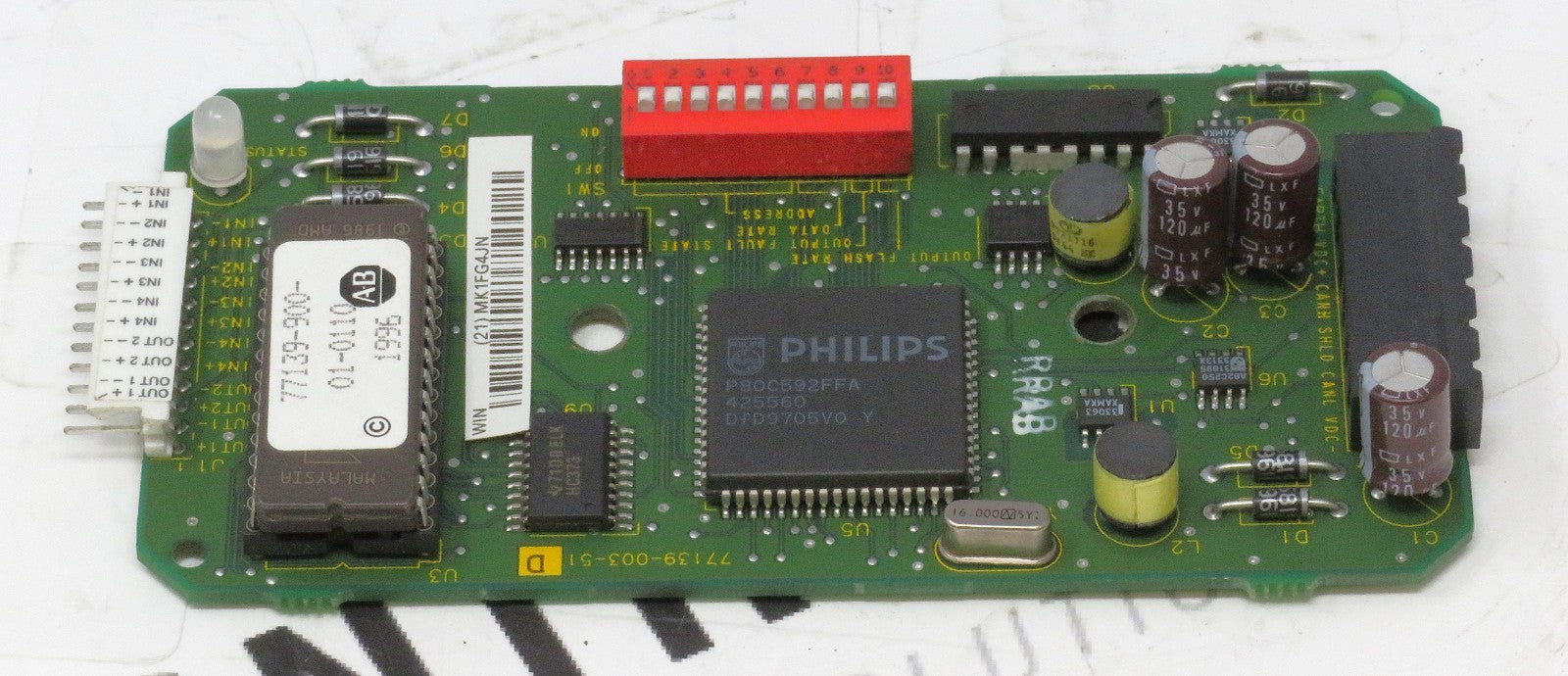

- Main Chipset: Philips P80C592FFA Microcontroller
- EEPROM: 77139-900-01-0110 (Allen-Bradley proprietary ROM)
- Power Capacitors: 35V 120µF Electrolytic Capacitors (x3)
- Crystal Oscillator: 16.000 MHz
- Other Connectors:
- 14-pin terminal header (marked IN/OUT)
- DIP Switch (configuration settings)
- Barcode label: MK1FG4JN

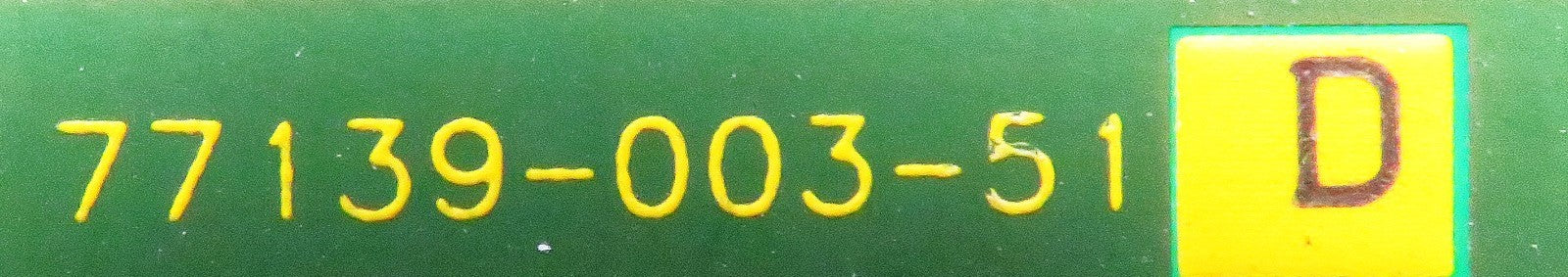

- Board Markings: Revision D (Labelled on yellow box in silkscreen)
Product Features:
- DeviceNet-compatible communication interface
- Allen-Bradley OEM firmware (custom ROM)
- DIP switch configurable
- Built-in status indicator LED (labeled DS1)
- Microcontroller-based intelligent communication
- Surface-mount and through-hole components
- Control board for DeviceNet slave/master integration
- Made in Malaysia (chip origin)
- Year of firmware label: 1996
Product Designed Use:
- Used as a DeviceNet communication module within Allen-Bradley automation systems
- Enables industrial equipment to communicate over DeviceNet protocol
- Typically used in distributed I/O, motor drives, or PLC-linked peripheral control
Sellers Note:
Please note that while PLC products typically come with pre-installed firmware, KJ Controls Ltd. cannot guarantee its presence. Additionally, if firmware is included, we do not assure that it will match the specific version required for your application.
