Allen-Bradley Contact Block
Product Basic Information:
- Manufacturer: Allen-Bradley (a brand of Rockwell Automation)
- Part Number: 800T-XA7 / 800TXA7
- Product Family/Series: 800T Series
- Series: D
- UPC (Universal Product Code): 662468119309
Technical Specifications:
- Mounting Style: Panel mount (used with 30 mm push buttons)
- Terminal Type: Screw Clamp
- Contact Configuration: 2 Normally Closed (NC), one with late break
- Contact Type: Standard + Late Break contact
- Max Current Rating: 10 A
- Voltage Rating (AC): 600 V AC max (A600 contact rating per UL)
- Voltage Rating (DC): 300 V DC max (Q600 contact rating)
- Standards Compliance:
- UL Listed
- CSA Certified
- CE Marked
- Meets IEC 60947-5-1 / UL 508
- Ingress Protection: Dependent on enclosure – block itself is not IP-rated
- Connection Method: Screw terminal clamps
- Block Depth: Shallow contact block (compact design)
Product Features:
- Designed for use with 800T 30mm push button operators
- Modular and stackable design
- Offers 2 Normally Closed contacts:
- 1 standard NC
- 1 NC with late break functionality for safety circuits
- Clear protective cover for terminal safety and visibility
- Spring-return design on contacts ensures consistent operation
- Heavy-duty industrial-grade construction
- Quick and secure screw terminal connections
- Series D version includes internal improvements for better mechanical life
Product Designed Use:
- Intended for use in industrial control panels and operator stations
- Suitable for emergency stop, motor control, or start/stop stations
- Typically used in:
- Manufacturing automation
- Process control systems
- Material handling equipment
- Heavy machinery
- Compatible with Allen-Bradley 30 mm operators (push buttons, pilot devices)
❗ Important Note:

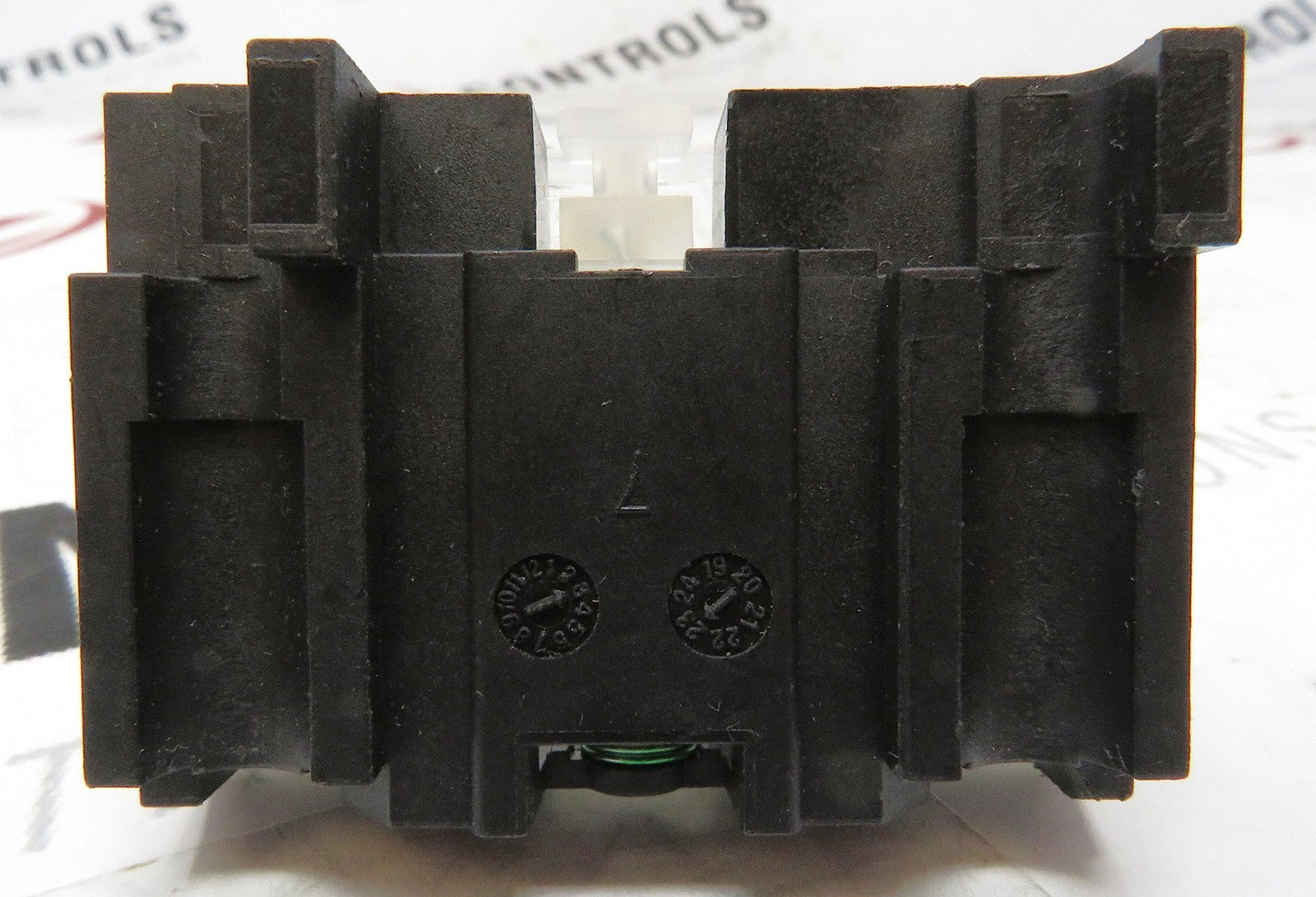

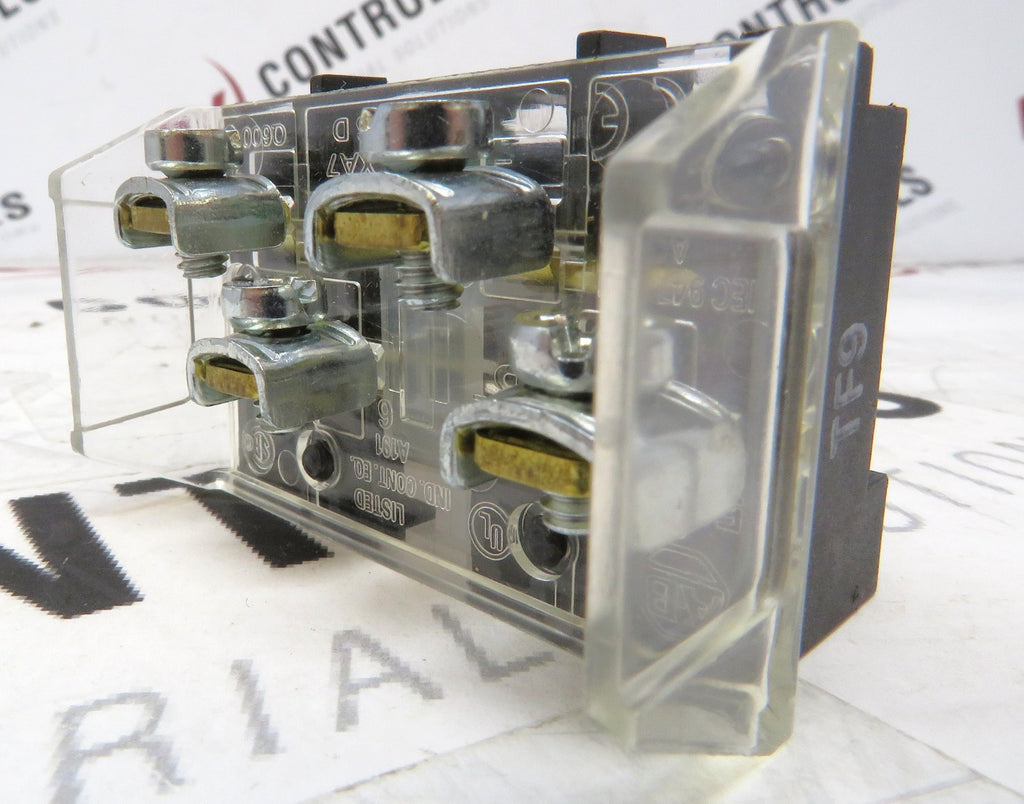

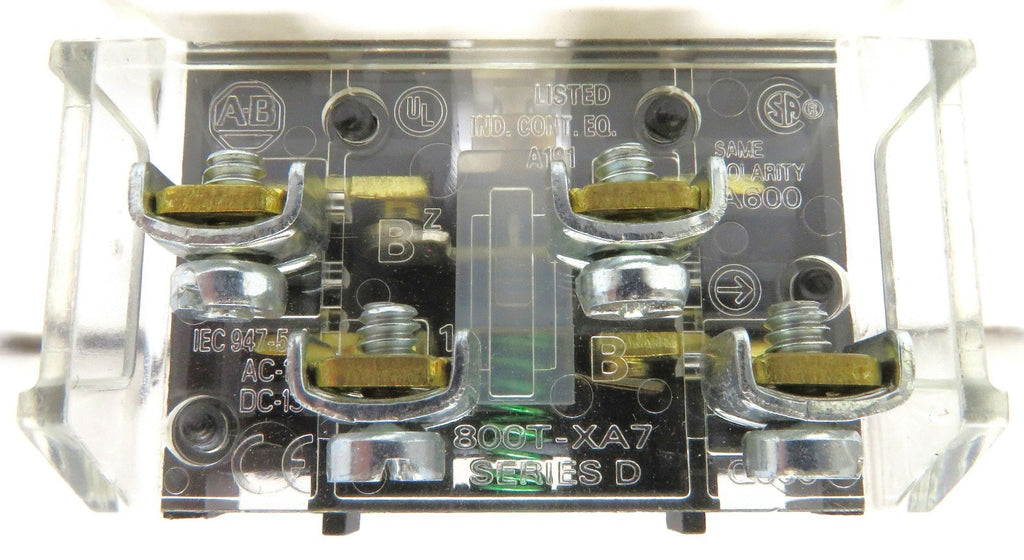

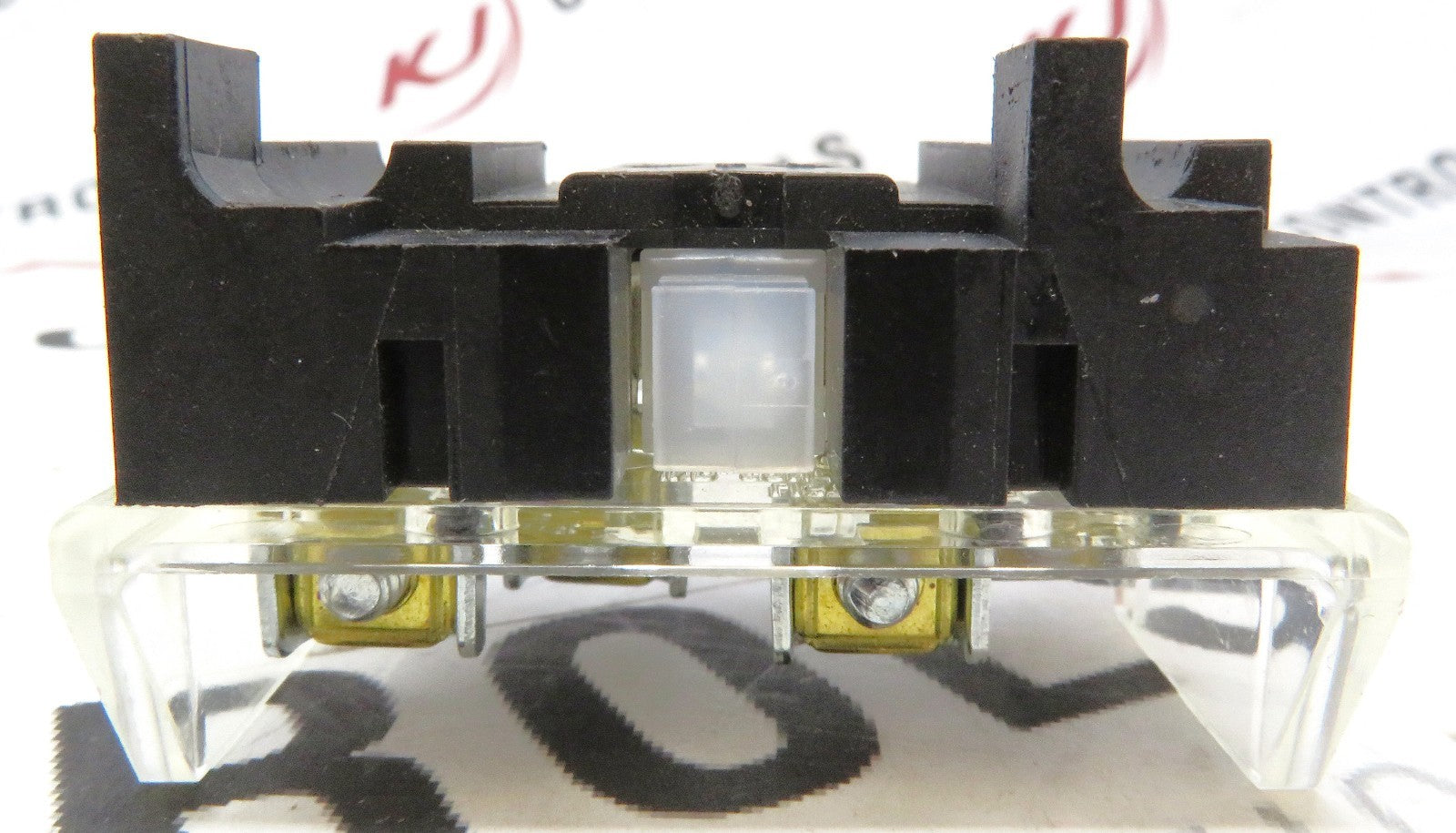

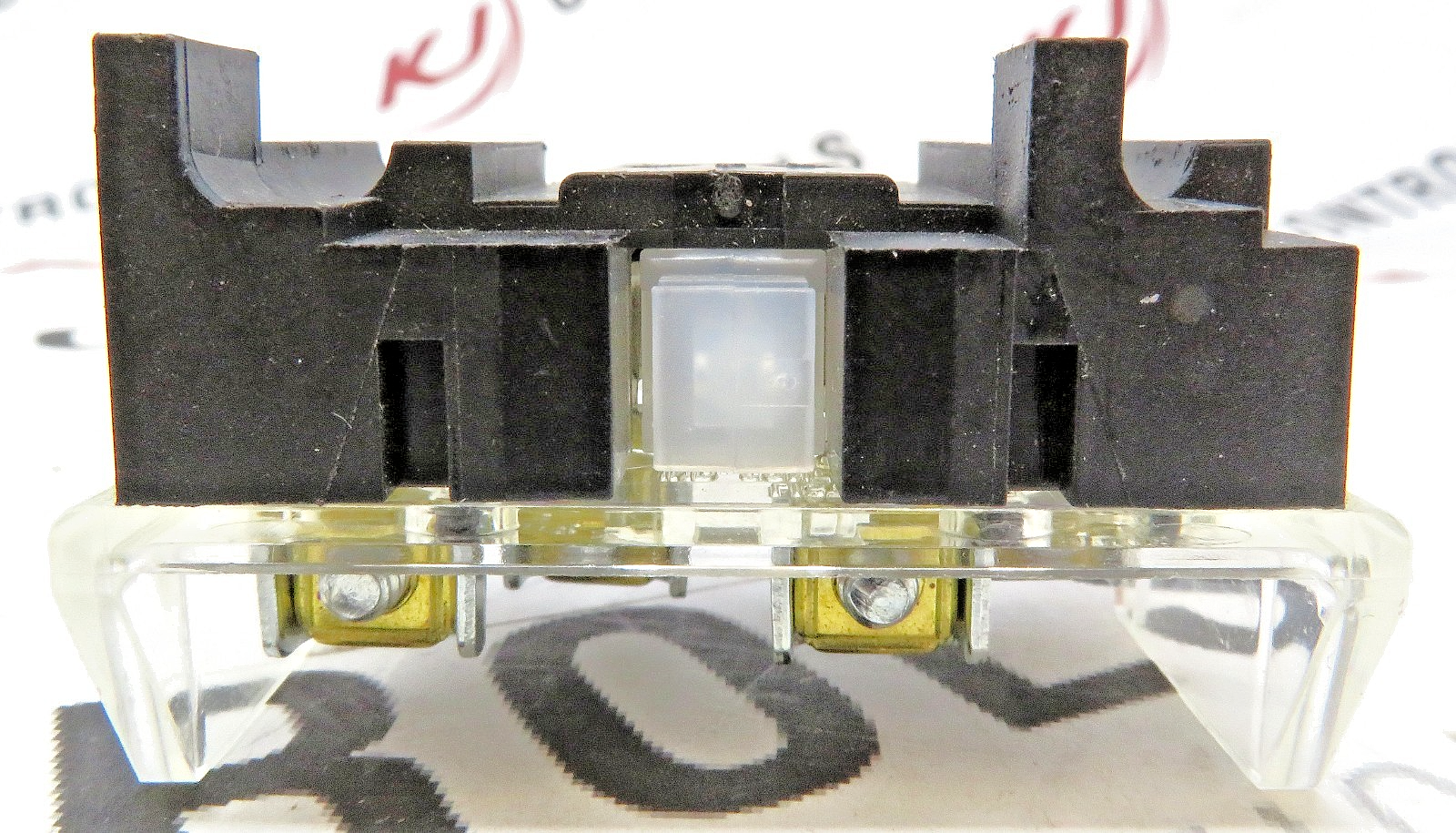

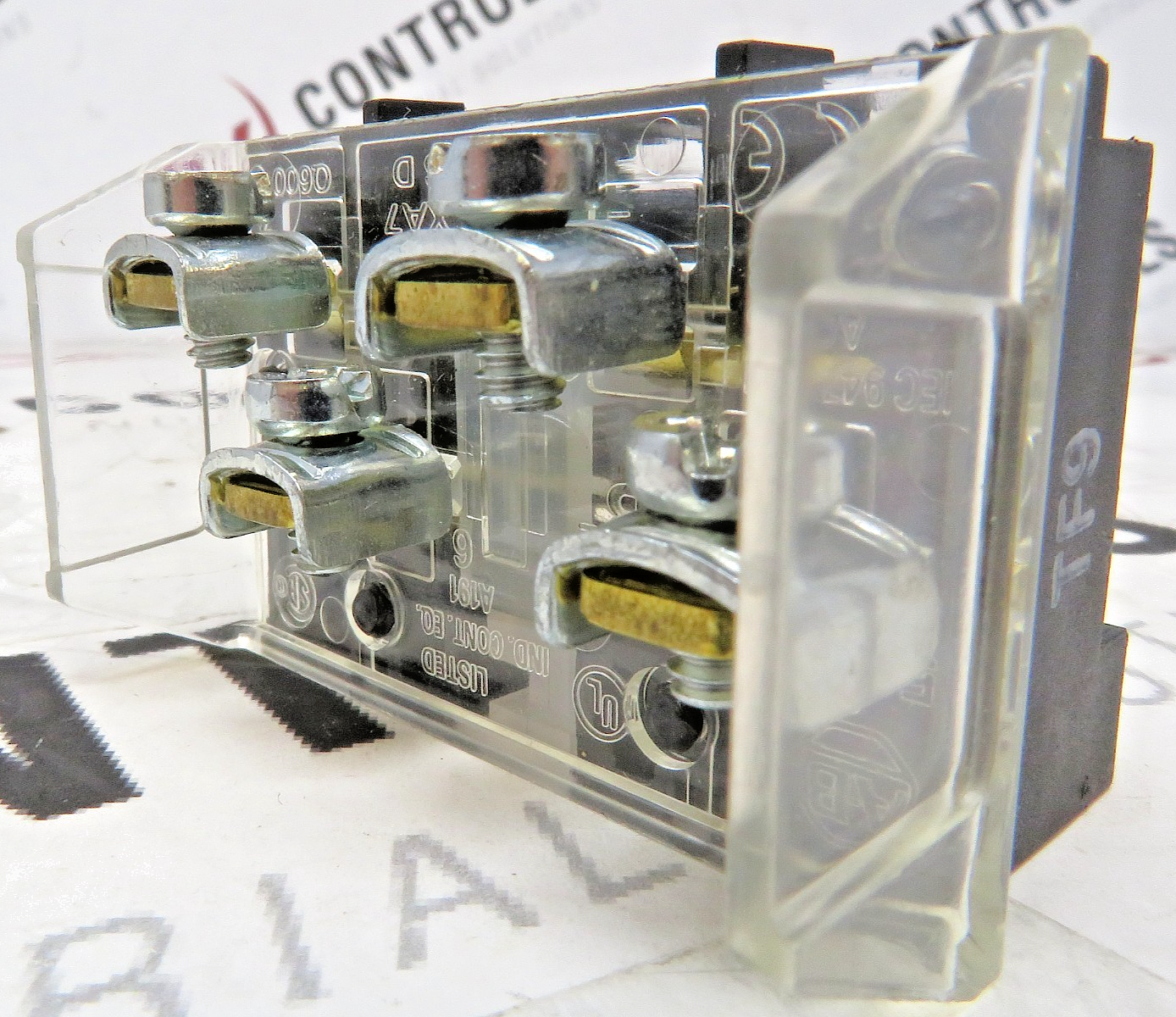

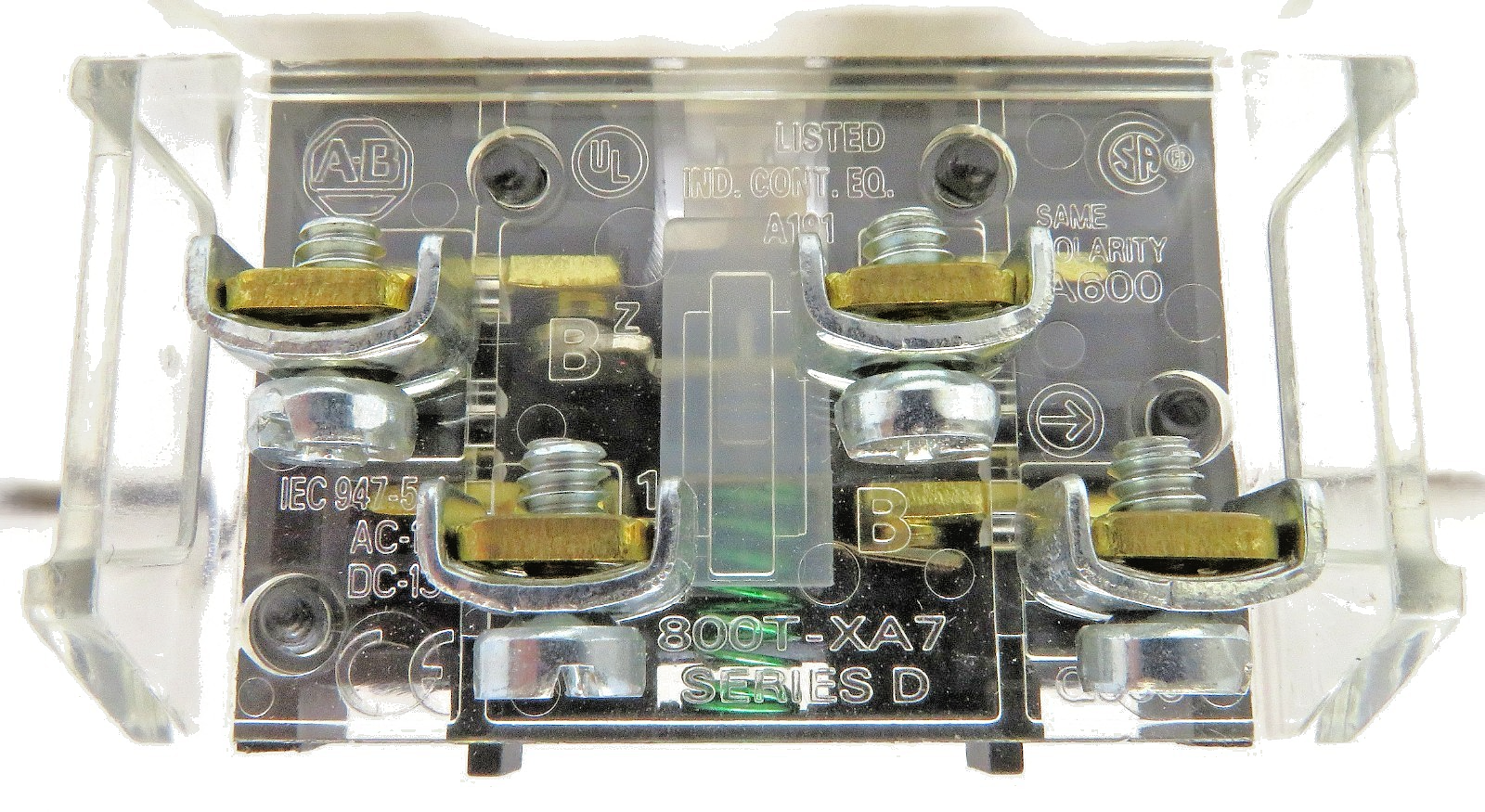

This listing does not include any fastening hardware (e.g., screws, mounting clips). Only the contact block is included, as shown in the photos. Ensure compatibility with your existing Allen-Bradley 800T series operator hardware.
