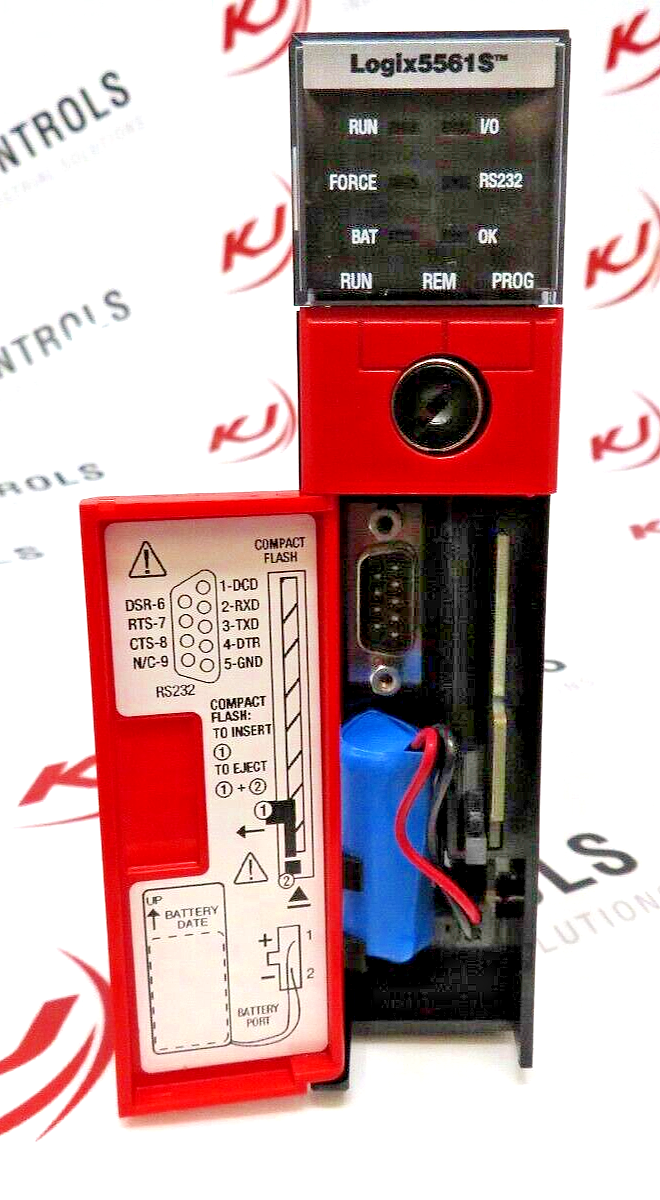

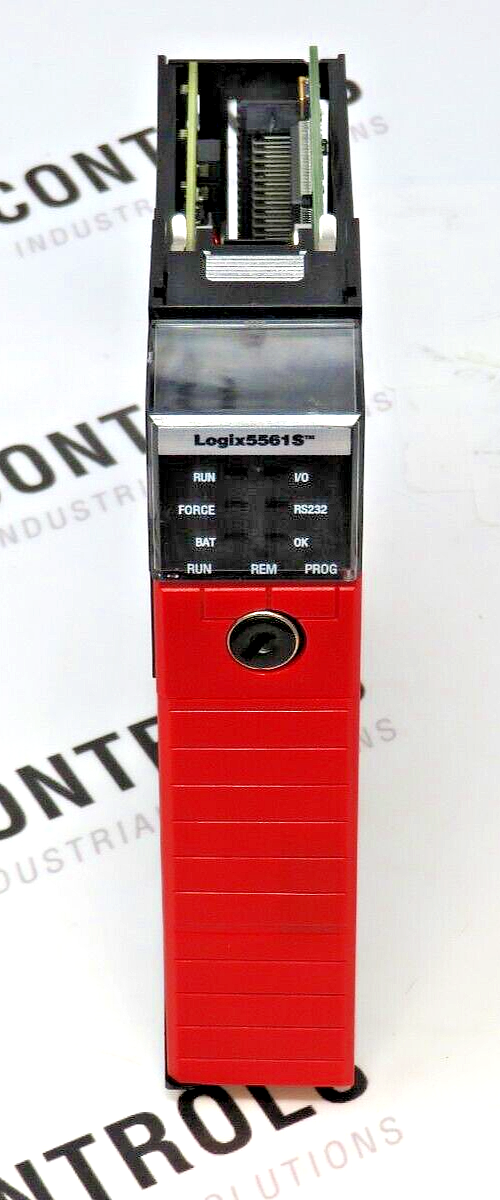

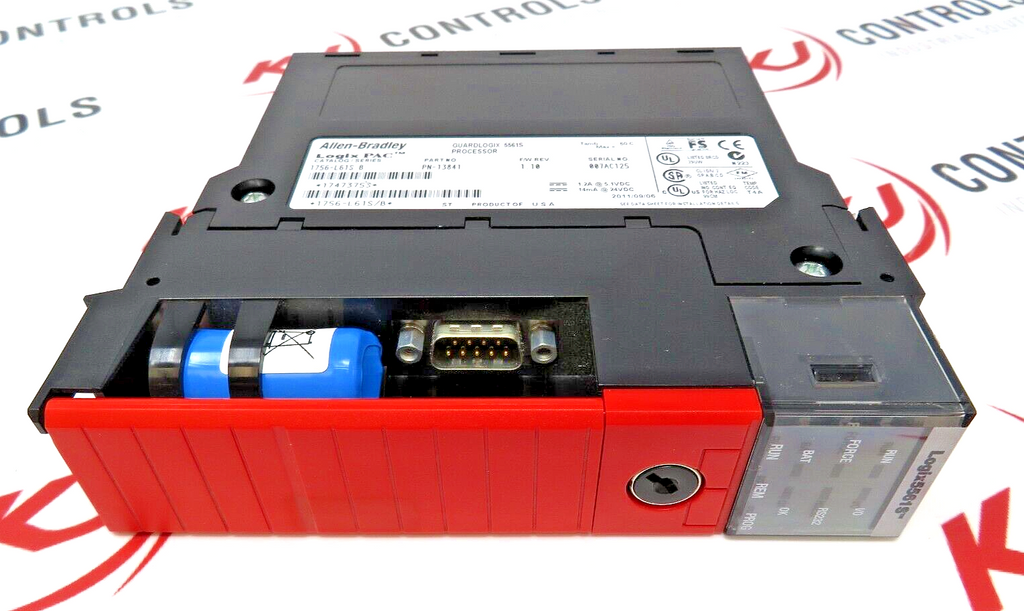

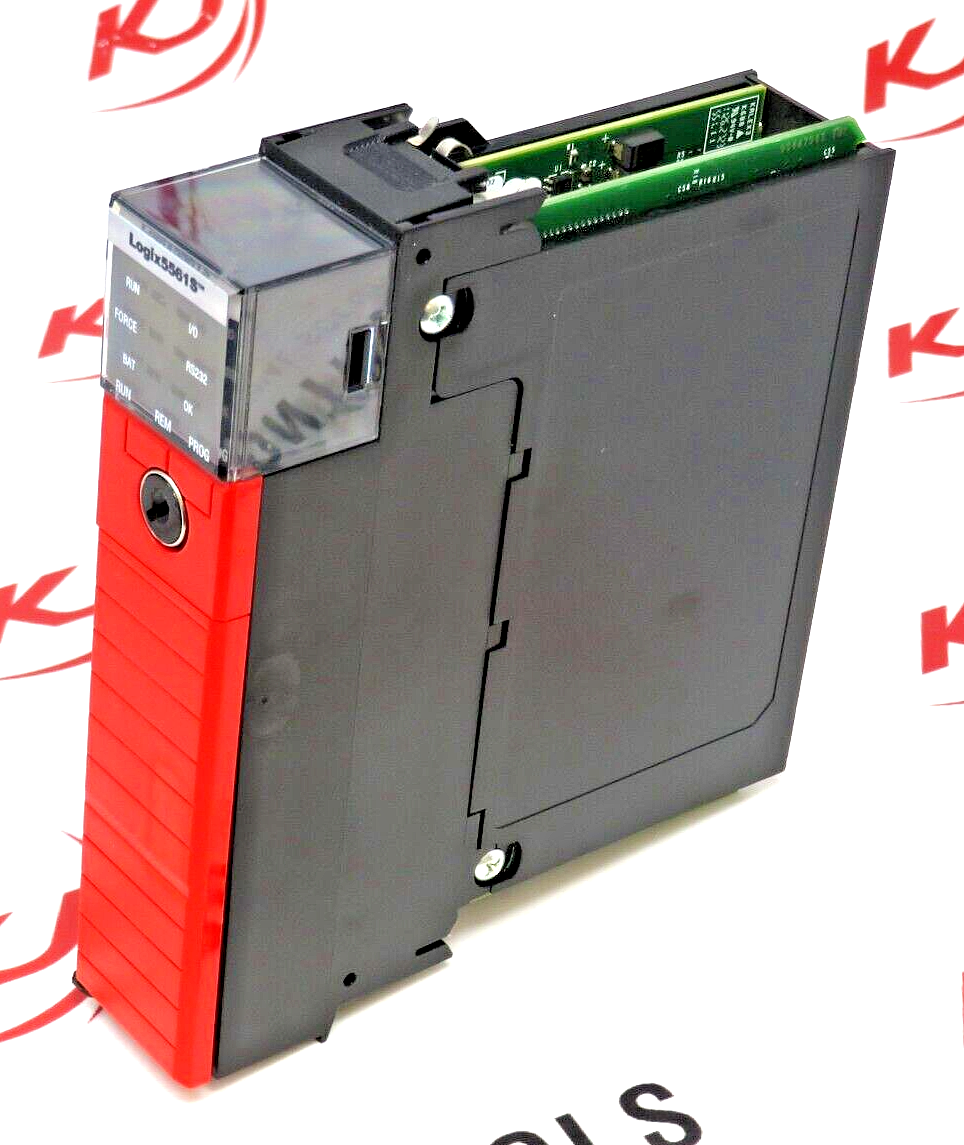

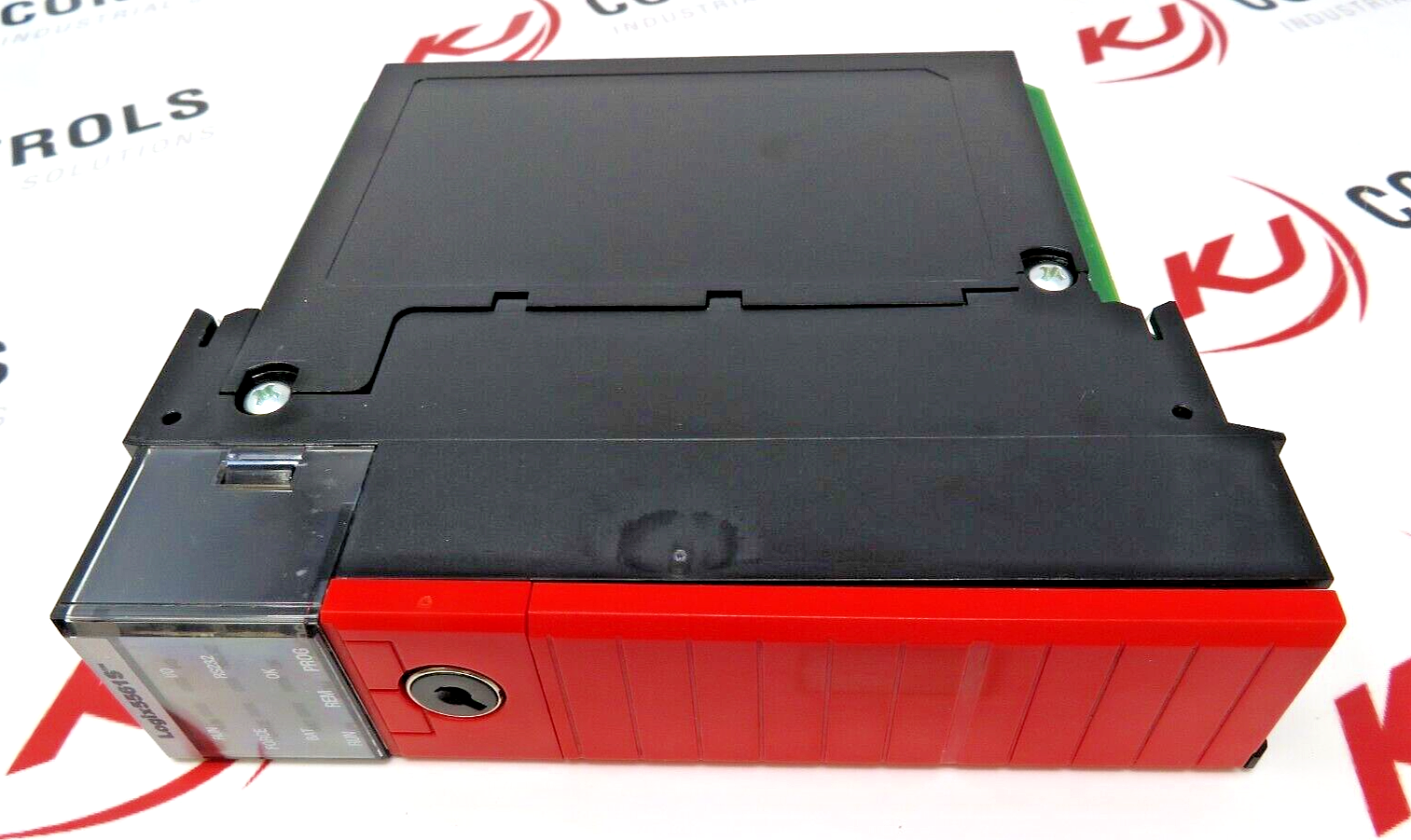

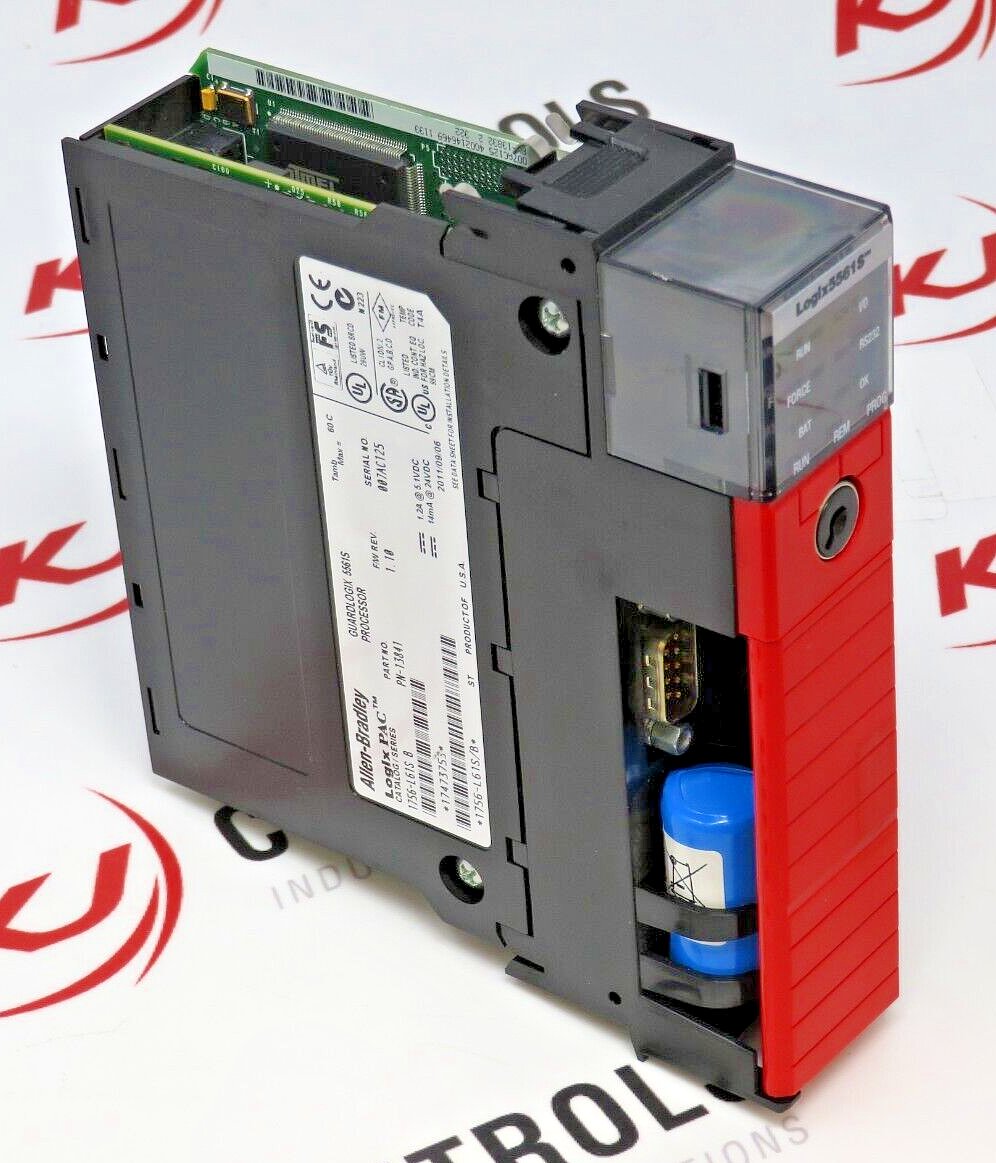

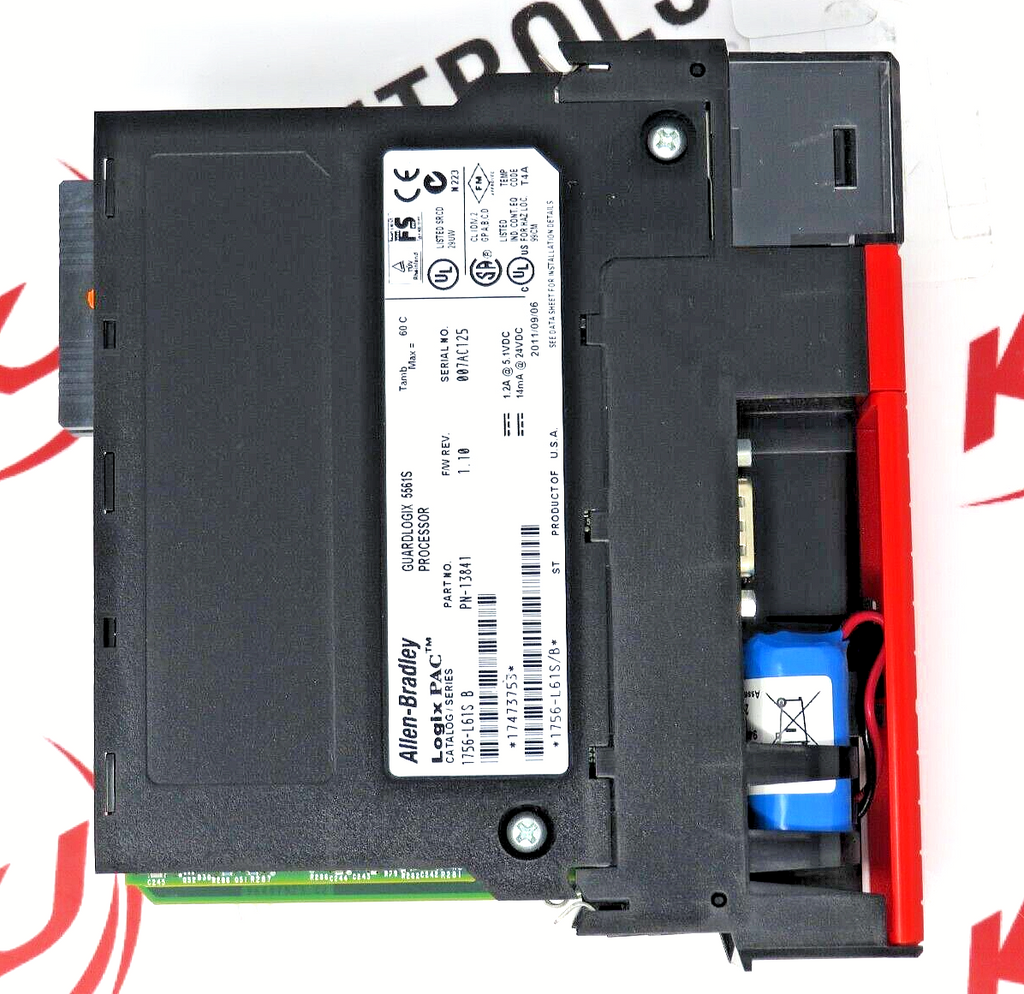

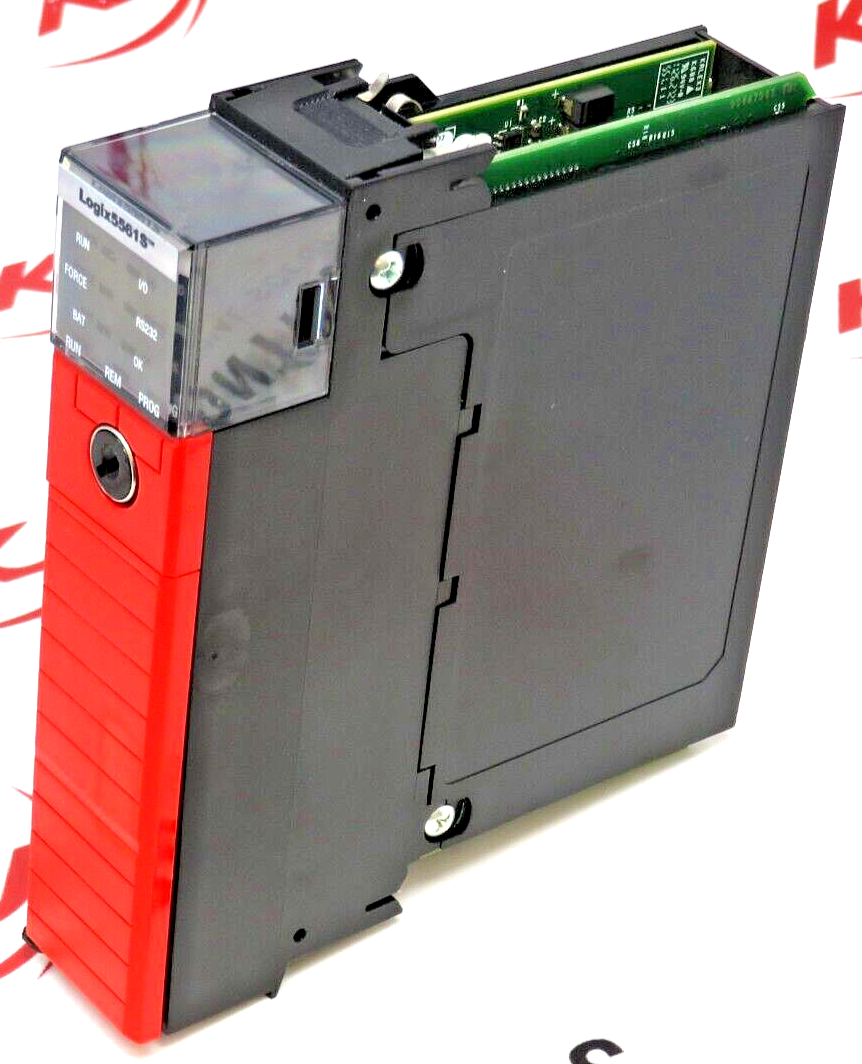

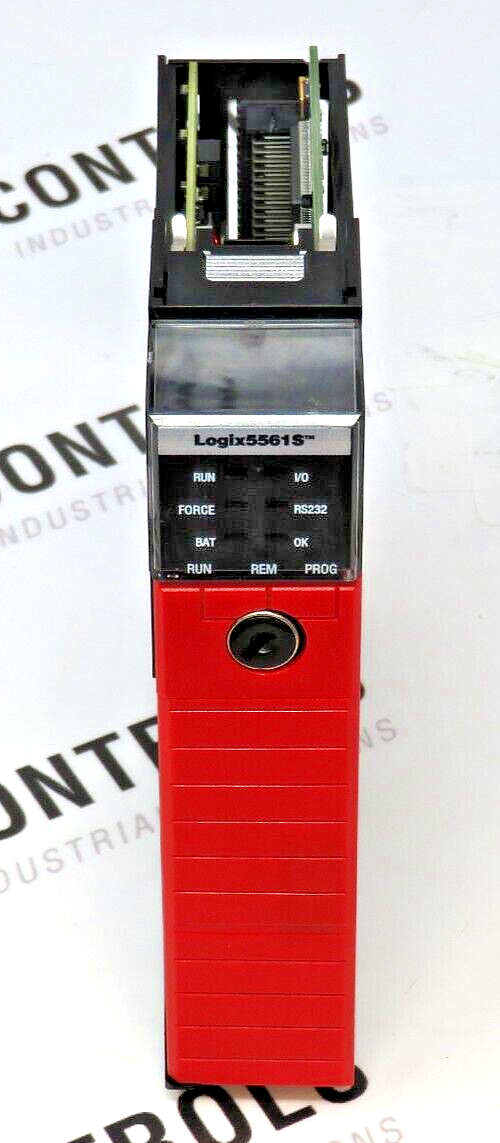

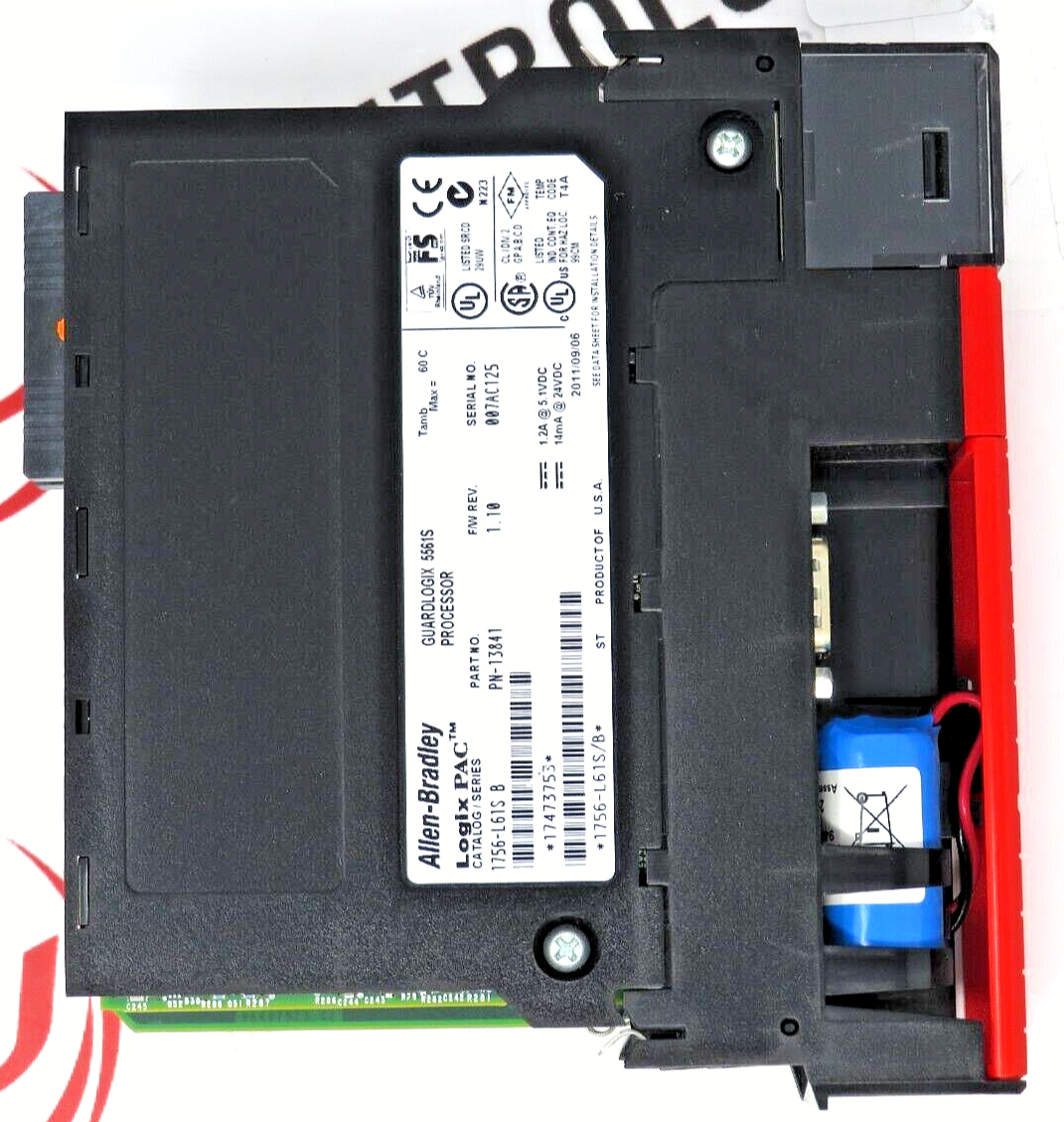

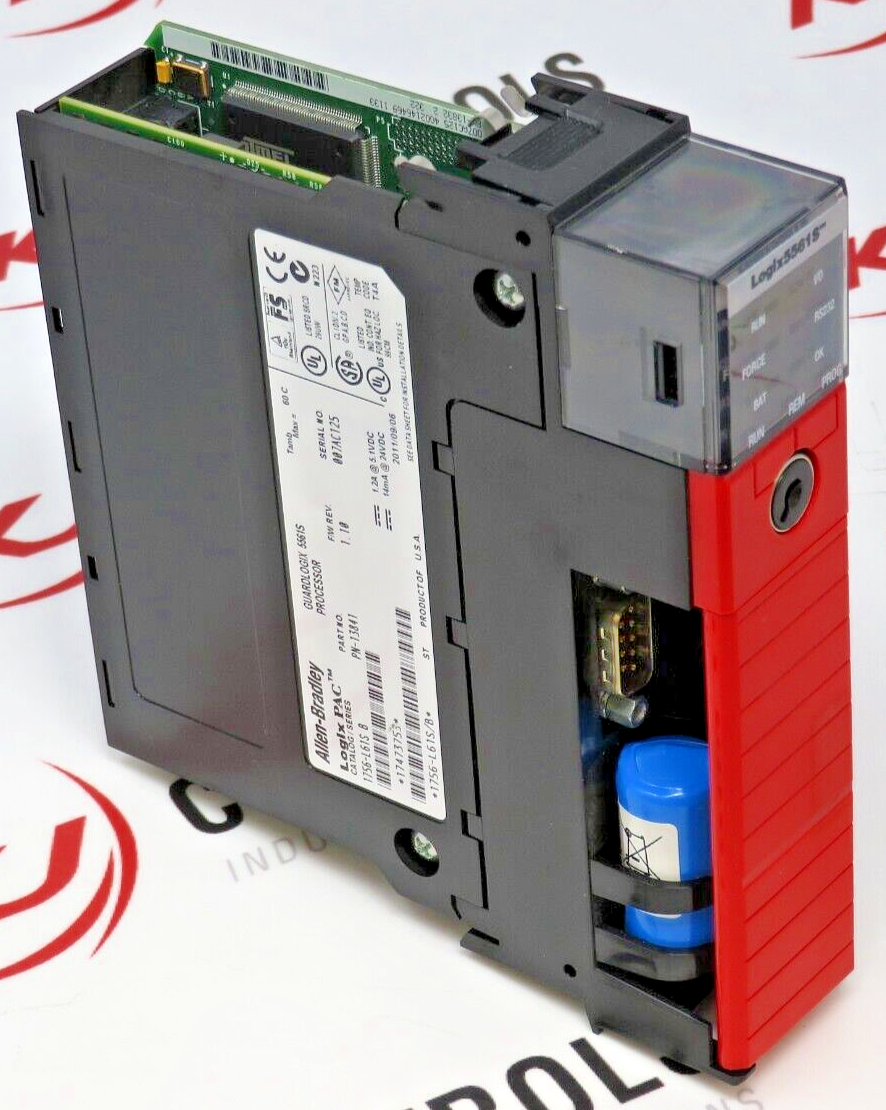

Allen-Bradley GuardLogix PLC Safety Controller

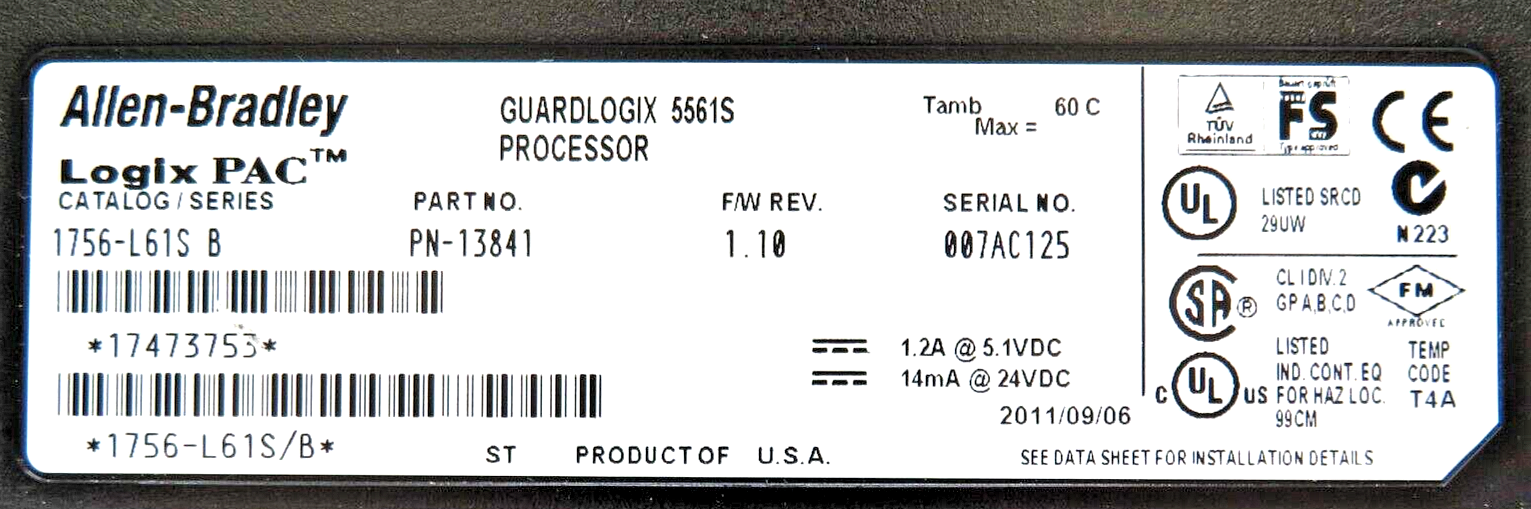

- Part number: 1756-L61S (1756L61S)
- Product family: GuardLogix
- Discontinued Status: Product was discontinued as of June 1, 2017
Technical Specifications:
- Processor Type: GuardLogix controller
- Memory: 2 MB standard memory, 1 MB safety memory
- I/O Capacity: Up to 128,000 discrete I/O and 4,000 analog I/O

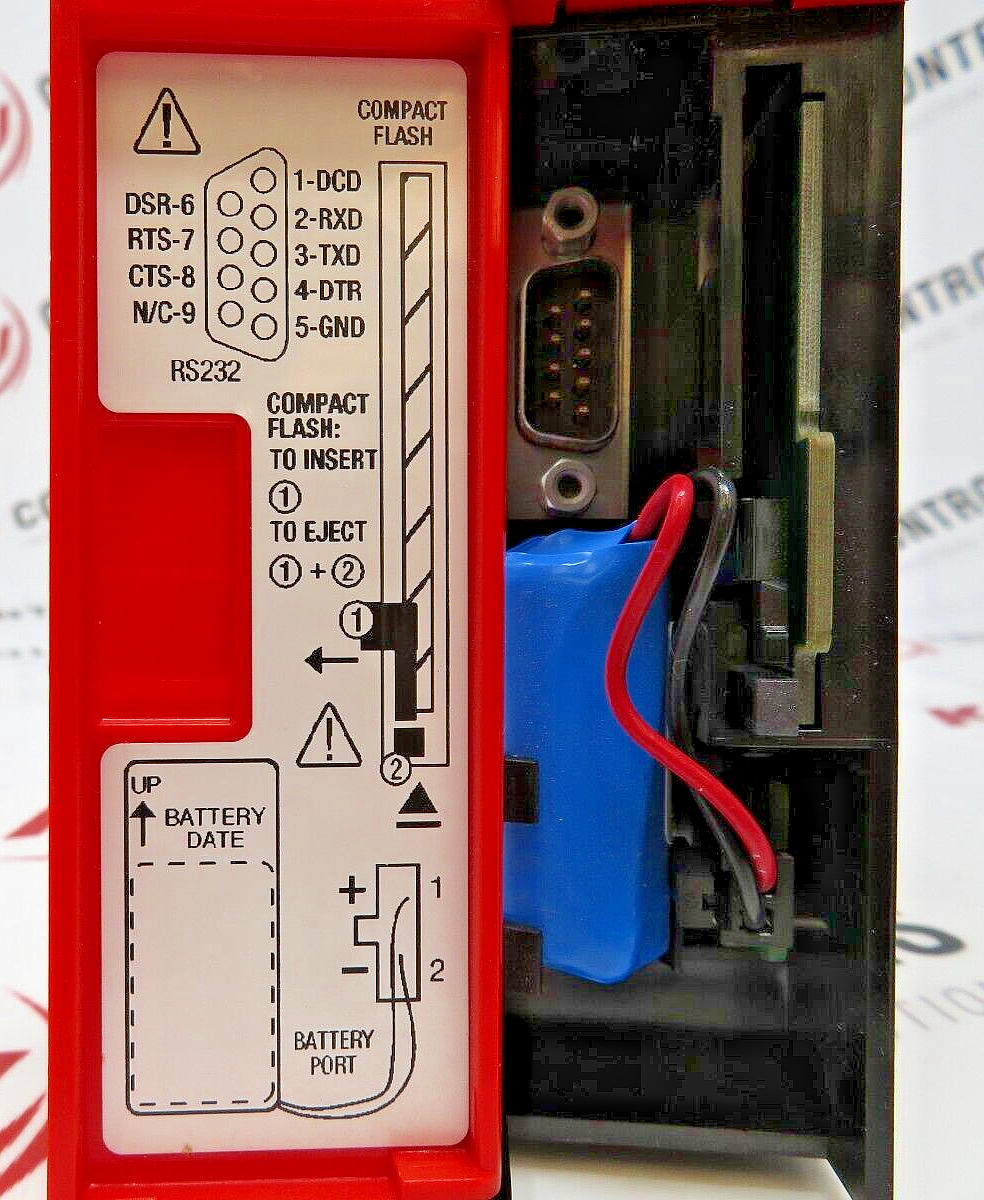

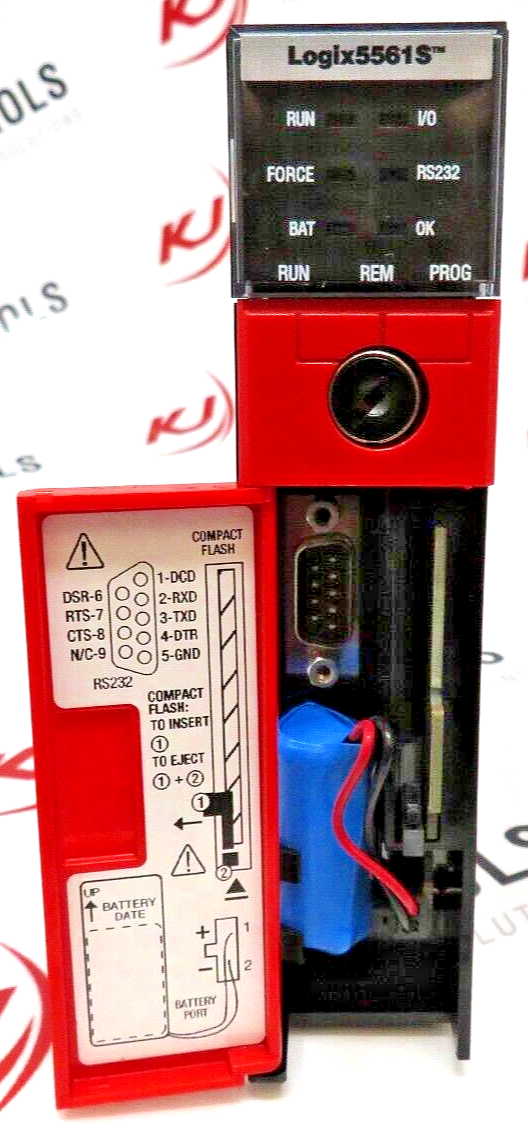

- Communication Ports: Integrated RS-232 port supporting various protocols (ASCII, DF1, Modbus, etc.)
- Power Requirements: 1.2A at 5.1V DC, 14mA at 24V DC
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Storage Temperature: -40 to 85 °C (-40 to 185 °F)
- Relative Humidity: 5 to 95% non-condensing
- Shock: 30g operating, 50g non-operating
- Vibration: 5g at 10-500 Hz
Product Features:
- Safety Features: Supports SIL 3/PLe/Cat. 4 safety applications
- Dual Controller Solution: Requires a 1756-LSP safety partner for safety applications
- Compatibility: Works with both 1756 and 1768 ControlLogix systems
- Integration: Compatible with RSLogix 5000 software (Version 20 and earlier)
- Diagnostics: Built-in diagnostic features for enhanced system reliability
- Redundancy: Supports ControlLogix redundancy systems for high availability applications
