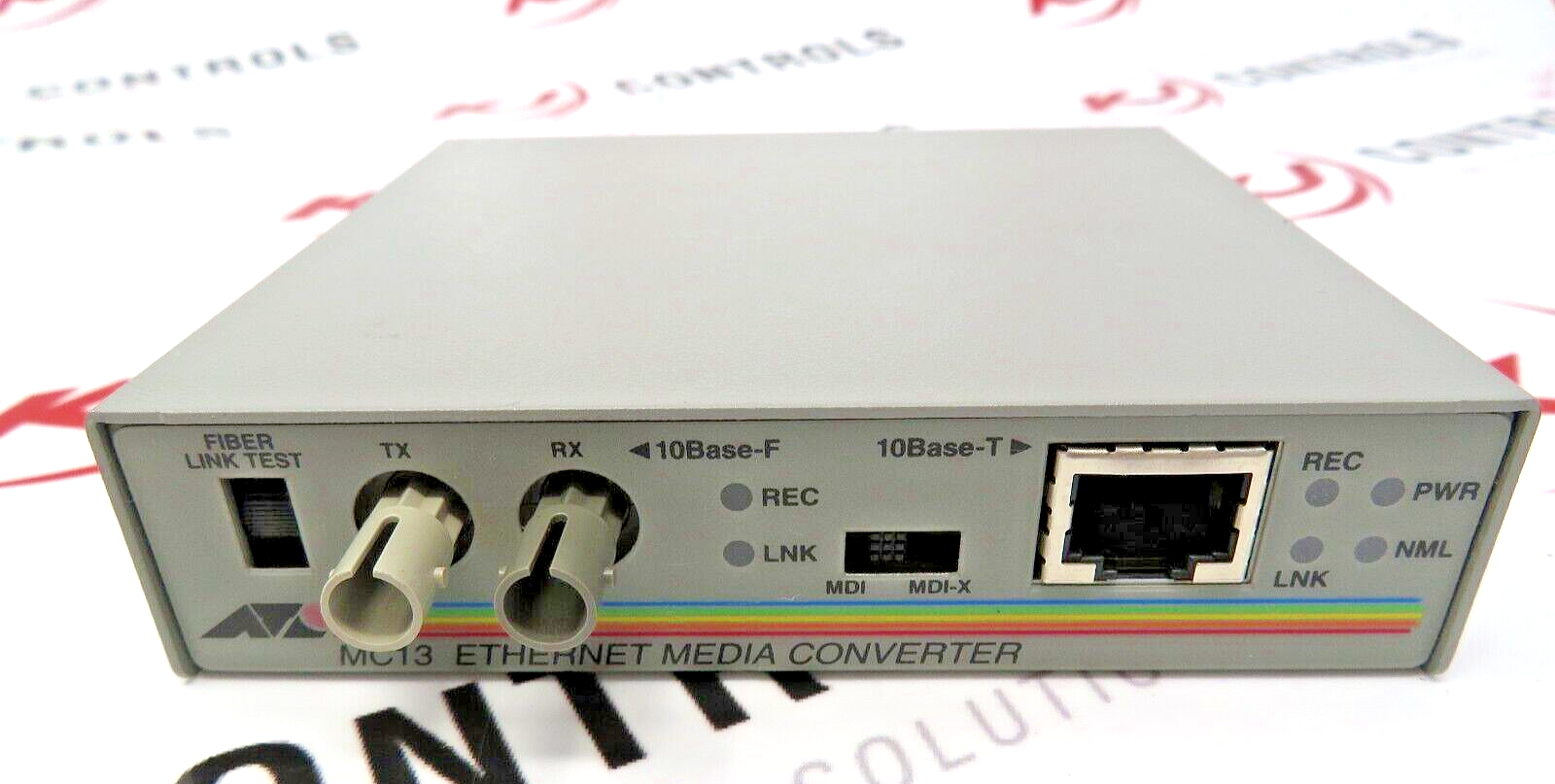

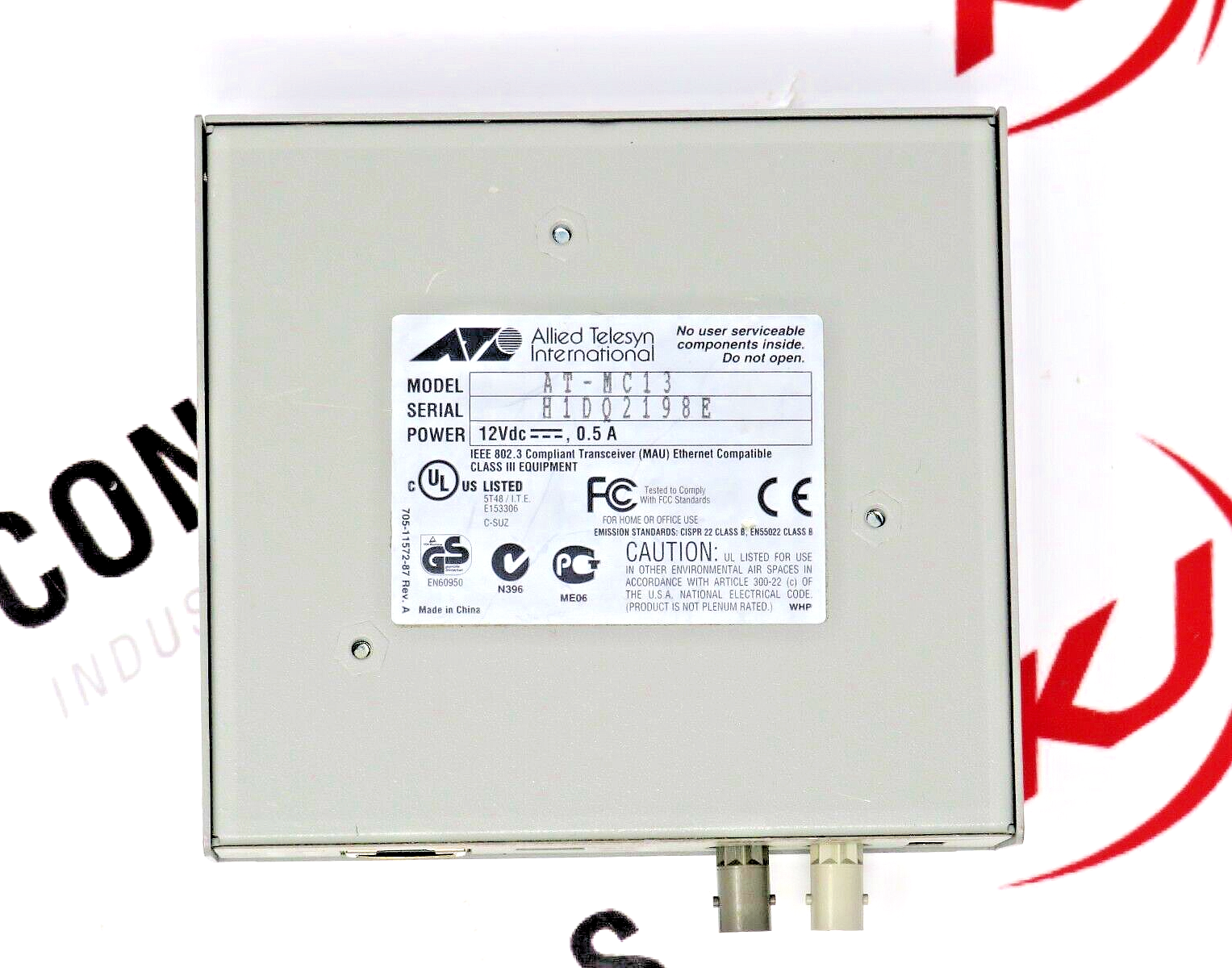

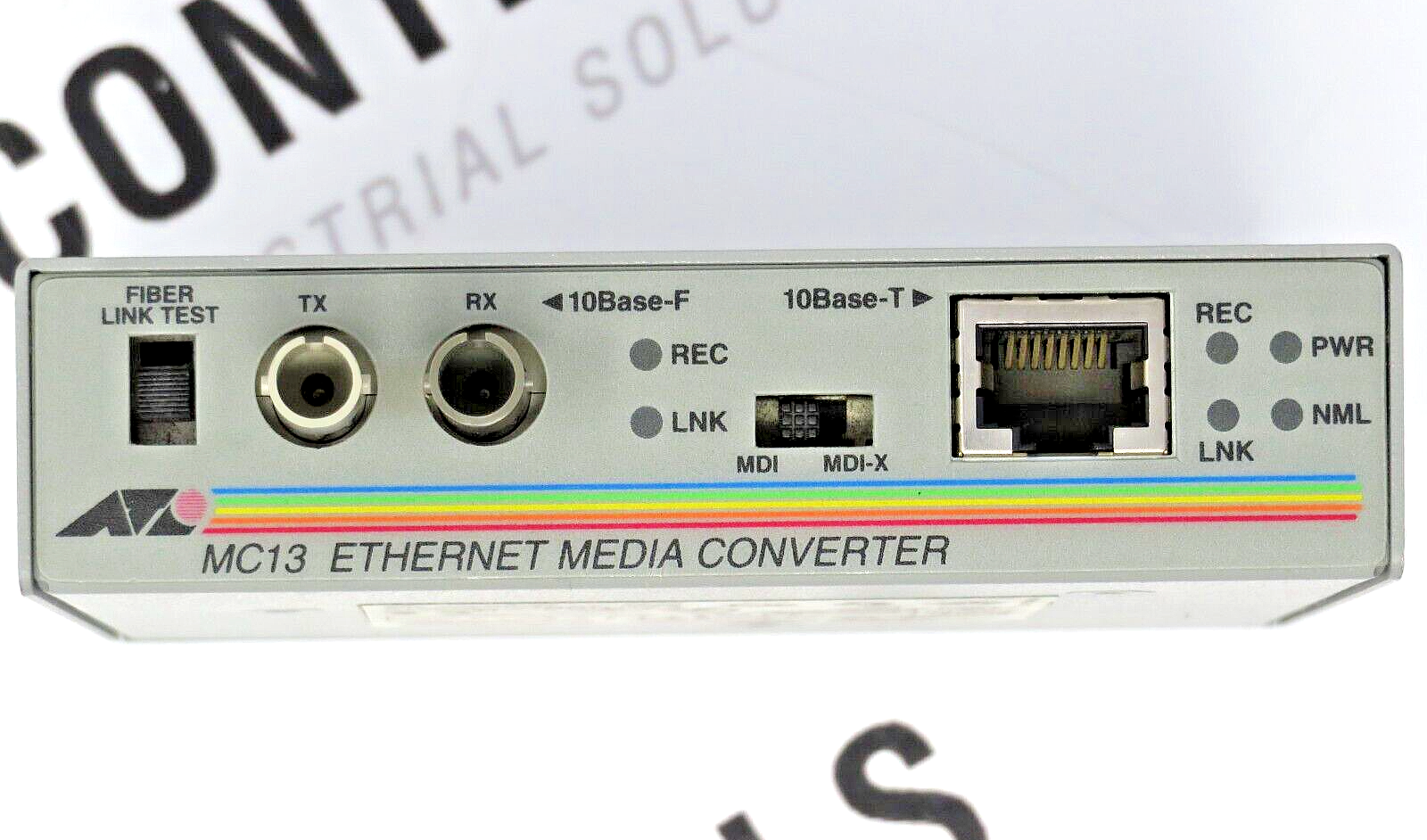

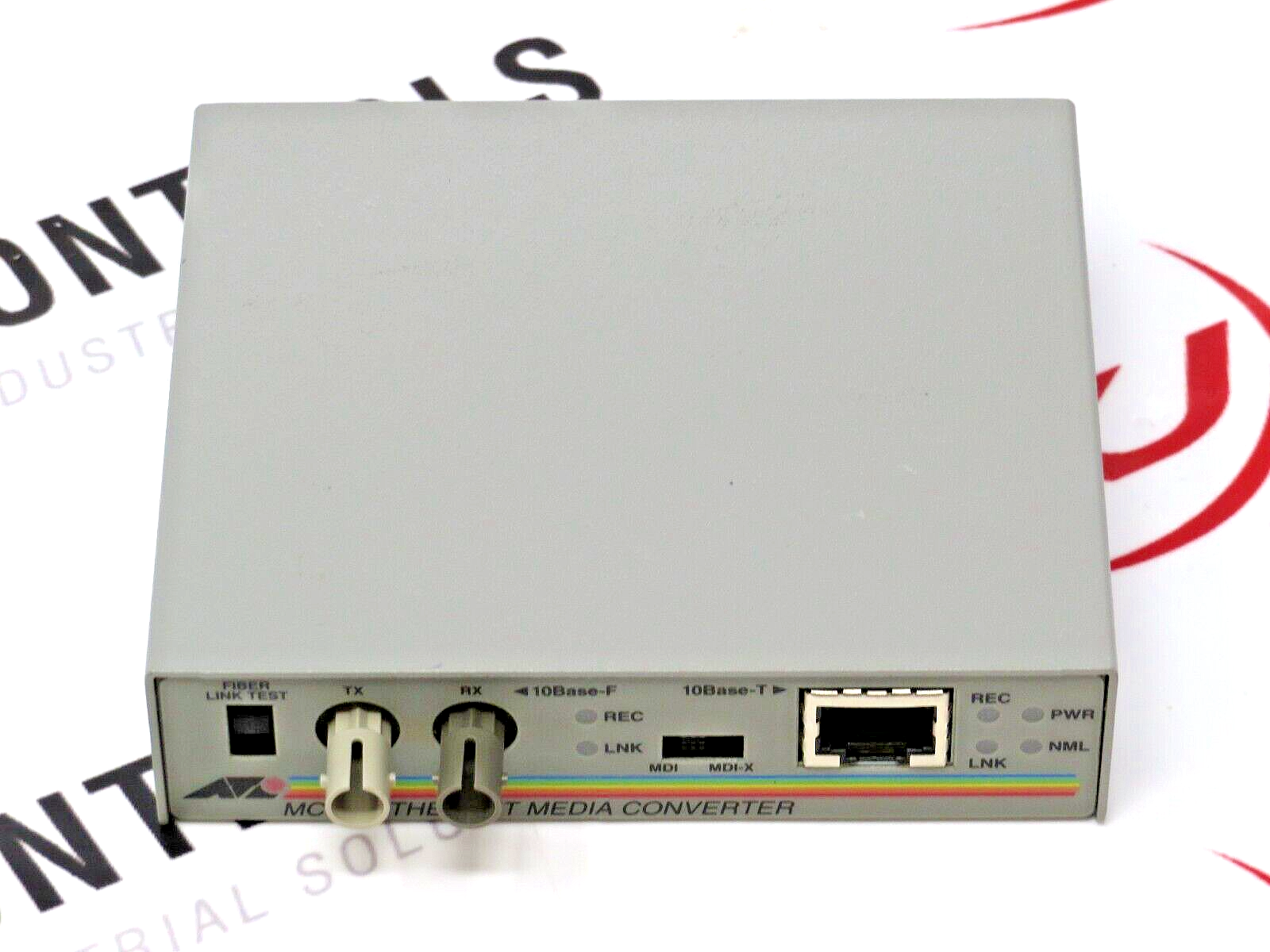

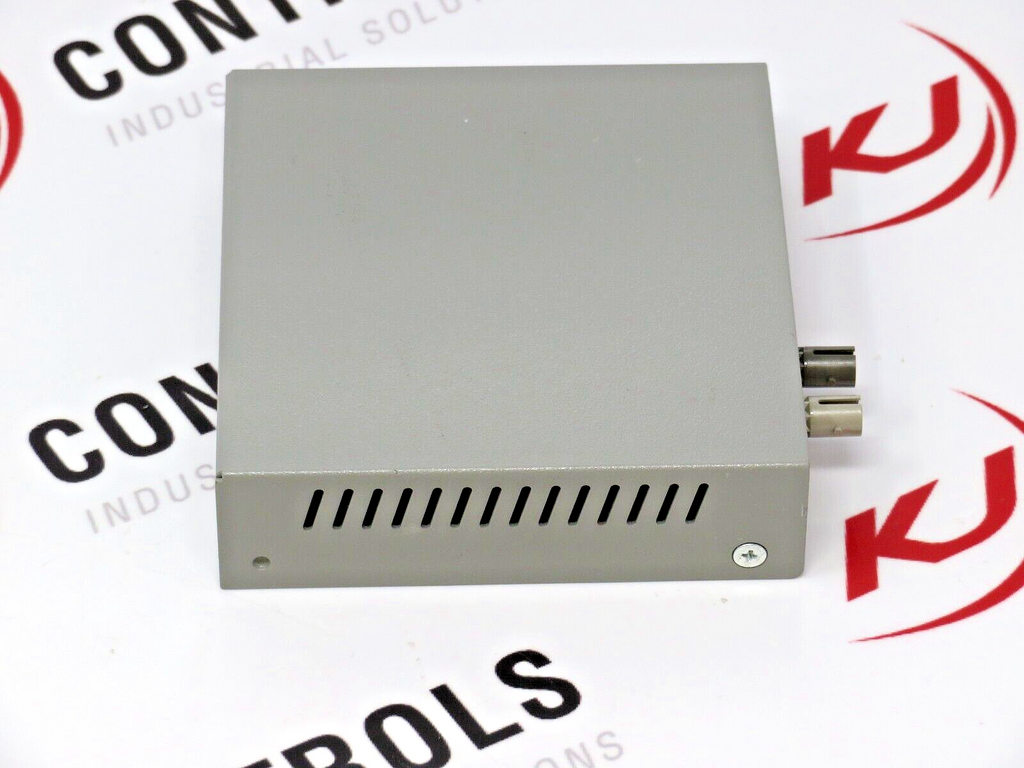

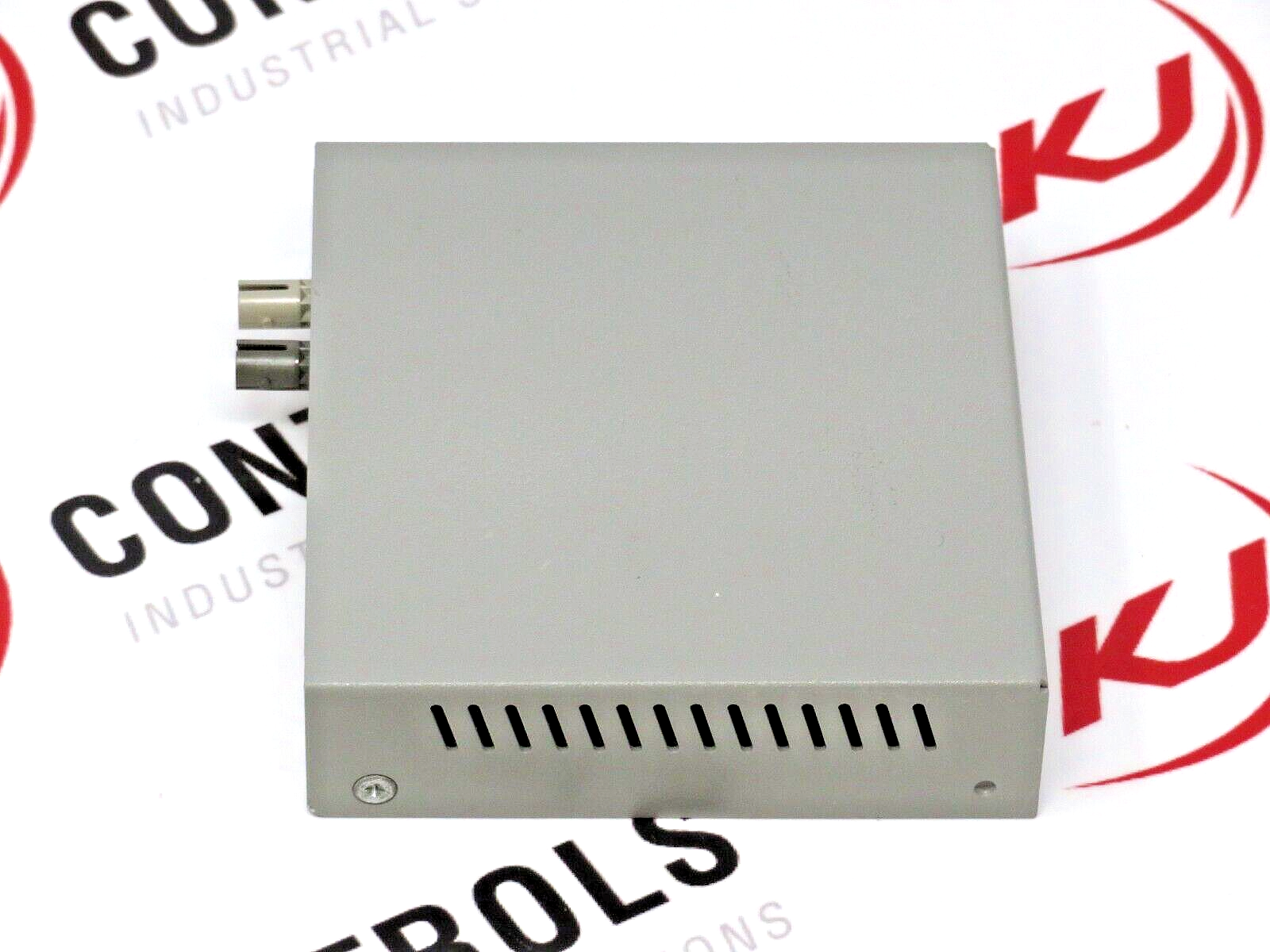

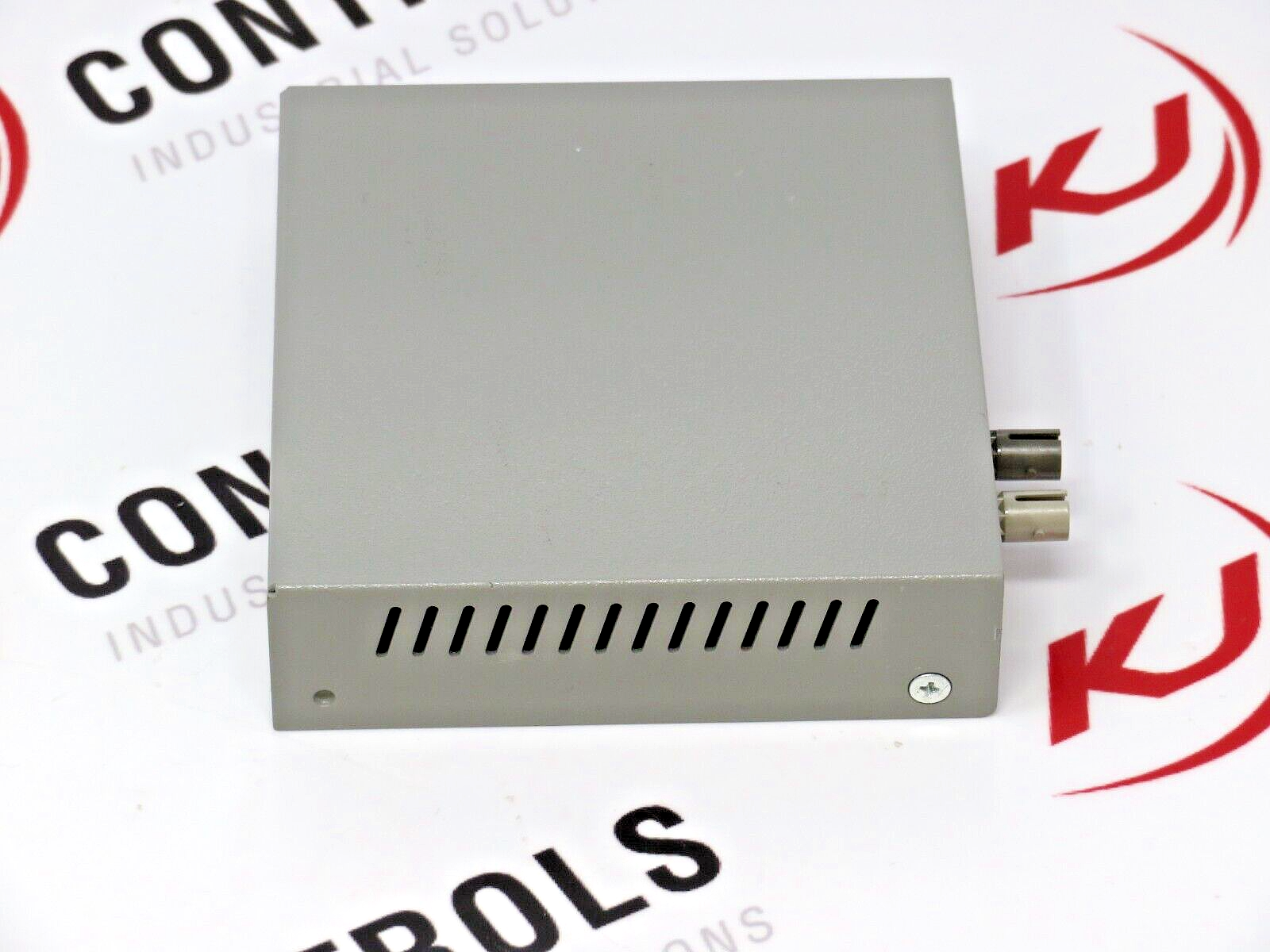

Allied Telesis Ethernet Media Converter
- AT-MC13
- ATMC13

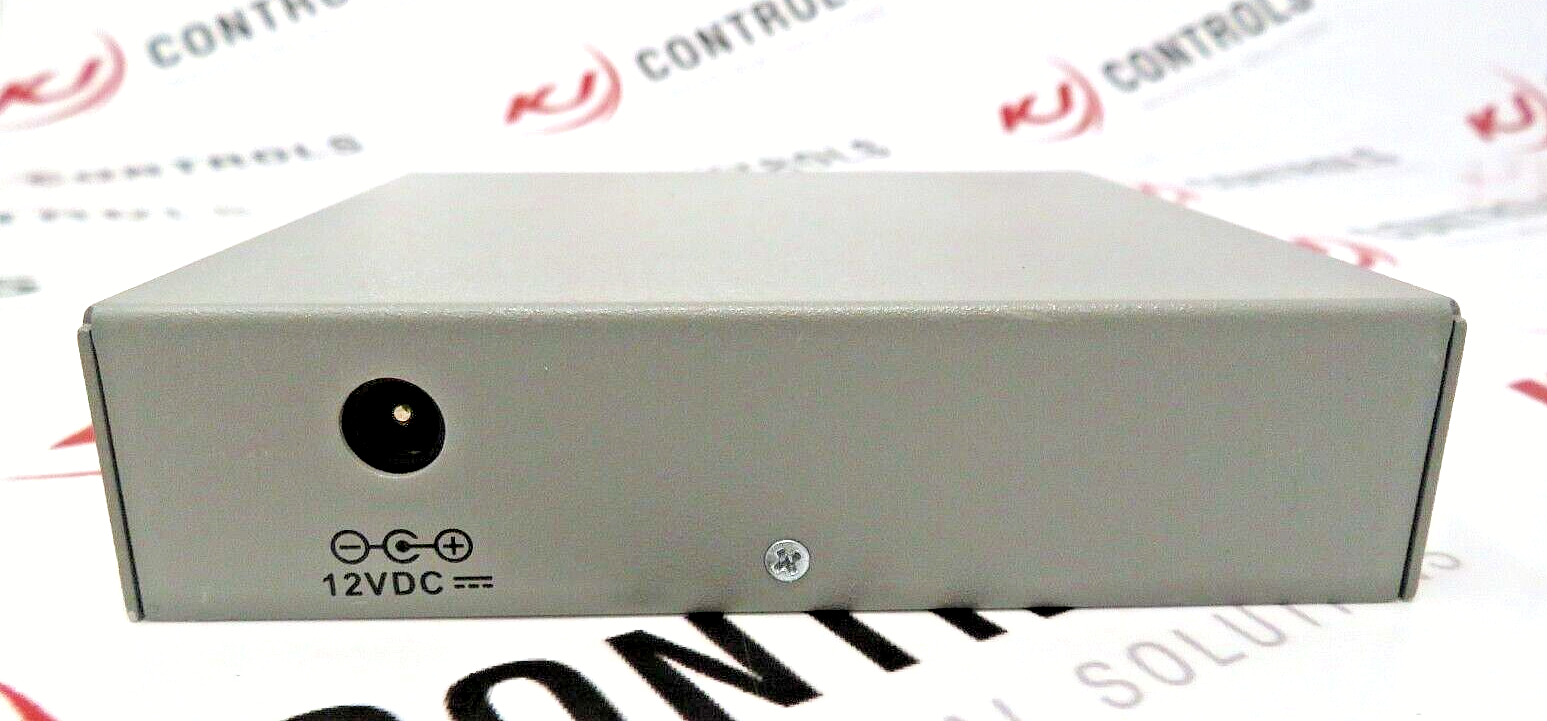

- (12V Power Supply Not Included).
General Specifications:
- Product Type: Ethernet Media Converter.
- Maximum data transfer rate: 10 Mbit/s.
- Cabling technology: 10Base-T.
- LED indicators: Link, Power.
- Safety: UL-Cul, CSA/CSA, NRTL, TUV, CE.
- Power consumption (typical): 6 W.
- Weight: 294 g.
Physical Specifications:
- Dimensions (WxDxH): 105 x 95 x 25 mm.
Connector Specifications:
- Connector(s): RJ-45, ST2.
Network Specifications:
- Data link protocols: Ethernet.
Other Features:
- Supports all major fiber connectors.
- Can be used to extend networks with up to 15km of fiber.
- Missing Link feature allows switches or hubs with redundant link capability to be interconnected with these media converters.
- Simple installation with an internal MDI/MDI-X switch.
- Link Test feature allows installers to check for cable faults without the need for expensive fiber optic test equipment.
* Please note that this is not an exhaustive list of all the specifications. For more detailed information, you may want to refer to the product’s technical documentation.*
