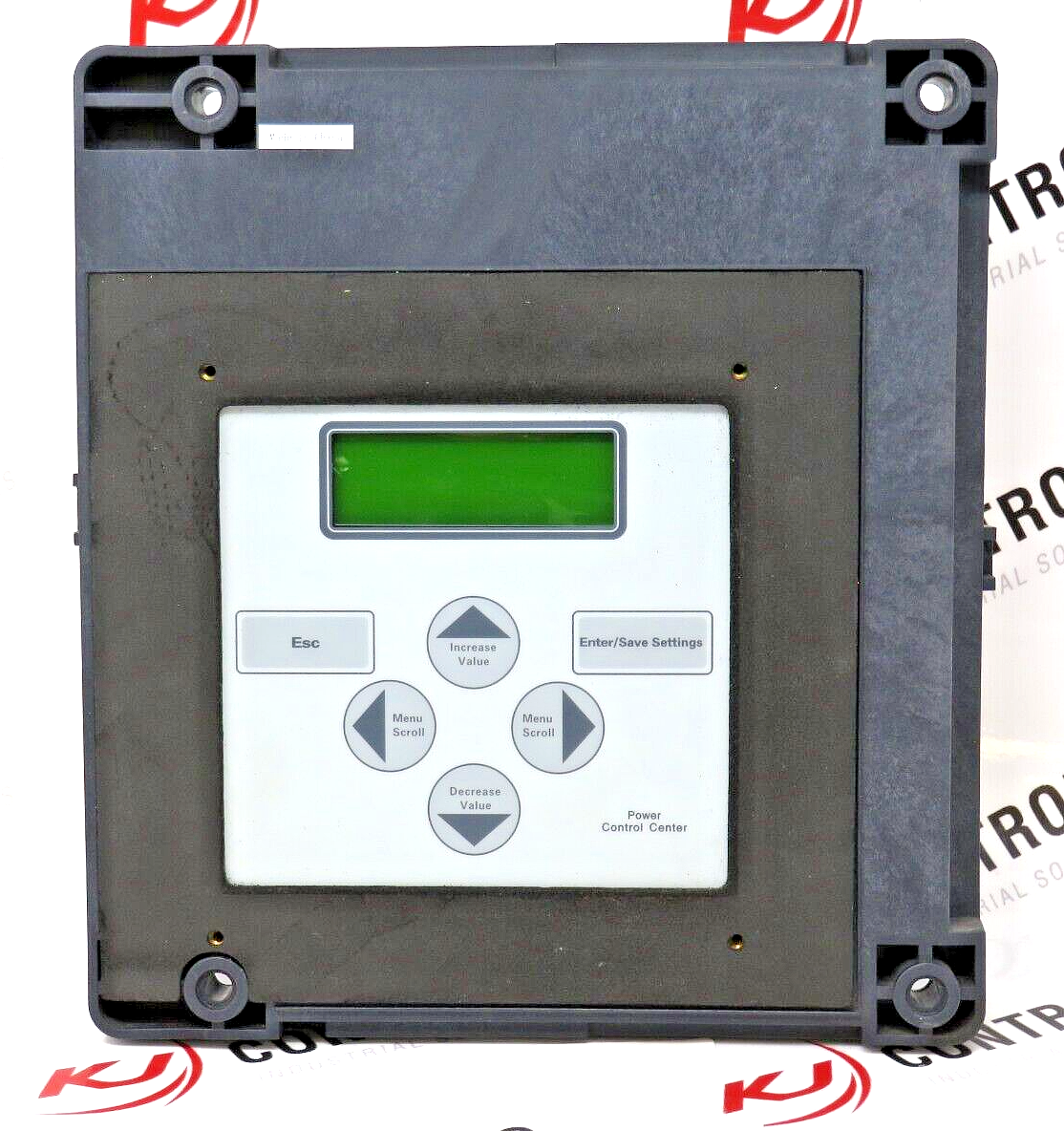

ASCO Power Control Center with Cable

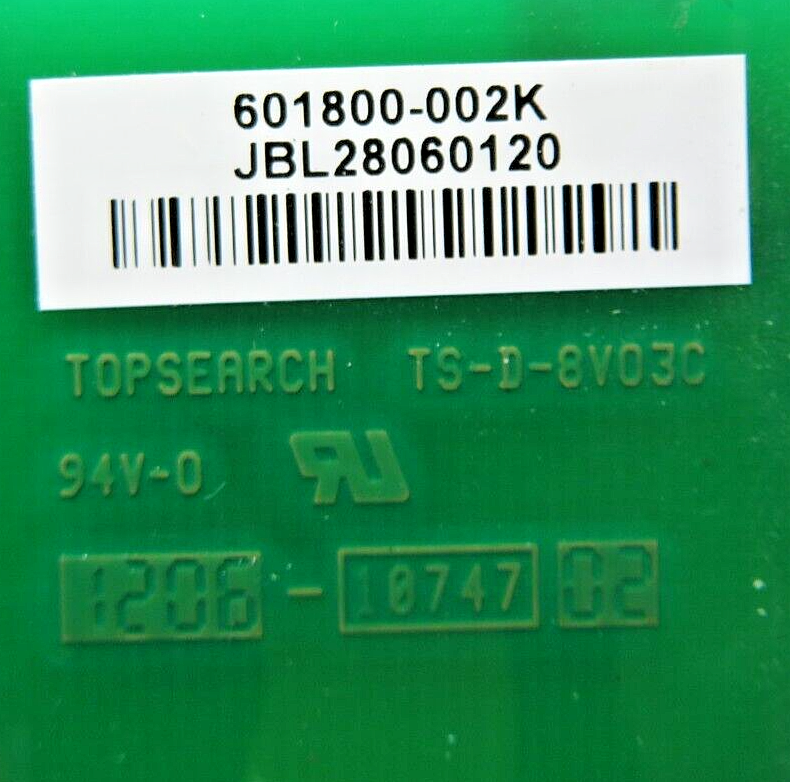

- Part Number: 601800-002
- Product Family: ASCO 7000 Series
- UPC: Not Available
- Lifecycle Status: Discontinued
Technical Specifications:
- Voltage Range: 120-600V
- Amperage: 260A
- Frequency: 50/60 Hz
- Phases: 3-phase
- Control Panel Type: Group 5 Control Panel for ASCO 7000 Series Automatic Transfer Switches
- Display Type: LED indicators for status display
- Communication Protocol: Compatible with Modbus for remote monitoring and control
- Dimensions: Approximately 16 x 12 x 8 inches (varies slightly based on installation needs)
- Weight: Approximately 5 lbs
- Cable Part Number: 713083-001
- Cable Type: Communication Cable
-
Cable Connector Type: Custom connectors designed for ASCO Control Panels
- Cable Function: Used to connect the control panel to external devices or networks, enabling remote monitoring and control.
Product Features:
- Purpose: Controls and monitors the transfer of electrical loads between primary and backup power sources in an Automatic Transfer Switch (ATS).
- Functionality: Ensures continuous power supply during outages by automatically switching to a backup power source.
- Display: Status LED indicators provide real-time information on power source and switch status.
- Compatibility: Works with ASCO 7000 series transfer switches; compatible with both utility and generator power sources.
- Safety Features: Includes built-in protective relays and alarms for fault conditions.
- Environmental Protection: Suitable for installation in environments with temperatures ranging from -20°C to +70°C.
- Cable Purpose: Facilitates communication between the ASCO Control Panel and other devices (like remote monitoring systems or additional control modules).
- Cable Durability: Designed for industrial environments, with robust insulation to protect against electrical interference and physical damage.
- Ease of Installation: Plug-and-play design for easy installation and replacement of the cable.
