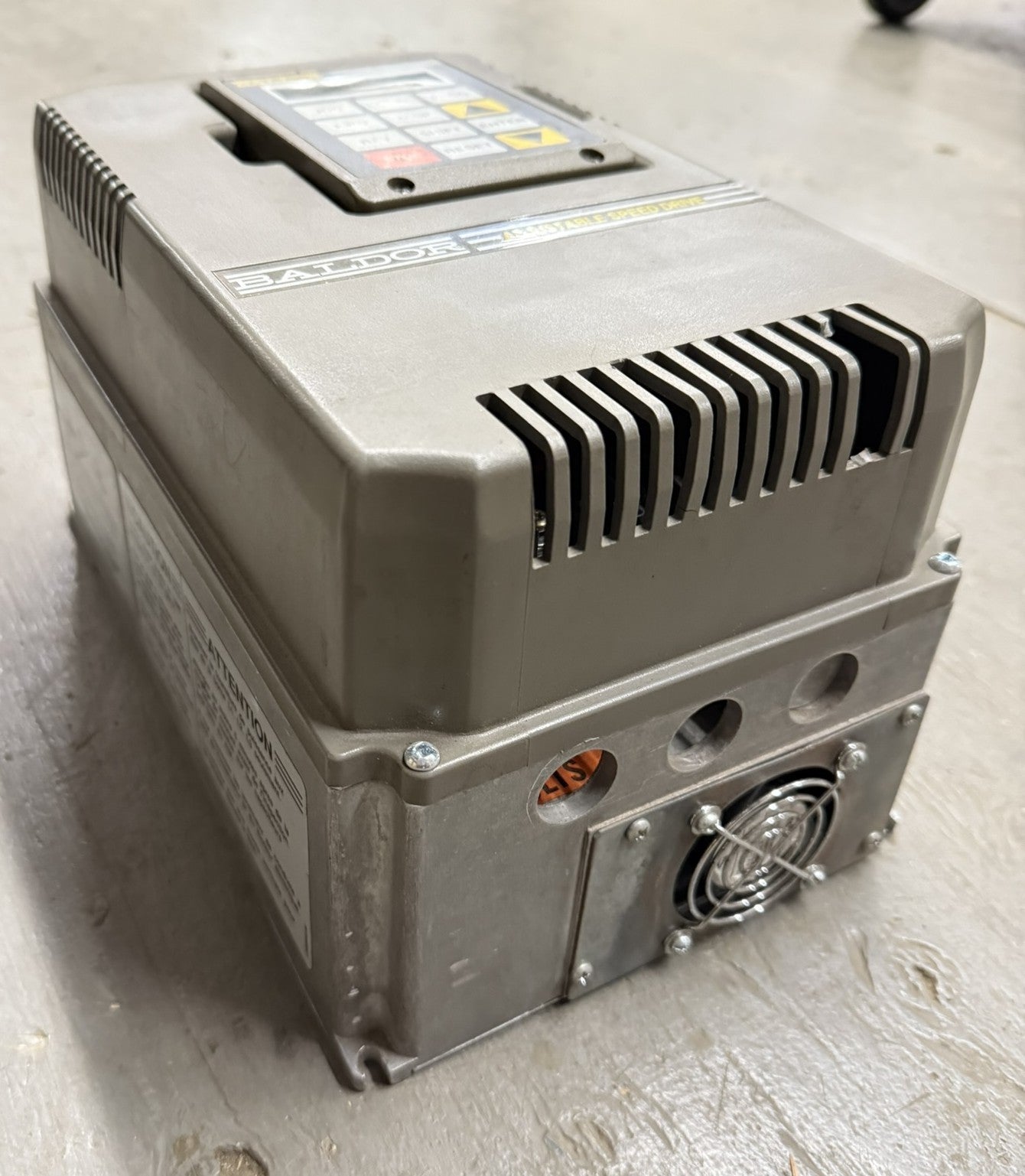

Baldor ID15H203-E 3-Phase 230V 3HP AC Inverter Drive
Product Basic Information:
- Manufacturer: Baldor Electric Company
- Parent corporation: ABB
- Catalog number: ID15H203-E
- Non-hyphenated part number: ID15H203E
- Product family/series: Series 15H Inverter Control
- Product type: AC inverter drive adjustable speed drive

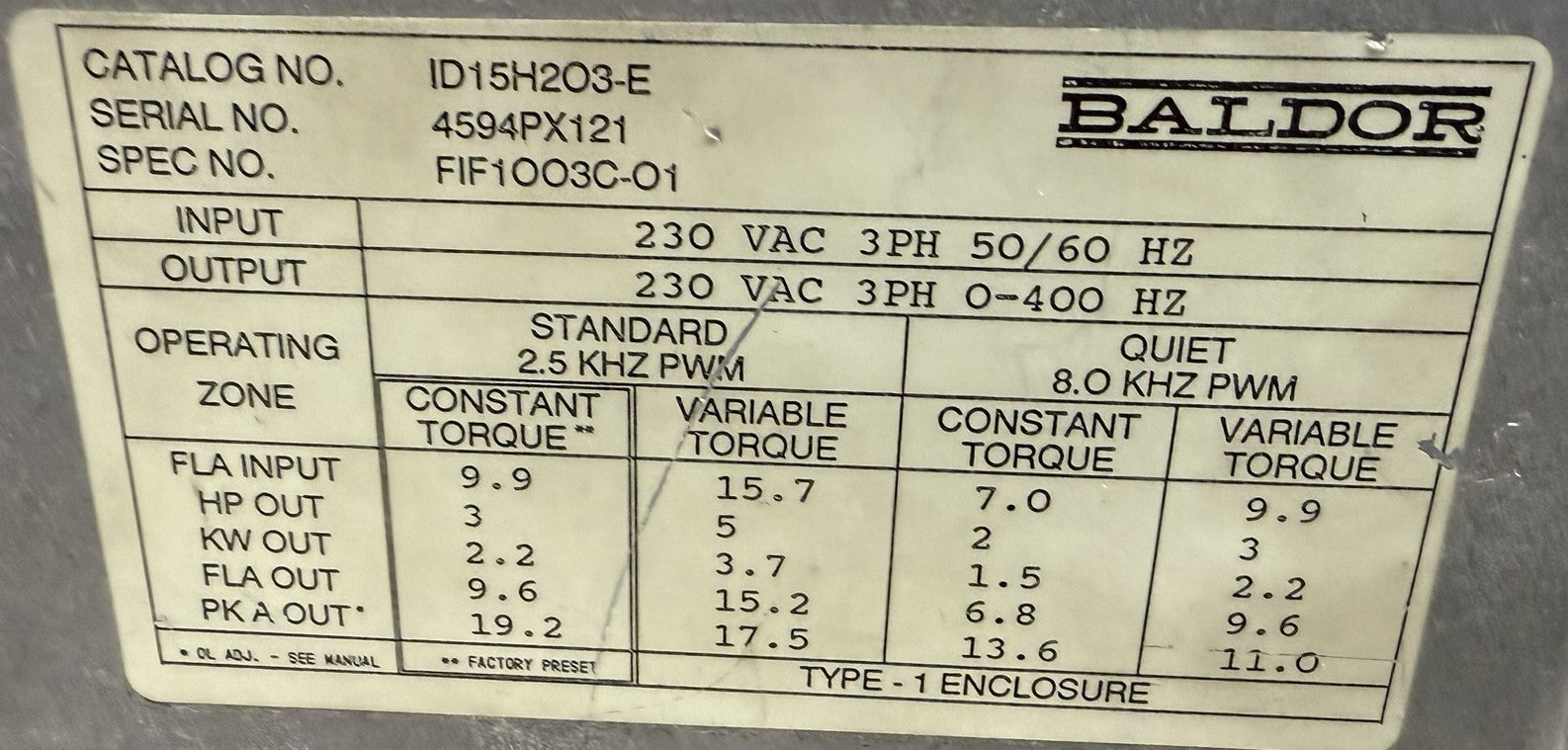

- Spec number: FIF1003C-01
- Country of origin: U.S.A.
- HS customs code: 8504.40.40
Technical Specifications:
- Input voltage: 230 VAC
- Input phase: 3 phase
- Input frequency: 50/60 Hz
- Input voltage range: 180 to 264 VAC at 60 Hz, 180 to 230 VAC at 50 Hz
- Output voltage: 230 VAC 3 phase
- Output frequency range: 0 to 400 Hz
- Base frequency: 10 to 400 Hz
- Enclosure type: NEMA 1 Type 1 enclosure
- Chassis size: A size
- Transistor type: IGBT
- Frequency setting: Keypad, 0 to 5 VDC, 0 to 10 VDC, 4 to 20 mA
- Operating temperature: 0 to 40 degrees C
- Efficiency: 95% minimum at full load and speed
Product Features:
- Series 15H adjustable speed AC inverter drive for industrial motor control
- Supports both constant torque and variable torque applications
- Built with adjustable PWM carrier frequency including standard and quiet operating modes
- Includes dynamic transistor configuration per catalog description

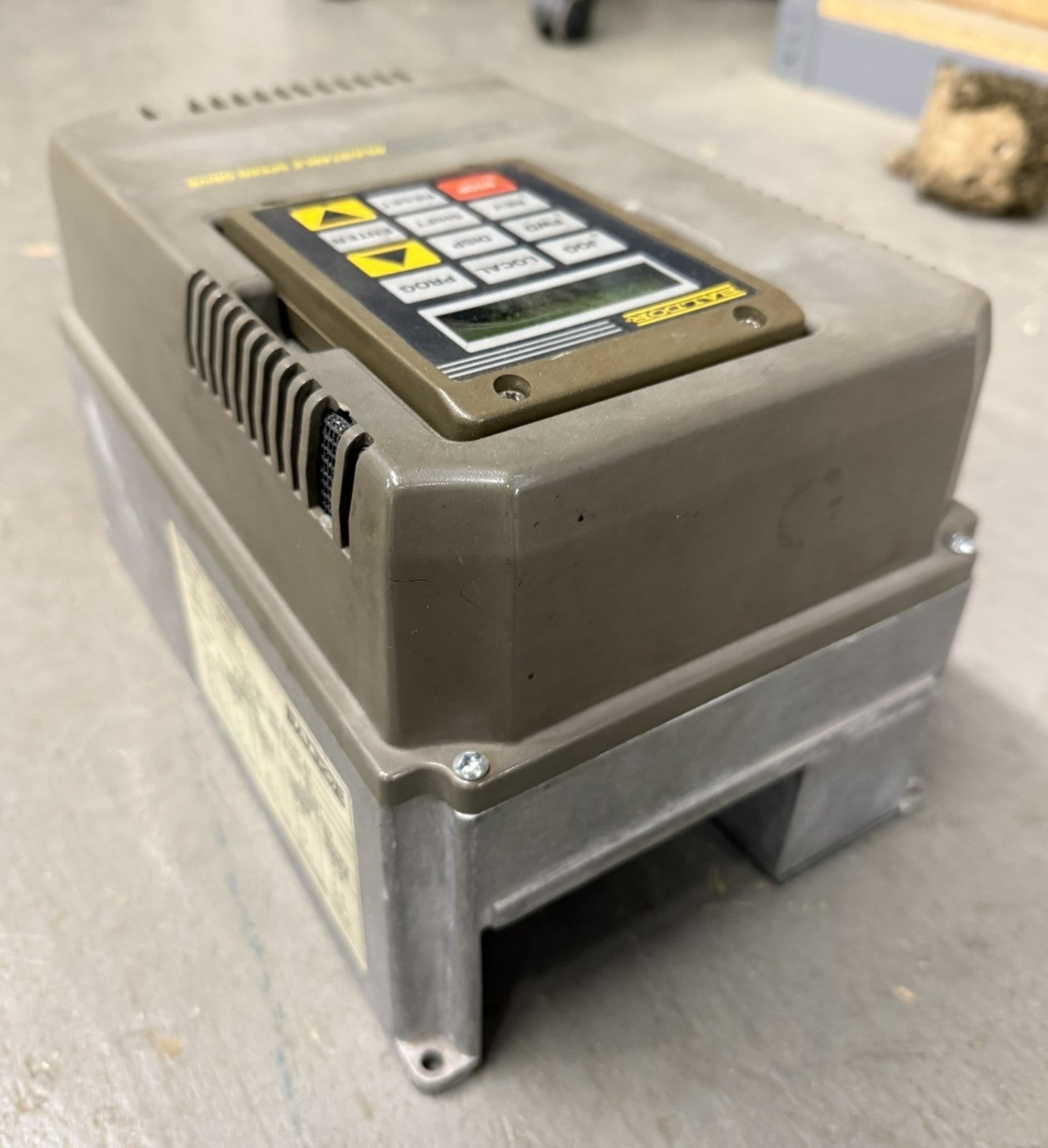

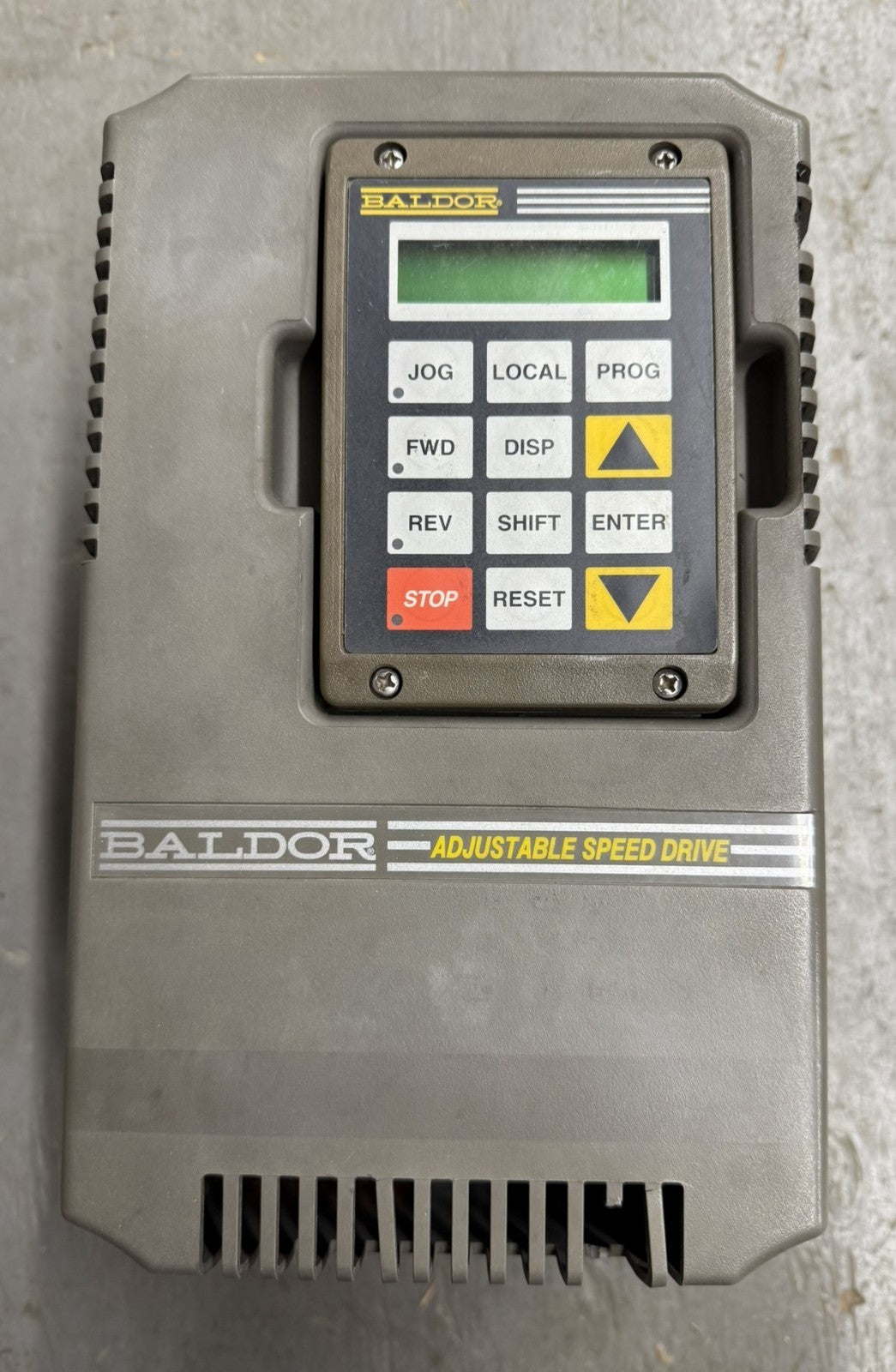

- Backlit LCD alphanumeric keypad with membrane keys and tactile response
- Multiple operating modes including keypad, standard run, fan pump, serial, process control, and electronic pot modes
- UL approved adjustable motor overload protection
- Local and remote operation capability with fault log display and monitoring functions
Product Designed Use:
- Designed to control the speed of 230V 3-phase AC motors
- Used in conveyors, pumps, fans, mixers, and other industrial automation equipment
- Suitable for panel-mounted motor control applications requiring adjustable speed operation
- Used where reduced mechanical stress and controlled motor acceleration and deceleration are required
- Suitable as a replacement drive for compatible Baldor Series 15H installations
