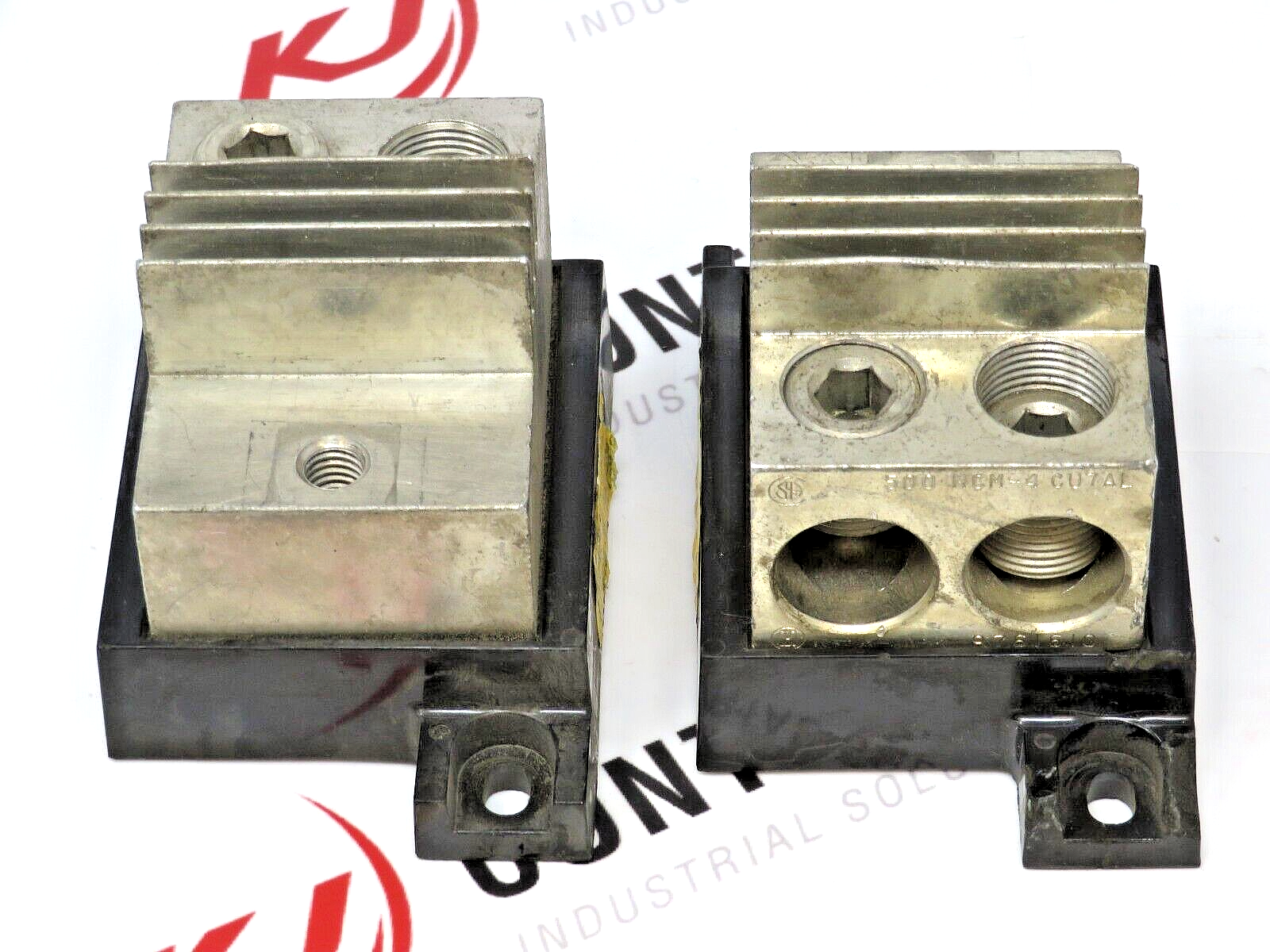

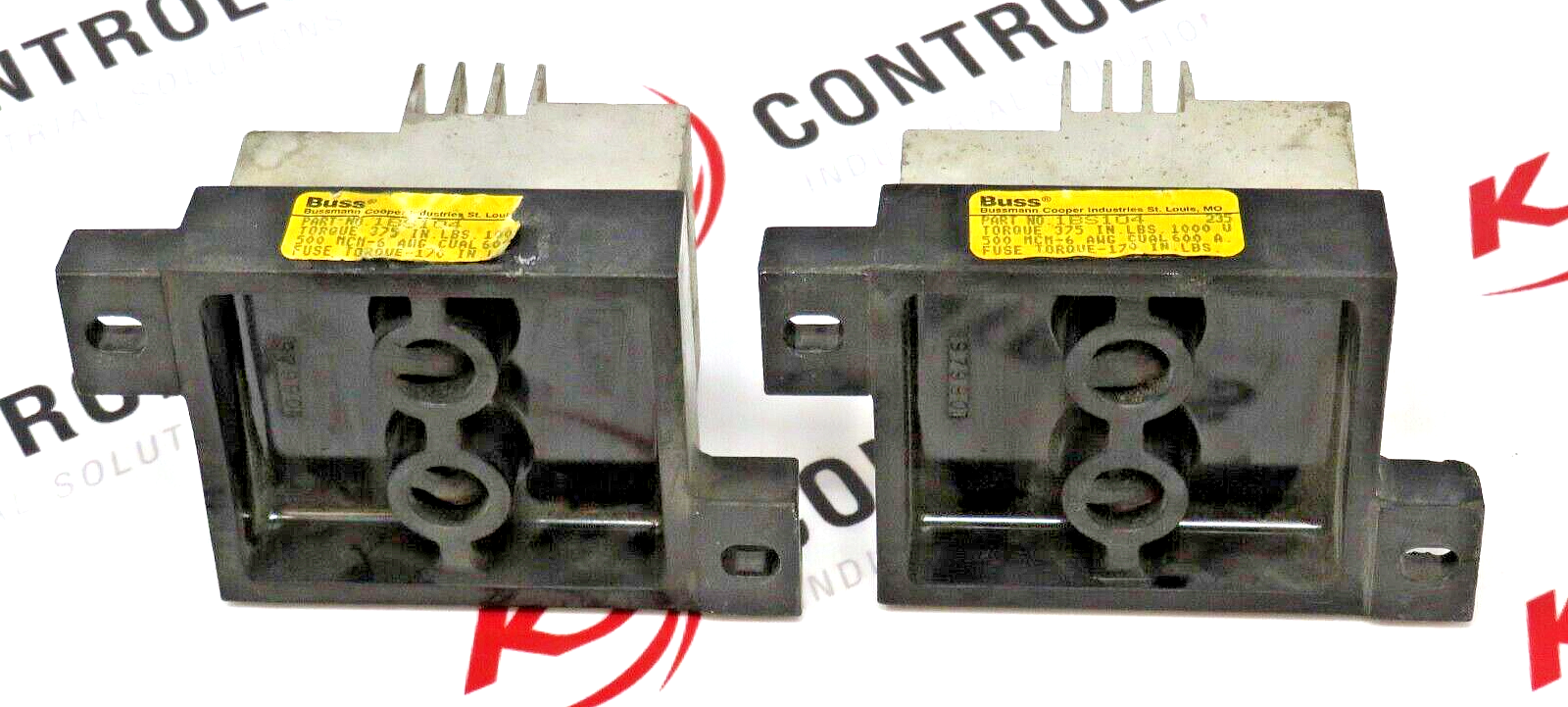

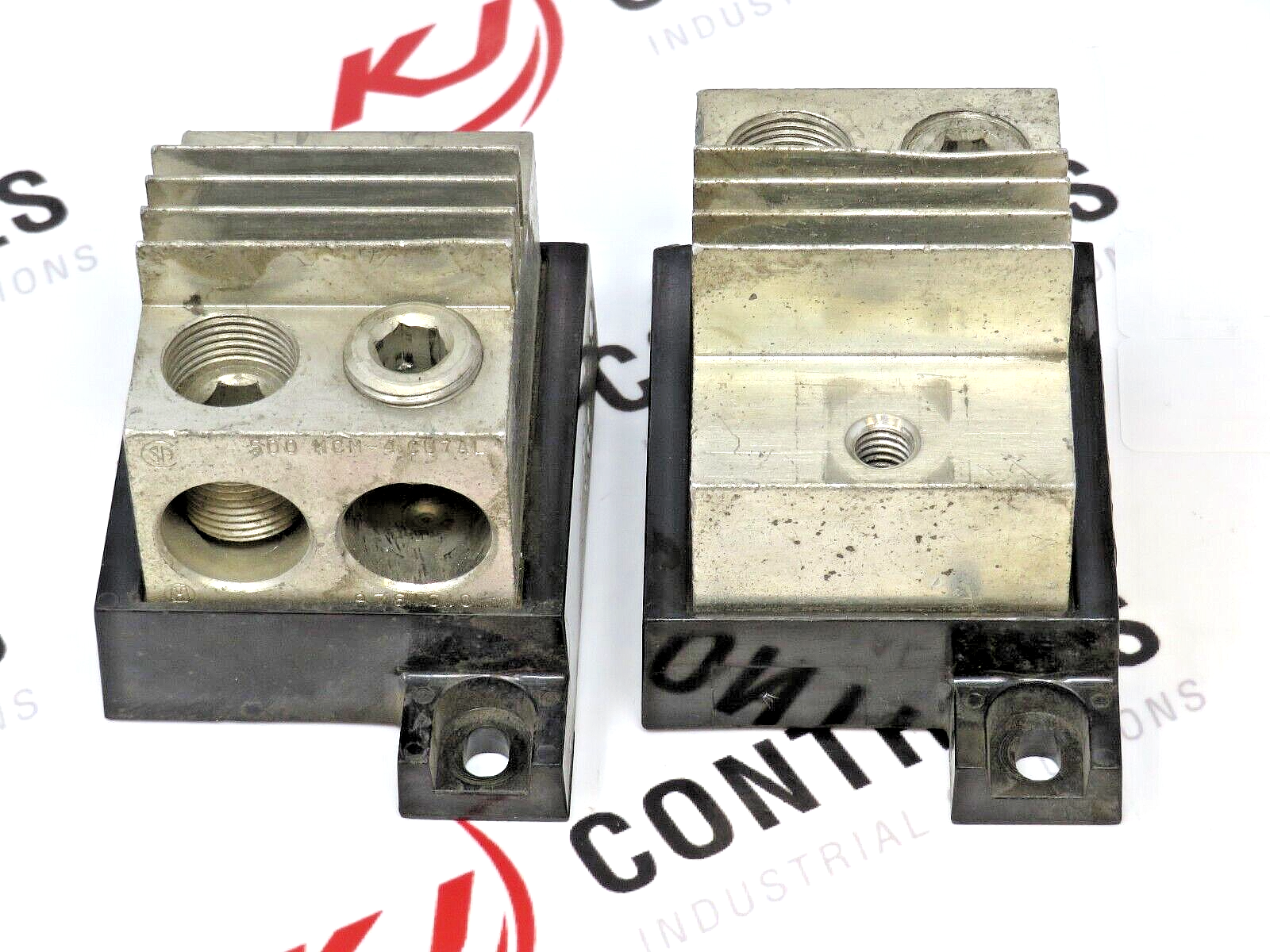

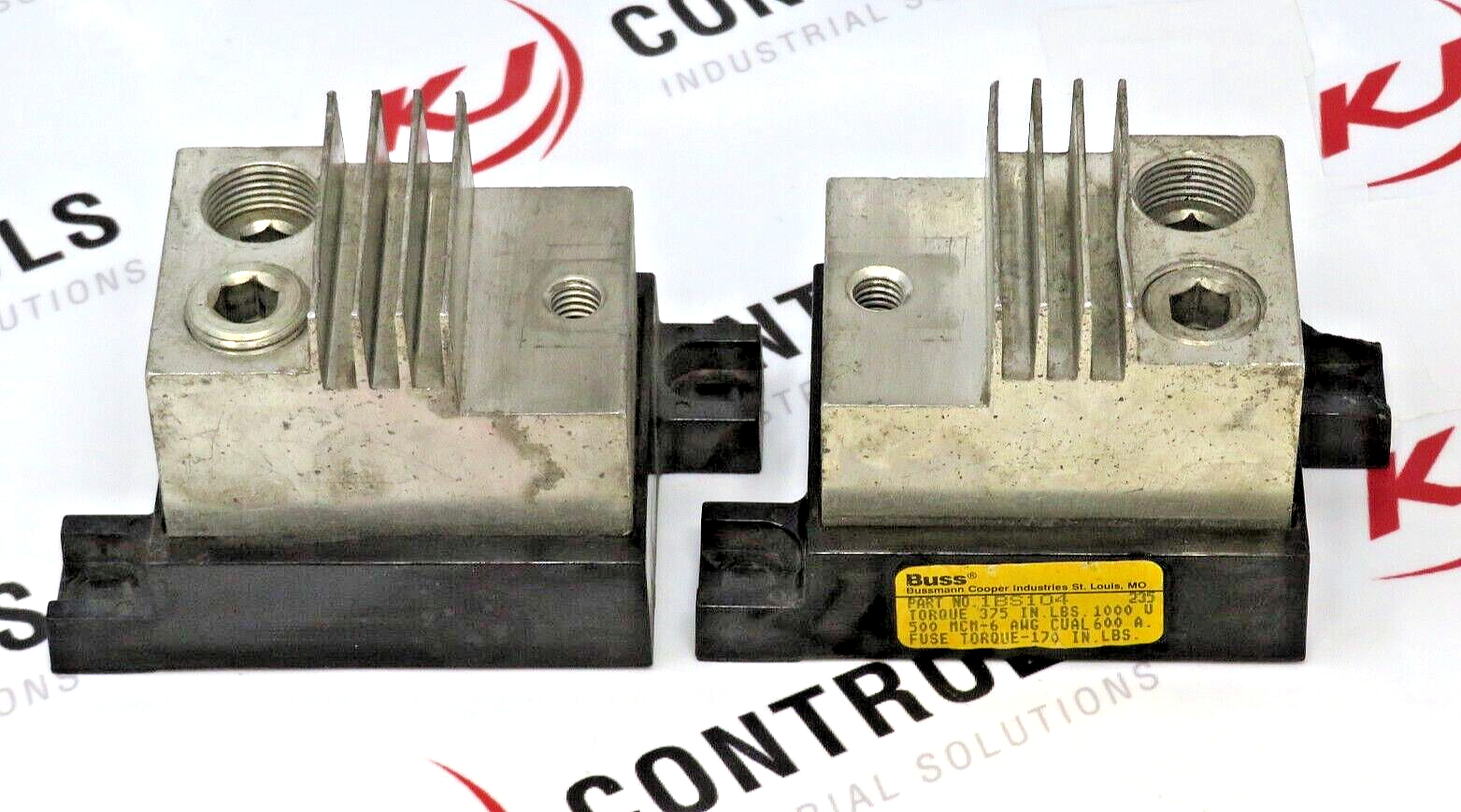

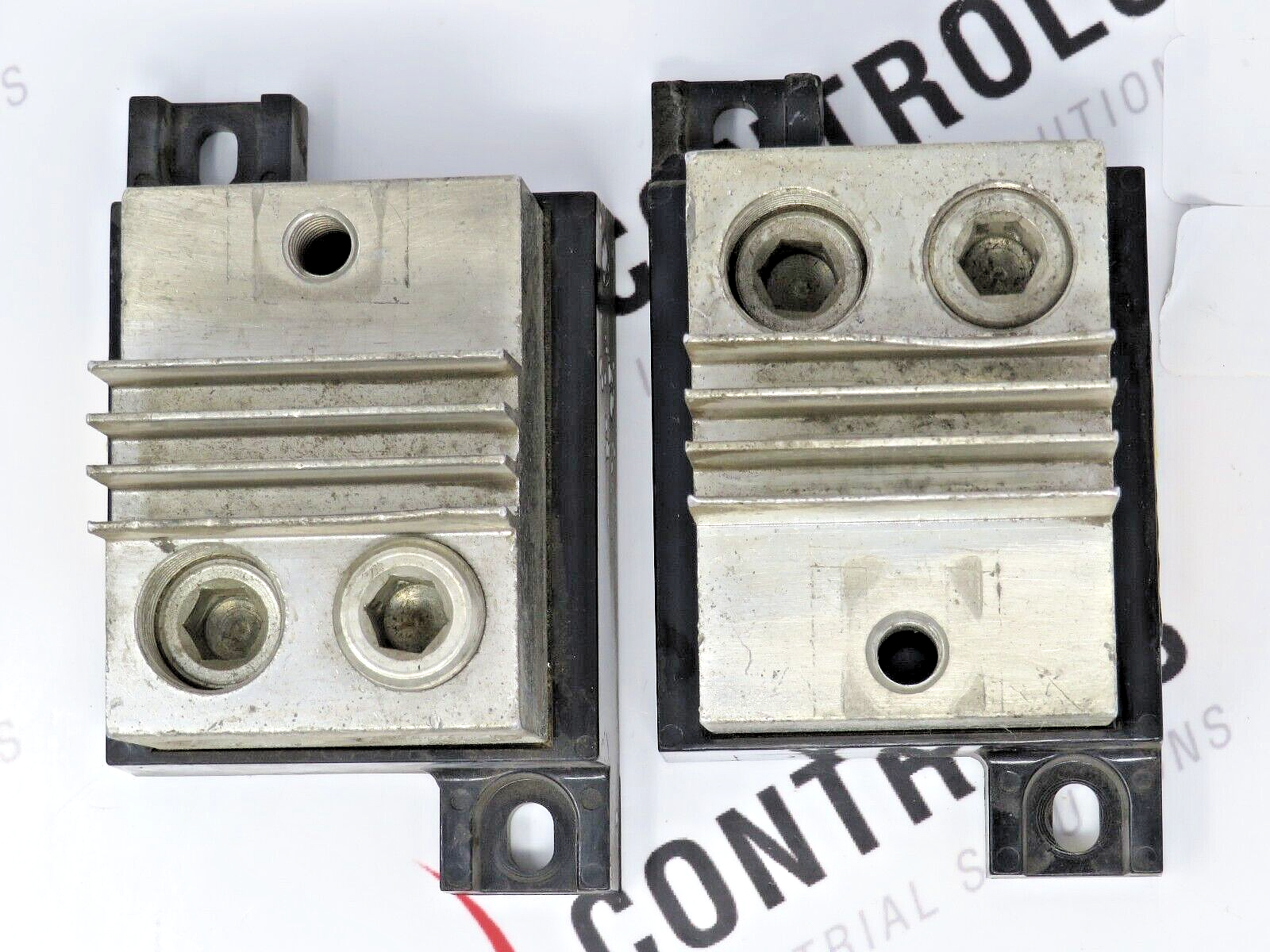

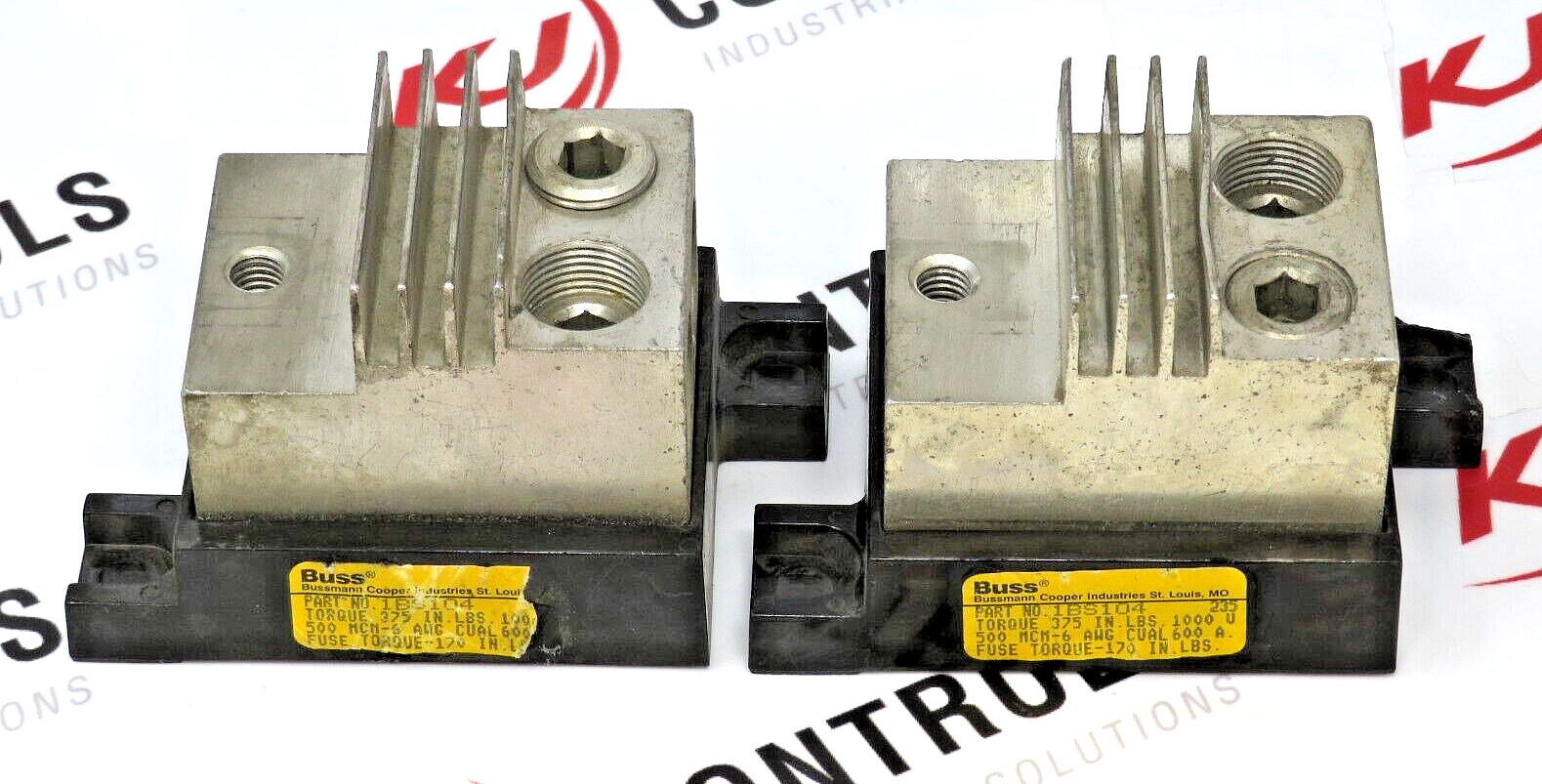

Eaton Bussmann Modular Fuse Block

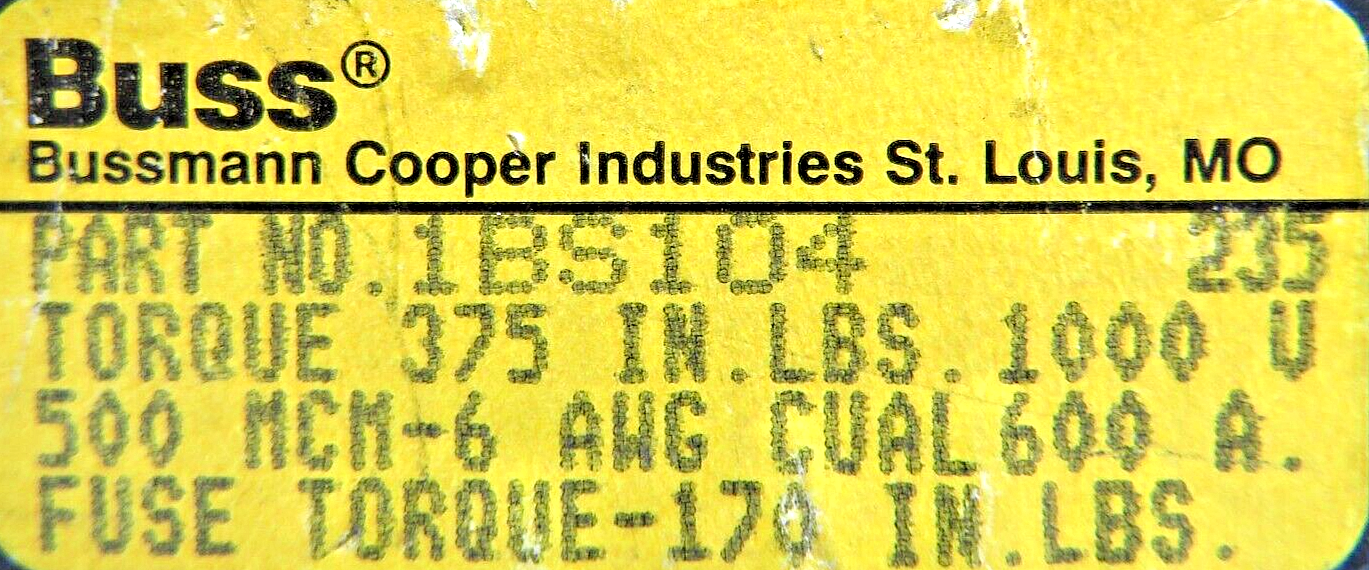

- Part Number: 1BS104
- Product Family: Bussmann Series 1BS10x
- UPC: 00051712135153
- Lifecycle Status: ACTIVE
Technical Specifications:
- Voltage Rating: 600V
- Current Rating: 600A
- Interrupt Rating: 200 kA RMS Symmetrical
- Material: Base: Molded black phenolic (150°C)
- Mounting Bolt: Zinc-plated steel (3/8-16 x 3/4”)
- Connector: Tin-plated aluminum
- Torque: Conductor Setscrew: 42.4 N•m (375 lb-in)
- Fuse Mounting Bolt: 19.2 N•m (170 lb-in)
- Dimensions: Width: 2.85 inches, Height: 2.91 inches
- Connection Type: Set Screw, Stud Mount
- Wire Size: Accepts 4 AWG to 500 kcmil copper or aluminum wire
Agency Approvals:
- UL Recognized, Guide IZLT2, File E14853
- CSA Certified, Class 6225-01, File 47235
- CE
- RoHS Compliant
Product Features:
- Modular design suitable for high-speed fuses and Class T fuses (300/600 VAC)
- Black phenolic base ensures high-temperature resistance (up to 150°C)
- High interrupt rating (200 kA) ensures safety in high fault current scenarios
- Suitable for both copper and aluminum wires, providing flexibility in application
- Compact dimensions make it ideal for space-constrained installations
- Compatible with multiple Bussmann fuse series, enhancing versatility
