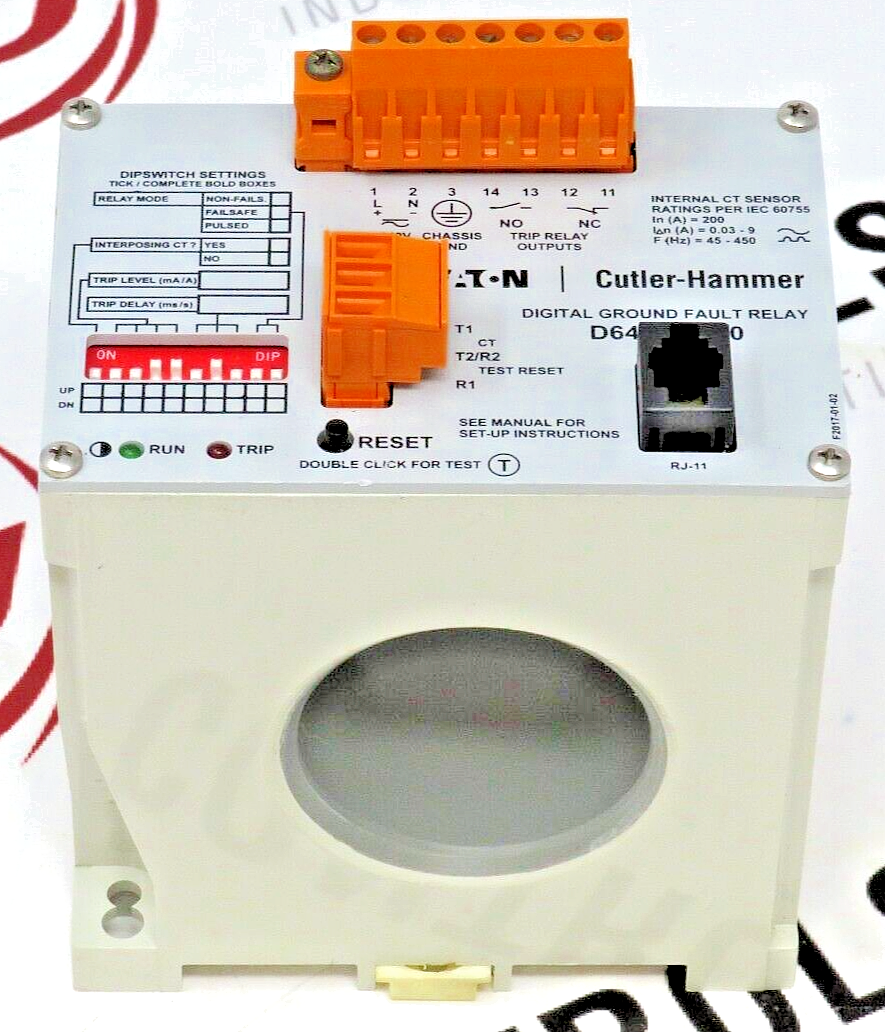

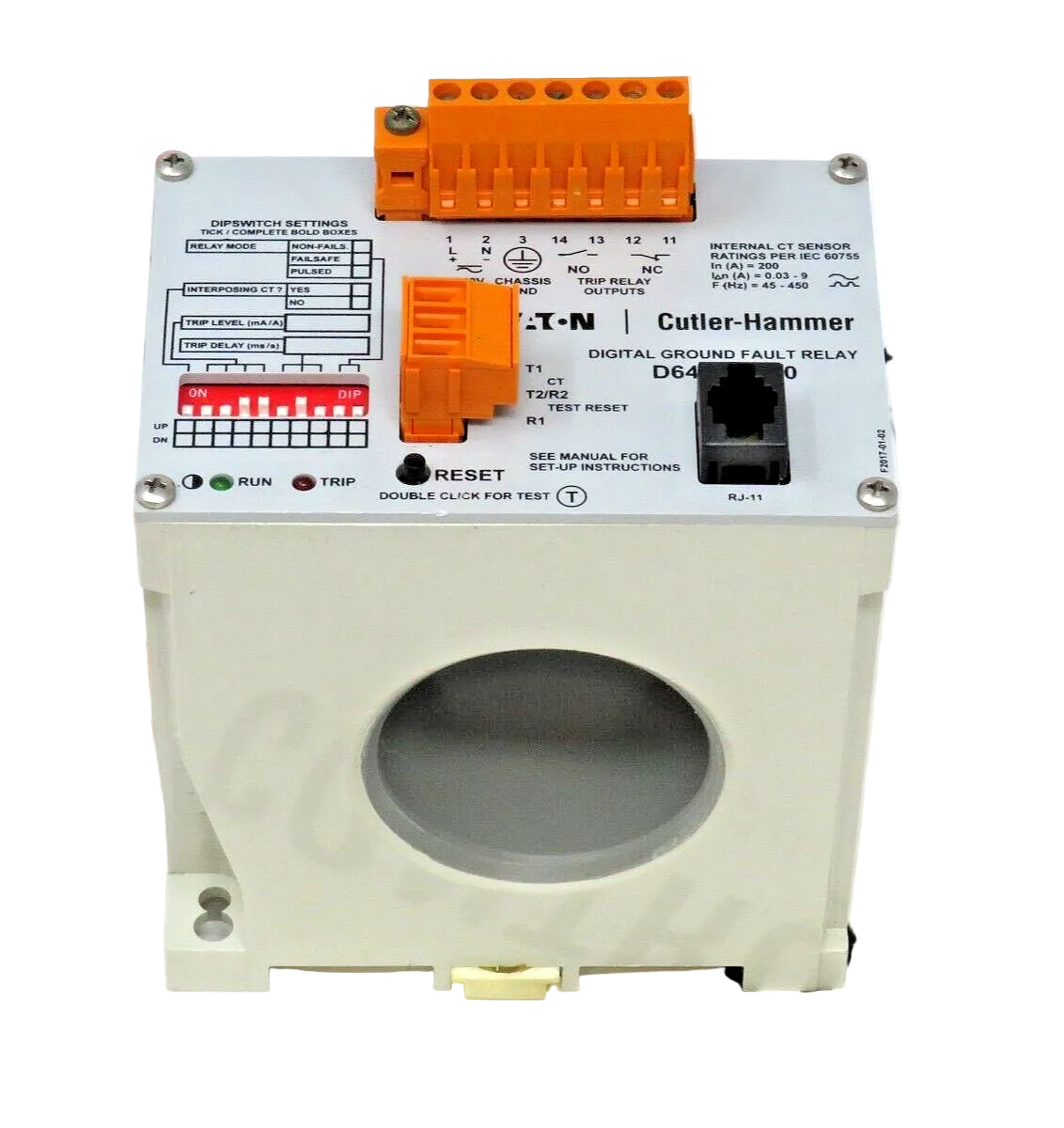

Eaton Cutler-Hammer D64RPB100 Digital Ground Fault Relay

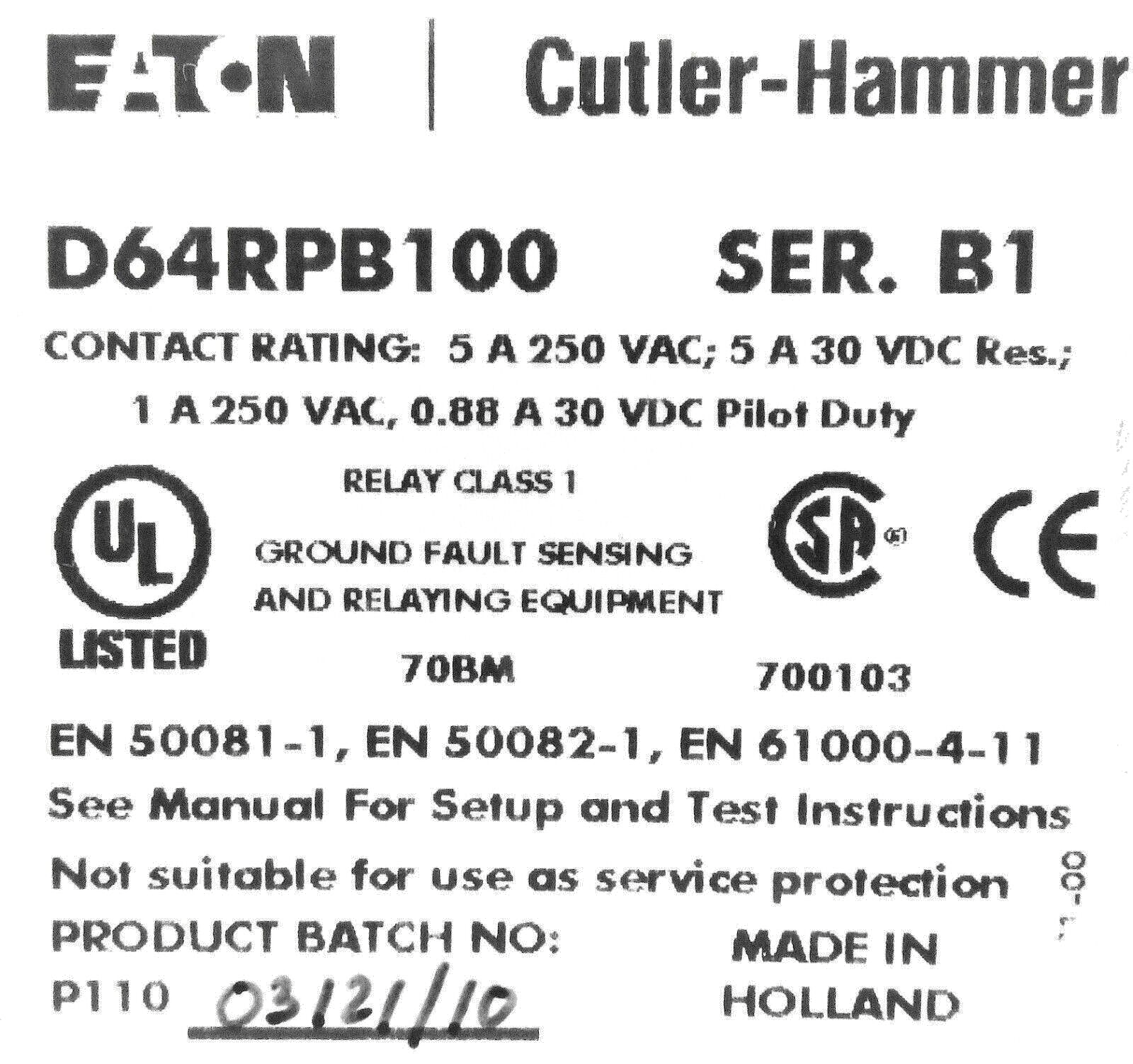

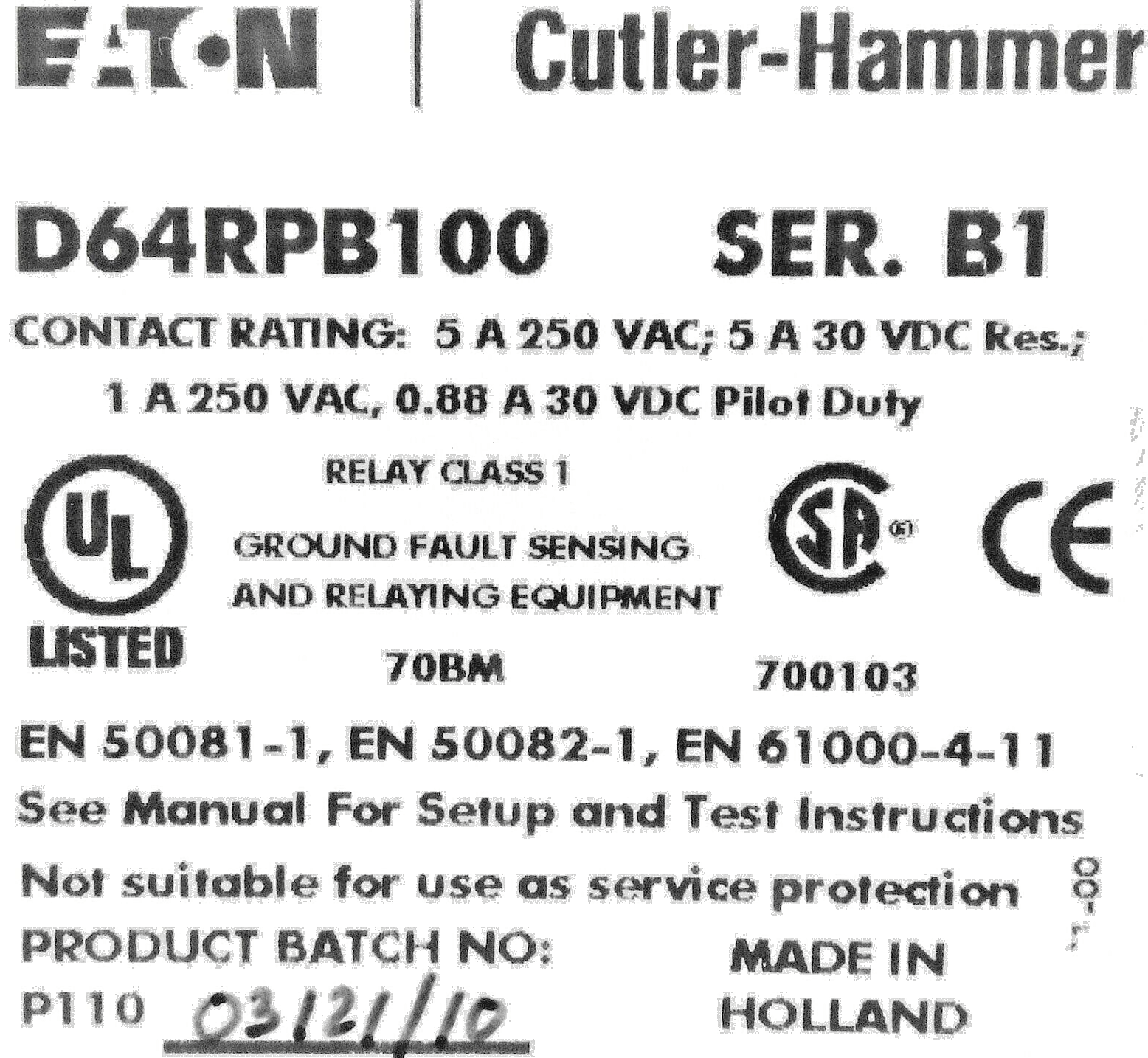

Product Basic Information:
- Manufacturer: Eaton Cutler-Hammer
- Parent corporation: Eaton Corporation
- Catalog number: D64RPB100
- Product family/series: D64 series
- Product type: Digital ground fault relay
- Country of origin: Netherlands
- HS customs code: 85364900
Technical Specifications:
- Control voltage: 24 V AC/DC to 240 V AC/DC

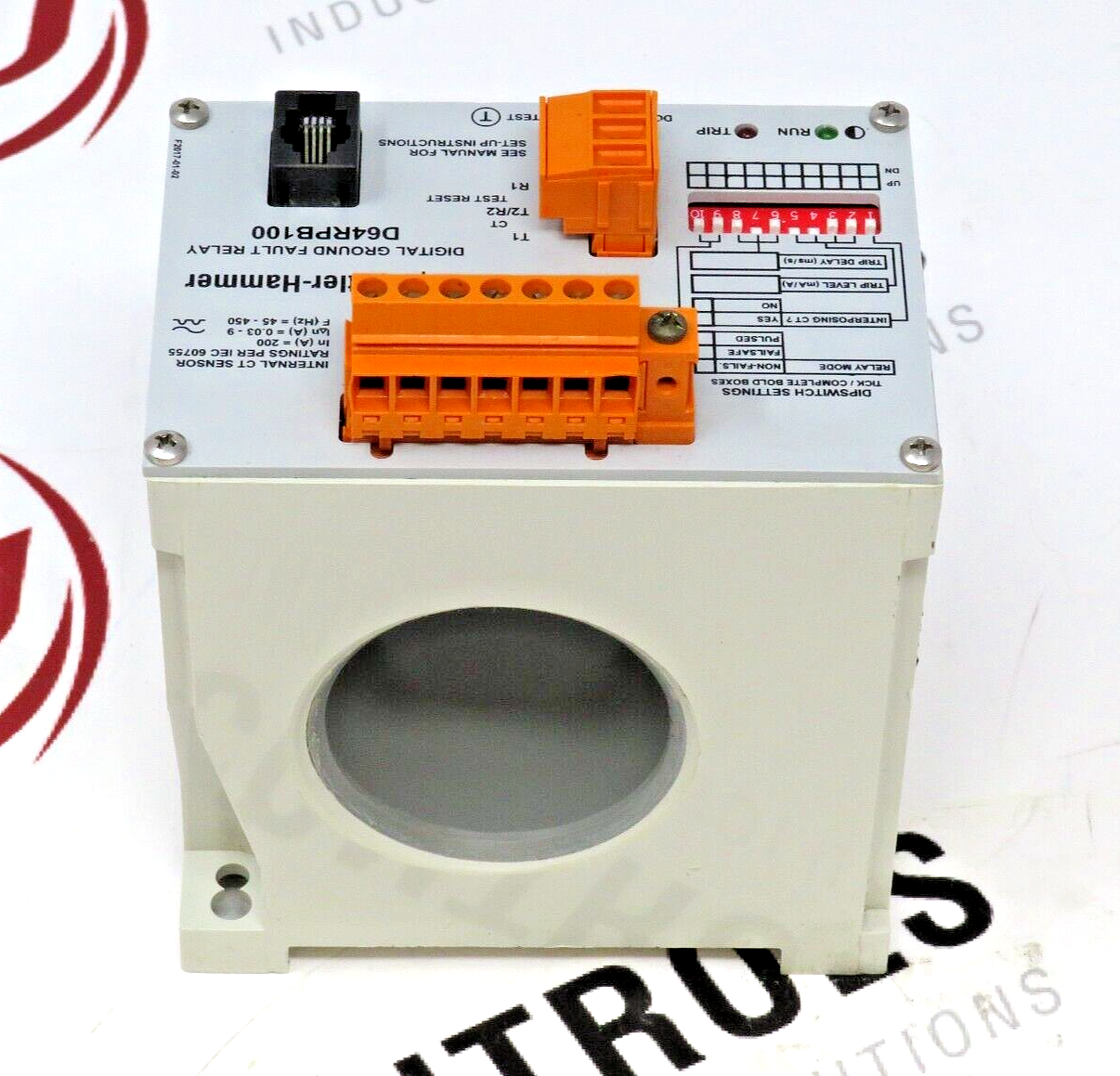

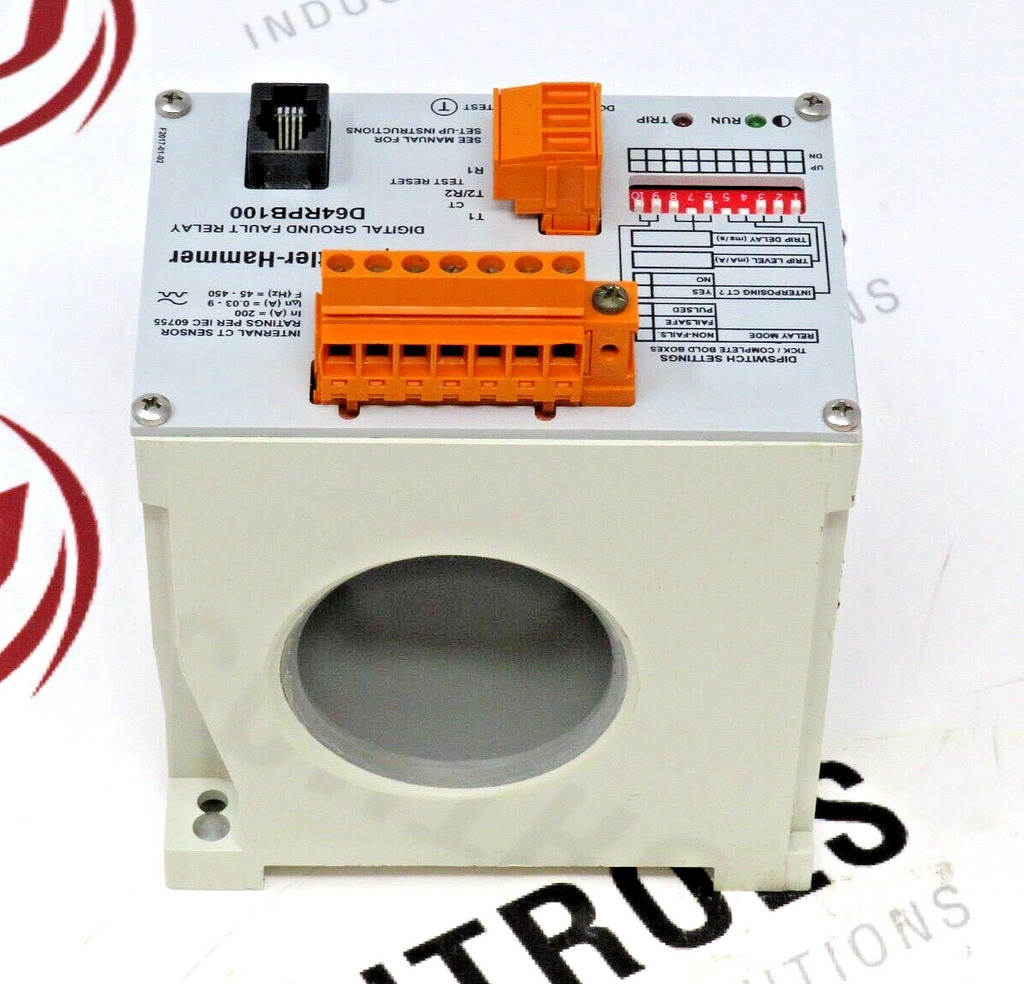

- Built-in current transformer opening: 1.81 in / 46 mm
- Maximum system operating voltage with built-in CT: 660 V AC
- Frequency response range: 45 Hz to 450 Hz
- Ground fault trip current range with built-in CT: 30 mA to 9 A
- Ground fault trip time delay: 20 ms to 5.00 s

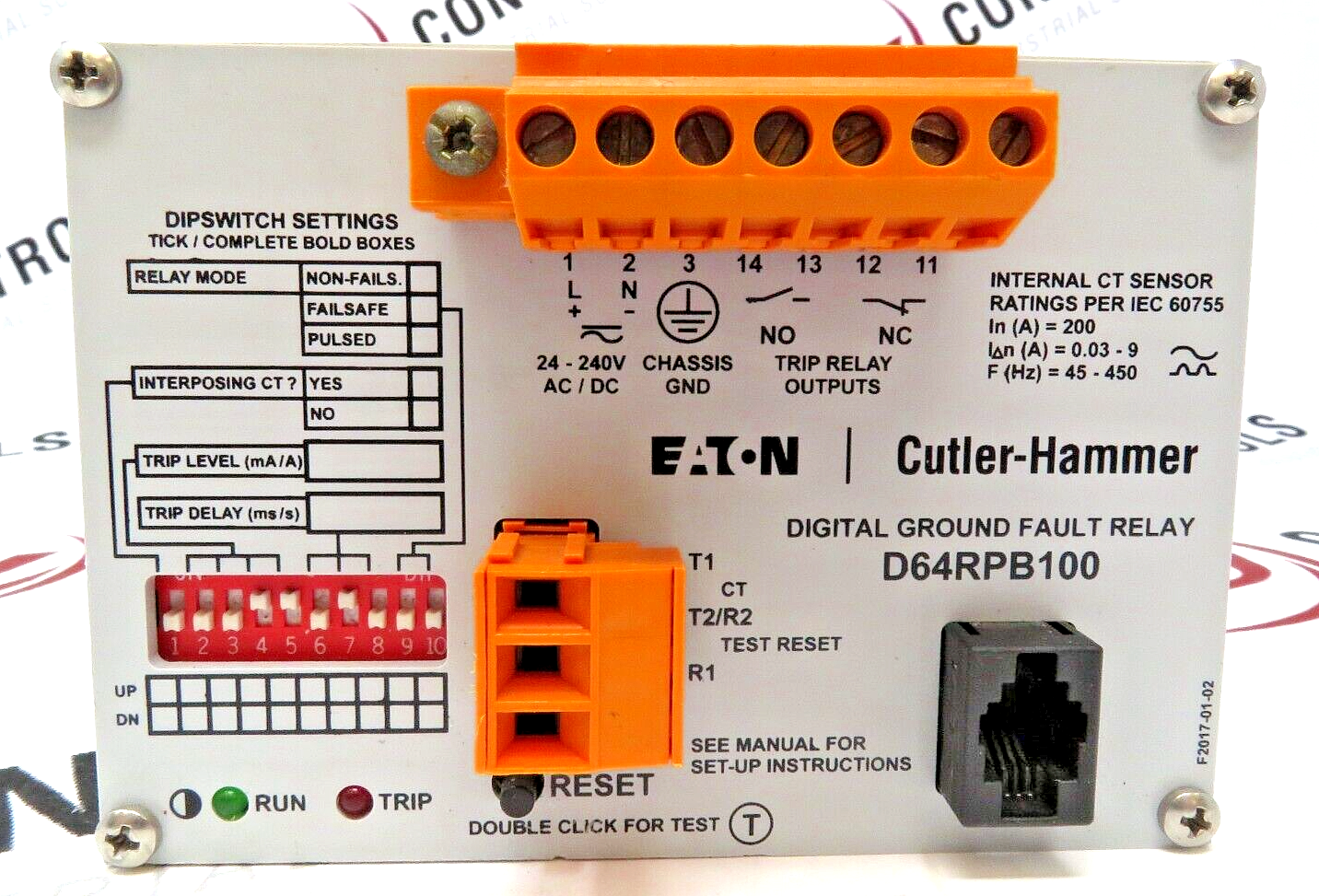

- Output relay configuration: Voltage-free Form Z, 1 normally open and 1 normally closed
- Output relay rating: 5 A at 125/250 V AC general use
- Output relay rating: 5 A at 30 V DC resistive
- Pilot duty rating: 3 A, 360 VA at 120 V AC
- Pilot duty rating: 1.5 A, 360 VA at 240 V AC
- Operating modes: Non-failsafe, failsafe, and pulsed auto reset
- Communications port: 4-pole RJ-10 for optional display or indicator units
- Maximum communications cable length: 30 ft / 10 m
- Degree of protection: IP20
- Mounting type: 35 mm DIN rail or two-screw mounting
- Operating temperature: -20 C to 50 C
Product Features:
- Microprocessor-based digital ground fault relay

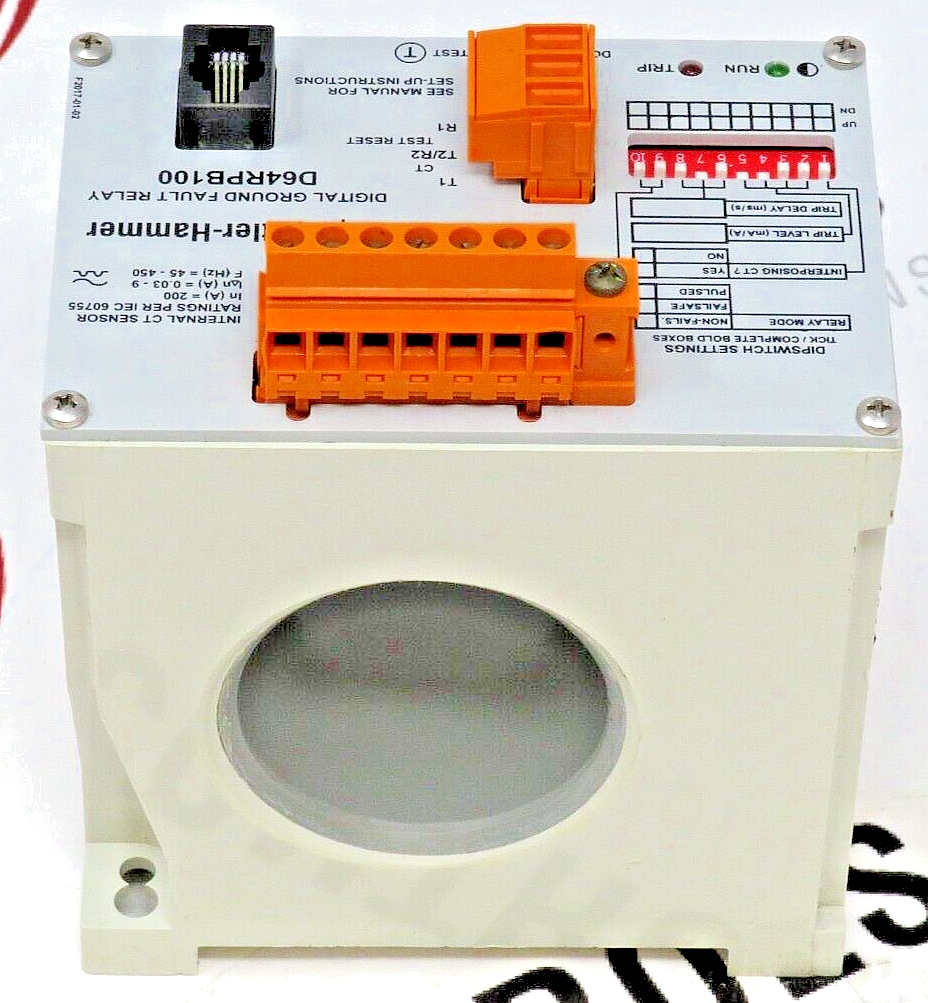

- Built-in zero-sequence current transformer
- Suitable for solidly grounded and resistance grounded systems
- AC sensing only and rejects direct current signals
- Suitable for variable frequency drive applications

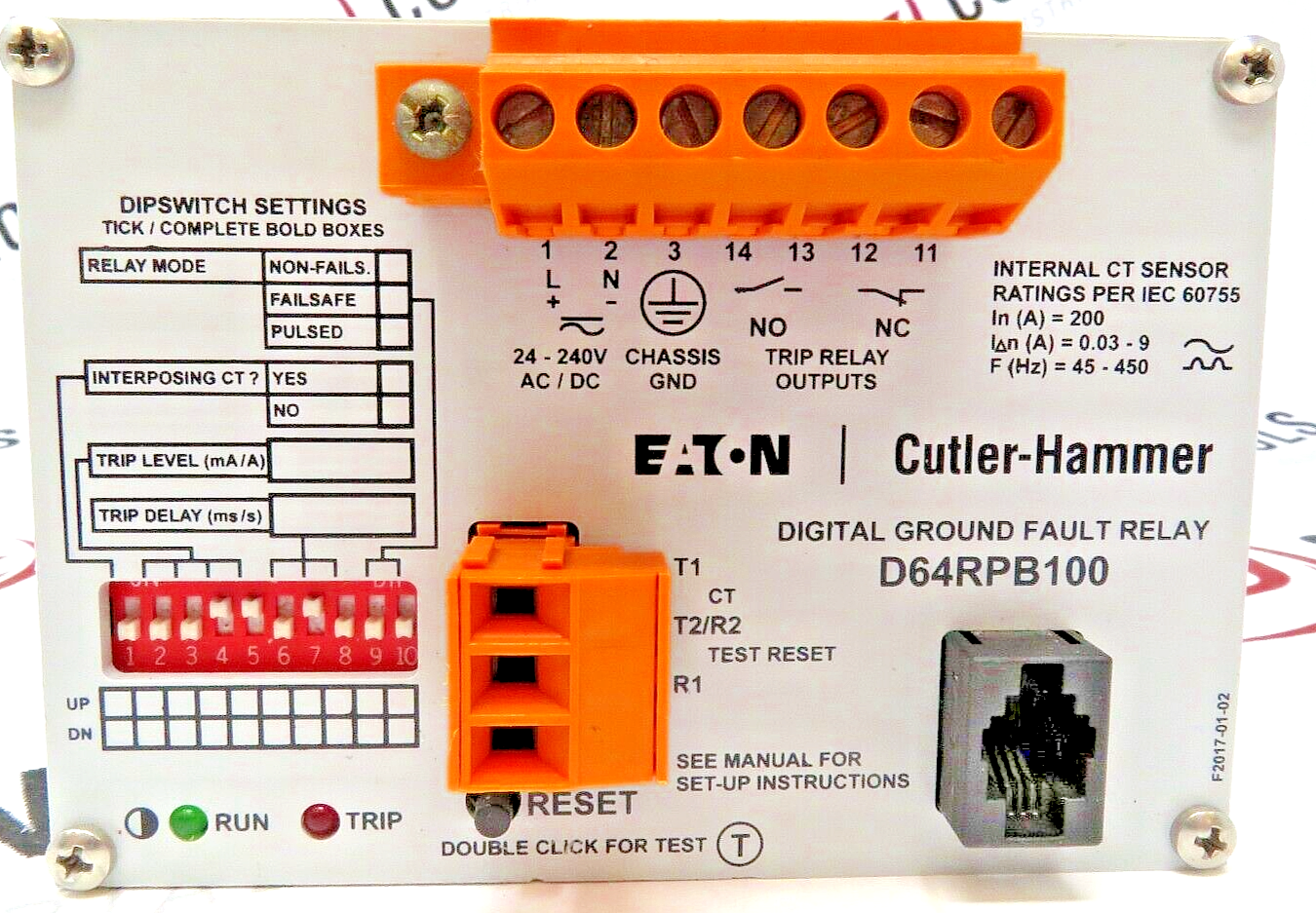

- Front-accessible DIP switch setting for trip current and delay
- Front reset and functional test capability
- Supports optional remote display and remote indicator accessories
- Compact DIN rail or panel mount design
Product Designed Use:
- Designed to monitor and trip on ground fault current in grounded power systems
- Used in switchgear, control panels, motor control centers, and power distribution equipment
- Suitable for feeder, branch circuit, and variable frequency drive protection applications
- Applied where adjustable ground fault detection and relay output tripping are required
