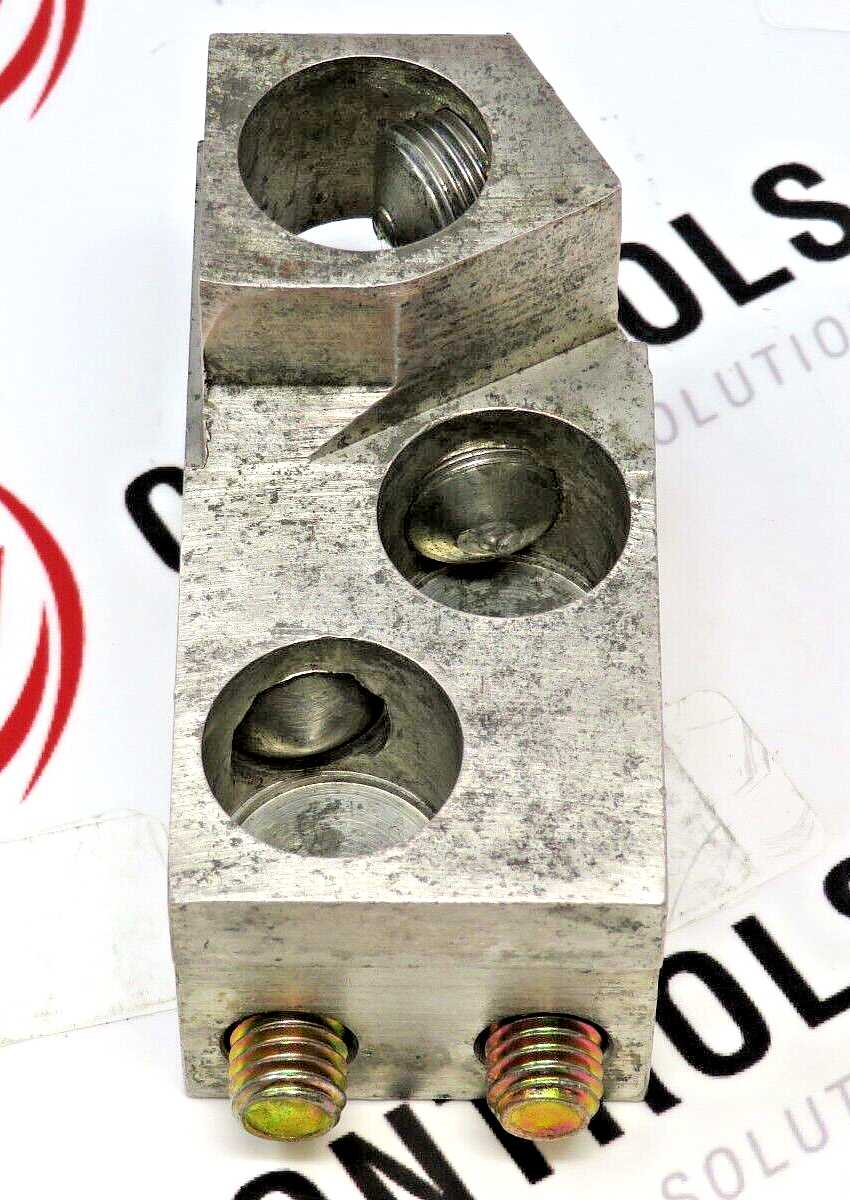

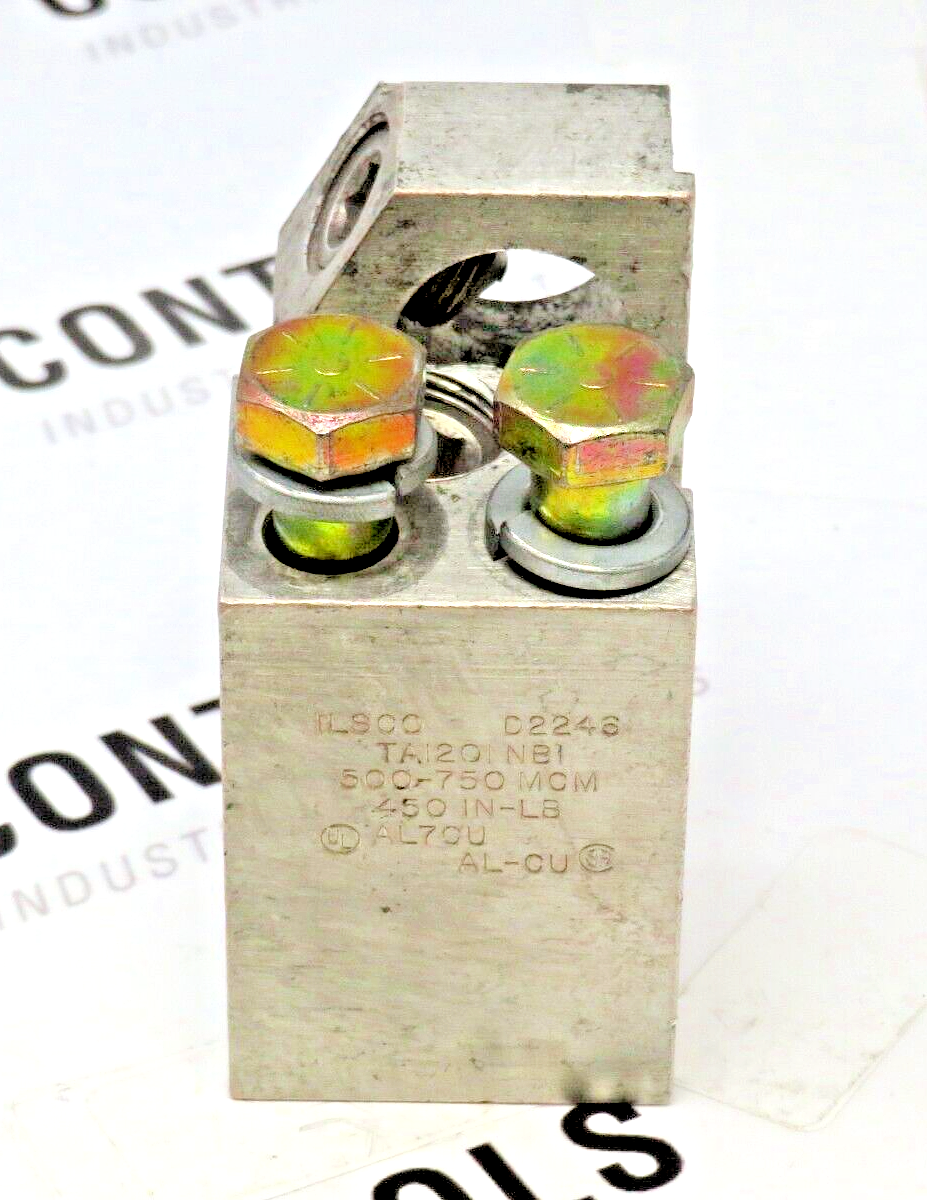

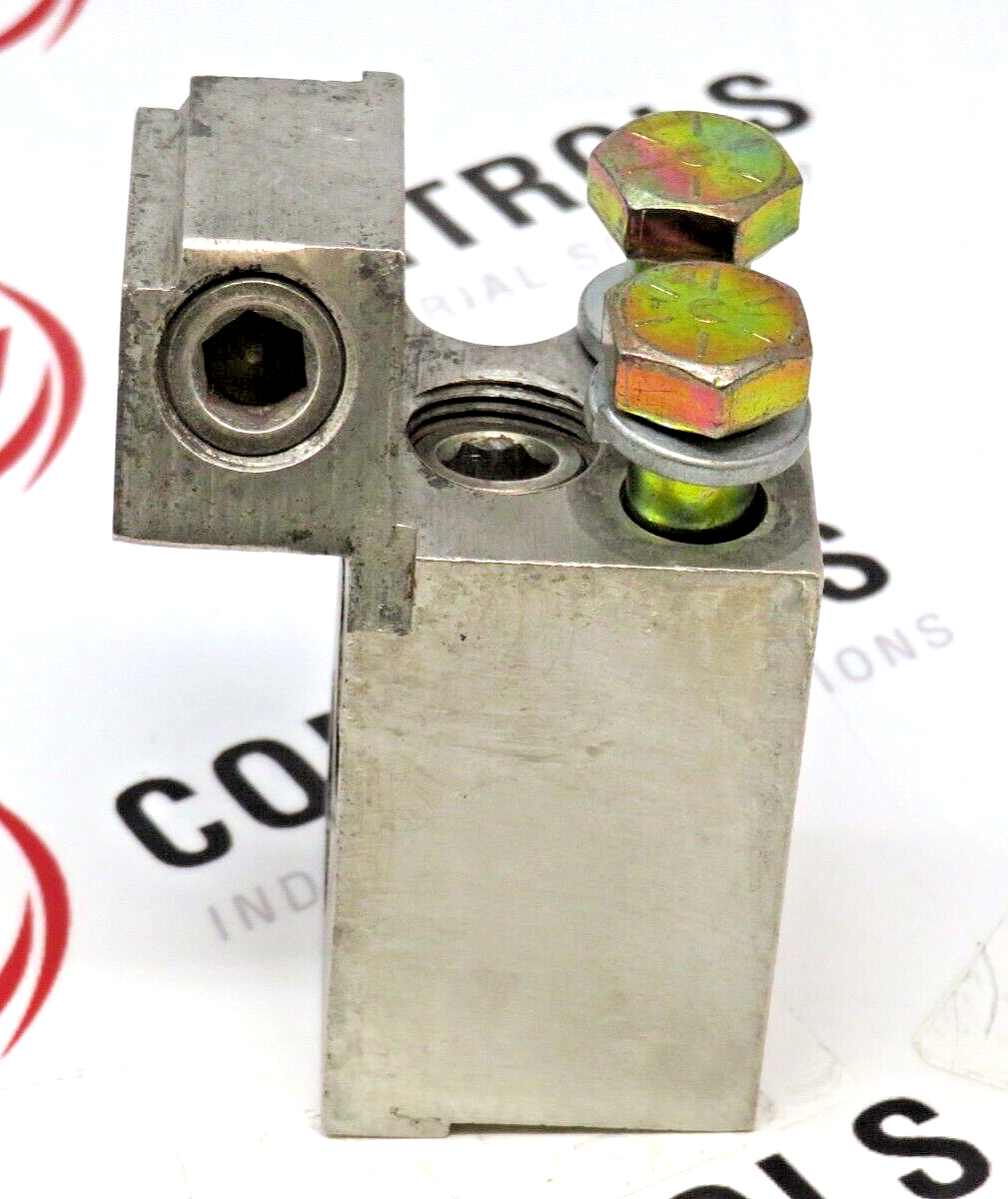

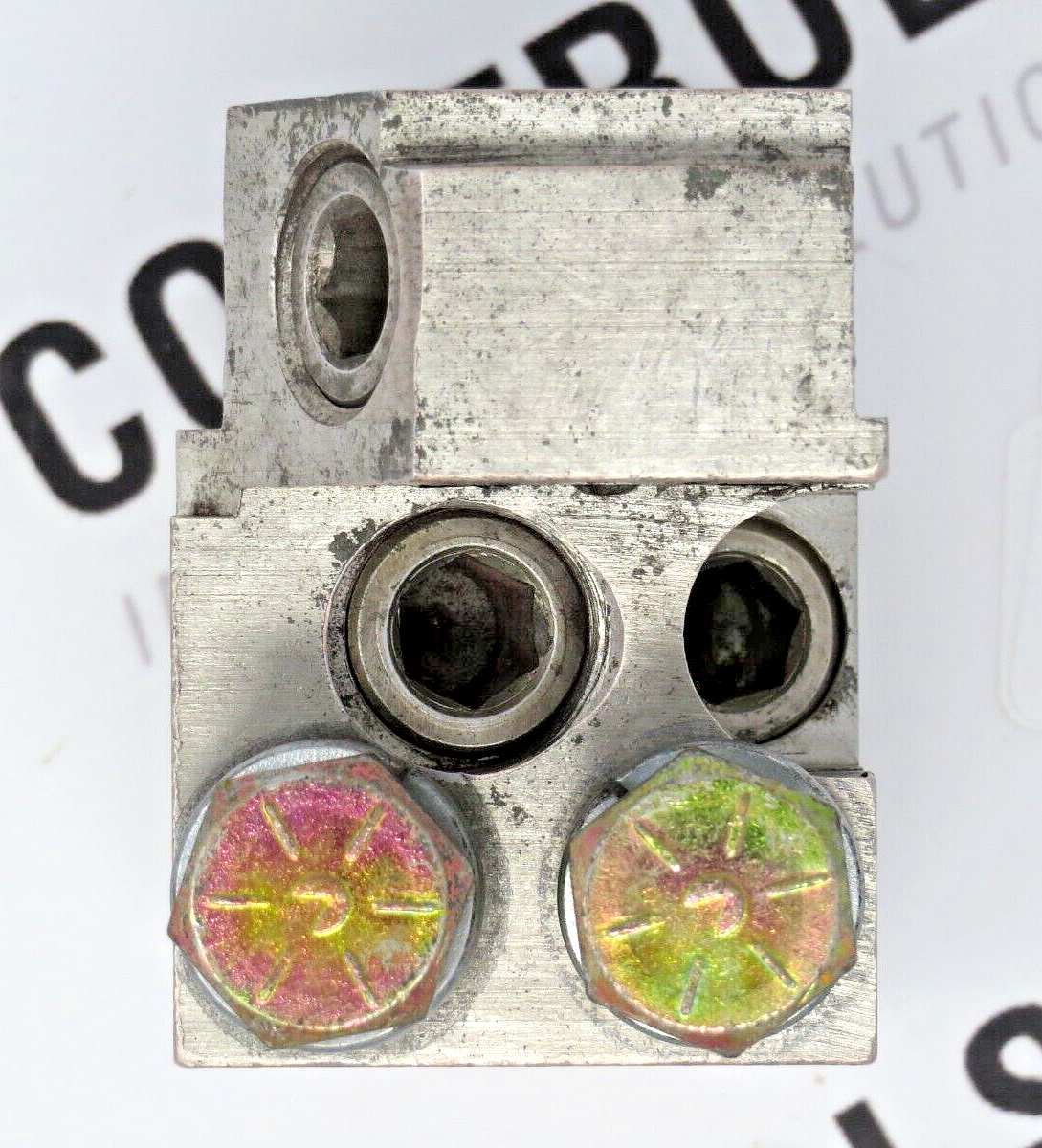

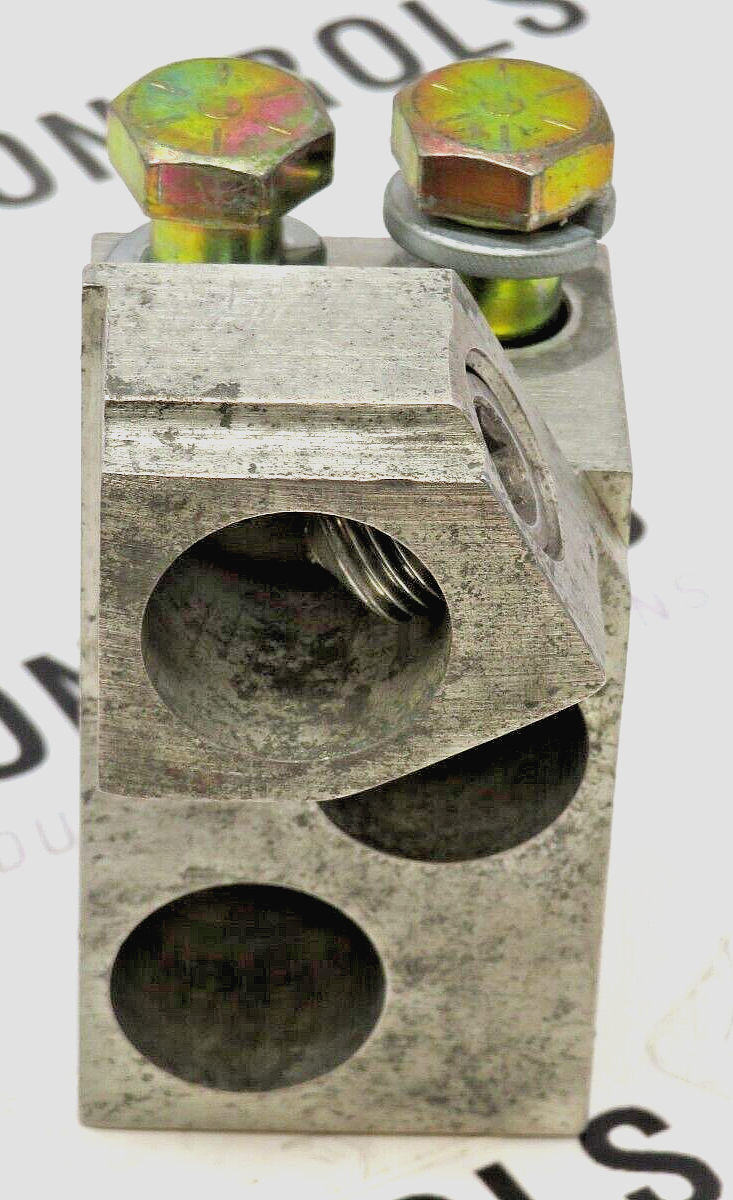

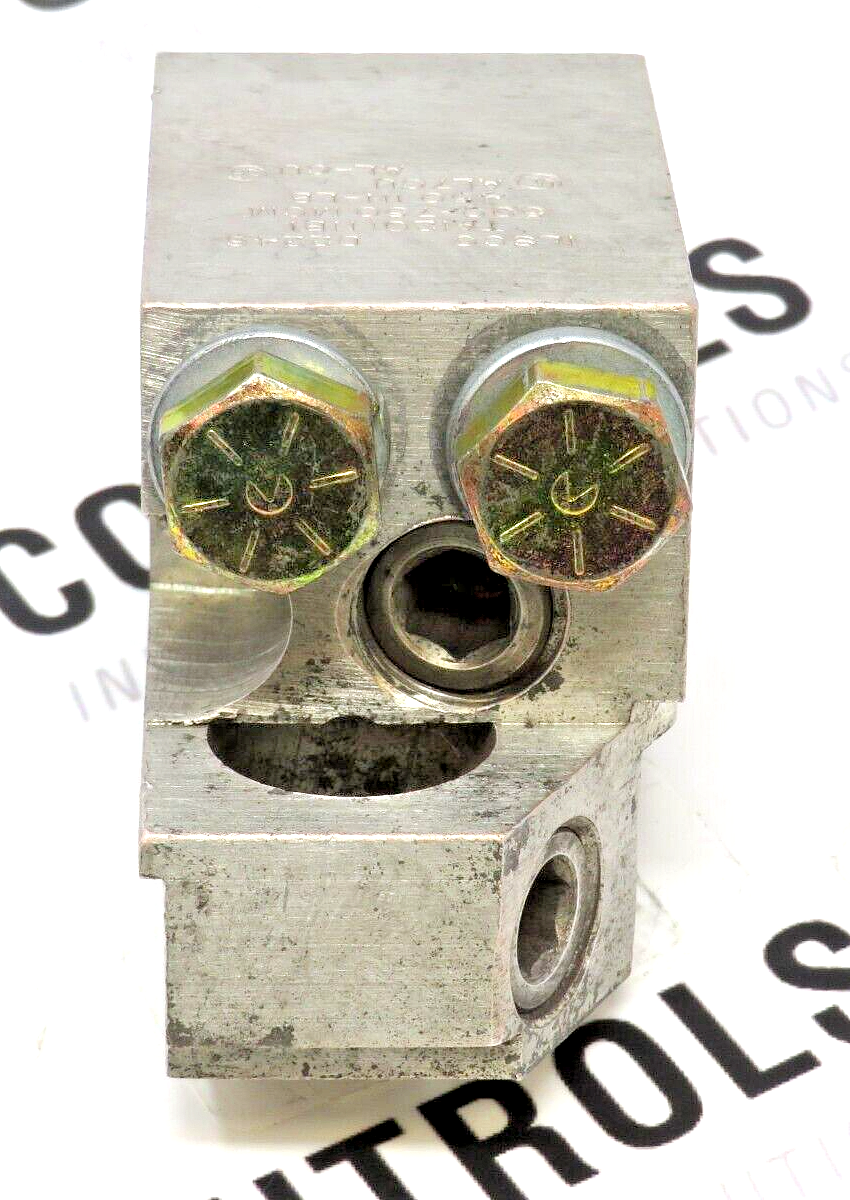

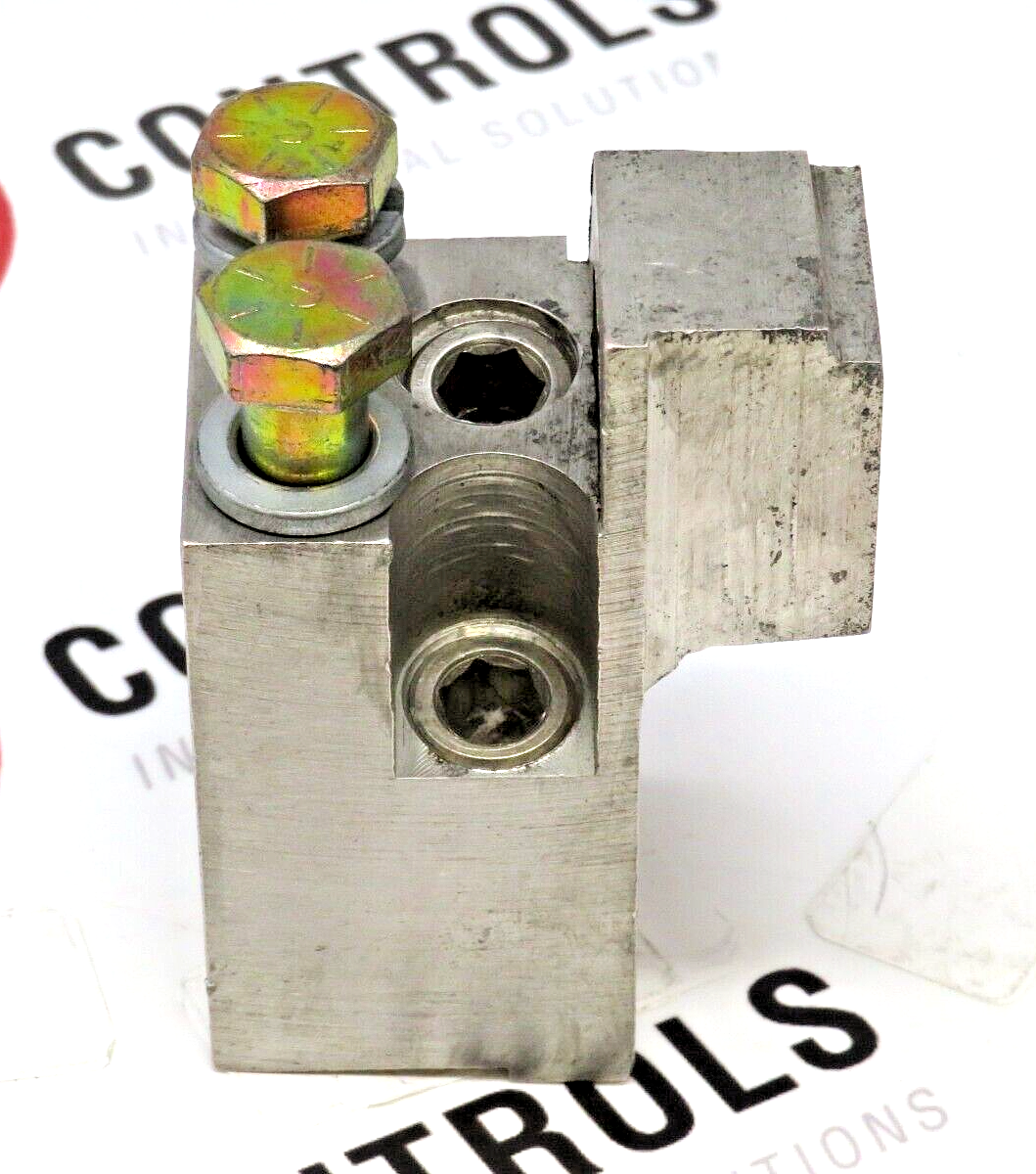

Eaton Cutler-Hammer Terminal Lug for N-Frame Circuit Breakers
- Part Number: TA1201NB1
- Manufacturer: Eaton (Cutler-Hammer)
- UPC: 786679612347
- Product Family: Eaton Series G Molded Case Circuit Breakers
- Lifecycle Status: ACTIVE
Technical Specifications:
- Amperage Rating: 1200 A
- Poles: Single Pole
- Conductor Range: 500-750 kcmil (MCM)
- Material: Aluminum (AL7CU)
- Compatible Frame: N-Frame, Frame J-K, Series G
- Torque Rating: 450 IN-LB
-
Dimensions:Length: 3.2 inches, Width: 2.5 inches, Height: 4.4 inches
Product Features:
- Application: Designed for use with Eaton’s N-Frame circuit breakers.
- Versatility: Accommodates three conductors ranging from 500 to 750 kcmil.
- Material: Constructed from durable aluminum with copper/aluminum pressure terminals.
- Standards Compliance: Conforms to industry standards for molded case circuit breakers.

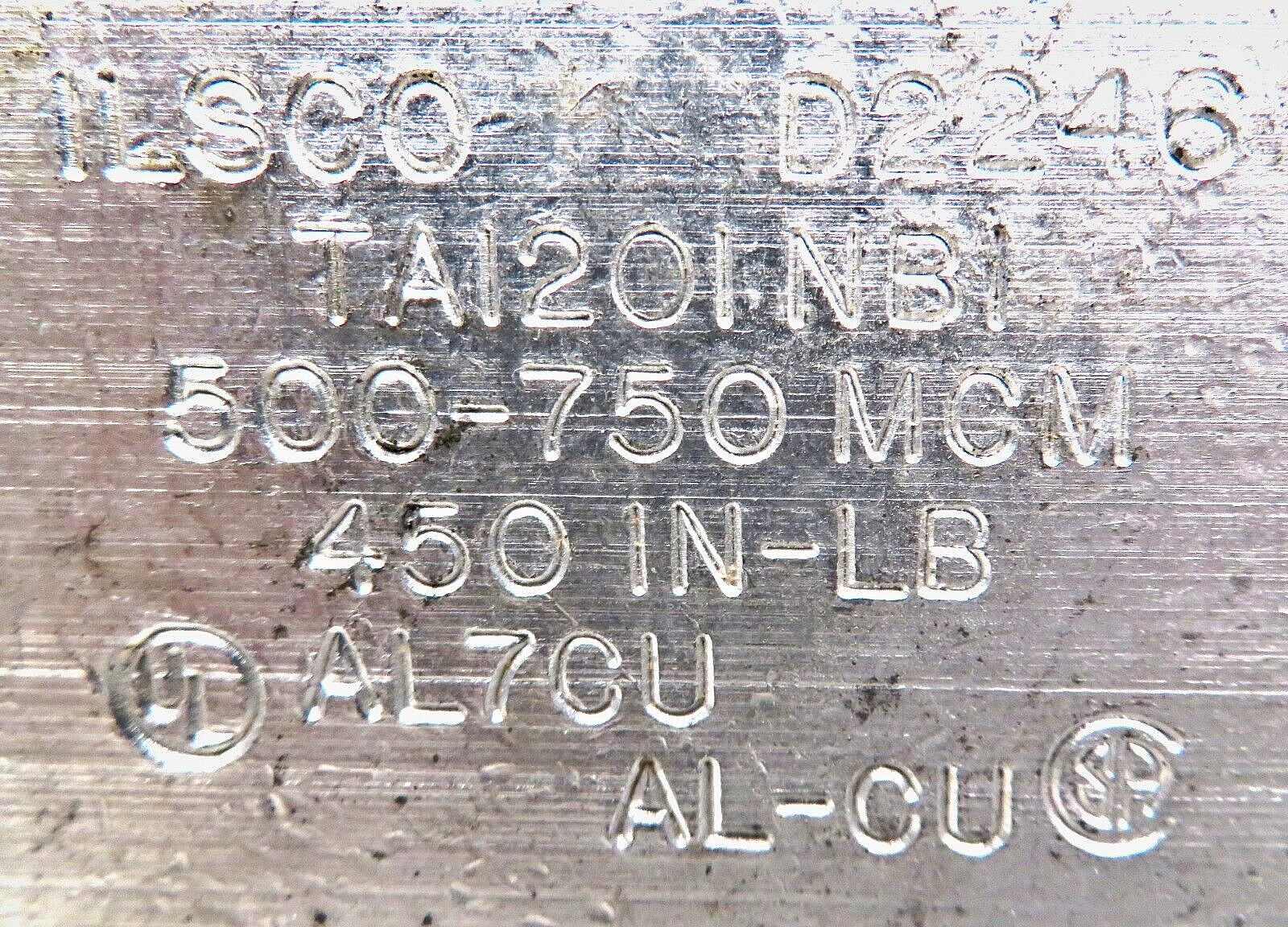

* Although this item is branded as ILSCO, the company was acquired by Eaton-Cutler Hammer, ensuring the integration of ILSCO products into Eaton’s extensive portfolio. The acquisition, which took place in 2008, guarantees that the product maintains the high-quality standards expected from Eaton-Cutler Hammer.*
** Buyer is responsible for all customs, brokerage fees, local levies and taxes.**
KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR EATON CORPORATION
(10A5 - Upstairs Warehouse)
