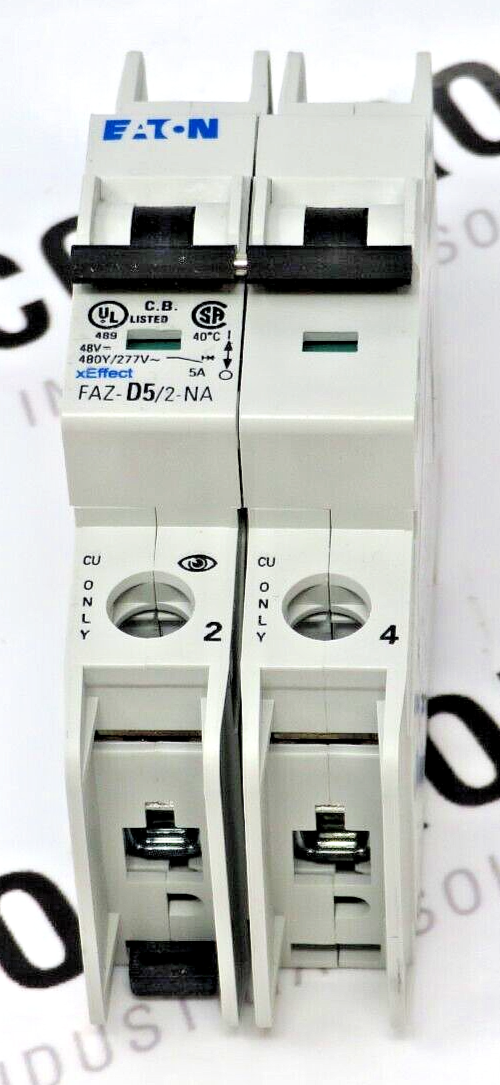

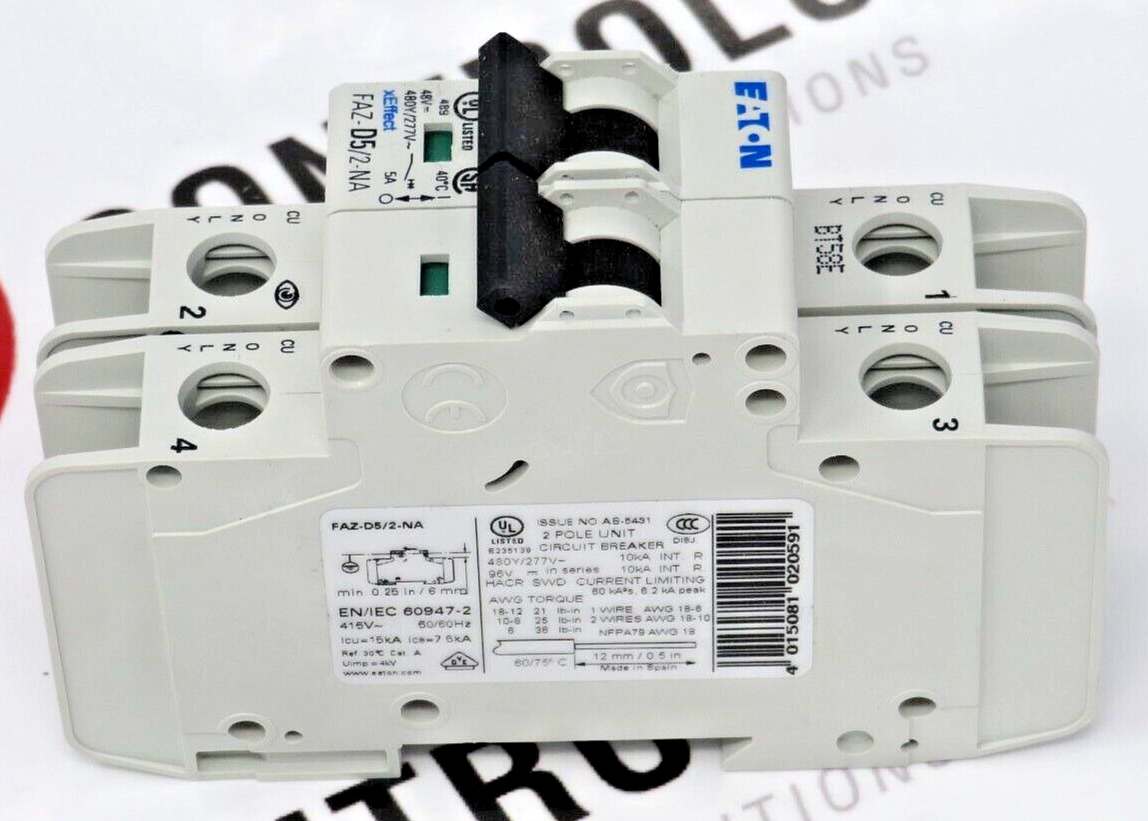

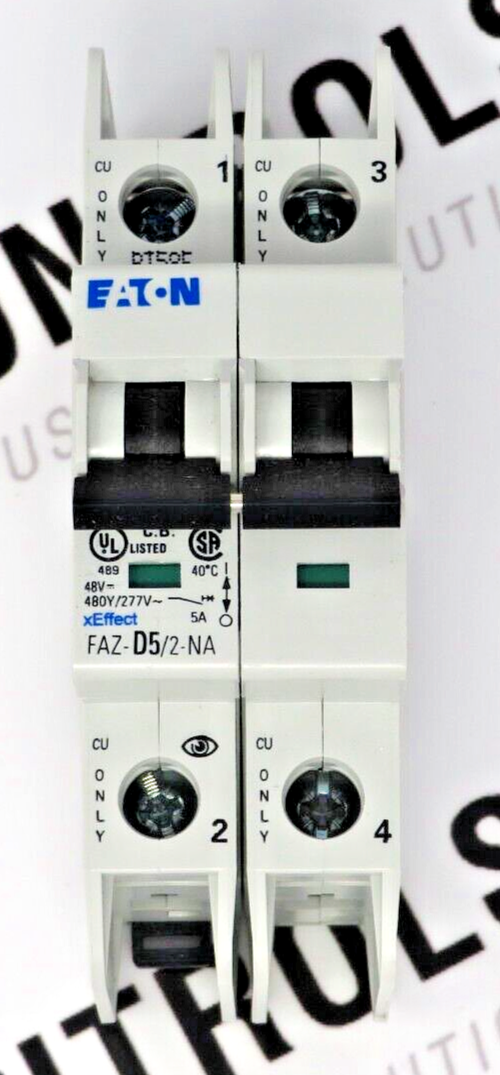

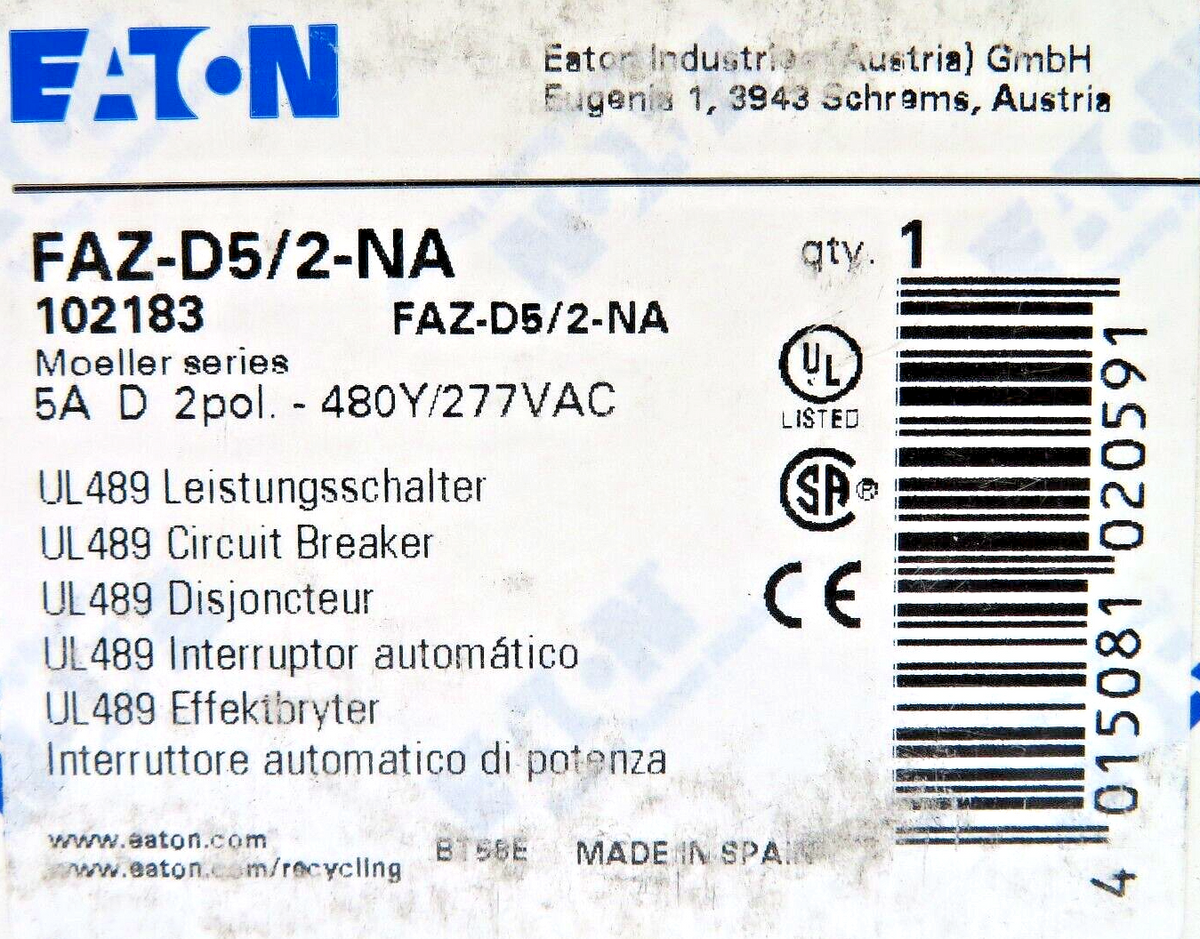

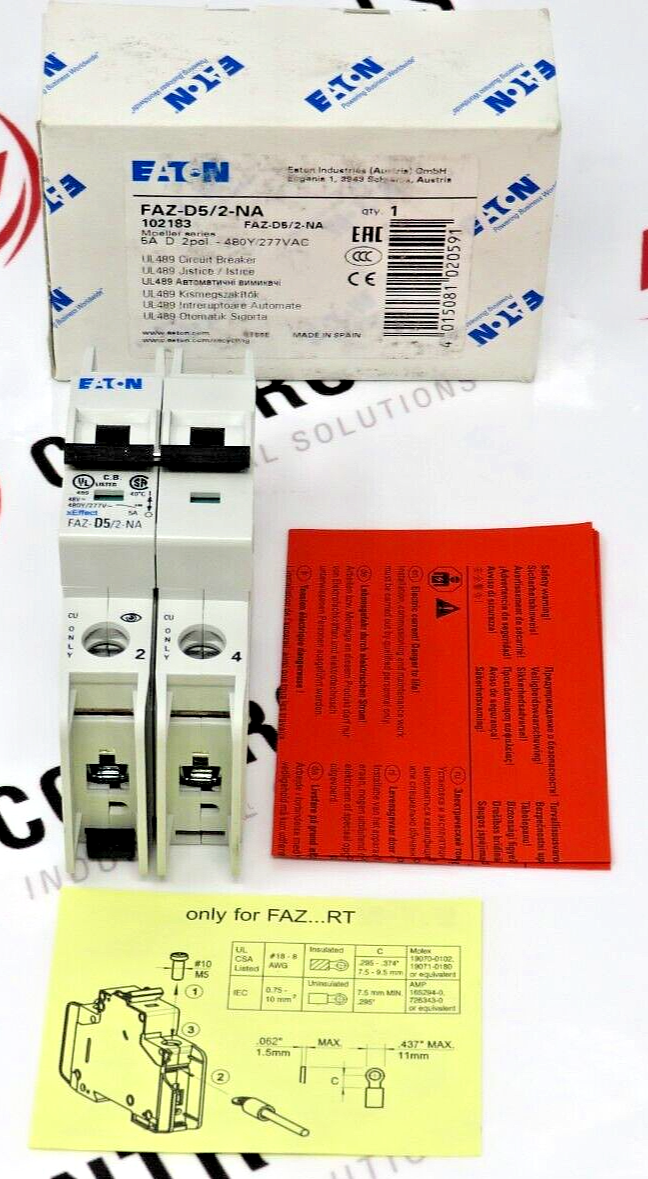

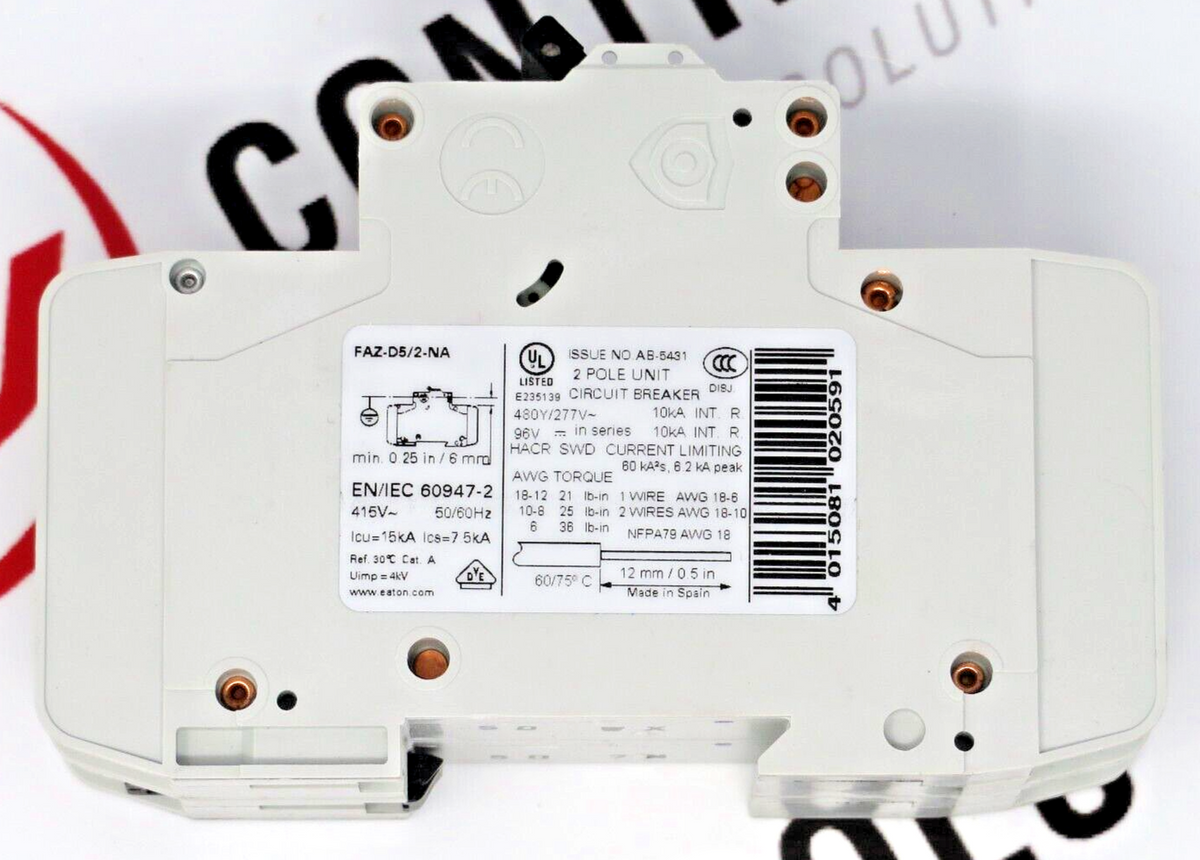

Eaton FAZ-D5/2-NA 2-Pole 5A Miniature Circuit Breaker 480Y/277V
Product Basic Information:
- Manufacturer: Eaton
- Catalog number: FAZ-D5/2-NA
- Eaton article number: 102183
- Product type: Miniature circuit breaker / branch protector
- Configuration: North American FAZ-NA version
- Country of origin: Spain
Technical Specifications:
- Rated current: 5 A
- Number of poles: 2
- Trip characteristic: D curve
- Magnetic trip range: 10 to 20 times rated current
- North American voltage rating: 480Y/277 VAC
- IEC voltage rating: Up to 415 VAC
- Frequency: 50/60 Hz
- North American interrupting rating: 10 kA at 480Y/277 VAC
- IEC short-circuit breaking capacity: 15 kA at 415 VAC
- Protection type: Thermal-magnetic overcurrent protection
- Current limiting class: Class 3
- Terminal type: Screw terminals
- Mounting: DIN rail
- Degree of protection: IP20
Product Designed Use:
- Designed for branch circuit and feeder protection in industrial and commercial electrical systems
- Suitable for circuits with high startup currents where a D-curve trip characteristic is required
- Suitable for compatible motor, transformer, machine control, and industrial automation circuits
- Designed for installation in compatible DIN rail mounted control panels and distribution equipment
