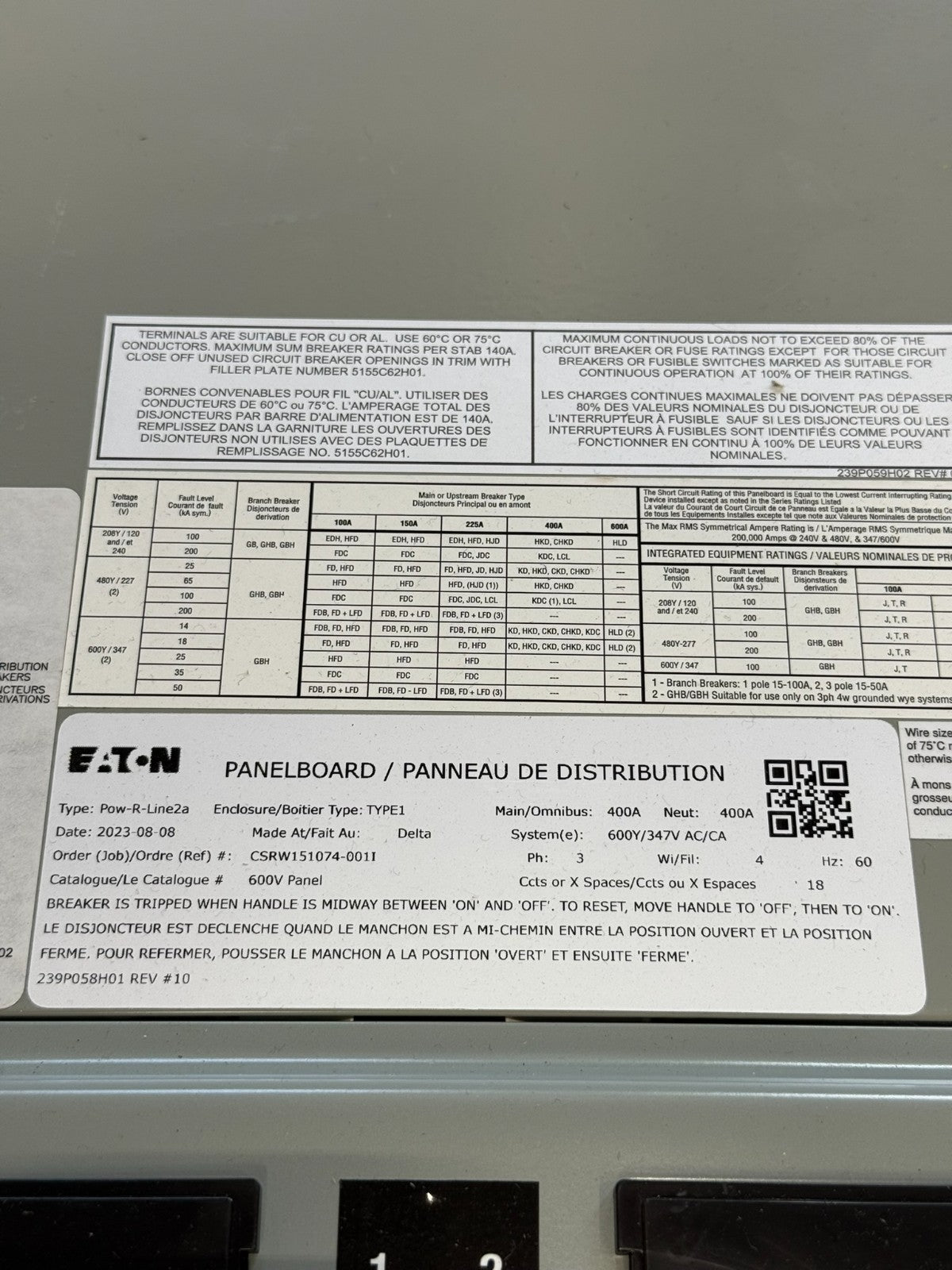

Eaton Panelboard
- Pow-R-Line 2A
- PowRLine2A
- Lifecycle Status: Active
Voltage Ratings
- Maximum voltage class: 600 Vac and 250 Vdc.
- Suitable for use on 3-phase, 3-wire applications when derived from a 3-phase, 4-wire 480Y/277 Vac service where the neutral is not brought to the panelboard.
- For 3-phase, 3-wire 480 Vac Delta services use a PRL3a panelboard.
Current Ratings
- Main Lugs: 100 – 400 amperes.
- Main Breakers: 100 – 400 amperes.
- Branch Breakers: 15 – 100 amperes (bolt-on).
- Interrupting rating: Fully-rated to 65 kAIC, Series-rated to 200 kAIC.
- Continuous current rating: 100-600A.
Short Circuit Current Ratings (Symmetrical)
- 240 Vac: 65 kA fully rated. 240 Vac: 100 – 200 kA series rated.
- 480Y/277 Vac: 14 kA fully rated. 480Y/277 Vac: 22 – 150 kA series rated.
- 250 Vdc: 10 kA and 14 kA fully rated.
Service
- 3-phase, 4-wire 208Y/120 V and 240/120 V Delta and 480Y/277 V.
- Single-phase, 3-wire 120/240 V.
- Single-phase, 2-wire 120 V.
- 3-phase, 3-wire 208 and 240 V.
- 2-wire 125 Vdc. 2-wire 250 Vdc.

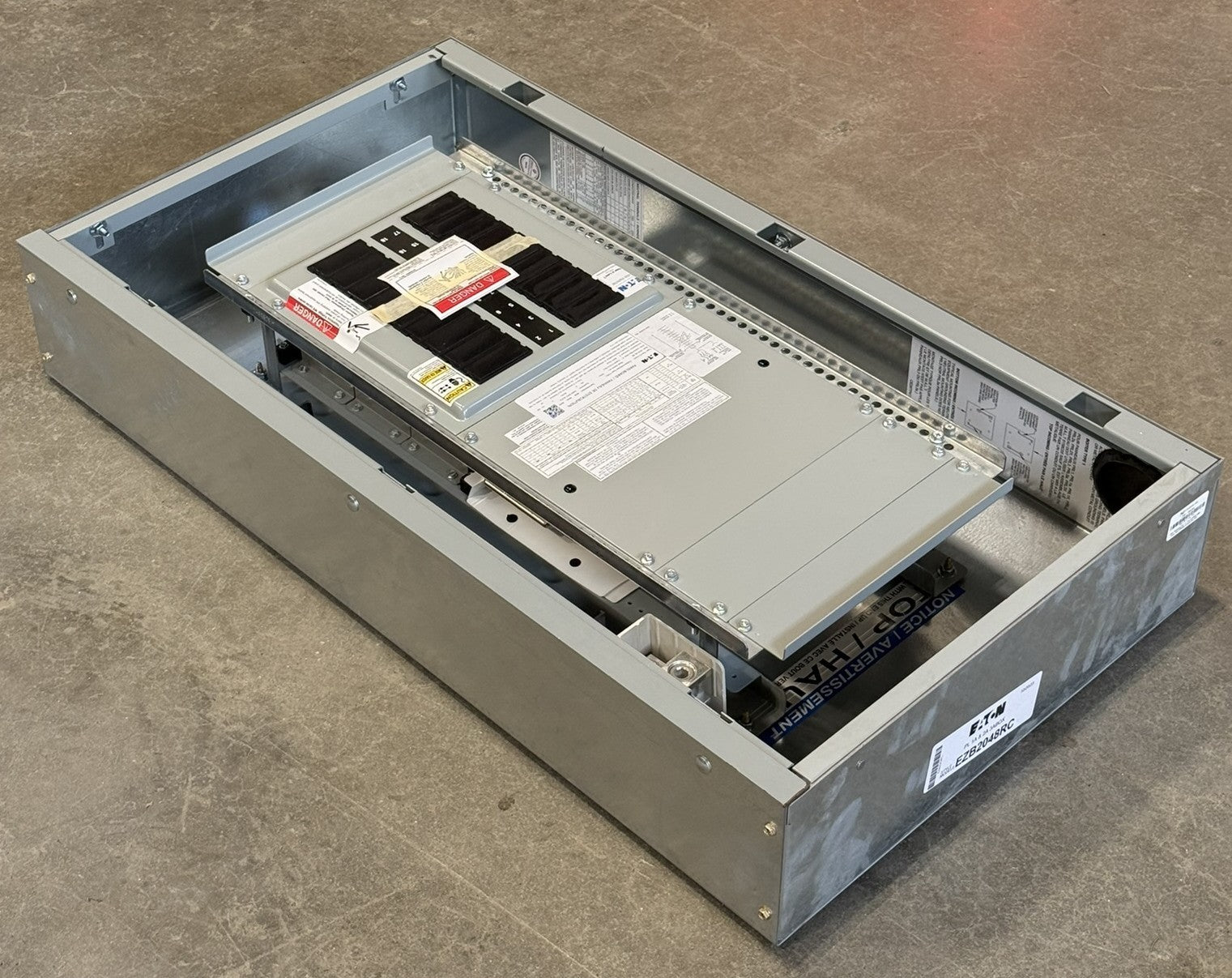

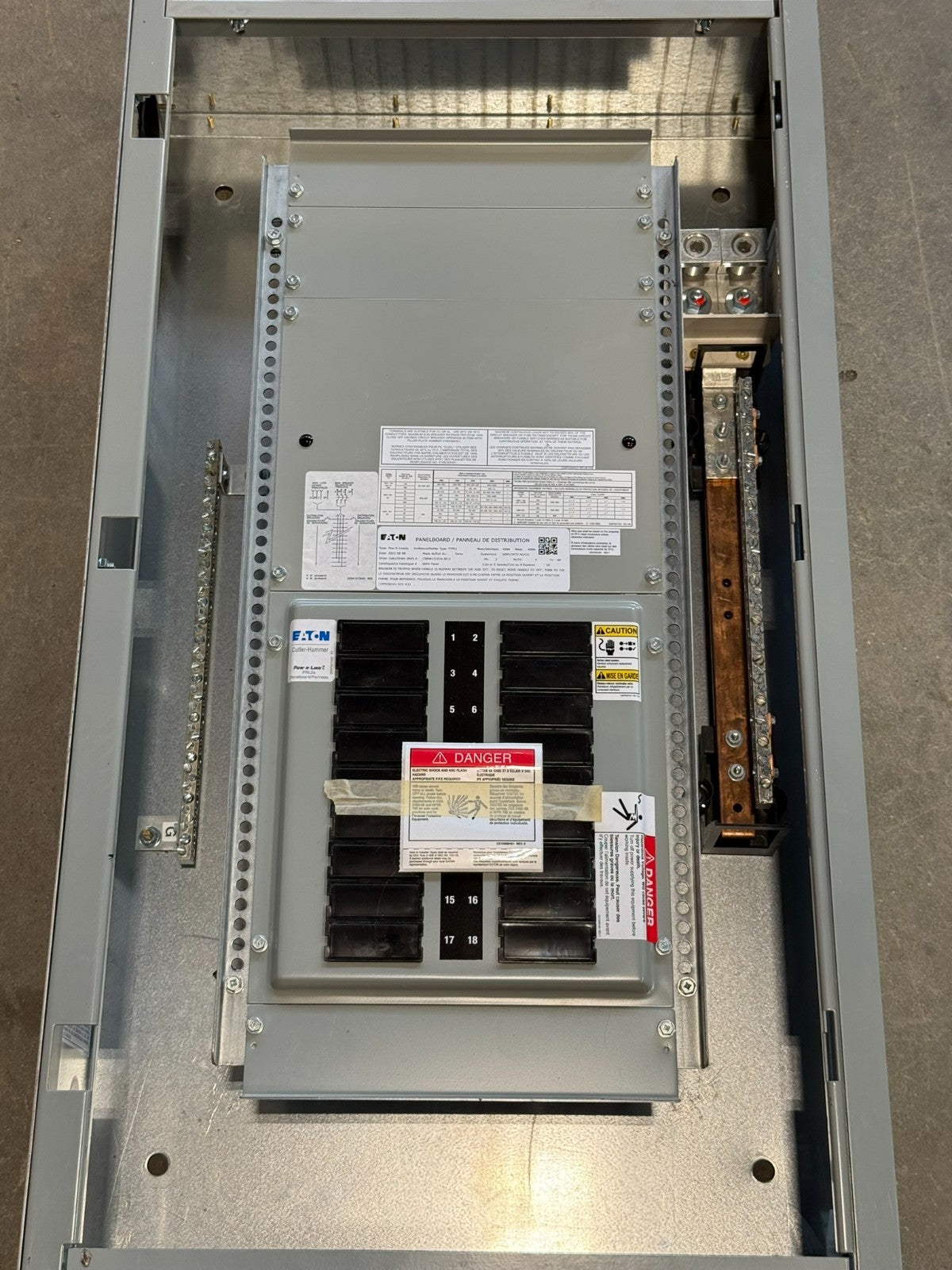

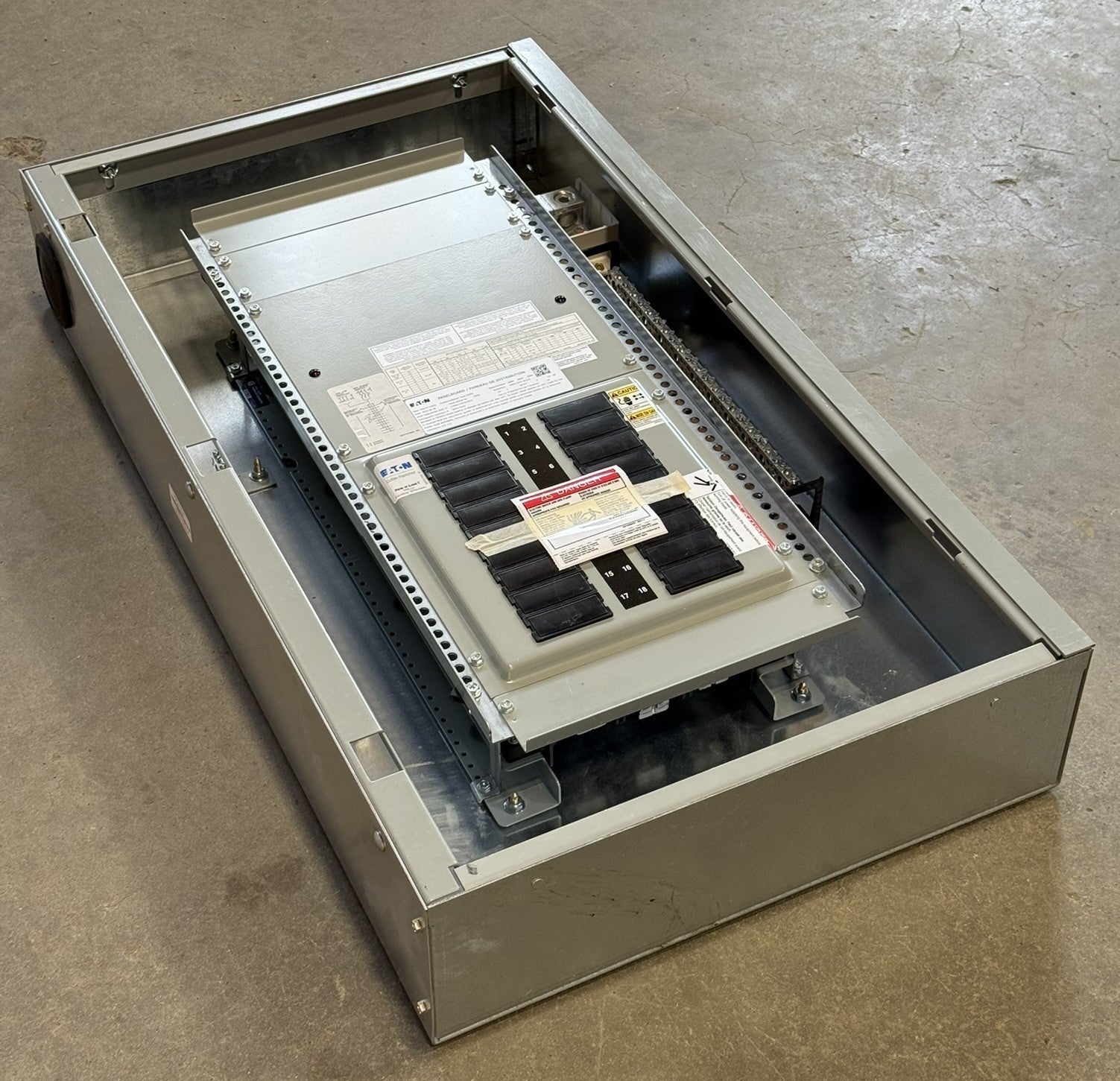

Enclosure with Front Panel Cover
- EZT2036S
- Made of code-gauge steel.
- Painted ANSI-61 light gray.
- Standard panelboard cabinets are designed for indoor use.
- Enclosures meet ULT standards and include wiring gutters with proper wire bending space.
- 20 inch wide X 36 inch high.
- Keyed
- Unvented
- EZ trim surface
- Top left side of enclosure - access hole drilled and capped.
* Please note that these are general specifications and the exact specifications can vary based on the specific model of the Pow-R-Line 2a panelboard. For the most accurate information, it’s recommended to check the product manual or contact Eaton directly.*
