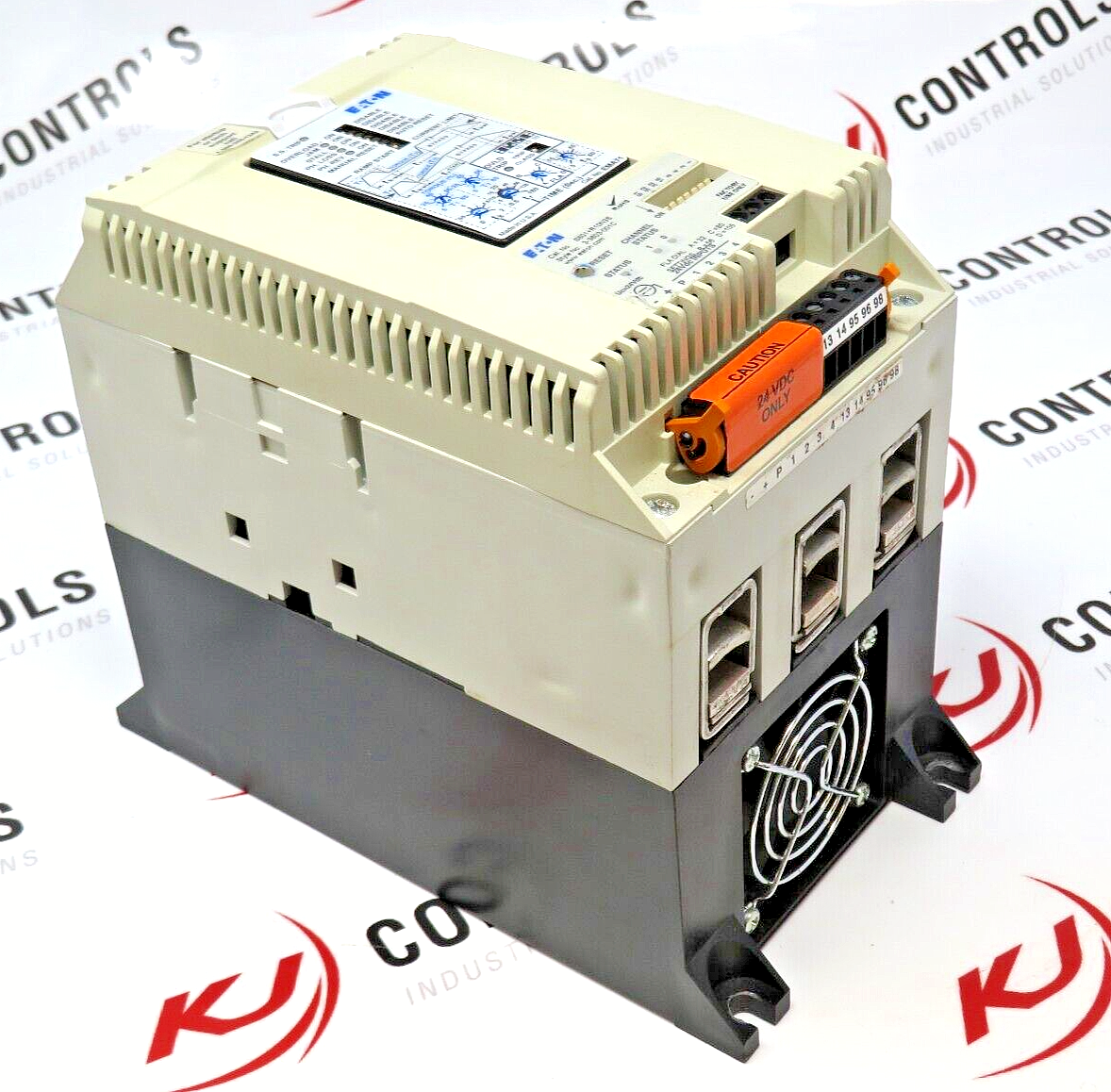

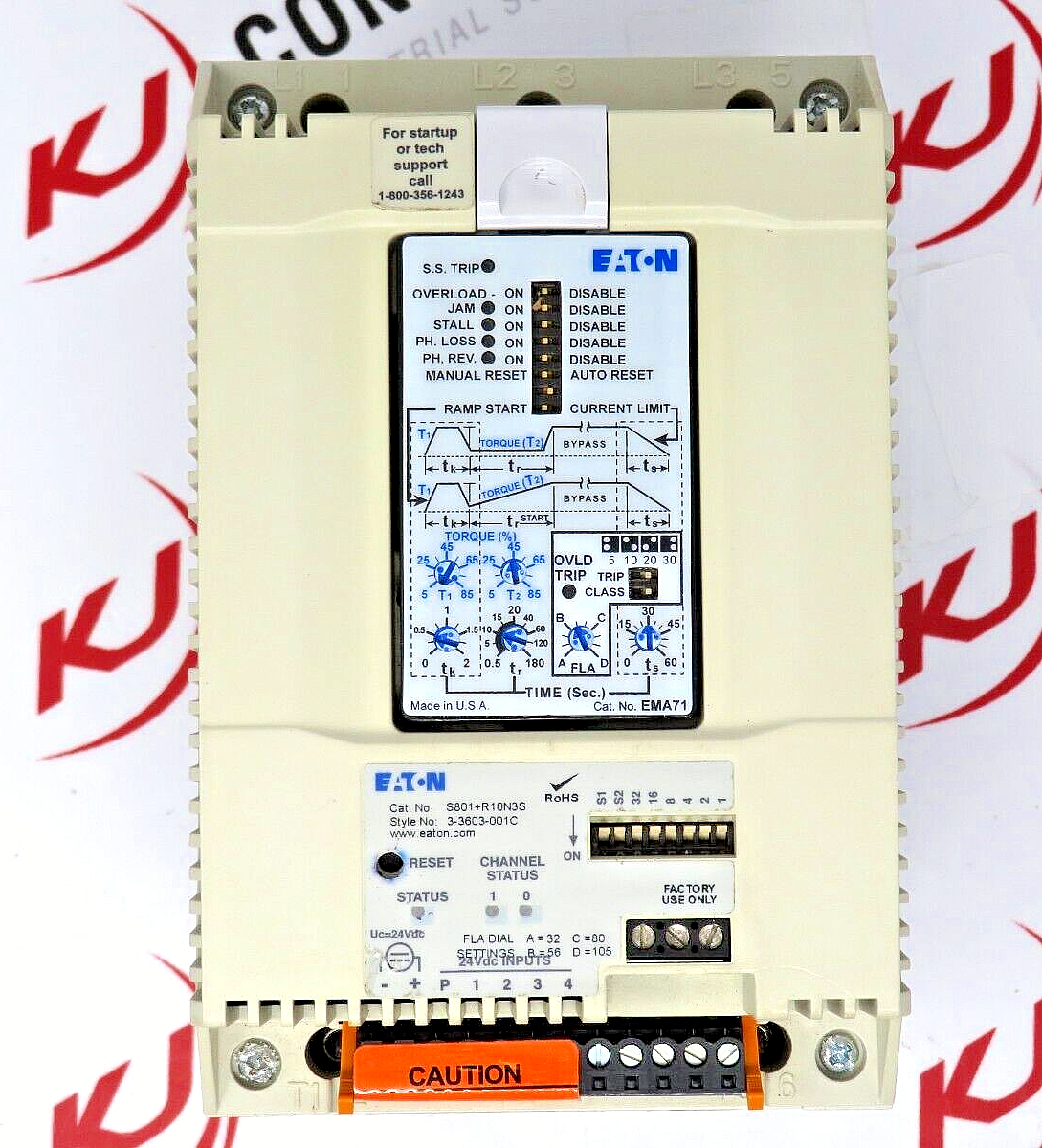

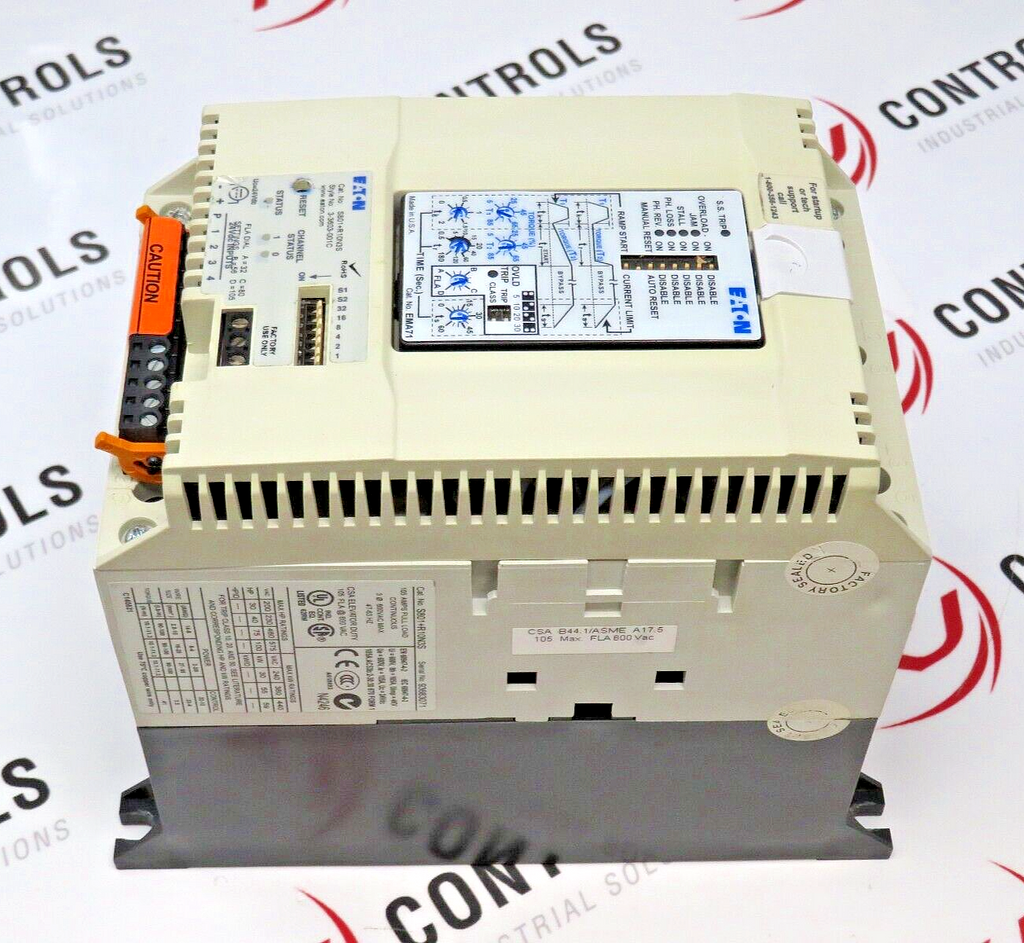

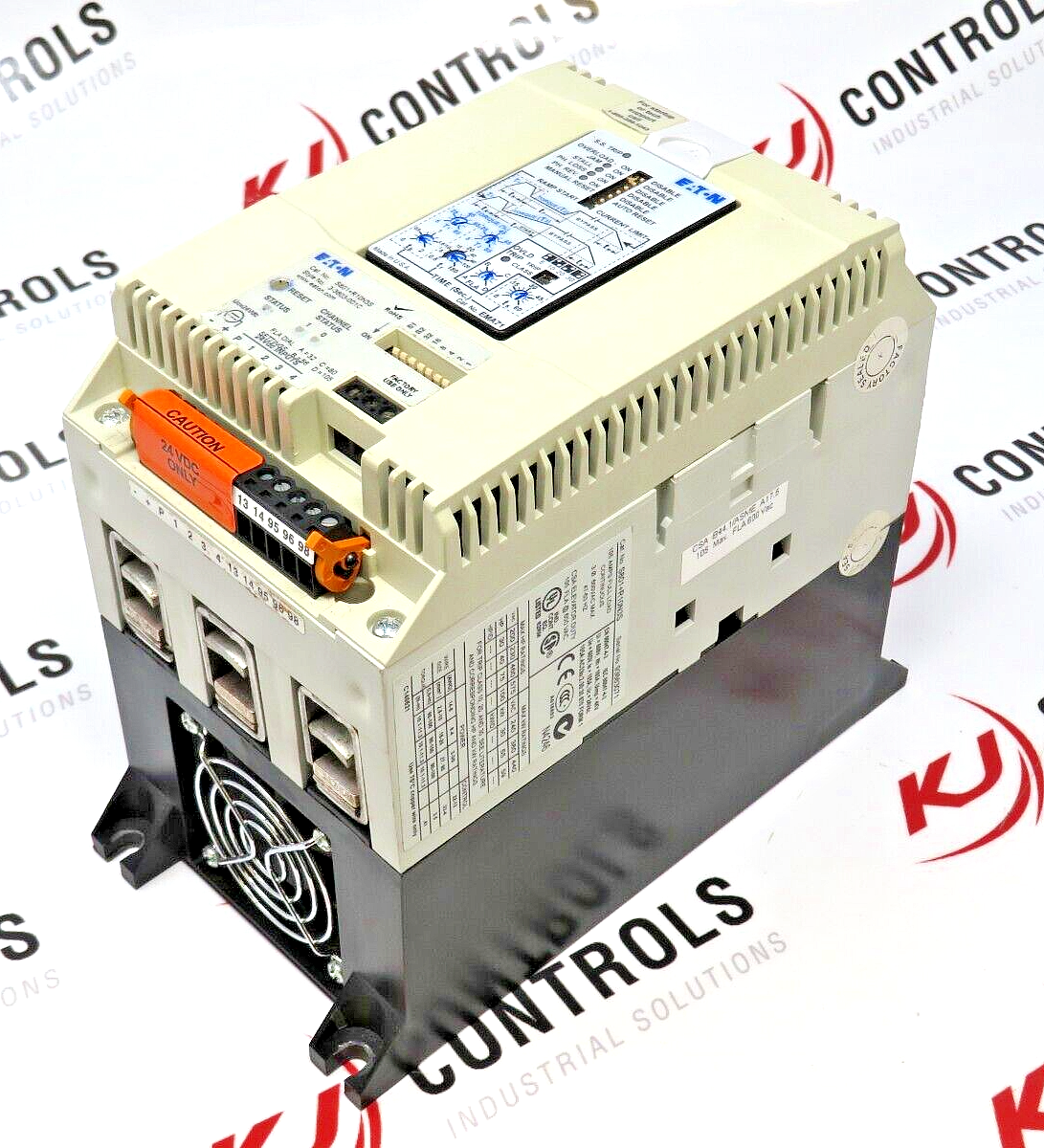

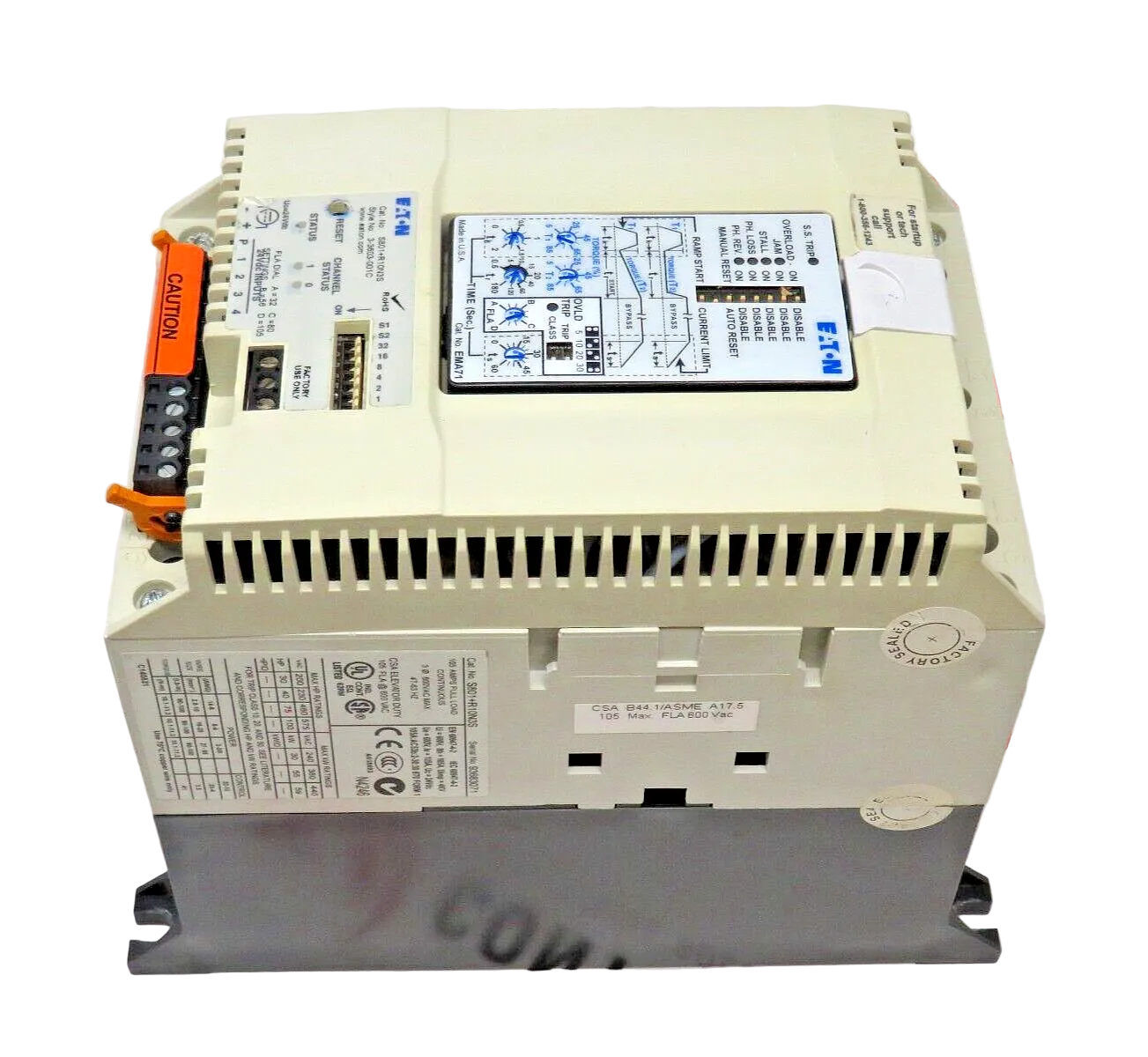

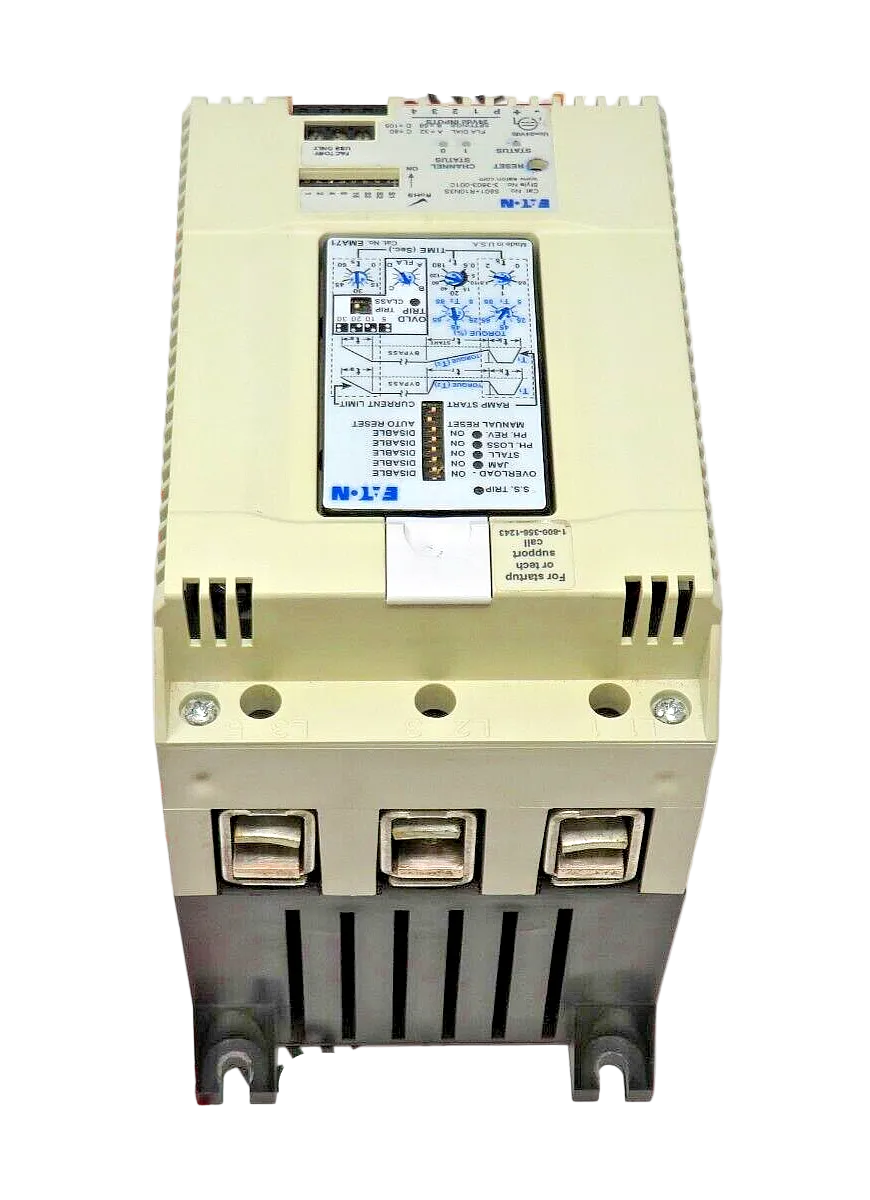

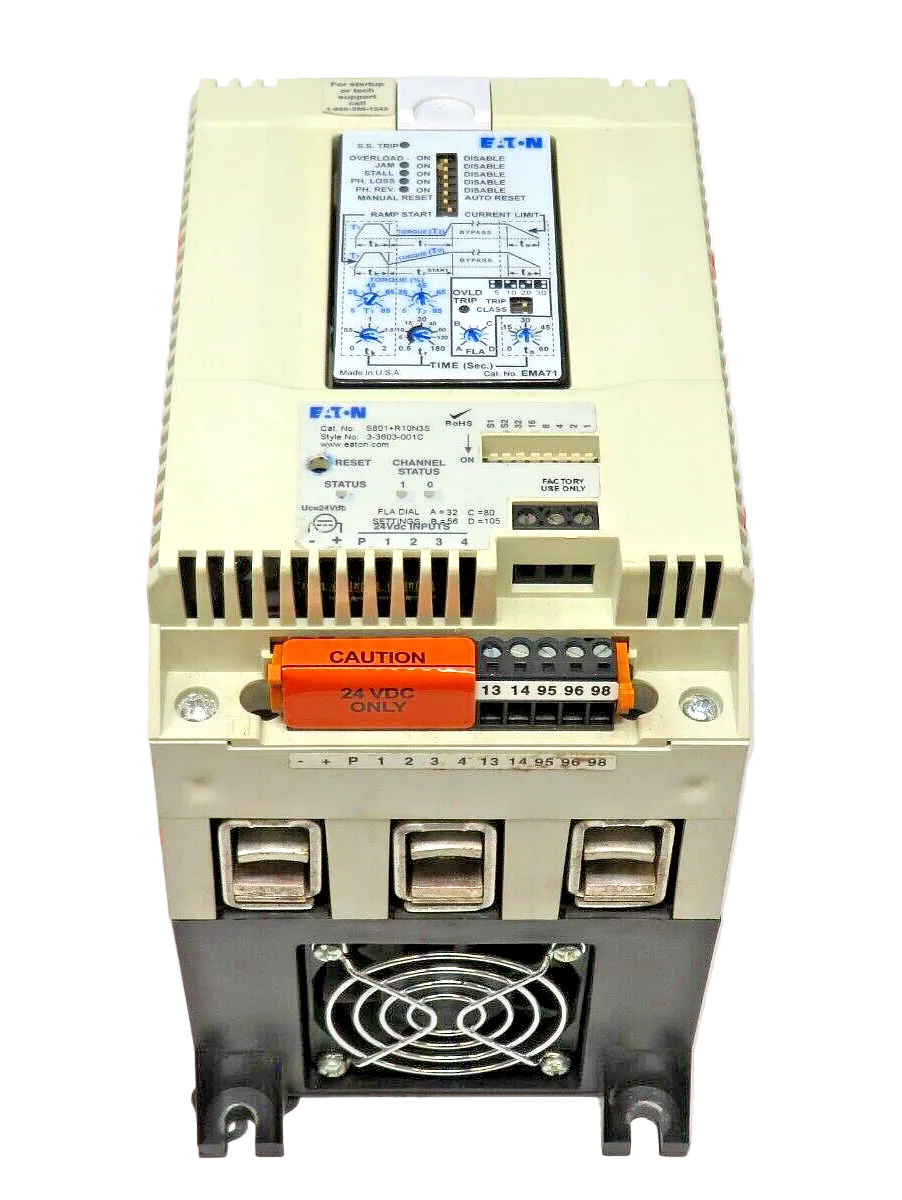

Eaton S801+R10N3S 3 Phase Soft Starter 105A 100HP 600VAC
Product Basic Information:

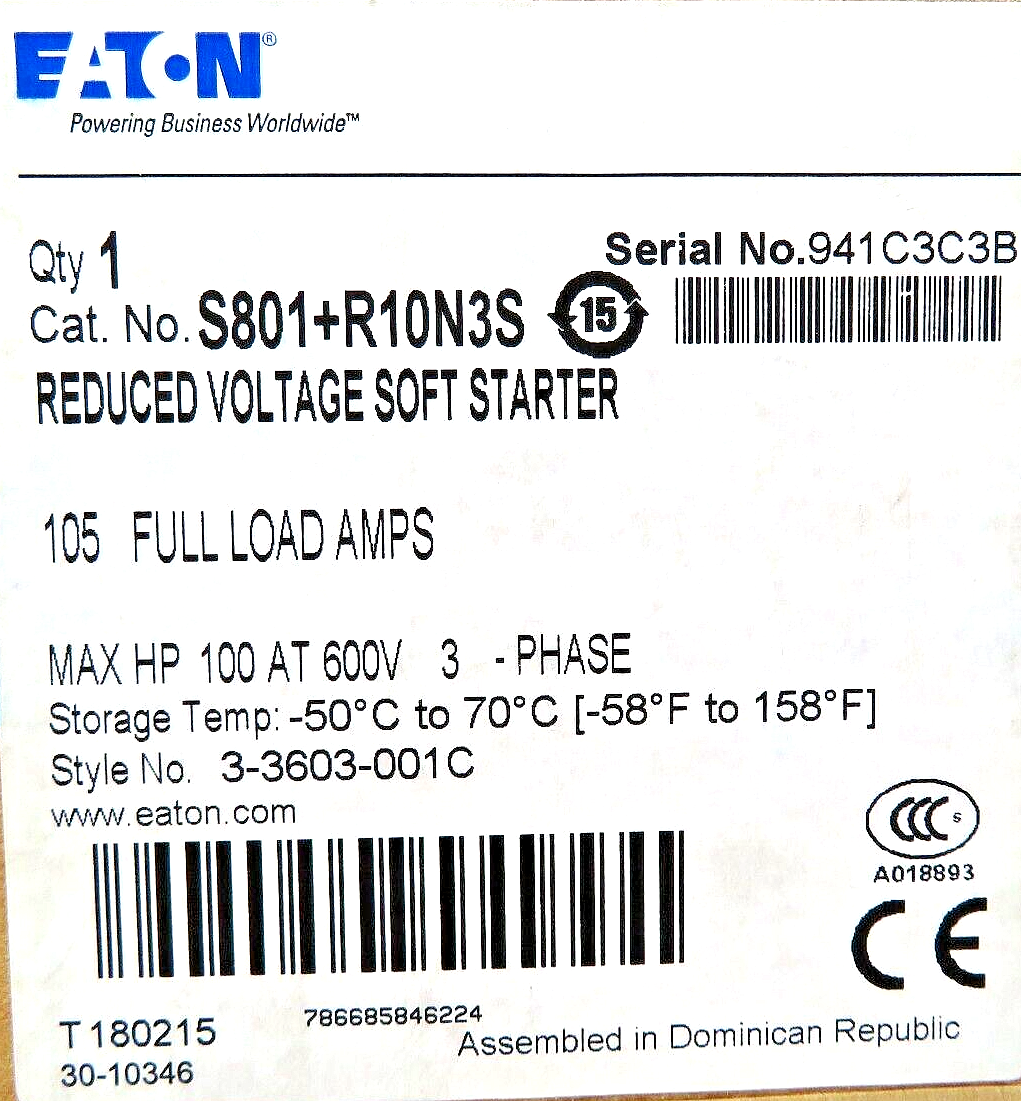

- Manufacturer: Eaton
- Catalog number: S801+R10N3S
- Alternate part number: S801R10N3S
- Product family/series: S801+ Series
- Product type: Reduced voltage soft starter
- Country of origin: Dominican Republic

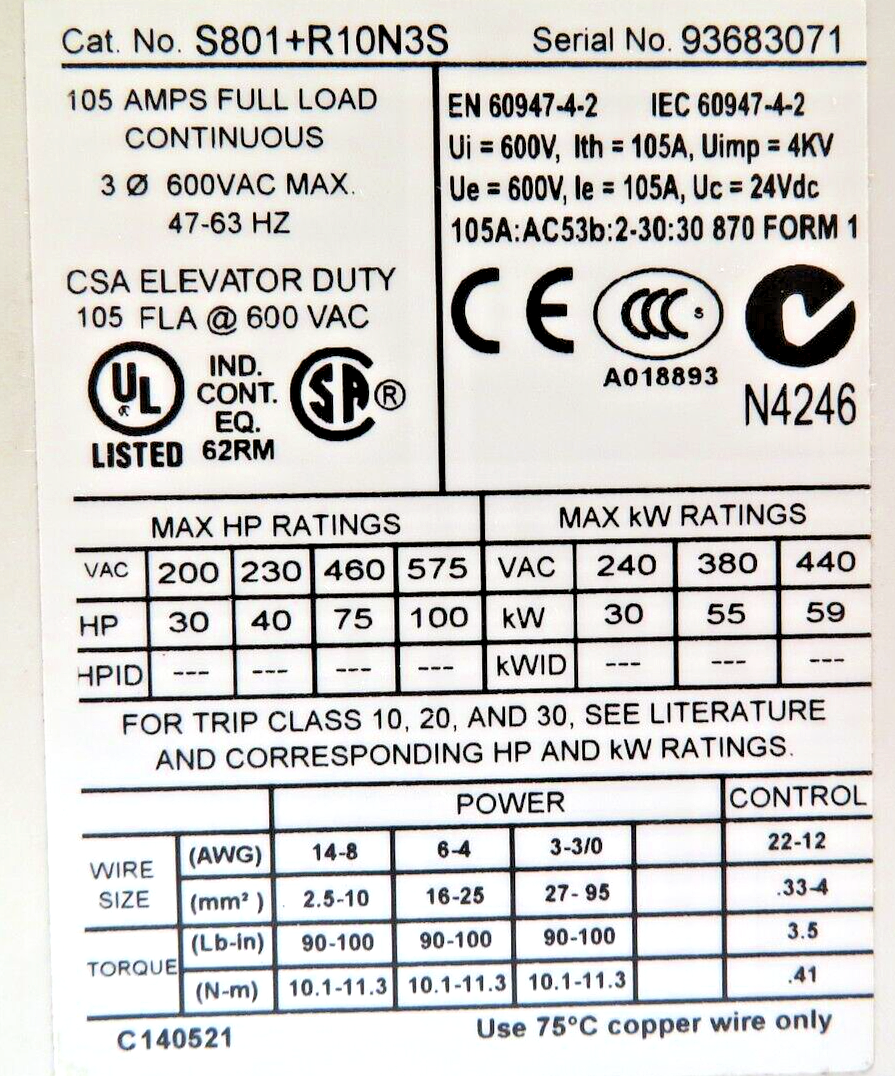

Technical Specifications:
- Full load current: 105 A continuous
- System voltage: 3 phase 600 VAC max

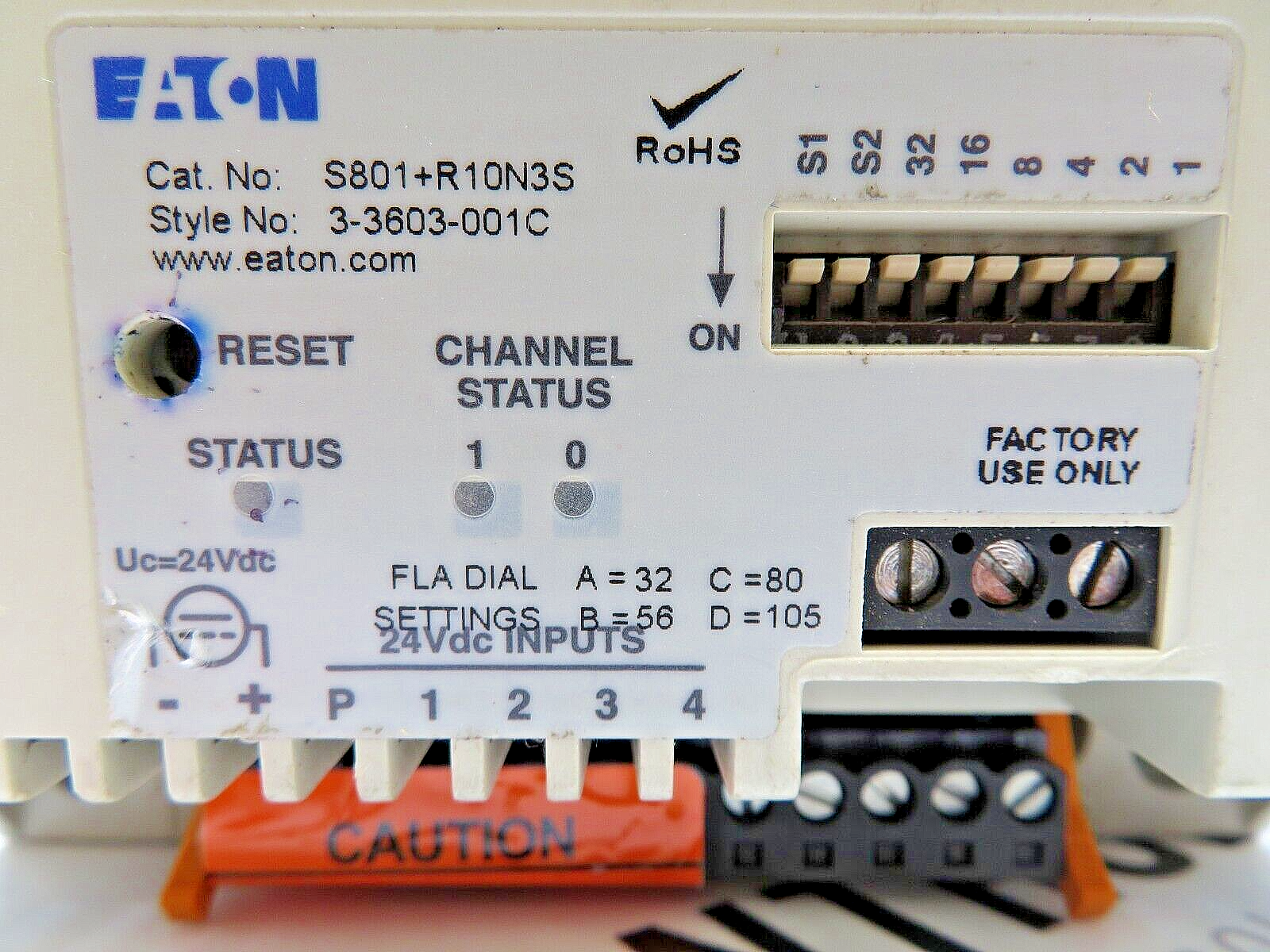

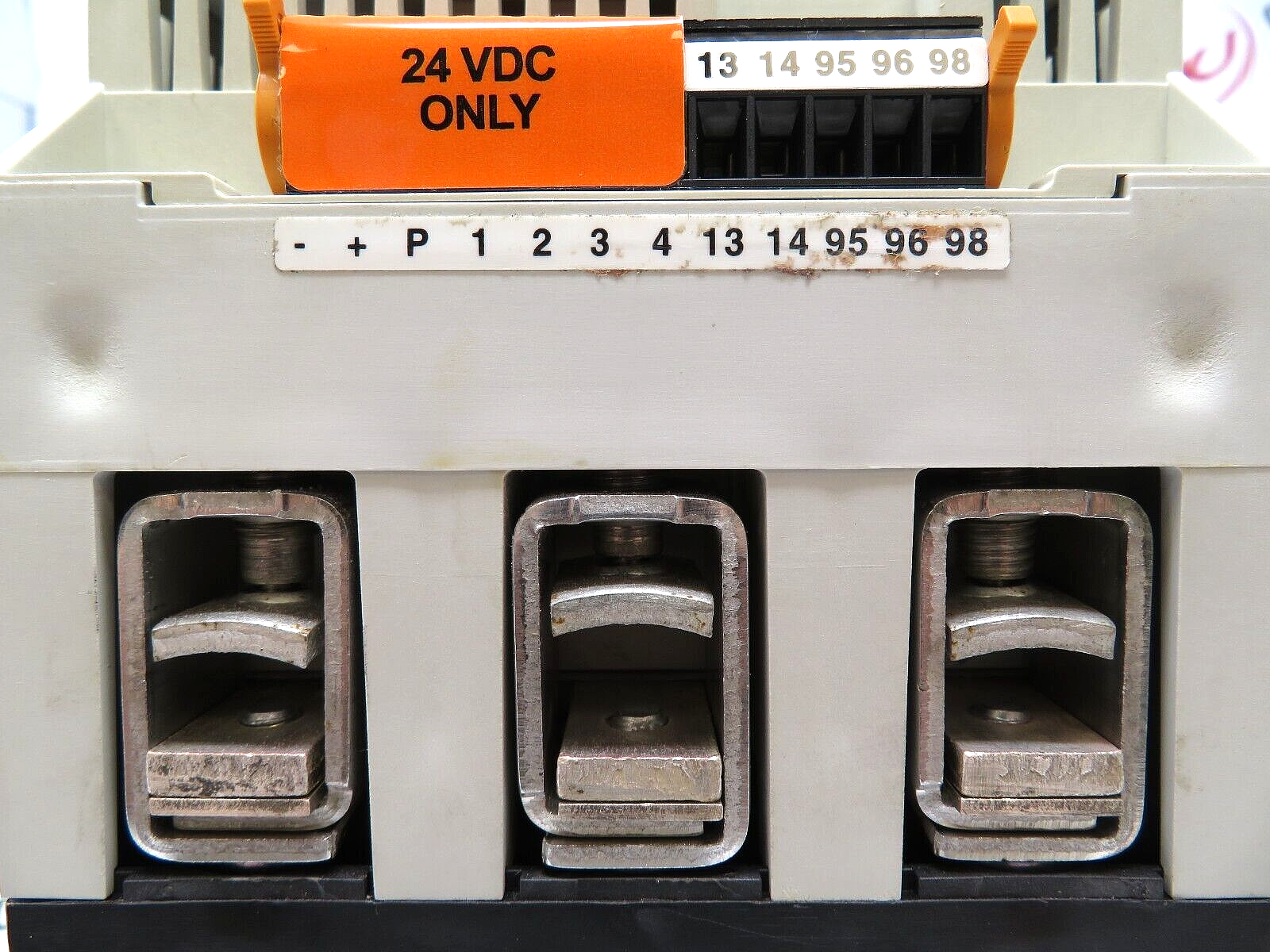

- Control voltage: 24 VDC
- Frequency rating: 47 to 63 Hz
- Rated insulation voltage Ui: 600 V
- Rated thermal current Ith: 105 A
- Impulse withstand voltage Uimp: 4 kV
- Rated operational voltage Ue: 600 V
- Rated operational current Ie: 105 A
- Maximum horsepower: 100 HP at 600 V 3 phase
- Trip classes: 5, 10, 20, 30

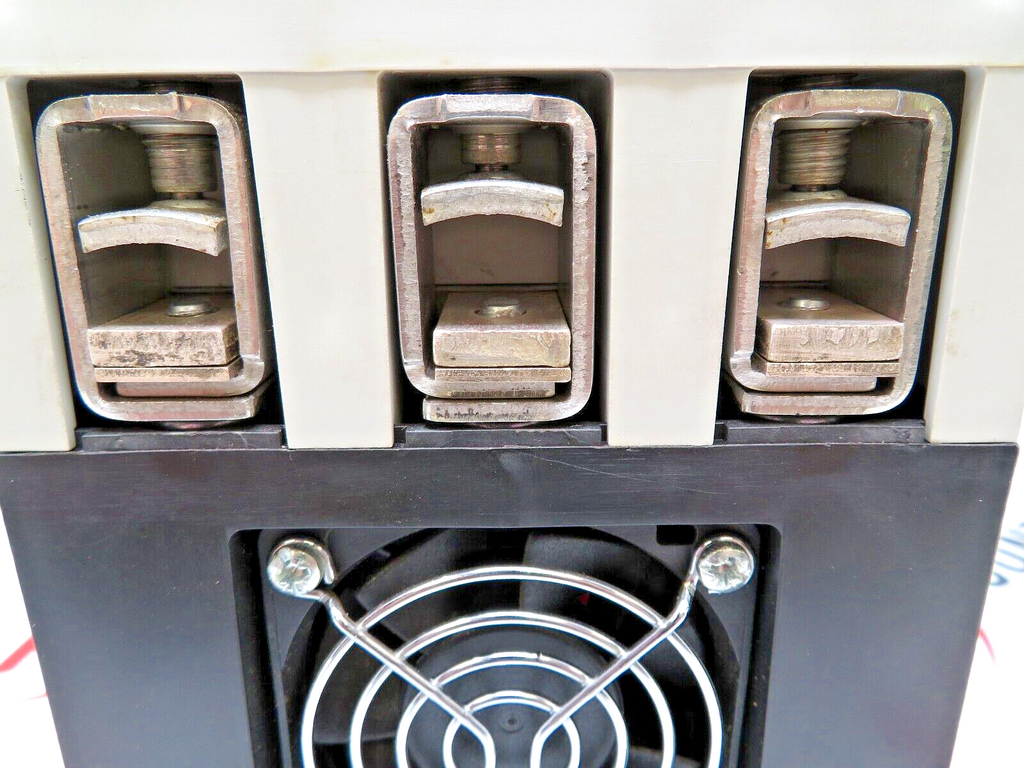

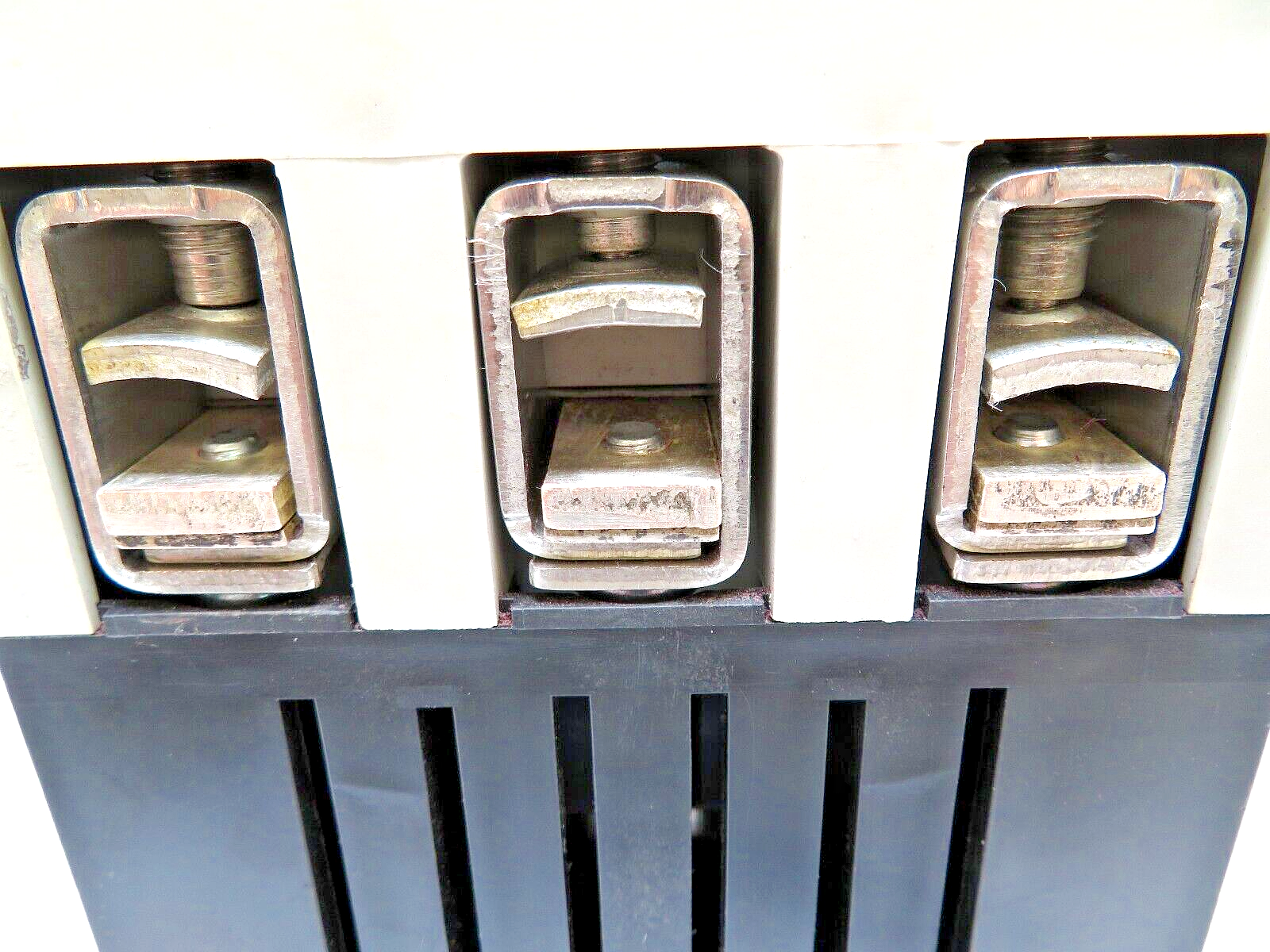

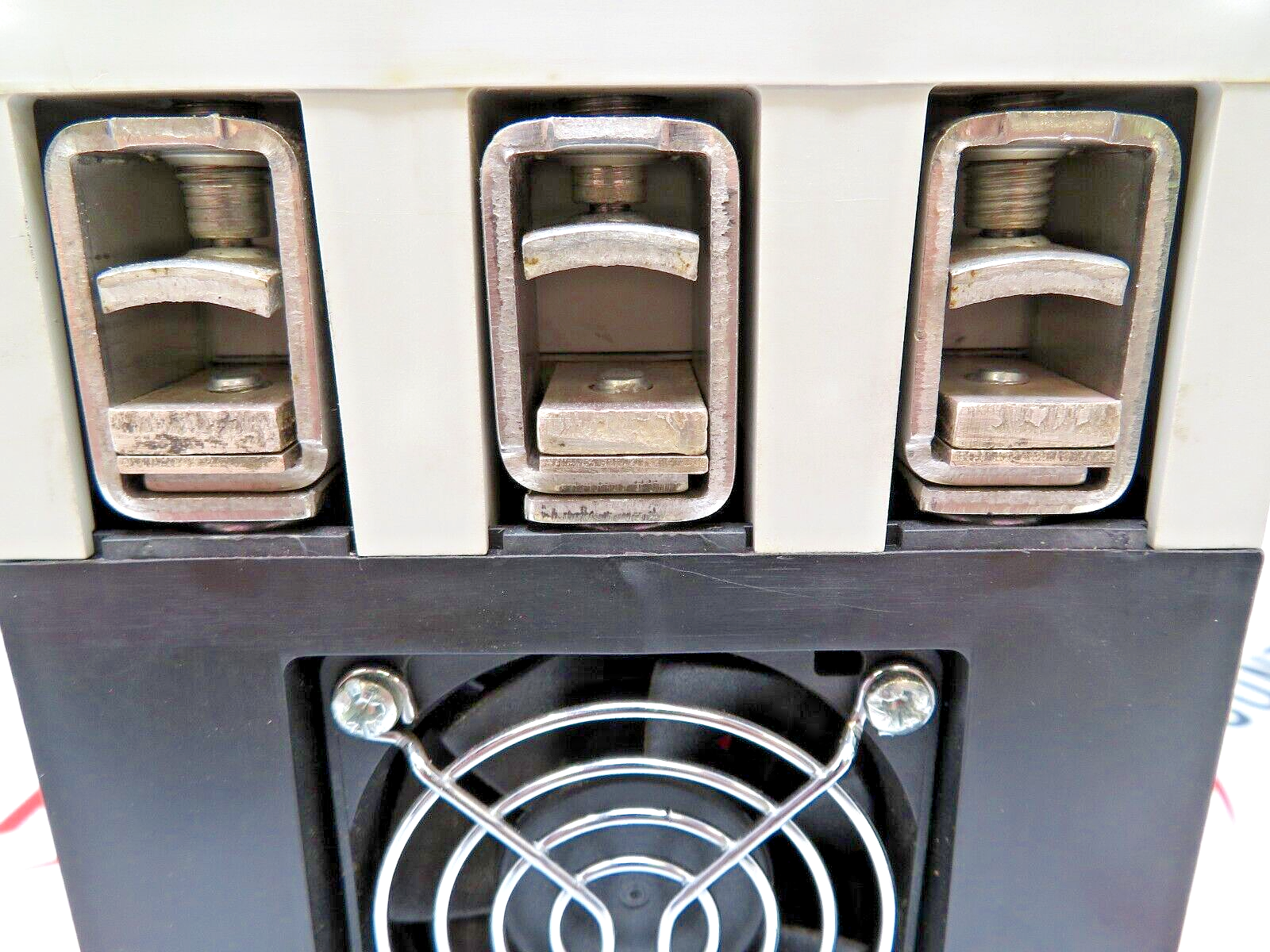

- Power wire size: 14 to 8 AWG, 6 to 4 AWG, 3 to 3/0 AWG
- Control wire size: 22 to 12 AWG
Product Features:

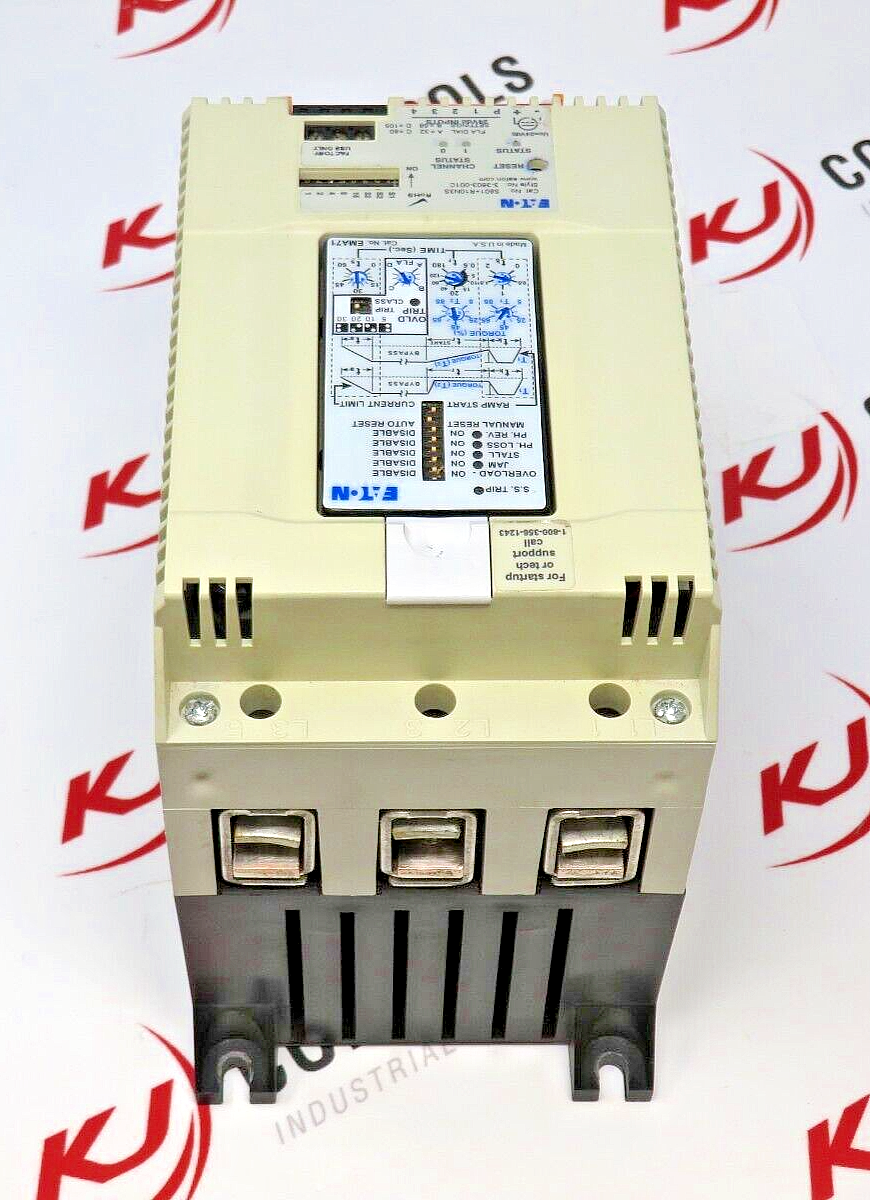

- S801+ reduced voltage soft starter for three phase motor control

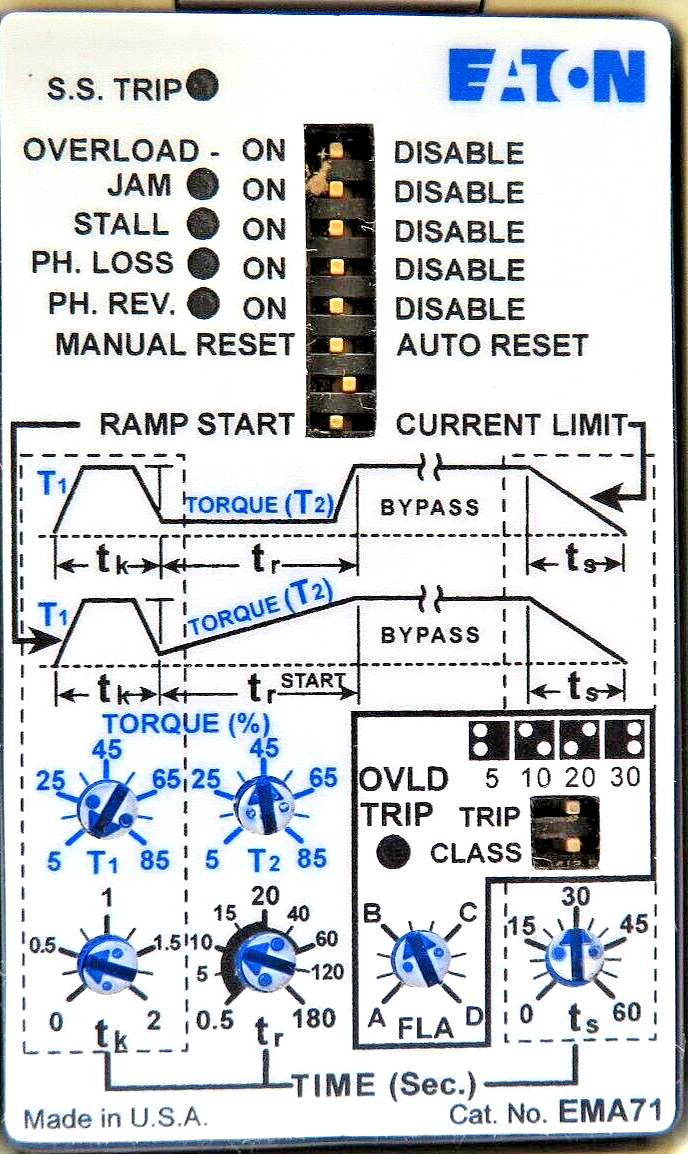

- Adjustable ramp start and current limit settings

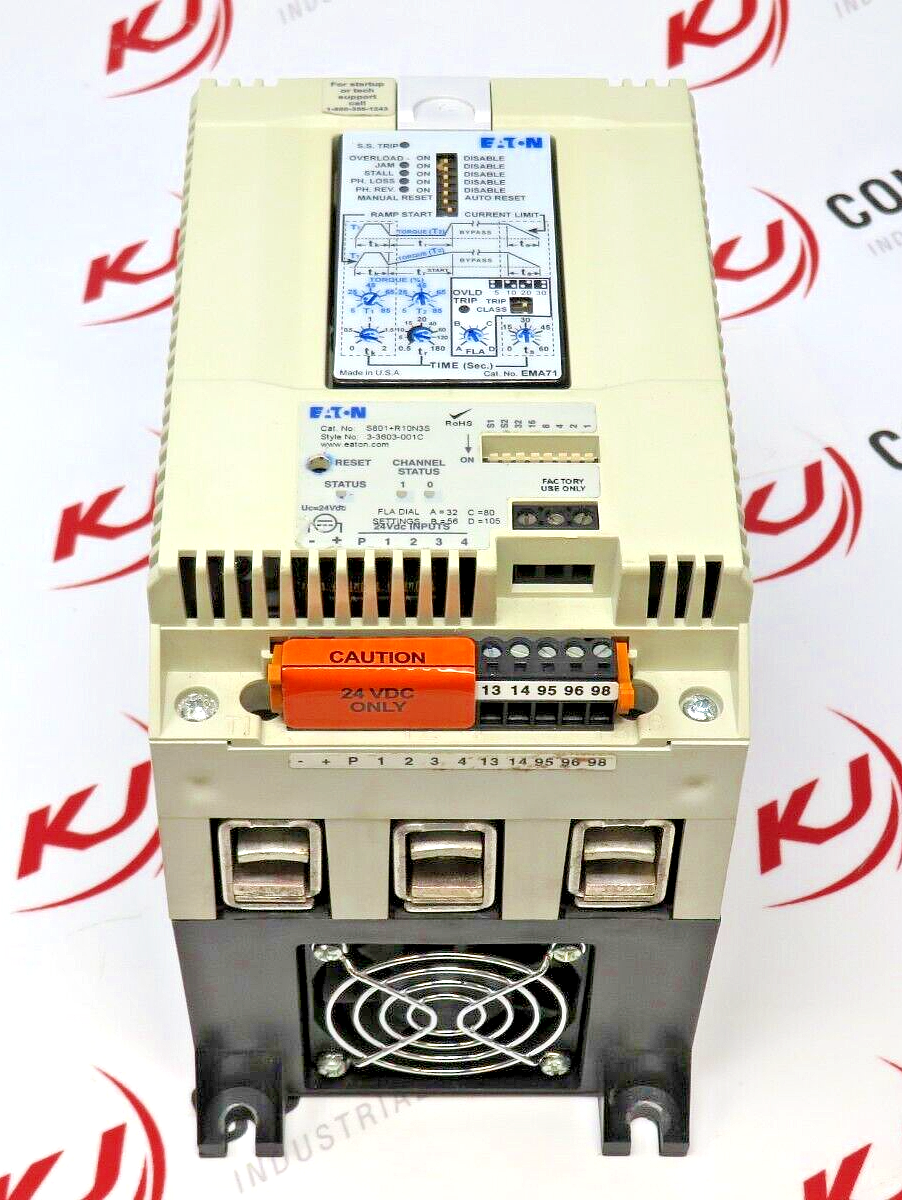

- Adjustable torque and timing settings on front interface
- Selectable overload trip class settings
- Jam, stall, phase loss, and phase reversal protection functions
- Manual reset or auto reset selection
- Compact industrial control design
- Suitable for panel and motor control applications
Product Designed Use:
- Designed to reduce inrush current during motor starting
- Used to control the acceleration of three phase motors
- Suitable for pumps, fans, blowers, conveyors, compressors, and general industrial machinery
- Commonly installed in industrial control panels and motor control systems
