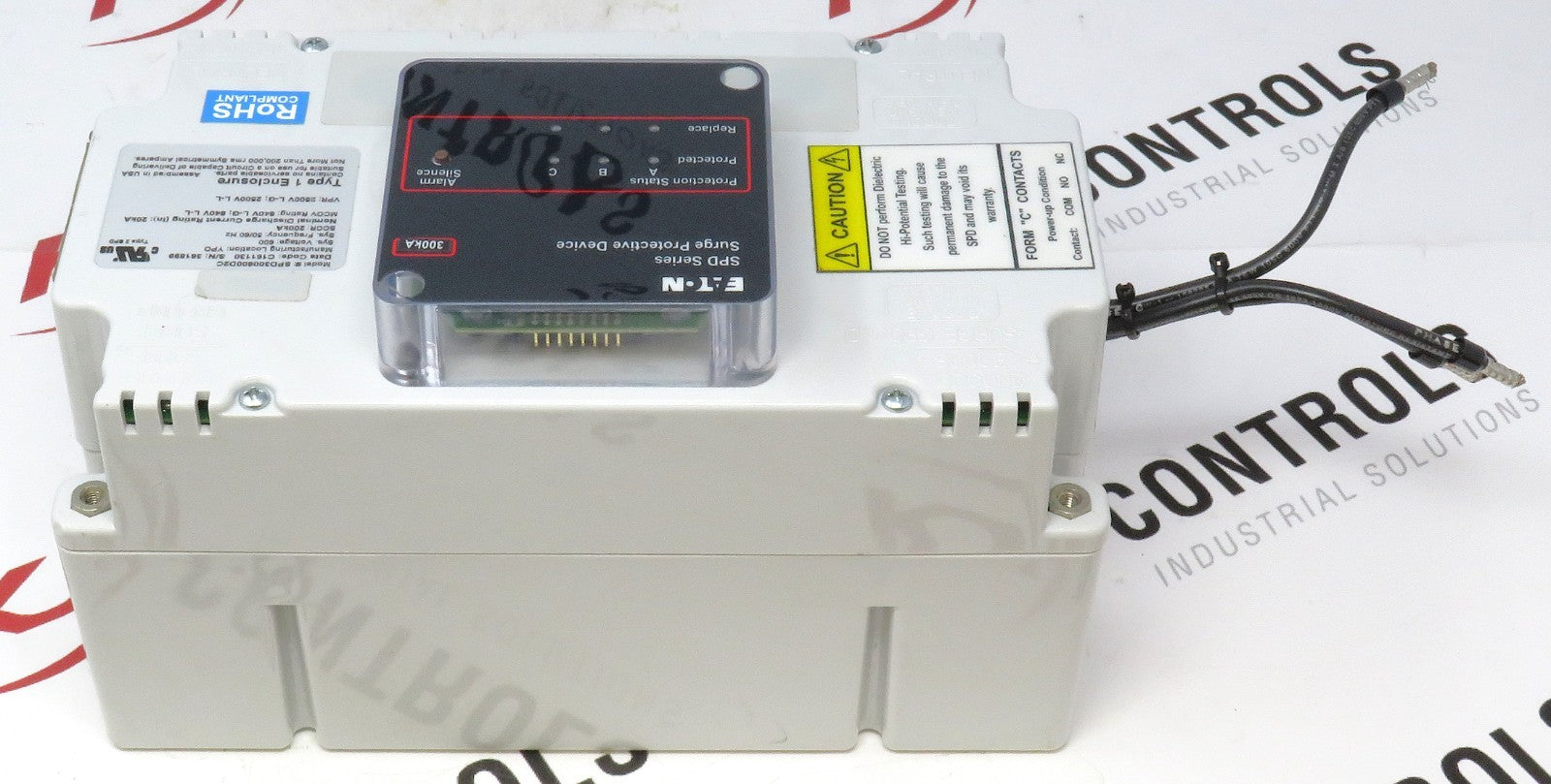

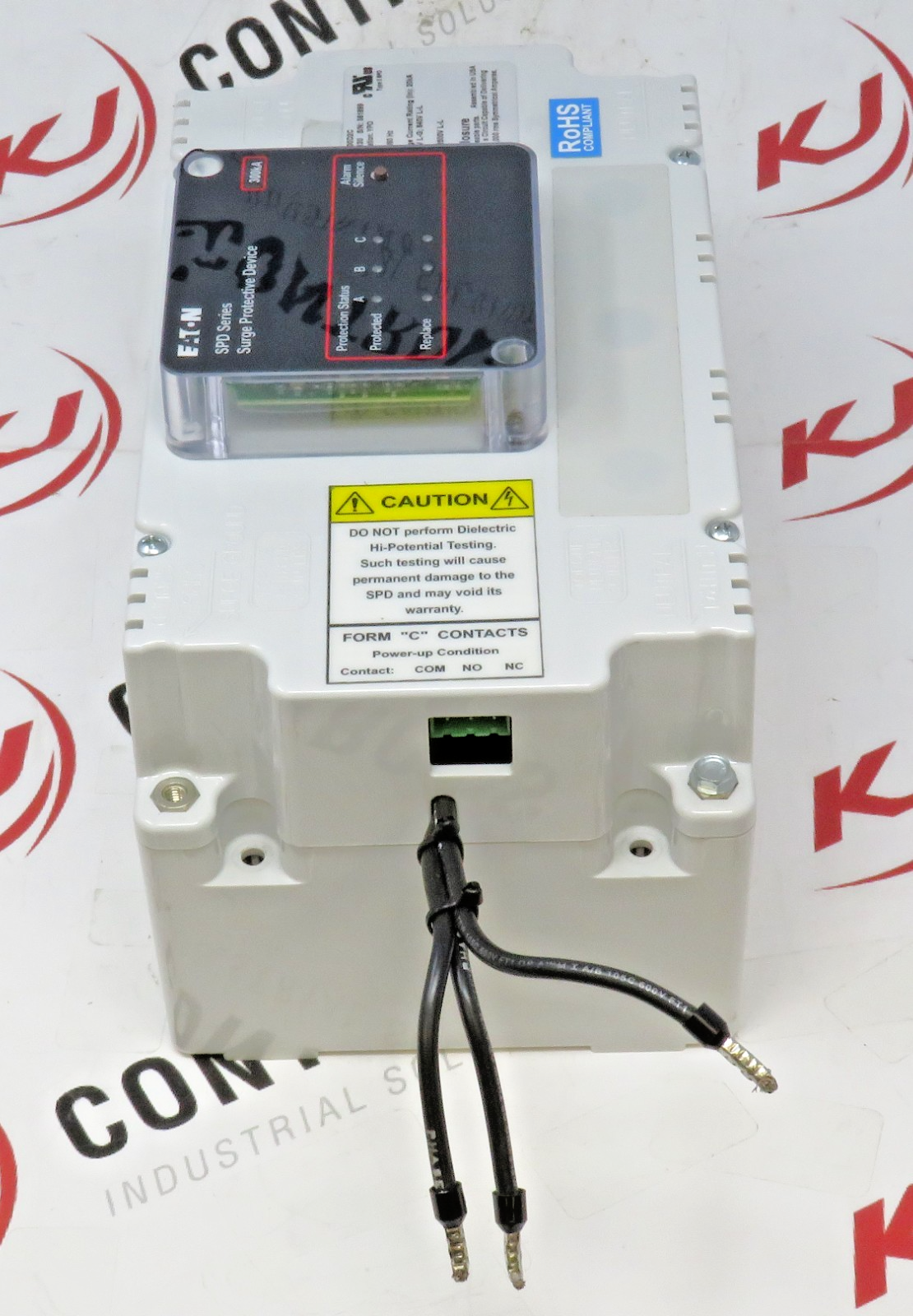

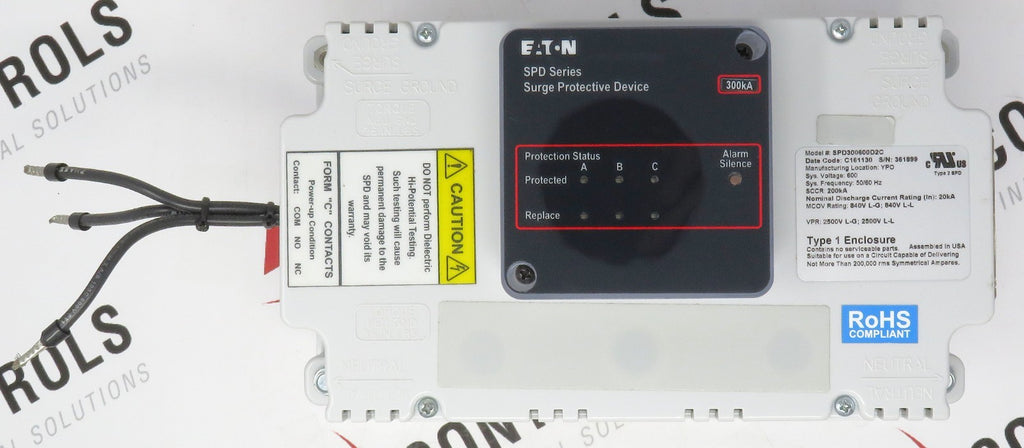

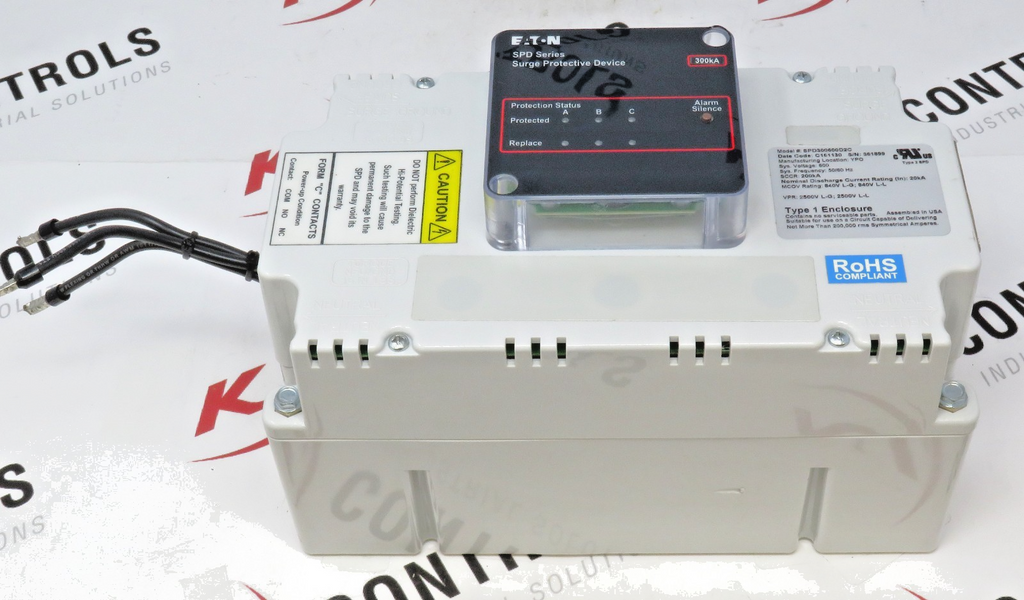

Eaton Surge Protective Device
Product Basic Information:
- Manufacturer: Eaton Corporation
- Part Number: SPD300600D2C
- Product Family/Series: SPD Series
- Style Number: 635-0017C
Technical Specifications:
- System Voltage: 600V
- System Frequency: 50/60 Hz
- SCCR (Short-Circuit Current Rating): 200 kA
- Surge Current Capacity: 300 kA
- Nominal Discharge Current (In): 20 kA
- MCOV (Maximum Continuous Operating Voltage): 840V L-G, 840V L-L
- VPR (Voltage Protection Rating): 2500V L-G, 2500V L-L
- Enclosure Type: Type 1, RoHS compliant
- Contacts: Form "C" contacts (COM, NO, NC)
- Mounting Type: MCCB (Molded Case Circuit Breaker) connected
- Serviceability: No serviceable parts
Product Features:
- High surge capacity of 300 kA for industrial protection
- LED protection status indicators (A, B, C phases)
- Audible alarm with silence button for easy monitoring
- Compact Type 1 enclosure suitable for MCCB connection
- Factory-assembled unit designed for easy installation
- Compliance with UL and CSA standards (cURus listed)
Product Designed Use:
- Protects electrical systems from transient voltage surges and spikes.
- Suitable for industrial automation panels, MCCBs, and facility power distribution systems.
- Ideal for heavy-duty 600V industrial and commercial applications.
