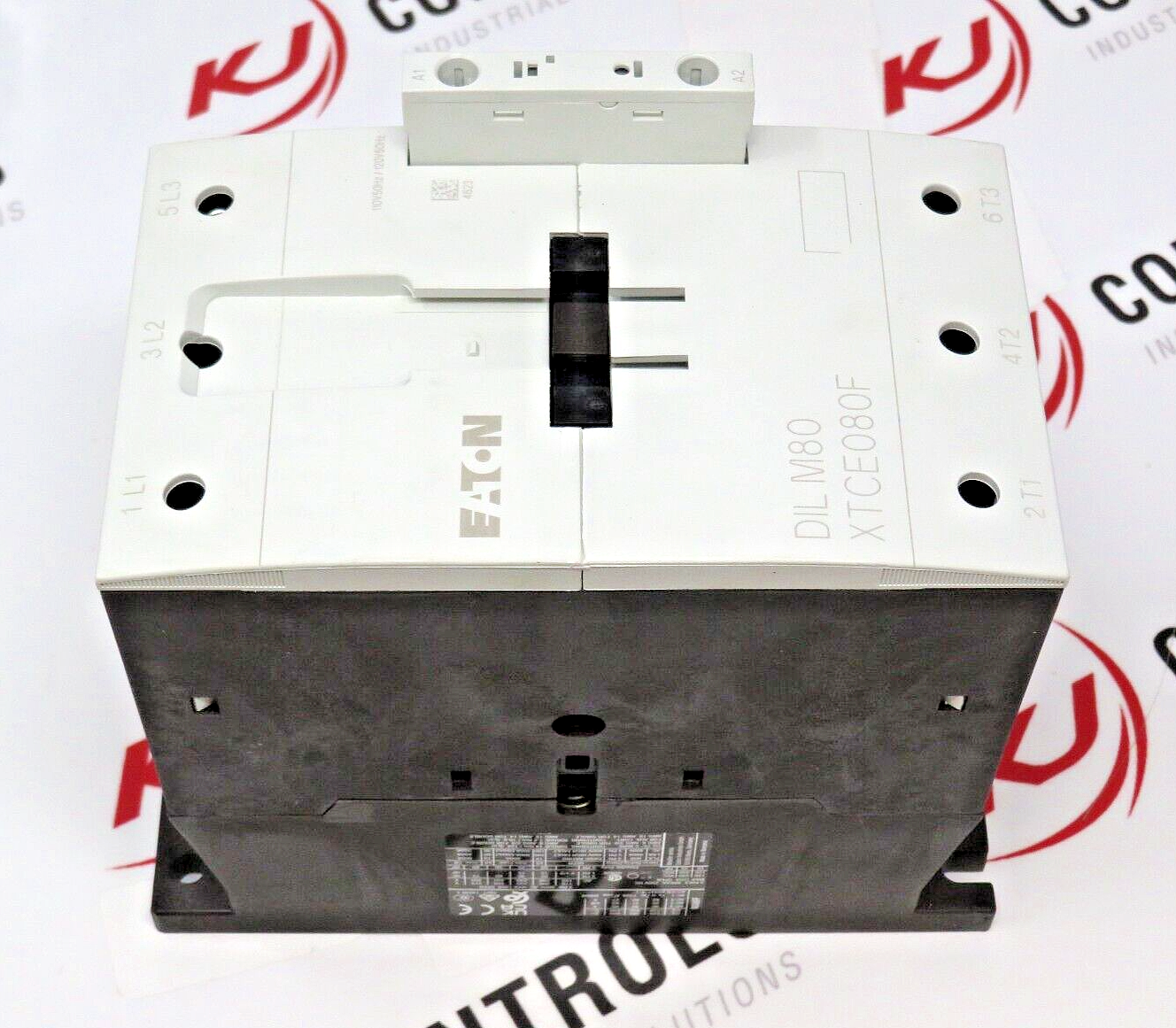

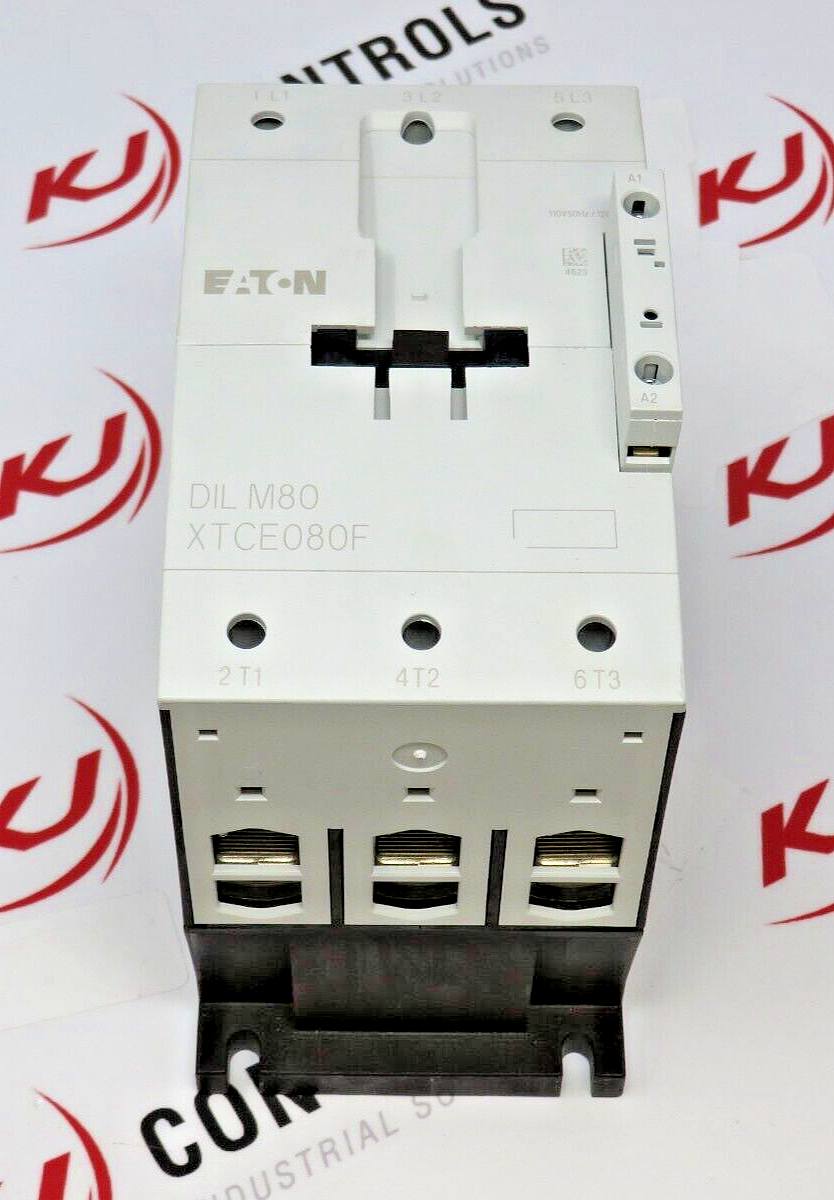

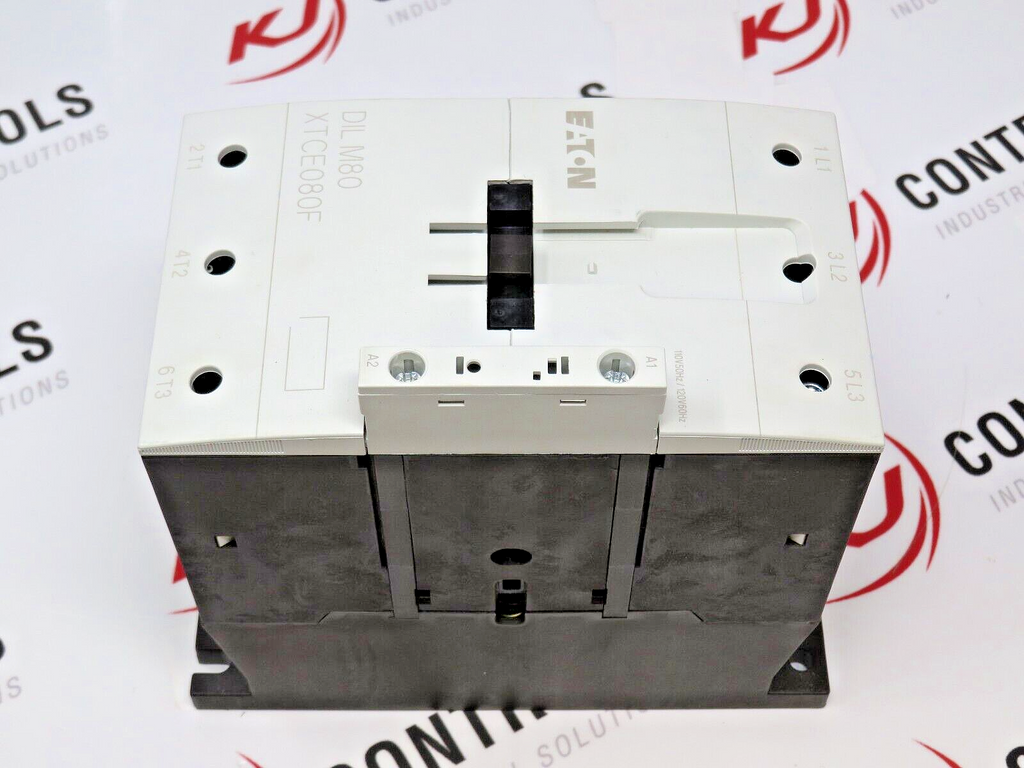

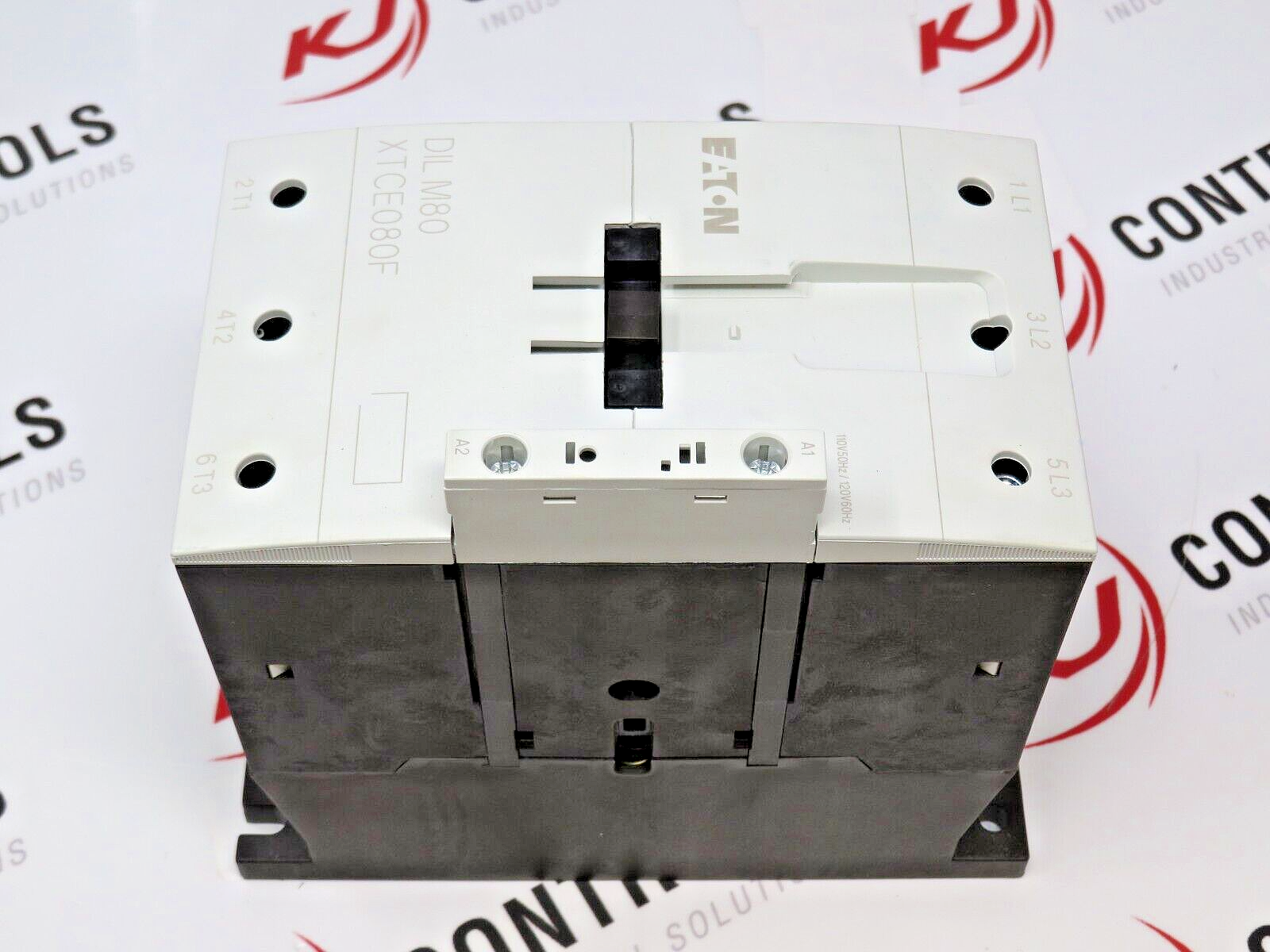

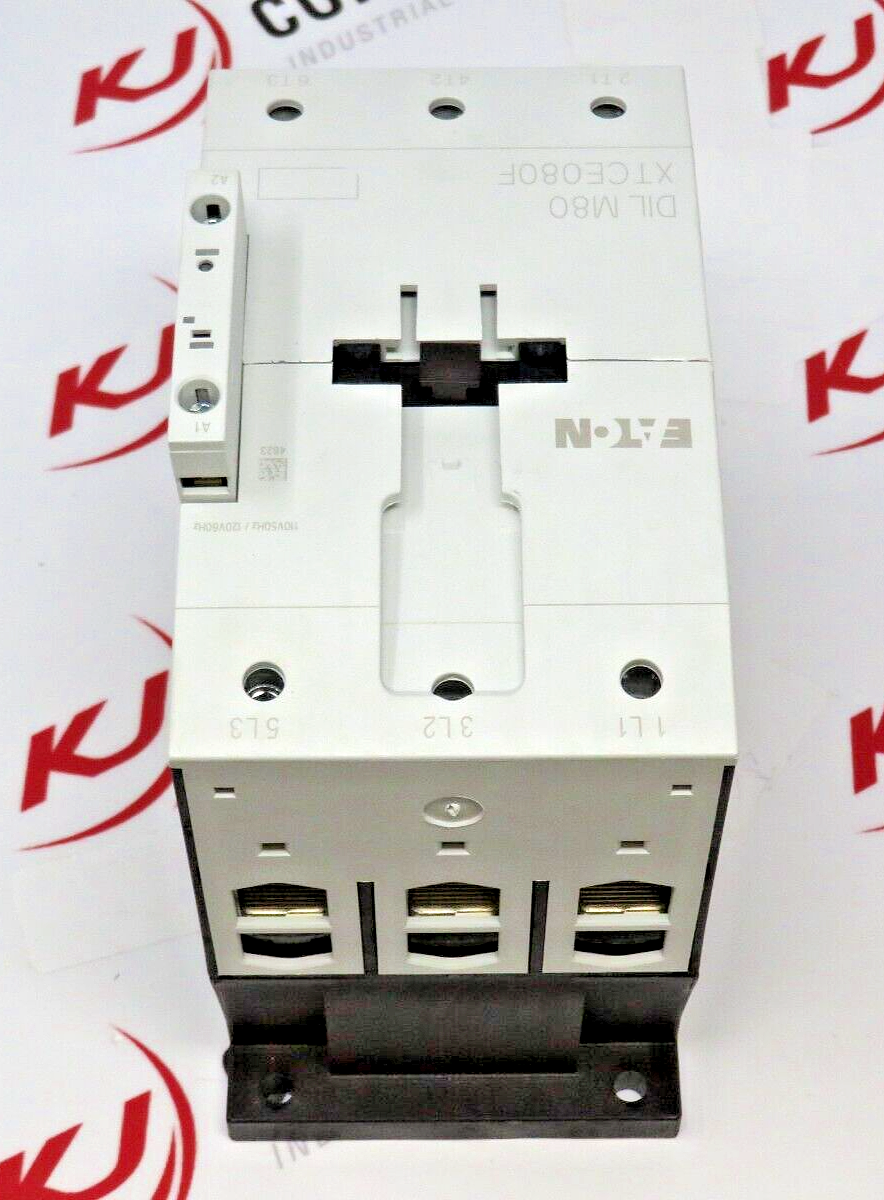

Eaton XTCE080F00A 3-Pole FVNR IEC Contactor 80A 110/120VAC Coil
Product Basic Information:

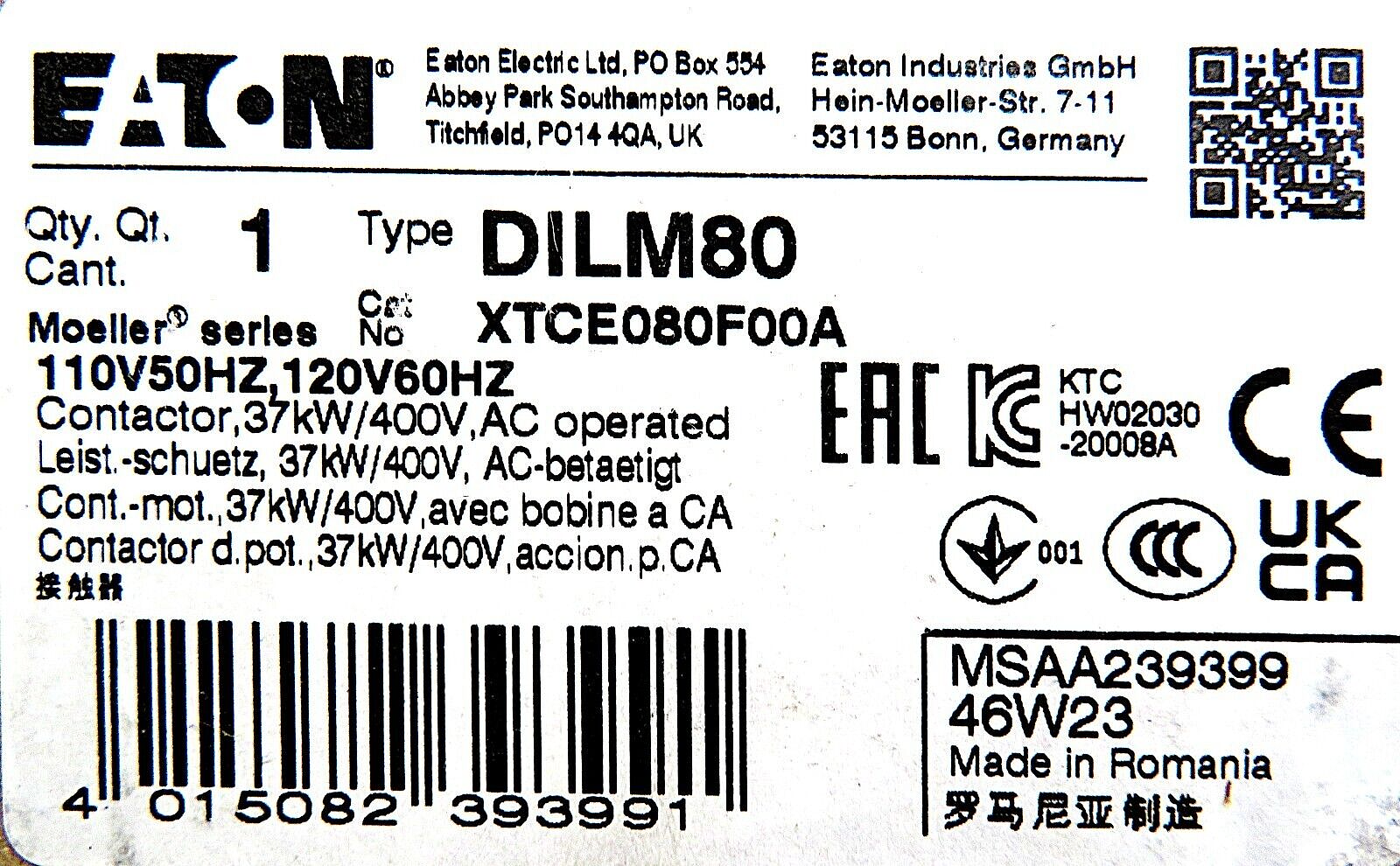

- Manufacturer: Eaton
- Catalog number: XTCE080F00A
- Type: DILM80
- Product family/series: XT IEC
- Product type: Full voltage non-reversing IEC contactor
- Country of origin: Romania
- HS customs code: 853649

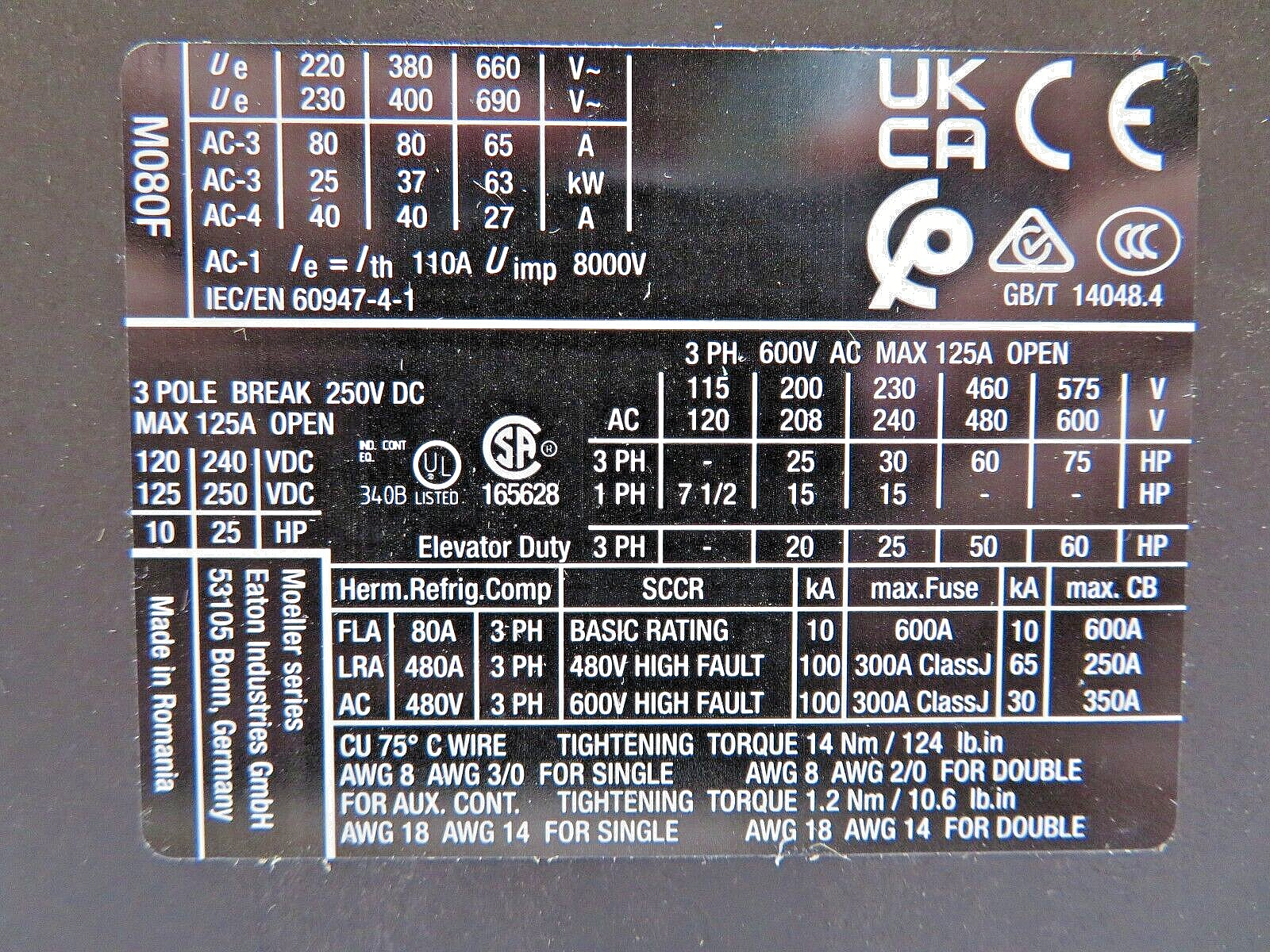

Technical Specifications:
- Contactor current rating: 80 A
- Number of poles: 3
- Auxiliary contact configuration: 0 NO 0 NC

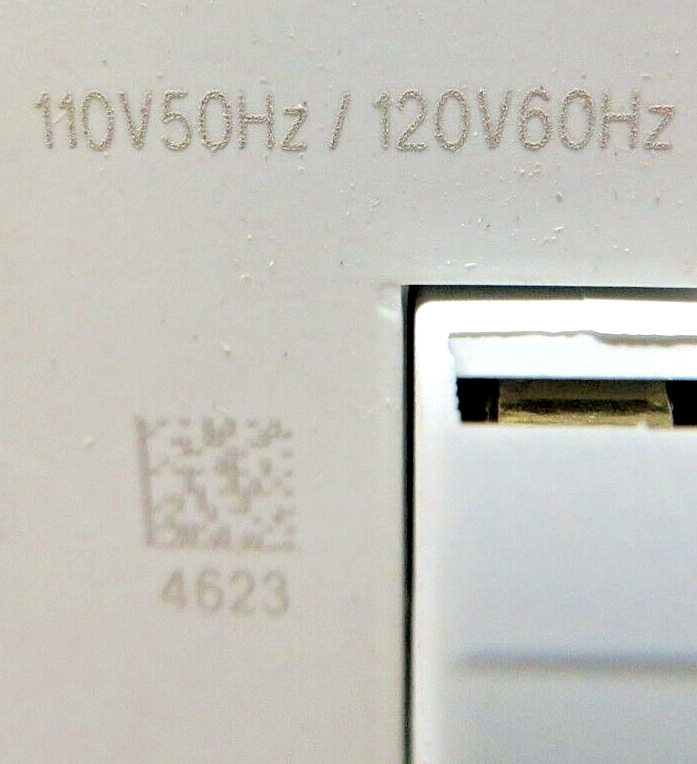

- Coil voltage: 110 VAC 50 Hz / 120 VAC 60 Hz
- Frequency rating: 50/60 Hz
- Operation: Non-reversing
- Operating type: AC operated
- Frame designation: F frame
- Frame size: 90 mm
- Terminal type: Screw terminals

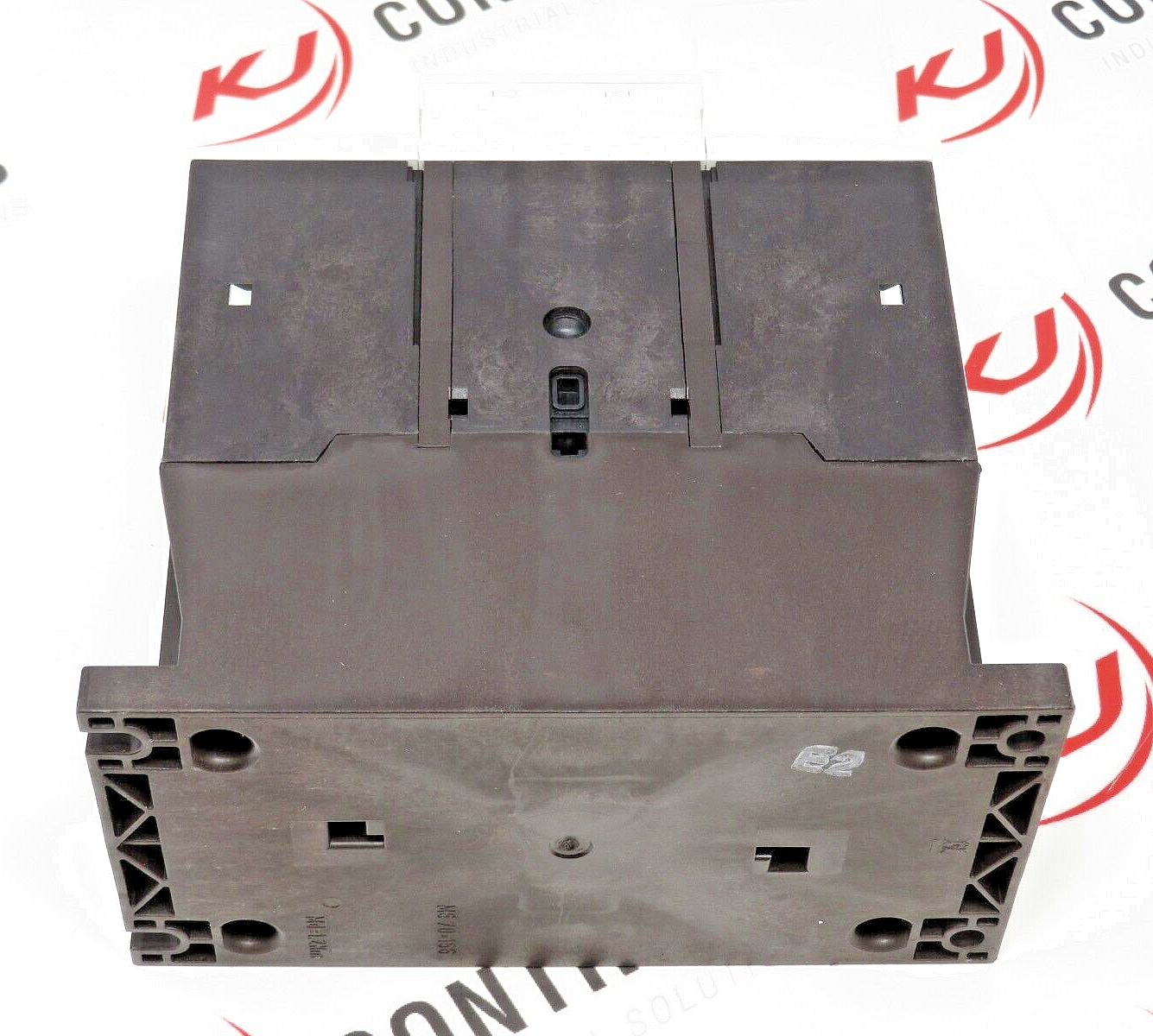

- Mounting type: DIN rail / panel mount
- Motor power rating: 37 kW at 400 VAC
- Horsepower rating: 30 hp at 230/240 VAC, 60 hp at 460/480 VAC, 75 hp at 575/600 VAC
- Thermal current: 110 A
Product Features:
- Compact XT IEC contactor for industrial motor control applications
- Full voltage non-reversing contactor design
- Open 3 pole contactor with no built in auxiliary contacts
- AC operated coil for 110/120 VAC control circuits
- Screw terminal connections for secure wiring
- Suitable for DIN rail or panel mounting
- Industrial-rated construction for OEM and control panel use
Product Designed Use:
- Designed for switching and control of three-phase motors in industrial automation systems
- Used in motor starters, control panels, machinery, pumps, fans, conveyors, and compressor applications
- Suitable for full voltage non-reversing motor control circuits
