Eaton IEC Motor Control Device
- Part Number: XTPR058DC1
- Product Series: Eaton XT IEC Power Control Family
- Lifecycle status: ACTIVE
Technical Specifications:
- Product Name: Eaton XT IEC motor control
- Catalog Number: XTPR058DC1
- EAN: 4015081548439
- Product Length/Depth: 2.5 in
- Product Height: 6 in
- Product Width: 6.5 in
- Product Weight: 2.5 lb
- Certifications: UL 508, CSA Std. C22.2
- Type: Rotary
- Size: 55 mm
- Amperage Rating: 58A
- Trip type: Class 10
- Current Rating: 58 A
- Power Rating: 55 kW
- Voltage Rating (AC): 690 V
- Voltage Rating (DC): 250 V
Product Features:

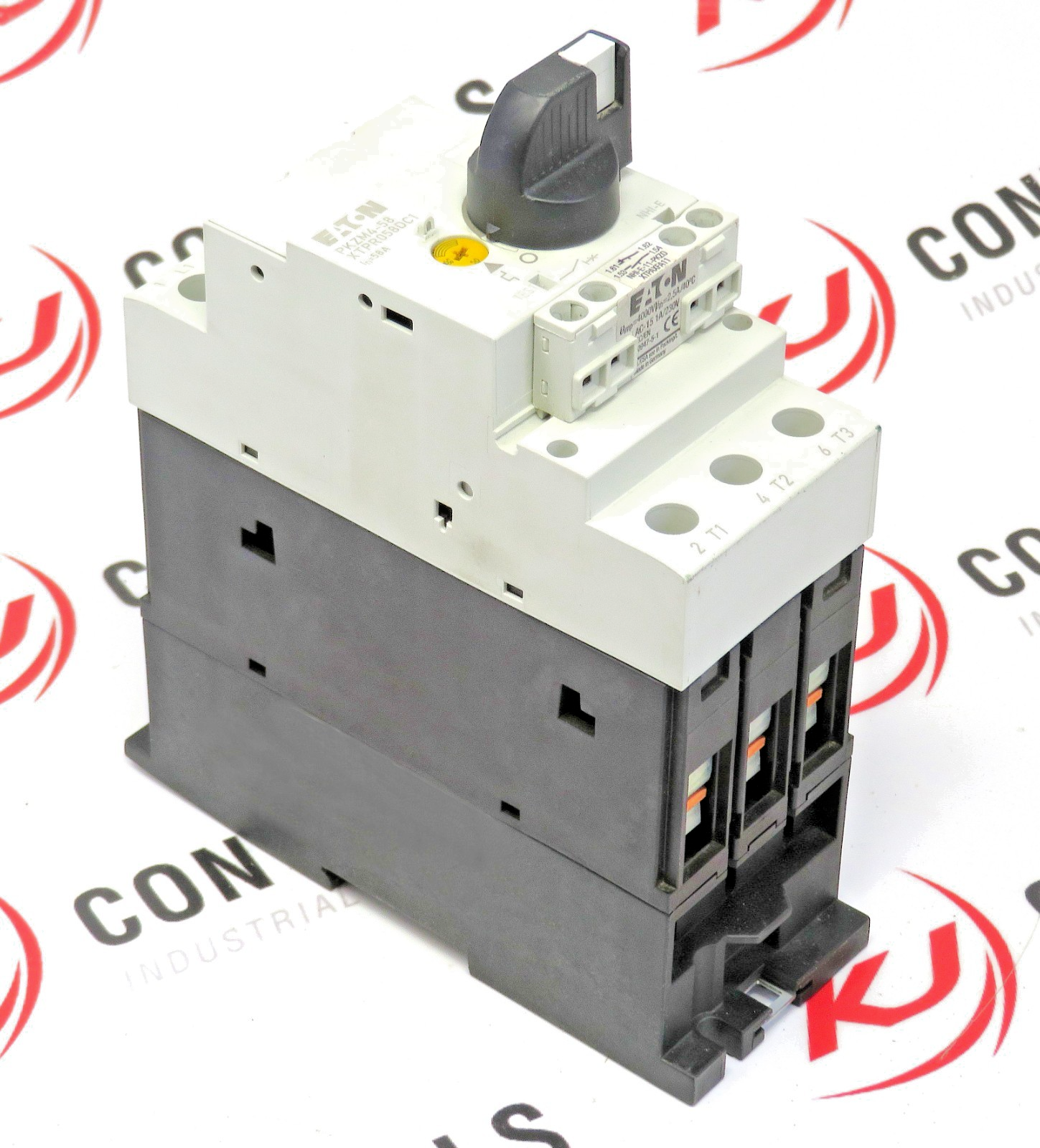

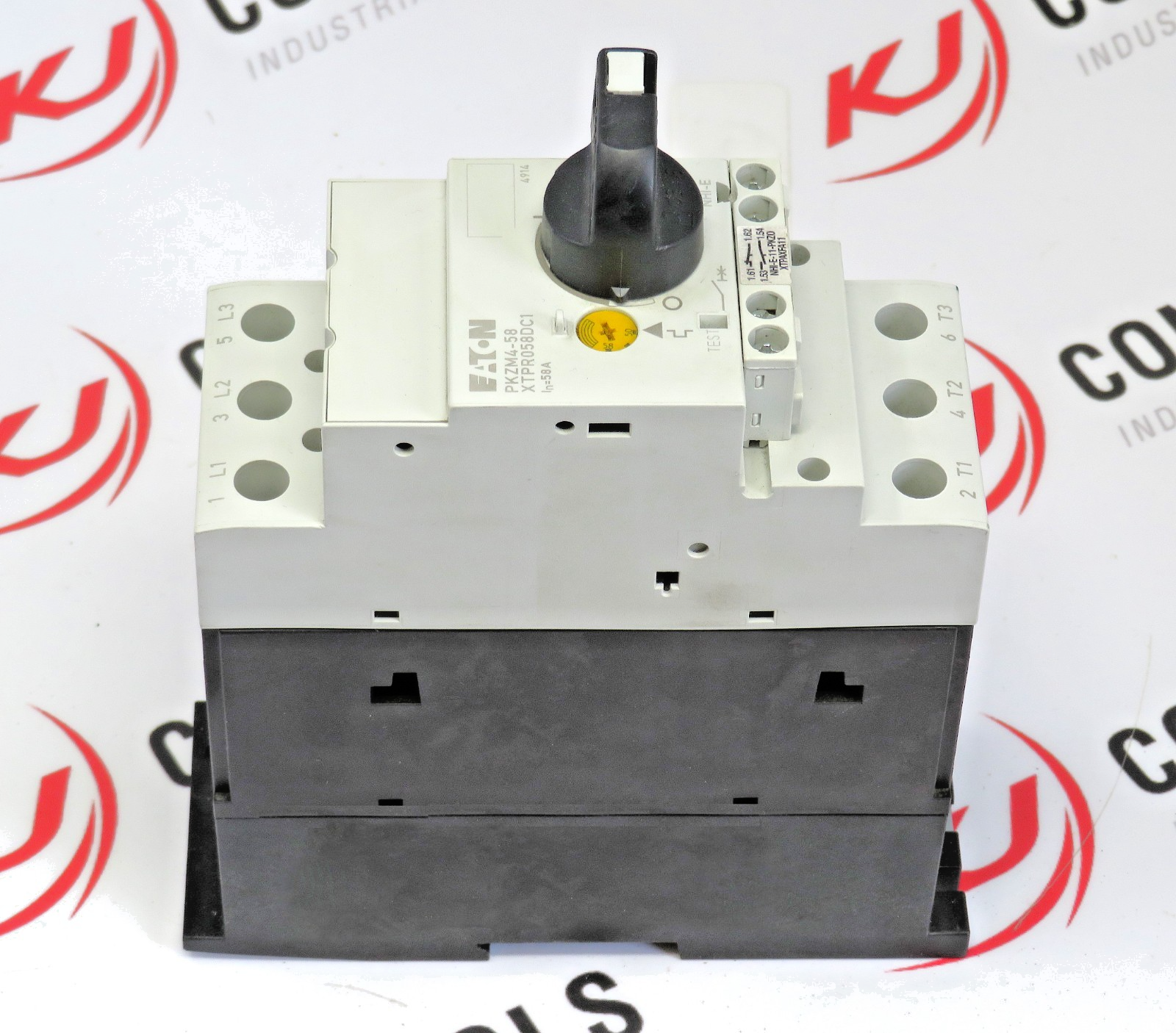

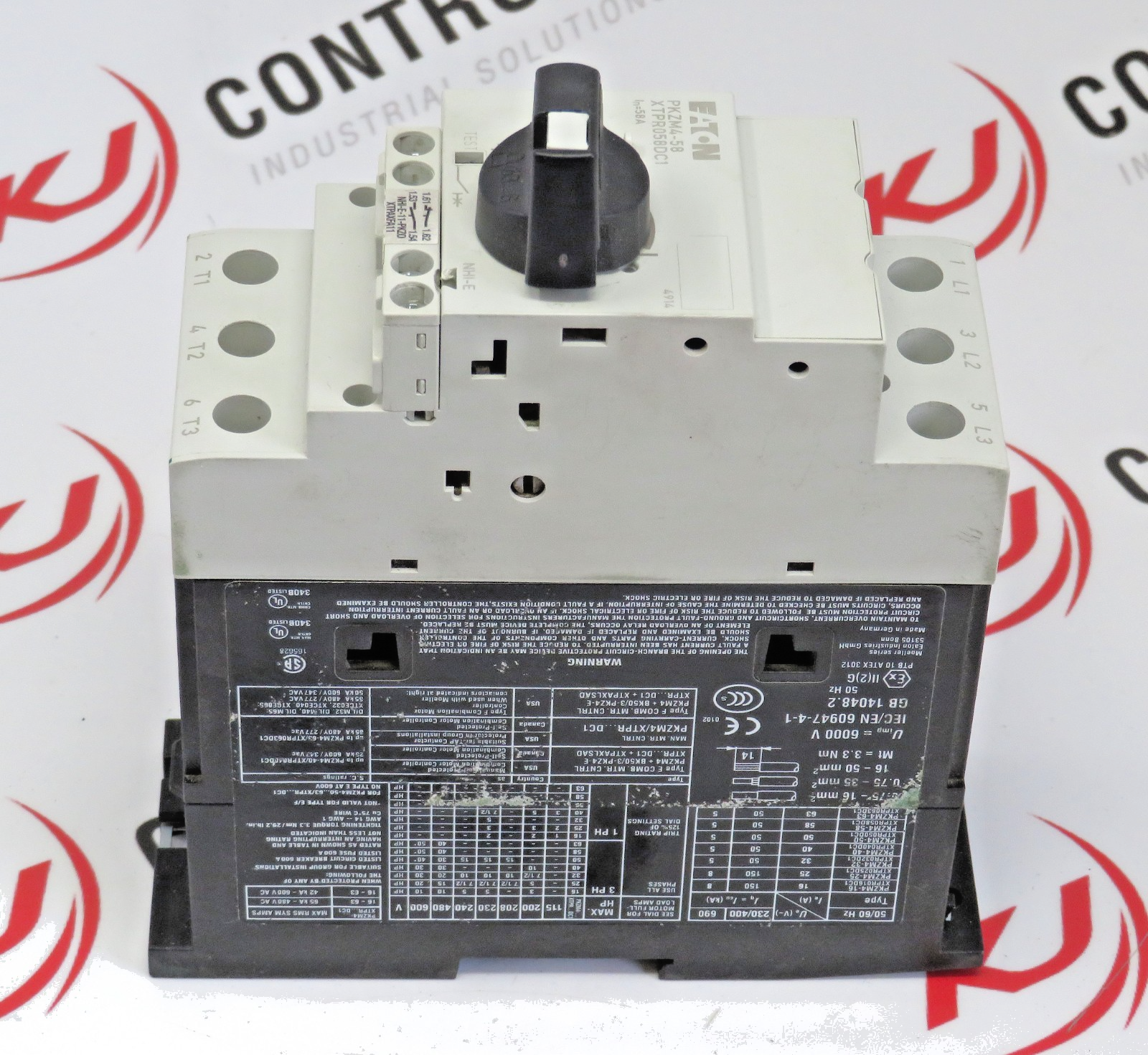

- The XTPR058DC1 is a rotary manual motor protector with a 55mm frame and class 10 trip.
- It features a pushbutton or rotary ON/OFF manual disconnect, Class 10 adjustable bimetallic overload relay, and fixed magnetic short circuit trip capability in one compact unit.
- It is UL listed under UL 508 as a manual motor protector.
- It provides an economical solution for applications requiring simple manual starting and stopping of motors.
- When used as an MMP, it is typically installed in an enclosure.
- Separate short-circuit protective devices, such as circuit breakers or fuses, are wired ahead of the MMP.
- The short-circuit protective device should be sized per the NEC code and should not exceed 400% of the maximum FLA dial setting of the MMP
