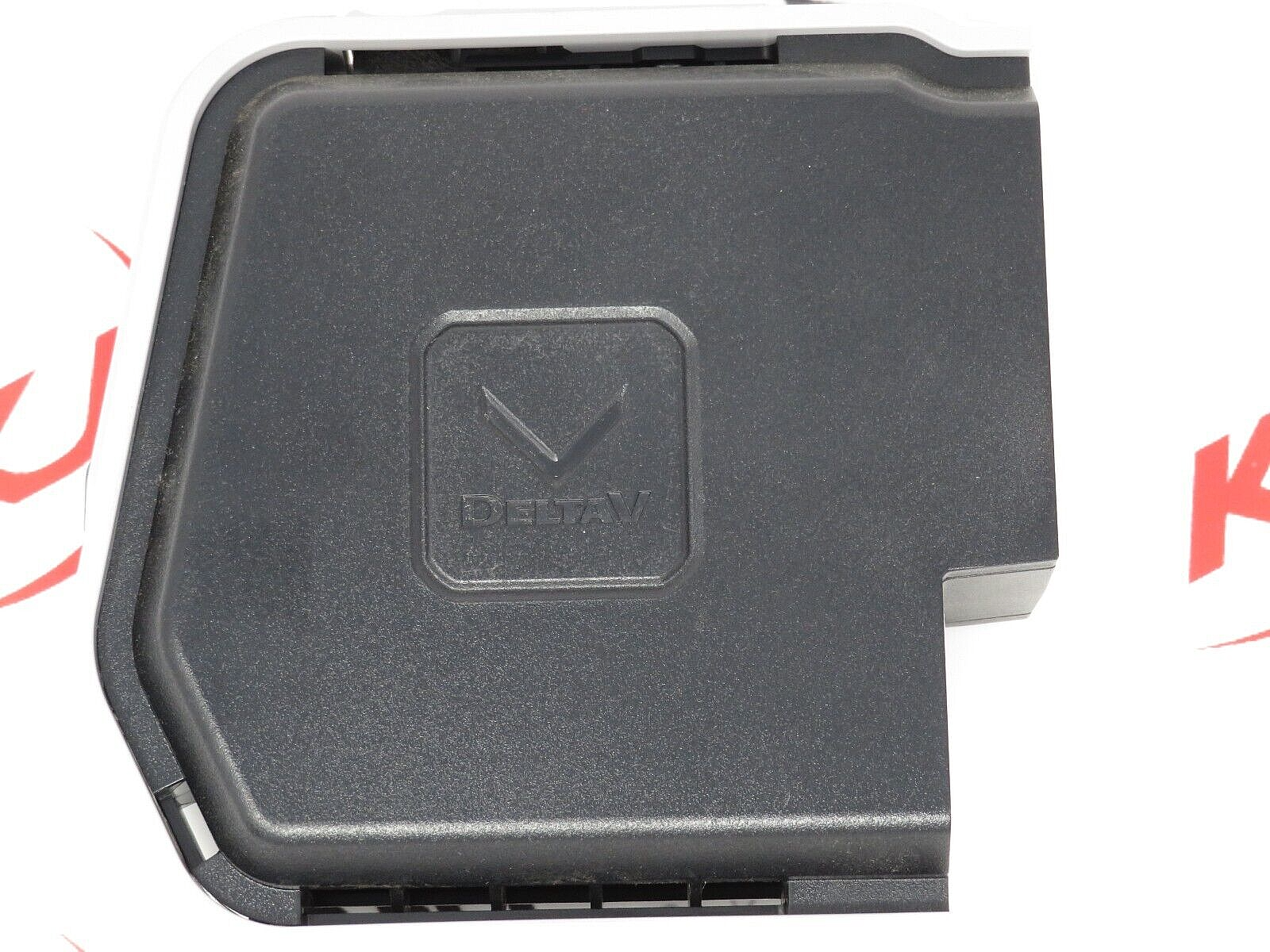

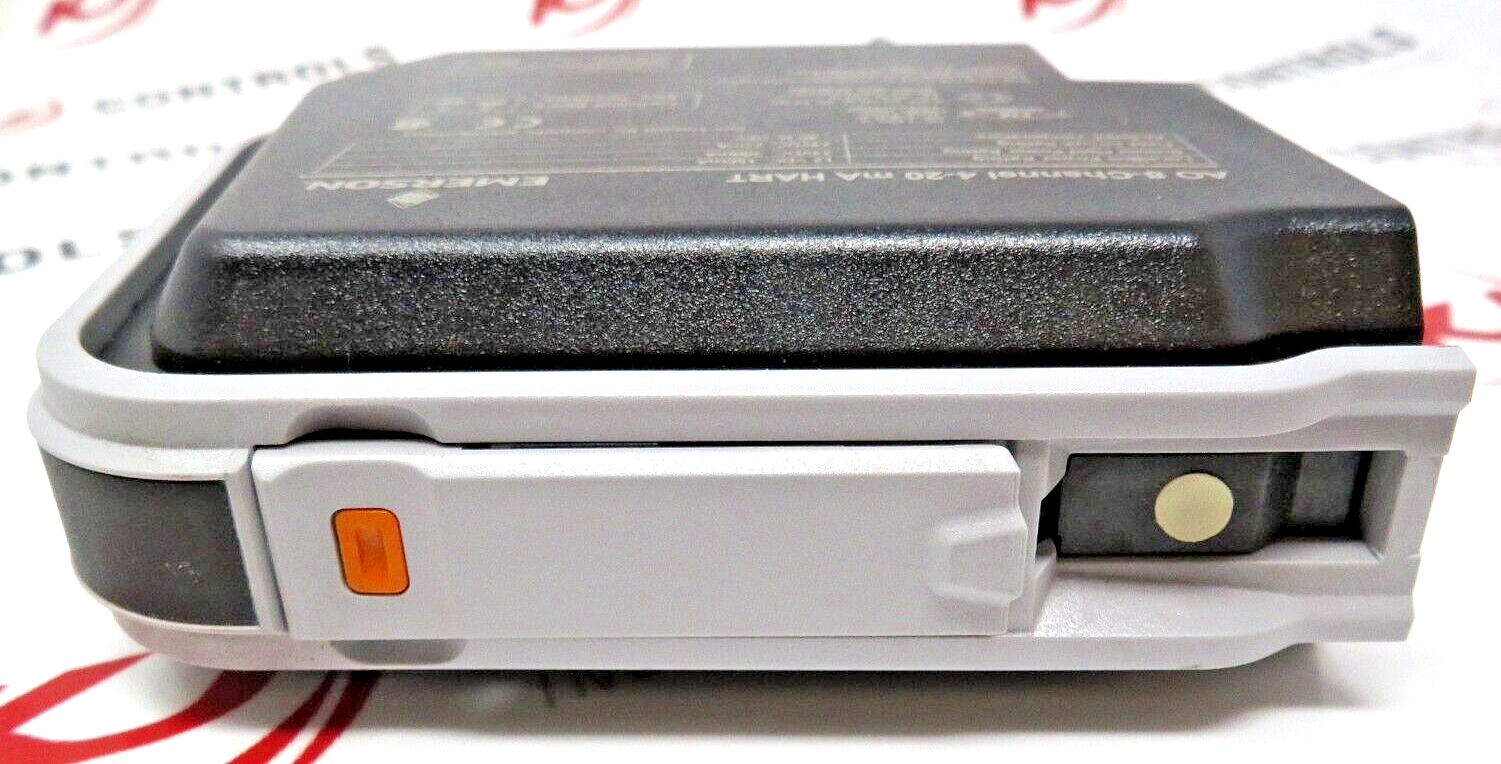

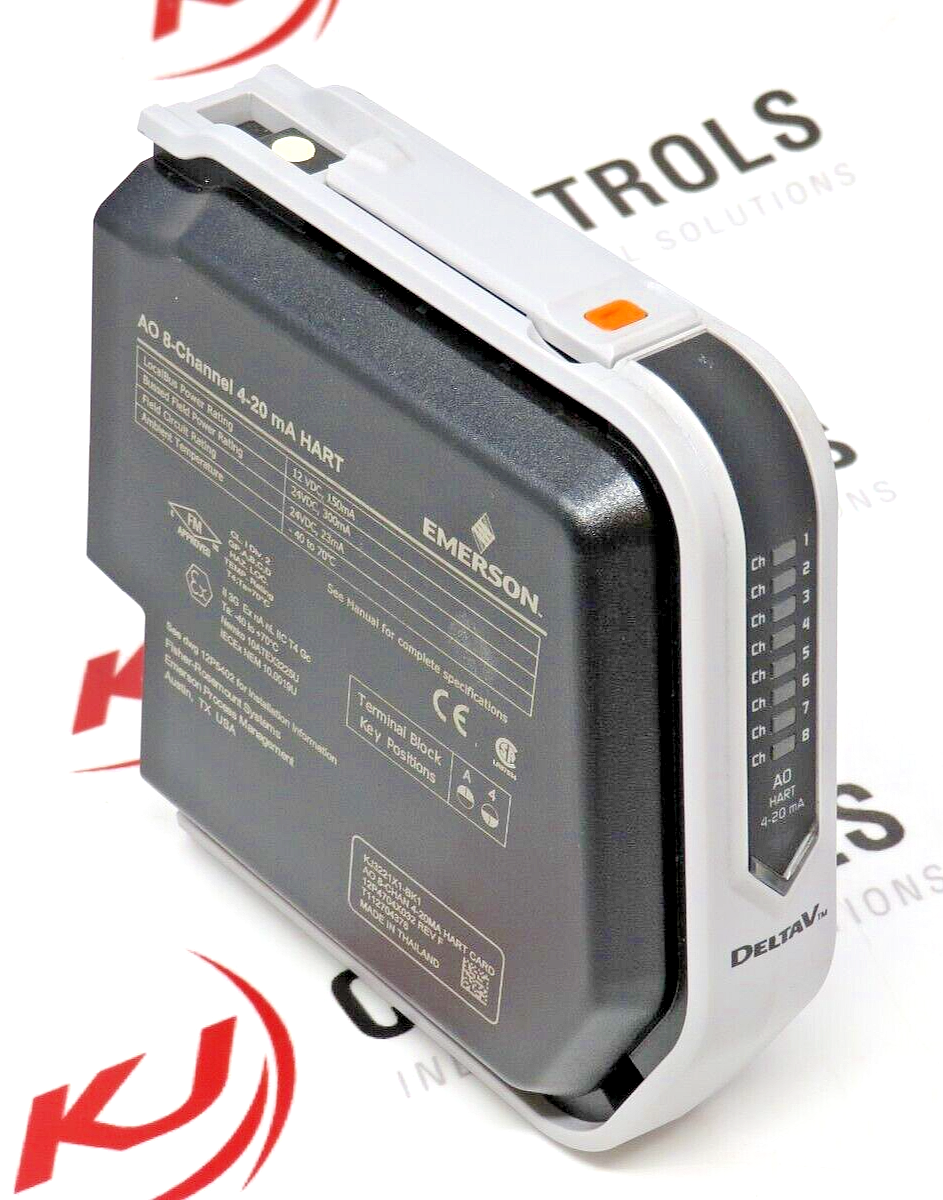

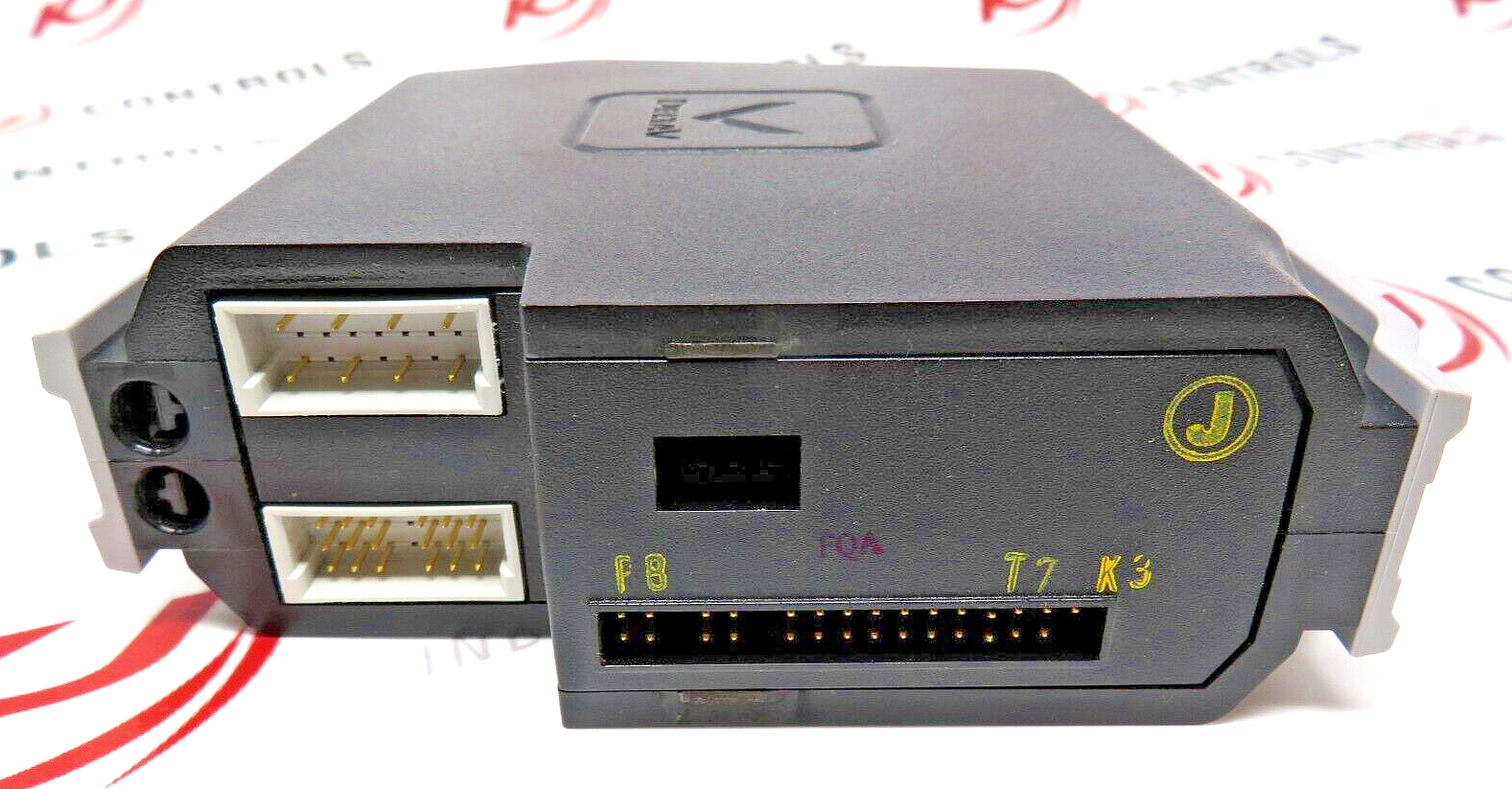

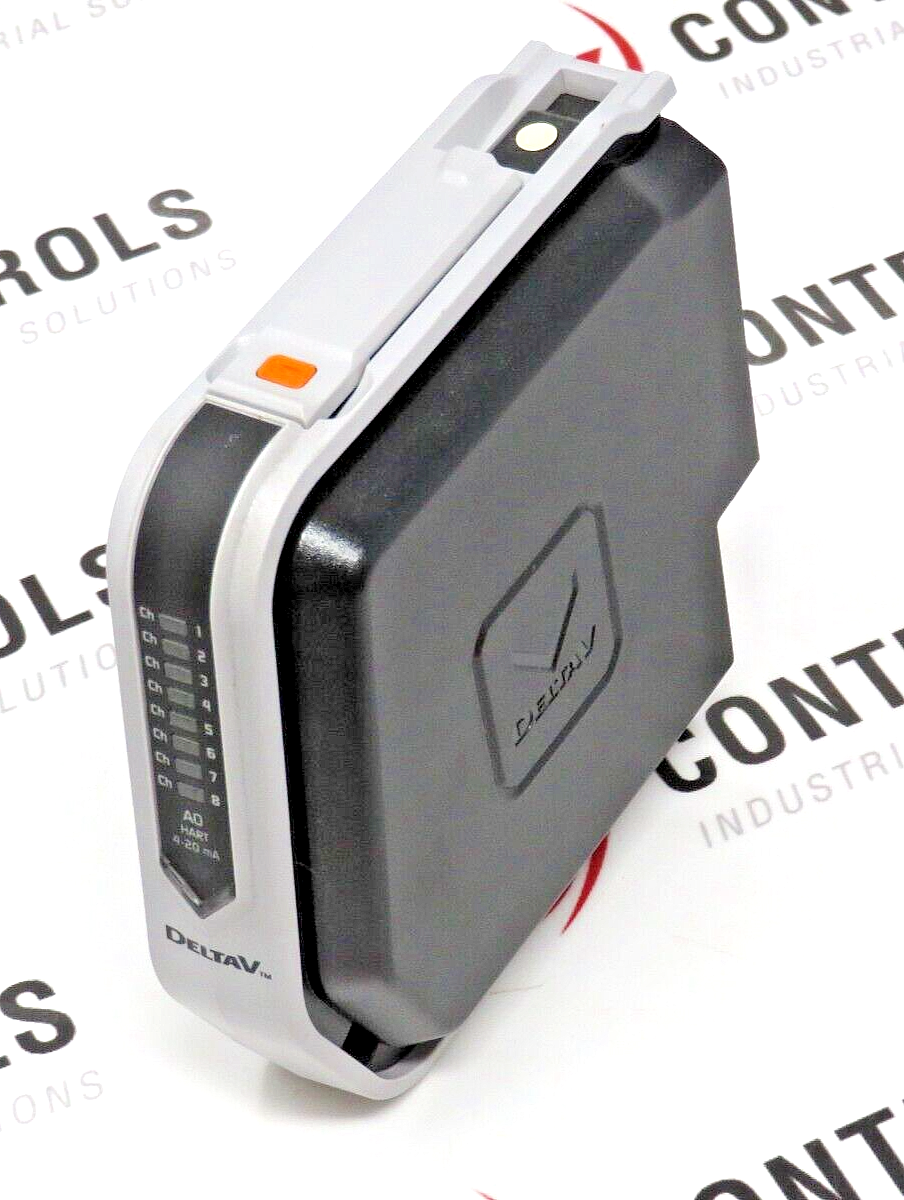

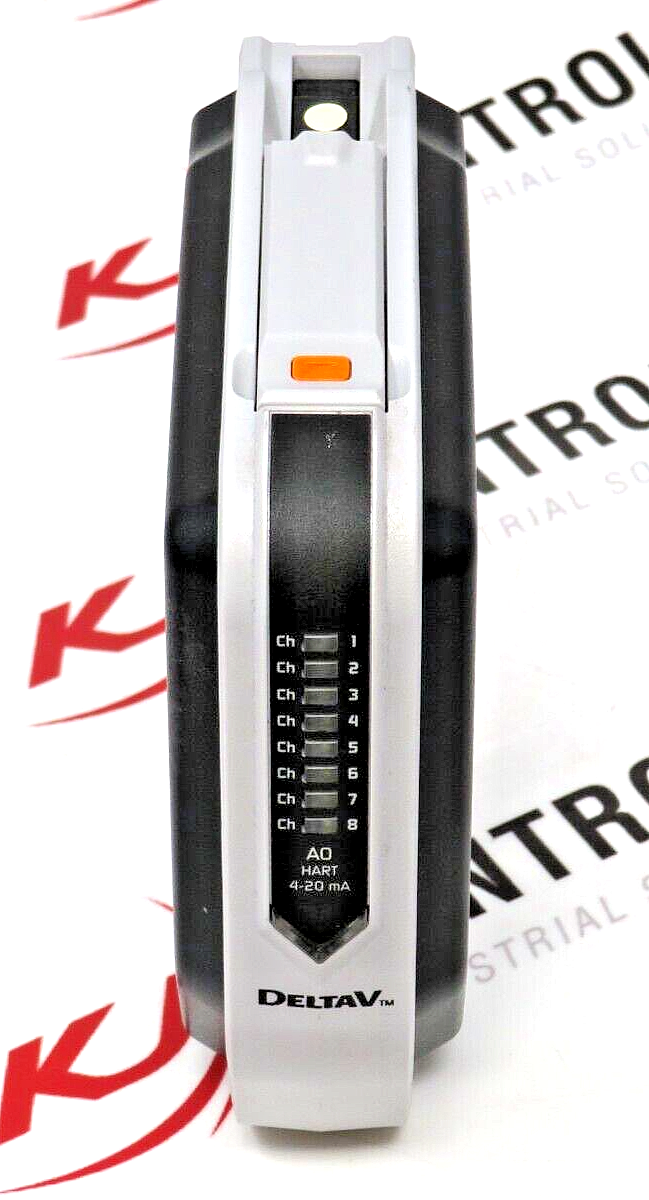

Emerson DeltaV KJ3221X1-BK1 S-Series HART 8-Channel Analog Output Module
Product Basic Information:
- Manufacturer: Emerson
- Brand: DeltaV

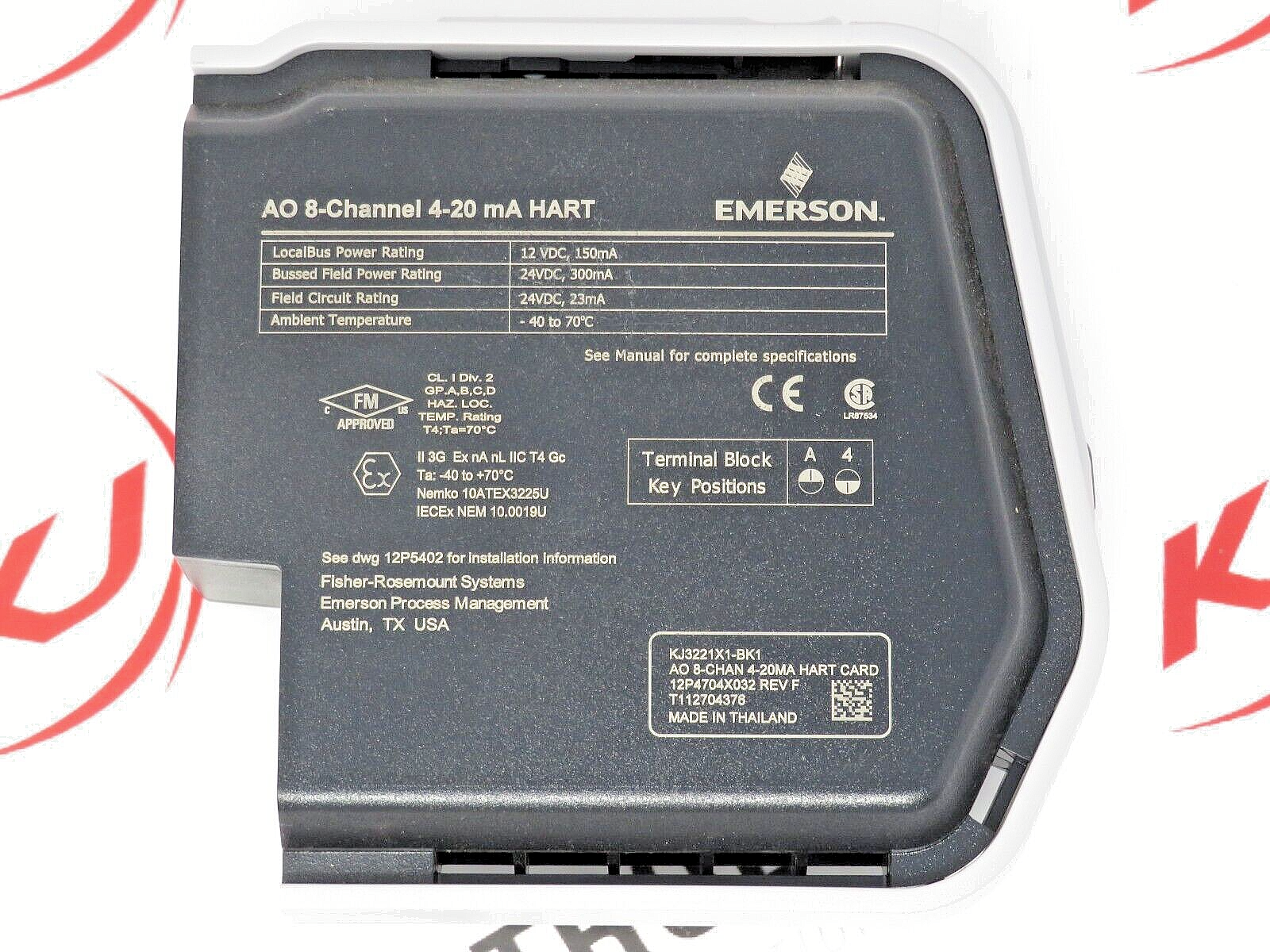

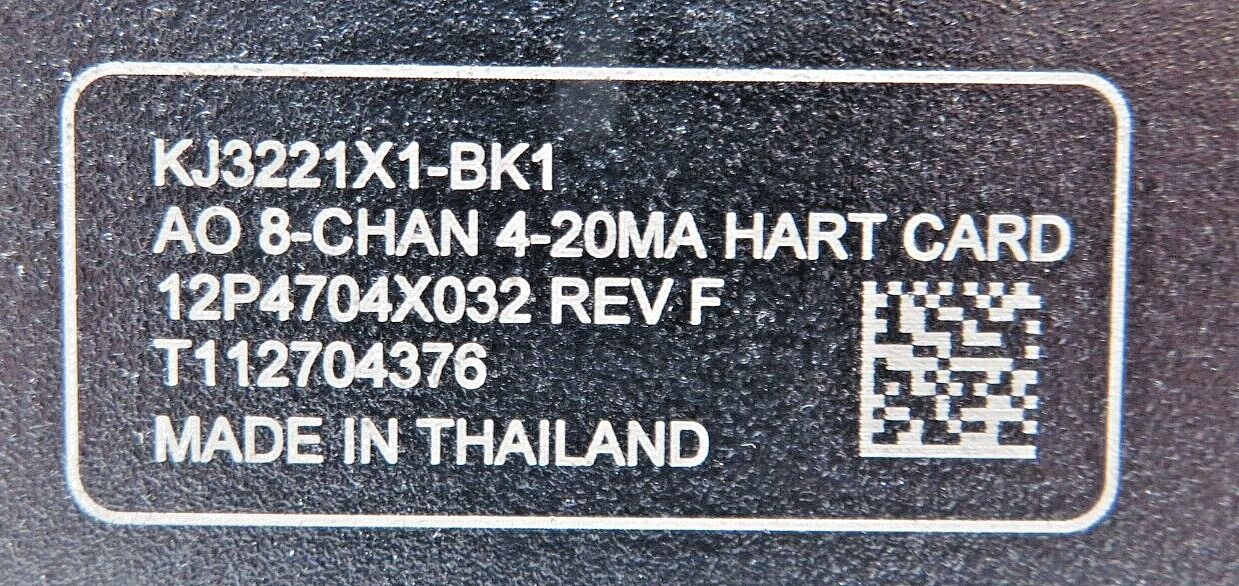

- Catalog number: KJ3221X1-BK1
- Alternate part numbers: KJ3221X1BK1
- Product family/series: DeltaV S-series Traditional I O

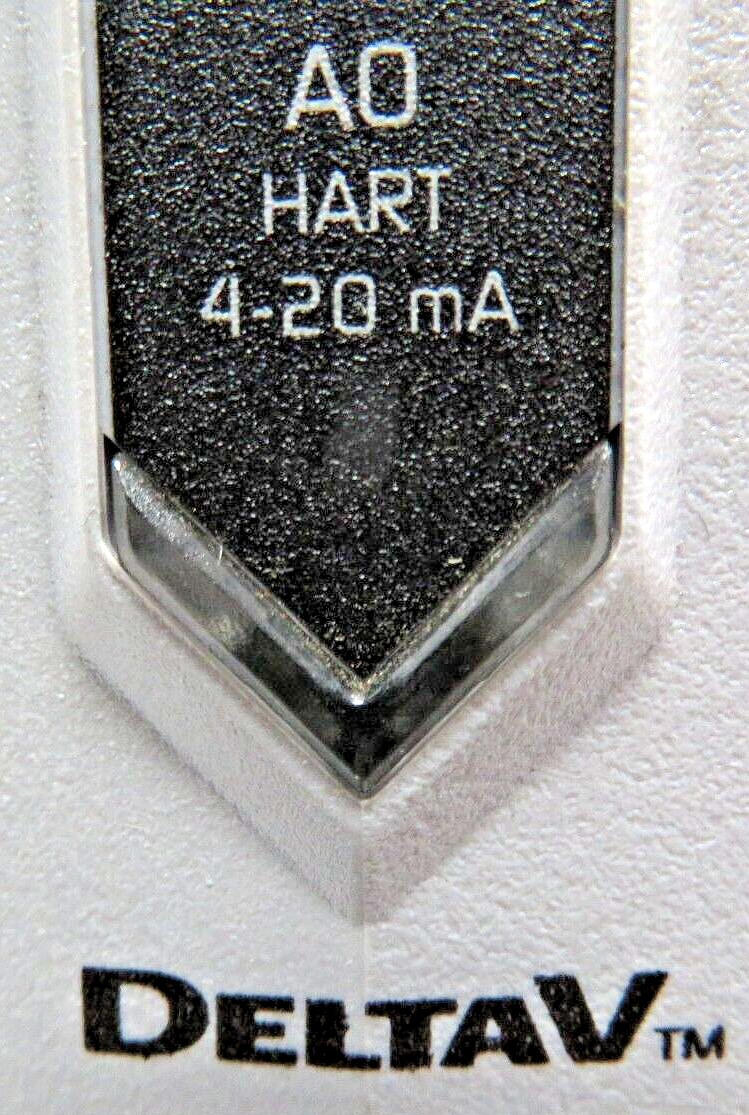

- Product type: AO 4-20 mA HART 8-channel card
- Country of origin: Thailand
Technical Specifications:
- Module type: Analog output card

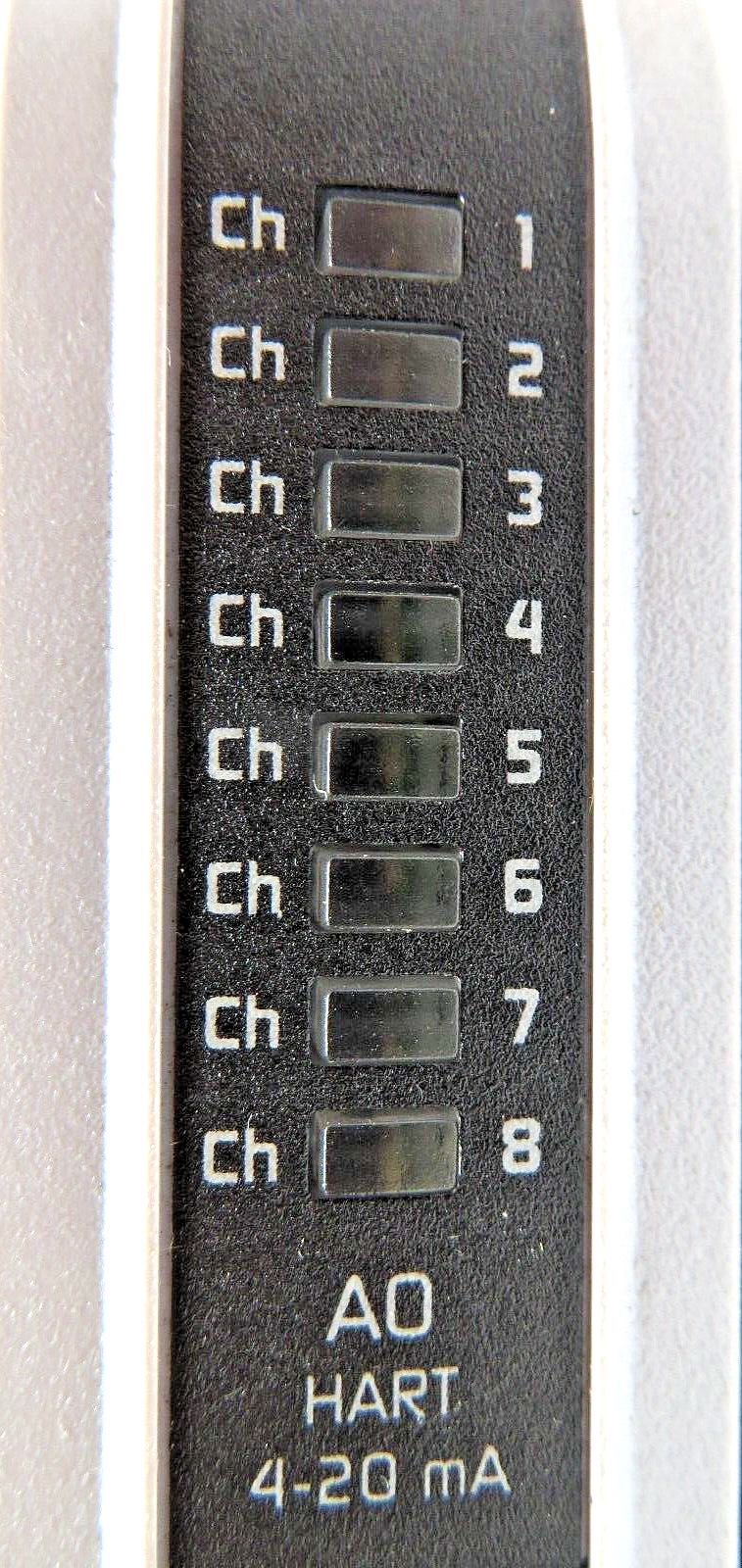

- Number of channels: 8
- Device types: 4 to 20 mA
- Full signal range: 1 to 23 mA
- Resolution: 14-bit D A converter

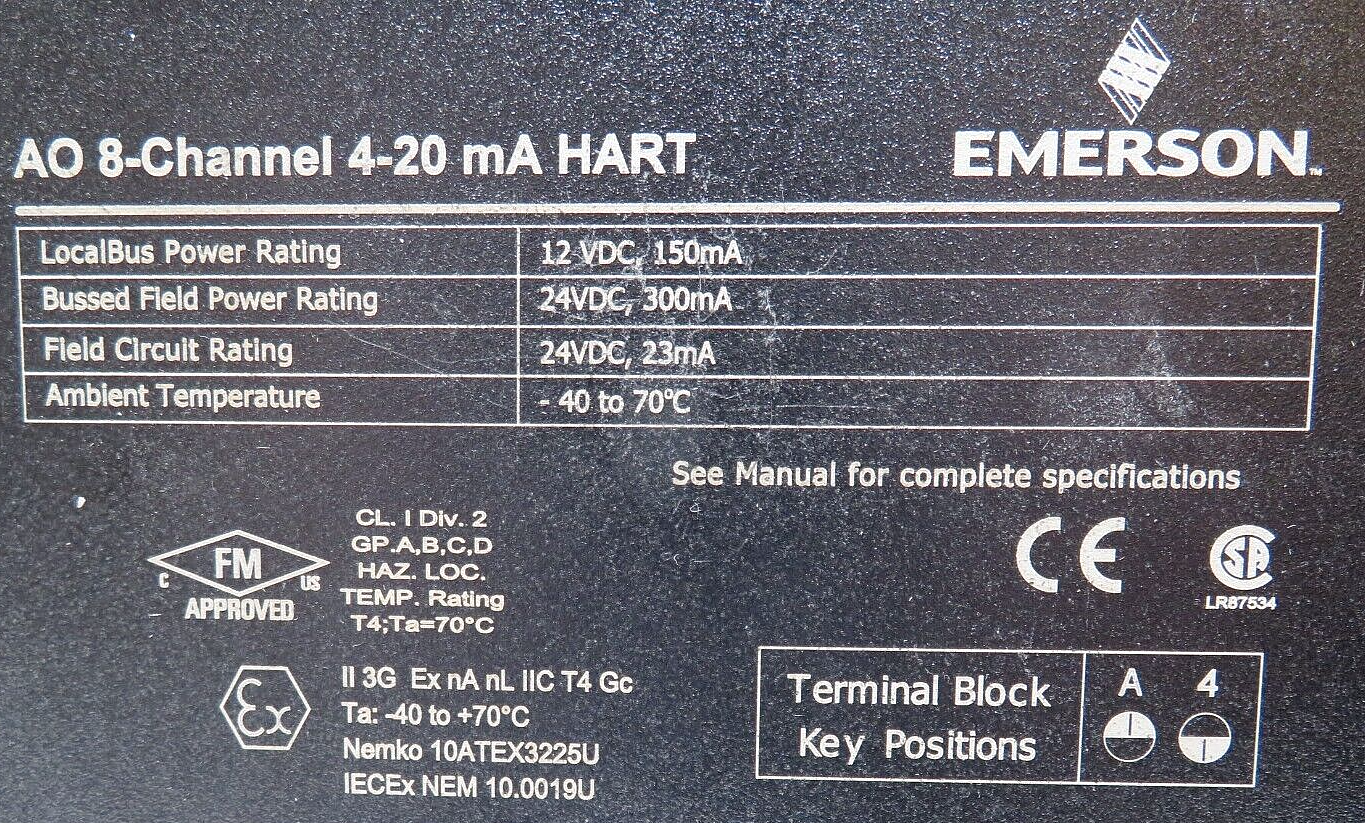

- Bussed field power: 24 VDC at 300 mA
- Isolation: Each channel is optically isolated from the system and factory tested to 1500 VDC
- Optional fuse: 2.0 A terminal block option
- HART scan time: 600 to 800 ms typical per enabled channel
- Protection rating: IP20
Product Features:
- Provides 8-channel analog output for DeltaV S-series systems
- Supports HART pass-through for AMS Device Manager
- Supports HART variable and status reporting for control functions
- Channel isolation helps maintain signal integrity
- Optional fused terminal block support
- Plug-and-play installation with keyed terminal block compatibility
- No calibration required
- Designed for use in hazardous and non-hazardous installations when installed per Emerson instructions
Product Designed Use:
- Designed to provide 4 to 20 mA analog output signals in Emerson DeltaV control systems
- Used with HART-enabled field devices such as valve positioners, actuators, and smart process instruments
- Suitable for process control applications requiring analog output and device communication
- Intended for use in compatible DeltaV S-series Traditional I O installations
