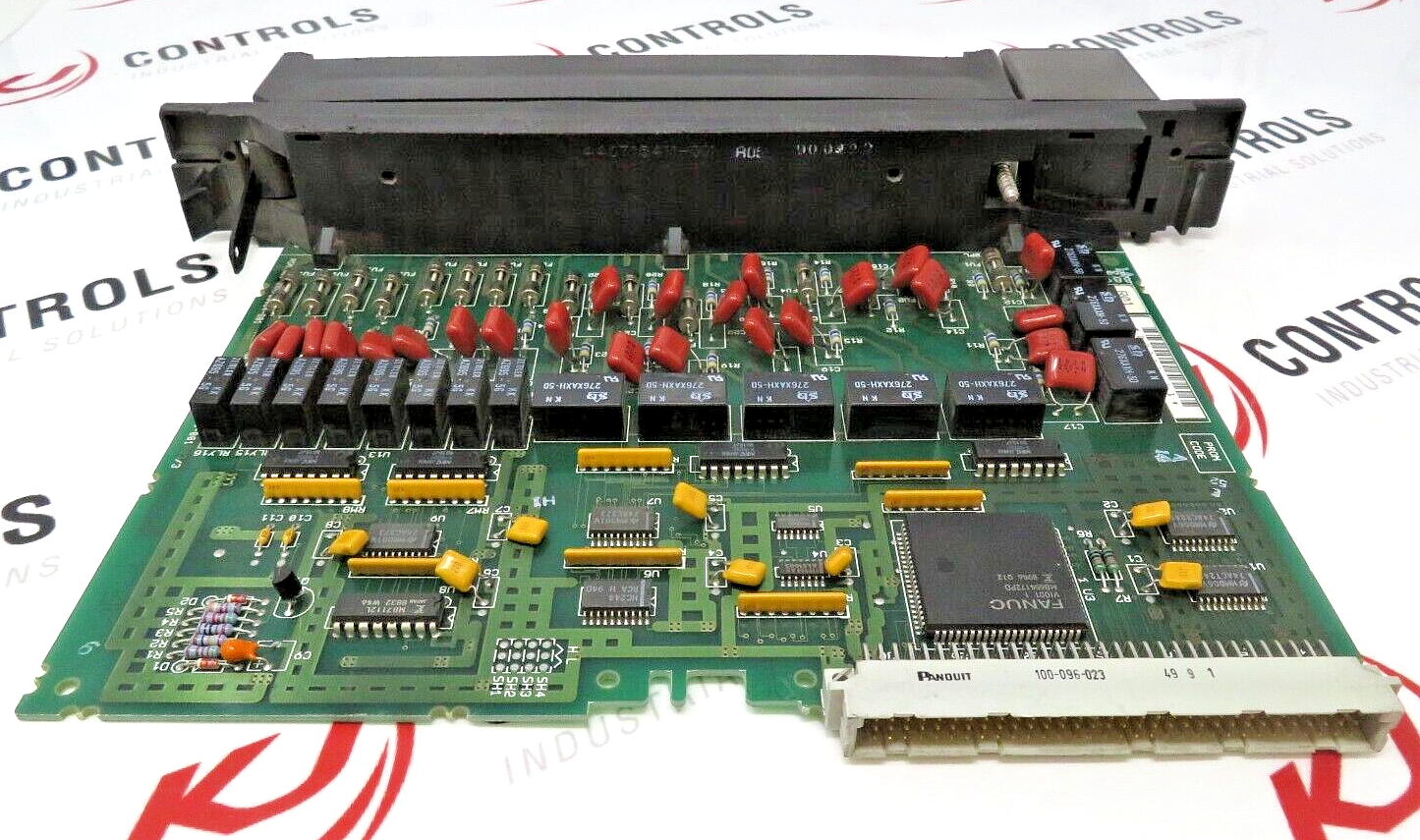

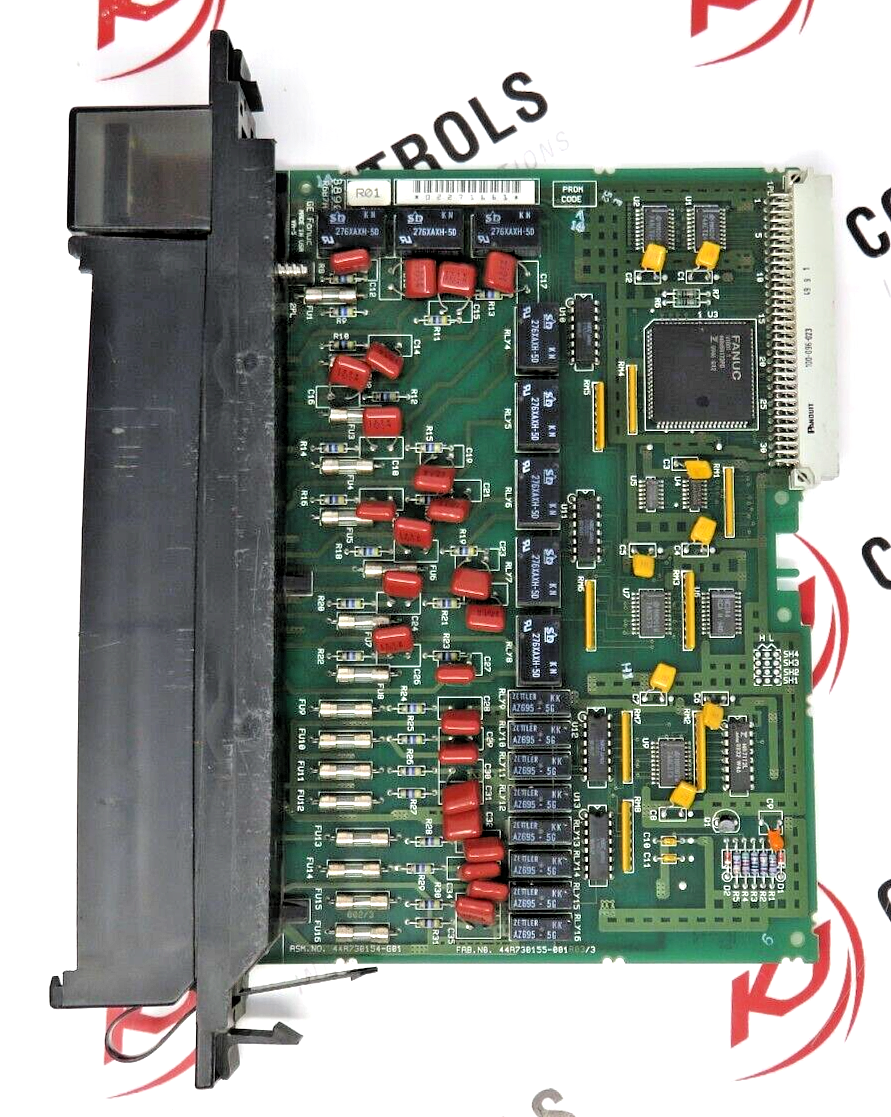

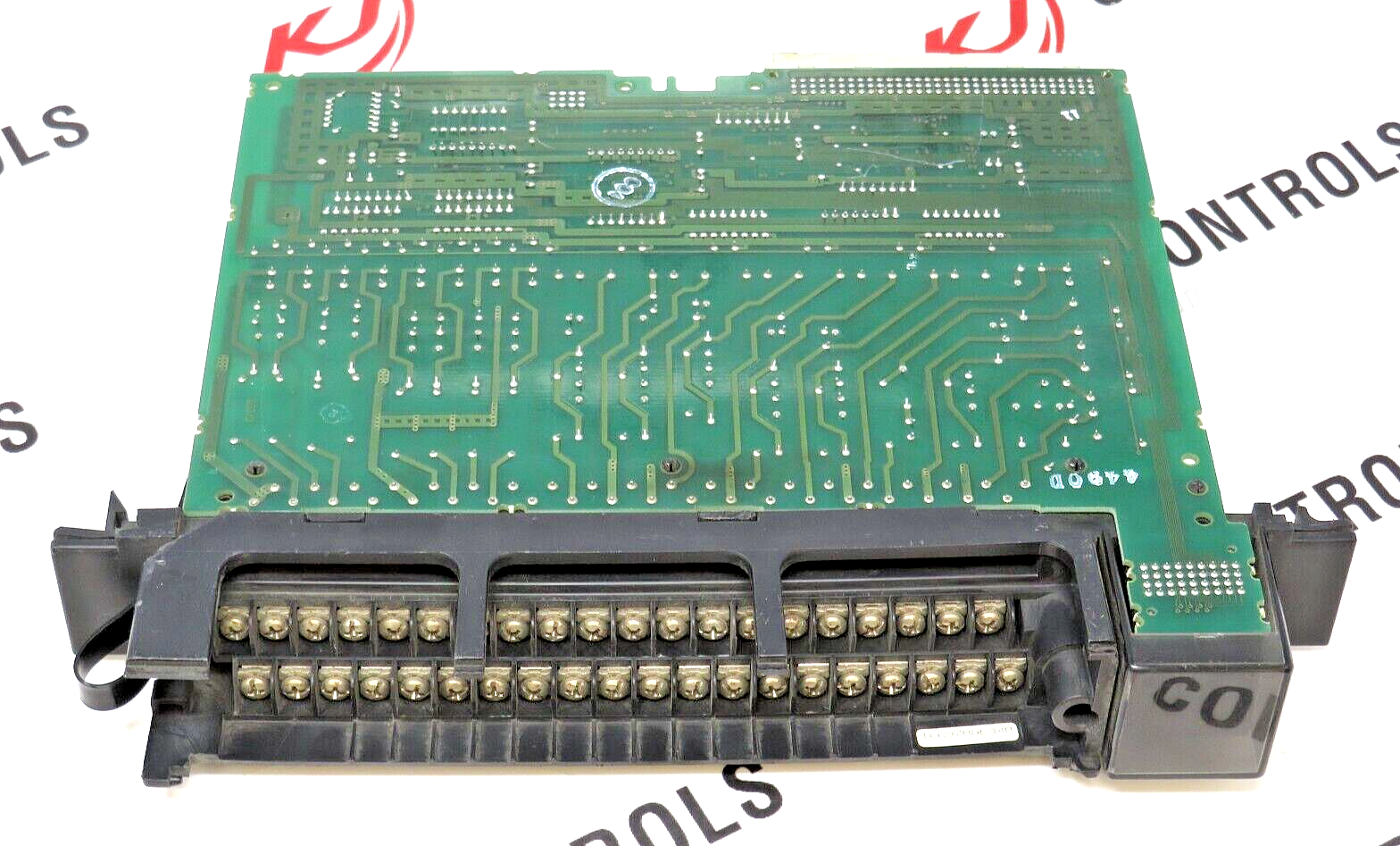

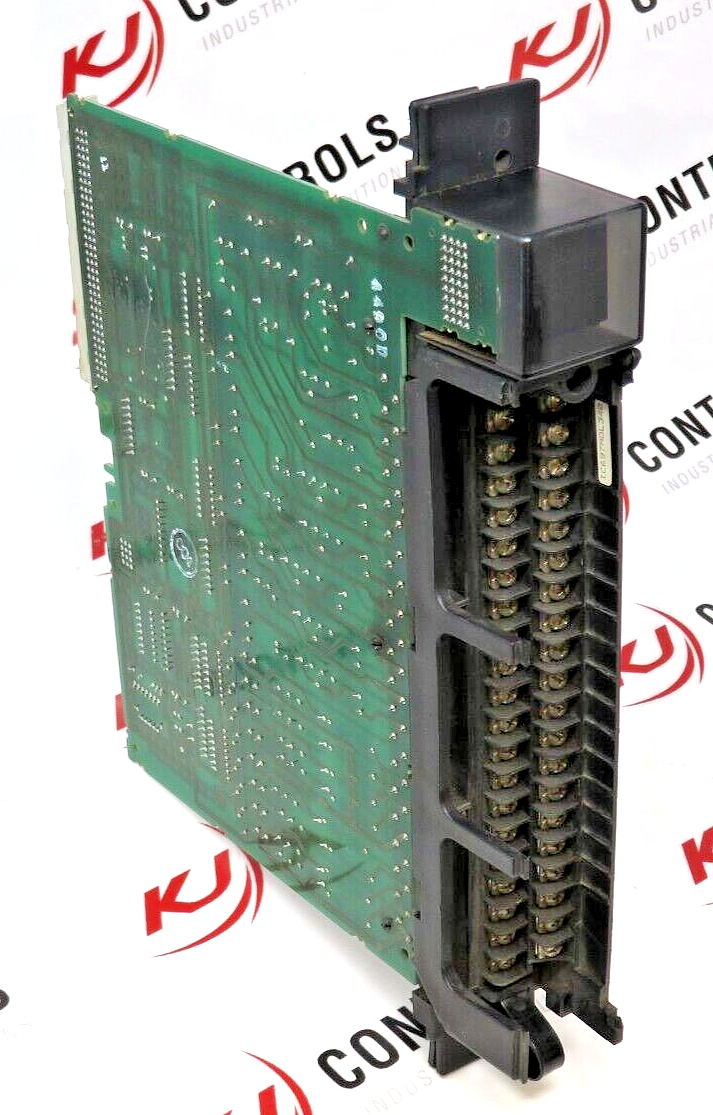

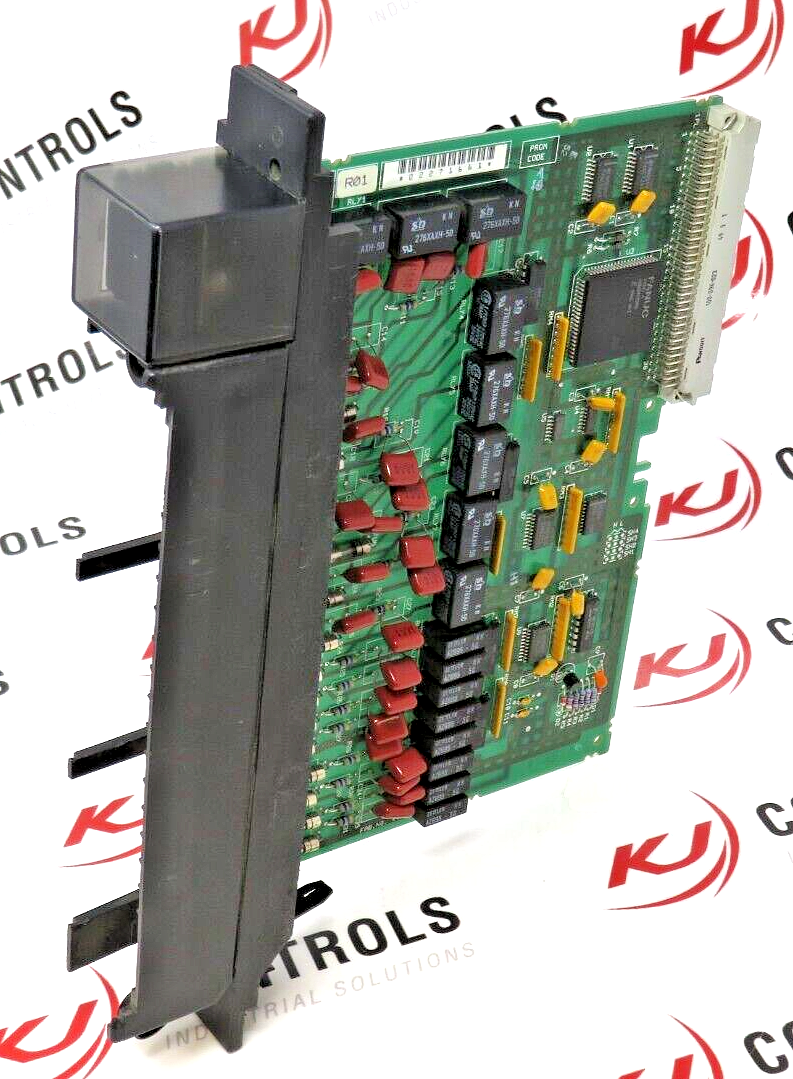

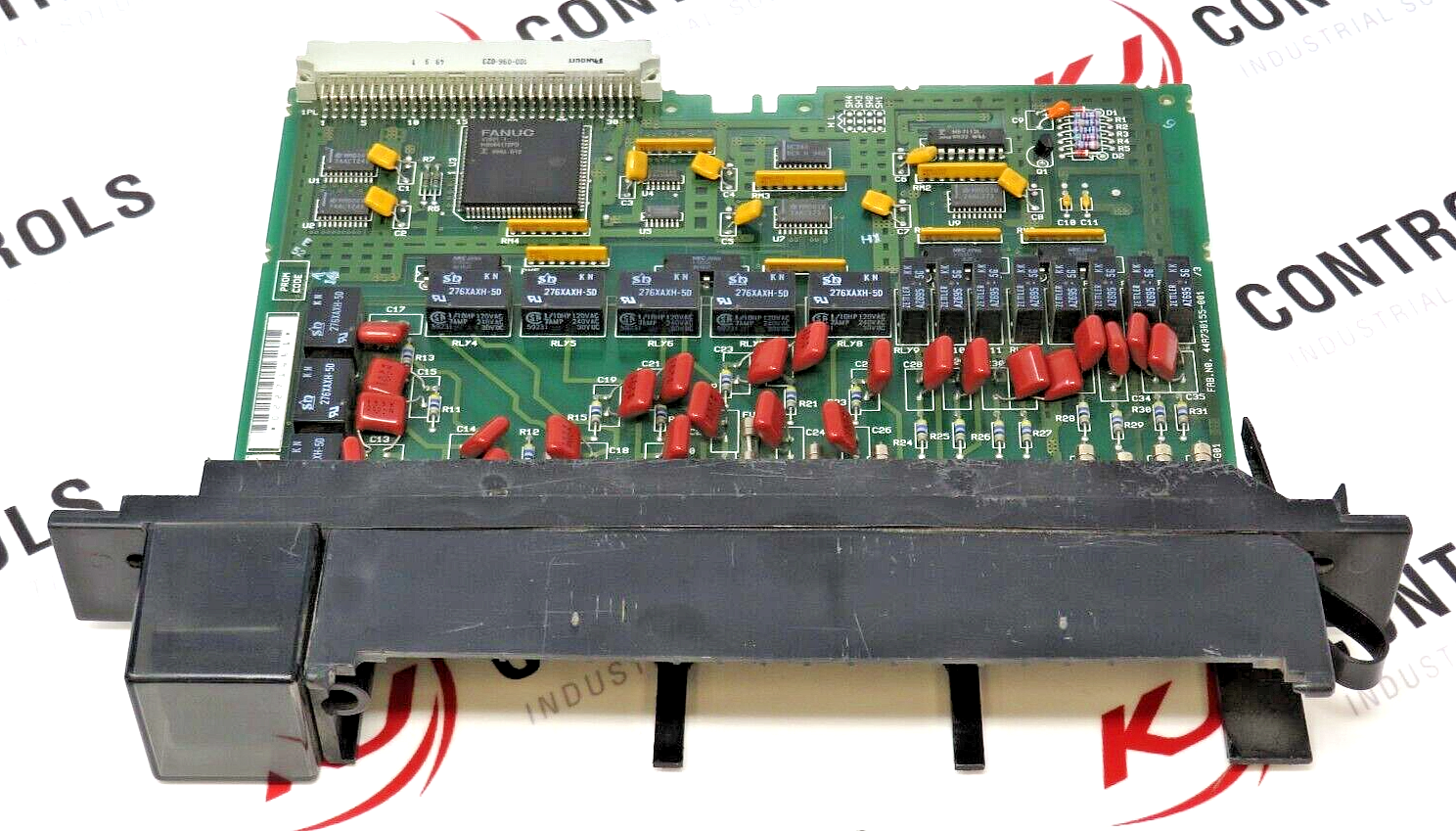

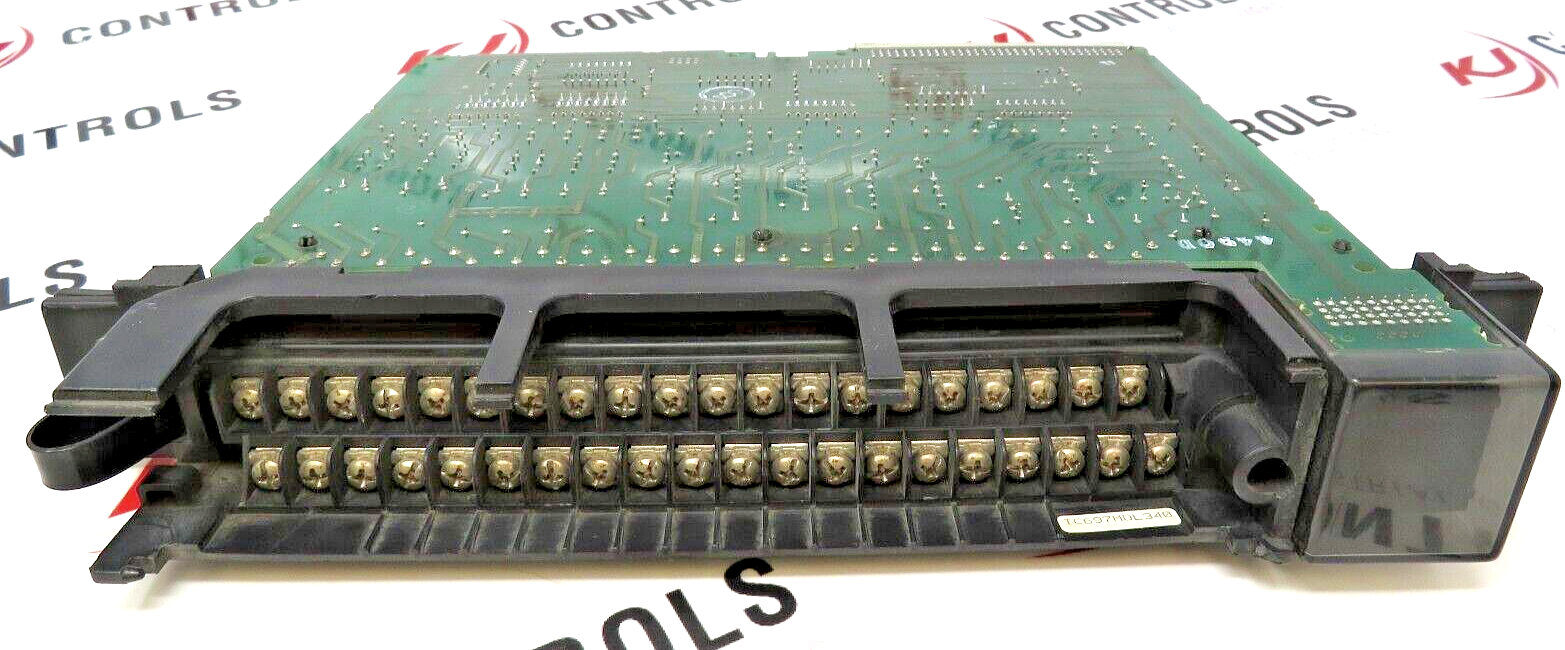

GE Fanuc IC697MDL340 Discrete 16-Point Output Module (Front Access Door Absent)

Emerson GE FanucSKU: IC697MDL340

Condition:
Used
Price:
Sale price$200.00 CAD
Stock:
Only 1 unit left
 More payment options
Request a Quote

Description

GE Fanuc Output Module
  • Part number: IC697MDL340:
  • Product family:  Series 90-70
  • UPC: 0295786274268
  • Lifecycle status: END OF LIFE - Discontinued
  • Front access door: Absent
Technical Specifications:
  • Rated Voltage: 120 volt AC
  • Number of Outputs: 16 Outputs (4 Isolated groups of 4)
  • Output Current: 2 Amps per point, 4 Amps per group
  • Current Required: 0.25 Amps
  • Frequency: 47 to 63 Hz
  • DC Power: No
Product Features:
  • Four isolated groups for a total of 16 points
  • 2 amp capacity per point, and 10x rated current high inrush capacity
  • This discrete output module allows the groups of points to be used on separate phases of the AC supply
  • The four-output groups are fused individually with a 10 amp fuse
  • The module delivers a high degree of inrush current, which makes the outputs ideal for a number of inductive and incandescent loads
  • The module is compatible with an array of load devices, including solenoids, motor starters, and indicators
  • The module is keyed mechanically, which guarantees correct replacement with a similar type in the field
  • I/O references are user-configurable, and DIP switches and jumpers are unnecessary
  • Each output on the module is capable of transiently conducting a surge current greater than its long-term current rating
  • In certain operating conditions, the module can be programmer-configured
  • Output points can be programmed to maintain existing output state or turn OFF by default
* Buyer is responsible for all customs, brokerage fees, local levies and taxes.*

KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR EMERSON AUTOMATION GE FANUC

(4B3 - Upstairs Warehouse)
