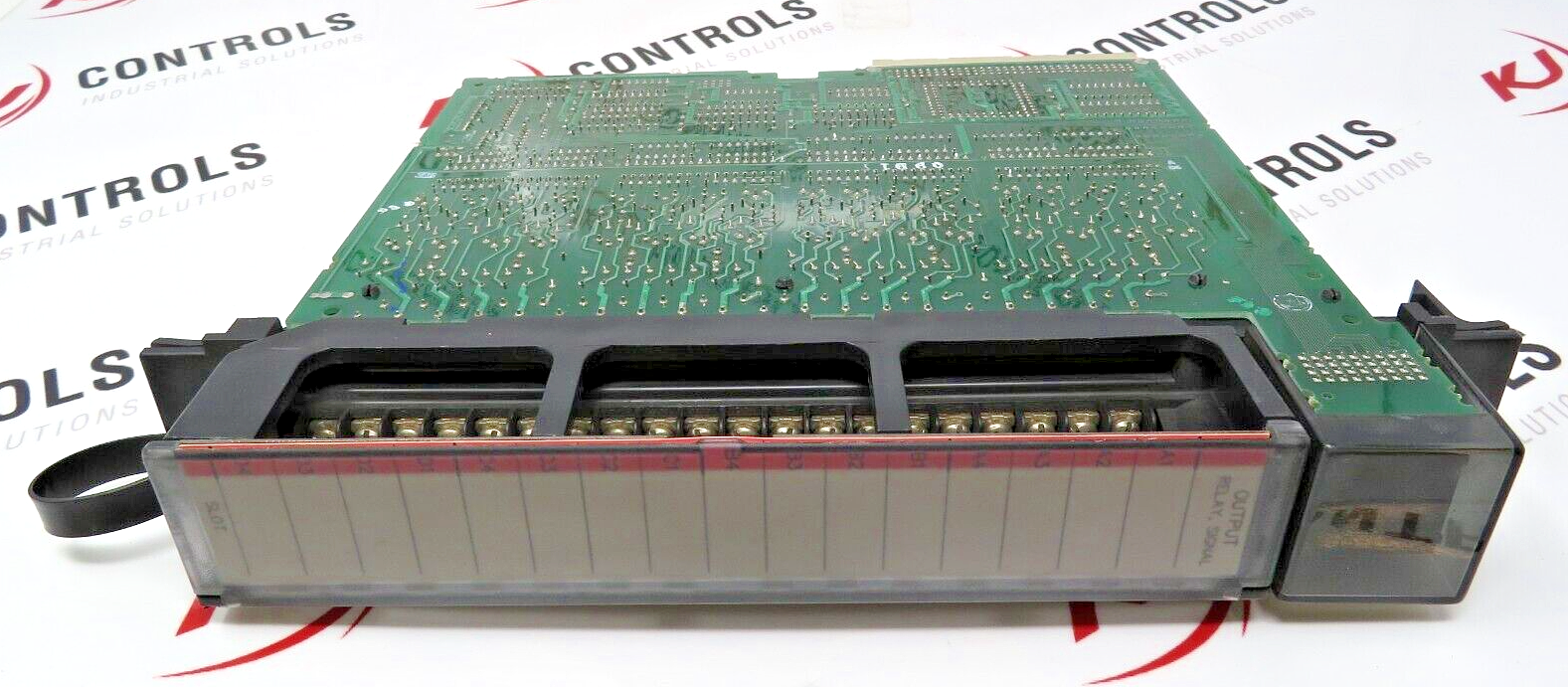

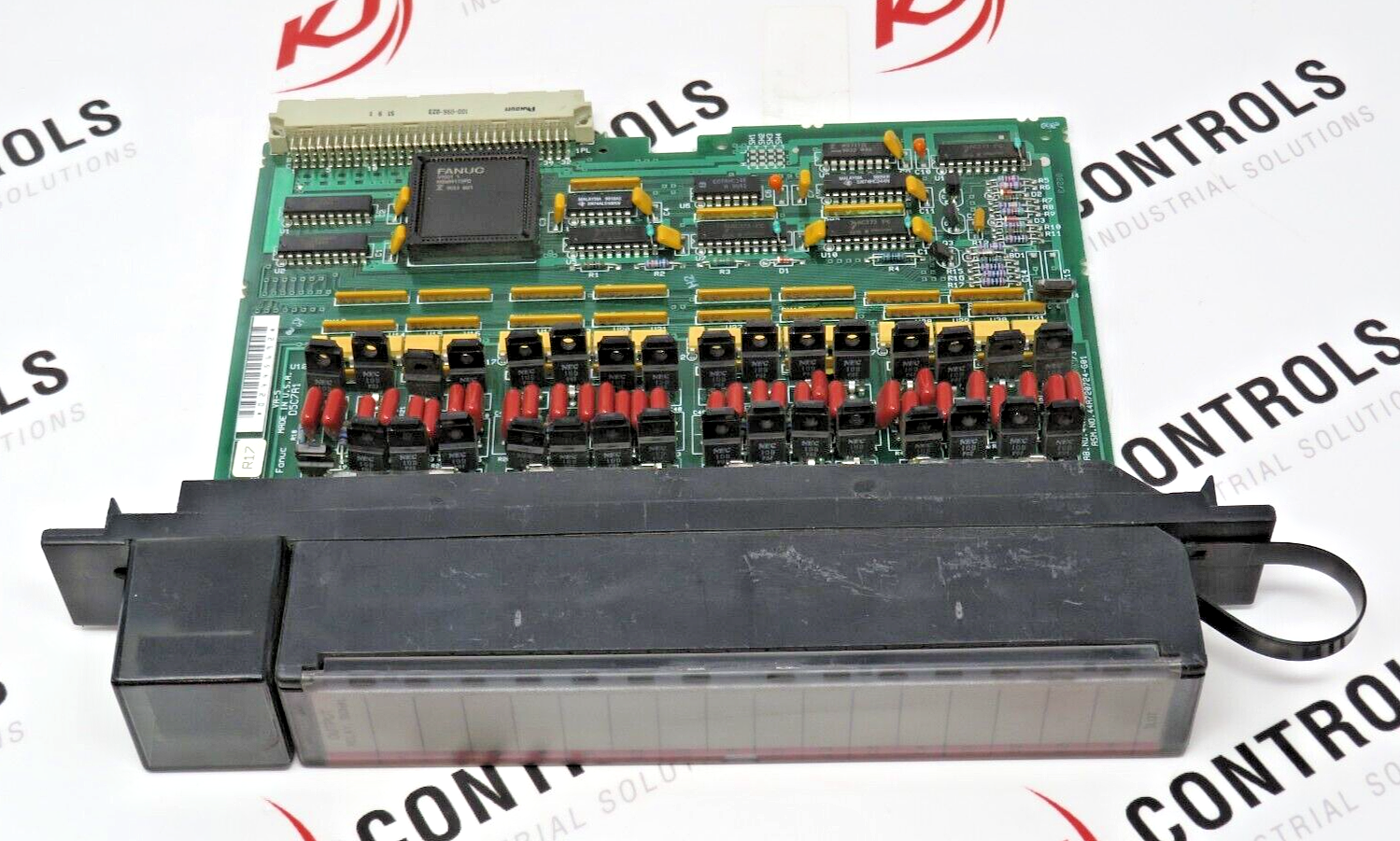

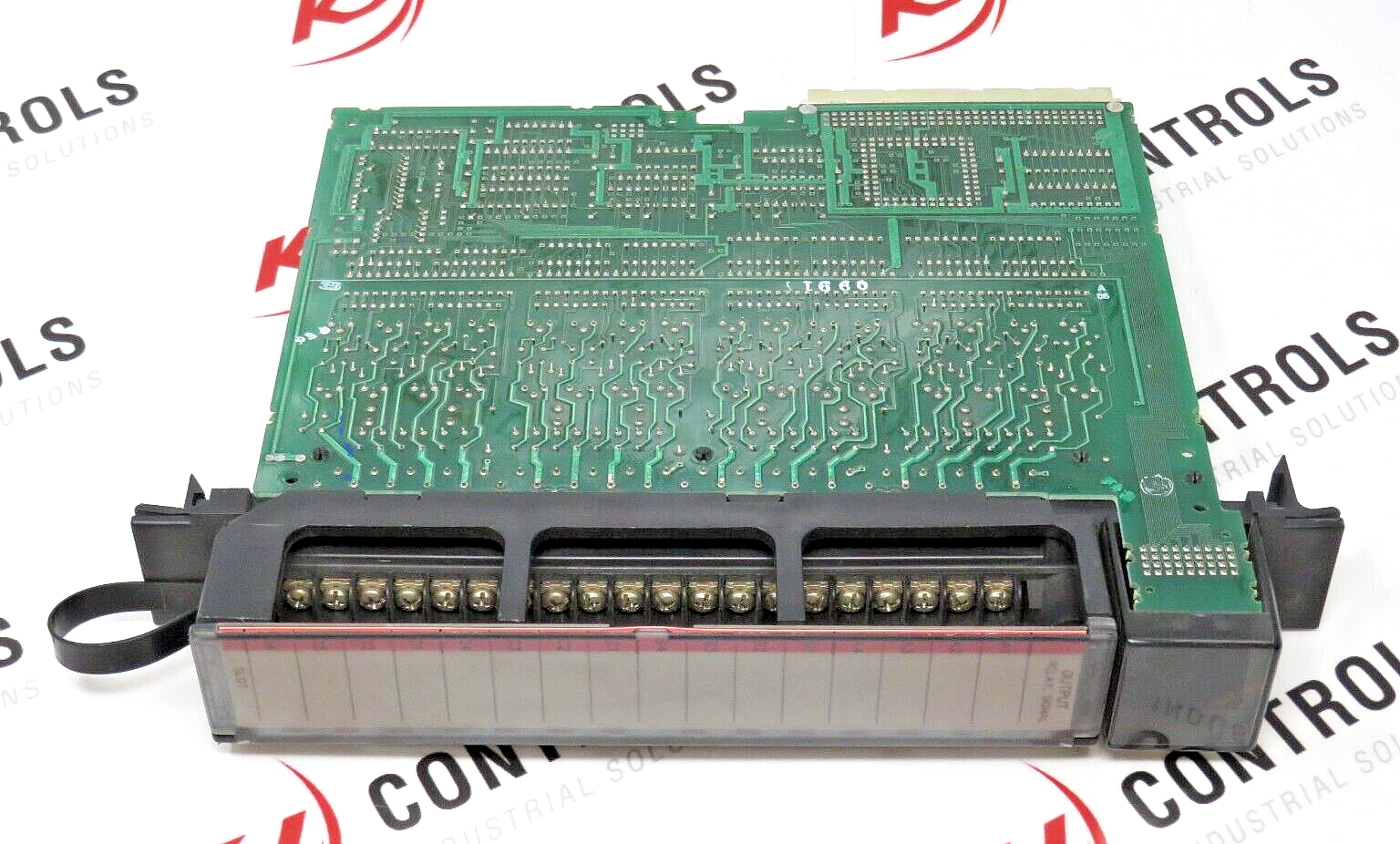

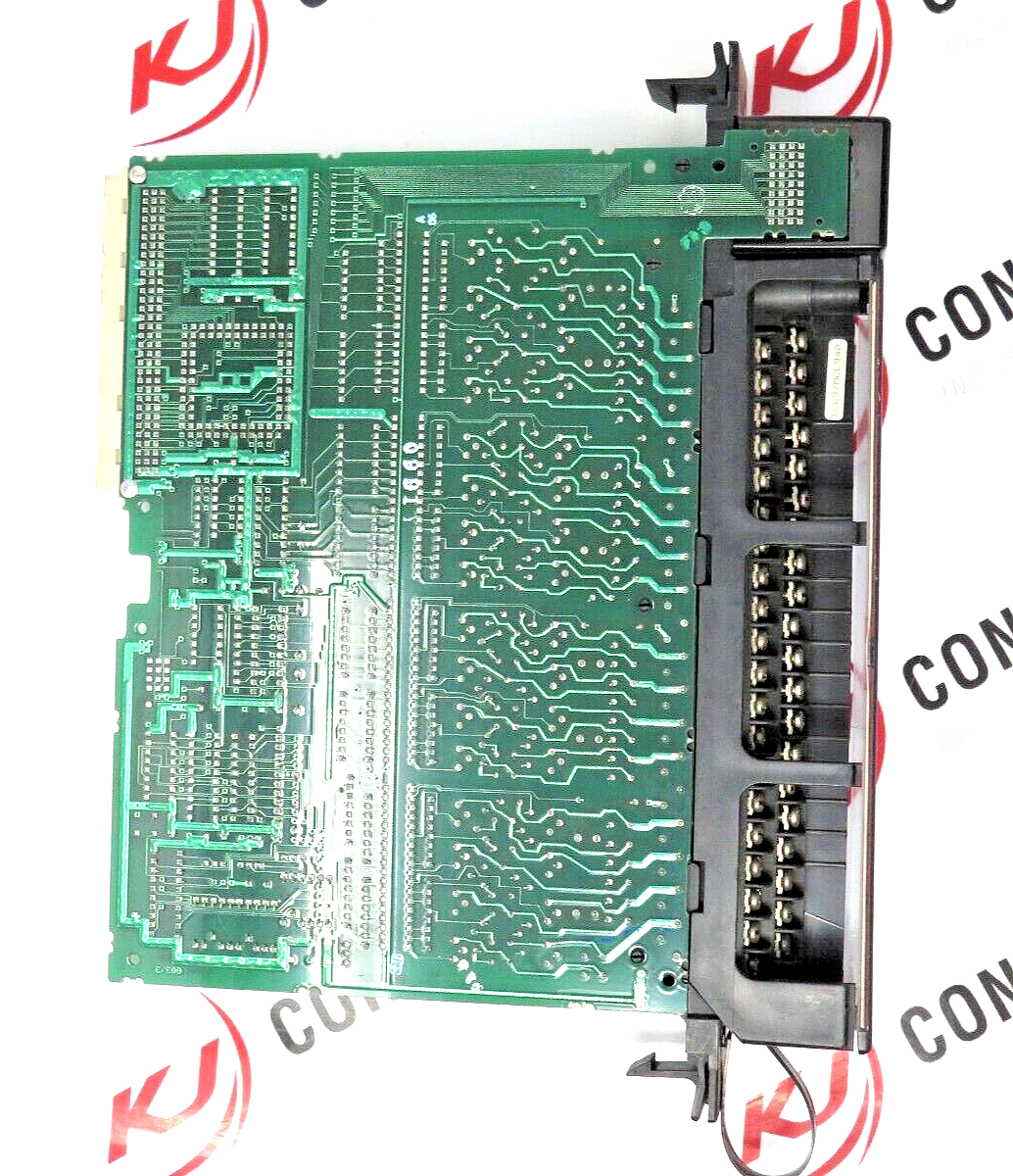

GE Fanuc Digital Output Relay Module
- IC697MDL940
- Product family: 90-70 Series
- Life Cycle status: END OF LIFE - Discontinued.
Technical Specifications:
- The module operates between low and medium power loads such as lamps, contactors, and relays.
- It has a rating of 2 Amps per point at a voltage of 120/240 VAC or 24 VDC.
- It has a current of 0.2 Amps per point for a voltage of 125VDC.
- The module supplies power to energize the relay coils.

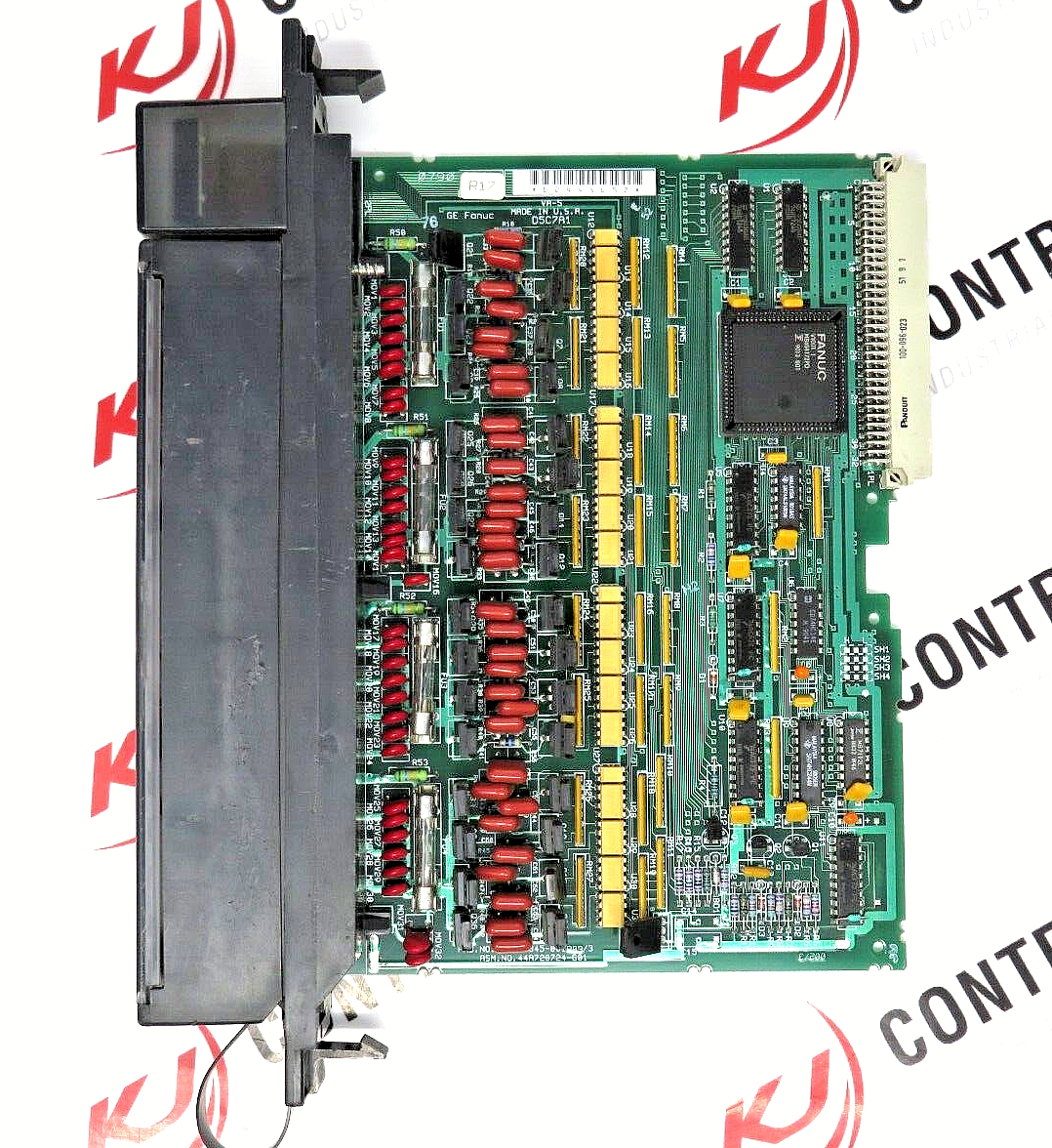

- Each output is fused individually and suppressed with an RC snubber.

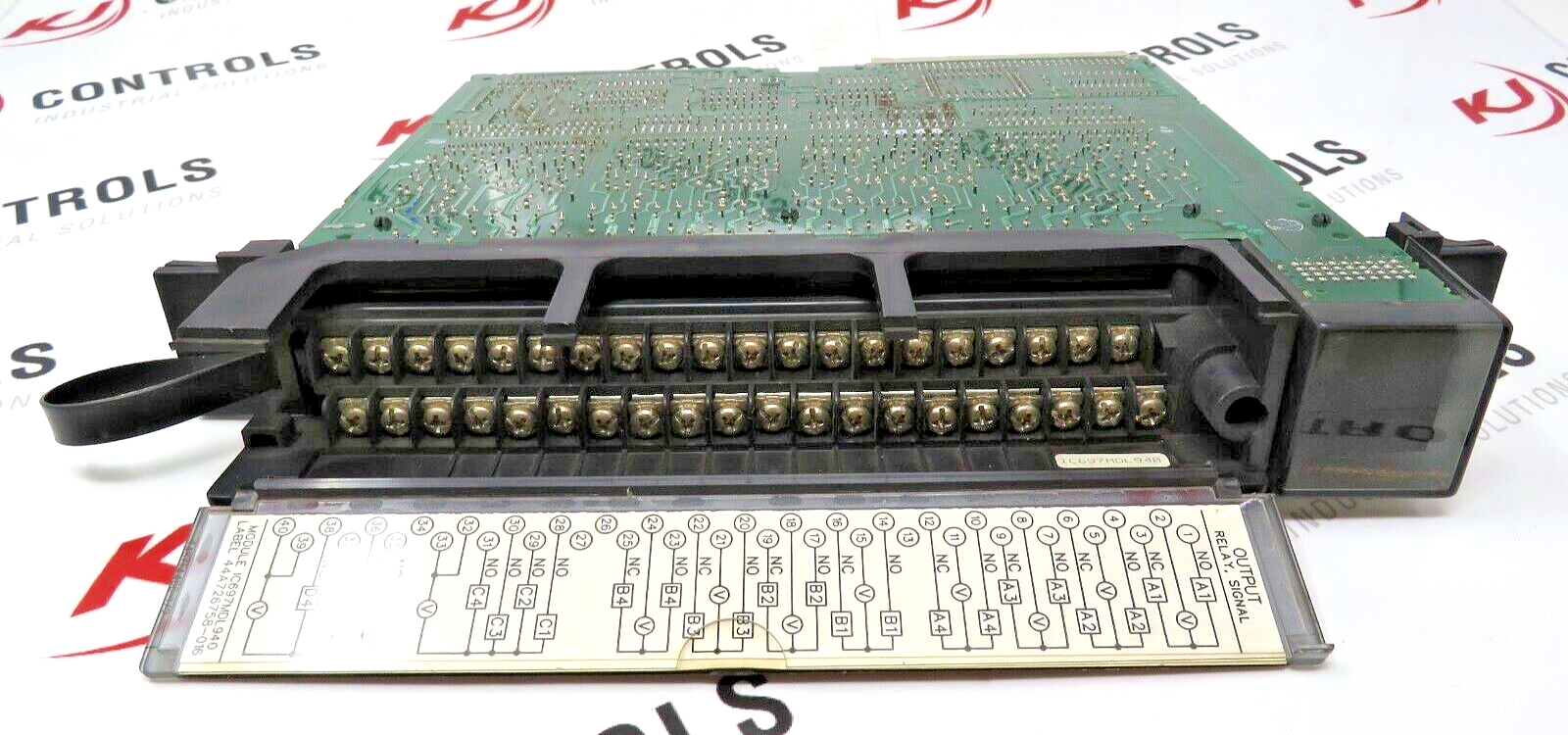

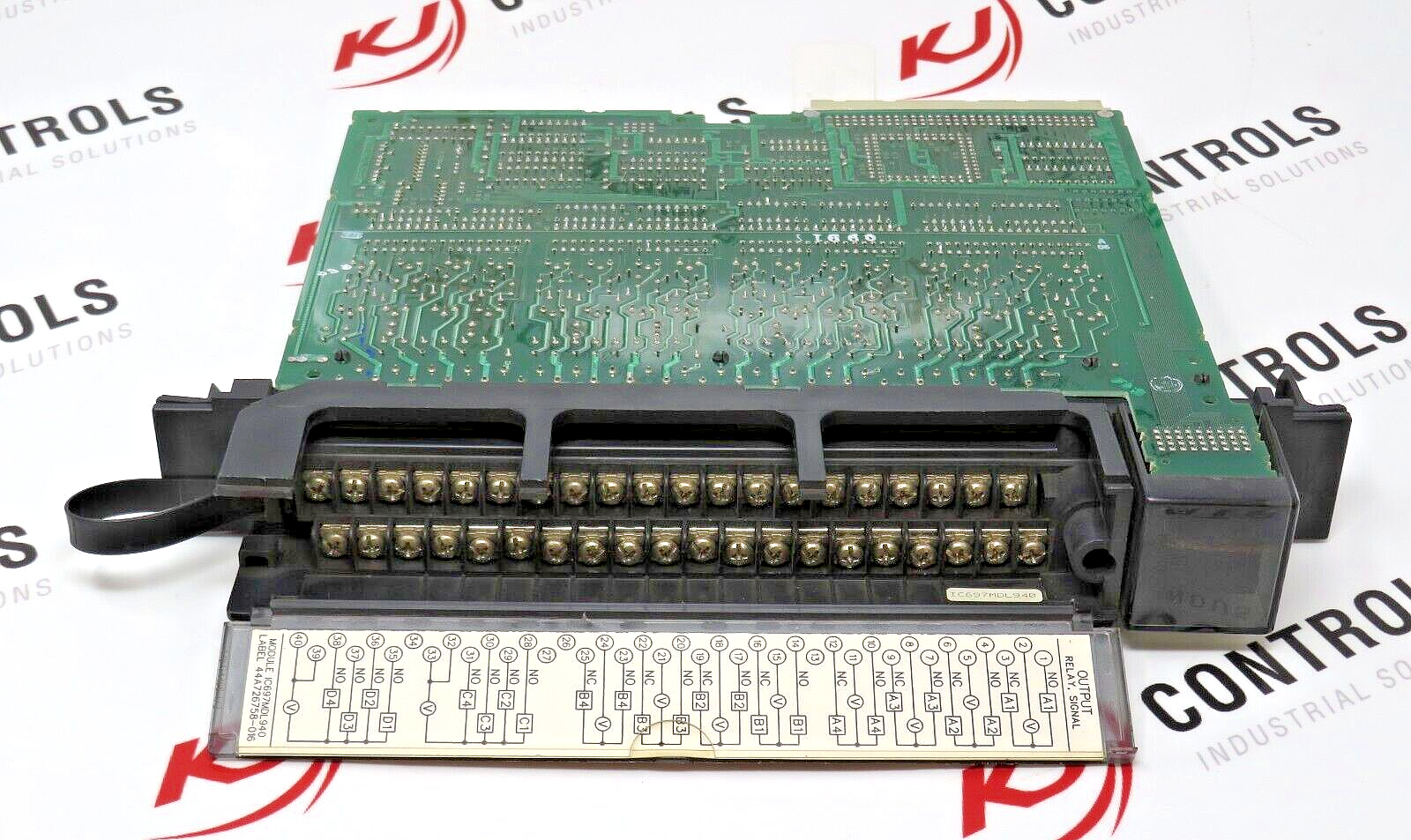

- The terminal board is designed to accept wire sizes from AWG #22 (0.36 mm) through AWG #14 (2.10 mm).
- The module features Eight (8) isolated Form C contacts and Eight (8) Form A contacts in Two (2) groups of Four (4) channels.
Product Features:

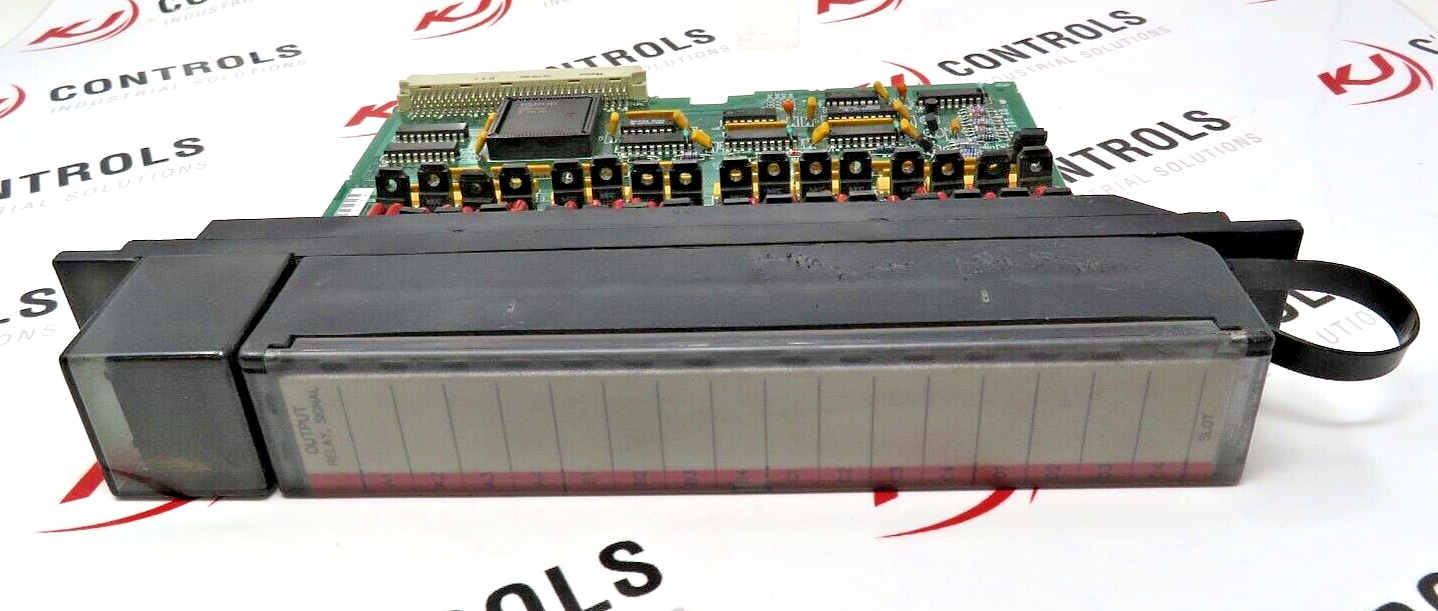

- LED indicators at the top of the module indicate the ON-OFF status of each point on the PLC module.
- The module is mechanically keyed for accurate placement with a similar PLC module.
- Configuration is done using MS-DOS or Windows programming software riding on a platform such as Windows 95 or Windows NT.
- Each output is fitted with a 3 Amp fuse which can be replaced with either a fast acting 3AG – 3.0 Amp with a 250 V rating.
- Each module comes with a mechanical arm for foolproof fitting.
*Please note that the information provided is based on the data available from the sources and may vary based on the specific model and configuration of the device.*
