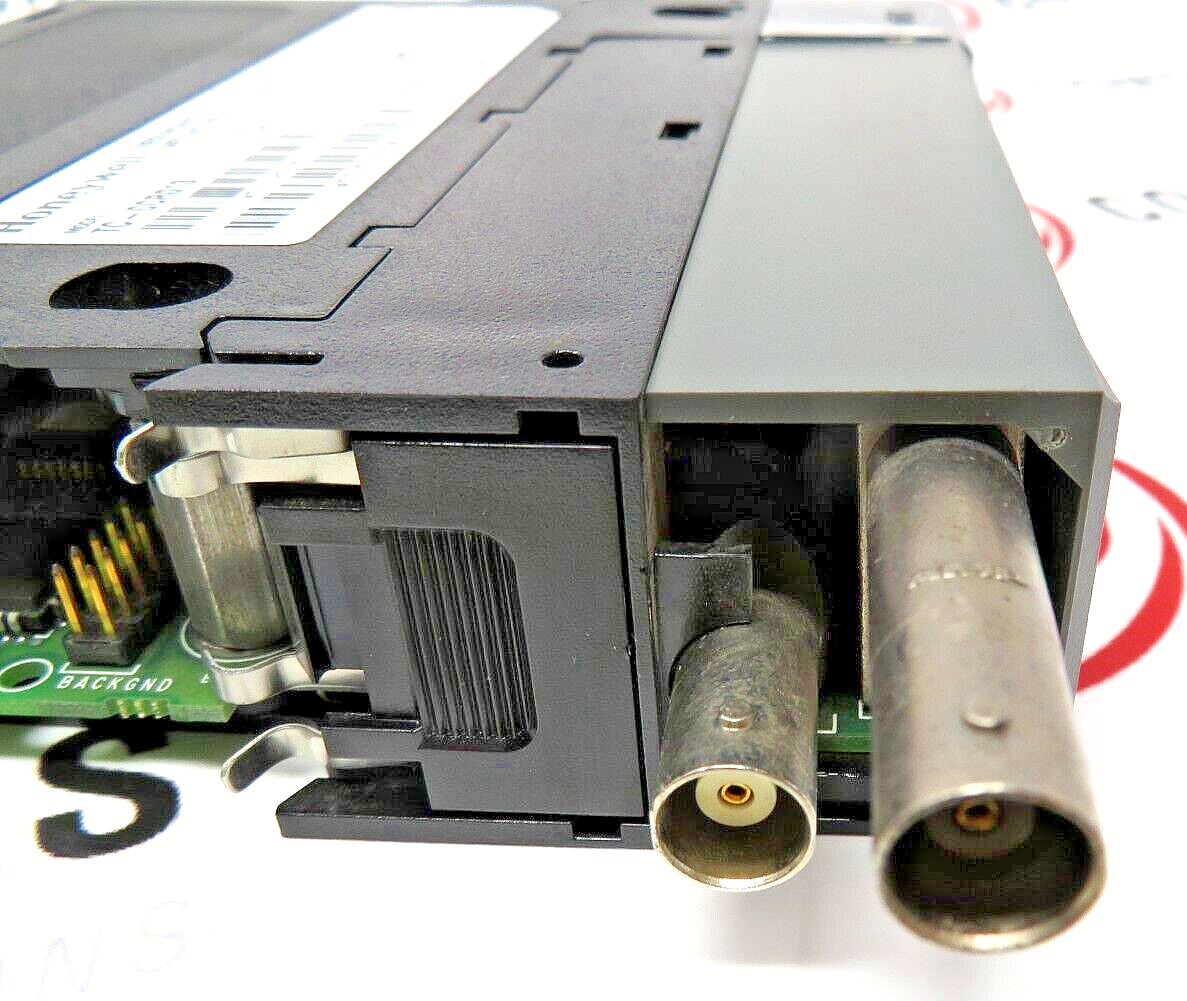

Honeywell Redundant Net Interface Module
- Model: TC-CCR013 TCCCR013.
- Product Type: Control Module.
- Input Voltage: 24V DC.
- Output Voltage: 0-10V DC.
- Communication protocol: Modbus RTU.
- Dimensions: 100mm x 50mm x 25mm.
- Temperature Range: -40°C to 85°C.
- Humidity Range: 0% to 95% (non-condensing).
- Power Consumption: 2W.
- Protection Class: IP40.

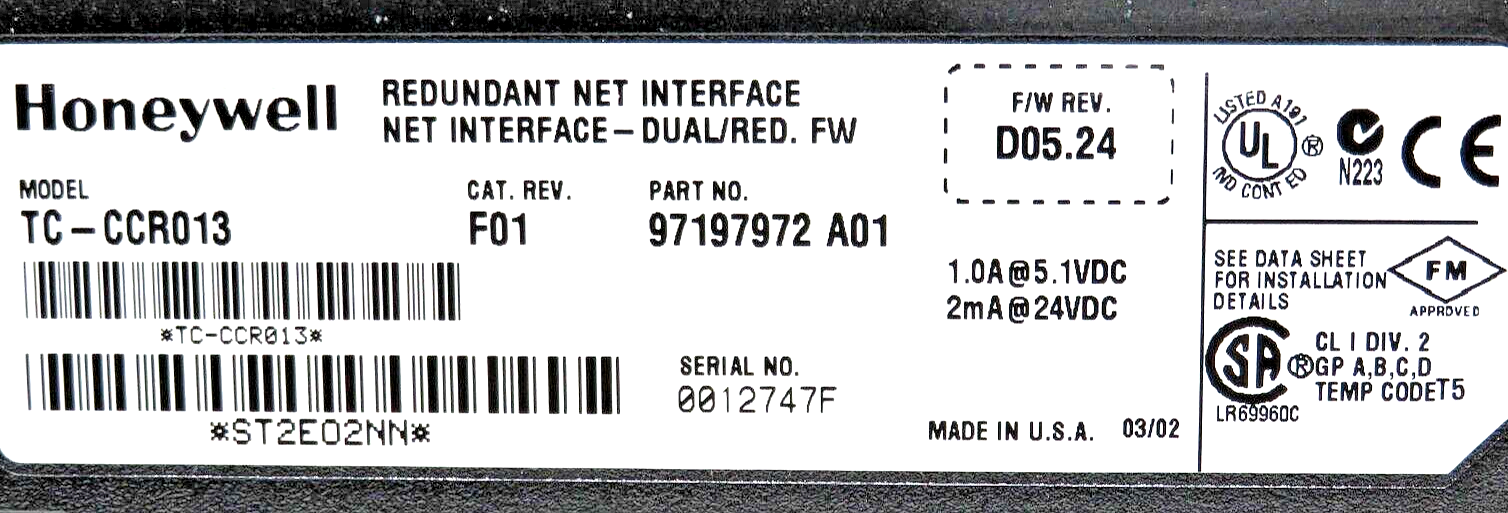

- Firmware version: D05.24.
- Designed to integrate seamlessly with the ControlLogix platform.
- Life cycle status: End of life - Discontinued.
Dual/Red Configuration:
- Module operates in a dual-redundant mode.
- It combines both redundancy (backup functionality) and dual (two) components.
- In this setup, there are two identical modules working in parallel.
- If one module fails, the other seamlessly takes over to ensure continuous operation.
How It Works:
- The primary and secondary modules communicate with each other.
- They exchange heartbeat signals to monitor each other’s status.
- If the primary module fails (e.g., due to communication loss or hardware issues), the secondary module becomes active.
- The transition happens automatically, minimizing any impact on the system.
- This redundancy ensures high availability and reliability.
Benefits:
- Fault Tolerance: Dual/redundant systems can withstand failures without disrupting critical processes.
- Safety: In industrial applications, uninterrupted operation is crucial for safety.
- Maintenance: During maintenance or upgrades, one module can be taken offline while the other continues to function.
* Please note that while PLC products typically come with pre-installed firmware, KJ Controls Ltd. cannot guarantee its presence. Additionally, if firmware is included, we do not assure that it will match the specific version required for your application.*
** Buyer is responsible for all customs, brokerage fees, local levies and taxes.**
KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR HONEYWELL
(4B4 - Upstairs Warehouse)
