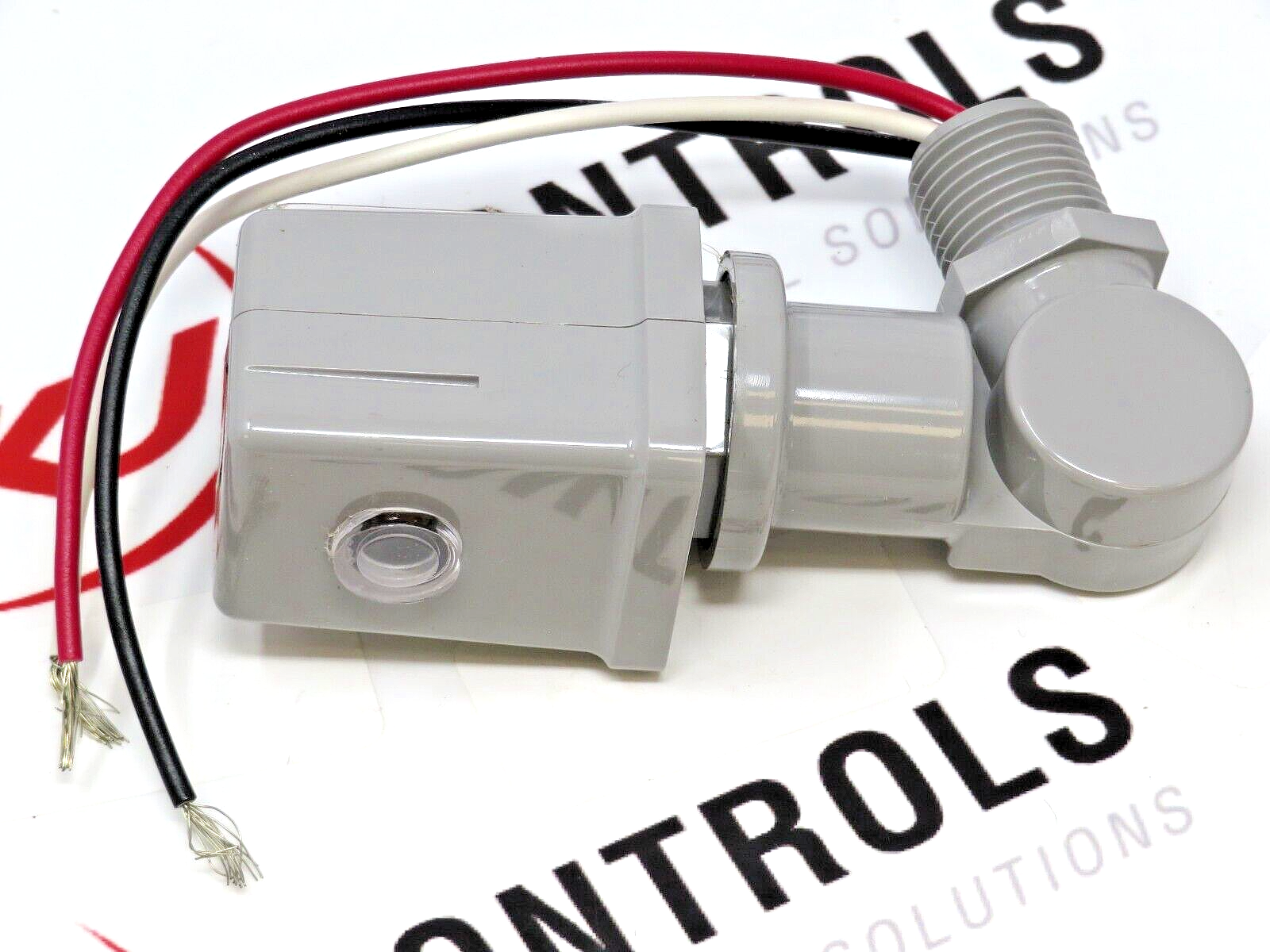

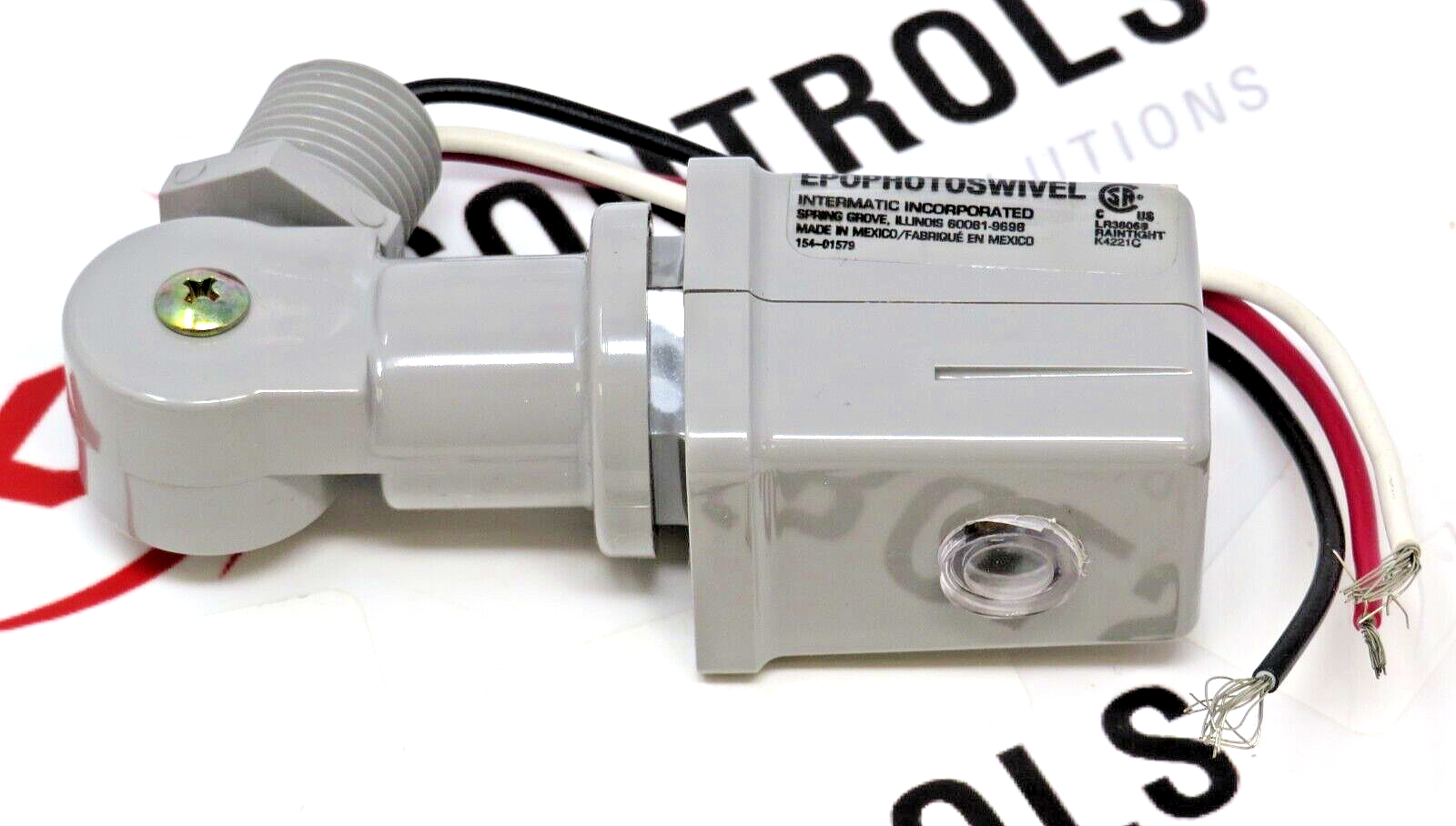

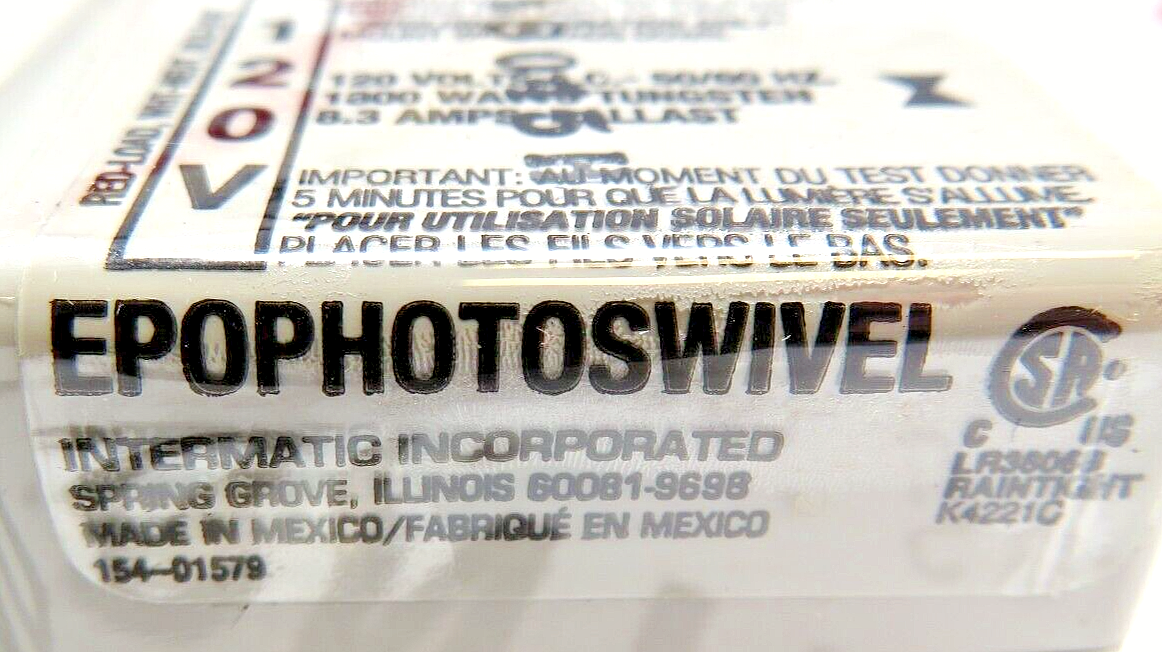

Intermatic Photocontrol With Swivel
- Part Number: EP0PhotoSwivel
- Product Family: Photocontrols
- UPC: 078275130203
- Lifecycle Status: ACTIVE
Technical Specifications:

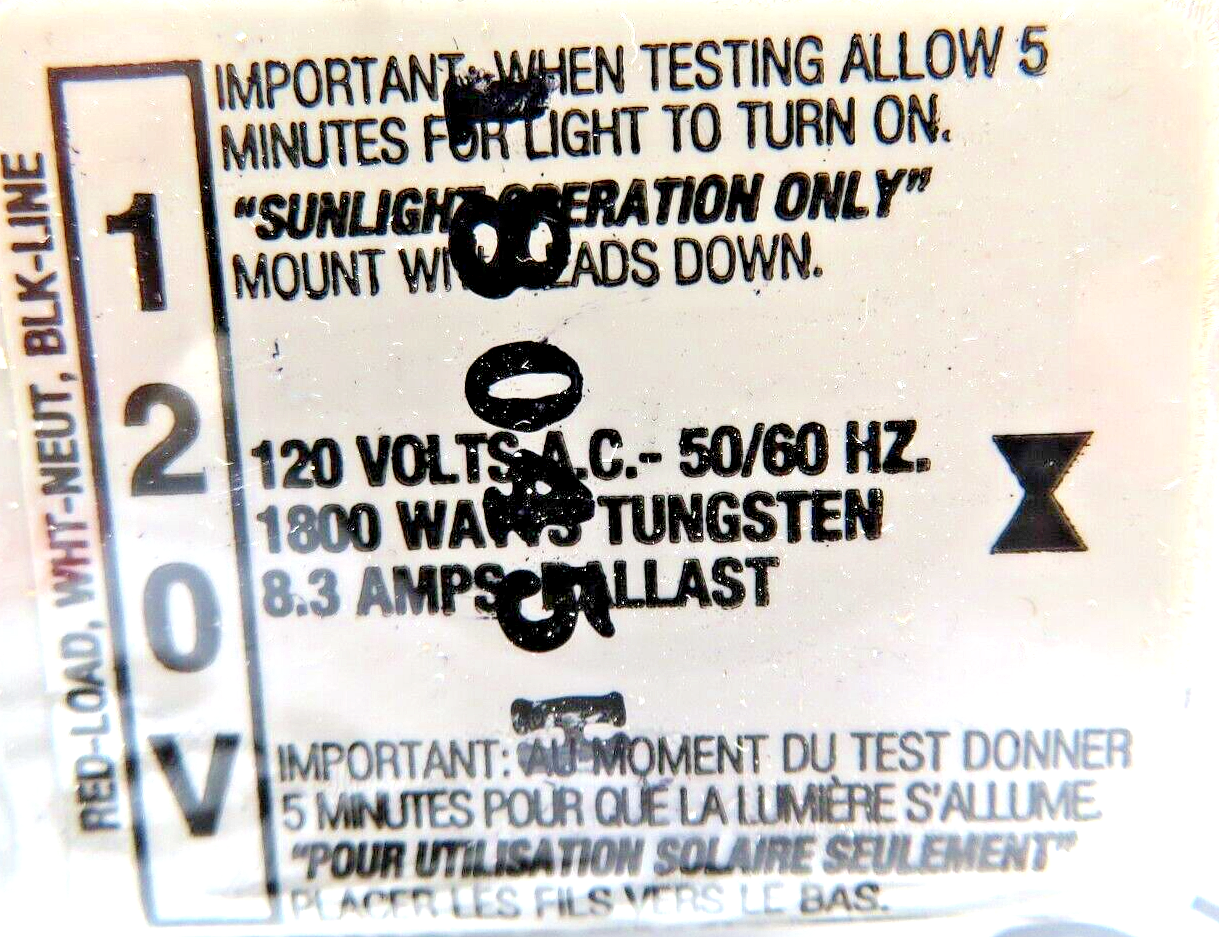

- Voltage Range: 120-277 VAC

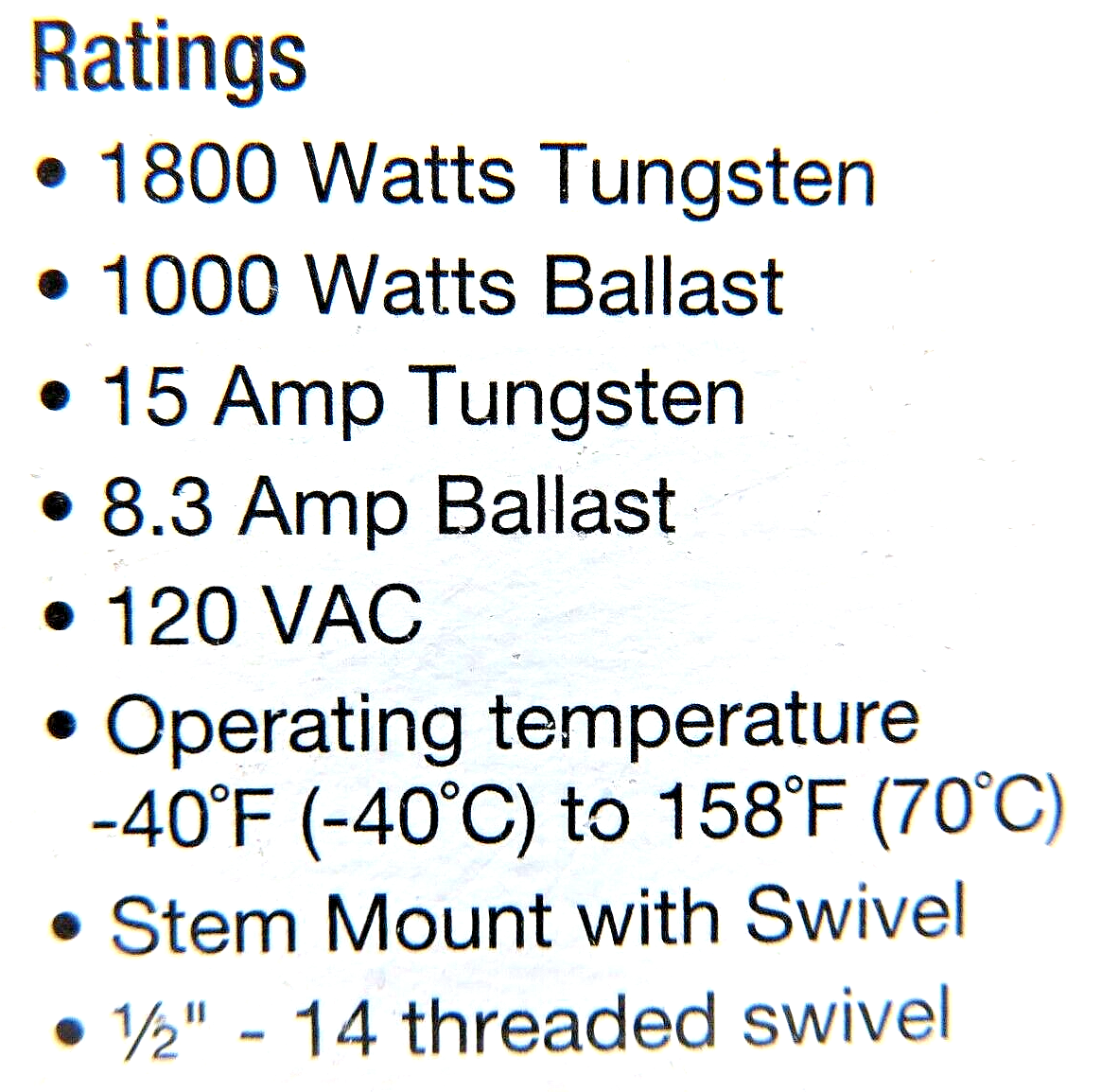

- Power Ratings: 1800 Watts Tungsten, 1000 Watts Ballast, 15 AMP Tungsten, 8.3 Amp Ballast
- Surge Protection: 255 Joule Metal Oxide Varistor (MOV)
- Operating Temperature Range: -40°F to 159°F (-40°C to 70°C)
- Mounting: Stem mount with swivel, 1/2"-14 NPSM threaded stem, compatible with standard outlet boxes and wall packs.
- Housing Material: UV-stabilized, impact-resistant polycarbonate
- Switch Type: Fail ON mode for safety in case of control failure.
- Ingress Protection: IP65 rating, suitable for outdoor use.
Product Features:
- Dusk-to-Dawn Operation: Automatically turns lights on at dusk and off at dawn.
- Long Lifespan: Exceeds 10,000 ON/OFF switching cycles.
- Compatibility: Works with LED, HID, and incandescent fixtures.
- Enhanced Durability: Conformal coated PCB protects against moisture and environmental contaminants.
- Universal Mounting Options: Swivel mount allows for optimal light detection positioning.
Product Summary:
Ideal for outdoor lighting applications such as street lighting, parking lots, and commercial building exteriors. Designed for reliable long-term performance in challenging environments.
