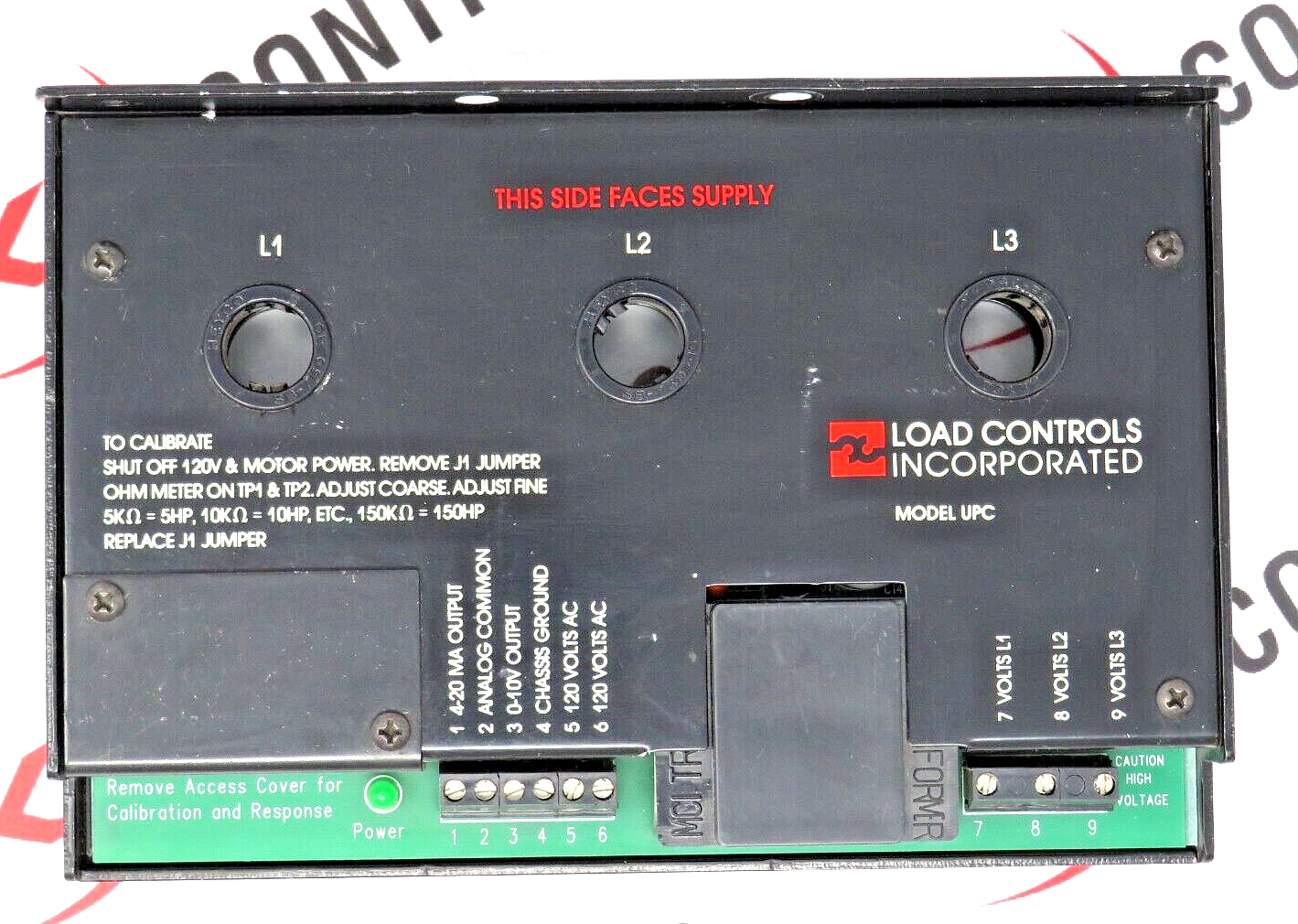

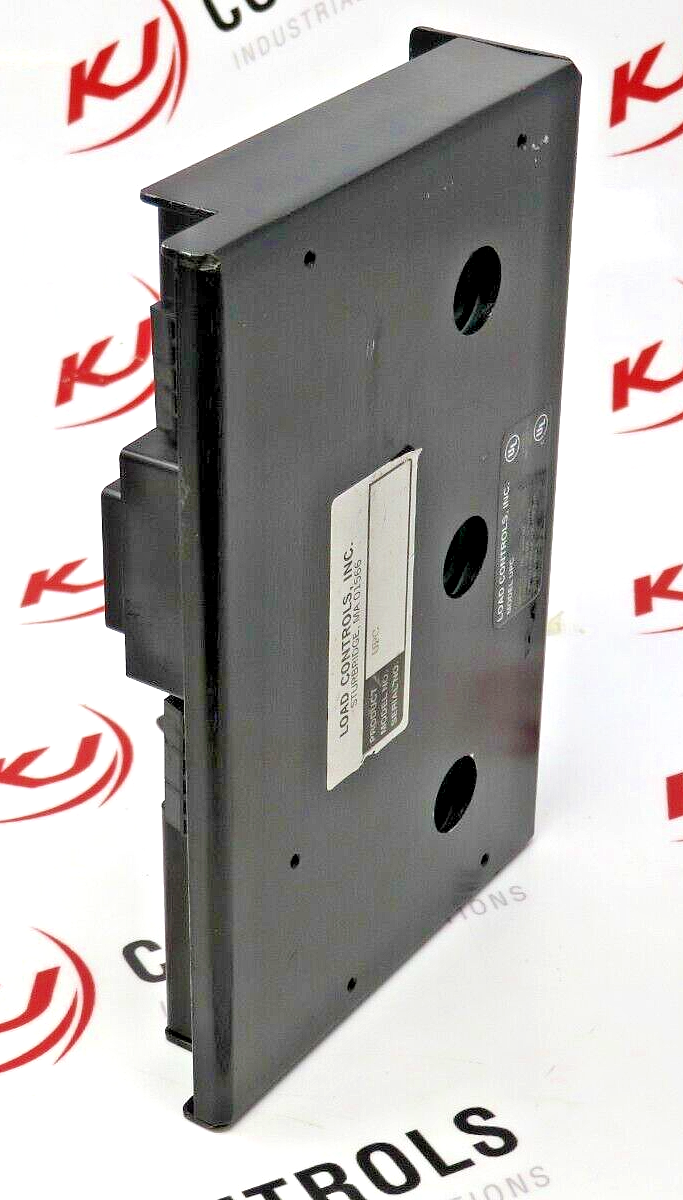

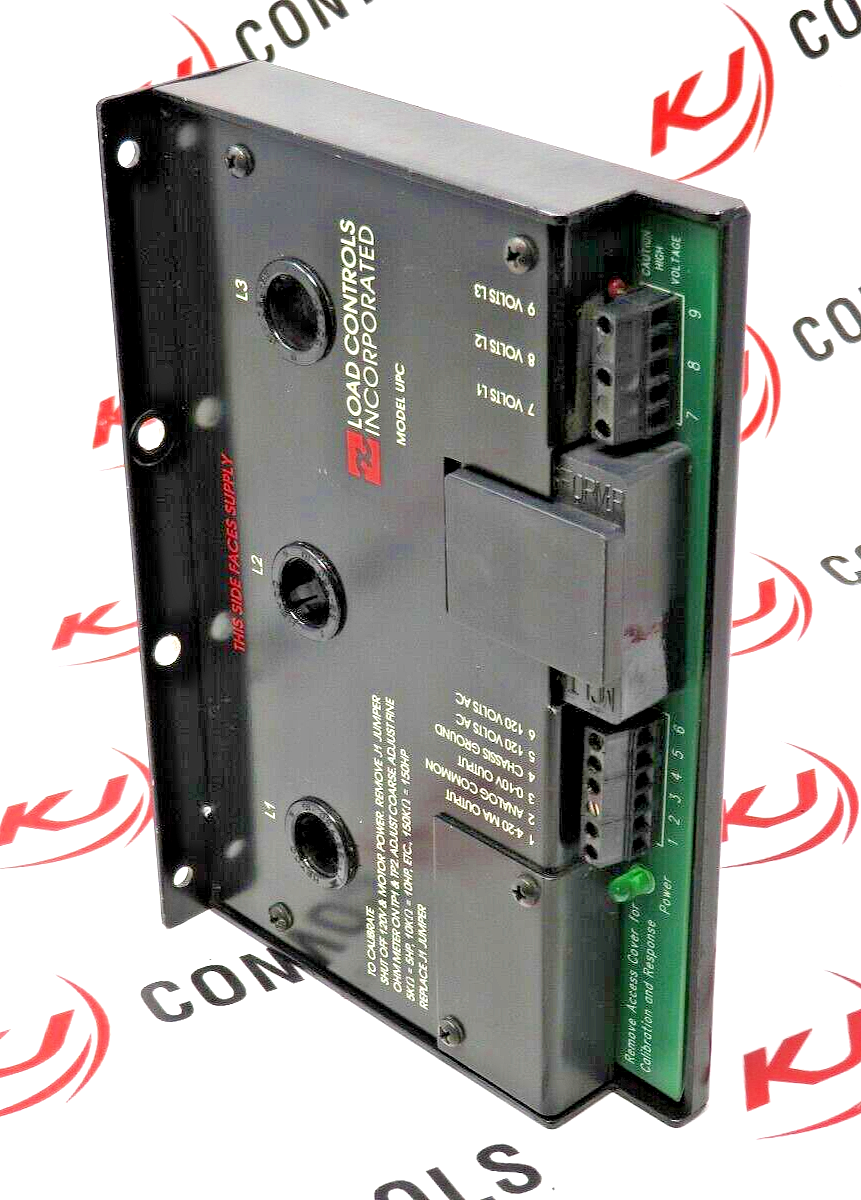

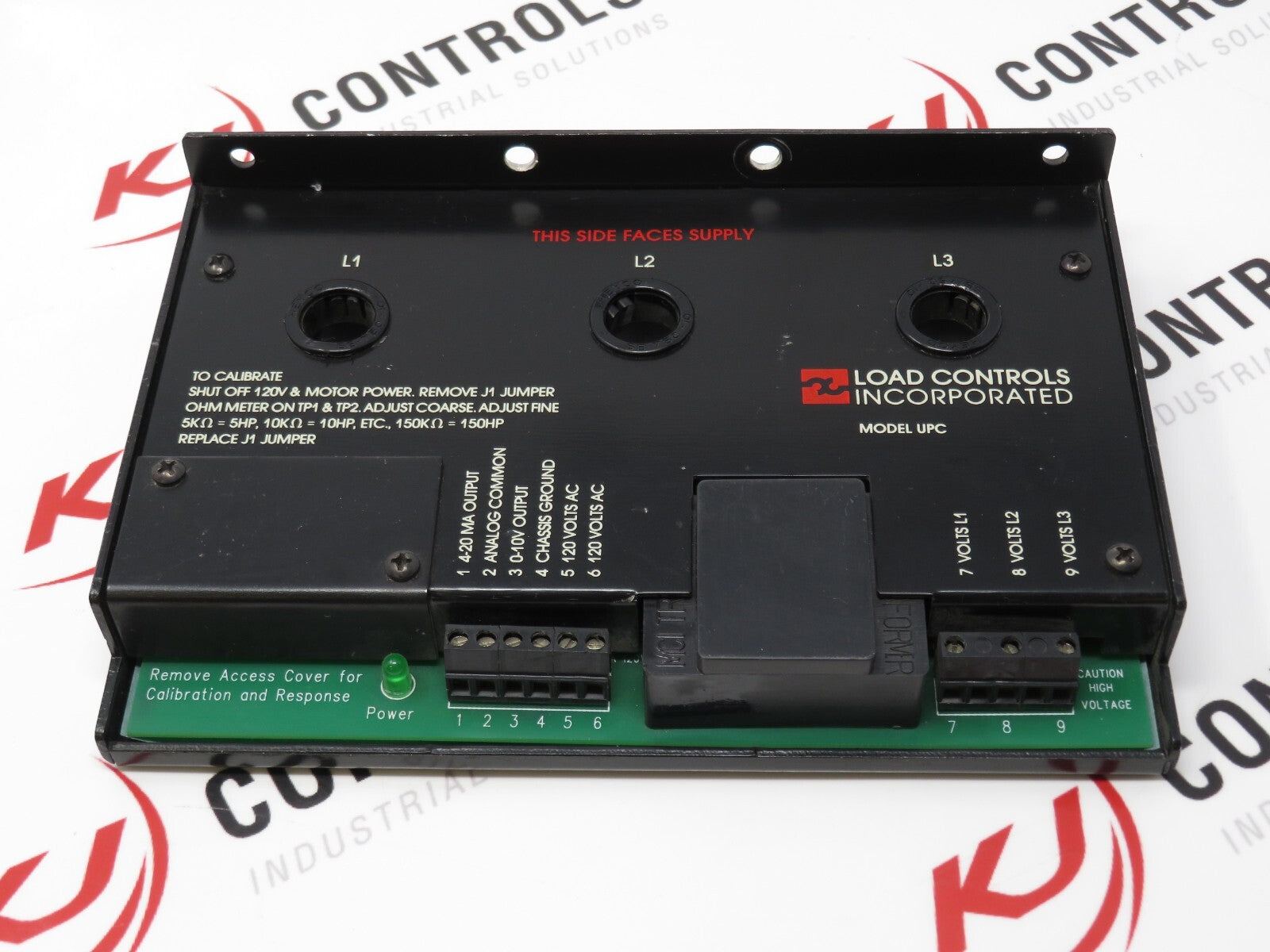

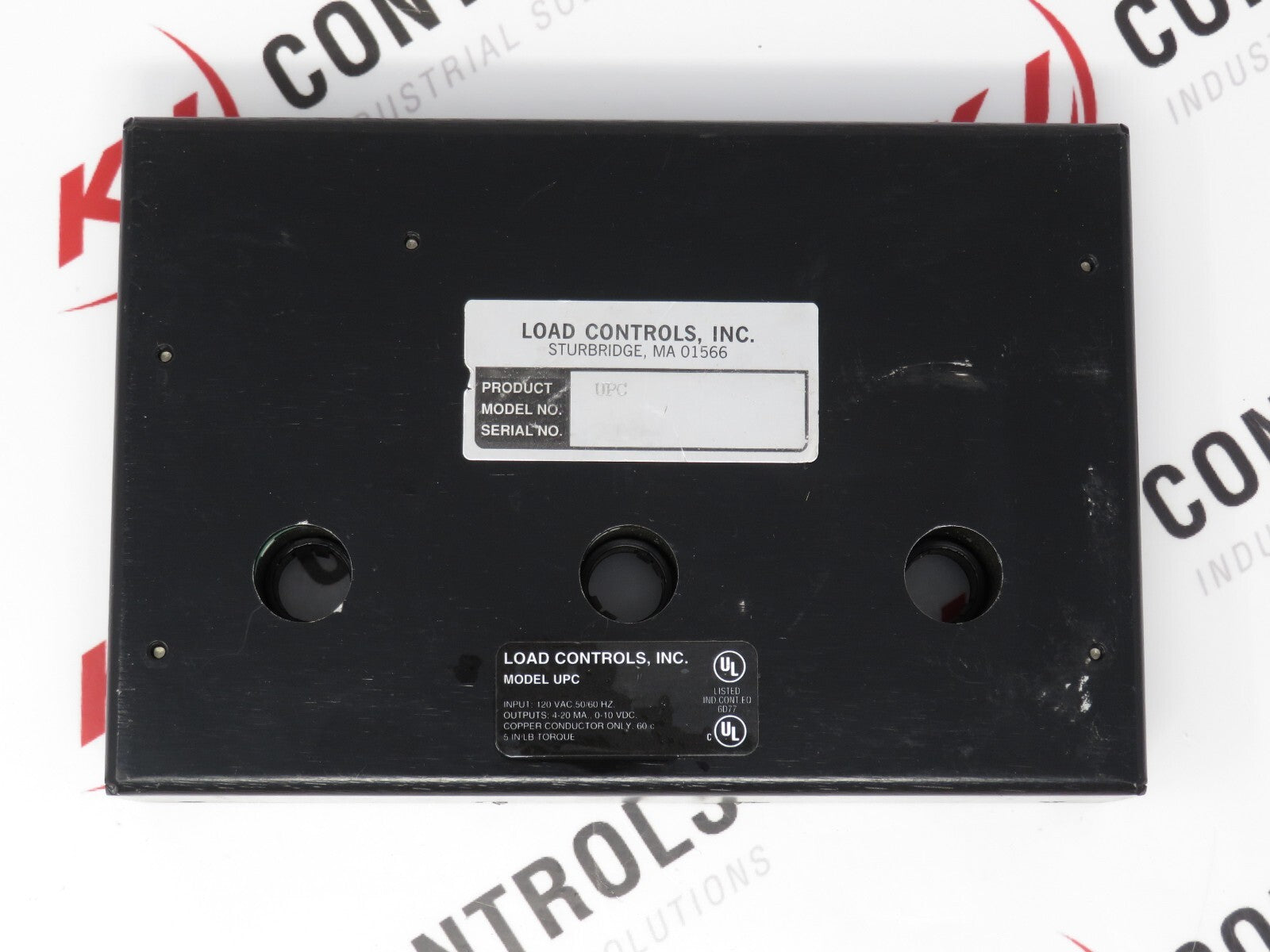

Load Controls Inc. Universal Power Cell (UPC)
- Part number: UPC-120 (UPC120)
- Product Family: Universal Power Cells
- Lifecycle status: ACTIVE
Technical Specifications:

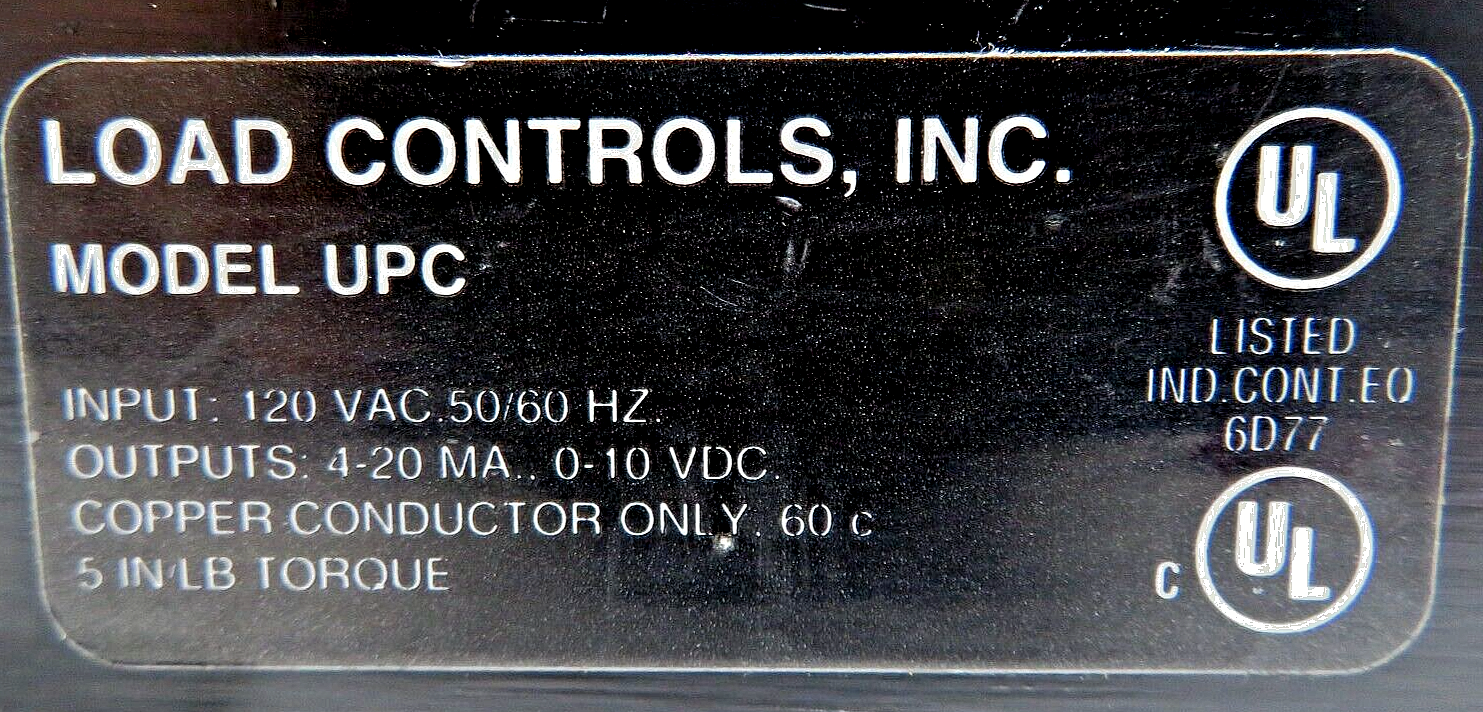

- Power Supply: 120VAC, 50/60 Hz
- Power Monitoring: Measures true motor power in HP or kW, with accuracy up to 10 times more sensitive than current sensors.
- Works with both fixed and variable frequency power sources, including single-phase, DC, and brushless DC motors.
- Capable of monitoring power from <1 HP to 150 HP.
- Analog Outputs: Two analog outputs: 0-10V DC and 4-20mA. Modbus-enabled models offer RS-485 serial bus link for real-time adjustment and data communication.
- Sensors: Equipped with three balanced Hall Effect sensors, each with a flux concentrator for precise measurement.
- Response Time: Adjustable response time settings from 4 milliseconds to 8 seconds.
- Safety and Compliance: UL rated and SIL-2 capable.
Product Features:
- Versatility: Compatible with a wide range of motor environments and applications, including monitoring viscosity, tool condition, optimizing feed rates, and detecting obstructions, overloads, and loss of load.
- Suitable for use with motor starters or variable frequency drives (VFDs).
- Installation: Fully self-contained, easy to install with no need for current or voltage transformers.
- Field scalable for different power levels and adjustable full-scale settings for varying applications.
- Real-time Adjustment: Real-time HP full-scale adjustment via Modbus input, enhancing flexibility and control in various industrial settings.
