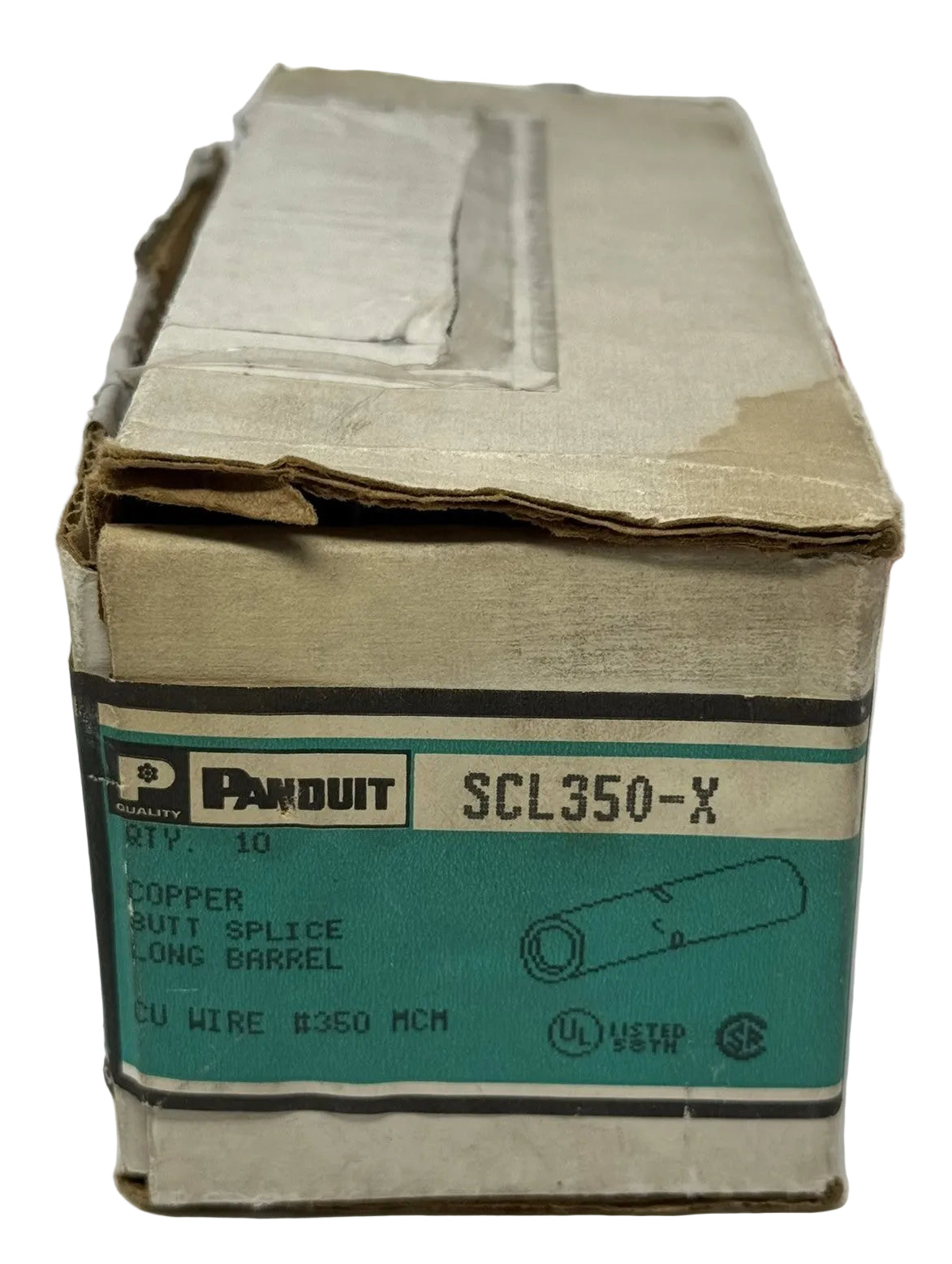

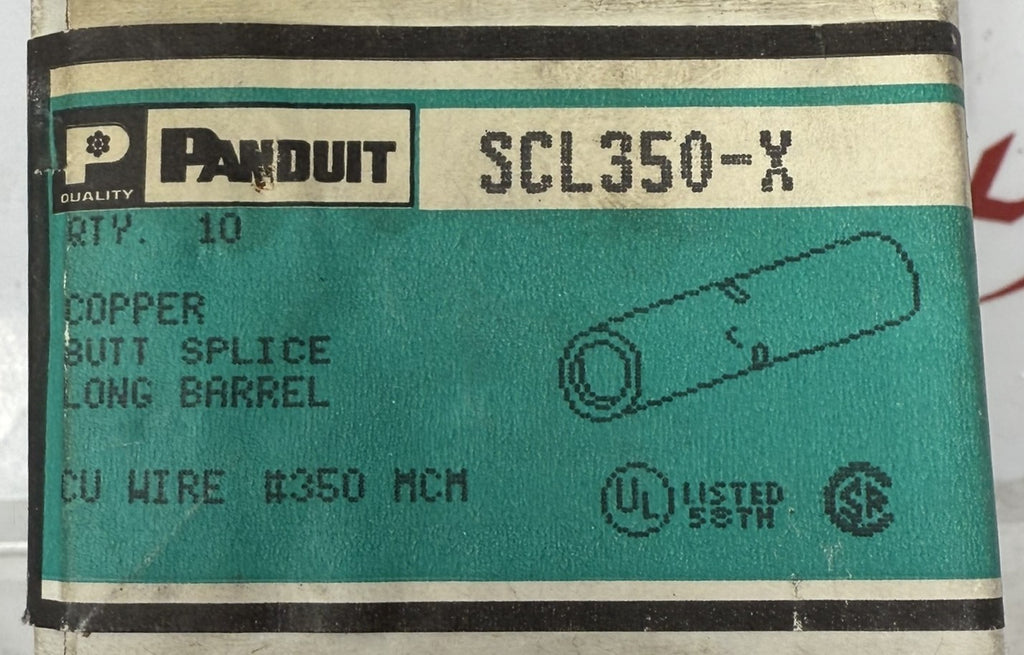

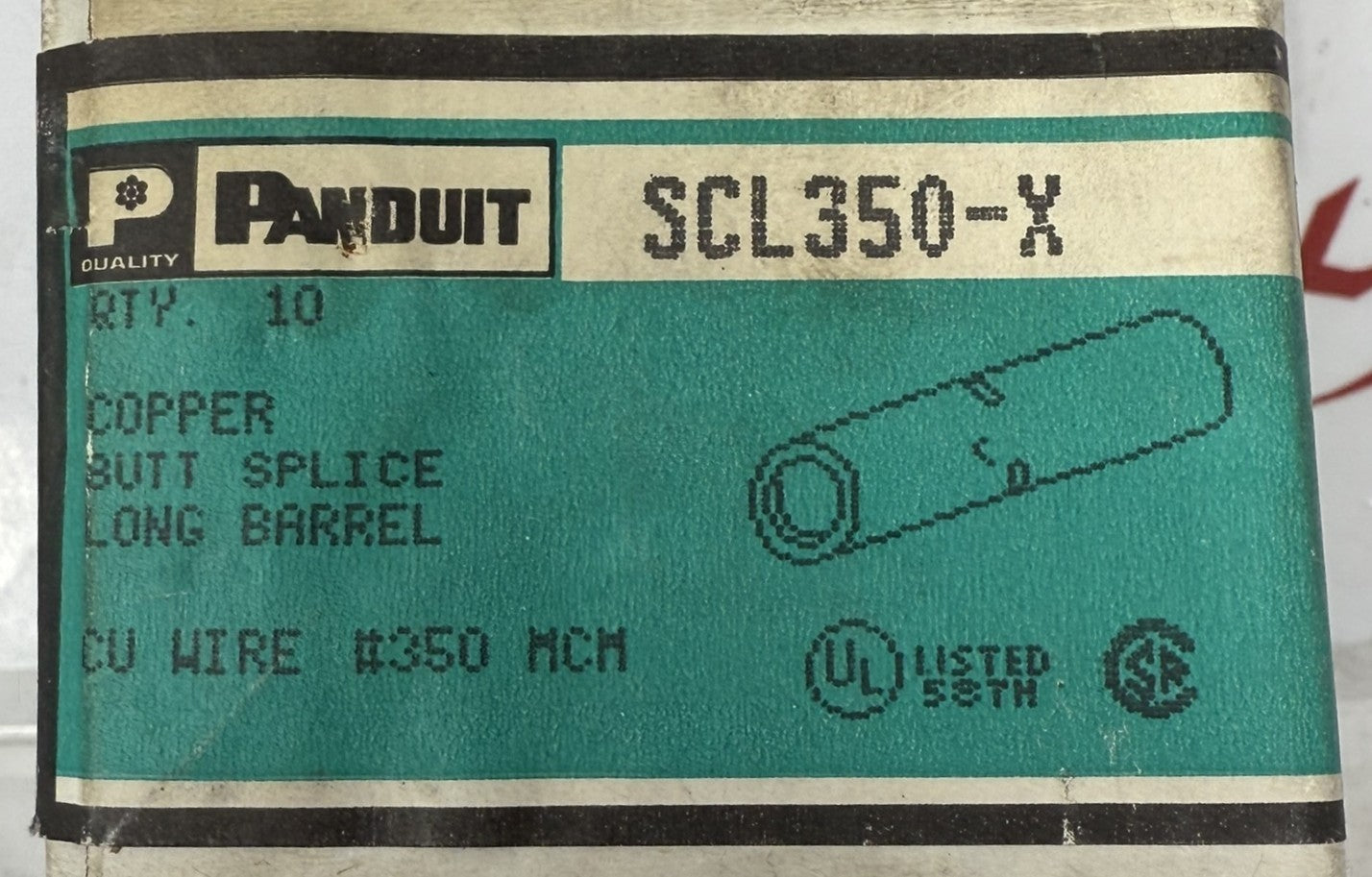

Panduit SCL350-X Pan-Lug Long Barrel Copper Butt Splice (Box of 8)
Product Basic Information:
- Manufacturer: Panduit
- Catalog number: SCL350-X
- Non-hyphenated part number: SCL350X
- Product family/series: Pan-Lug SCL Series
- Product type: Long barrel copper compression butt splice
- Quantity included: Box of 8
- Country of origin: U.S.A.
Technical Specifications:
- Conductor size: 350 kcmil
- Conductor type: Stranded copper
- Termination method: Crimp
- Terminal type: Butt splice, inline, individual openings
- Number of wire entries: 2
- Insulation: Non-insulated
- Base material: Copper
- Finish/coating: Tin-plated
- Barrel type: Long barrel
- Color code: Red
- Maximum voltage: 35 kV
- Temperature rating: 90 degrees C
- Overall length: 4.12 in
- Overall length: 104.6 mm
- Barrel outer diameter: 0.88 in

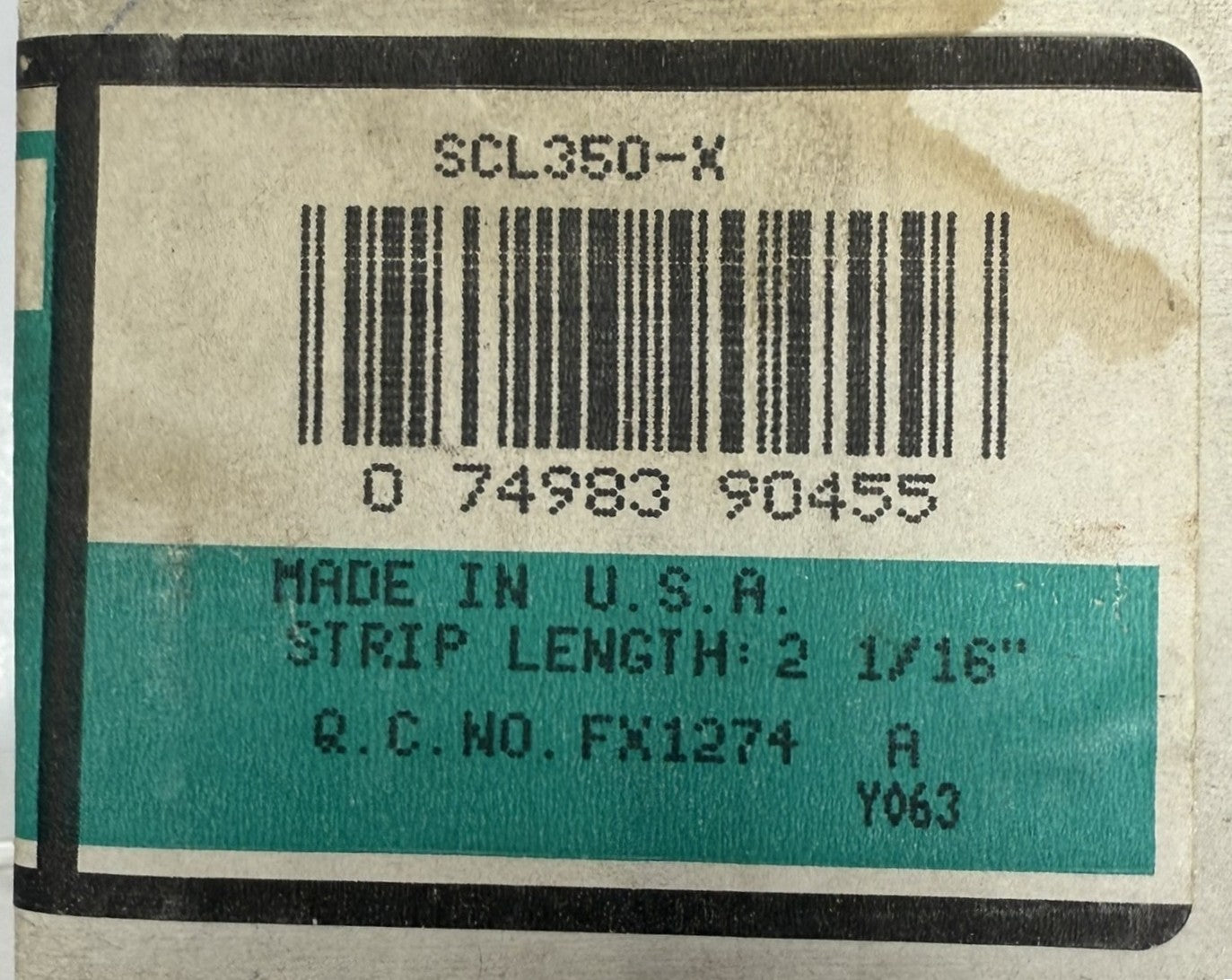

- Wire strip length: 2 in
Product Features:

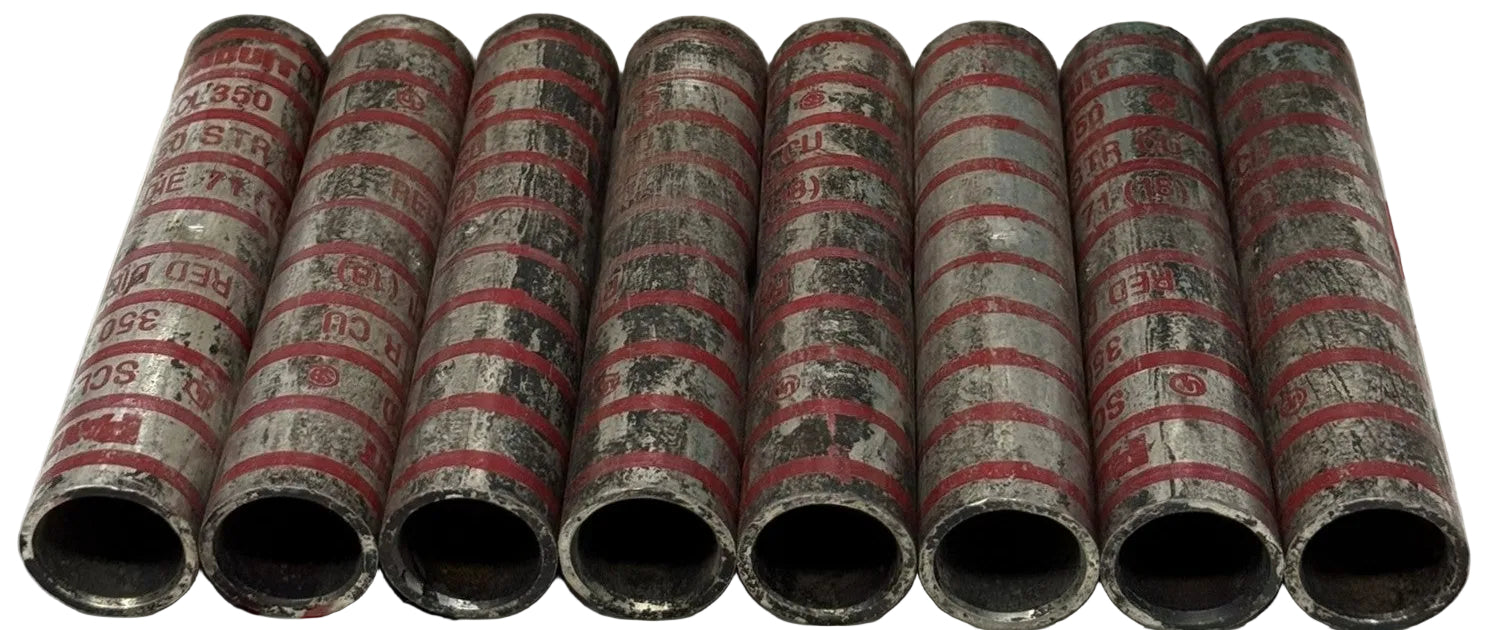

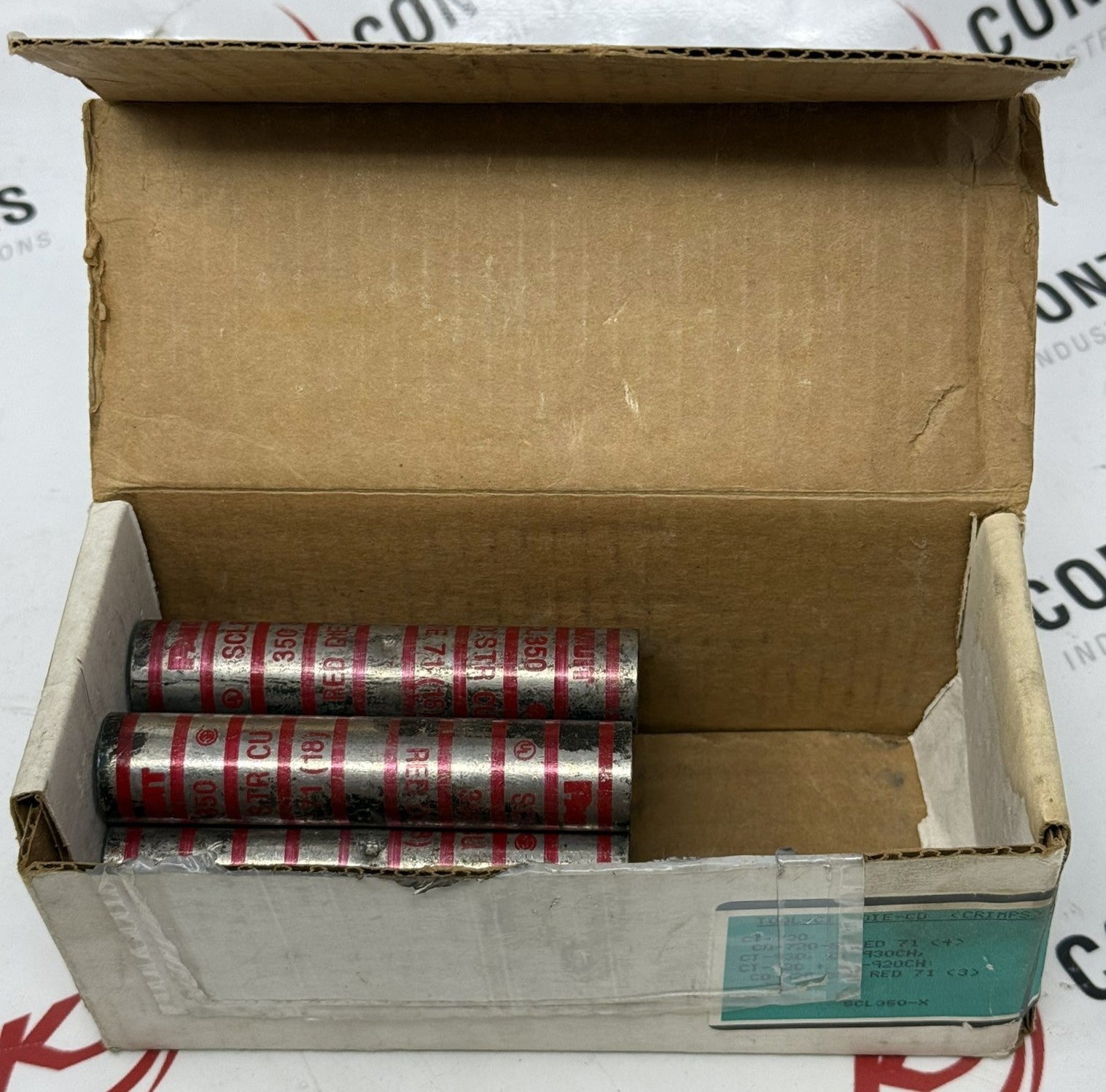

- Box of 8 Panduit long barrel copper compression butt splices
- Long barrel design maximizes the number of crimps for improved wire pull-out strength and electrical performance
- Internal wire stop helps prevent over-insertion of the conductor

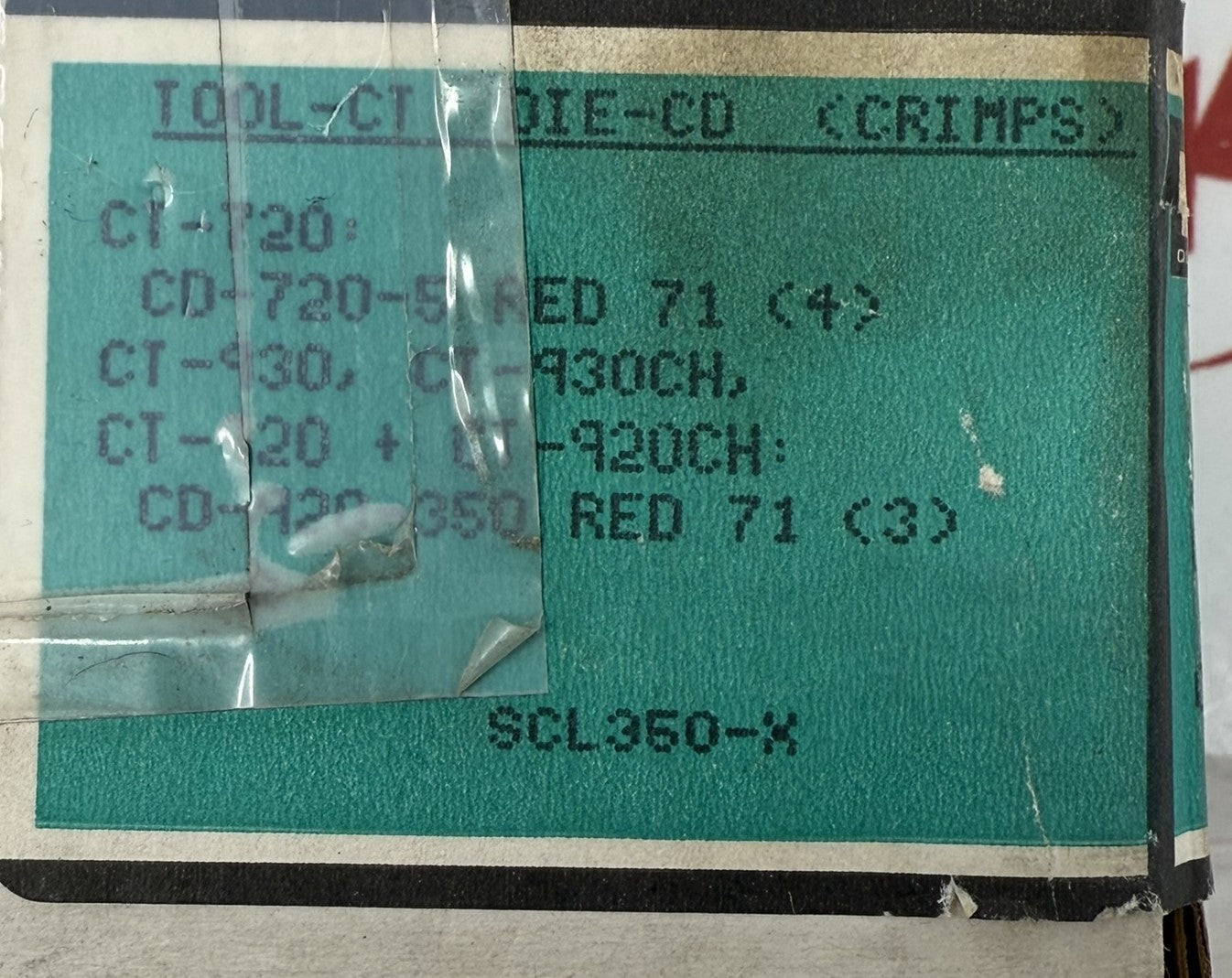

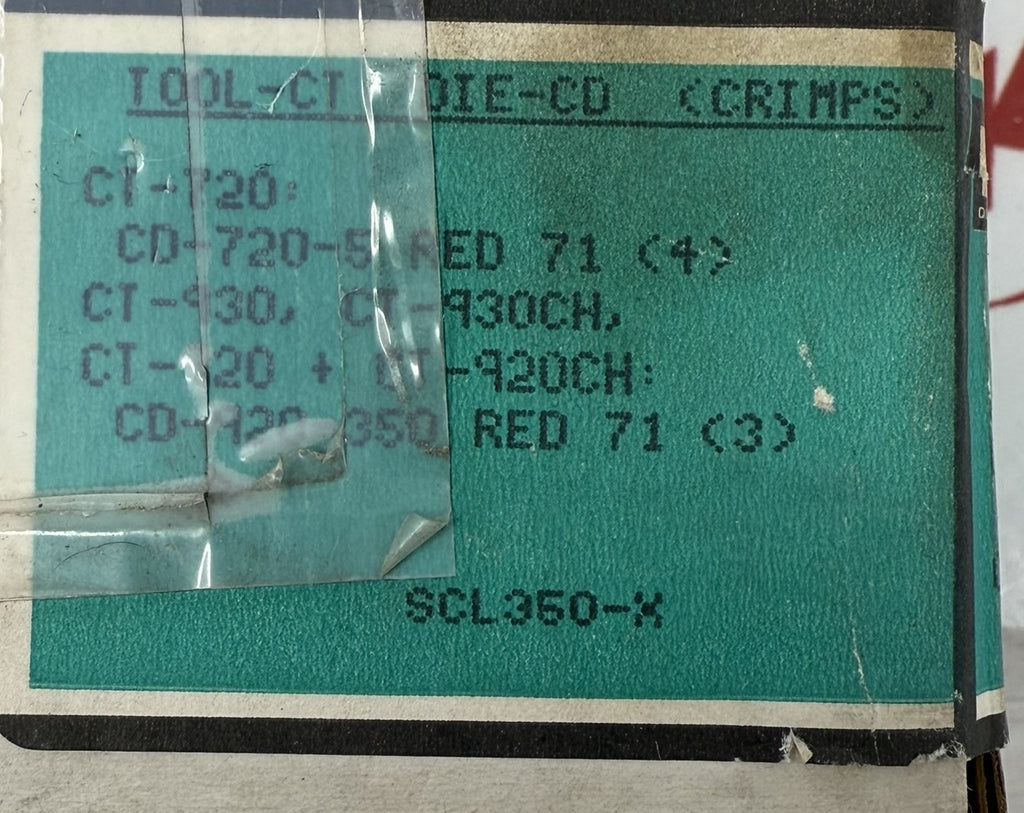

- Color-coded barrel is marked with Panduit and competitor die index numbers for easier die selection
- Tin-plated copper construction helps resist corrosion
- Designed for secure permanent copper conductor splicing in higher demand electrical applications
- Non-insulated compression splice design supports straightforward field termination with the proper tooling
Product Designed Use:
- Designed to permanently join two stranded copper conductors
- Used in industrial electrical power wiring and control panel applications
- Suitable for use in switchgear, panelboards, and other power distribution terminations within rated limits
- Used where a long barrel copper compression splice is preferred for improved crimping and pull-out performance
