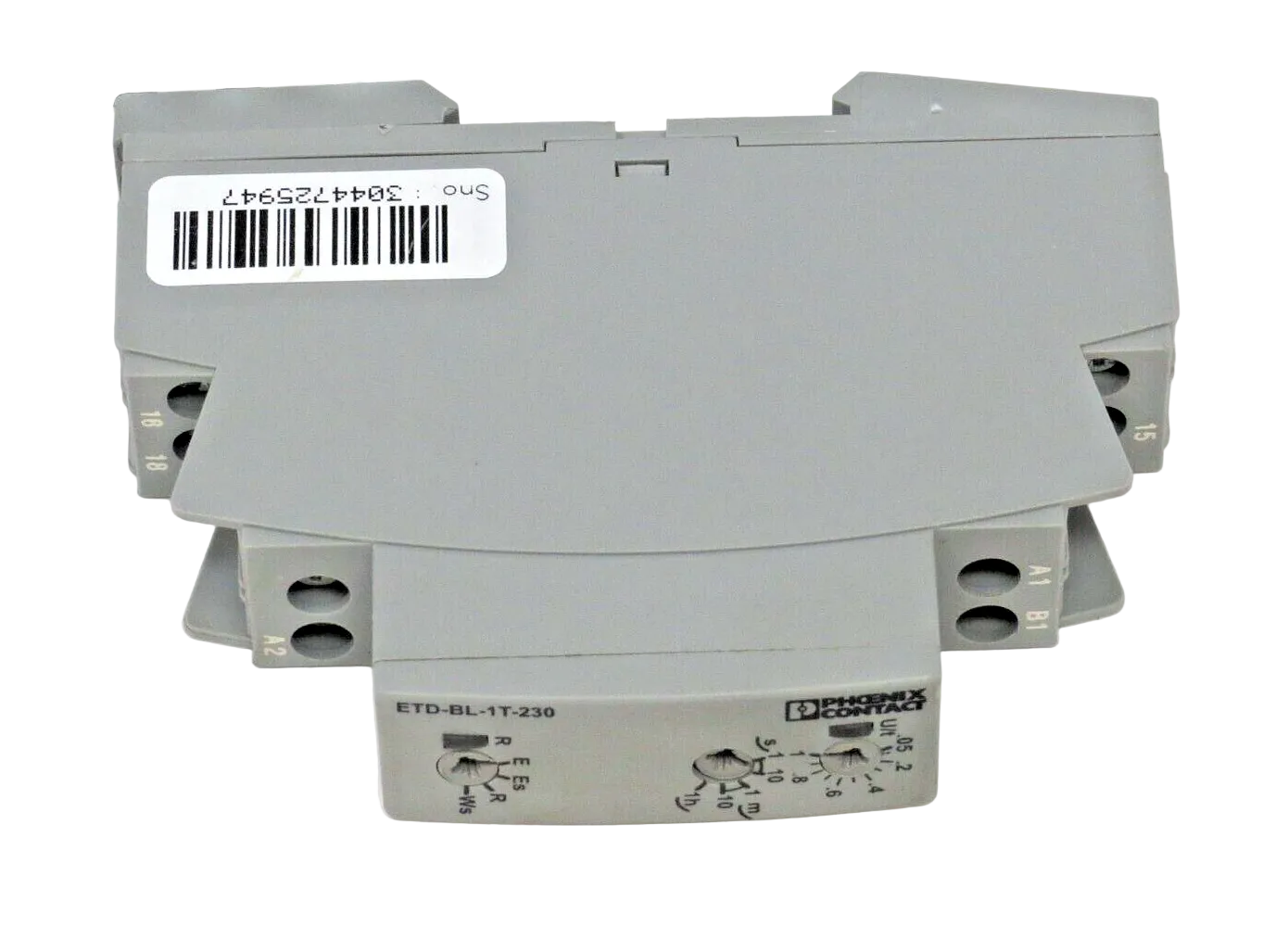

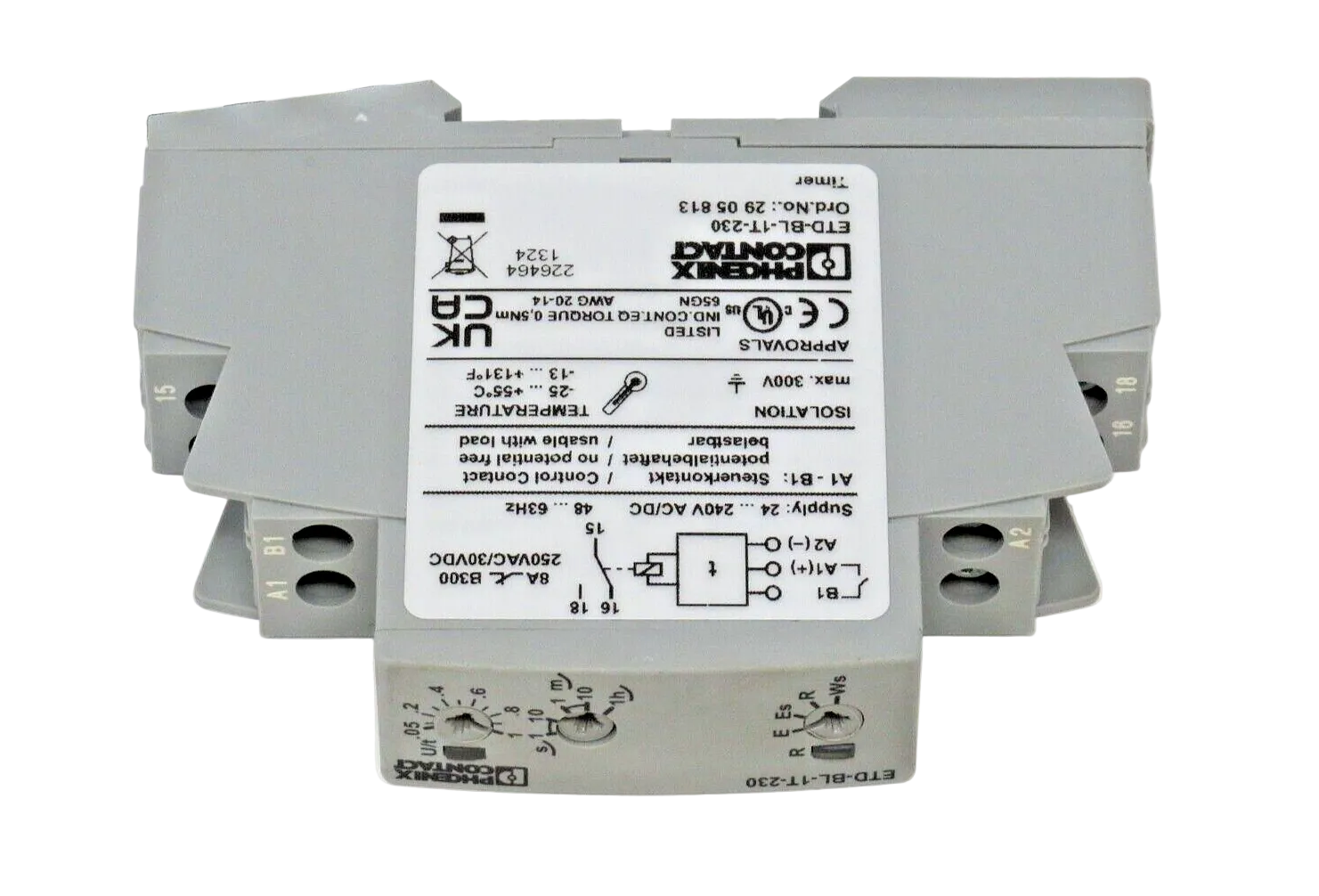

Phoenix Contact Timer Relay
Product Basic Information:
- Manufacturer: Phoenix Contact
- Part Number: ETD-BL-1T-230 (also known as ETDBL1T230PT)
- Product Family: ETD Series
- UPC/EAN: Not Available
Technical Specifications:
- Input Voltage Range: 24 V AC/DC to 240 V AC/DC (-15% to +10%)
- Nominal Frequency: 48 Hz to 63 Hz
- Nominal Power Consumption: 4 VA

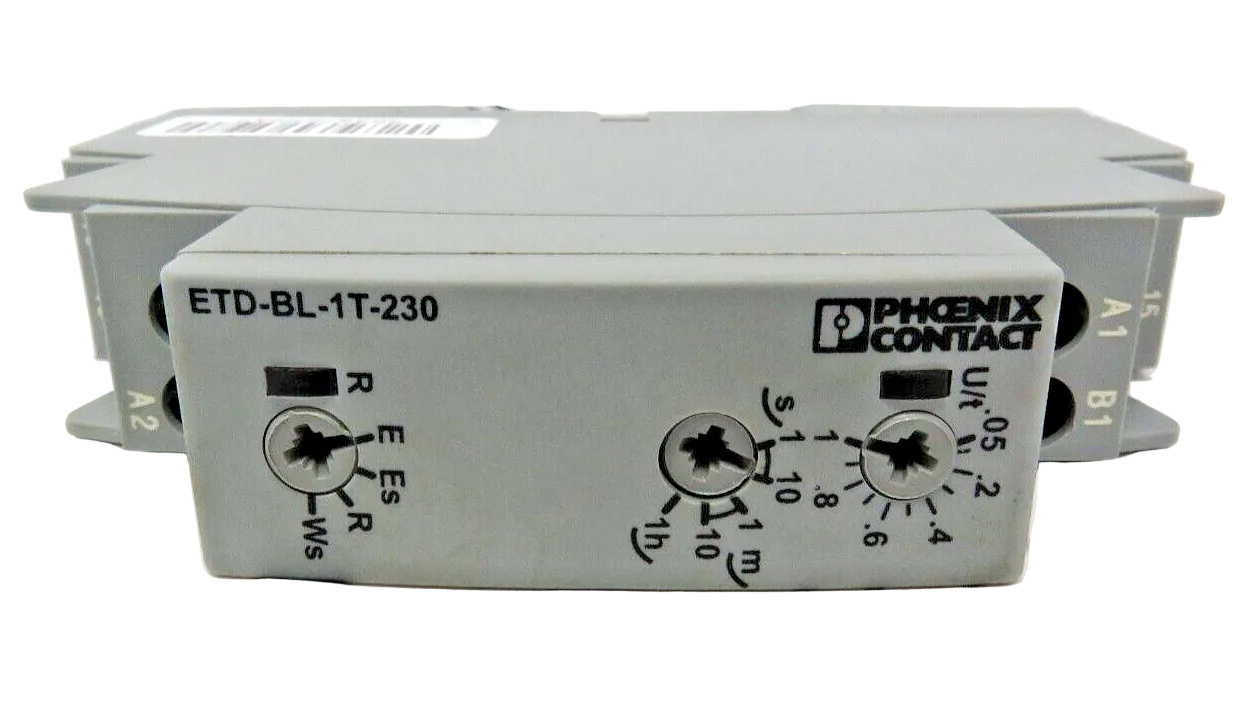

- Time Setting Range: 50 ms to 1 hour (with 5 selectable time end ranges)
- Functions Available: E: Switch-on delay, Rs: Release delay with control contact, Es: Switch-on delay with control contact, Ws: Single shot leading edge with control contact

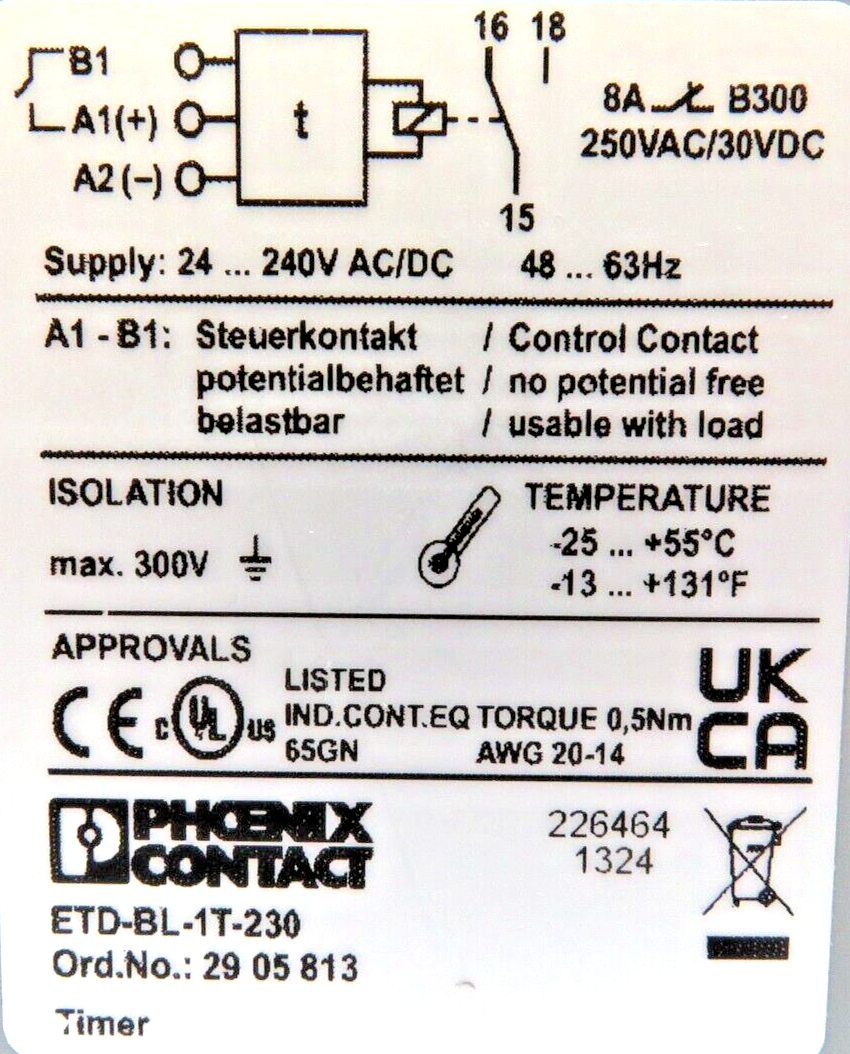

- Output Contact Type: 1 floating changeover contact (SPDT)
- Maximum Switching Voltage: 250 V AC (according to IEC 60664-1)
- Interrupting Rating (Ohmic Load): Up to 1250 VA (5 A / 250 V AC)
- Mechanical Service Life: 15 million cycles
- Electrical Service Life: 100,000 cycles
- Connection Method: Screw connection
- Conductor Cross Section: 0.5 mm² to 2.5 mm² (solid or flexible)
- Ambient Temperature (Operation): -25°C to +55°C
- Protection Degree: IP40 (housing), IP20 (connection terminal blocks)
- Dimensions (W x H x D): 17.5 mm x 89.5 mm x 65.5 mm
- Mounting: DIN rail mounting (35 mm)
