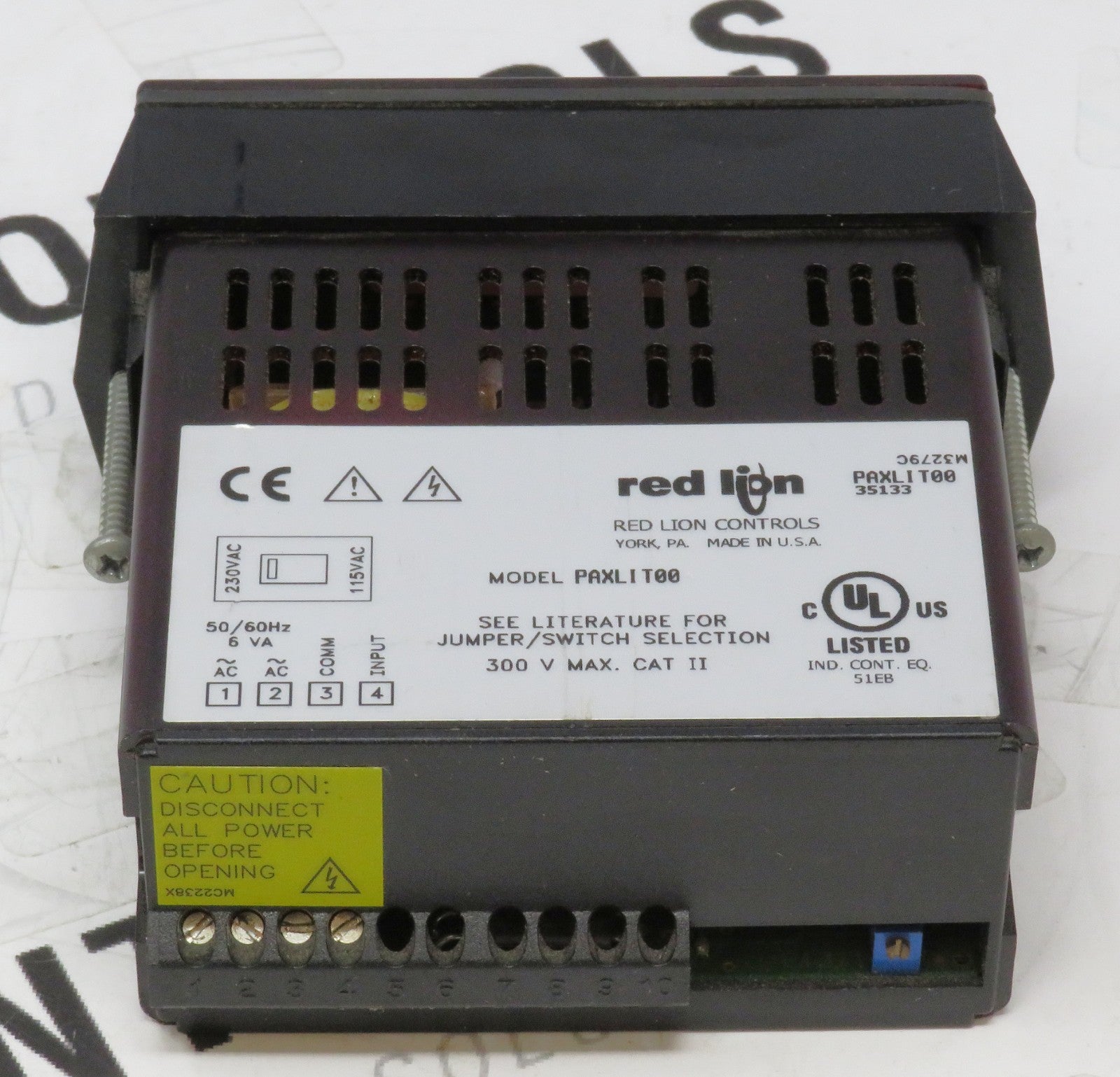

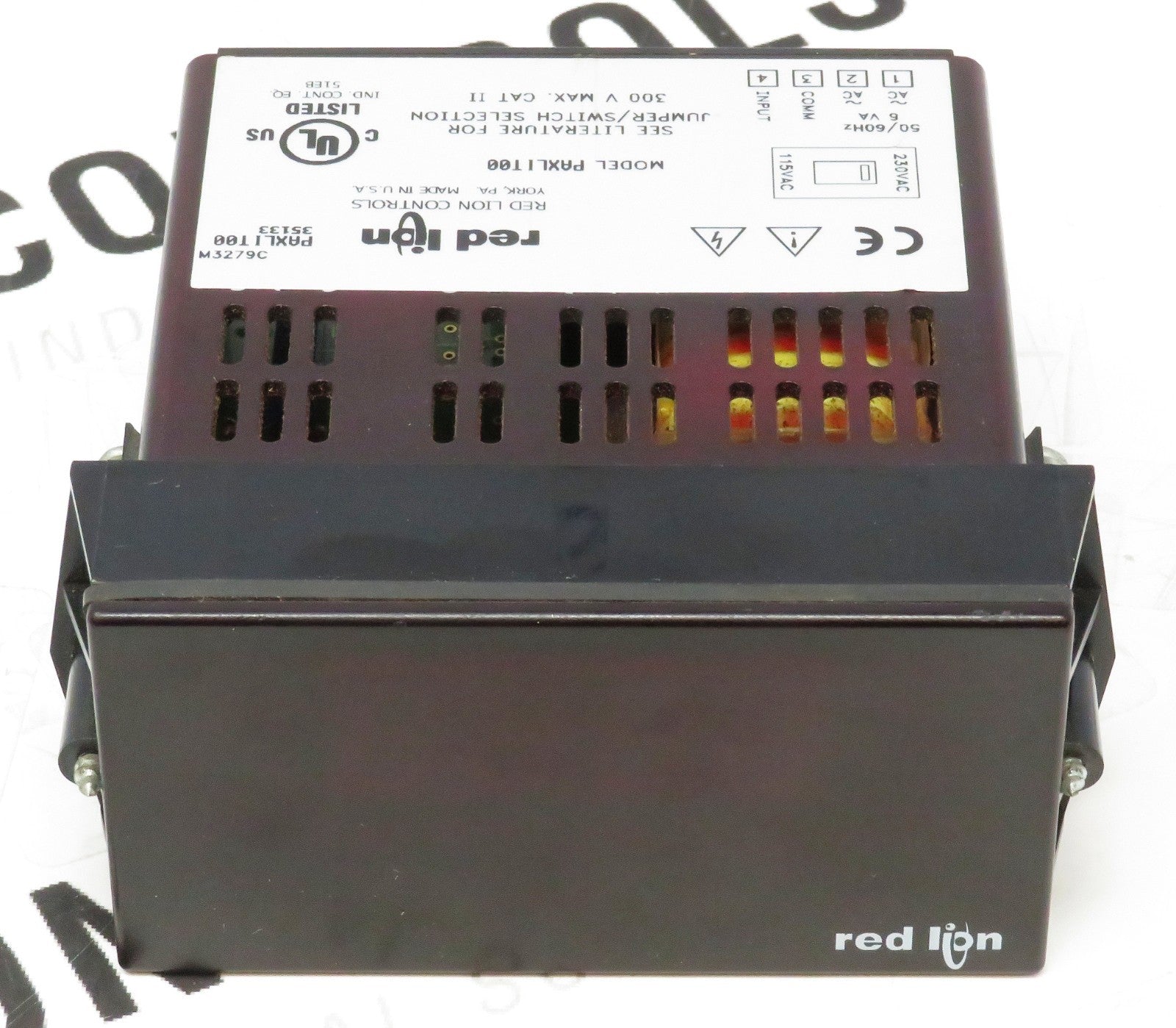

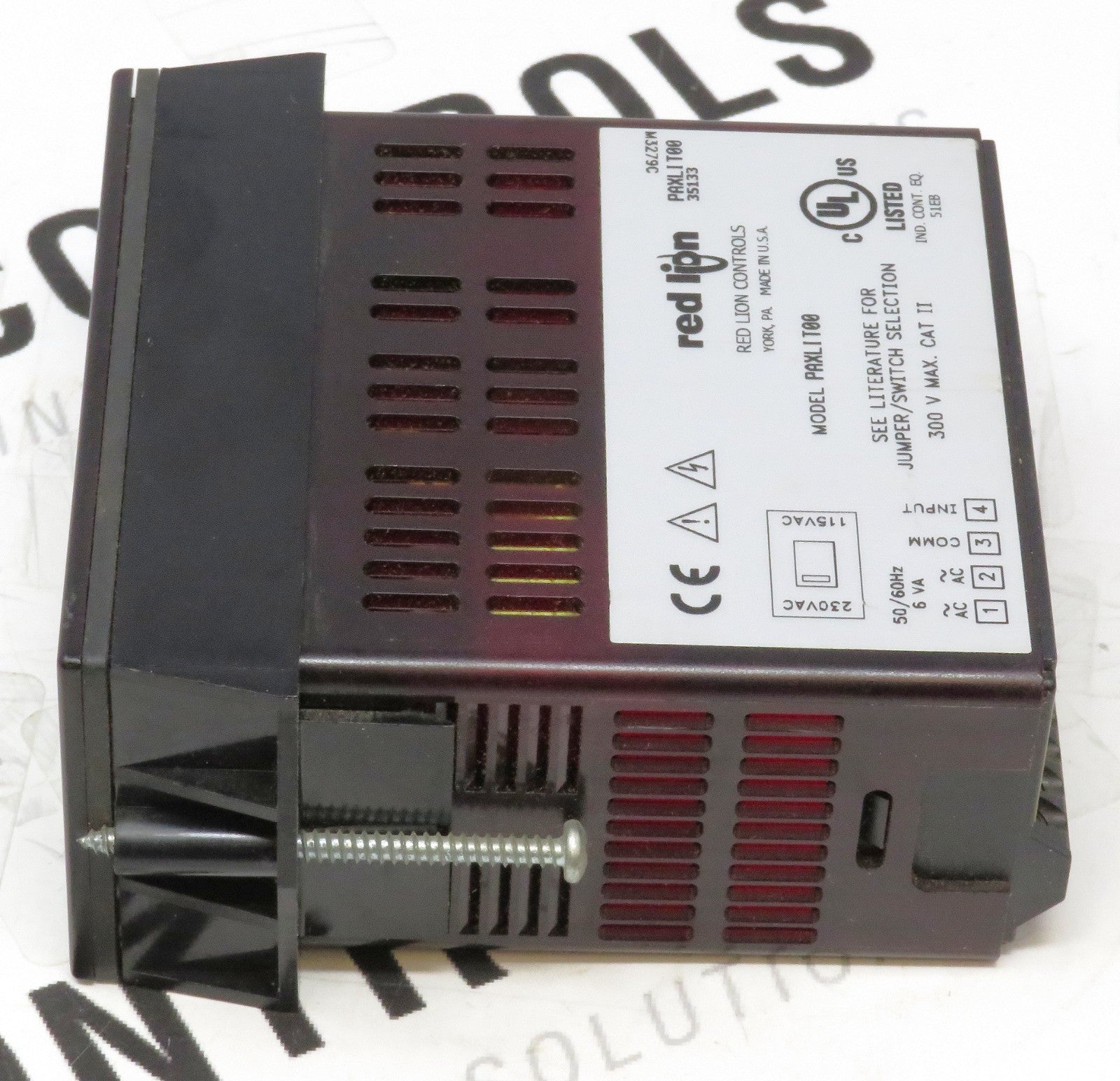

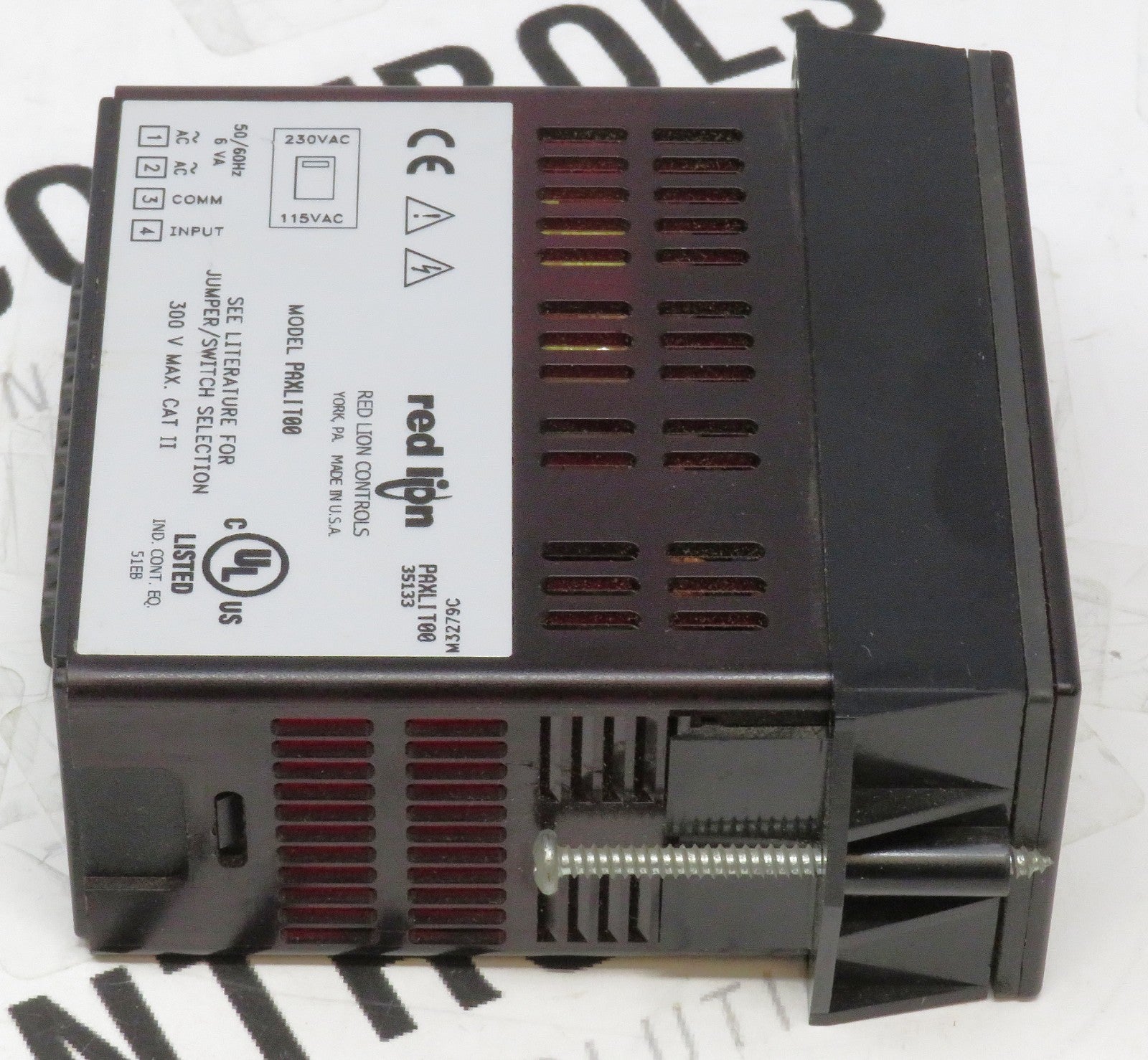

Red Lion Current Meter
Product Basic Information:
- Manufacturer: Red Lion Controls
- Parent Corporation: Spectris plc
- Part Number: PAXLIT00
- Product Family/Series: PAX Lite
Technical Specifications:
- Input Signal Type: AC Current
- Input Range: 0–5 Amp AC
- Input Frequency: 50/60 Hz
- Power Supply Options: 115/230 VAC selectable (via internal jumper)
- Power Consumption: 6 VA
- Display Type: 3.5 Digit Red LED
- Display Count: ±1999
- Cutout Size: 1/8 DIN (45mm x 92mm)
- Maximum Voltage: 300 V (Category II)
- Mounting Type: Panel mount
- Dimensions: Approx. 3.77" D x 1.89" H x 3.78" W (based on 1/8 DIN standard)
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Certifications:
- UL Listed (IND. CONT. EQ., File E179259)
- CE Certified
- cUL Recognized
- Terminals: Screw terminals (10-position terminal block)
- Front Panel Rating: NEMA 4X/IP65 (when properly installed with optional panel gasket — not always included)
Product Features:
- Easy-to-read red LED display with high-visibility output
- User-configurable via internal jumpers/switches
- Compact panel footprint with 1/8 DIN cutout
- Ideal for use with external current transformers (CTs) for measuring higher current ranges
- Universal power input with 115/230 VAC selection
- Overrange indication
- Designed for accurate current measurement in industrial environments
- Plug-in style with secure screw terminal connections
Product Designed Use:
Designed for monitoring AC current in industrial electrical panels
Frequently used in:
- Motor control centers
- Load monitoring systems
- Generator panels
- Industrial automation systems
Suitable for applications requiring basic visual monitoring without advanced data logging or output control
