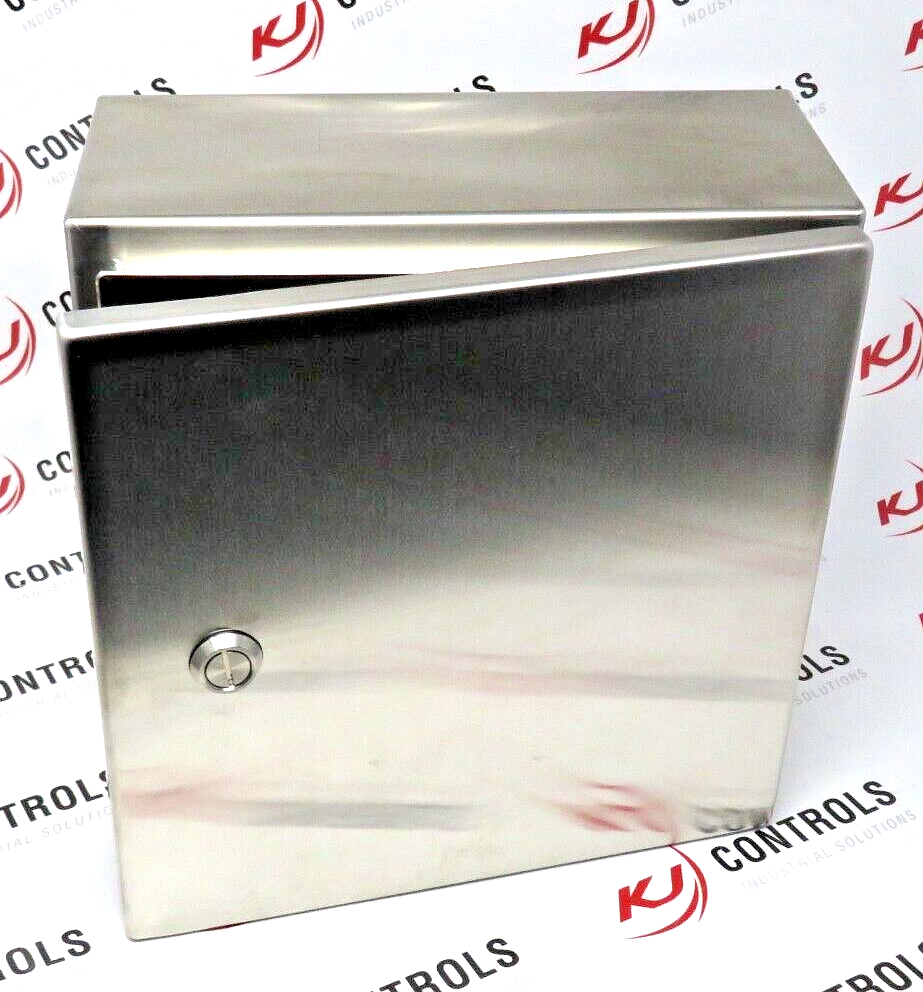

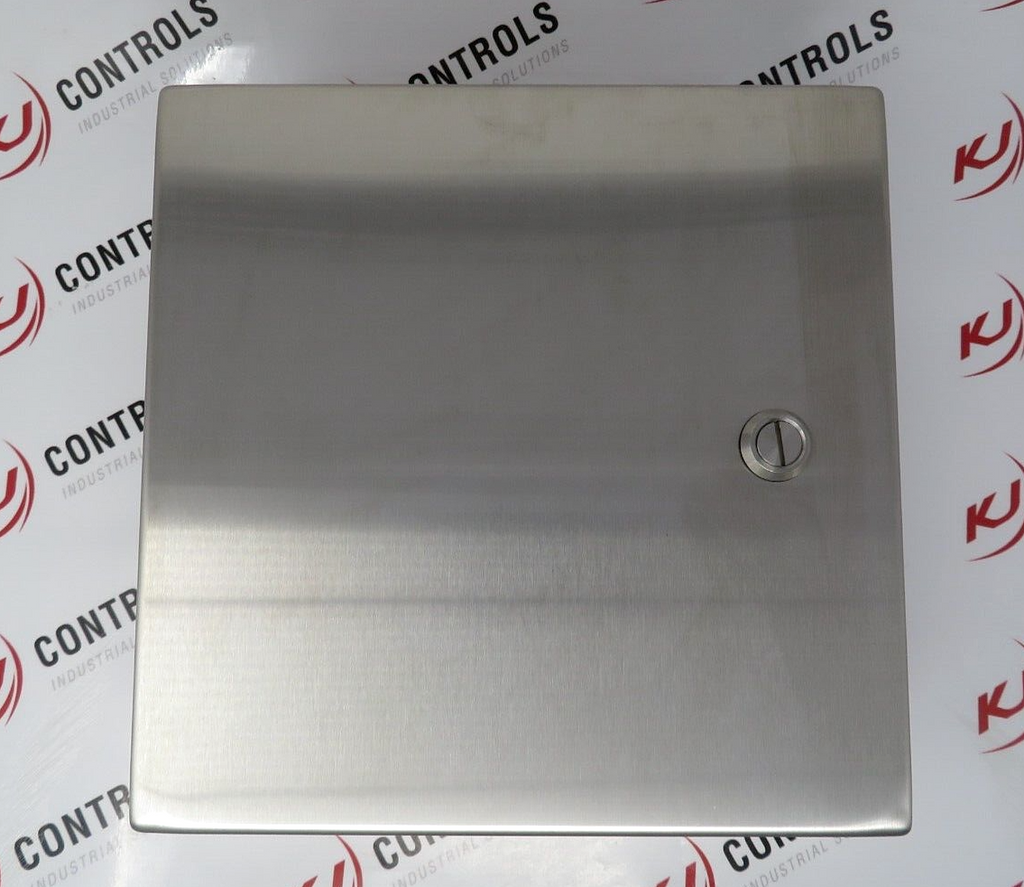

Rittal 8017620 WM121206N4 12x12x6 NEMA 4X Stainless Steel Enclosure
Product Basic Information:
- Manufacturer: Rittal
- Catalog number: 8017620
- Part number: WM121206N4
- Product family/series: WM wall-mounted enclosure series
- Product type: Stainless steel wall-mounted enclosure
- Country of origin: U.S.A.
Technical Specifications:
- Enclosure type: Single door wall-mounted enclosure
- Material: Housing and door stainless steel
- Mounting plate material: Carbon steel, zinc-plated
- Surface finish: Brushed No. 4 finish
- Dimensions: 300 mm W x 300 mm H x 150 mm D
- Dimensions: 11.8 in W x 11.8 in H x 5.91 in D
- Mounting plate dimensions: 254 mm W x 275 mm H
- Mounting plate dimensions: 10 in W x 10.8 in H
- Protection rating: NEMA 4X
- Protection rating: IP66
- Door thickness: 1.5 mm
- Enclosure thickness: 1.5 mm
- Mounting plate thickness: 1.5 mm
- Door hinge: Left-hand hinge
- Lock type: Quarter-turn latch

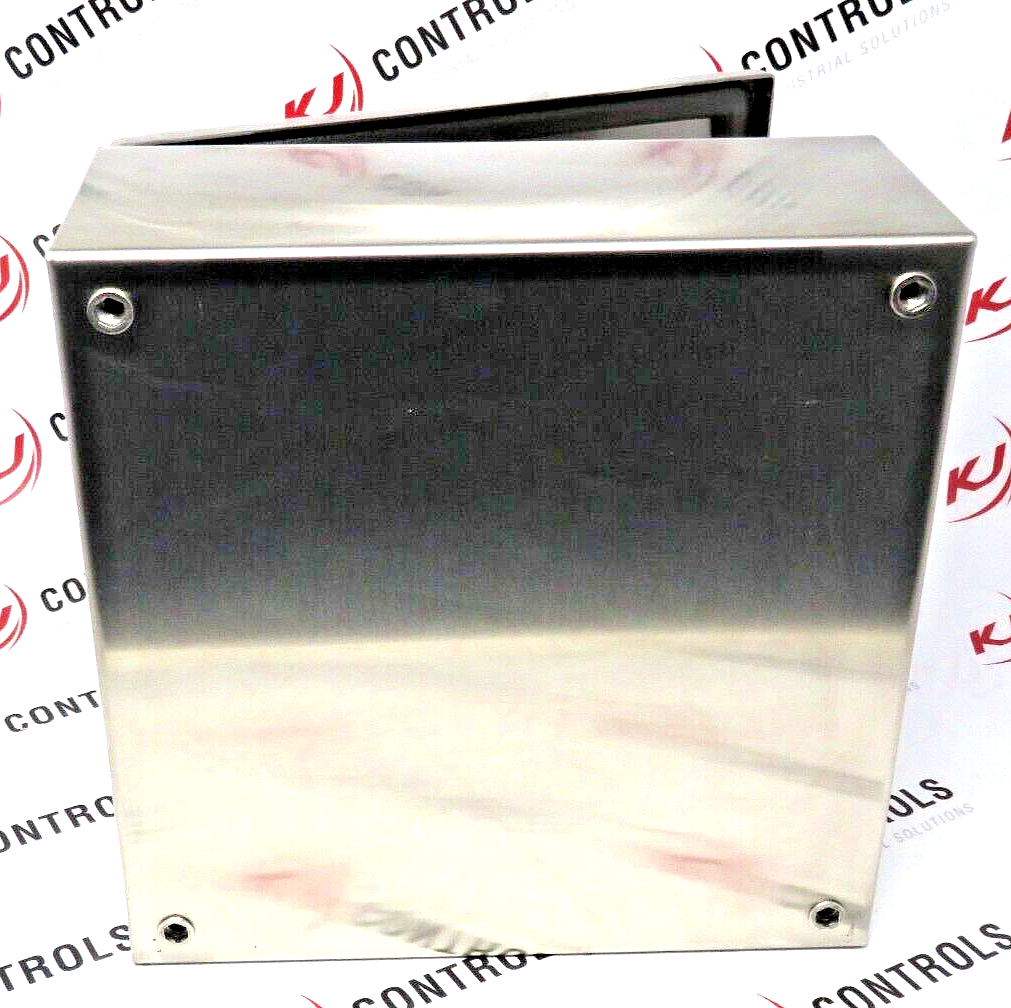

- Mounting method: Wall mount with blind-nuts
Product Features:
- WM series compact wall-mounted enclosure for industrial electrical protection
- 304 stainless steel body and door support use in demanding industrial environments
- Foamed-in-place gasket and knife-edge sealing surface help maintain NEMA 4X and IP66 protection

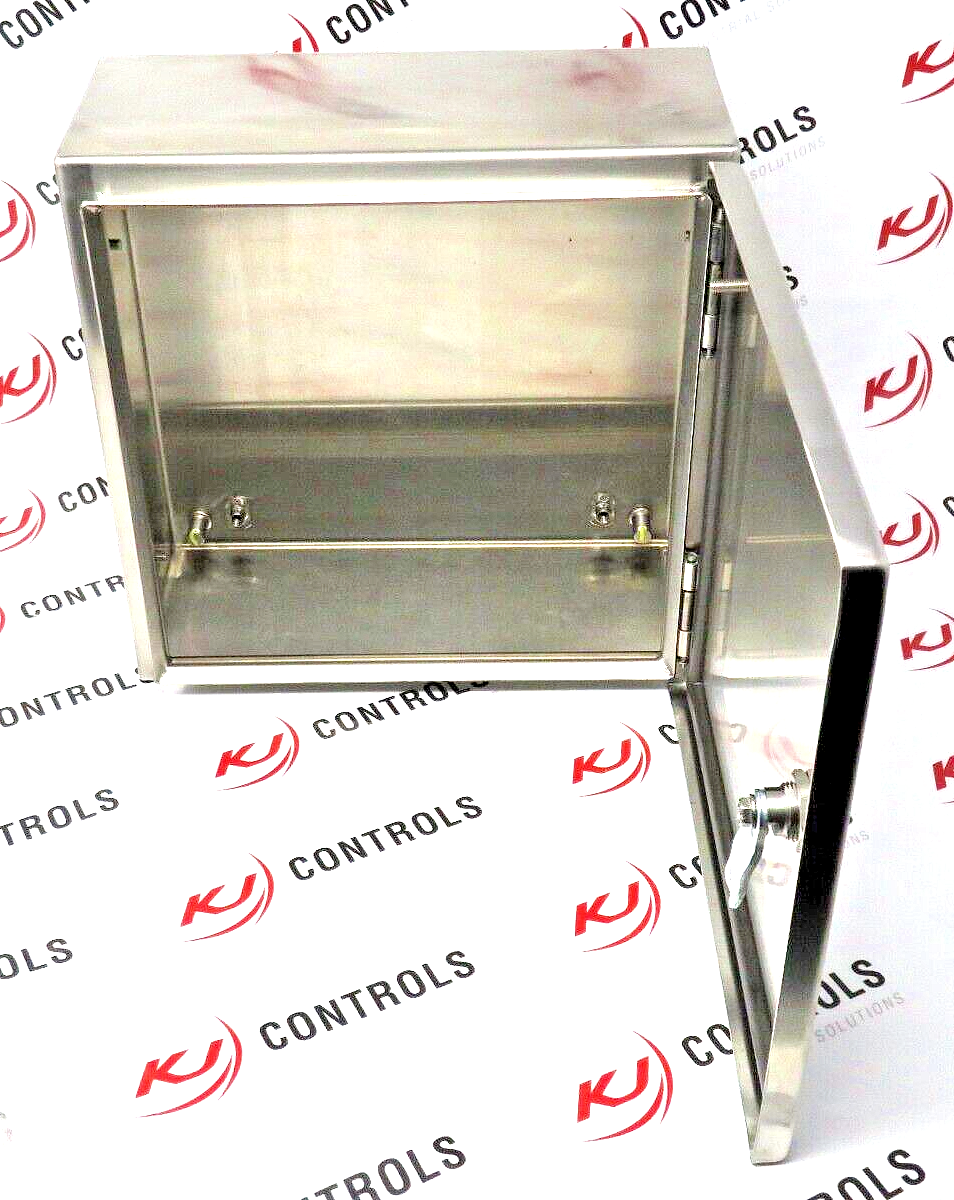

- Single door design with left-hand hinge allows straightforward access to internal components
- Quarter-turn locking system provides secure closure
- Zinc-plated mounting plate is included for internal component mounting
- Blind-nut wall mounting arrangement supports stainless steel enclosure installation
- Compact 12 x 12 x 6 in format fits a wide range of control and junction applications
Product Designed Use:
- Designed to house and protect electrical and control components in industrial environments
- Used for terminal blocks, control devices, instrumentation, and junction applications
- Suitable for indoor or outdoor installations requiring stainless steel corrosion resistance and washdown protection
- Used in manufacturing, utilities, food and beverage, water treatment, and general industrial panel applications
