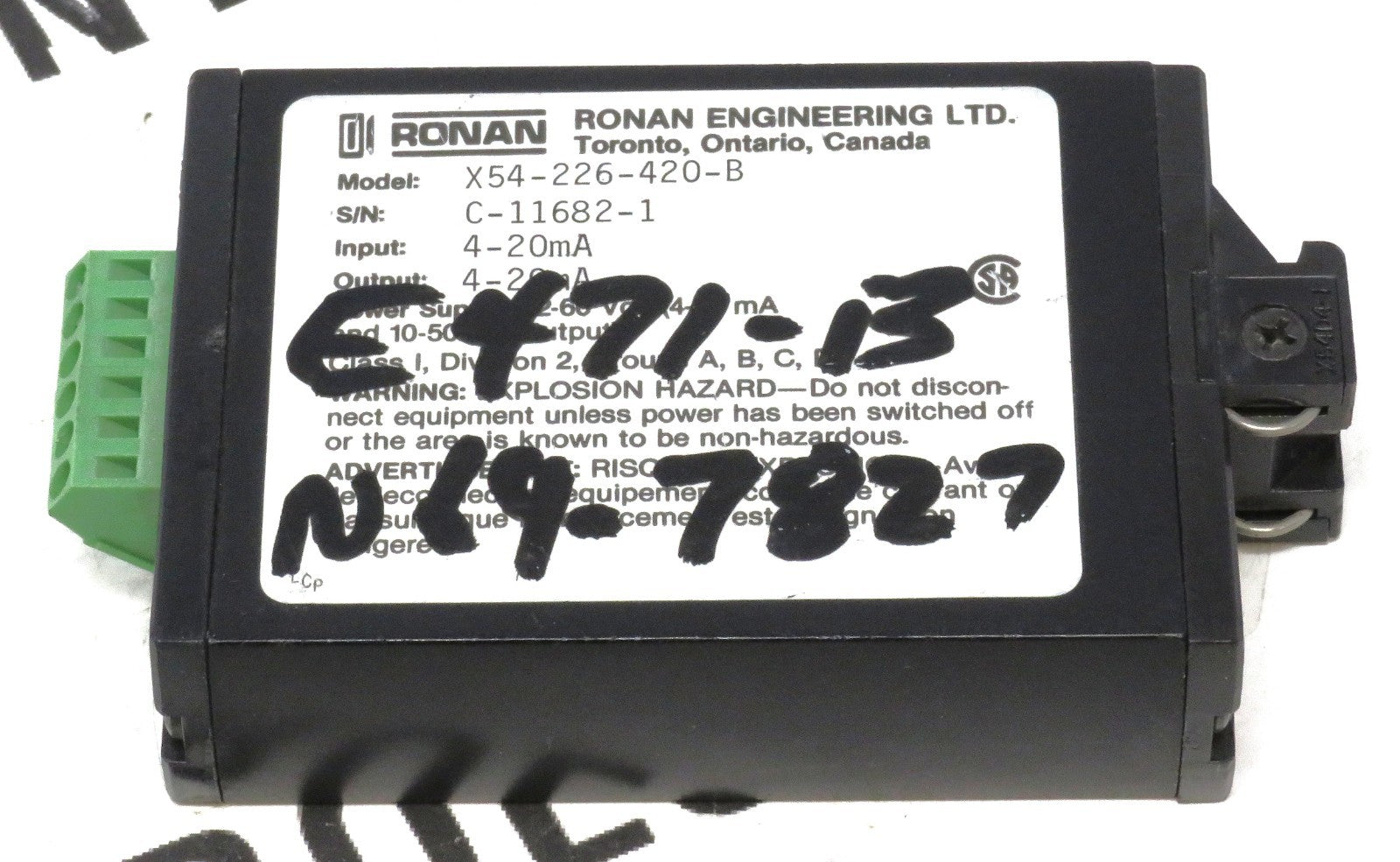

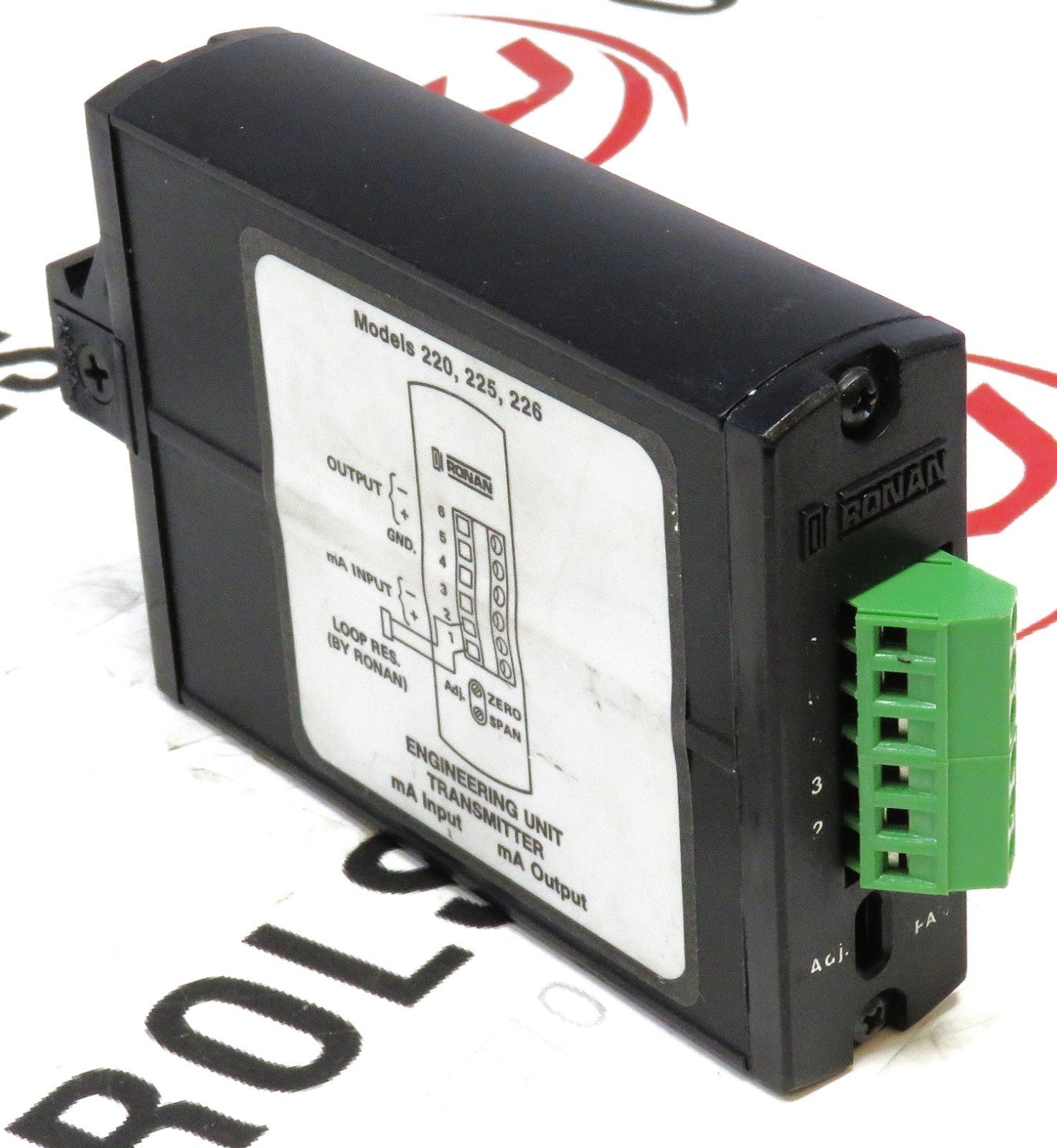

Ronan Engineering Ltd.Industrial Transmitter 4-20mA DIN Rail
Product Basic Information:
- Manufacturer: Ronan Engineering Ltd.
- Part Number: X54-226-420-B (X54226420B)
- Product Family: X54 Series / Model 226
Technical Specifications:
- Input Signal: 4–20 mA DC
- Output Signal: 4–20 mA DC
- Power Supply: 24–60 VDC, 24–40 mA
- Mounting Type: DIN Rail Mount
- Input & Output Isolation: Isolated I/O
- Operating Temperature: (Data not available at this time)

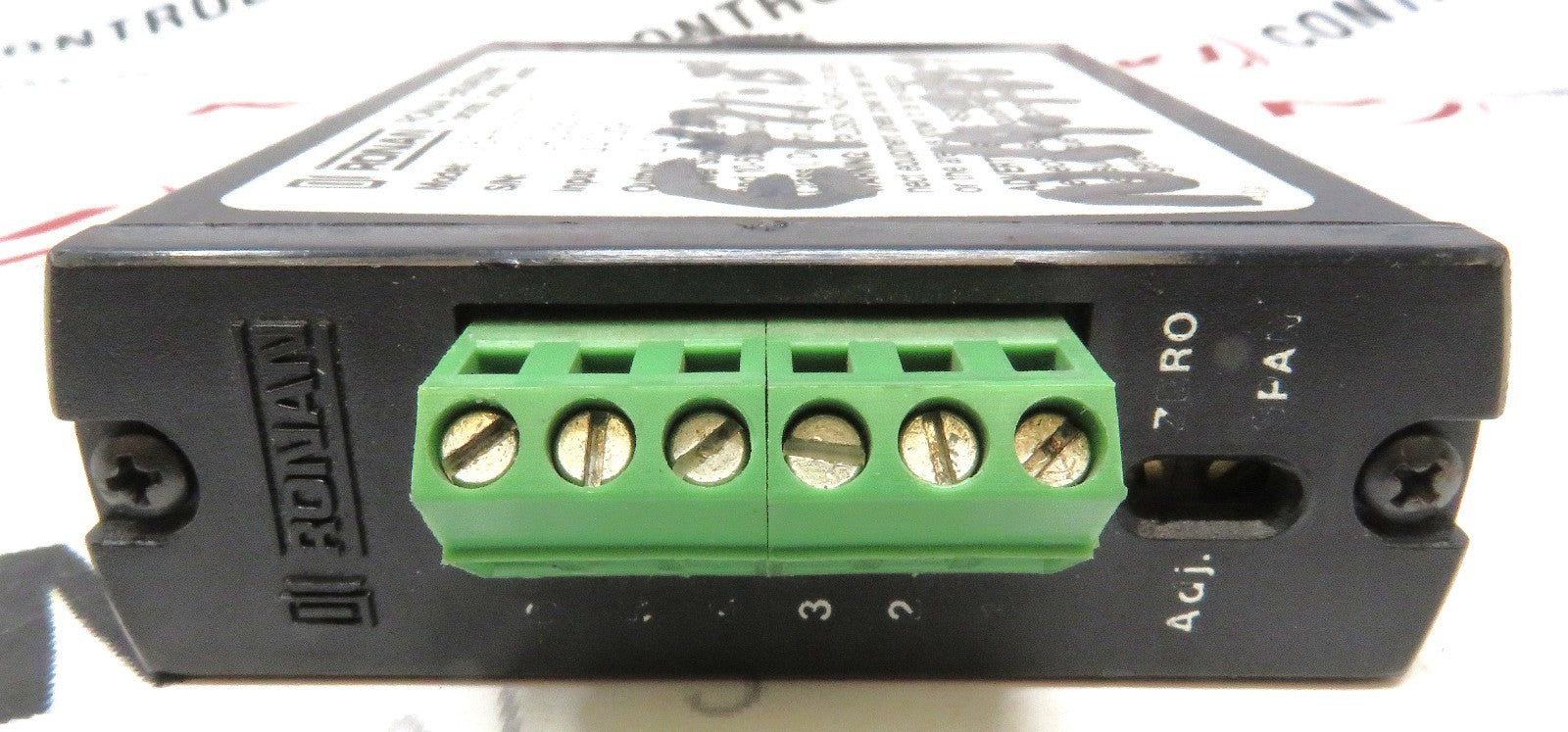

- Wiring Terminals: Screw-type removable terminals
- Calibration: Zero & Span adjustable via on-unit trim pots
- Enclosure Rating: Open-style, not rated for outdoor or wet environments
- Compliance: CSA Approved
- Hazard Rating: Class I, Division 2, Groups A, B, C, D (Hazardous Locations)
- Dimensions: Approx. 4.5 x 2.5 x 1 inches
Product Features:
- Transmitter/Isolator with mA Input and mA Output
- Accepts industry-standard 4–20 mA signals
- Signal isolation helps eliminate ground loops and signal interference
- Designed for general-purpose industrial process signal conversion
- Onboard Zero and Span adjustments for precise tuning
- Compact DIN rail mount form factor

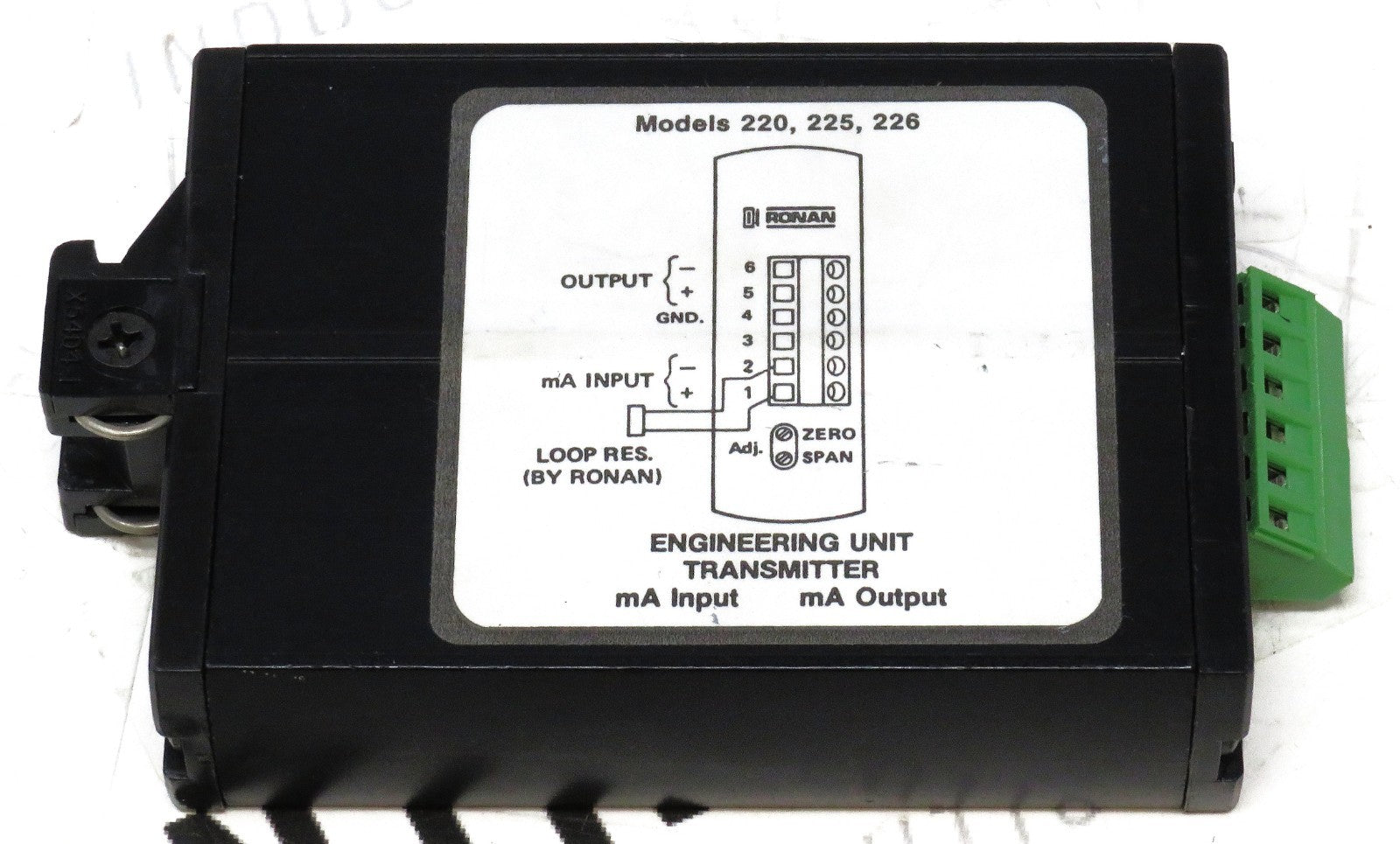

- Clear wiring diagram printed on housing
Product Designed Use:
Designed for isolating, transmitting, and conditioning current loop signals (4–20mA) in industrial automation and process control systems.
Frequently used in:
- PLC and DCS analog input/output conditioning
- Hazardous area signal interfacing (Class I, Div 2)
- Control room to field signal transmission
* Buyer is responsible for all customs duties, tariffs, brokerage fees, local levies, taxes, and VAT (if applicable).*
KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR RONAN ENGINEERING LTD.
(5A4-1 - Upstairs)
