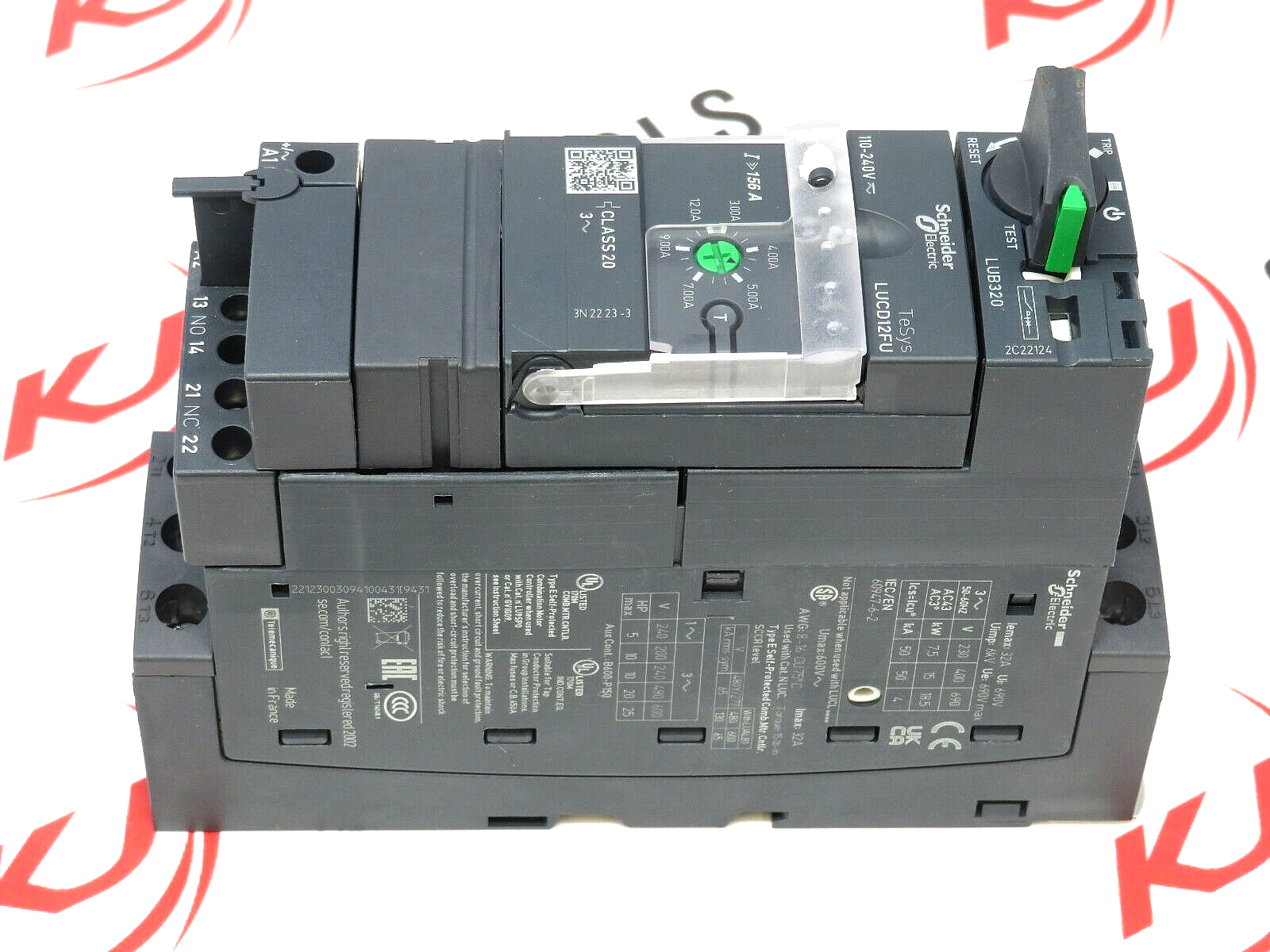

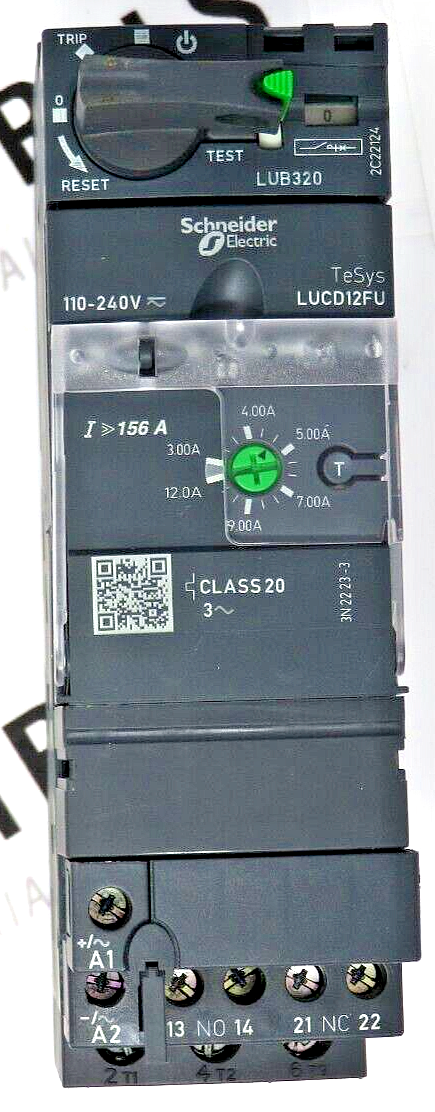

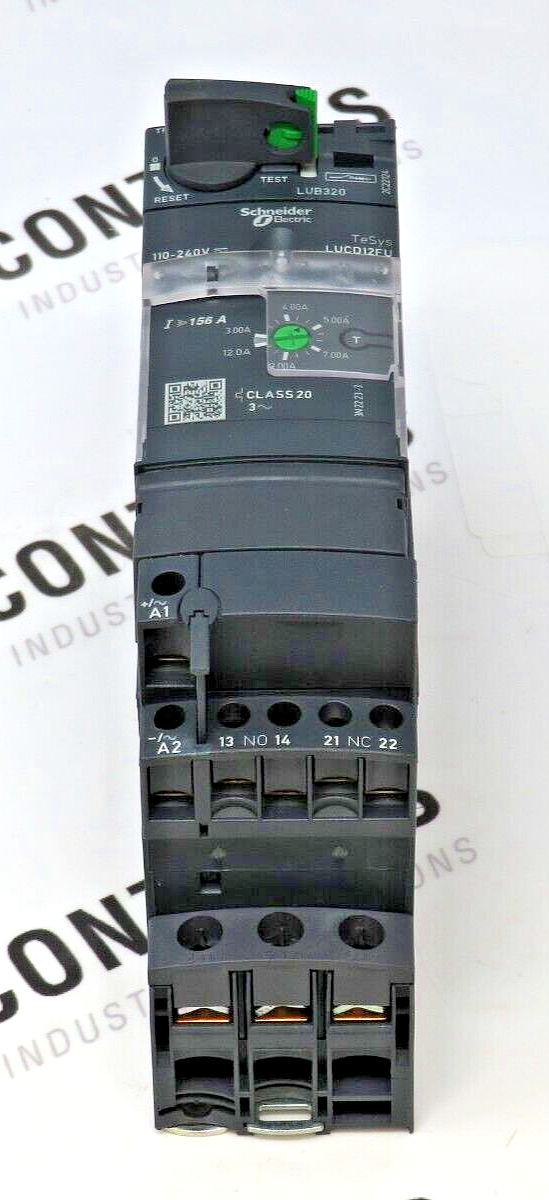

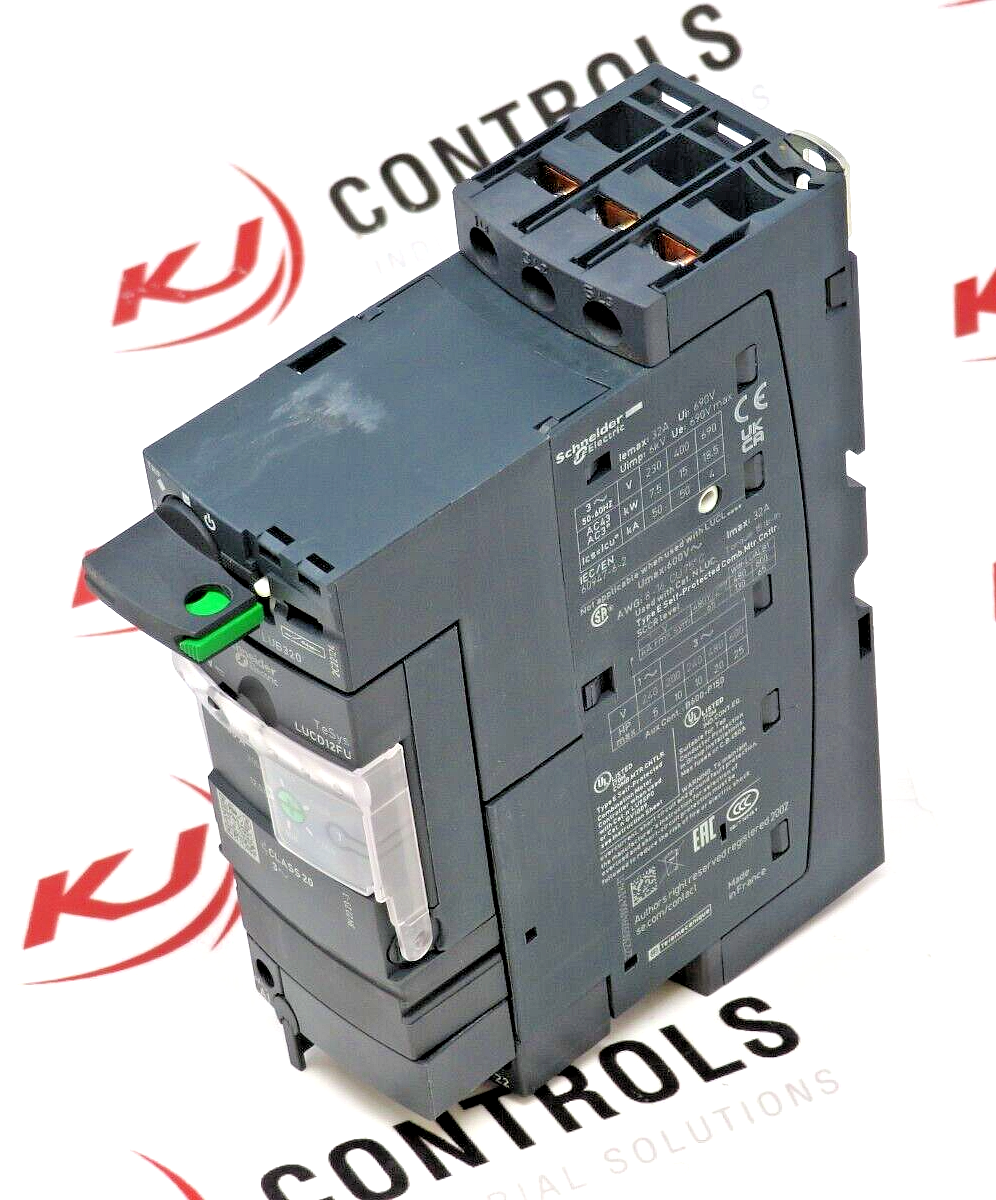

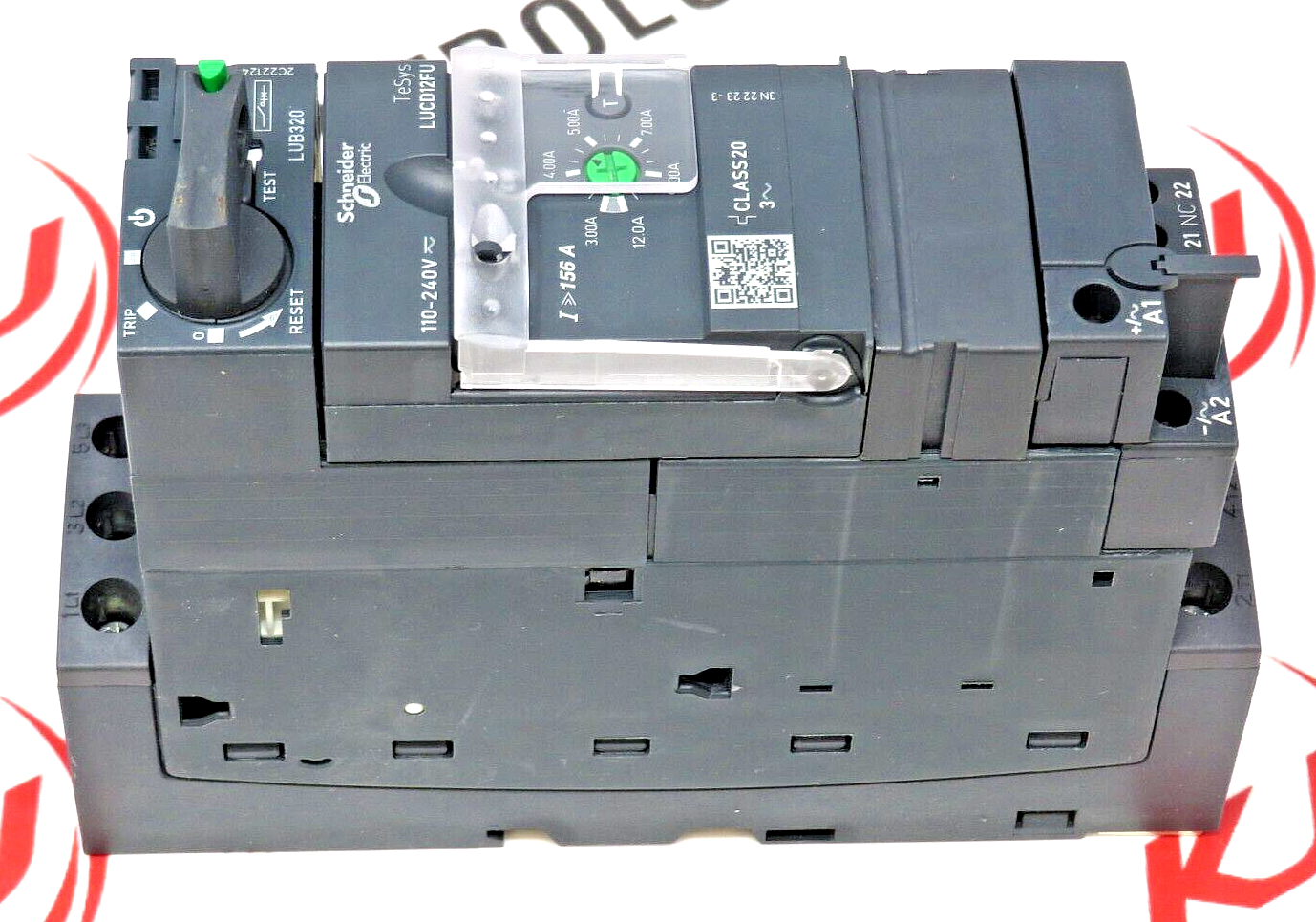

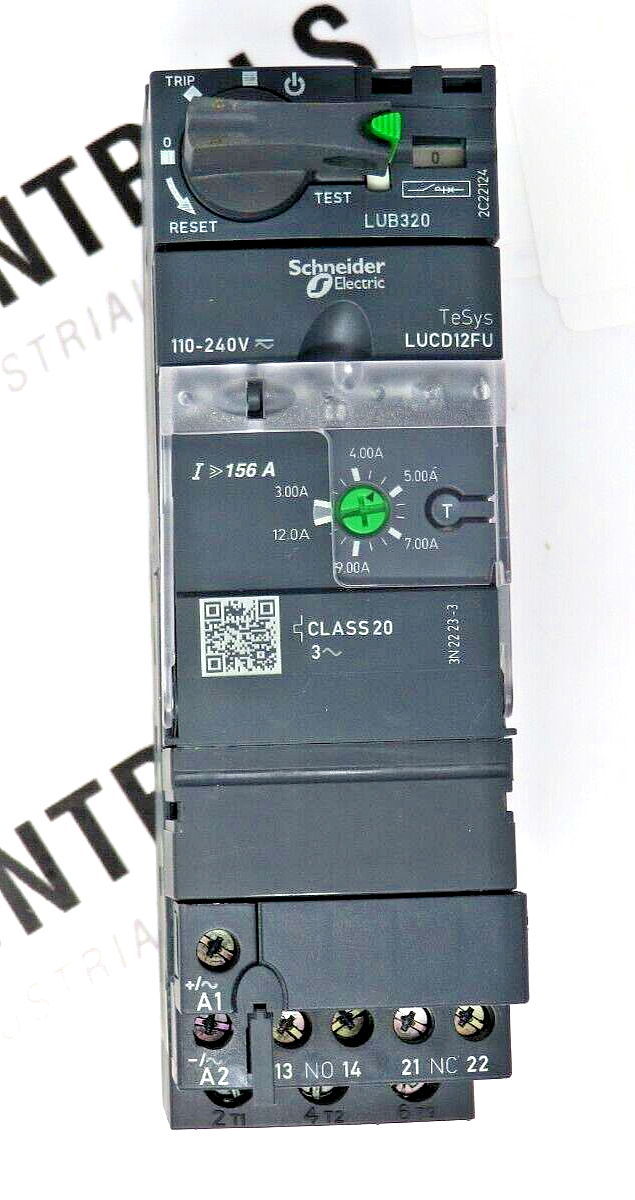

Schneider Electric Telemecanique LUCD12FU And LUB320 Advanced Control and Advanced Power Base Units

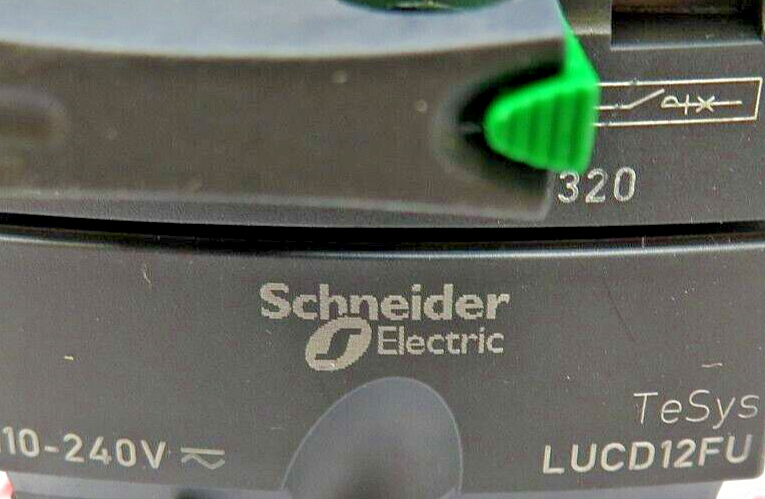

Schneider Electric Telemecanique Advanced Control Unit
- Part Number: LUCD12FU
- Product family: TeSys Ultra series
- UPC: 785901269908
- Lifecycle status: ACTIVE
Technical Specifications:
- Rated operational voltage: 690VAC

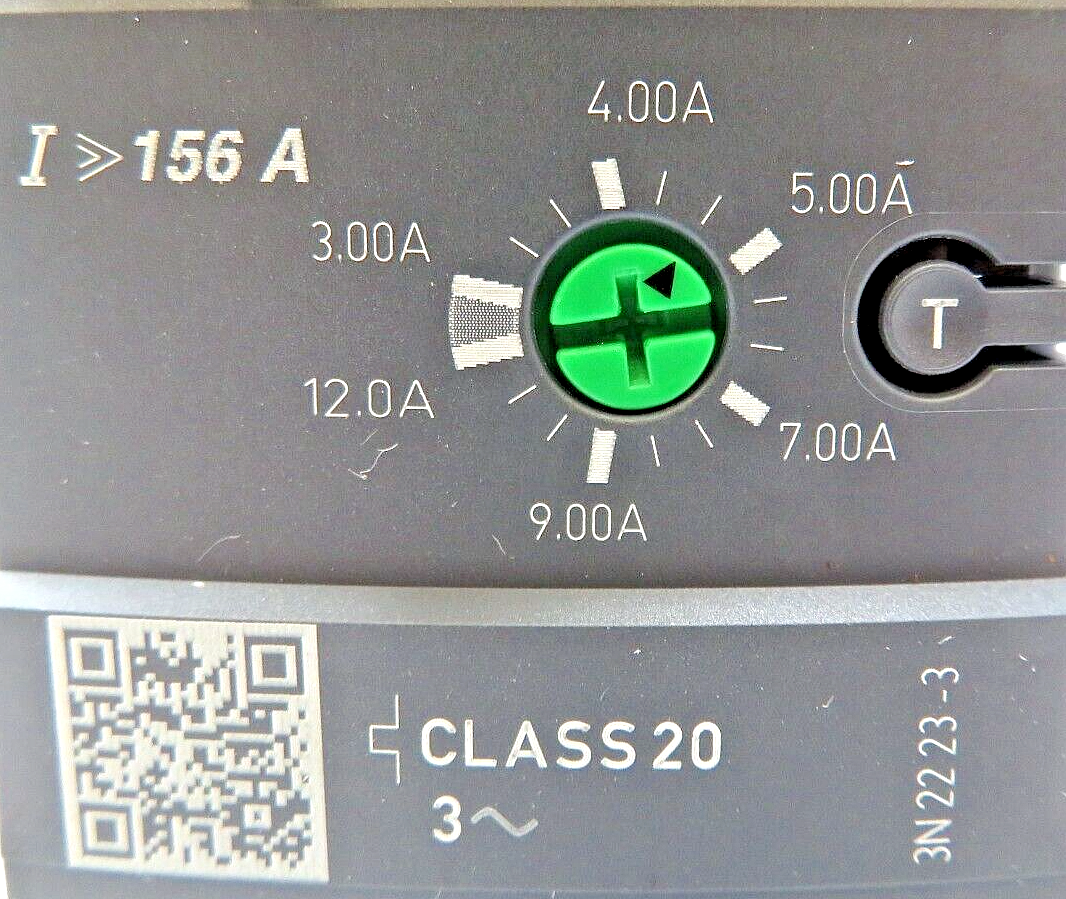

- Rated current: 3 to 12A
- Coil voltage: 110 to 240VAC/DC
- Protection class: Class 20
- Rated power: 5.5kW (400/440Vac; 50/60Hz; AC-3)
- IP rating: IP20 / IP40
Product Features:
- Provides motor protection against overloads, short circuits, phase failure, and phase imbalance
- Equipped with thermal/magnetic protection
- Test push button
- Can be set to automatically reset or manually reset

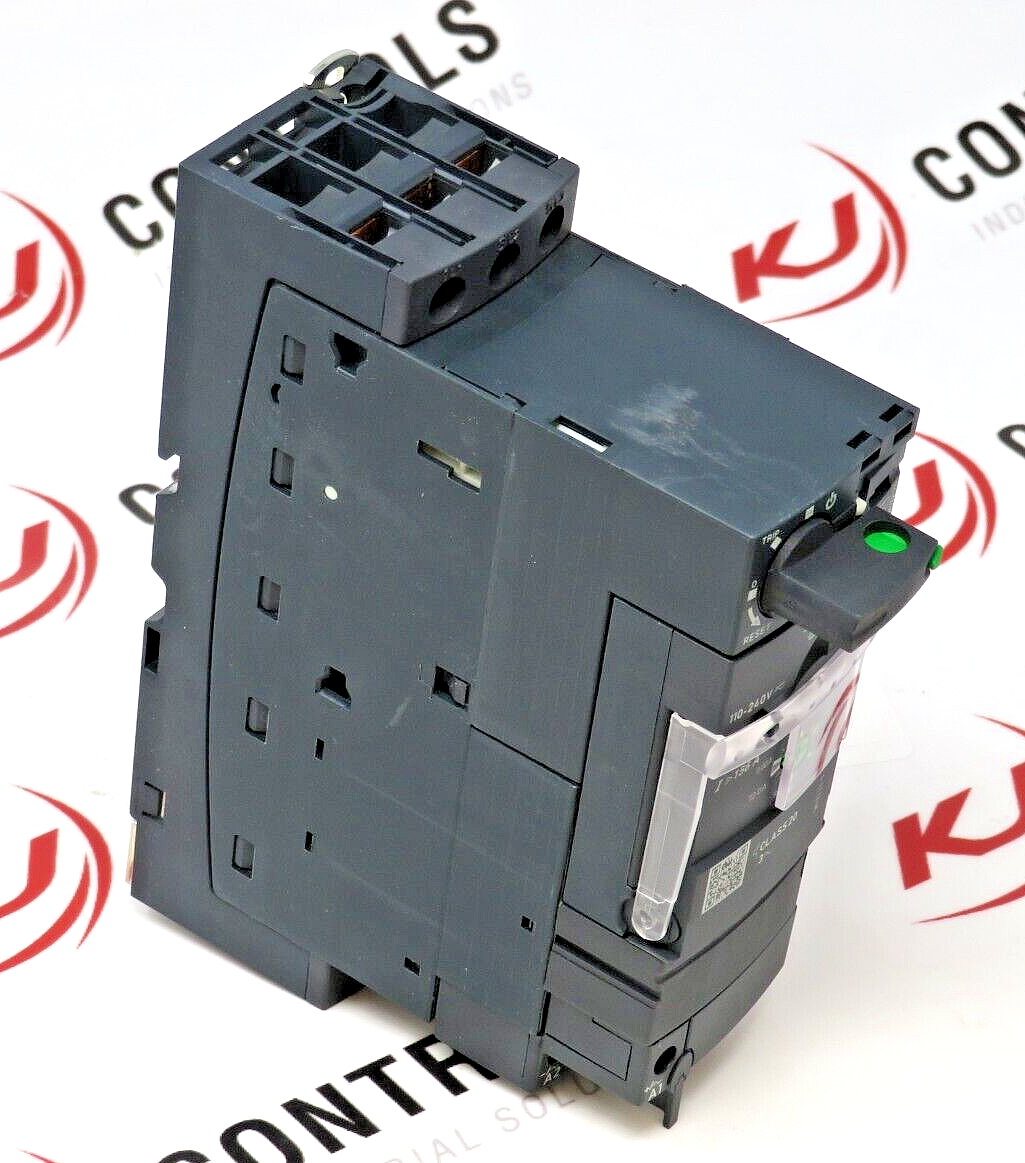

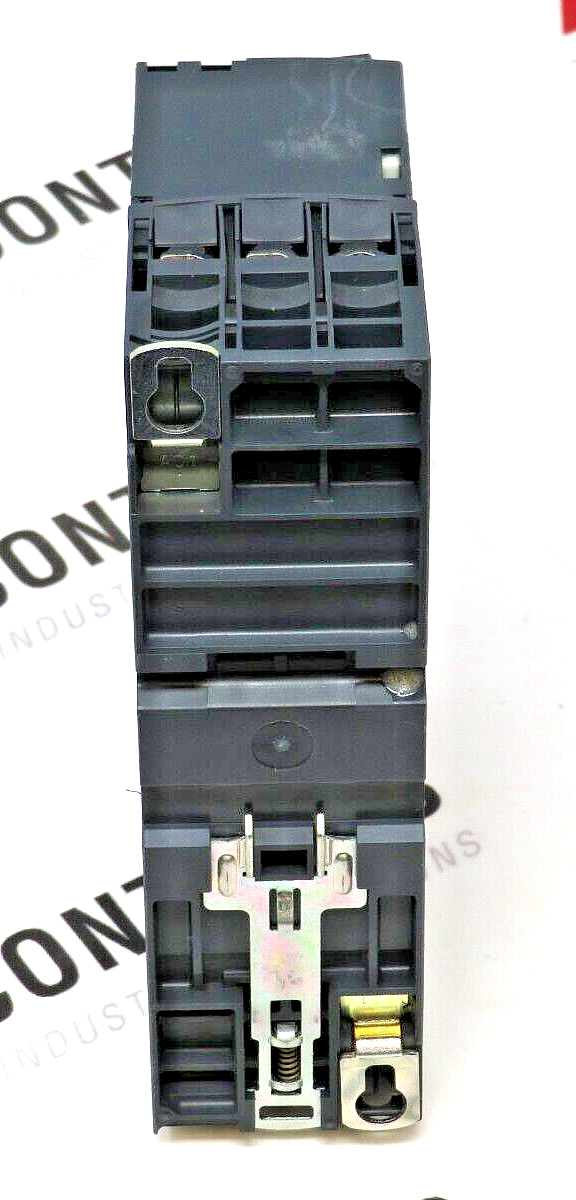

Schneider Electric Telemecanique Advanced Power Base
- Part number: LUB320
- Product family: TeSys Ultra series
- UPC: 785901221821
- Lifecycle status: ACTIVE

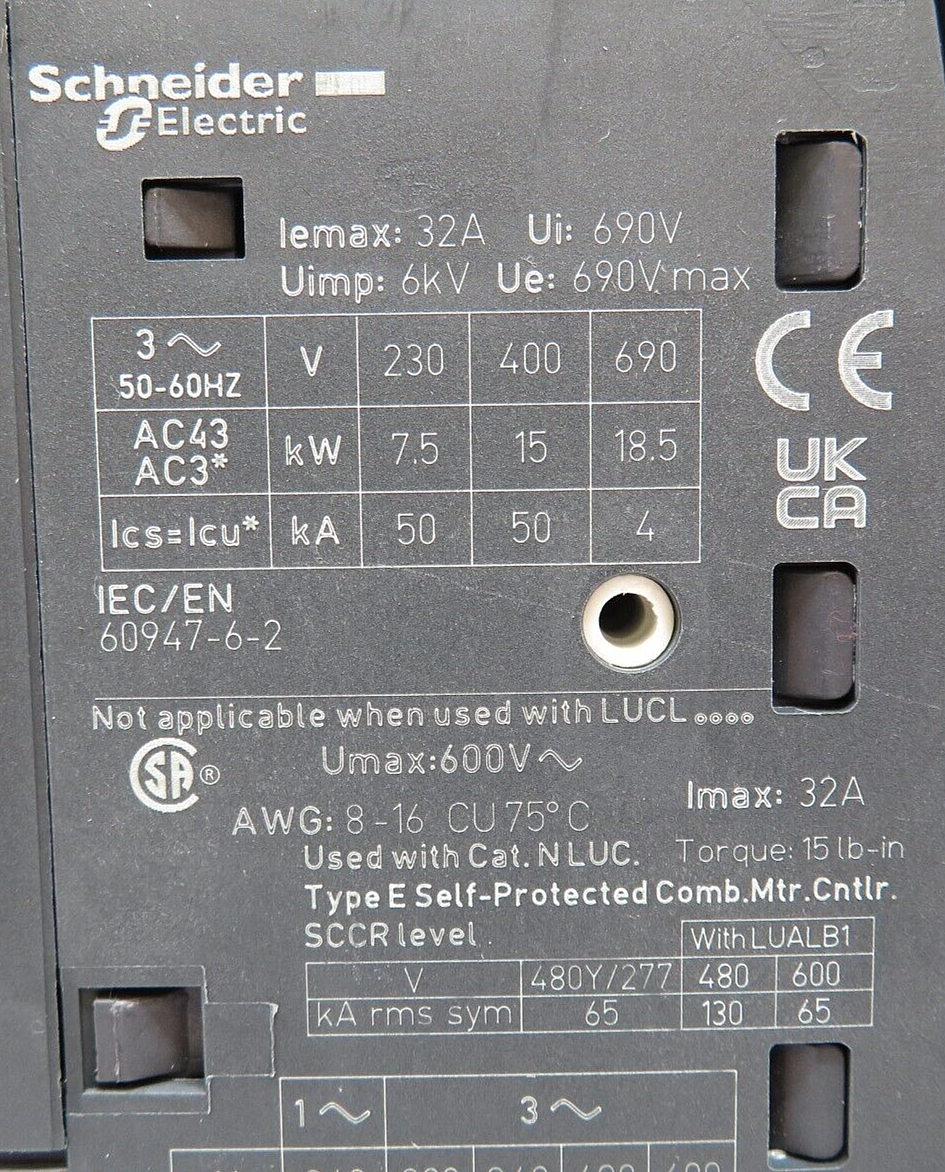

Technical Specifications:
- Rated operational voltage: 690VAC
- Rated current: 32A
- Coil voltage: 24 V AC 50/60 Hz, 24 V DC, 48…72 V AC 50/60 Hz, 48…72 V DC, 110…240 V AC 50/60 Hz, 110…220 V DC
- Breaking capacity: Icu 50kA@400V
- Auxiliary contact composition: 1 NO + 1 NC
Product Features:
- Composed of power contacts, control coil, and a rotary handle
- Modular design for additional modules
- Equipped with auxiliary signaling contacts (1NO+1NC), a control terminal block
- Provides a high breaking capacity
- Start-stop control guaranteed for 3600 cycles/hour
- Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle
