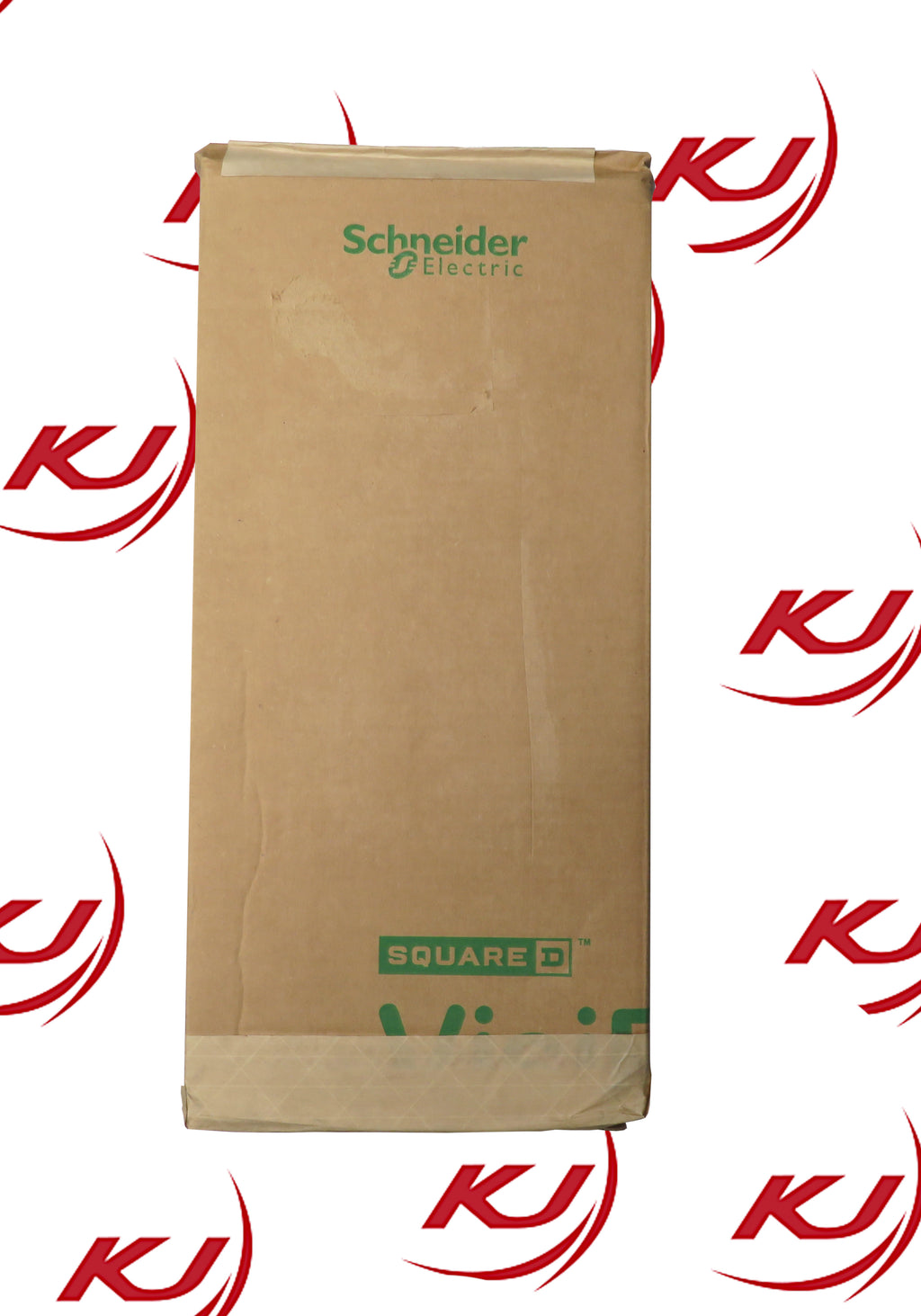

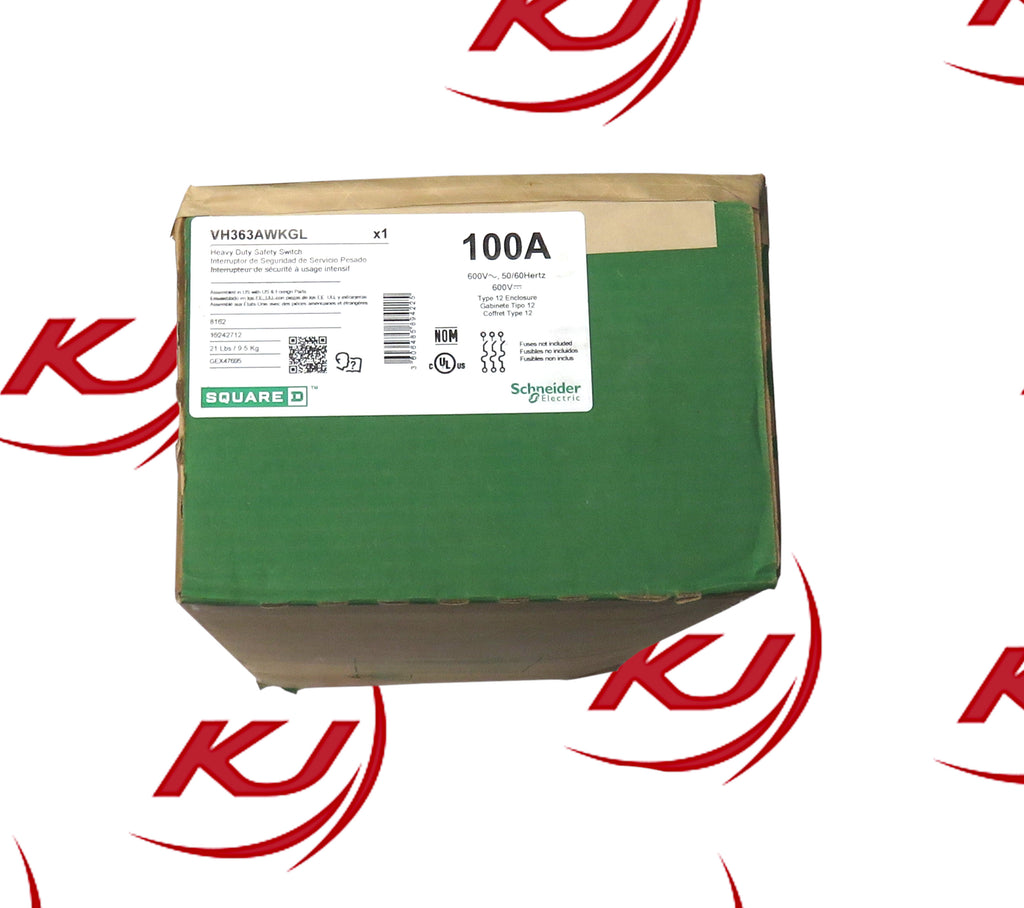

Schneider Electric Square D Heavy Duty Safety Switch

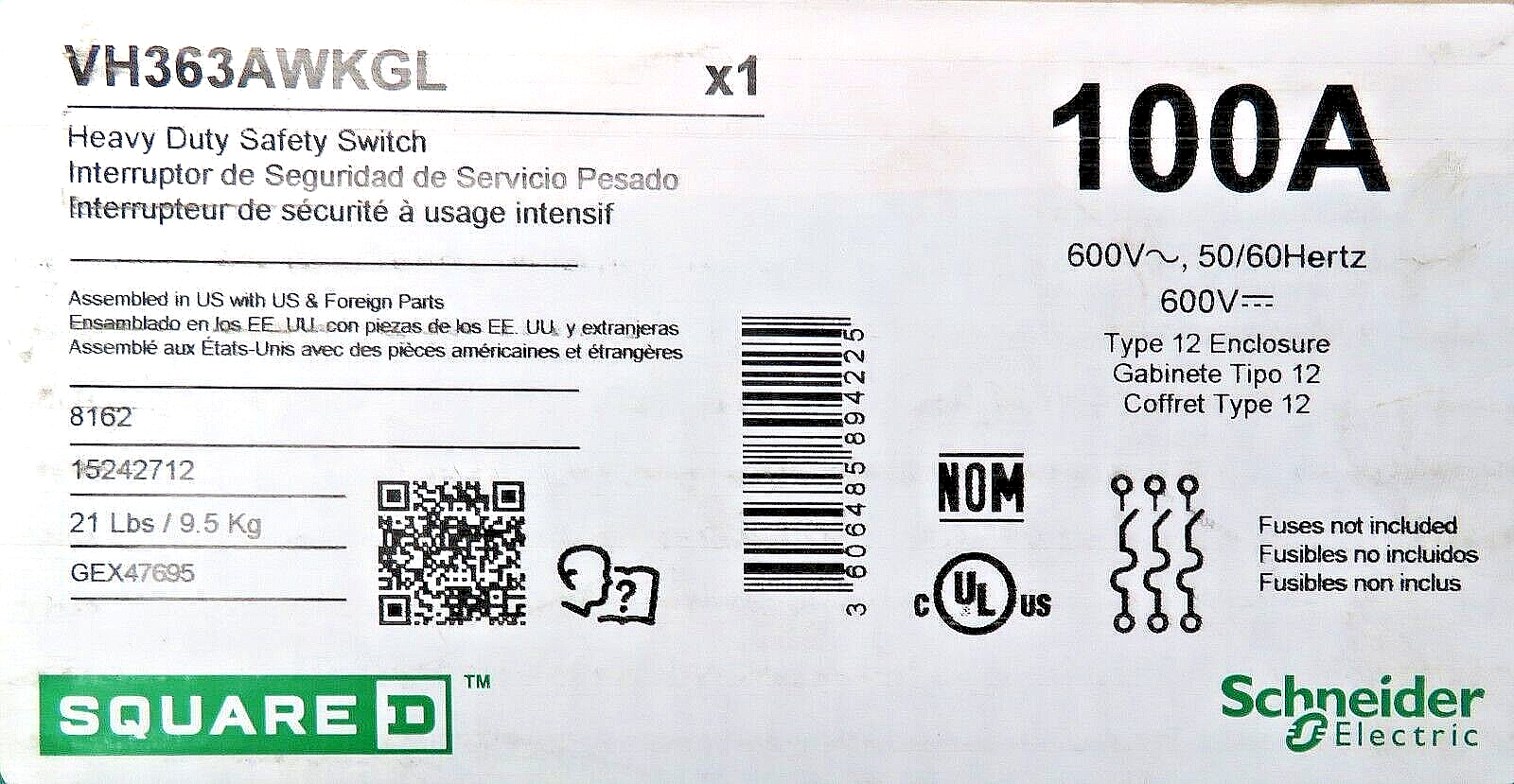

- Part Number: VH363AWKGL
- Product Family: Heavy Duty Safety Switches
- UPC: 03606485894225
- Lifecycle Status: ACTIVE
Technical Specifications:
- Voltage Rating: 600 VAC, 600 VDC
- Amperage Rating: 100 A
- Number of Poles: 3
- Enclosure Type: NEMA 12 (Galvannealed Steel)
- Mounting Type: Surface
- Dimensions: 22.62 inches H x 8.92 inches W x 7.15 inches D
- Frequency Rating: 50 to 60 Hz
- Short Circuit Current Rating: 10 kA (standard fuses) or up to 200 kA (using appropriate Class R, J, or L fuses)
Wire Range:
- Aluminum: AWG 12 to AWG 1/0
- Copper: AWG 14 to AWG 1/0
Torque Specifications:
- 50 lbf.in (AWG 1 to AWG 3/0)
- 45 lbf.in (AWG 6 to AWG 4)
- 40 lbf.in (AWG 8)
- 35 lbf.in (AWG 14 to AWG 10)
- Contact Form: Single Throw
- Actuator Type: Handle
- Insulation Type: Class H/J/K/R
- Horsepower Rating: 25 hp (240 V), 50 hp (480 V), 60 hp (600 V)
Compliance:
- UL98 and NEMA KS1 standards
- RoHS compliant
Product Features:
- Heavy Duty Design: Suitable for commercial and industrial applications.
- Durability: Three times greater than NEMA standard.
- Viewing Window: Factory installed for visual verification of switch position.
- Quick-Make, Quick-Break Operating Mechanism: Ensures reliable performance.
- Dual Cover Interlock: Enhances safety during operation.
- Color Coded Indicator Handle: Easy identification of switch status.
- Ground Lugs: Factory installed for grounding.
- Flexible Fuse Options: Compatible with H, K, R fuse types as shipped and field modifiable for J fuses.
