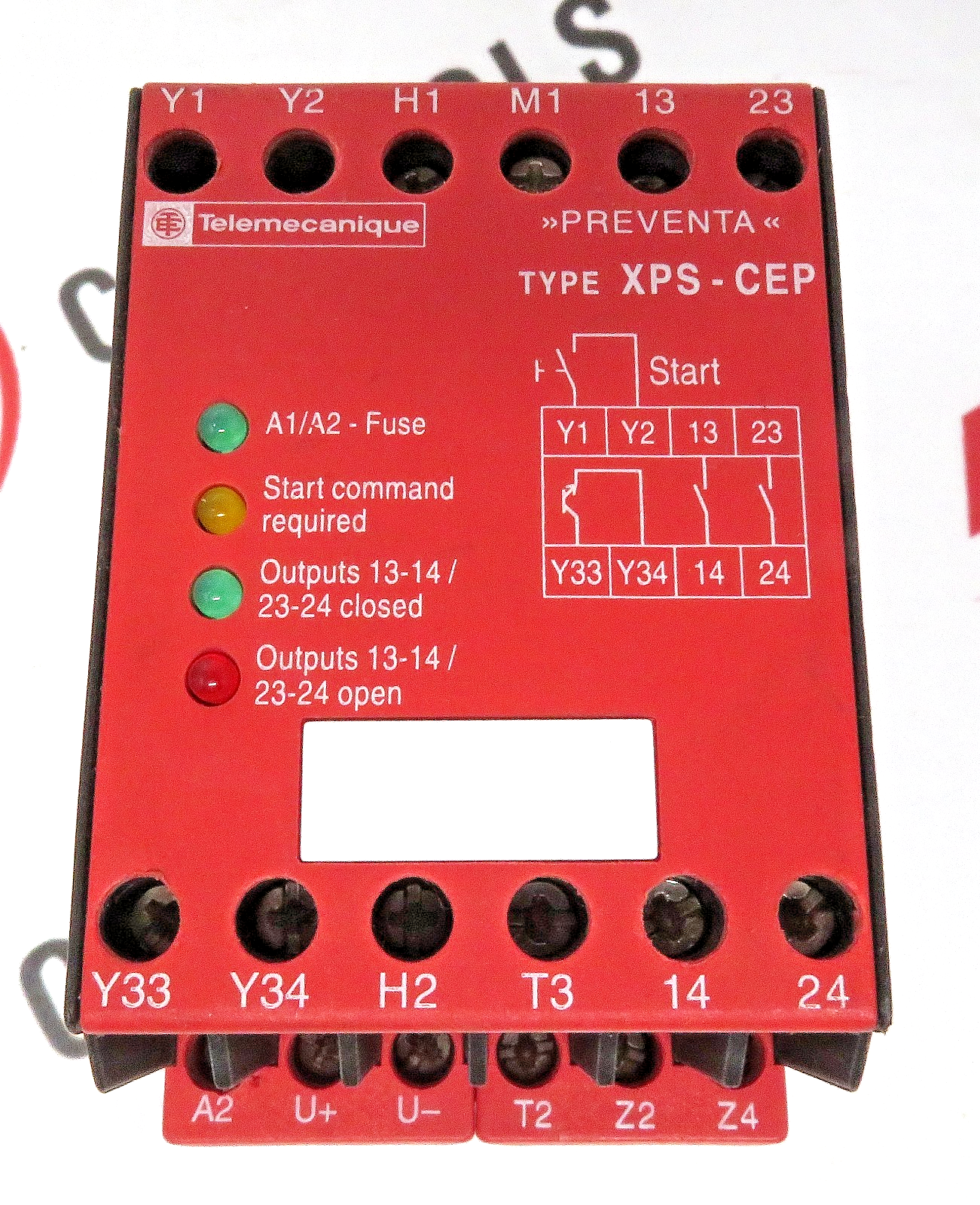

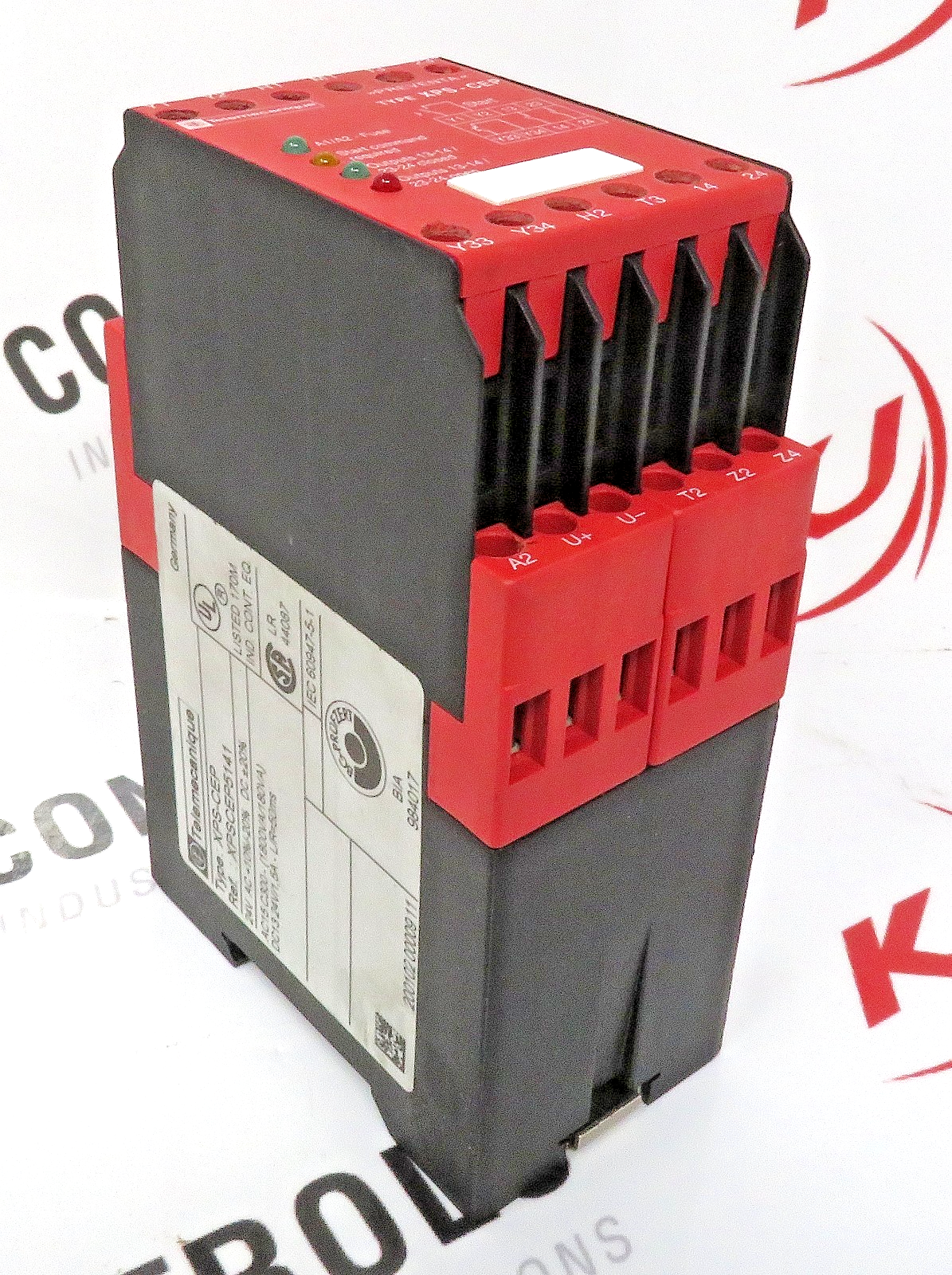

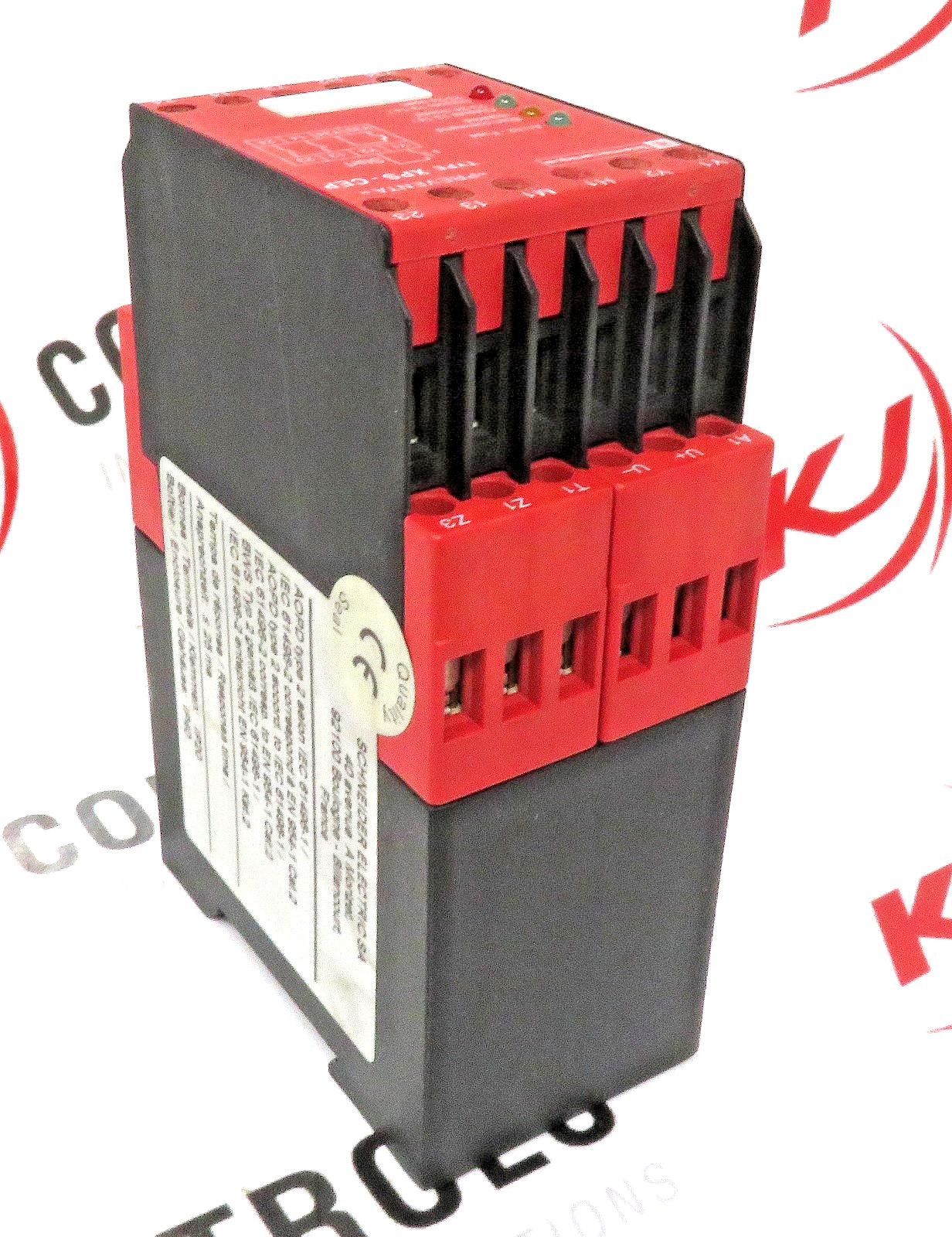

Telemecanique XPSCEP5141 Preventa Safety Relay 24VAC DC 2NO
Product Basic Information:
- Manufacturer: Telemecanique
- Parent corporation: Schneider Electric SE
- Catalog number: XPSCEP5141
- Alternate part number: XPS-CEP-5141
- Non-hyphenated part number: XPSCEP5141
- Product family/series: Preventa XPSCE / XPS-CEP
- Product type: Safety relay module for monitoring single-beam photoelectric sensors with test input
- UPC: 785901767244
- Country of origin: Germany
Technical Specifications:
- Supply voltage: 24 VAC/DC
- Voltage limits: -20 percent to +20 percent at 24 VDC, -20 percent to +10 percent at 24 VAC
- Frequency rating: 50/60 Hz
- Power consumption: Less than 11 VA at 24 V
- Module fuse protection: Internal electronic
- Number of detector inputs monitored: 1 to 4
- Detector input voltage: 24 VDC
- Detector supply voltage: 24 VDC
- Detector supply current: 40 mA
- Muting input voltage: 24 VDC
- Muting input current: 40 mA max
- LED indicators: 4
- Degree of protection: IP20 terminals, IP40 housing
- Terminal type: Captive screw-clamp terminals
- Operating temperature range: -10 C to 55 C
Product Features:
- Preventa safety relay for monitoring single-beam photoelectric sensors with test input
- Designed for PNP sensor applications in the XPSCEP variant
- Two normally open safety relay outputs
- One additional solid-state NPN control output
- Supports muting function with dedicated muting input and signaling outputs
- Internal electronic fuse protection
- Four LED indicators for status monitoring
- Screw-clamp terminal connections for control panel wiring
Product Designed Use:
- Designed to monitor single-beam photoelectric safety sensors with test input
- Used with up to four XU2S photoelectric sensors to create a Type 2 perimeter light curtain for body detection
- Suitable for machine safeguarding applications requiring monitored beam interruption and muting functions
- Used in industrial safety control panels and machine protection systems
