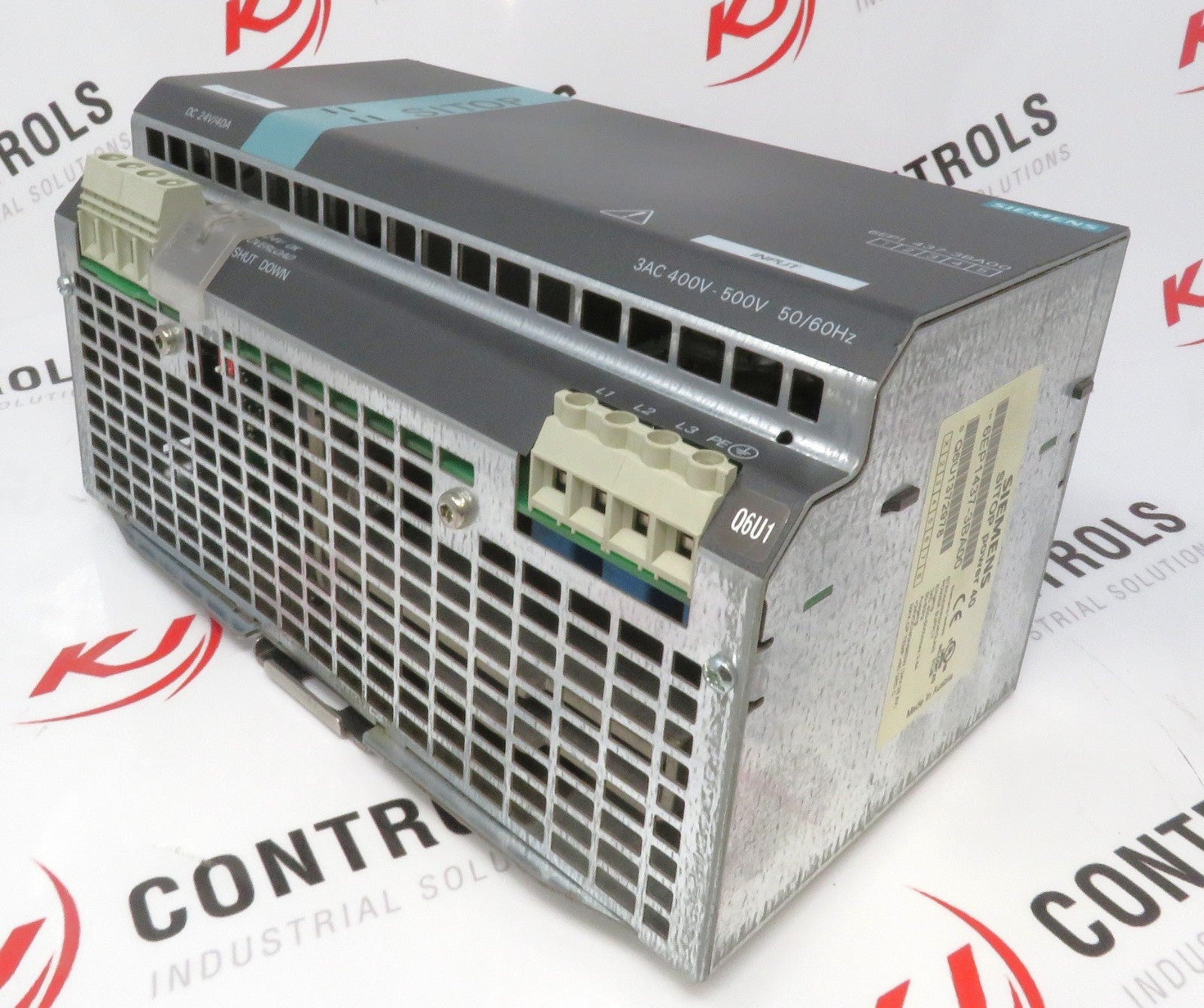

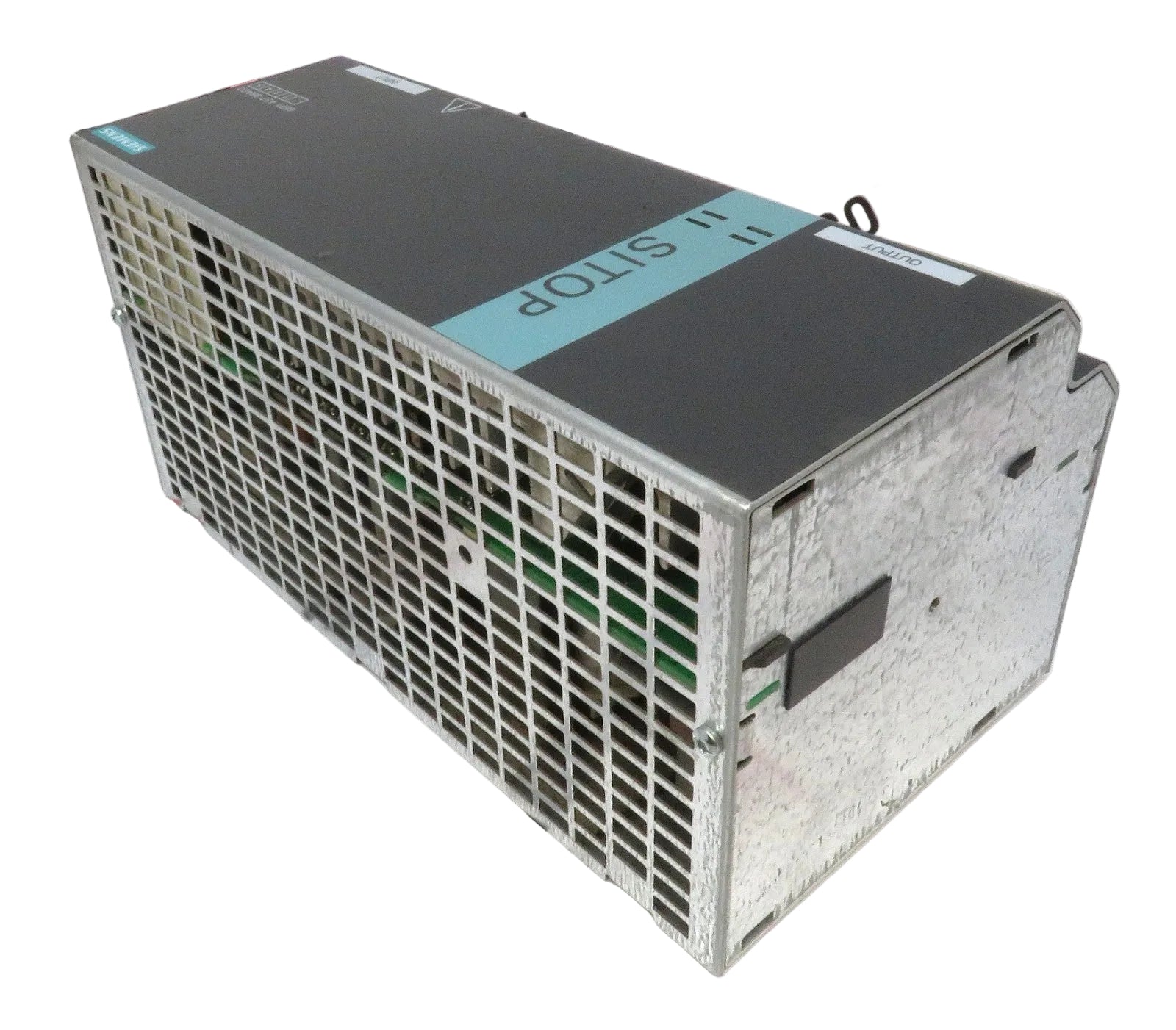

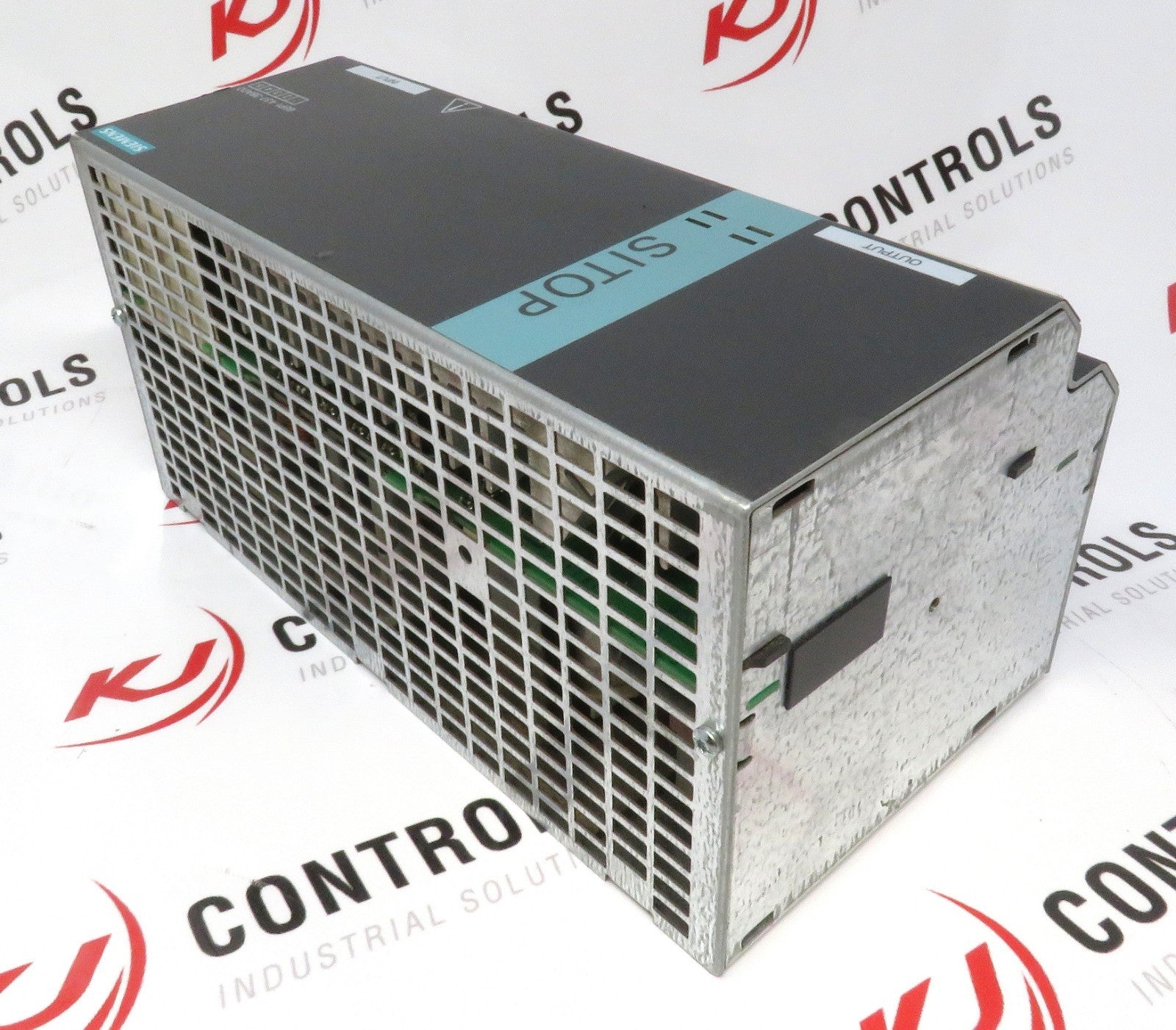

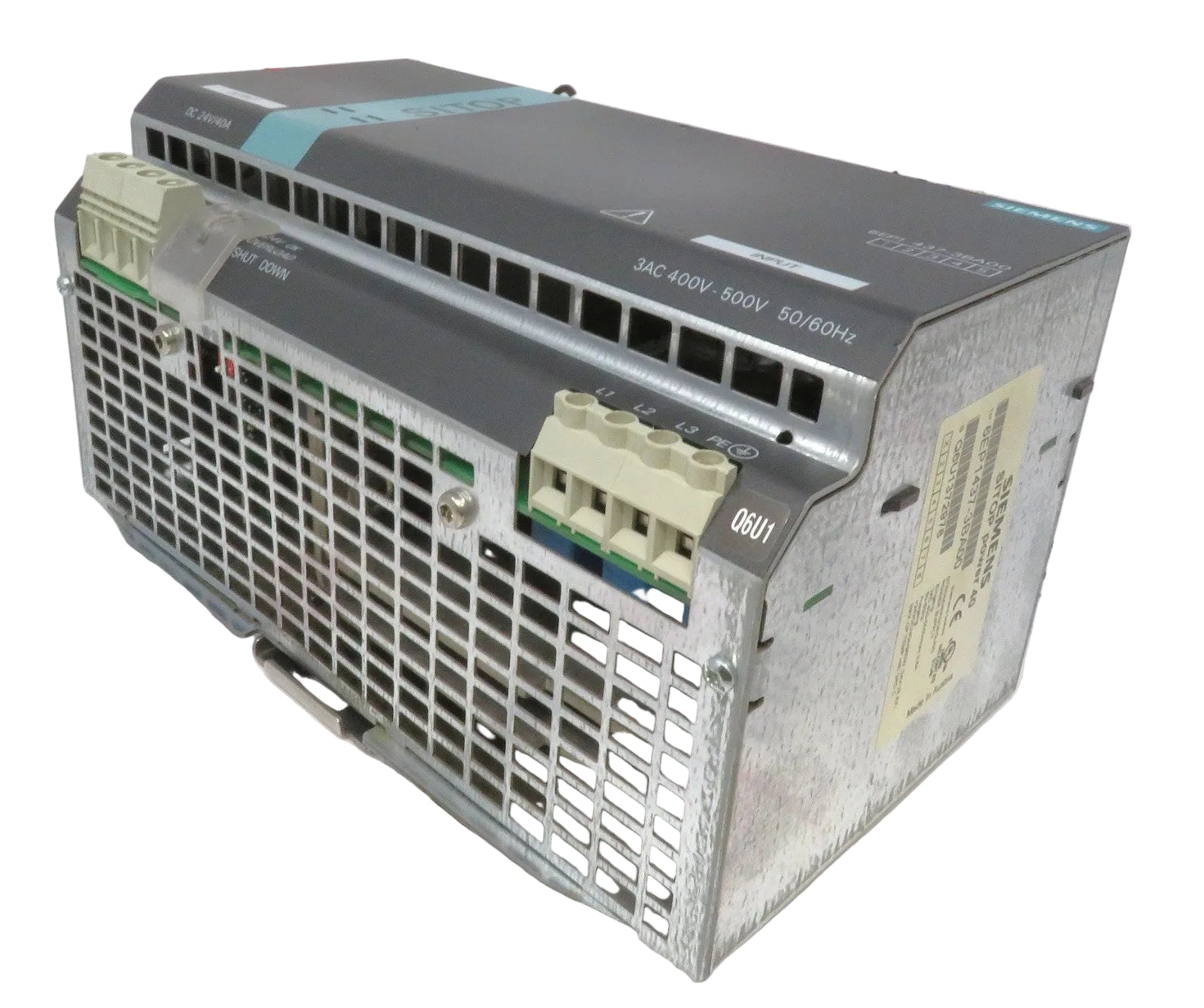

Siemens 6EP 1437-3BA00 SITOP Modular Power Supply 24VDC
Product Basic Information:
- Manufacturer: Siemens
- Parent corporation: Siemens AG

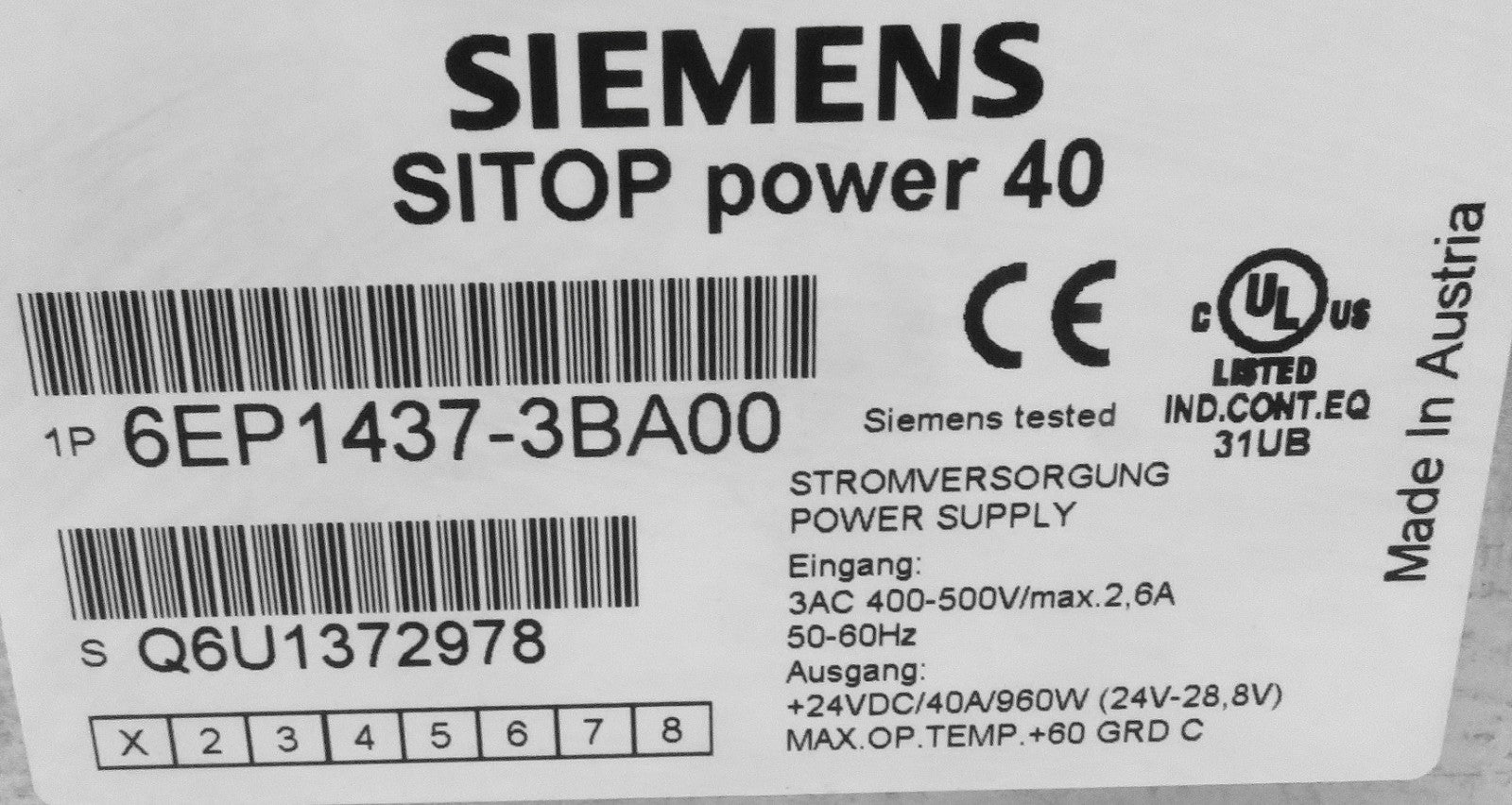

- Catalog number: 6EP1437-3BA00
- Non-hyphenated part number: 6EP14373BA00
- Product family/series: SITOP modular
- Product type: Stabilized DIN rail power supply
- Country of origin: Austria
- HS customs code: 8504.40
Technical Specifications:
- Input type: 3 phase AC
- Rated input voltage: 400 to 500 VAC
- Input voltage range: 320 to 550 VAC
- Rated line frequency: 50 to 60 Hz
- Line frequency range: 47 to 63 Hz
- Input current at 400 VAC: 2.2 A
- Switch-on current limiting maximum: 70 A
- Output voltage: 24 VDC
- Output voltage adjustment range: 24 to 28.8 VDC
- Output current: 40 A
- Output power: 960 W typical
- Residual ripple maximum: 100 mV peak to peak
- Voltage spikes maximum: 200 mV peak to peak
- Efficiency: 90 percent typical
- Short-term overload current: 120 A typical
- Constant overload current: 46 A typical
- Parallel operation: up to 2 units
- Protection rating: IP20
- Mounting: DIN rail
- Connection type: Screw-type terminals
- Operating temperature: 0 C to 70 C
Product Features:
- SITOP modular stabilized power supply for industrial control systems
- 3 phase AC input with regulated 24 VDC output
- Adjustable output voltage via front potentiometer
- Short circuit protected with selectable constant current or latching shutdown behavior
- Soft start output behavior with no overshoot
- Supports parallel switching for increased system performance

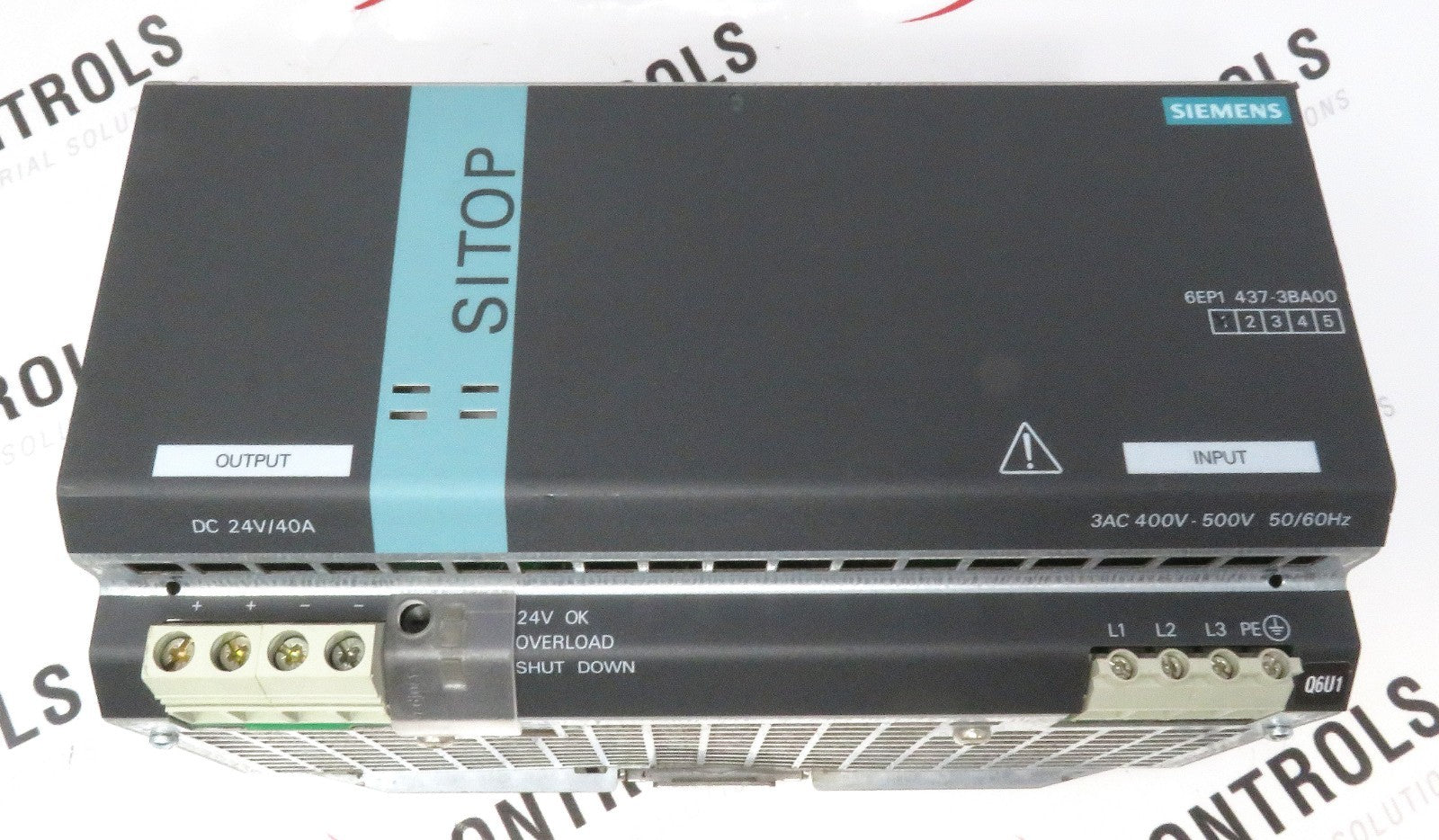

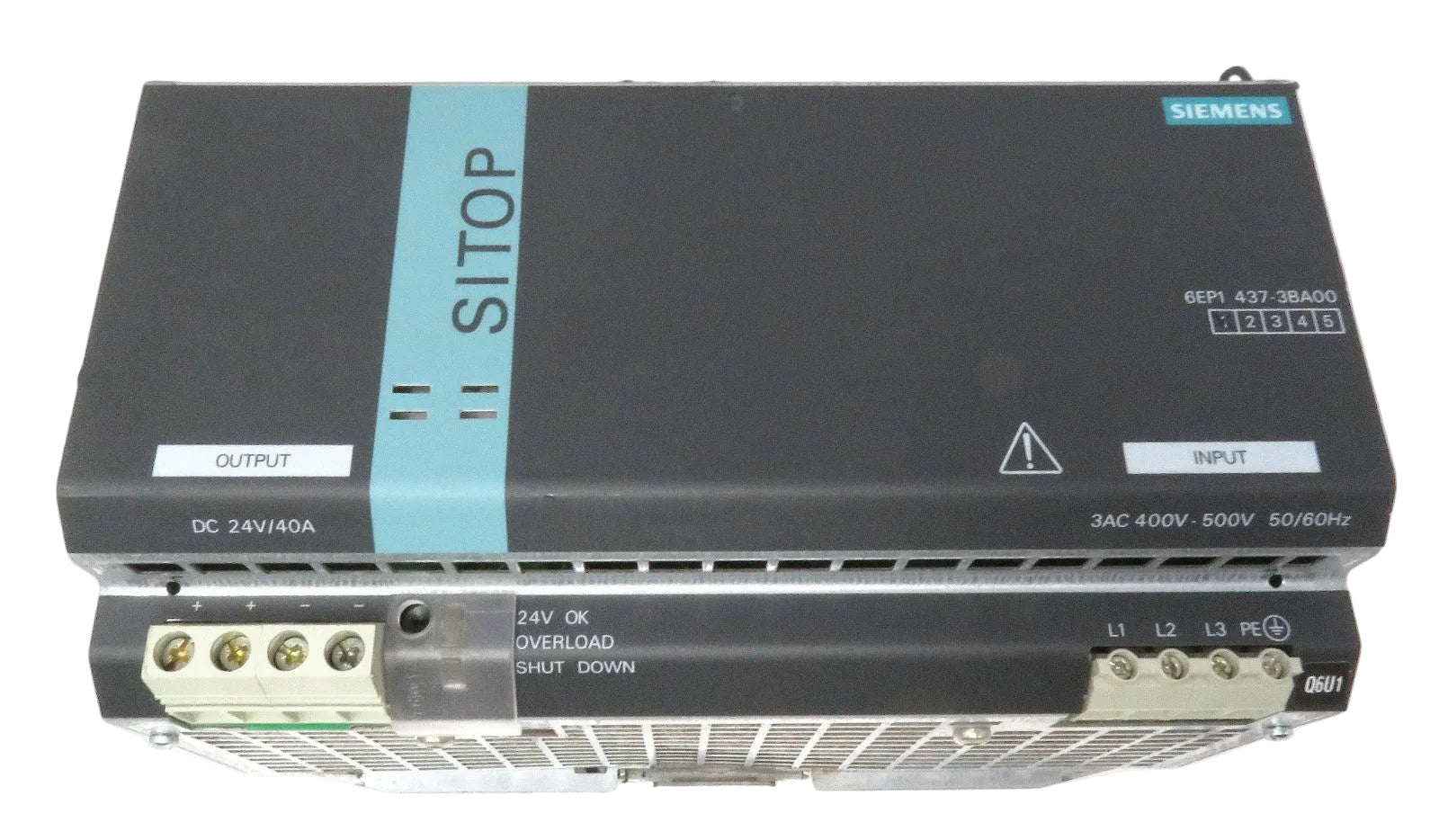

- Status LEDs for normal operation, overload, and latching shutdown
- Compact DIN rail mount design for panel installation
Product Designed Use:
- Designed to provide regulated 24 VDC control power in industrial automation panels
- Used to power PLC systems, relays, sensors, and control devices
- Suitable for DIN rail mounted control cabinet installations
- Used as a replacement power supply in Siemens SITOP modular systems
