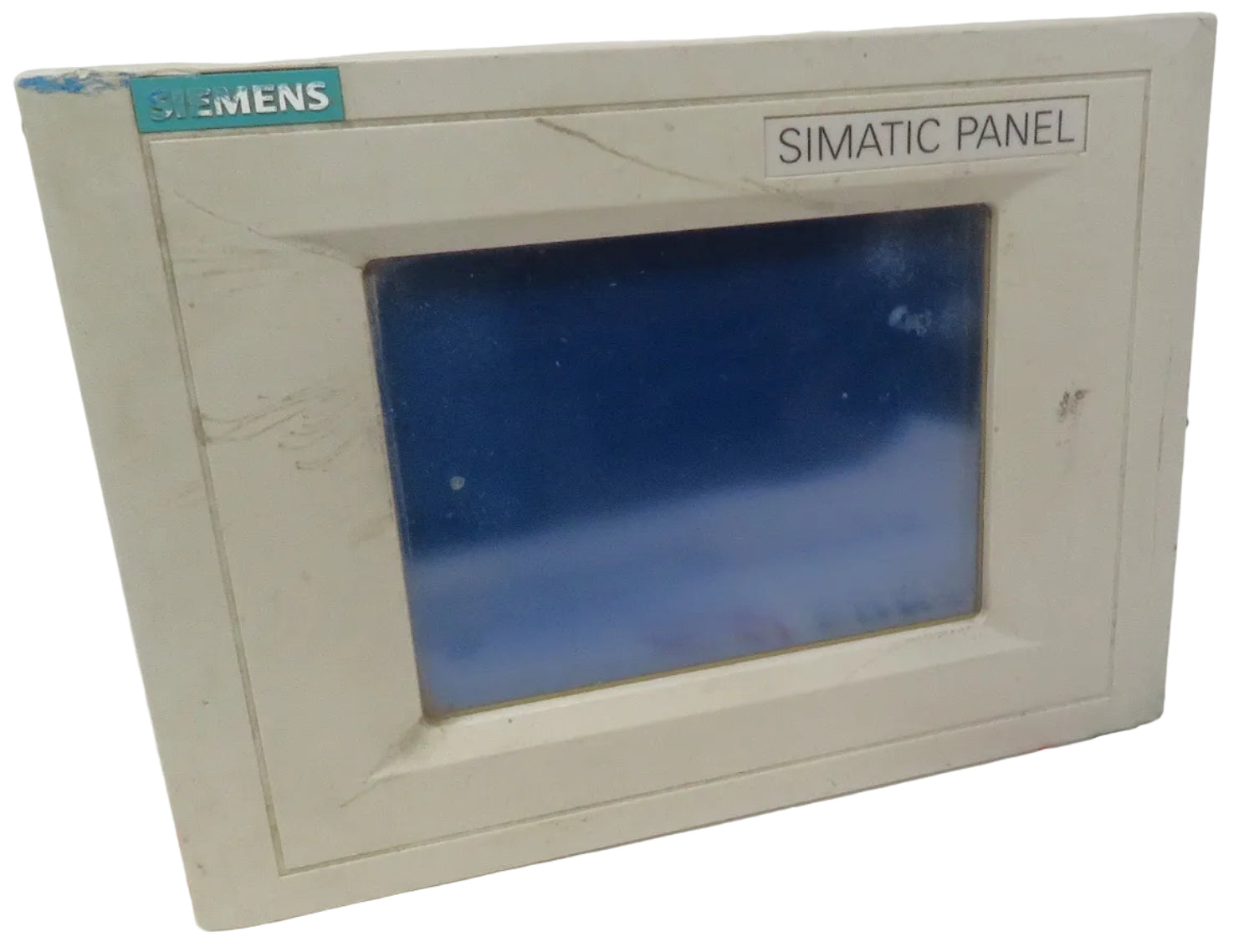

Siemens SIMATIC TP170A 6AV6 545-0BA15 6" HMI Touch Panel
Product Basic Information:
- Manufacturer / Brand: Siemens AG
- Part Number: 6AV6545-0BA15-2AX0 (6AV65450BA152AX0)
- Product Family: SIMATIC TP 170 Series
- Series Name: TP170A
- Country of Origin: Germany
Technical Specifications:
- Display Size: 6-inch monochrome touchscreen
- Resolution: 240 x 320 pixels (QVGA)
- Processor: RISC 32-bit CPU
- Memory: Configuration Memory: 320 KB

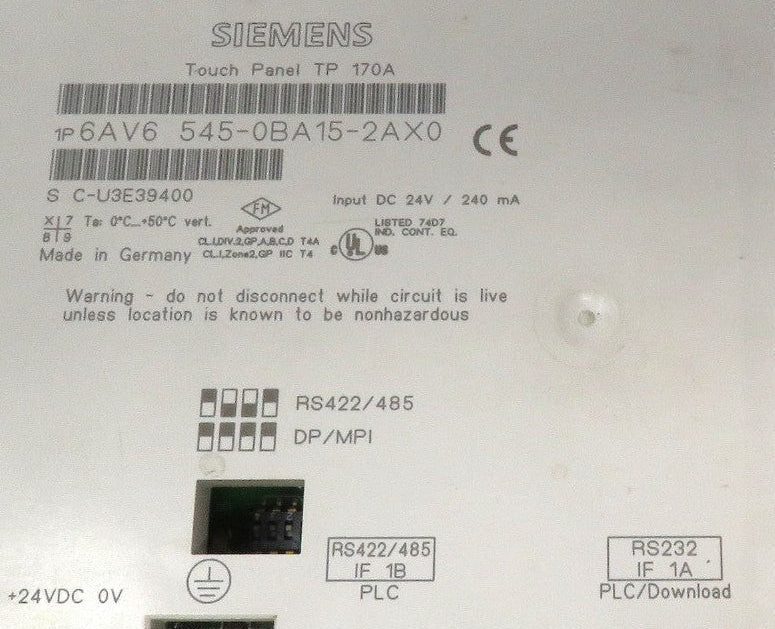

- Power Supply: 24 V DC, 240 mA (as per label)
- Communication Ports:
- 1 x RS-232 (IF 1A) – PLC/Download
- 1 x RS-422/485 (IF 1B) – PLC
- 1 x DP/MPI interface for Siemens S7 communication
- Certifications: CE, cULus Listed, FM Approved
- Operating Temperature: 0°C to +50°C (vertical mounting)
- Enclosure Rating: (Likely IP65 front, IP20 rear – common for this series, but not explicitly labeled)
- Mounting: Panel-mounted
- Dimensions & Weight: (Approximate) 212 mm x 156 mm x 45 mm (W x H x D), ~1.1 kg
Product Features:
- 6” monochrome LCD touchscreen interface for operator control
- Integrated MPI/DP/PPI for Siemens PLC communication
- Designed for use with SIMATIC S7 PLC systems
- Simple configuration via WinCC Flexible software
- Fanless, solid-state design
- Long-life membrane touch interface
- Flash memory for configuration retention
- Configurable via RS232 interface
Product Designed Use:
- Purpose: Human-Machine Interface (HMI) for industrial automation control systems
- Common Applications:
- Machinery operation panels
- Packaging lines
- Conveyors and motion control
- Water treatment systems
- Industrial process visualization
Sellers Note: Item has several deep gashes and scratches from heavy industrial use, but the unit remains functional and performs as intended.
