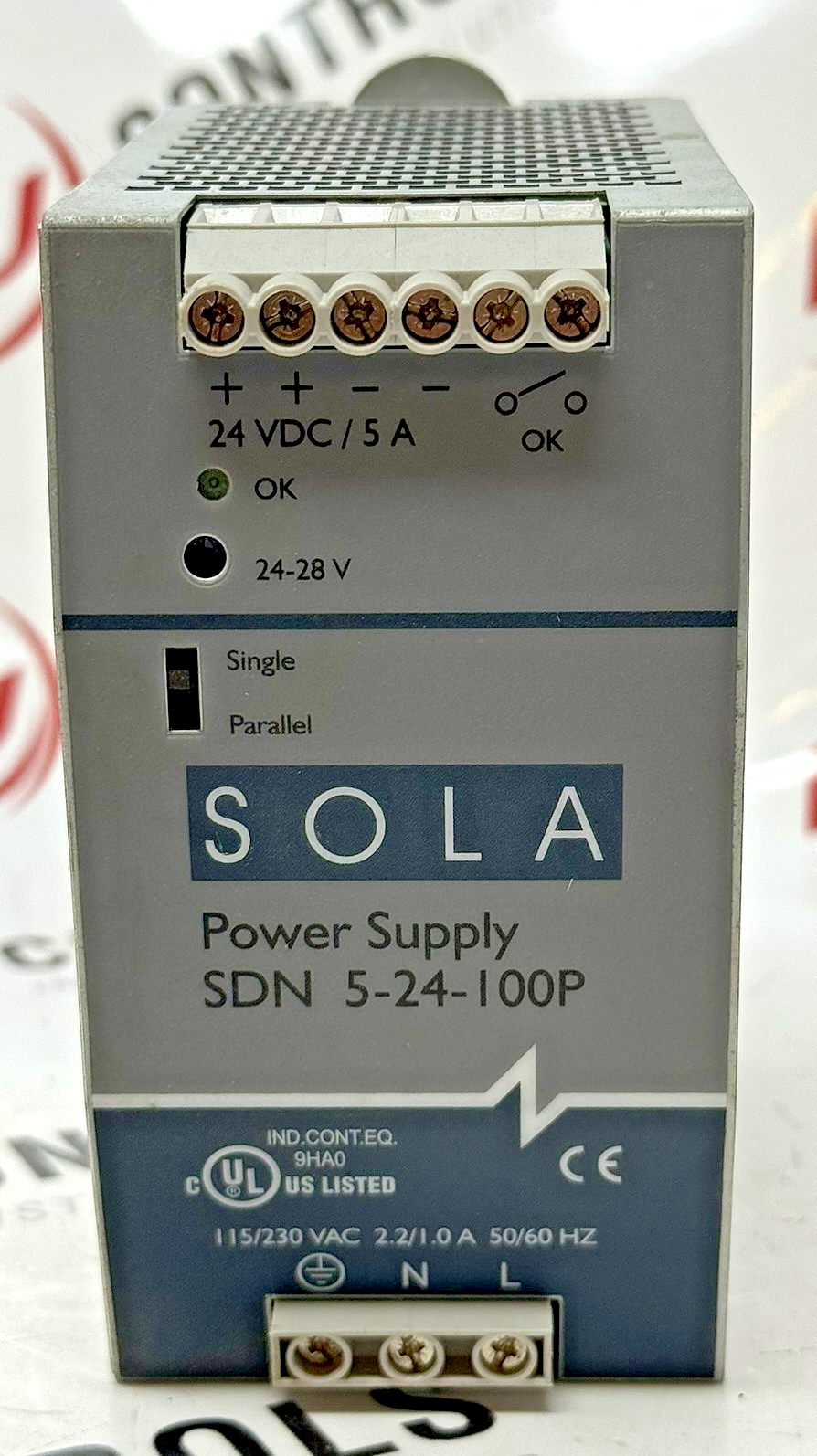

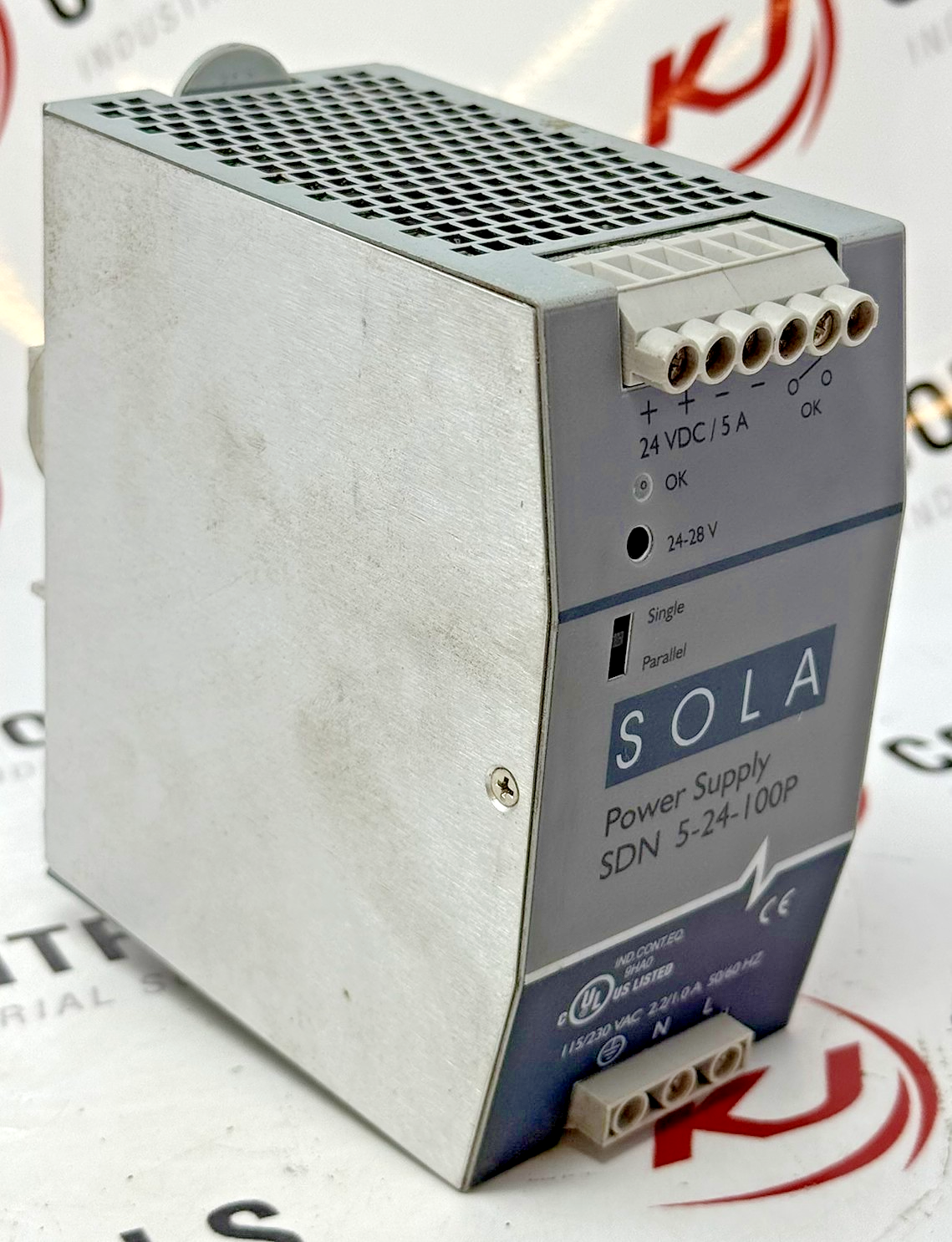

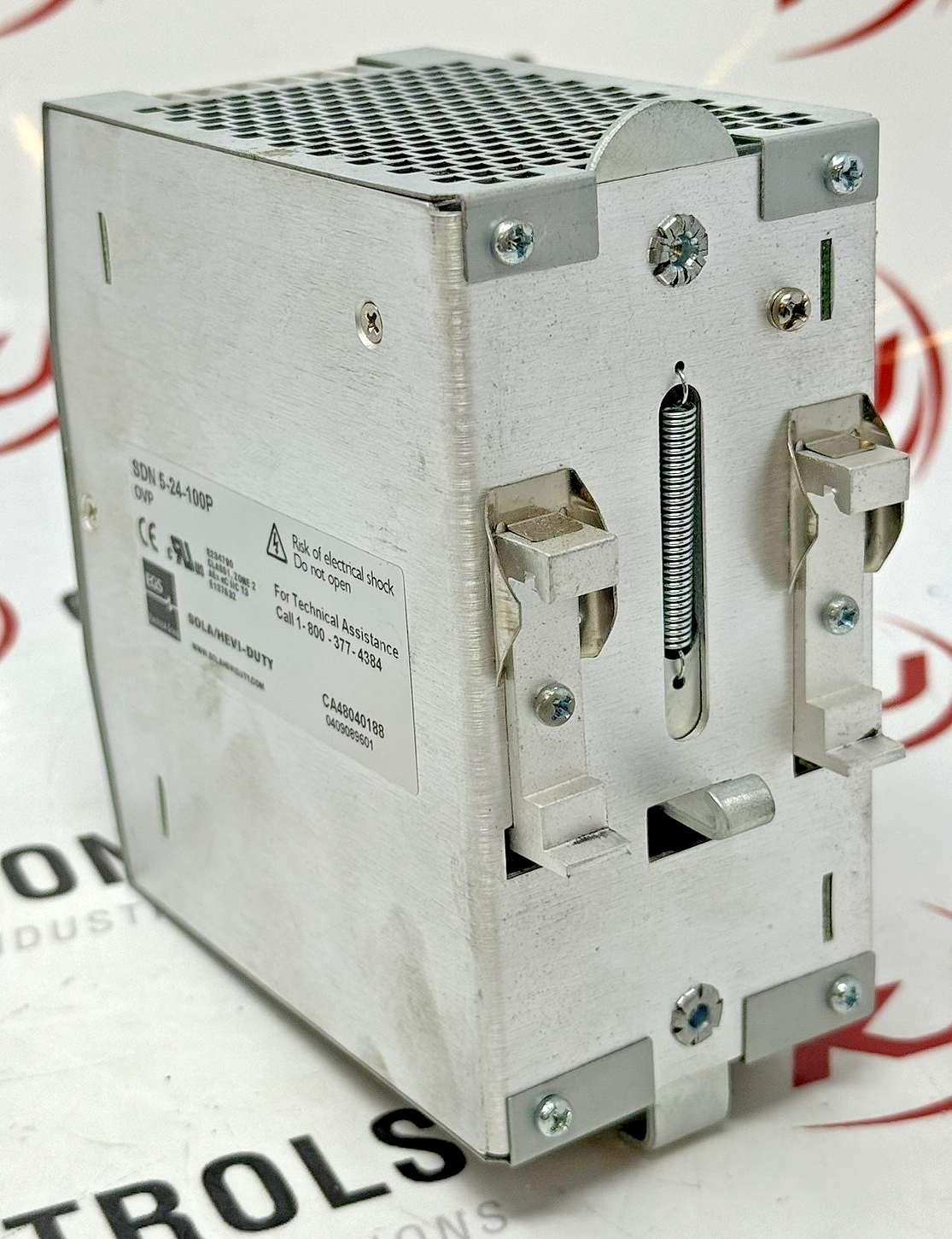

Sola SDN5-24-100P DIN Rail Power Supply 24VDC 5A 120W
Product Basic Information:
- Manufacturer: Sola
- Part Number: SDN5-24-100P
- Product Type: DIN Rail Switching Power Supply
- Series: SDN Series
Technical Specifications:
- Input Voltage (AC): 85–132 VAC / 176–264 VAC (115/230 VAC nominal, auto-select)
- Input Voltage (DC): 210–375 VDC
- Input Frequency: 47–63 Hz
- Output Voltage: 24 VDC (adjustable 22.5–28.5 VDC)
- Output Current: 5 A
- Output Power: 120 W
- Enclosure Rating: IP20
- Operating Temperature: -10°C to 70°C
- Dimensions (H x W x D): 4.88" x 2.56" x 4.55"
- Connections: Screw terminals (16–10 AWG / 1.5–6 mm²)
- Hazardous Location Suitability: Class I, Division 2, Groups A-D
Product Features:
- Auto-select 115/230 VAC input with wide AC/DC operating range
- Adjustable 24 VDC output (22.5–28.5 VDC)
- Power factor correction
- Internally fused input
- DC OK status relay output for monitoring
- Single/Parallel operation selectable via front panel switch
Product Designed Use:
- Provides regulated 24 VDC power for industrial automation and control panels
- DIN rail mounted supply for PLCs, sensors, relays, and machine control loads
- Designed for industrial environments where stable control voltage is required
