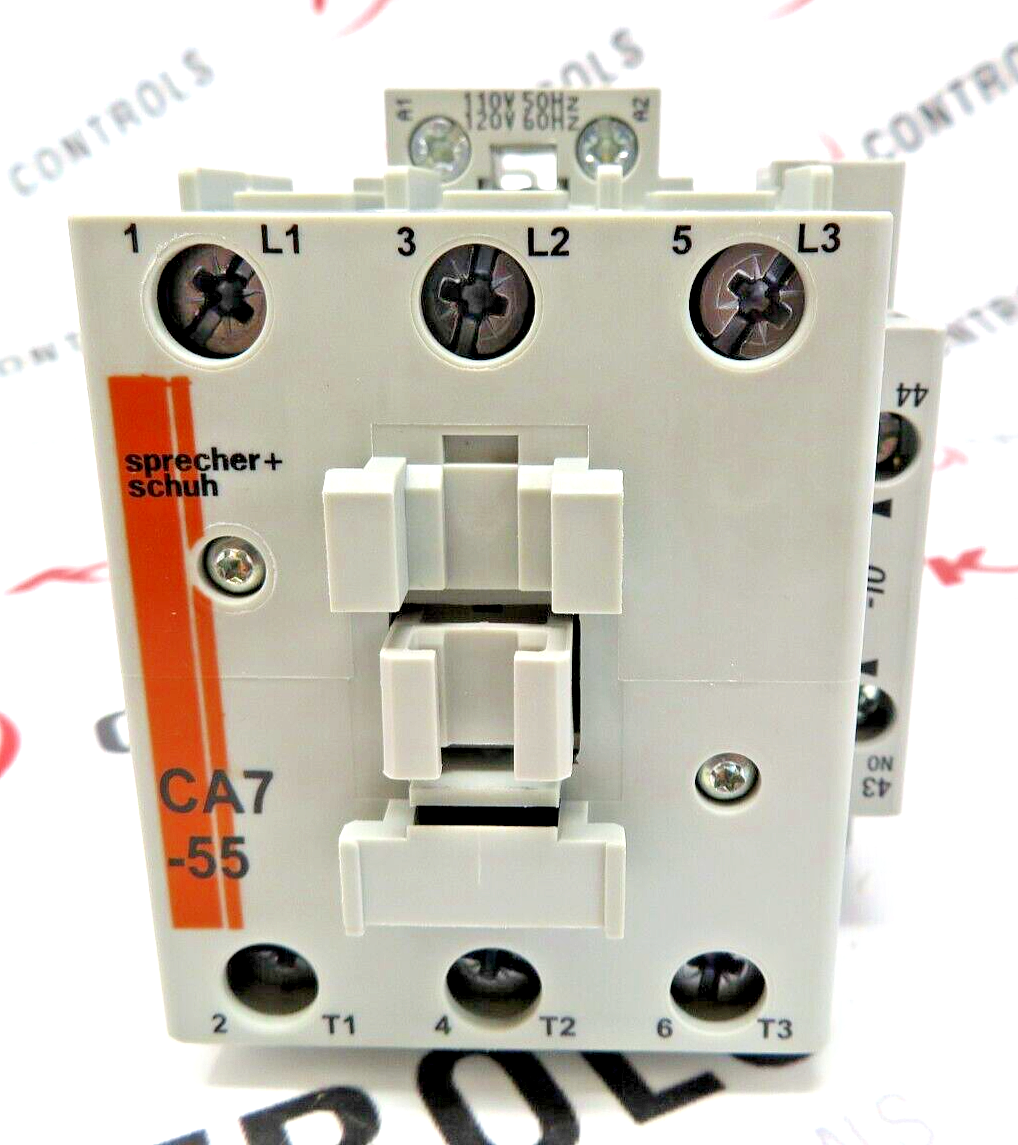

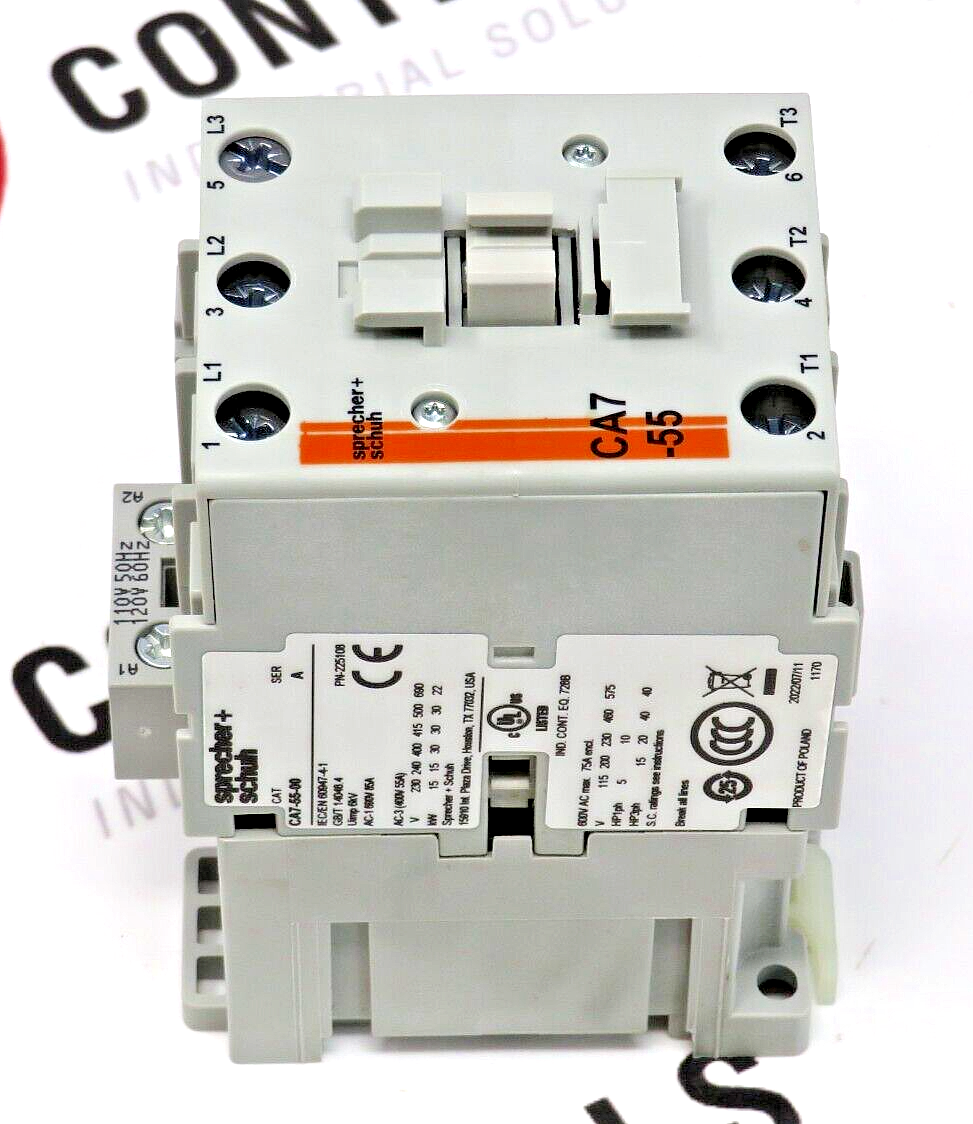

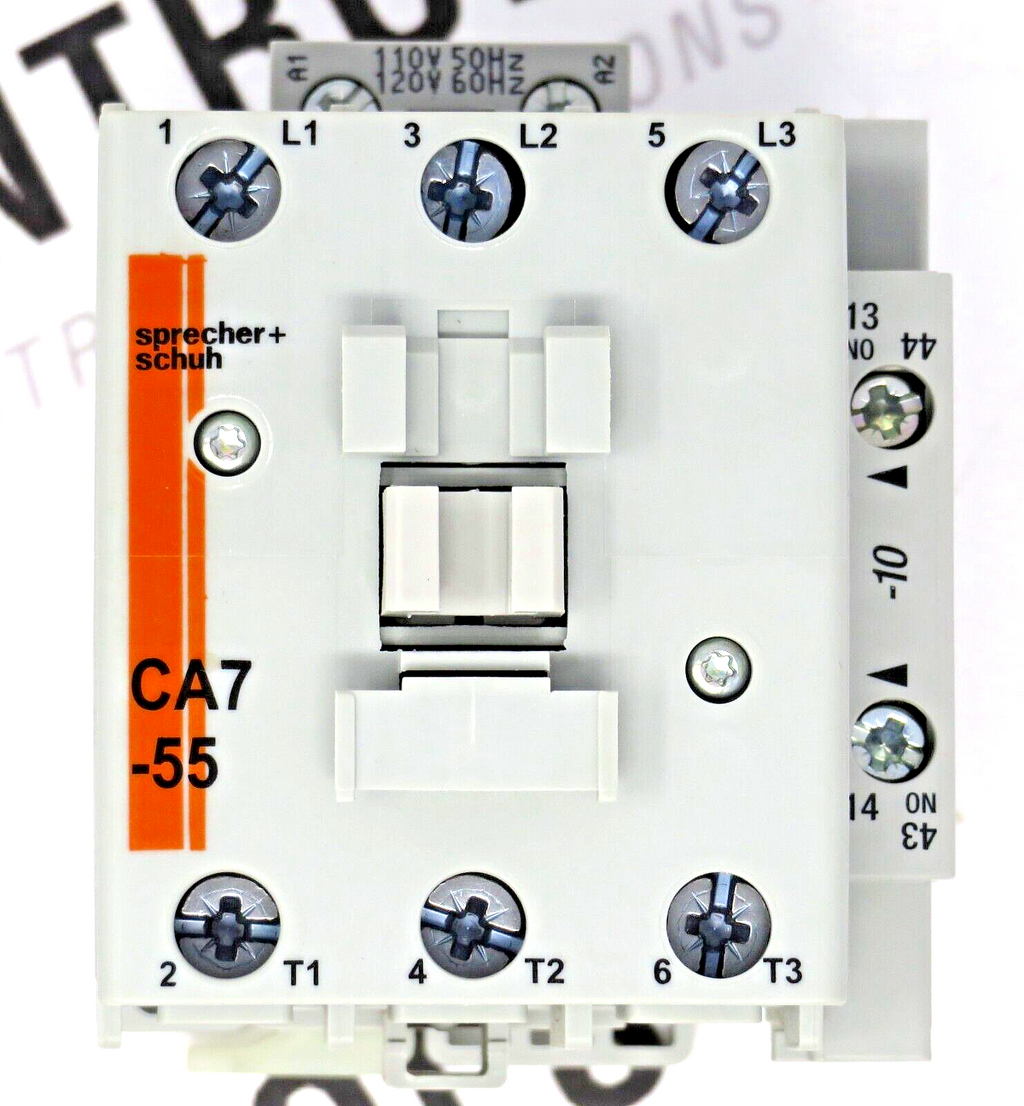

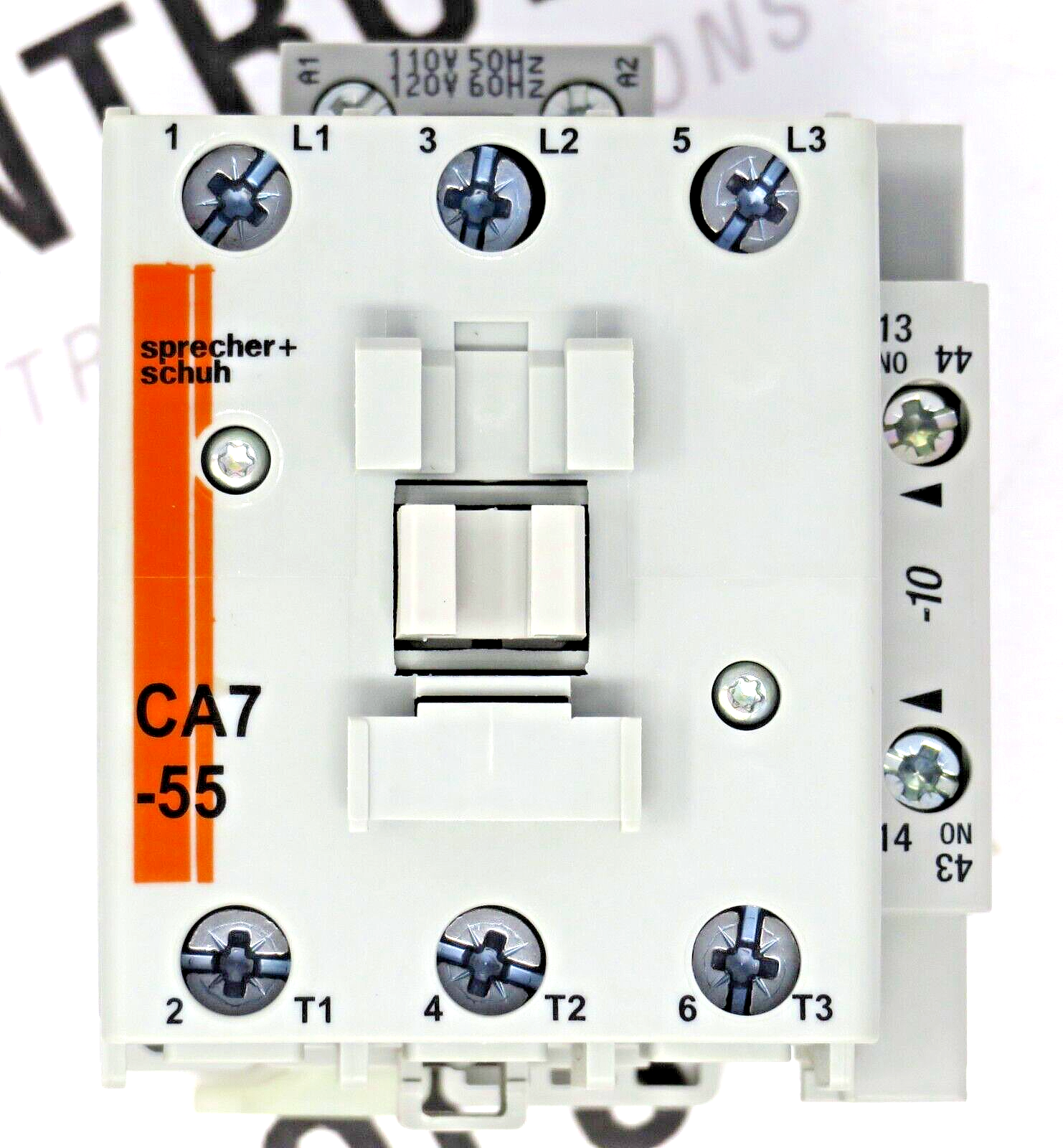

Sprecher + Schuh CA7-55-10-120 3-Pole Contactor 55A 110/120V Coil 1NO
Product Basic Information:
- Manufacturer: Sprecher + Schuh

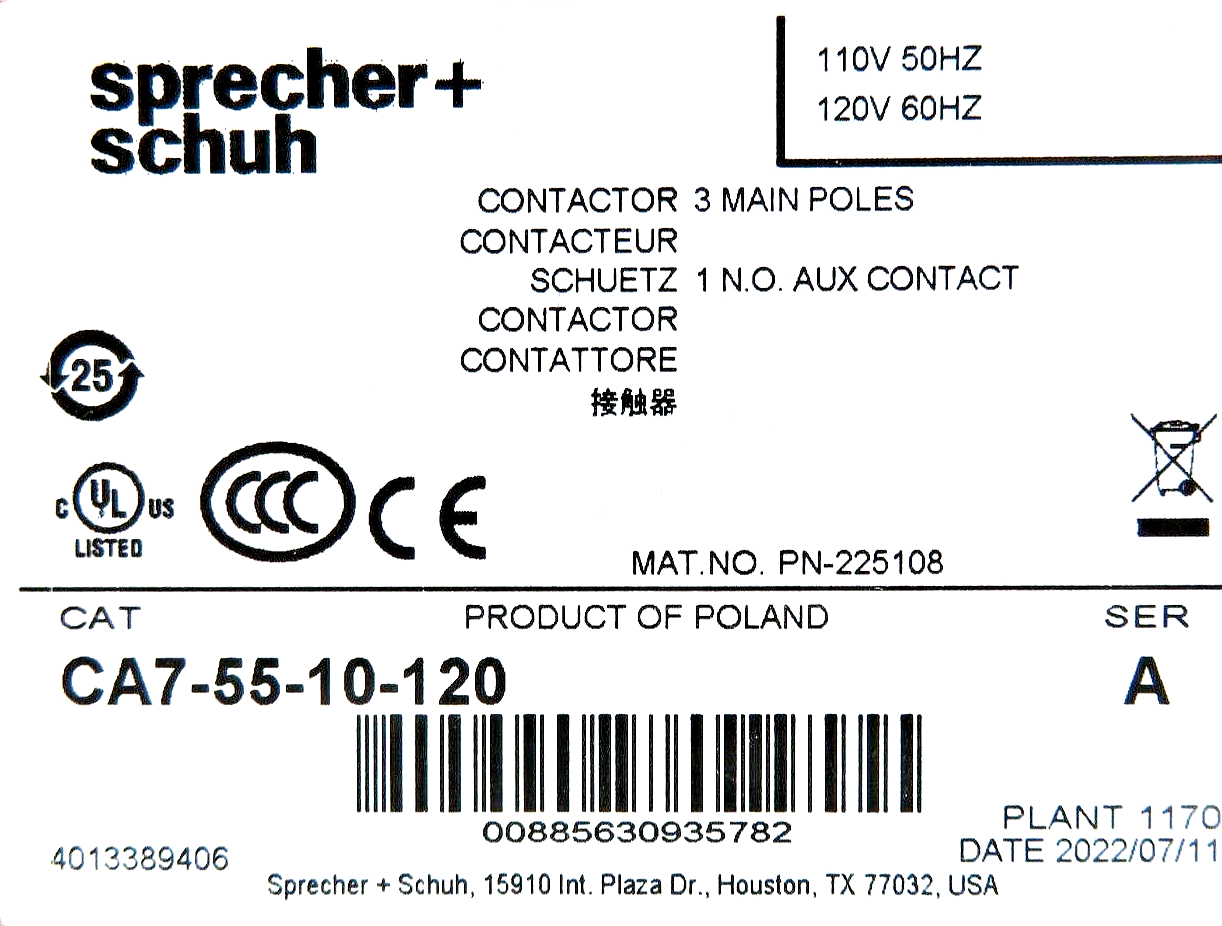

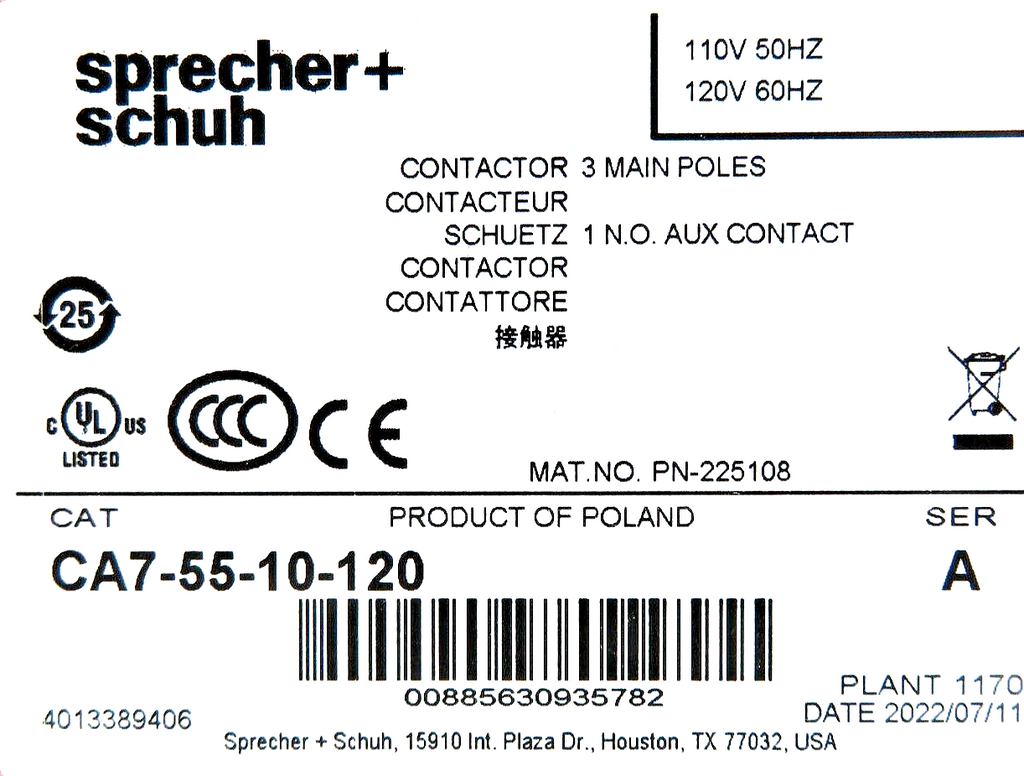

- Catalog number: CA7-55-10-120
- Alternate part numbers: CA7-55-10-120, CA75510120
- Product family/series: CA7 series
- Product type: IEC magnetic contactor
- Country of origin: Poland
Technical Specifications:
- Contactor type: Non-reversing open type contactor
- Number of poles: 3
- AC-3 current rating: 55 A
- AC-1 current rating: 85 A

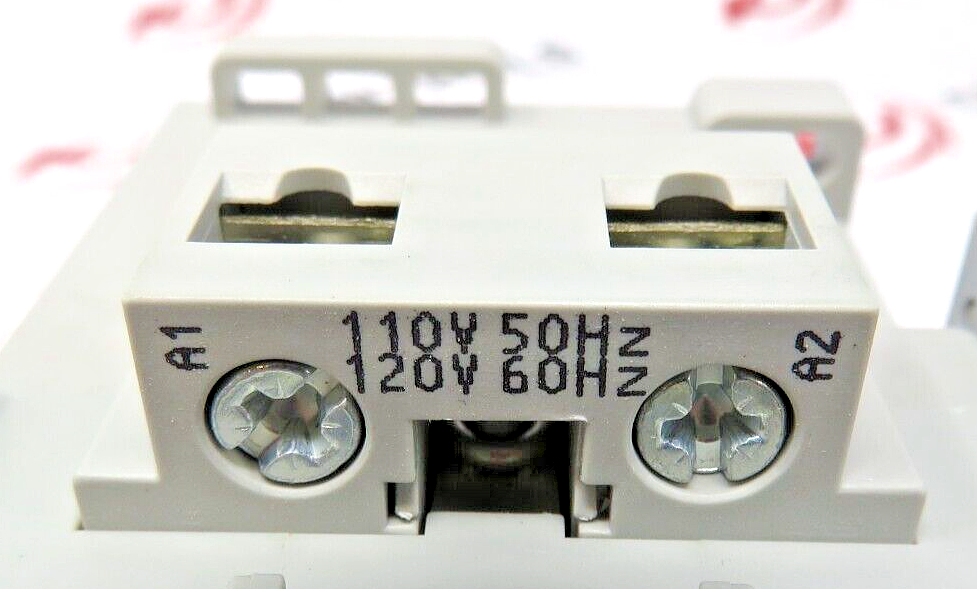

- Coil voltage: 110 V at 50 Hz and 120 V at 60 Hz
- Coil code: 120
- Auxiliary contacts: 1 NO
- Rated insulation voltage: 690 V IEC, 600 V UL and CSA
- Rated impulse withstand voltage: 6 kV
- Horsepower rating 1 phase: 5 HP at 115 V, 10 HP at 230 V
- Horsepower rating 3 phase: 15 HP at 200 V, 20 HP at 230 V, 40 HP at 460 V, 40 HP at 575 V
- Terminal type: Screw terminal
Product Features:
- Compact 54 mm wide CA7 contactor design

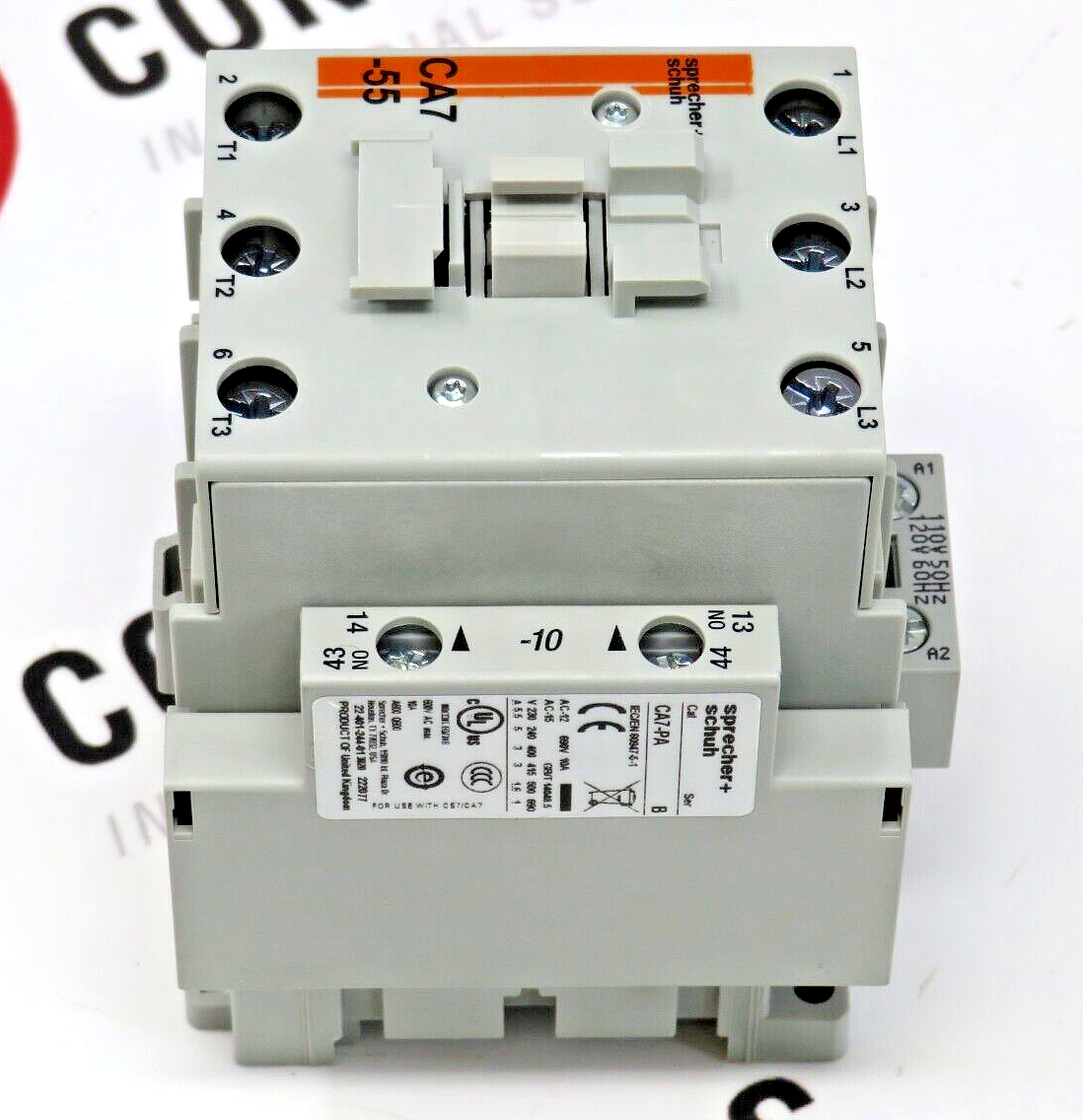

- Includes 1 normally open auxiliary contact
- Reversible coil design for flexible wiring orientation
- Dual power terminals on each pole for simplified wiring
- Mechanically linked contacts for safety-oriented control applications
- Modular accessory system interchangeable across CA7 contactors and CS7 control relays
Product Designed Use:
- Designed for switching and controlling electric motors in industrial applications
- Used in motor starters, control panels, and machinery control systems
- Suitable for industrial automation installations requiring a 55 A 3 pole IEC contactor
- Can be used with compatible Sprecher and Schuh overload relays and motor control accessories
