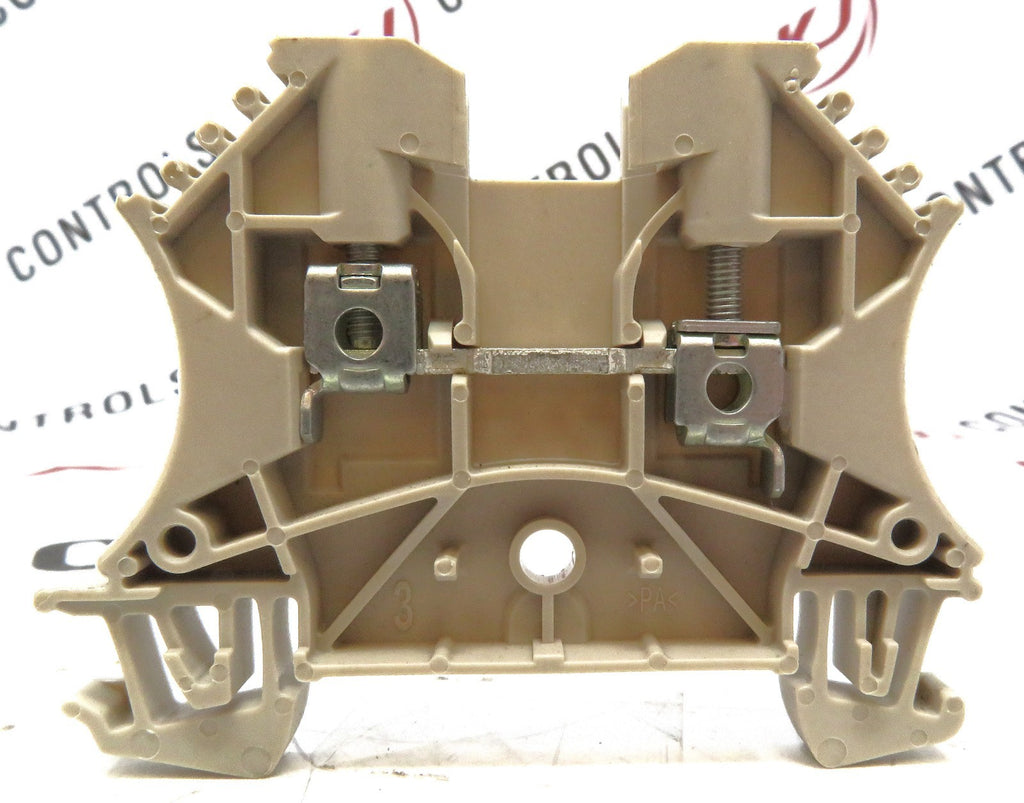

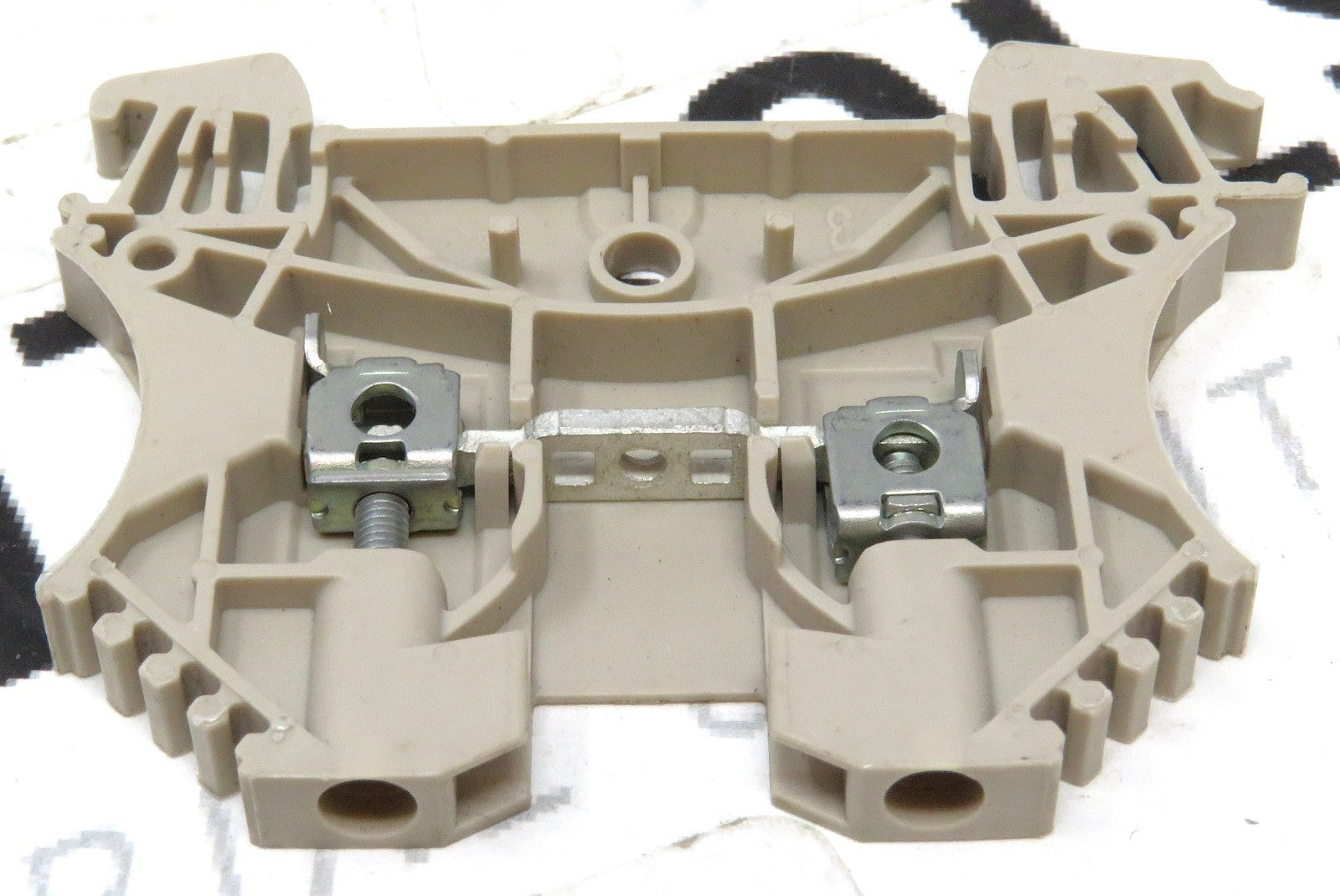

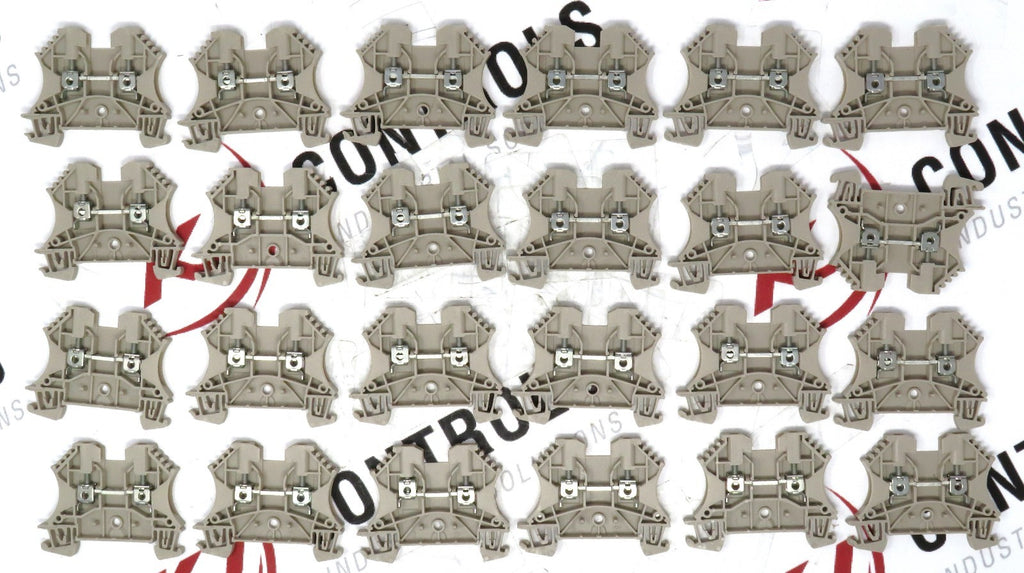

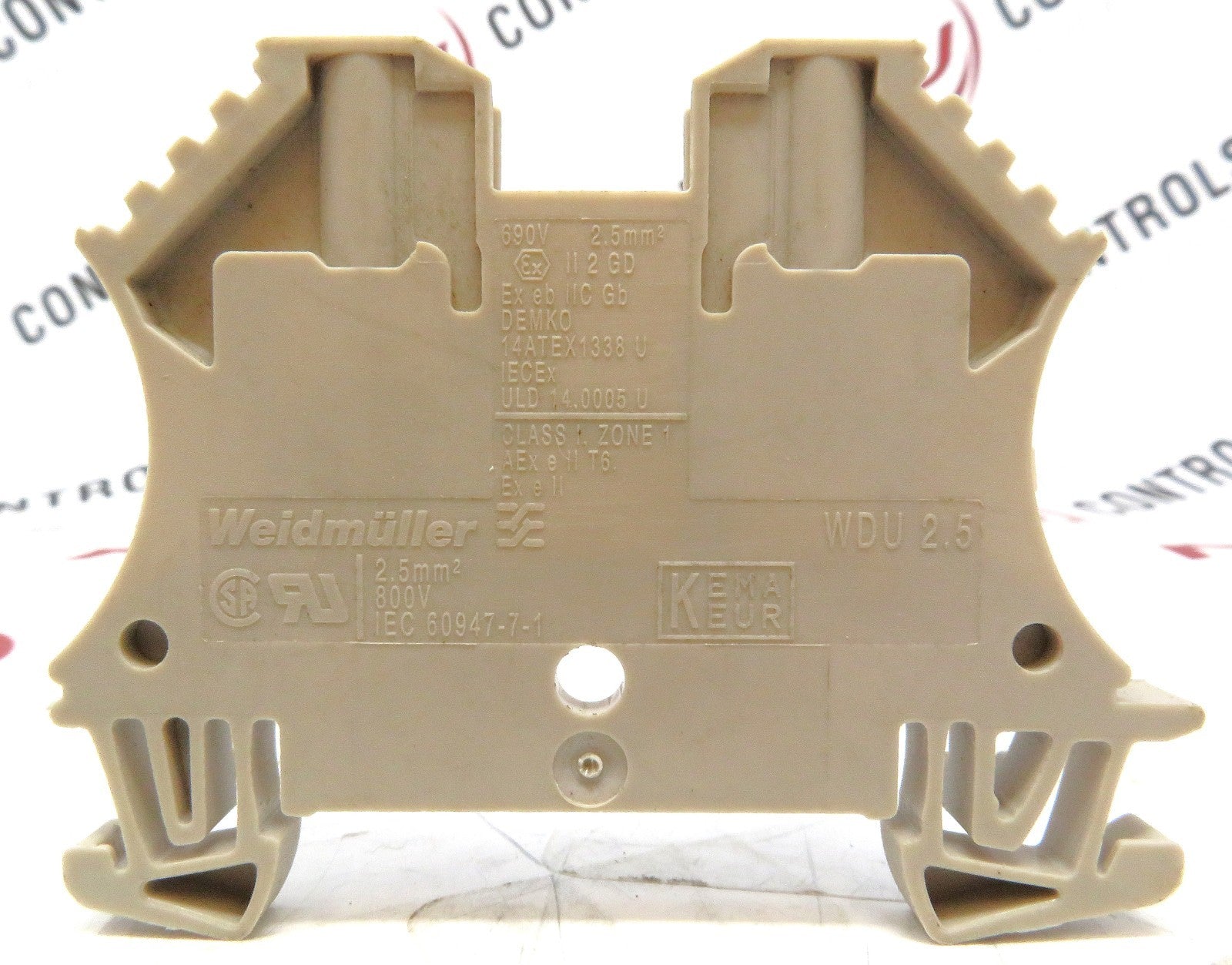

Weidmüller Terminal Block – Lot of 24
Product Basic Information:
- Manufacturer: Weidmüller Interface GmbH & Co. KG
- Part Number: WDU 2.5 (WDU2.5)
- Product Family/Series: W Series – WDU (Feed-Through Terminal Blocks)
- Universal Product Code (UPC):
- European Article Number (EAN): 4032248004294
- Manufacturer SKU: 1020000000
Technical Specifications:
- Connection Type: Screw clamp (screw terminal)
- Voltage Rating: 800 V
- Current Rating: 24 A (continuous), 300 A (short-term)
- Cross Section (Rated): 2.5 mm²
- Conductor Size Range: 30–12 AWG
- Insulation Material: Polyamide 66 (PA66)
- Flammability Class: UL 94 V-0
- Terminal Points: 2 (Feed-through)
- Mounting Type: DIN Rail (NS 35/7.5, NS 35/15, NS 32)
- Color: Beige (Dark Beige)
- Temperature Range: –60°C to +130°C
- Standards Compliance:
- IEC 60947-7-1
- UL Listed
- CSA Certified
- ATEX & IECEx Approved for Hazardous Areas
- Dimensions (HxWxD): Approx. 42 x 5.1 x 47 mm
- Weight (each): ~6.5 grams
- Total Lot Weight (24 pcs): ~156 grams
Product Features:
- Universal feed-through terminal for DIN rail mounting
- Screw clamp connection provides reliable and gas-tight wiring
- Accepts both solid and stranded conductors
- High short-term current withstand capability (up to 300 A)
- Housing made of flame-retardant, halogen-free plastic
- Certified for use in hazardous environments (ATEX Zone 1, IECEx)
- Compact and robust design for dense panel wiring
- Snap-on installation for standard DIN rails
Product Designed Use:
- Ideal for industrial control panels and junction boxes
- Commonly used in:
- Power distribution systems
- PLC wiring and machine control panels
- HVAC systems
- Oil, gas, and chemical process automation
- Suitable for hazardous (Zone 1) and non-hazardous environments
